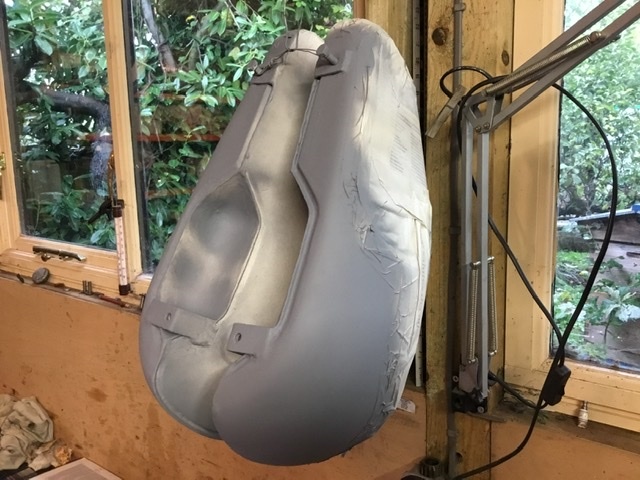

    The depression by the filler cap pulled out easily, and there are no dents in the tank, surprisingly.
    Every job on a rebuild project is 90% preparation!

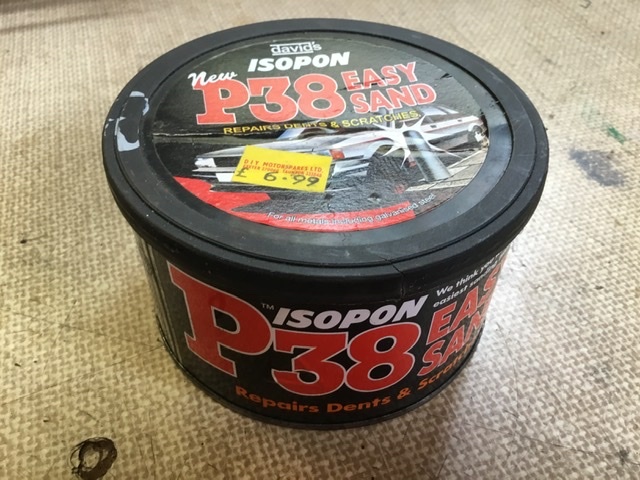

    I use a cheap and cheerful body filler which is a two part polyester mastic. When these appeared in the late 70s they made repairs much easier.

    • Like Like x 2
    • Informative Informative x 1
  2. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Last week the prep work for the tank and front mudguard was done. Here they are ready for the top coat, which is a cellulose paint, same as Triumph used back in the 60s.

    • Like Like x 3
  3. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

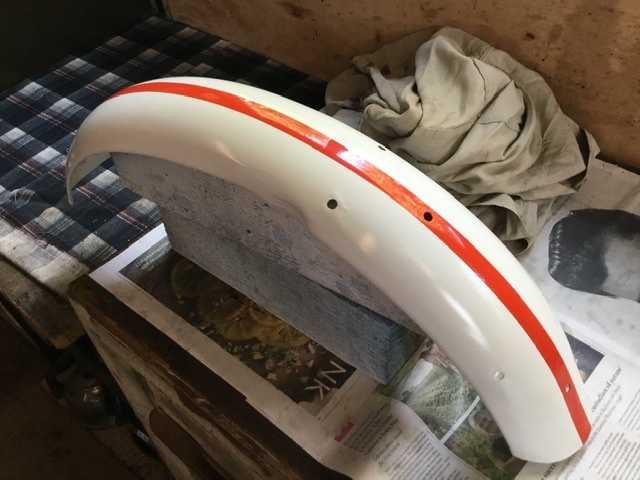

    I am happy with how the front mudguard is turning out. Not ecstatic, just happy. The Grenadier red stripe went on today, and in a week or so when it is properly dry i will apply the gold line either side. No picture of the tank as it’s not good, and i may have to re-do it. :worried:

    • Like Like x 5
  4. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,078
    243
    appalachia usa

    did tbe original stripes go all the way to the lip of the mudguard?

    • Like Like x 3
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,511
    1,000
    Southcoast of the UK Earth
    All unit bikes upto end of 67 and 68 on cut short of ends :)

    • Like Like x 2
  6. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    The end two inches of the front mudguard were rusted to metal with no paint, and had been painted in primer to protect them while in storage. There is a pic of the mudguard here: https://www.thetriumphforum.com/threads/tiger-90-rebuild.31008/page-15
    I assumed :eek: that the red strip went all the way to the end. Hey ho!

    • Like Like x 1
  7. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Looks like i will have to check what it should look like and overpaint a bit of the red.

    • Like Like x 1
  8. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,511
    1,000
    Southcoast of the UK Earth
    Pre 68 bikes to the end like you have done :) I should have made it more clear in my comment :) 68 on only stopped before the end.

    • Like Like x 2
    • Useful Useful x 1
  9. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Phew! no change needed then. :)

    • Like Like x 2
  10. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

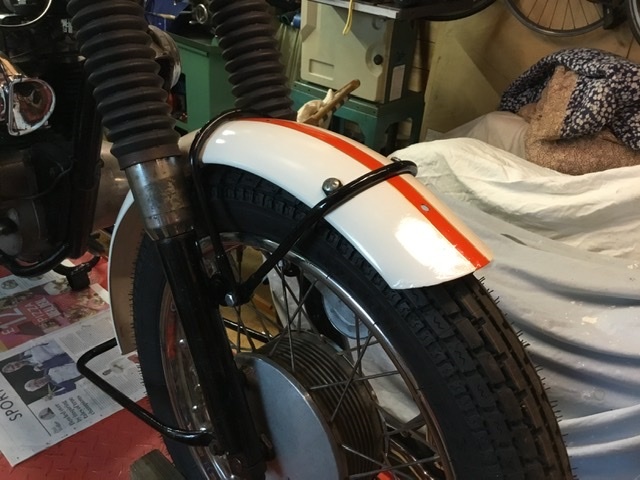

    Front mudguard finished and fitted. I used screw head bolts, not the original hexagon head bolts, as I prefer the look of them.

    • Like Like x 7
  11. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    New exhaust pipes and silencers, correct for the T90 rather than the Goldie style that it came with. The brackets for the down pipes are on their way.

    • Like Like x 5
  12. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Underside of the seat. It is rusted out along the edges, around the hinges and catch.

    • Like Like x 2
    • WTF WTF x 1
  13. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

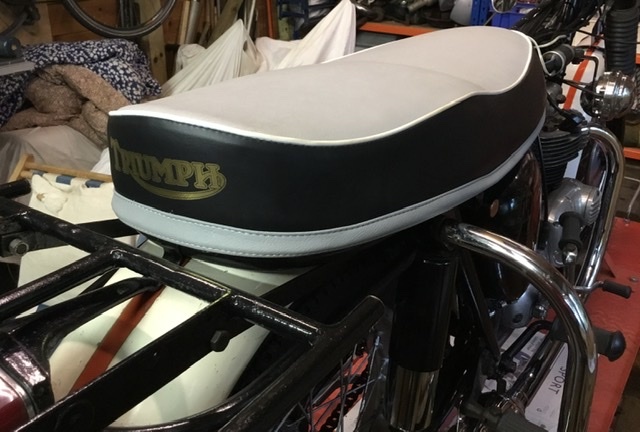

    The best way forward was to buy a modern reproduction seat. This has a metal base (not fibre glass) but the metal is thinner than the original, so it flexes a bit. Still it looks great, so smiles all round.

    • Like Like x 4
  14. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Repainting the petrol tank, back to primer.

    • Like Like x 5
  15. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Finished! There will be some things that come from a shake down on the road, but for now it calls for a celebration.

    • Like Like x 7
  16. Vulpes

    Vulpes Confused Member

    Mar 14, 2018
    16,546
    1,000
    Netherlands
    Very nice!

    • Agree Agree x 2
    • Like Like x 1
  17. Adie P

    Adie P Crème de la Crème

    Jul 7, 2018
    3,592
    1,000
    MID DEVON
    Nice work; nice bike - well done indeed! :)

    • Agree Agree x 2
    • Like Like x 1
  18. Iron

    Iron Elite Member

    Dec 29, 2021
    2,493
    943
    Bob Ross Studios
    Good job. Run round the block and on to the next one.....:)

    • Like Like x 3
  19. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,078
    243
    appalachia usa
    excellent. can you do video of it running?

    • Like Like x 2
  20. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    indeed i shall, at the weekend as i have some long neglected domestic tasks to do first :rolleyes:
