    Greetings everyone, yesterday I got my mitts on a ‘67 Tiger 90. It’s in barn fresh condition so needs a full rebuild. I know my way around other makes of British bikes from the 50s and 60s, but this is my first Triumph. It’s complete, matching numbers and has enough patina to keep it as an original restoration. Now if I can work out how to attach pictures to this forum I will.


    • Like Like x 9
  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,589
    1,000
    Southcoast of the UK Earth
    Great project :)

    • Agree Agree x 2
  3. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Oct 3, 2018
    6,142
    800
    Three Counties
    Does it help with the rebuild if you do it in zero gravity :p

    • Funny Funny x 10
    • Agree Agree x 1
  4. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    I left the anti-gravity unit switched on overnight and that’s what the shed looked like when I opened the door this morning.

    • Funny Funny x 9
    • Agree Agree x 1
  5. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Let’s try again...


    • Like Like x 12
  6. Adie P

    Adie P Crème de la Crème

    Jul 7, 2018
    3,632
    1,000
    MID DEVON
    Ooooooh that's going to be NICE!:):cool:

    • Agree Agree x 3
  7. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

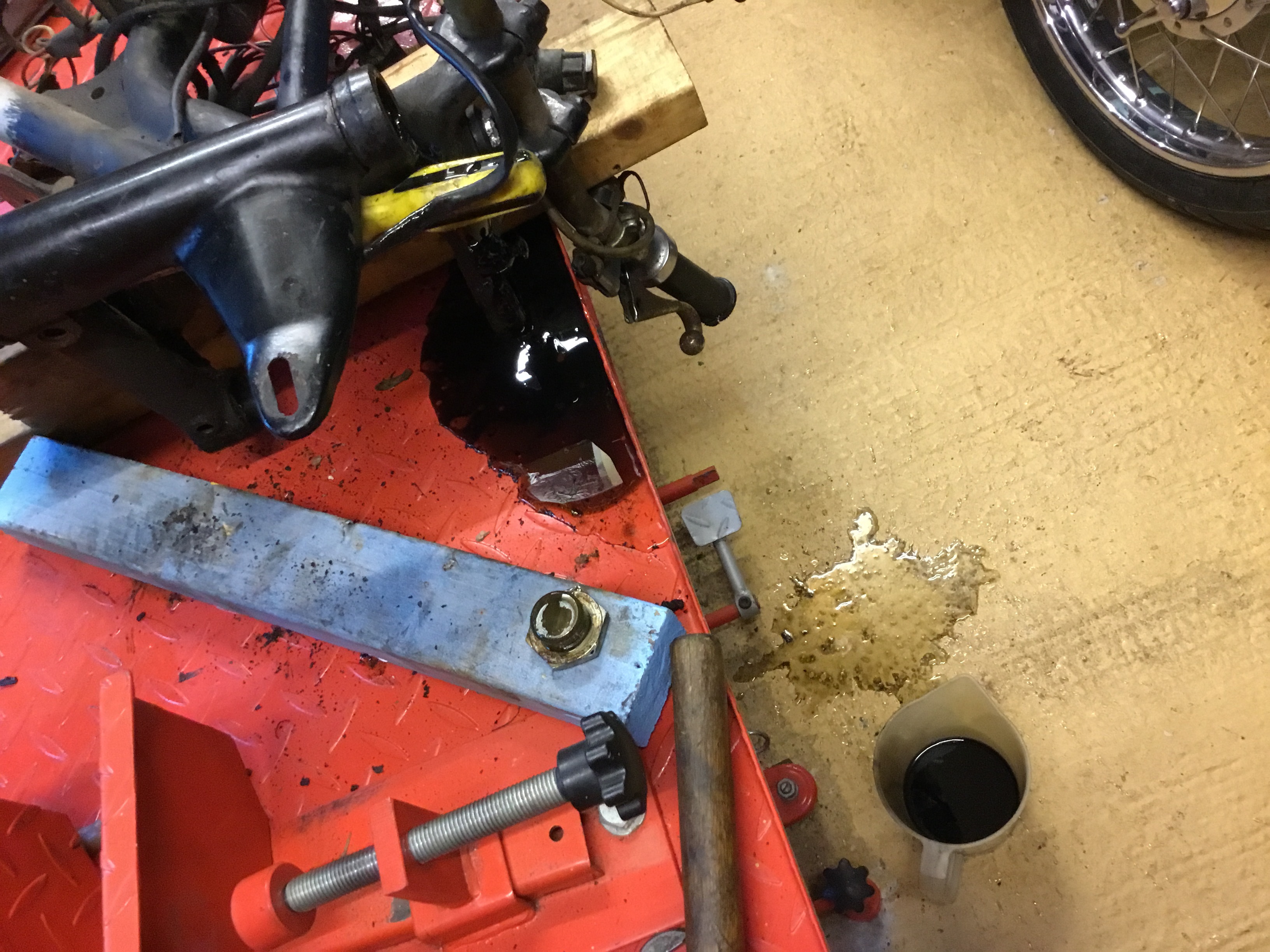

    Right hand fork had more water in it than oil. The water is the puddle on the floor, the black stuff is the fork oil.


    • Like Like x 4
  8. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

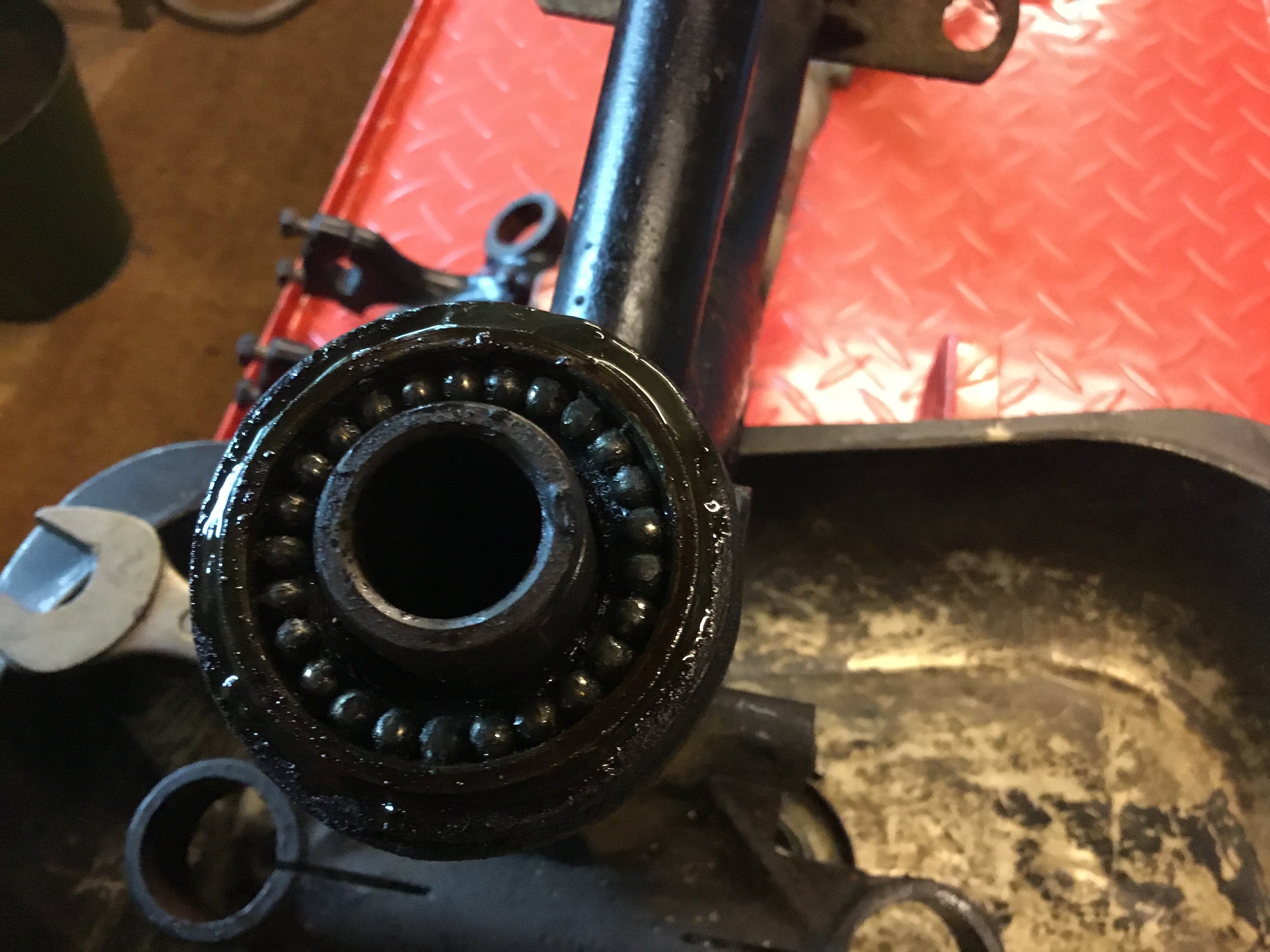

    The steering was a bit notchy, so I was expecting to see the cups and cones all pitted. As it turns out the grease had dried like tar, so when I looked at things closely the races were all OK. Picture of the upper race here.


    • Like Like x 6
  9. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

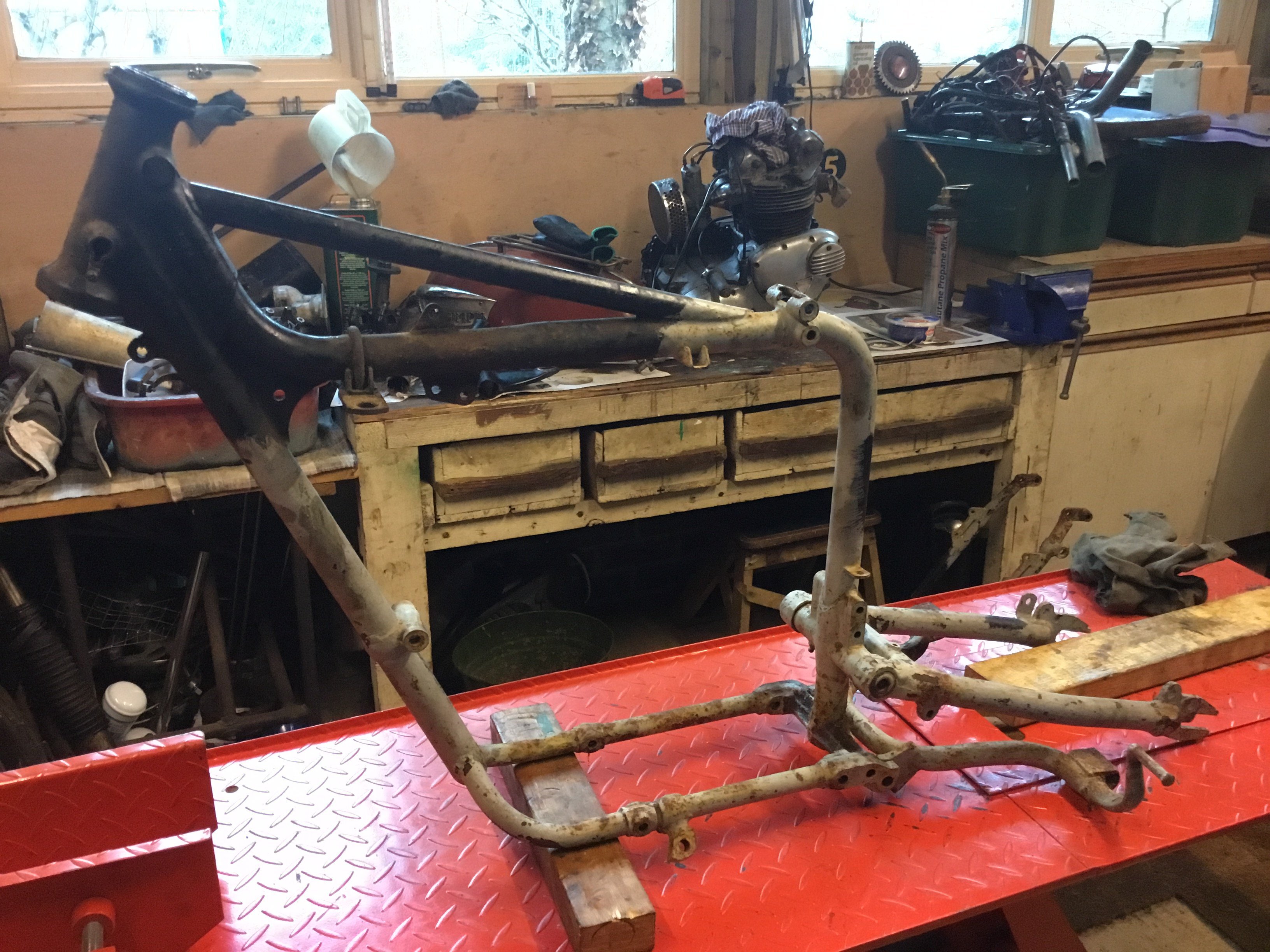

    Now down to the bare frame. Checked for straightness along the length, height and width. Steering column straight. Swinging arm has no free movement and is correctly aligned, so no reason to take it out. All the brazed joints are are solid, and there is no significant rust. I think this is an all time first!


    • Like Like x 7
  10. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    All the lugs appear to be OK, but the bracket to hold the coils has been repaired, and this could be bettered. Can’t get one of the centre stand bolts out, which I need to as it’s a very sloppy fit. Other lugs have round - not oval - holes.

    • Like Like x 2
    • Useful Useful x 1
    • Love You Love You x 1
  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,589
    1,000
    Southcoast of the UK Earth
    Good progress and nice if you can use as many of the original parts possible as pattern parts are rubbish.

    • Agree Agree x 2
    • Like Like x 1
  12. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

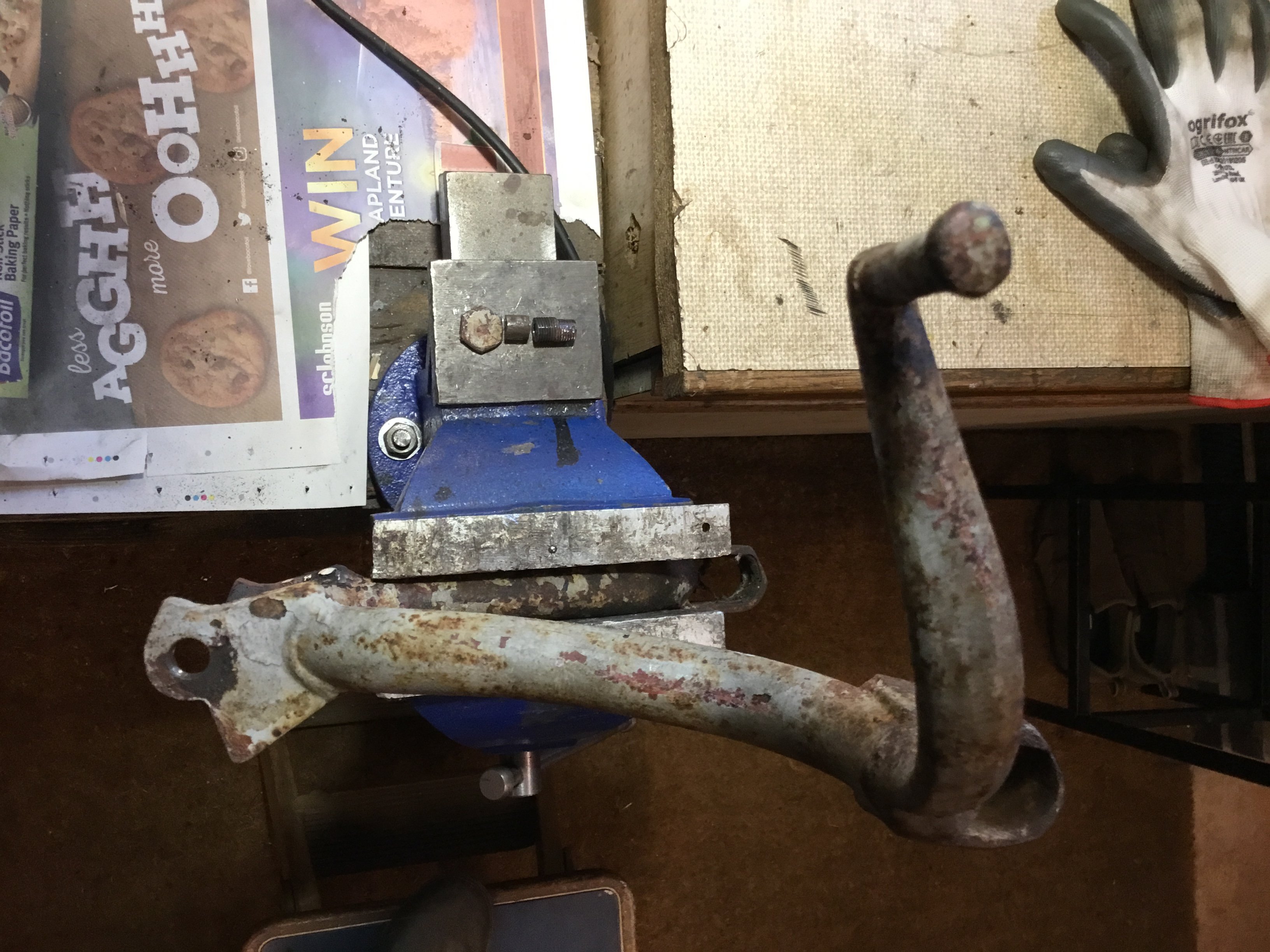

    Spent the afternoon in the workshop but with little progress to show for it. The bolt holding the side stand on had to be cut off. Picture shows the side stand with a bent leg and the remains of the bolt.


    • Like Like x 5
  13. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,589
    1,000
    Southcoast of the UK Earth
    Its always the little jobs that take longer :)

    • Agree Agree x 3
  14. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Straightened the centre stand this morning.


    • Like Like x 5
  15. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

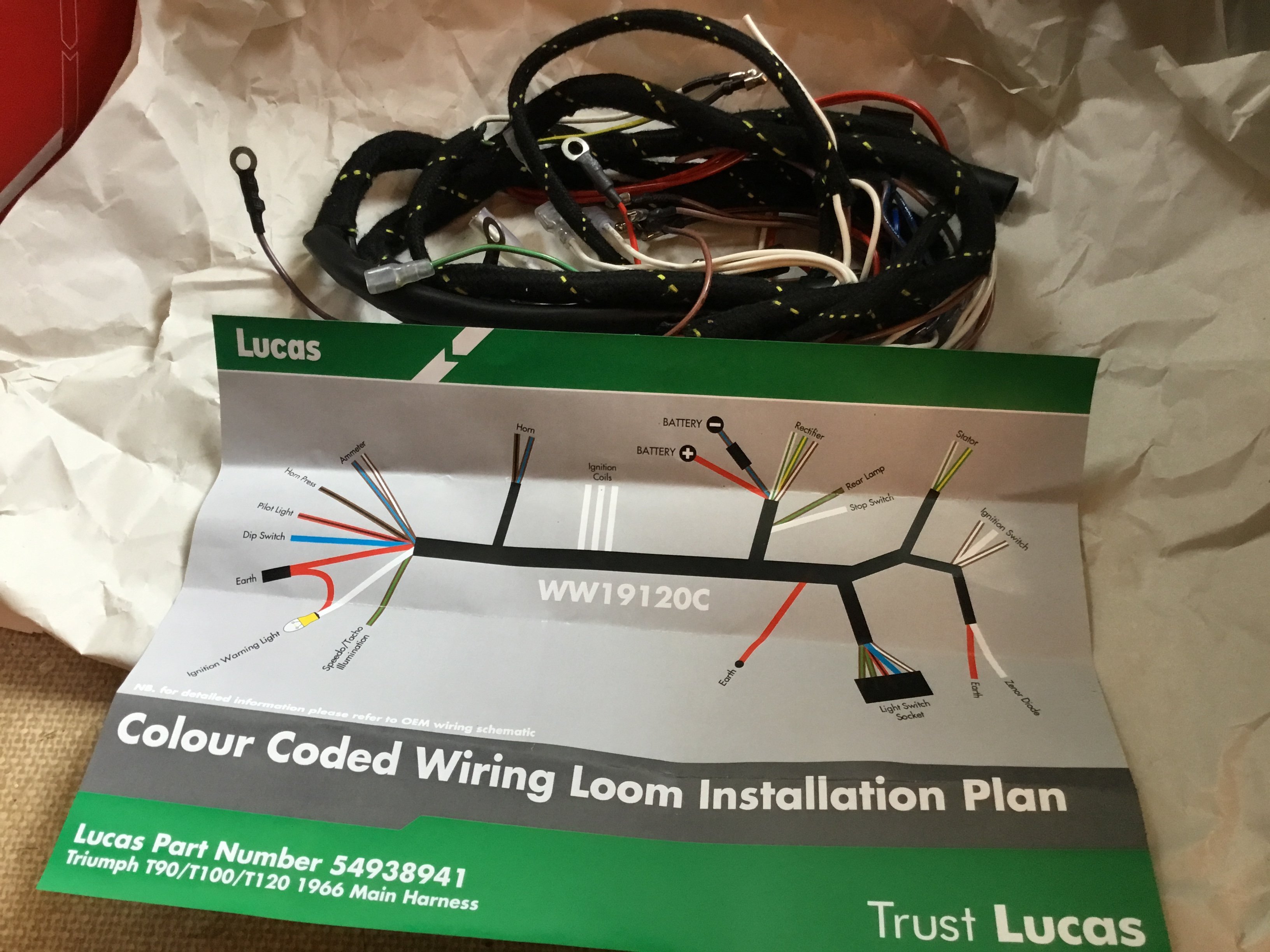

    And the spare parts are starting to arrive, here’s a replacement wiring loom, with diagram. Things are so easy now, 20 years ago I had to make a loom for a restoration project, but that was when you could go to a local car spares shop and buy lengths of coloured wire.


    • Like Like x 6
  16. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,589
    1,000
    Southcoast of the UK Earth
    Great news on sorting out the stand :)

    • Like Like x 2
    • Agree Agree x 1
  17. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    • Like Like x 1
    • Agree Agree x 1
  18. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,589
    1,000
    Southcoast of the UK Earth
    You req a glass type 35 amp UK fuse, you will see 17-20-25 amp quoted but that is US only as they use a different rating.

    • Useful Useful x 2
    • Like Like x 1
    • Agree Agree x 1
  19. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Thanks Darkman, I rummaged around my box of electric bits and found a 20 amp fuse, but will find a 35amp one.

    • Like Like x 2
    • Agree Agree x 1
  20. Armando Morales

    Armando Morales Noble Member

    Mar 29, 2021
    881
    443
    Mexico
    That looks like a fun project !
    Love the antigravity, it would make it a lot easier to fit the ball bearings on the bottom :cool:

    • Like Like x 3
    • Agree Agree x 2
