Featured Tiger 90 Rebuild

Discussion in 'Vintage Classics' started by Sir Clip, Feb 6, 2022.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

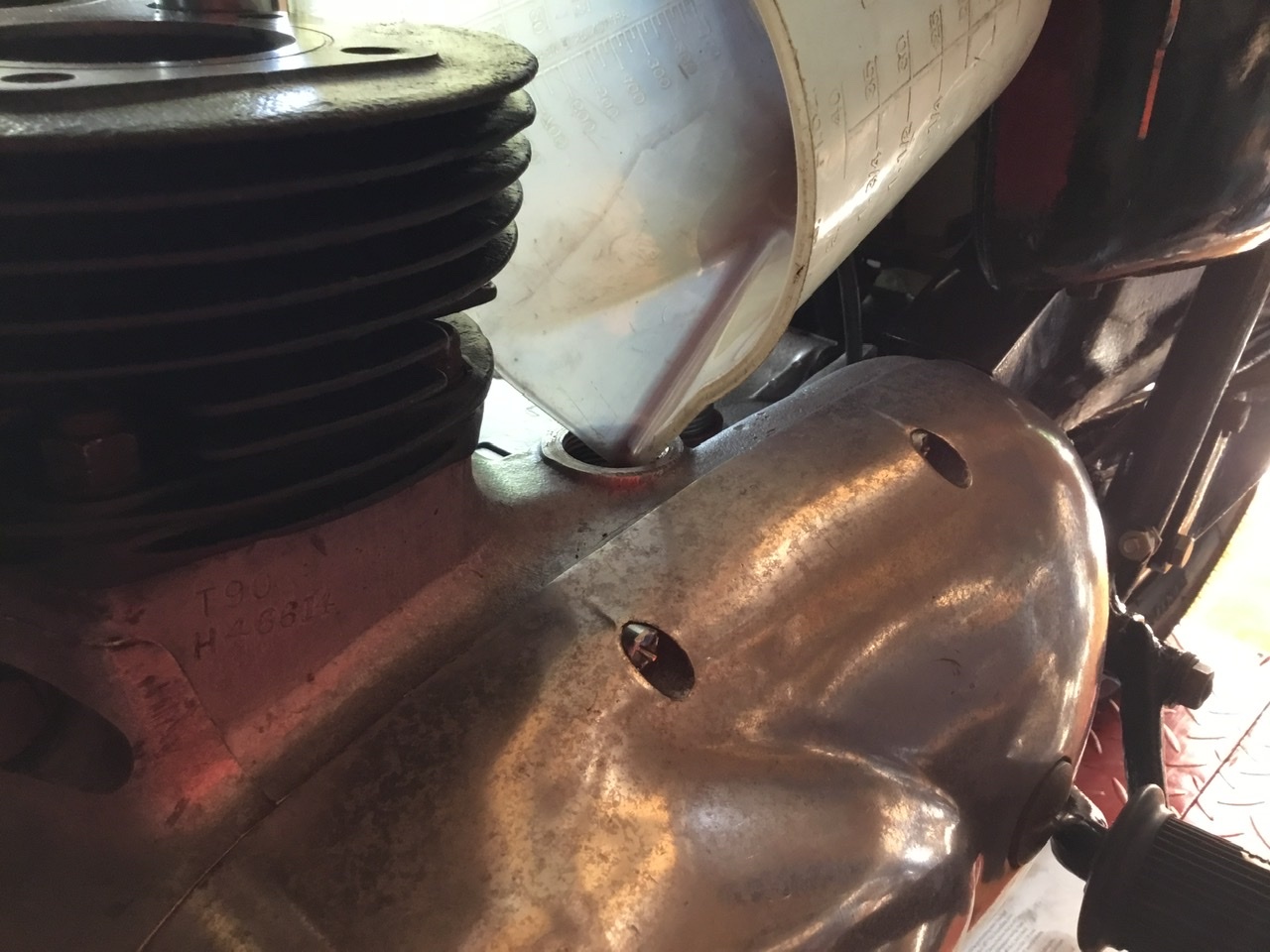

    Filled the primary cases with about half a pint of ATF.

    • Like Like x 2
  2. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

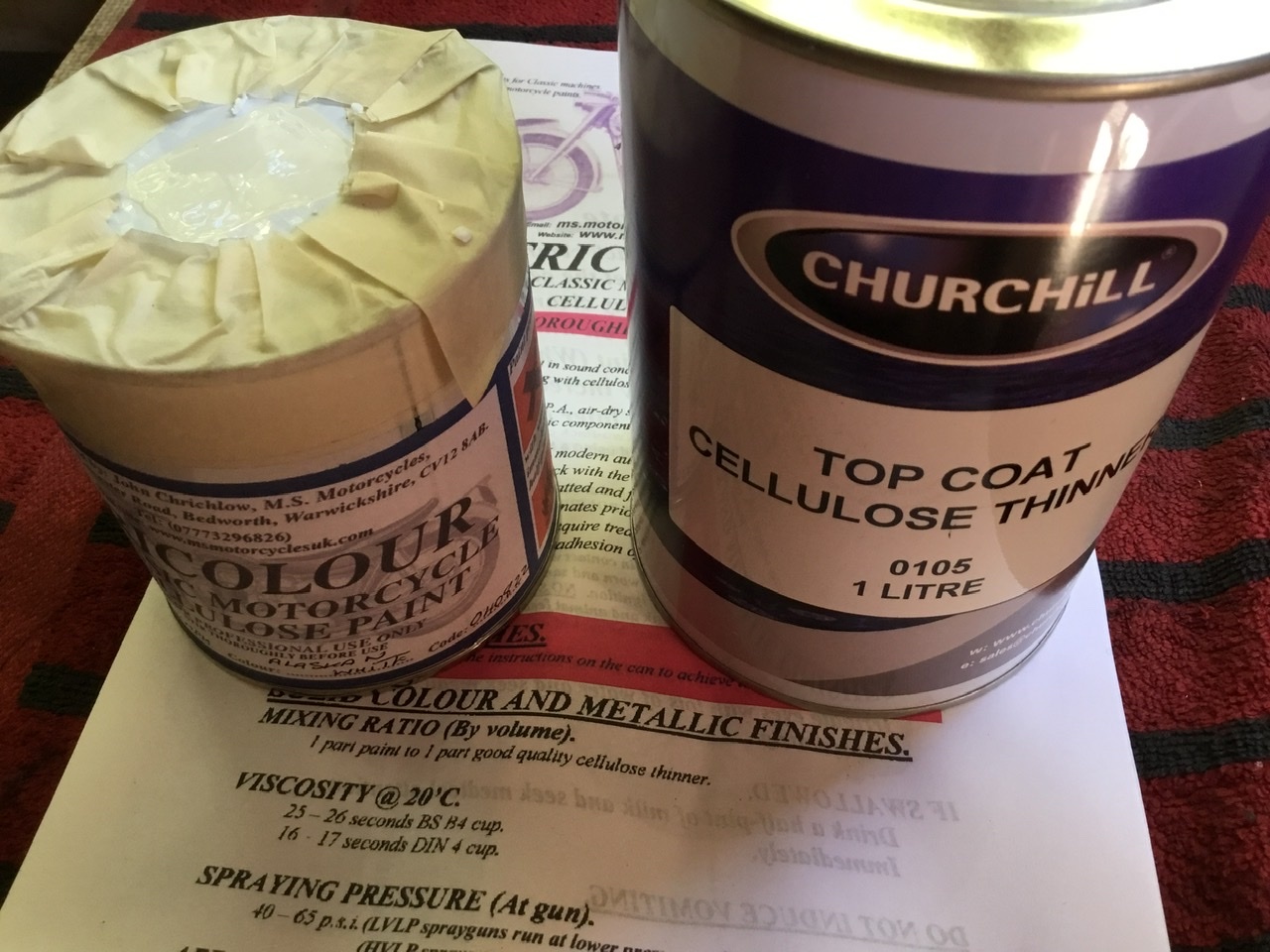

    A can of Alaska white paint arrived today. This is for the front mudguard and fuel tank both of which have large patches where the paint is missing.

    • Like Like x 3
  3. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,099
    243
    appalachia usa
    what kind of ATF?

    • Useful Useful x 1
  4. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Here is the bottle of Automatic Transmission Fluid that i used. It is a cheap non-branded item, but it does the job of keeping the primary chain lubricated. Many years ago i used to use engine oil, but today modern engine oils are full of anti-friction agents and too slippery to use if they come in to contact with a clutch.

    • Like Like x 1
  5. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,099
    243
    appalachia usa
    the dexron 3 formulation is a common solution. i dont know where you are but the original ATF recommendation in america for wet motorcycle clutches was for Type F, specified for ford products a long time ago. but dexron/mercon/universal fluids seem to be the norm these days in many auto applications.

    i have a norton i bought with anonymous ATF in the chaincase, which i am going to replace with Type F as soon as i get around to it. the clutch is very grabby with almost no ability to slip, and im wondering whether the Type F will solve that problem

    • Like Like x 2
  6. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Interesting. I’m in the UK so imagine that ATF products would be similar to those in the USA. I have this in the primary case of two other bikes and the clutches are all right with it. Let’s see what the clutch on this bike is like when it is running (soon i hope!).

    • Like Like x 2
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,526
    1,000
    Southcoast of the UK Earth
    Castrol TQF works fine :)

    • Like Like x 2
  8. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,099
    243
    appalachia usa
    interesting:


    • Like Like x 2
    • Useful Useful x 2
  9. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

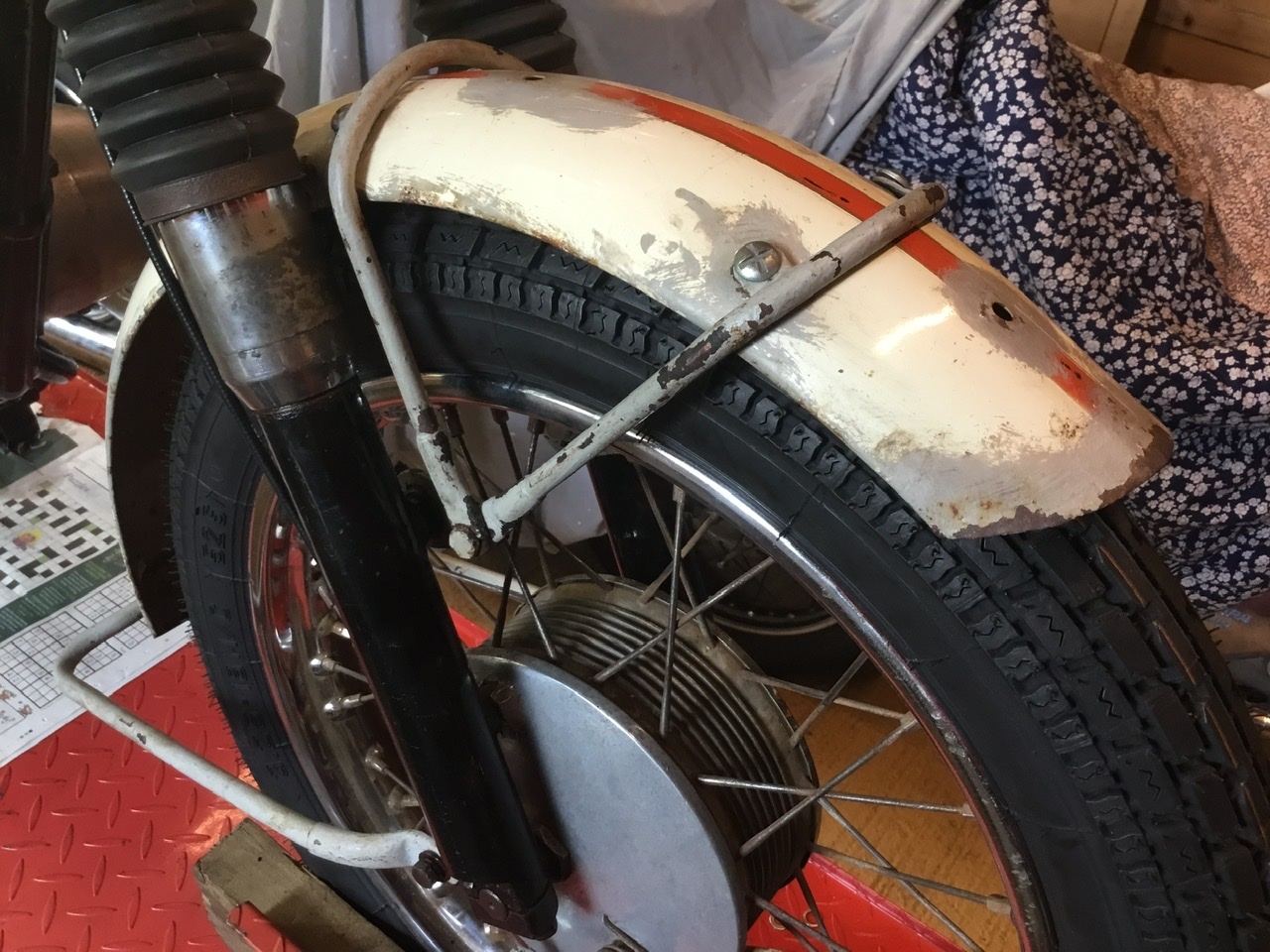

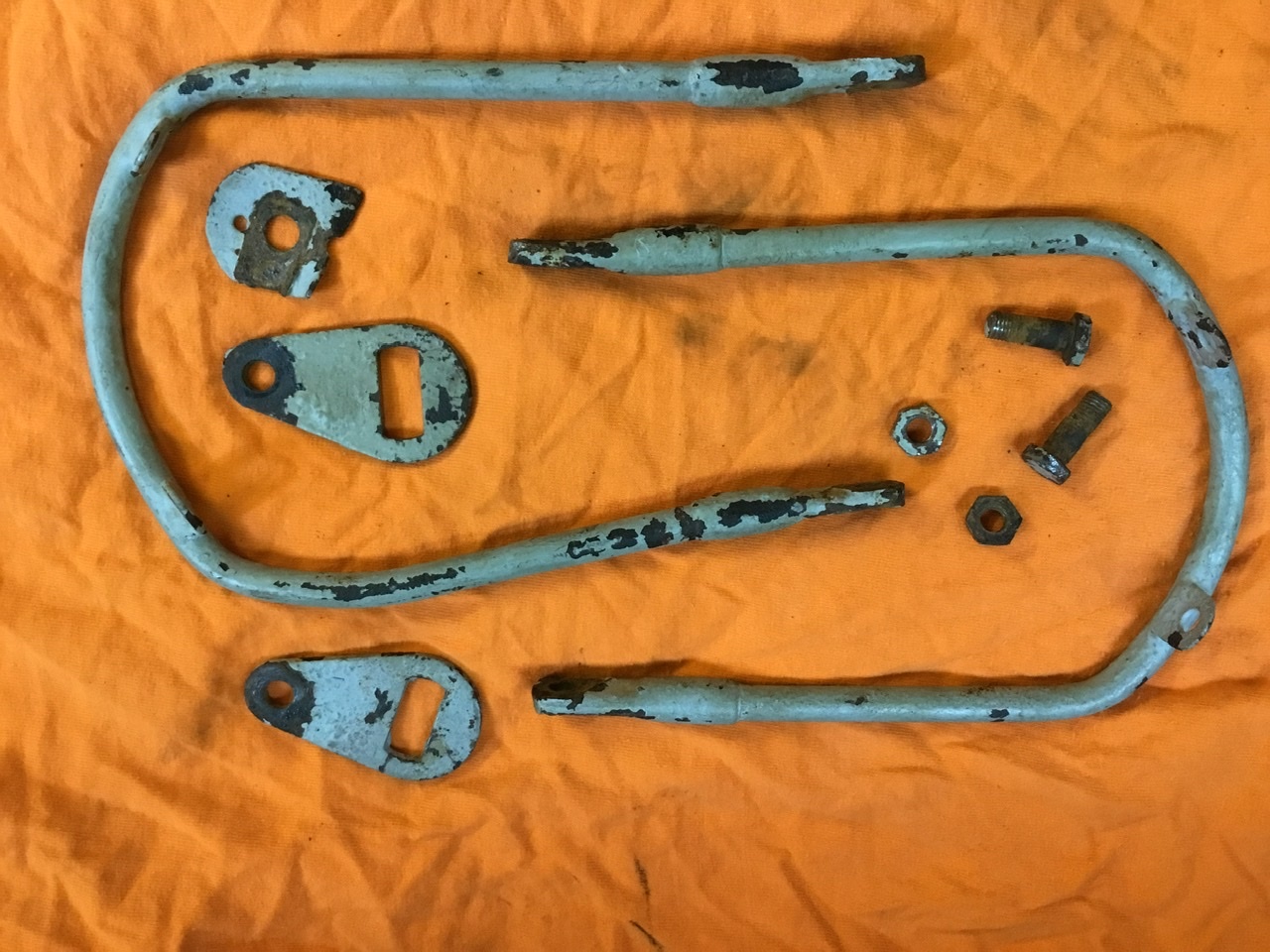

    I am working on the front mudguard carrier today. The bolts came apart, but are too rusty to be put back on. The carrier has some extra bends which need straightening.

    • Like Like x 2
  10. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

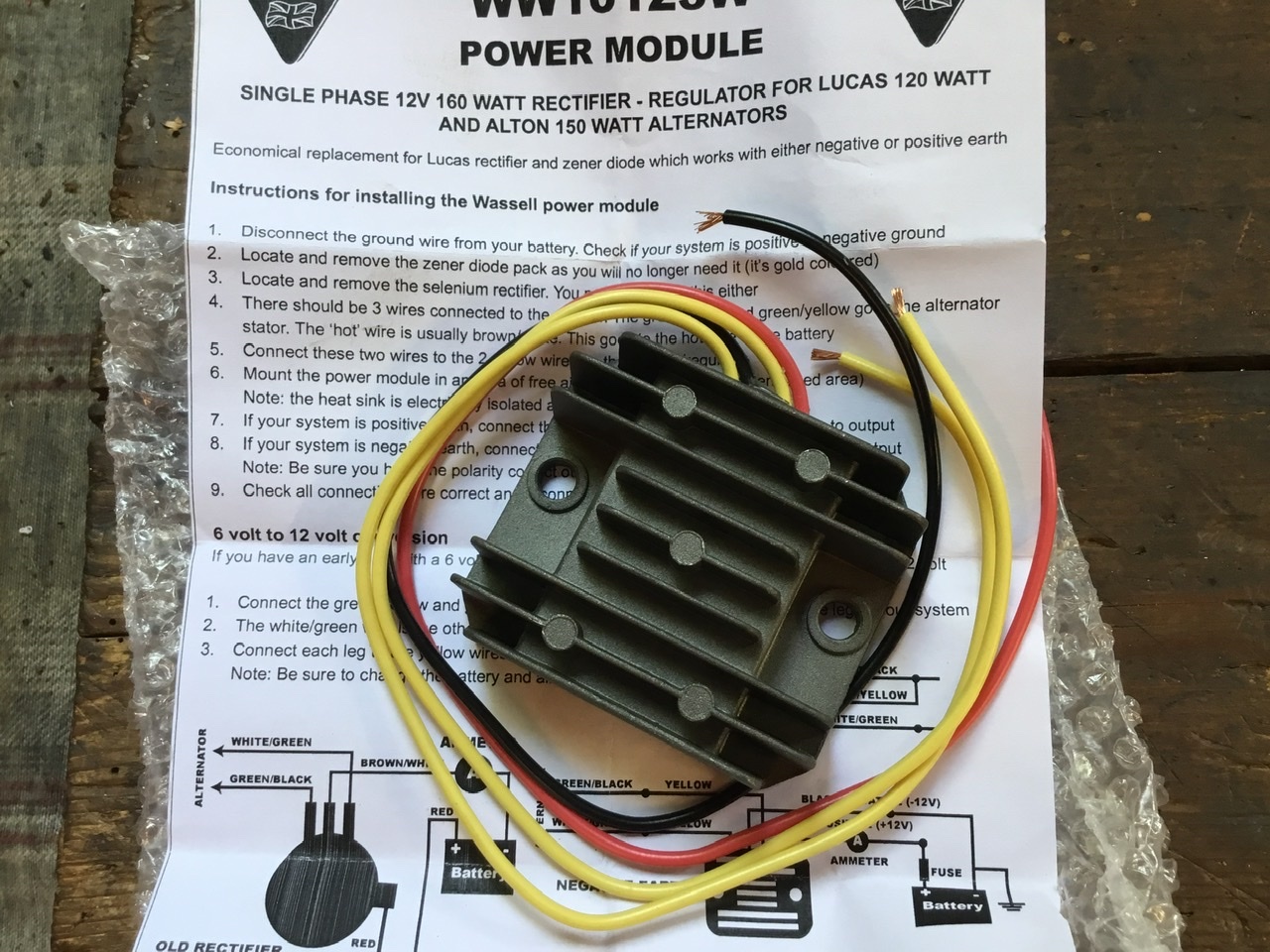

    Electrics today. The rectifier is dead (it’s shorted out internally) and the zener diode looks bad but can’t be tested properly until the engine is running. The best option is to replace both with a modern solid state rectifier-regulator.

    • Like Like x 1
  11. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

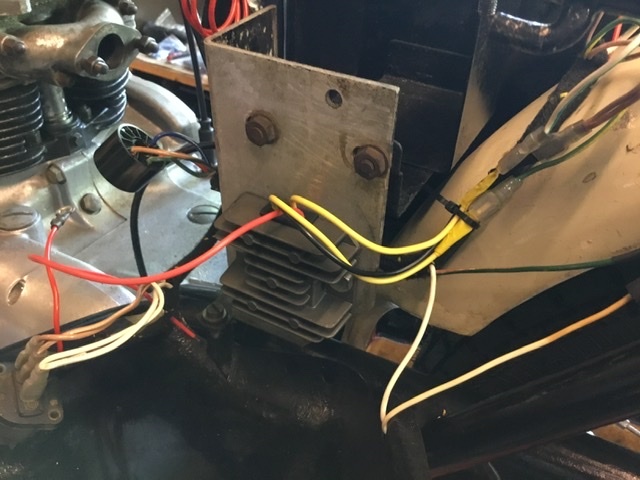

    Nearly wired up.

    • Like Like x 3
  12. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    #292 Sir Clip, Aug 15, 2022
    Last edited: Aug 16, 2022
    Straightened the front mudguard and its carriers. Test fit on the bike to check all is good before painting starts.

    • Like Like x 4
  13. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

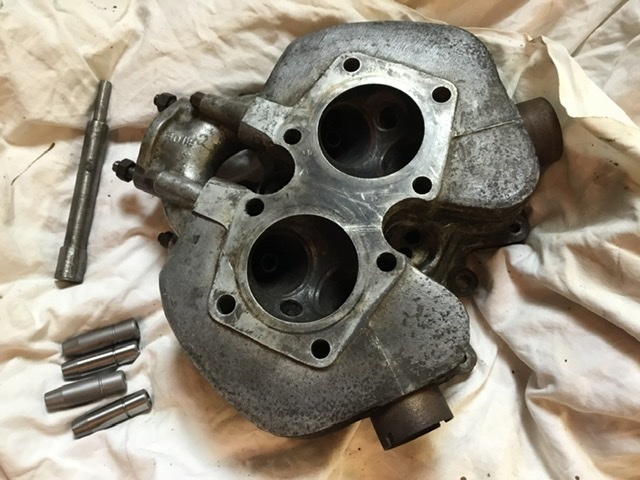

    A picture of the head, with the new valve guides and a home made drift, alongside. Next step was to put the head in the oven and heat to 330 deg C.

    • Like Like x 2
  14. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    #294 Sir Clip, Sep 4, 2022
    Last edited: Sep 7, 2022

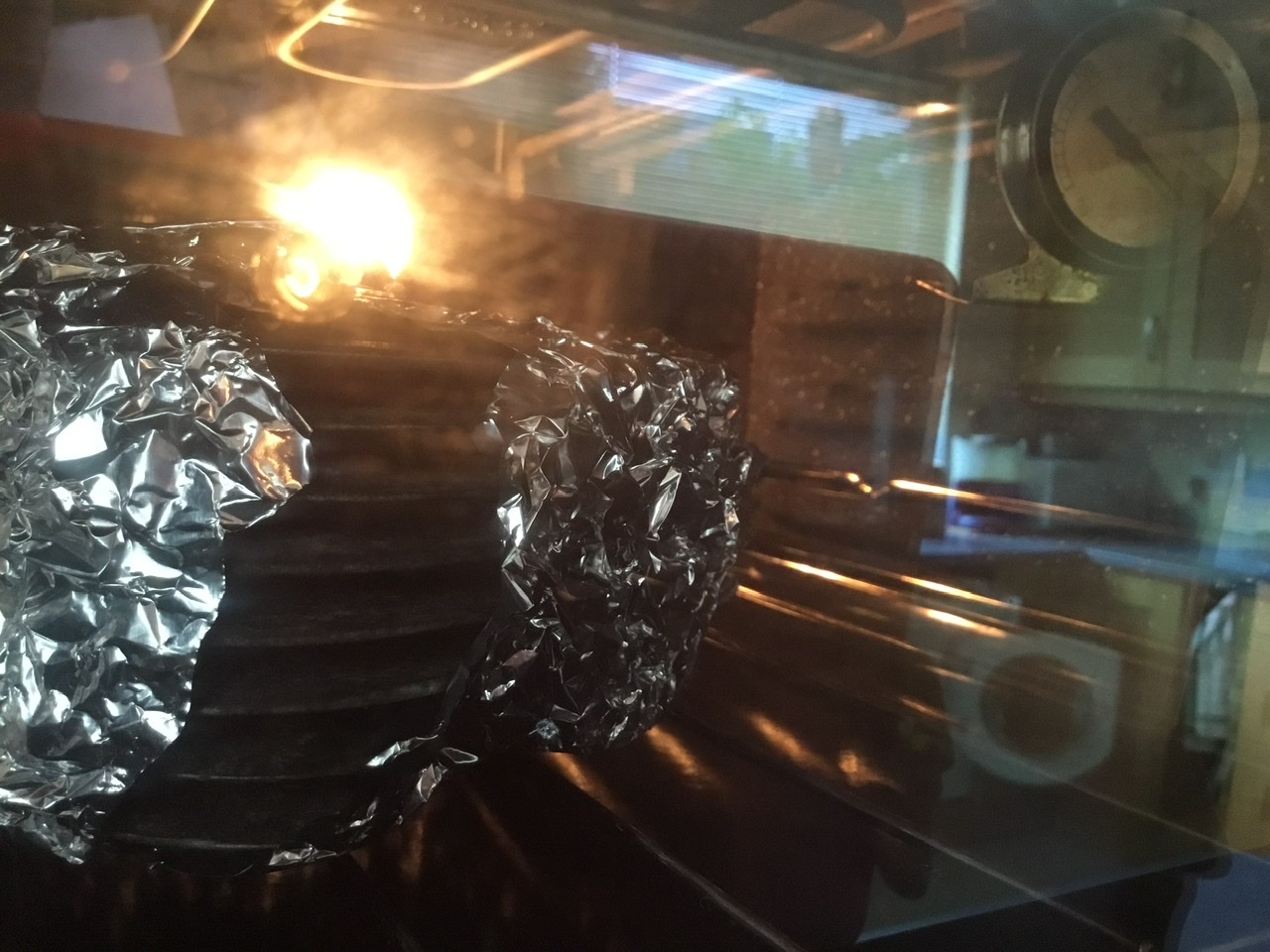

    Picture taken through the oven door, the reflection on the glass window in the door makes for a poor photo. The head is wrapped in tin foil to catch any stray oil drips, and in the top right hand corner is the thermometer. i left it in at 330 deg C for fifteen minutes as that’s how long the engine takes to warm up when running. I found doing it this way doesn’t leave the oven smelling of oil, which keeps the wife happy.


    • Like Like x 4
    • Funny Funny x 1
  15. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

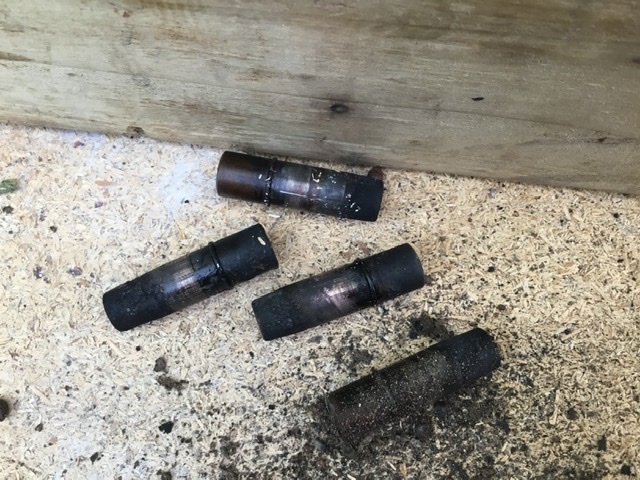

    The old valve guides. These have a slight bronze colour to them, the new ones don’t.

    • Like Like x 2
  16. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

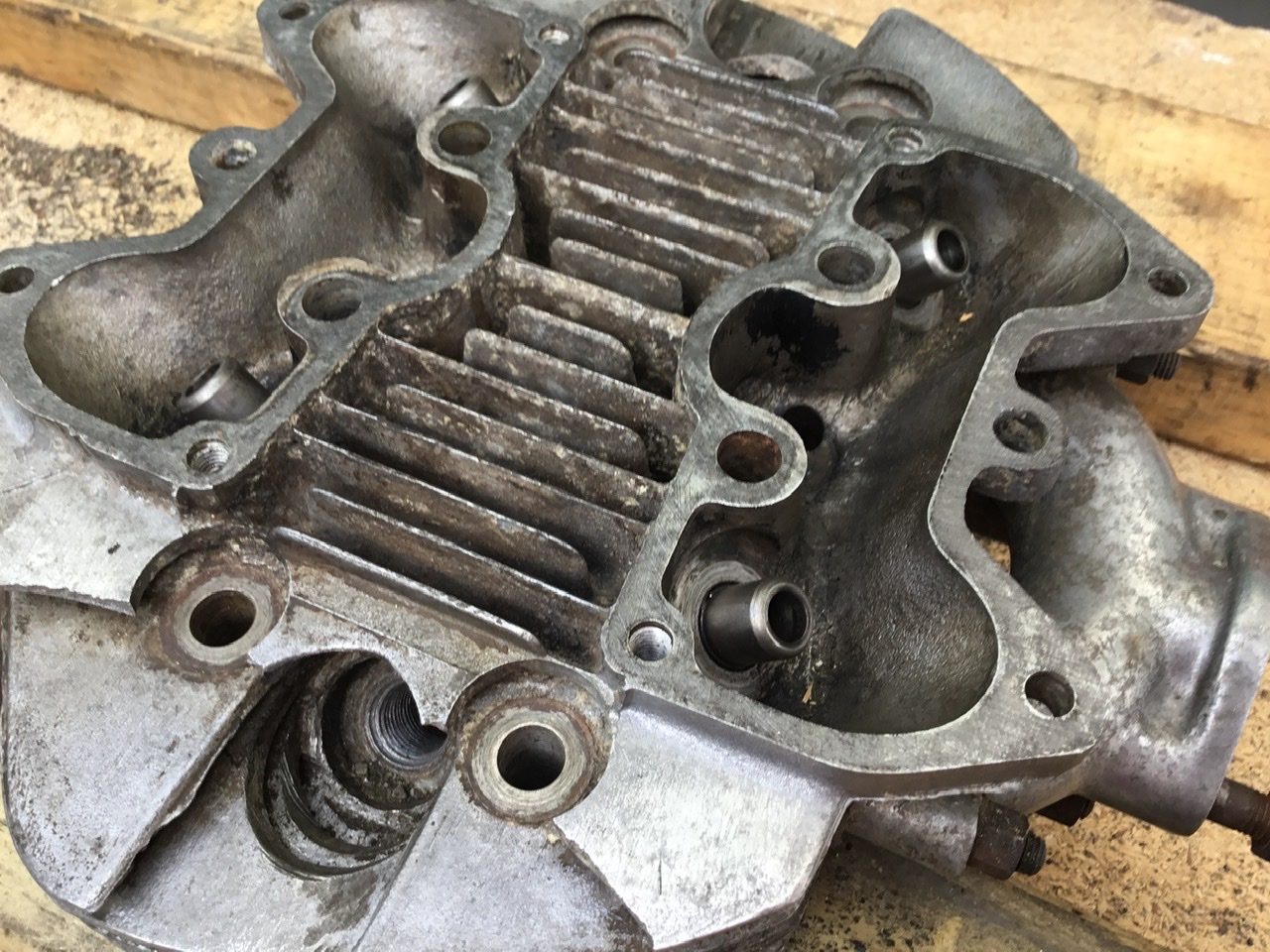

    Head with the new valve guides in.

    • Like Like x 2
  17. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

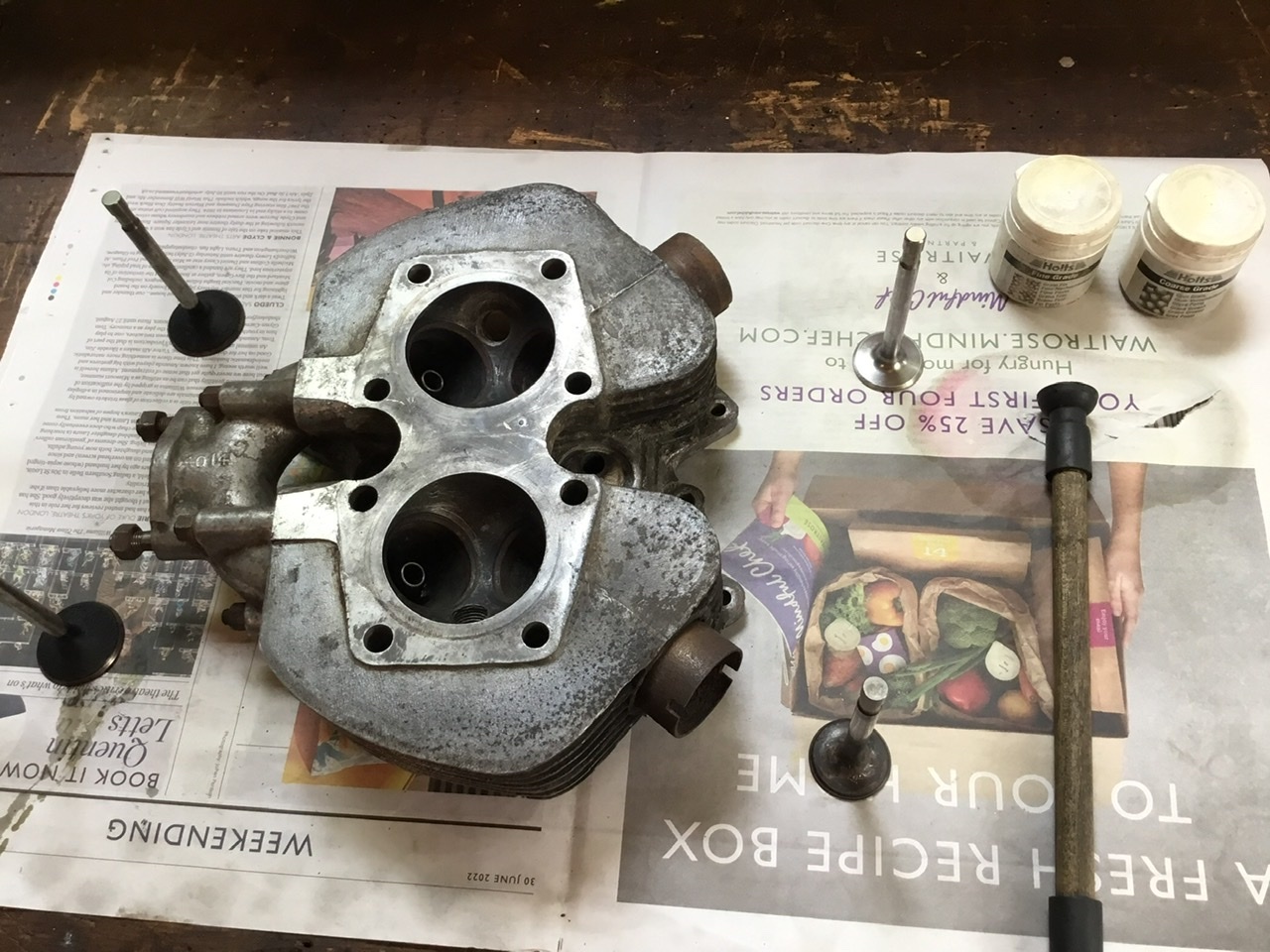

    Next step grinding the valves in. There is no change in valve angle with the new guides, so a grind with fine paste for the three original valves, and then a leak test. The one valve that was replaced will be ground with coarse then fine paste. None of the seats needed re-cutting.

    I am still wondering why one of the valve stems was excessively worn, while the other three were all right. My guess is that there was not enough oil getting to the right hand exhaust valve.

    • Like Like x 3
  18. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,526
    1,000
    Southcoast of the UK Earth
    Nice job and really lucky with not having to cut the seats :)

    • Like Like x 2
  19. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

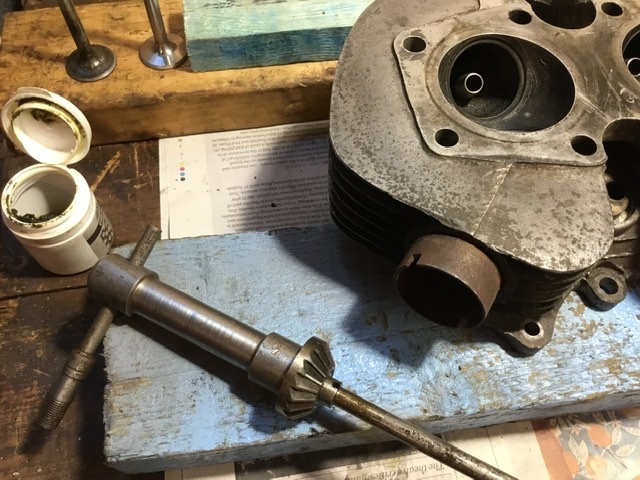

    I spoke too soon! After the valves were lapped in it was obvious that the two inlet valves were not making full contact with the seat. So out with the cutting tool and dressed the seat to be correct with the new guide.

    • Like Like x 4
  20. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

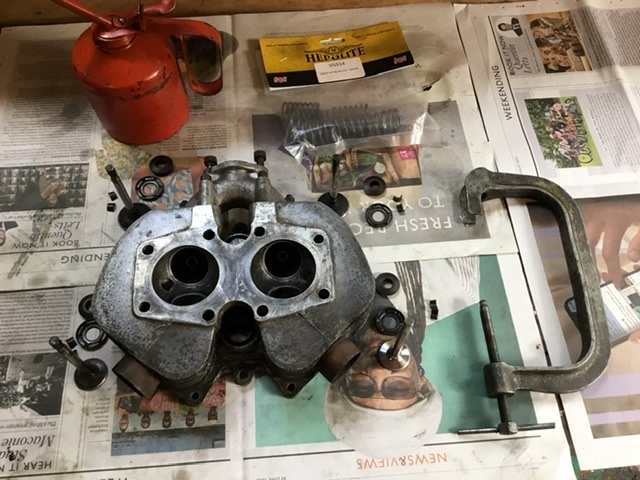

    Ready to assemble the head. New valve springs as the old ones were below spec. 18A0BBB3-21DC-4607-9BFA-B5497A348DB0.jpeg

    • Like Like x 2
