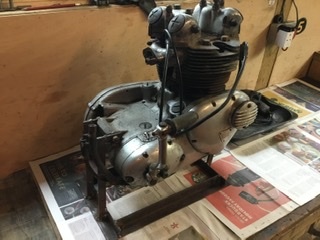

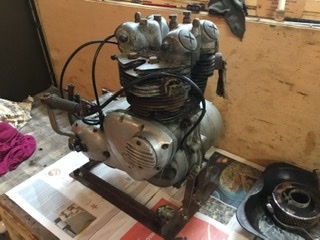

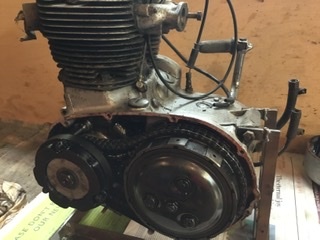

    Made a stand for the engine. It took all day and the MIG welding wouldn’t go right. I suspect the welding wire has a thin oxide coat. It will be much easier to work on the engine without it rolling all over the bench.

    • Like Like x 5
    • Useful Useful x 1
  2. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Taking the primary drive cover off. Eight of the ten screws came out reluctantly with an impact driver, two had to be drilled out. The adjuster rod on the chain tensioner is snapped. The engine does not turn over with a spanner on the end of the crankshaft.

    • Like Like x 2
    • Useful Useful x 2
  3. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    Normal problem is corrosion on the barrels and piston/rings causing them to stick together. I couldn't free off the last one i did so took the cut off saw to the rods :)


    • Like Like x 2
    • Useful Useful x 2
  4. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    That could be where I find myself tomorrow. :(

    • Agree Agree x 1
  5. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Head bolts loosened in the correct order. Front rocker cover off.

    • Like Like x 4
  6. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

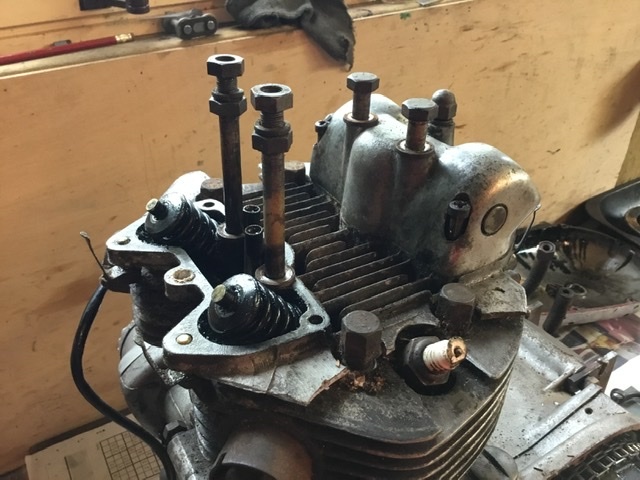

    Rear rocker cover off.

    • Like Like x 4
  7. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

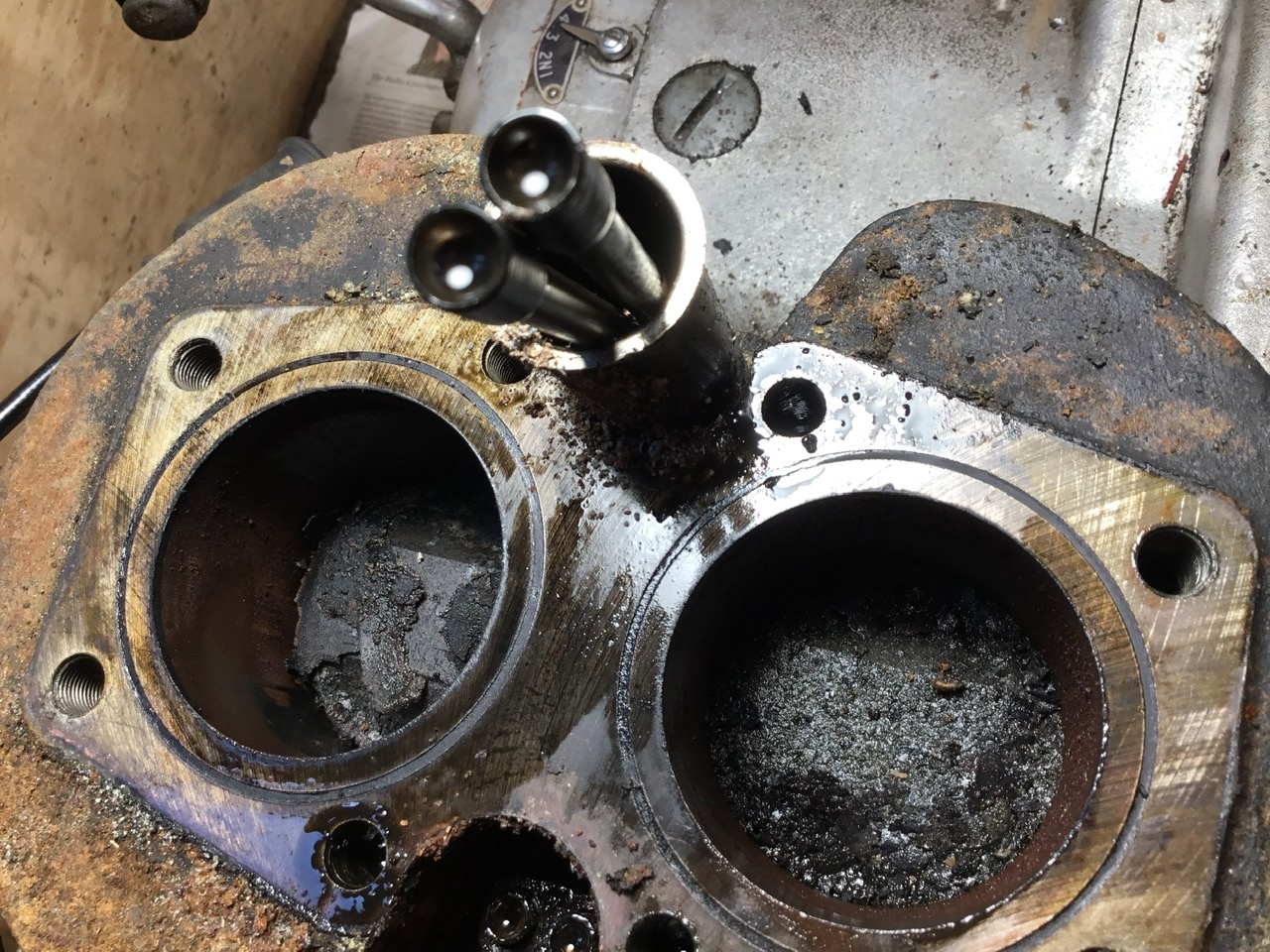

    Head off. I’ve put some light onto the block so you can see the rust in the bores. Pistons are close to bottom.

    • Like Like x 2
  8. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

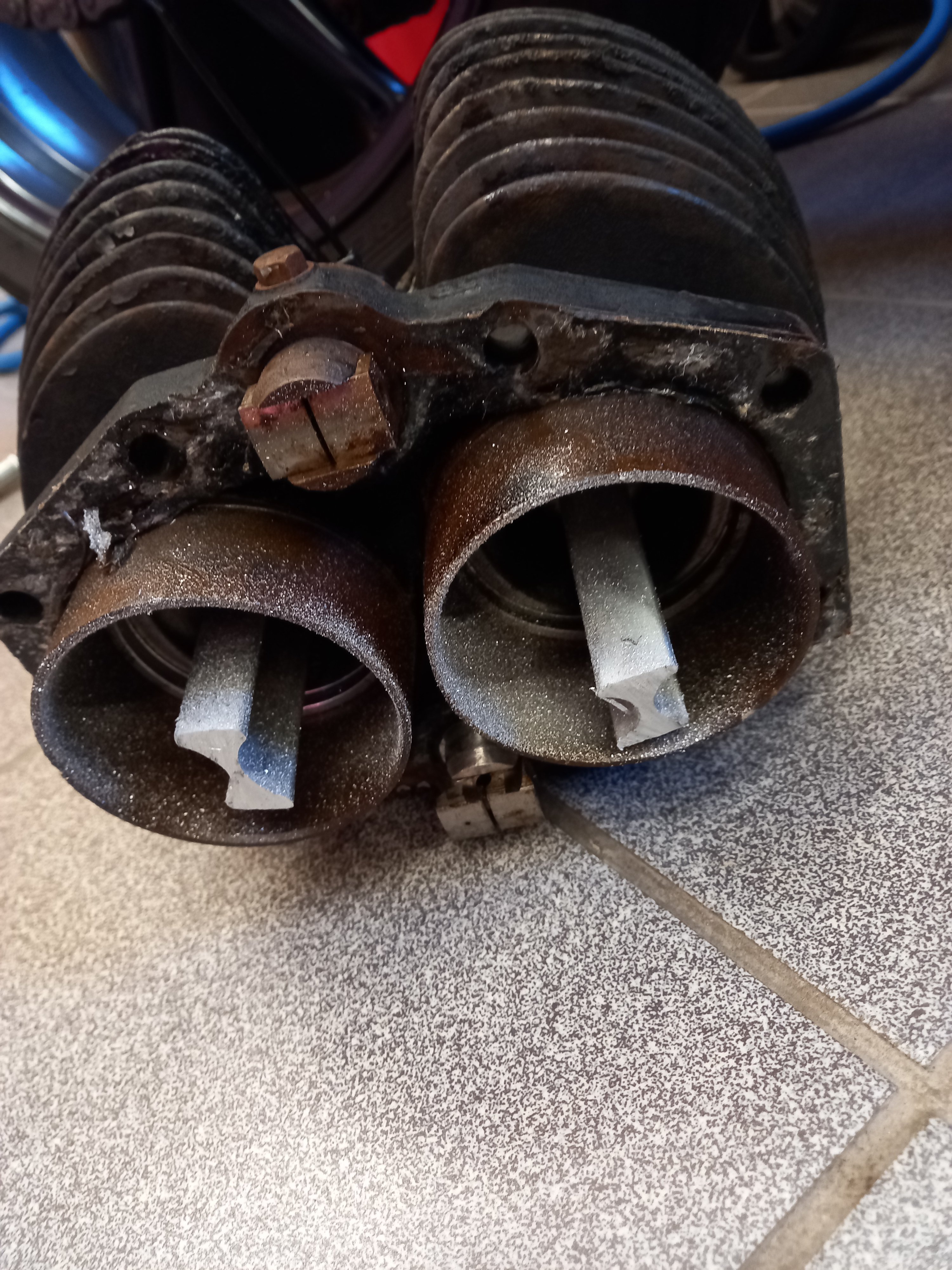

    Looking down the barrels at the piston crowns. There is a lot of muck there.

    • Like Like x 3
    • Agree Agree x 1
  9. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    I’ve just noticed something in this picture - the con rods have different profiles where they are cut. They look different sizes as well, but that might be an artefact of the photo.

    • Agree Agree x 2
  10. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    Picture does exaggerate the shape but both rods were different.

    • Like Like x 1
    • Funny Funny x 1
    • Useful Useful x 1
    • Agree Agree x 1
  11. Tallpaul

    Tallpaul Noble Member

    Apr 7, 2019
    610
    393
    Kidderminster
    A liberal dollop of diesel fuel is your friend........

    • Like Like x 2
    • Useful Useful x 2
    • Agree Agree x 1
  12. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    The inside view of the head. Lots of carbon, but the valves don’t appear to be recessed in the seats. I did notice that the top of the valve stems are pocketed (not shown in pic). Remains of a spark plug in the right hand side, needs to be removed. A quick check with a straight edge suggests the face is flat. There is a broken fin on the upper right hand side of the head (not shown). The exhaust collars and inlet manifold will be left in place while the head is rebuilt.

    • Like Like x 4
  13. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Took the points cover off and found that insulating material had been put on the underside. I guess there was a problem with it shorting out at some point.

    • Like Like x 2
    • Useful Useful x 1
  14. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    There are eight screws holding the timing cover on. Even using heat and an impact driver only two came out. The other six are stuck and the heads are now chewed up, so I will drill them out. Would a rattle gun screw driver running on compressed air have got them out?
    The four screws in the gearbox cover all came out OK.

    • Like Like x 3
  15. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Draining the sump, no nasty surprises came out with the oil. Before I started work on the engine it looked moderately clean, but with hindsight I wish I had degreased and power washed it.

    • Like Like x 3
  16. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    A good bash with a brass drift and hammer before undoing will usually get then out and if not then i heat the casings up with a small flame.

    • Useful Useful x 2
    • Like Like x 1
  17. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Drained the gearbox of oil, removed the kick start lever, disconnected the clutch cable and removed the four screws and two nuts holding on the gearbox outer cover.
    The outer cover comes off by holding the gear lever and pulling firmly.

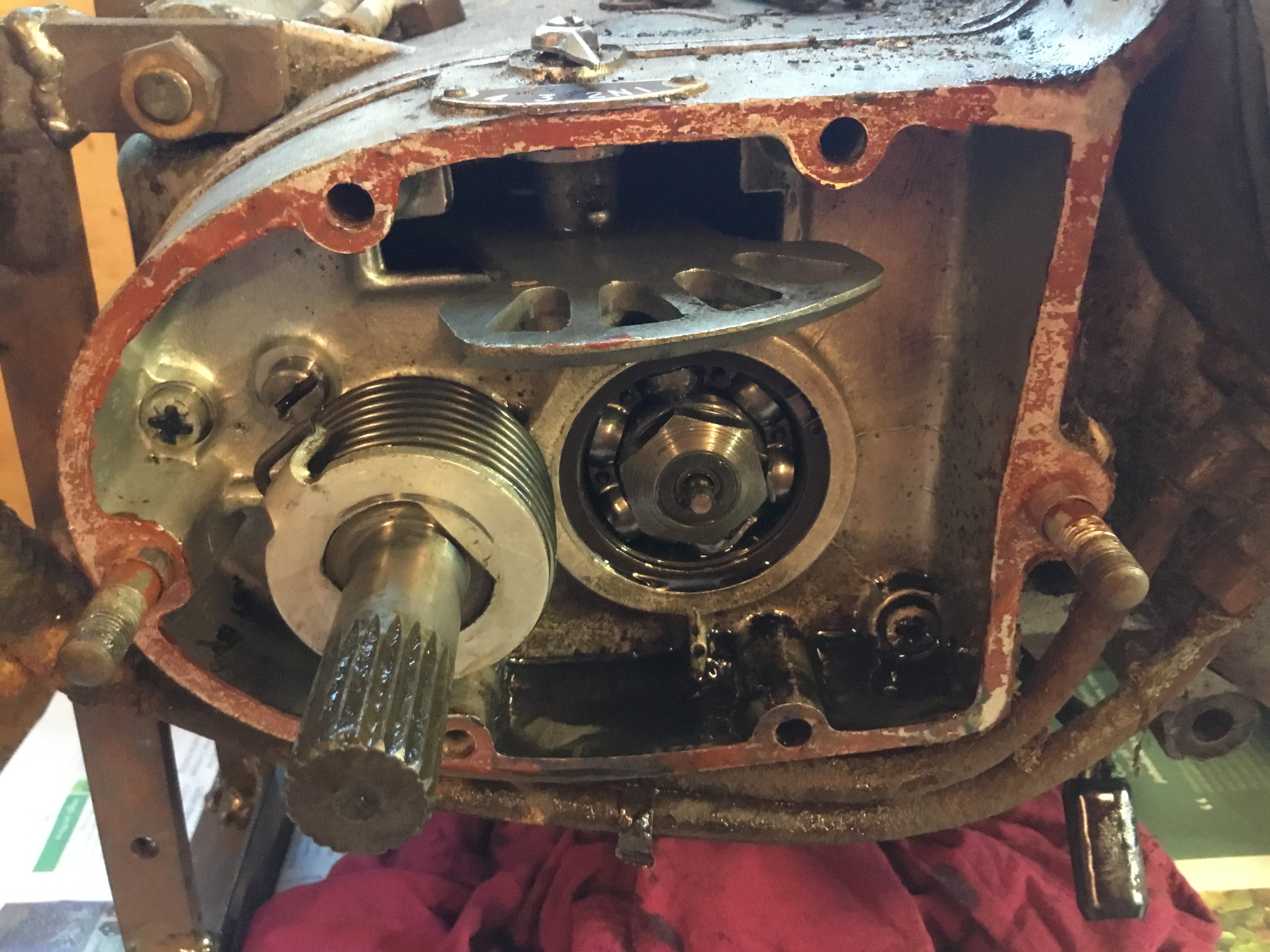

    The “inside story” is that the inner screws holding the gearbox together look untouched, so hopefully it’s never been taken apart. The kickstart return spring has jumped off it’s stop.
    Before taking the cover off, I managed to move down through the gears to neutral.

    • Like Like x 5
  18. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

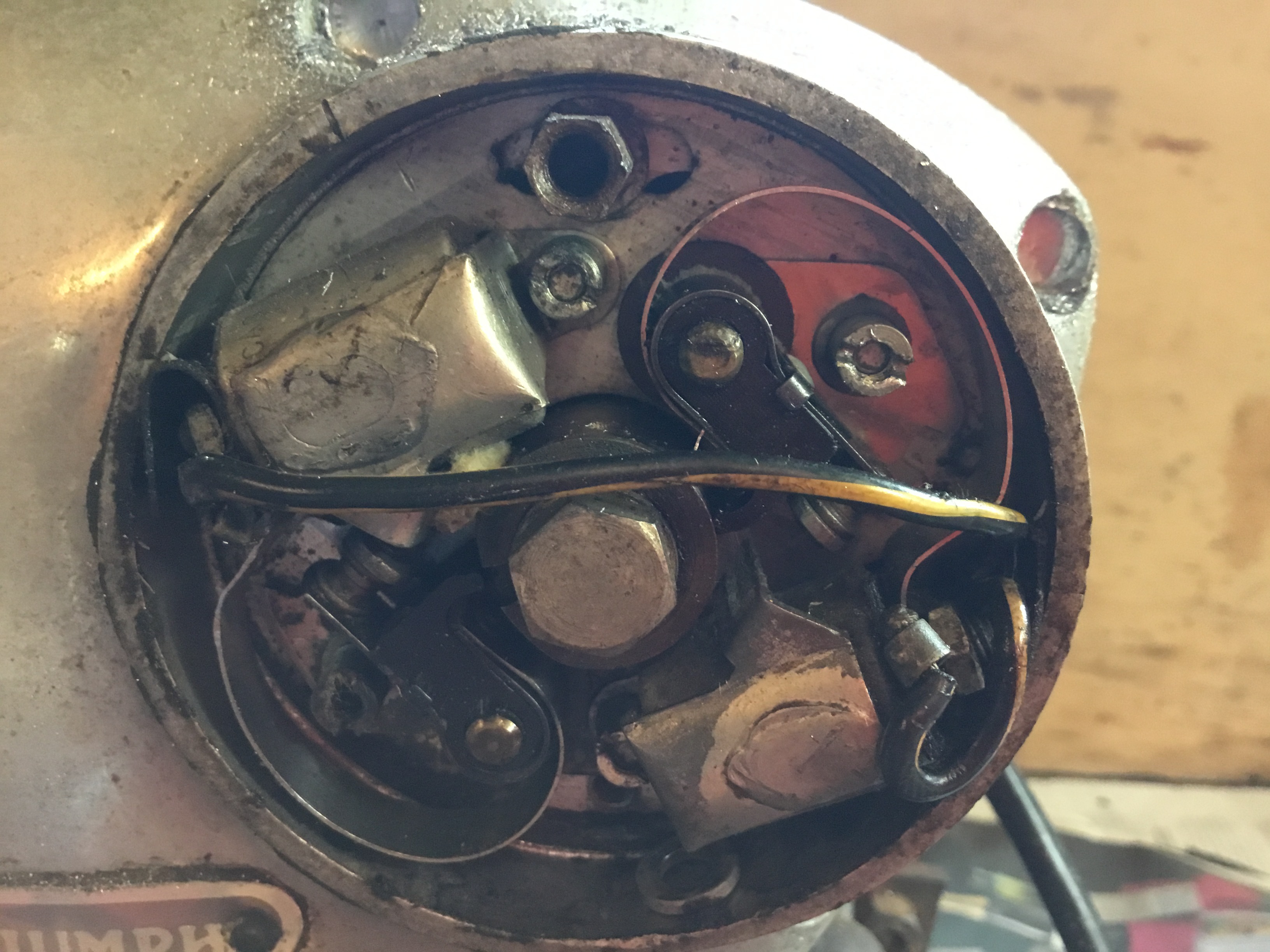

    Close up picture of the points, to serve as a reminder when I’m putting it back together. The left hand wire is black and yellow, the right hand black and white, but with the oil staining and colour fade over time they look the same.

    • Like Like x 3
    • Useful Useful x 1
  19. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Advance retard unit exposed when the points back plate is off. The thin bar sticking out of the centre hole is where I am making a bar to push the unit off the taper when I screw a 5/16 UNF bolt in the end.

    • Like Like x 3
    • Useful Useful x 1
  20. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    #160 Sir Clip, May 11, 2022
    Last edited: May 12, 2022

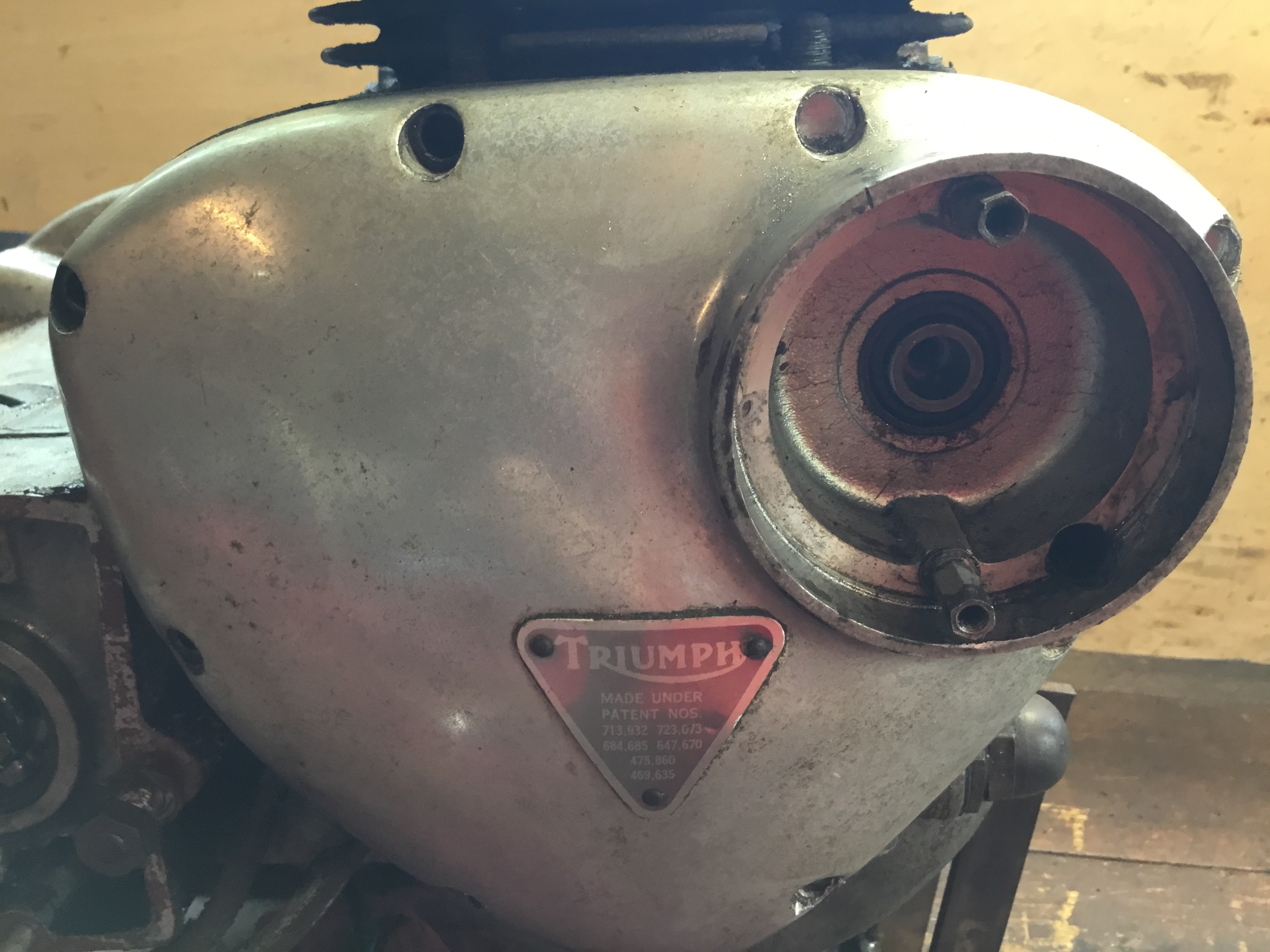

    The advance retard unit popped off without issue using the improvised removal bar and bolt. Now the outer cover can be taken off.


    • Like Like x 4
