Featured Tiger 90 Rebuild

Discussion in 'Vintage Classics' started by Sir Clip, Feb 6, 2022.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

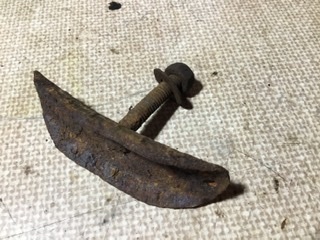

    Here are its mortal remains.

    • Like Like x 1
    • Agree Agree x 1
  2. Iron

    Iron Elite Member

    Dec 29, 2021
    2,554
    943
    Bob Ross Studios
    Yes, I'm not the greatest lover in tyre fitting, I struggle with getting the valve into the rim because my hand doesn't fit between the rim and new tyre and those rim locks just make it that much more difficult.
    Looking good so far Sir Clip, looking good :)

    • Like Like x 3
    • Agree Agree x 2
  3. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

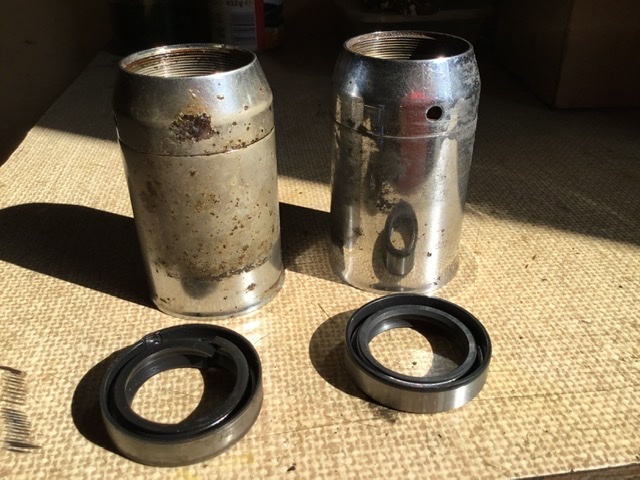

    This afternoon was the first day of the year that I could be in the workshop with the doors open. Nice. Now moving on to the forks. On the left is the holder as it came off the bike and the old oil seal in front of it. On the right is the other holder after a bit of buffing, with the new seal in front. It’s serviceable, but it’s not pretty.

    • Like Like x 4
  4. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

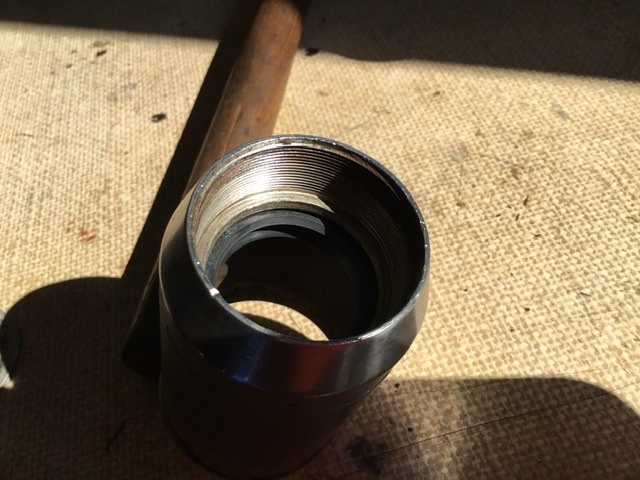

    And here is one of the holders with the new oil seal pushed in, threads cleaned and ready to go on.

    • Like Like x 4
  5. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

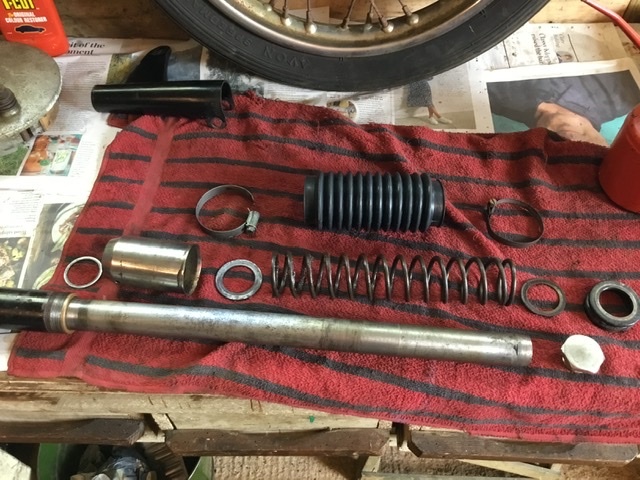

    Parts from the left hand fork laid out ready for assembly. The stanchion surface is just about OK. The bushes are all good.

    • Like Like x 3
  6. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

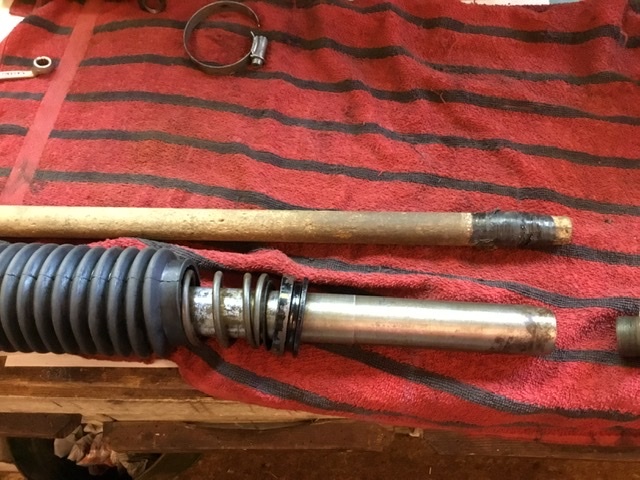

    I don’t have the fork assembly tool, so I’m trying the old trick of using a section of broom handle with tape around one end to screw into the top of the stanchion to pull it up through the yokes.

    • Useful Useful x 2
    • Like Like x 1
  7. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    And I’m happy to say the DIY stanchion pulling tool worked.

    • Like Like x 4
  8. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Both forks now on, with the pinch bolts only half tight as final tightening will be when the front wheel is on and the forks have been pumped a few times. The Haycraft manual says the forks take 1/3 of a pint of oil in each leg.

    • Like Like x 3
    • Useful Useful x 1
  9. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Forgot to to say, when I screwed the oil seal holders on to the fork legs I put a bit of sealer on the last two turns of the threads, just to slow down the inevitable oil leaks. Seemed like a good idea.

    • Useful Useful x 1
    • Agree Agree x 1
  10. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

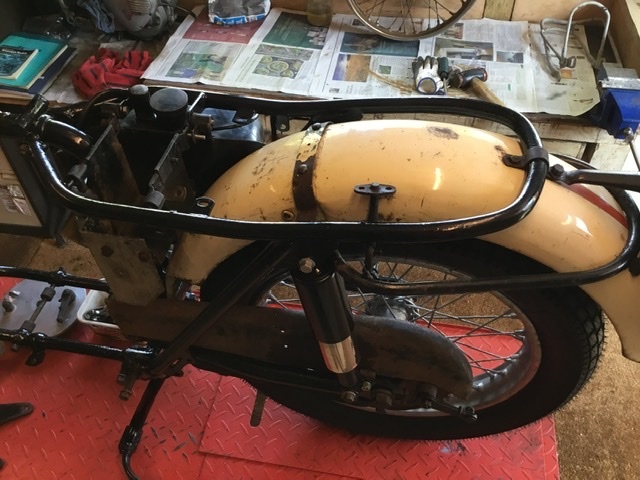

    Dry run for fitting tin ware at the back end. It’s a 3D jigsaw puzzle, and there are still a few odd brackets left over.

    • Like Like x 4
  11. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

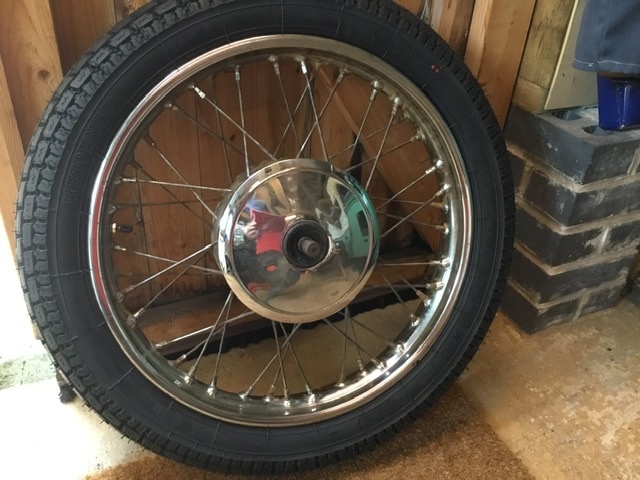

    Kudos to Chris, who came round last Thursday and polished the front wheel. He even brought beer! Today I managed to overcome my hatred of tyre fitting and put the front tyre on.

    • Like Like x 5
  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    Great job and totally agree about tyre fitting :)

    • Like Like x 2
    • Agree Agree x 1
  13. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

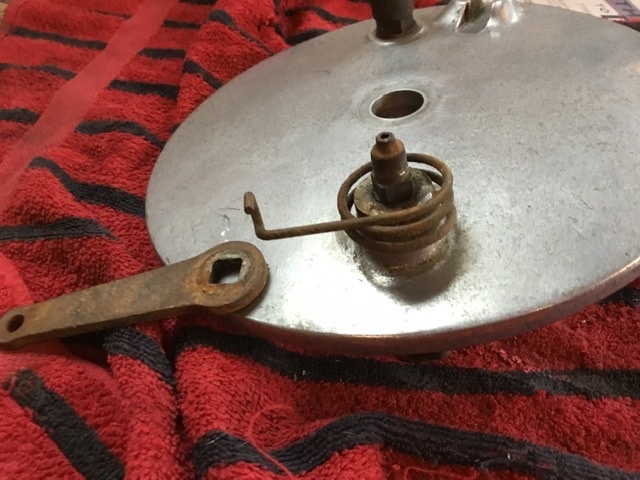

    Just when I thought the front wheel was finished - went to put some grease on the brake cam but it is locked solid. I suspect there is corrosion between the alloy of the brake plate and the steel of the brake spindle. It’s soaking in petrol overnight, if that doesn’t work then it will get the blow torch.

    • Like Like x 3
    • Useful Useful x 1
  14. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

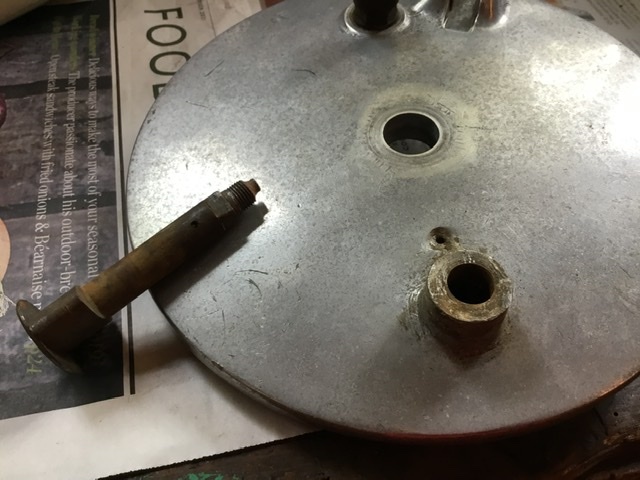

    Soaking the brake plate overnight didn’t loosen the brake spindle, so this morning I pressed it out in the vice, nice and easy. I didn’t have to summon the gods of Vulcan (heat) and Thor (hammer) to free the parts in a workshop incantation!

    • Like Like x 6
  15. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    #95 Sir Clip, Mar 30, 2022
    Last edited: Mar 30, 2022

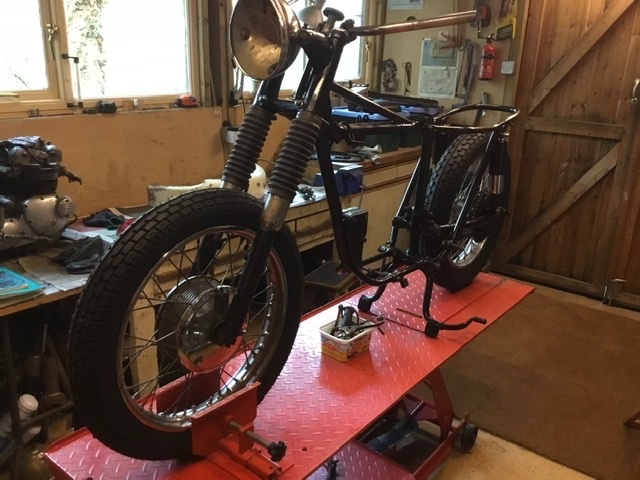

    We now have a rolling chassis. Tomorrow the front forks will be set and the wheel alignment checked.


    • Like Like x 5
  16. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

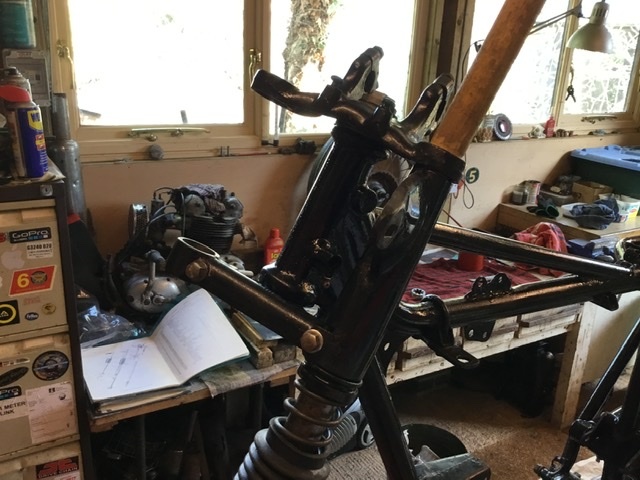

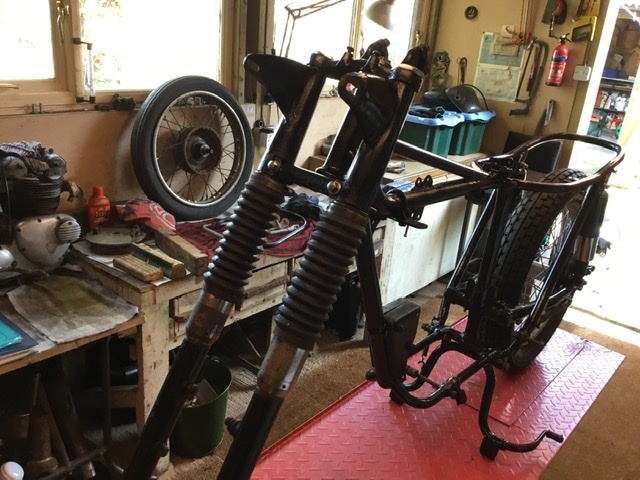

    Put the front brake lever and cable on, then pumped the forks to settle them in the yokes. Tightened the yoke pinch bolts and then checked that the front wheel is central between the forks. Also checked with a rod that the rear wheel is central to the spine of the frame.

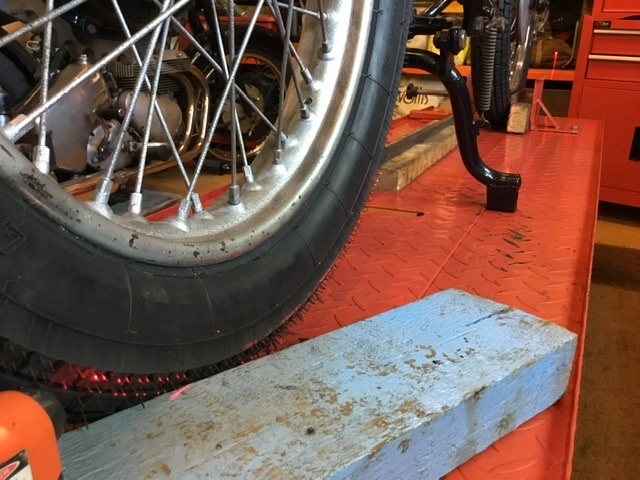

    Then made a rough check on the alignment of the wheels. Used a laser on the right hand side and a spacer on the front tyre to allow for the narrower width. On the left hand side I used a long straight bar, and a similar spacer to allow for the thinner front tyre.
    Not a very good photo, you can just about see the laser skimming the edge of the rear tyre and the right had edge of the small dark wooden spacer (resting on top of the pale wooden block).
    The wheel alignment looks good and I will check it again when the engine, drive chain, etc are on, bolted down and tensioned.

    • Like Like x 3
    • Useful Useful x 2
  17. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    Getting closer and more tech now :)

    • Like Like x 2
    • Agree Agree x 1
  18. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

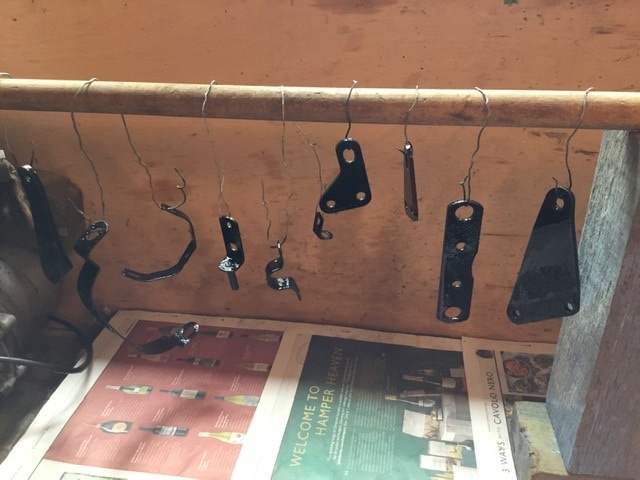

    Not much happening with the rebuild until today when I painted some the brackets and plates.

    • Like Like x 5
  19. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter

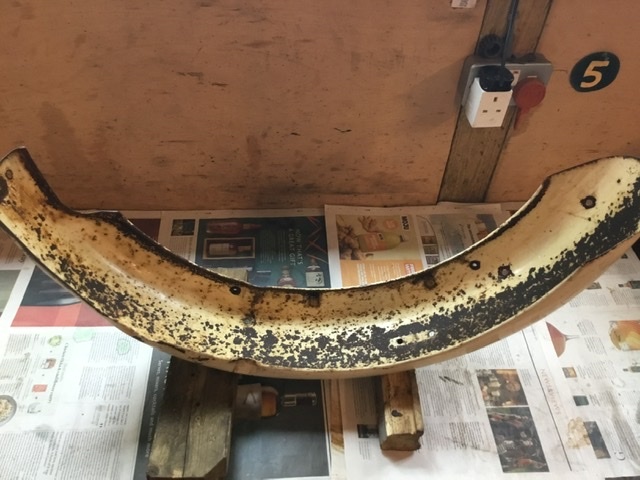

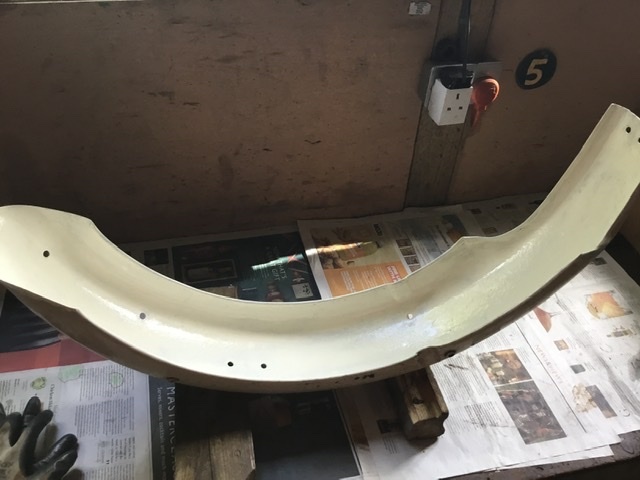

    Worked on the rear mudguard yesterday. First a bit of light panel beating to get the wrinkles out, then sanding off the rust. Some of the rust, especially on the underside was quite deep, so I didn’t take it back to bare metal. Instead I used a rust remedy, and when done the underside looked like this.

    • Like Like x 4
  20. Sir Clip

    Sir Clip Senior Member

    Jan 8, 2022
    853
    143
    Exeter
    Then the first of two coats on the underside. It’s not the correct Arctic White (it’s Landrover Series 3 wheel paint) but it’s close enough for the underside.

    • Like Like x 5
    • Useful Useful x 1
