"heritage" Round Headlight Conversion --> 2011+ Speed Triple Retrofit

Discussion in 'Speed Triple' started by Iamcanadian783, Apr 18, 2022.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    #1 Iamcanadian783, Apr 18, 2022
    Last edited: Apr 18, 2022
    Hiyo, Speedie riders.

    Have any of you done a "heritage" swap of your 2011+ foxeye headlights for round headlamps?

    I am looking to try this on my 2013 Speed Triple R.

    I am seeking advice on avoiding pitfalls with the mounting and wiring of this conversion


    _______________

    I found three examples of this on the web:



    Triumphrat forum user moth11 did a "heritage conversion" on his 2012:
    moth's speed triple heritage headlight conversion.PNG

    Facebook user Minh R. did his 2011:
    Minh Rau heritage headlights speec triple.jpg

    Facebook user Andy M did his 201X Speedie:
    Any Muston speed triple headlight conversion.jpg

    • Like Like x 1
  2. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    #2 Iamcanadian783, Apr 18, 2022
    Last edited: Apr 18, 2022
    make that four examples.

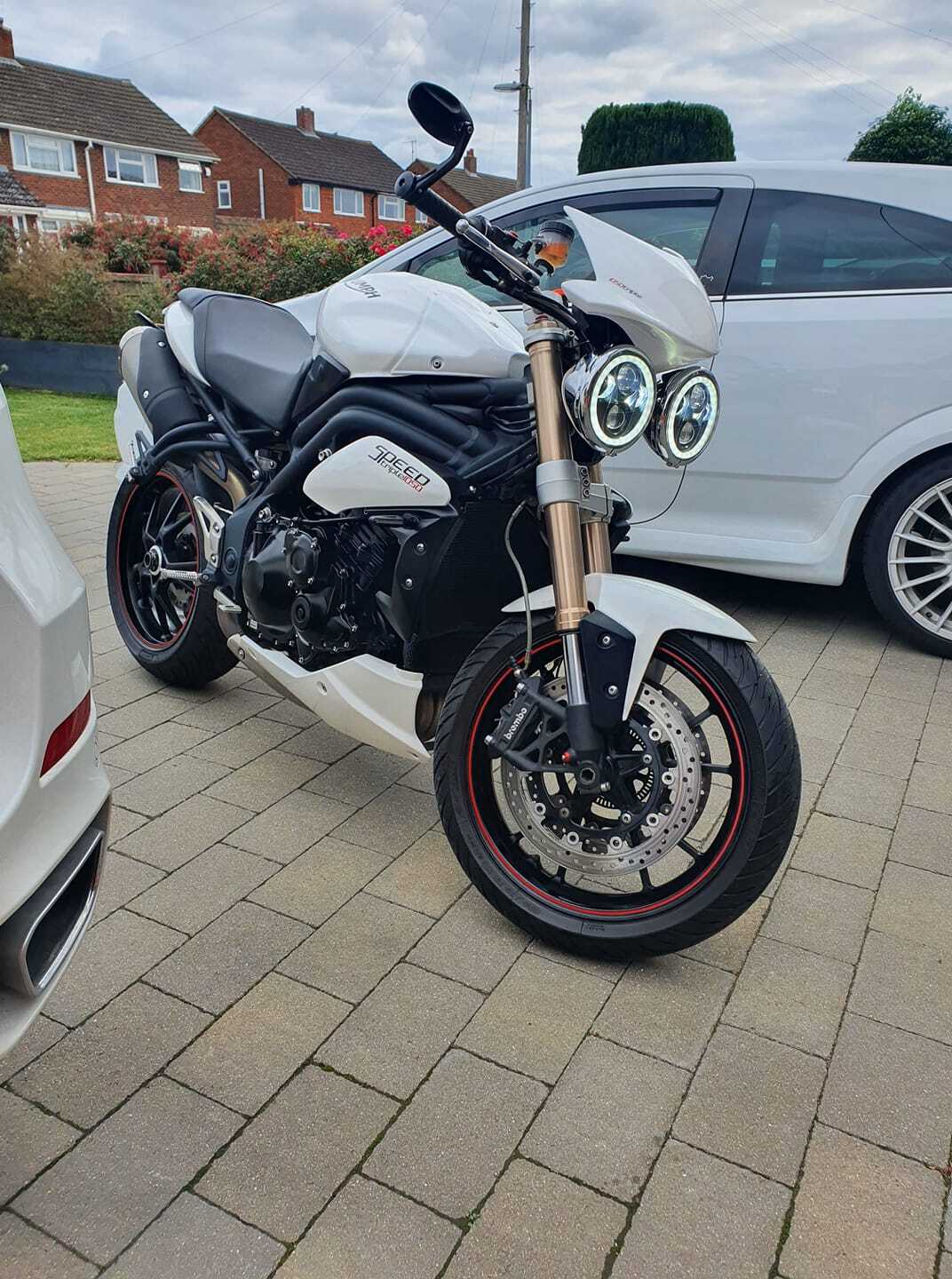

    Facebook user Simon R did heritage round lights on his Speedie, too:
    simon roe speed triple headlight conversion.jpg

  3. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    p.s. I asked the local Triumph dealer how much for a pair of the lovely new Rocket 3 headlights.

    Rocket 3 led lights triumph-hero.jpg

    I wept when she sent me the Triumph price quote (in $CAD)
    rocket 3 headlight cost.PNG

    • WTF WTF x 1
  4. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,433
    800
    Cornwall
    I've done it, see my old post here - back-to-the-future-with-1-21-gigawatts. I've actually done it twice now as the wife's Street Triple is also done now. It's not going to be cheap as I don't think you can avoid buying the following Genuine Triumph parts....
    • Headlight Bowl Assy x2
      T2700634 (I think it's only available in chrome - I painted black)
    • Ring support x2
      T2700559
    • Headlight Centre Pivot
      T2700569 (it's shorter than Dame Edna/Fox eyes)
    • Rim, Headlamp, Black x2
      T2700618 (no longer available, but I got non-OE from https://www.ebay.co.uk/itm/303912142240)
    If you're going LED there are plenty of 5-3/4" units available, mostly from China and it's a bit pot luck getting a good pair (I've returned some before getting acceptable quality). Unfortunately the seller I got mine from (good bright DRL and beam patterns) is no longer listed, the wife's has the advantage of adding amber (indicator) option but not as bright DRL.
    In the process on my bike I've also added three switches to add the options of "hazard lights" (not OE fit to my year), headlight off, and linked left and right DRL to indicators, it really depends whether those are of interest and on your electrical/wiring abilities.

    • Useful Useful x 1
    • Love You Love You x 1
  5. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    @Col_C : thank you for chiming in, and yes, your experience is exactly what I am seeking!

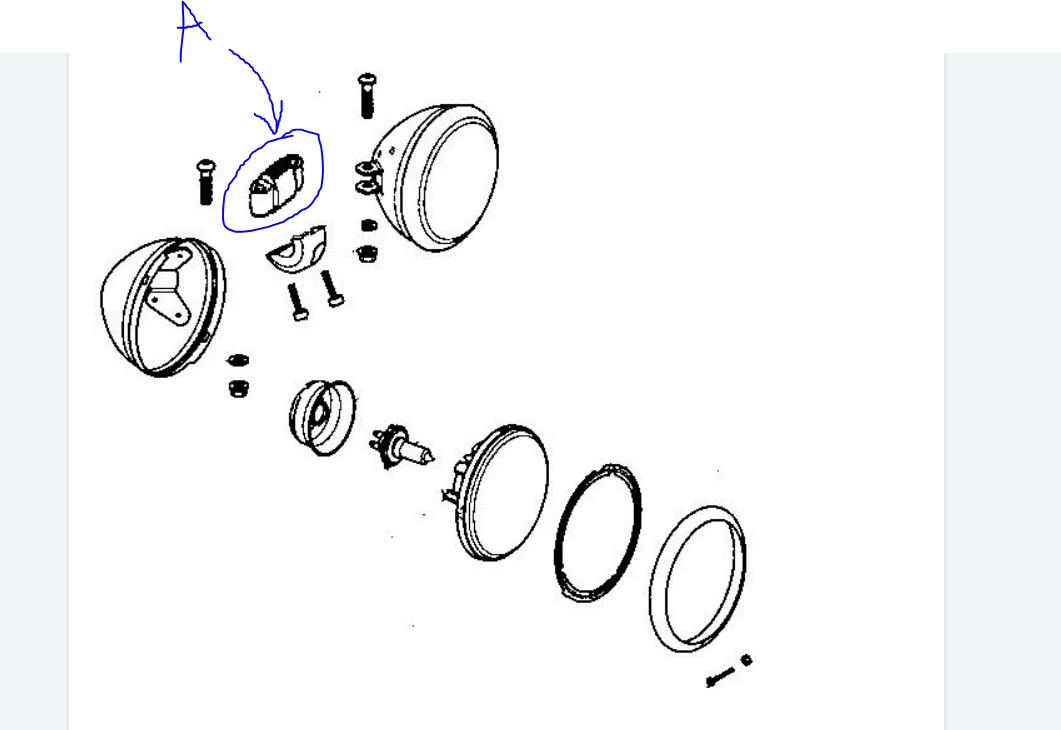

    In the image below circled with blue "A" is this part:

    T2700569 Headlight Center Pivot, 2010 Speed Triple OEM Headlight
    ($51.34 USD)

    centre pivot.PNG

    This is the part I was hoping to achieve by repurposing my 2013's existing center pivot.

    Are the dimensions of your stock pivot and the T2700569 pivot really different?

    centre pivot B.PNG

  6. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,433
    800
    Cornwall
    Yes, hole centres on the fox-eyes are definitely further apart, not by a lot, but IMO noticeable and looks wrong when converting to round.

    Edit: and you might have a problem with clearance to fork stanchion with wider set bowls.

  7. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    And the foxeye brackets sit ABOVE the stock center pivot instead of wrapping around it.

    Hmmm...

    If I could live with the wider positioning, could I shim and grommet the incoming brackets to fit the stock center pivot?

  8. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,433
    800
    Cornwall
    See my above post edit - ref clearance to stanchions. ^^^
    You could try it and let us all know. :)

  9. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    OK, good news and bad news.

    I just did some prelim test-fitting of these aftermarket 5.75" buckets I acquired.

    Good News:

    -I can easily overcome this delta of (21-14) mm. I can just use shim washers and grommets to bridge the gap between the stock 2013 center pivot 14mm and these 21 mm bucket brackets:

    center pivot 2013 speed triple stock A.jpg


    center pivot 2013 speed triple stock B.jpg



    heritage headlamp bucket.jpg

    centre pivot.PNG

    centre pivot B.PNG

  10. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    #10 Iamcanadian783, Apr 19, 2022
    Last edited: Apr 19, 2022
    BAD NEWS:

    The stock centre pivot positions the round headlamps at least 1.5" too far rearward :(

    These pictures may not convey the appearance fully; the rear of the housing buckets are nearly touching my Swedish forks :(

    too far back.jpg

    too far back B.jpg

    too far back C.jpg

  11. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    I see three options:

    1 ) live with the round lights pushed too far rearwards. (no)

    2 ) buy the complete subframe assembly from an appropriate older Speedie/Streetie so that it has the mounting dimensions of classic triples.

    3 ) fabricate two 1.5" cantilevers that will mount onto the stock center pivots at 14.5mm height, and connect to the buckets that are 21 mm bracket height.

    Hmmm...

  12. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    Here is part of the reason for the undesirable rearward offset:

    • The Triumph OEM heritage buckets have their brackets at position "A".

    • My aftermarket buckets have their brackets at position "B".
    new headlamps.PNG
    _________________

    I could fork up the coin to buy the whole Triumph OEM subframe assy with center pivot and buckets. But I'm hardheaded and want to build cantilevers now, LOLOL

  13. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,433
    800
    Cornwall
    #13 Col_C, Apr 19, 2022
    Last edited: Apr 19, 2022
    Yes, been there, done that. :laughing::joy:
    The cheap "Bates" headlight shells won't work without significant alterations, and don't forget to check fork clearances on full lock. :)
    But you don't need to change the subframe, the short/long centre pivots are interchangeable within the subframes, the earlier subframe would probably have different mountings for the different instrument cluster anyway.

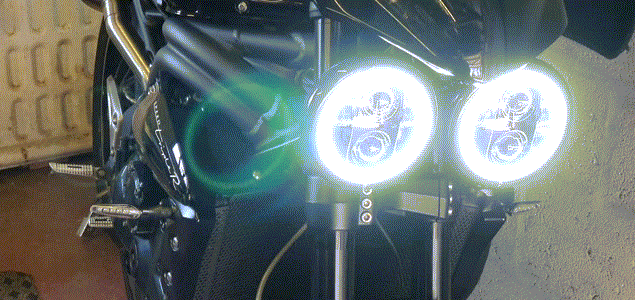

    Some photos.....





    And the wife's white Street....

    • Like Like x 1
    • Love You Love You x 1
  14. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    Thanks for this, @Col_C.

    Yes, the subframe swap possibility is a favorite for some Speedie riders looking to lower their headlights and dashboard. I personally like the existing dashboard height.

    _______

    Thank you for the photos. Your bikes are lovely and look to be well cared for!

    This 'x' distance below is what I hope to achieve with my setup:



    I'm going to speak with my welding friends for ideas how to create two cantilever pieces like this. Maybe I'll modify some aluminum camera mounts...



  15. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    @Col_C :

    Tangent question: are you pleased with your Healtech gear indicator? ("A")

    And what are these coloured lights on your dash? ("B" and "C")

    Col_C speed triple custom dashboard.jpg

  16. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,433
    800
    Cornwall
    To start with Healtech didn't do one that plugged in to the OBD socket for ABS equipped S3's and I didn't feel it worth the agro of fitting a wheel sensor for their only option at that time. Then I had one of the first batch they did that ran off the OBD and it was a bit flaky, but good customer service and they replaced it with an updated version which has been faultless. The only criticism I can make is that it will not show gear changes until revs rise above 2000, however it also senses when in neutral and I think assumes first gear as it moves off neutral.
    The coloured lights are actually switches, red = hazard lights, white = DRL only, green = DRL's synch'd to indicators. I'm fairly sure synch'd DRL is illegal (but actually draws attention so of benefit), so I am able to deactivate the feature when required.

  17. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada

    You are an engineering scholar and true Speedie fan!

    Where do I go to buy such lovely switches? And how much will my wiring harness grow if I add such DRL and hazard buttons?

  18. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,433
    800
    Cornwall
    Here's an example of the switches I used.
    You'll need to tap in to the 3 wires that go to the indicator switch, there's a connector to the main loom on the left side under the tank. You'll need diodes and miniature relays to achieve all the functions I added, it all fits inside the flyscreen.

    • Love You Love You x 1
  19. Iamcanadian783

    Iamcanadian783 New Member

    Jun 14, 2021
    11
    3
    Alberta, Canada
    I'm really interested in following this up. My next four weeks is going to weird. We Canadians will have to cram a lot of riding in when the weather clears. I'll binge the kilometers while I can. But when the sky starts pouring again, I'll tinker in the garage.

    Electrical scares me, though. I don't understand it enough.

    • Like Like x 1
  20. Jet City

    Jet City Noble Member
    Subscriber

    Sep 24, 2018
    520
    343
    Seattle, Washington USA

    Damn, that looks the business tho. Worth what it took to make it happen :cool:
