Featured Back To The Future (with 1.21 Gigawatts)...

Discussion in 'Speed Triple' started by Col_C, Jul 11, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Col_C

    Col_C I can't re...Member
    Subscriber

    Aug 5, 2015
    567
    143
    Cornwall
    #1 Col_C, Jul 11, 2018
    Last edited: Jul 11, 2018
    Well only 0.0001 gigawatts actually....

    So back in 1994 I bought my first Hinckley Triumph (900 Sprint) and barring a 2 year Multistrada mistake had Triumphs ever since. A few months after buying the Sprint they brought out the Speed Triple,..... bugger, SWMBO was never going to allow me another new bike so soon. And so I’ve lusted after that black original ever since ....
    and still do....

    So when the Speed Triple 94R came out I had to have one, in black of course. Had it now for nearly 3 years and loved every minute. Along the way there’ve been a few mods, mostly the usual stuff from the Triumph accessory catalogue etc. But a few not so routine....

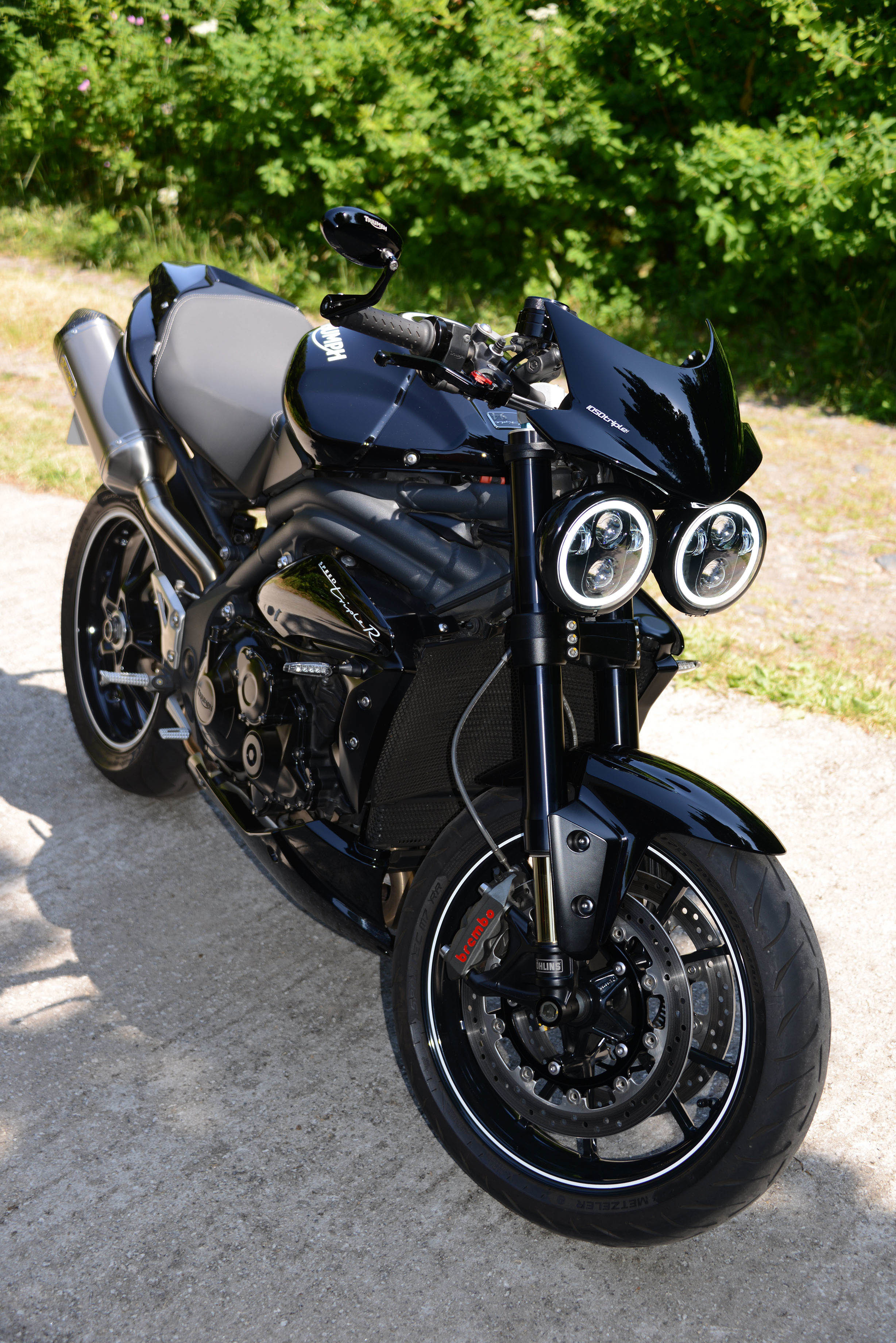

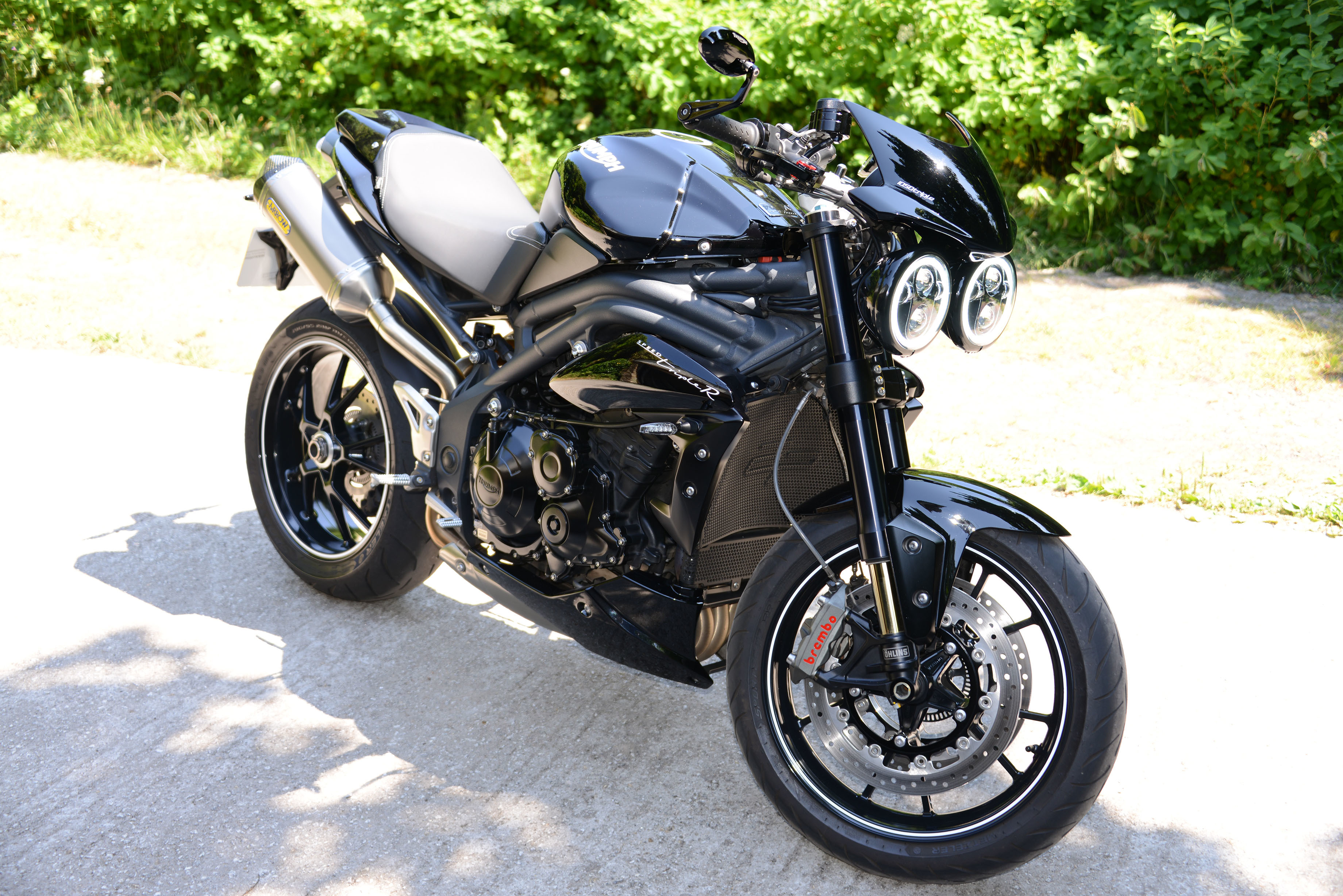

    Starting at the front and most obvious are the headlights.
    The Dame Edna’s have always been contentious and at best I learnt to tolerate them but finally decided they had to go. In place are old school round headlights but with a future twist, I wanted halo DRL’s and LED projectors, this gets rid of the large bright reflector area and gives the bike a meaner look (IMO). The headlights now being mostly black with the white halo it fits well with the retro white graphics of the 94R. A push button (with white halo) is added to the dash panel to enable dipped beam to be disabled, the DRL’s are well bright!

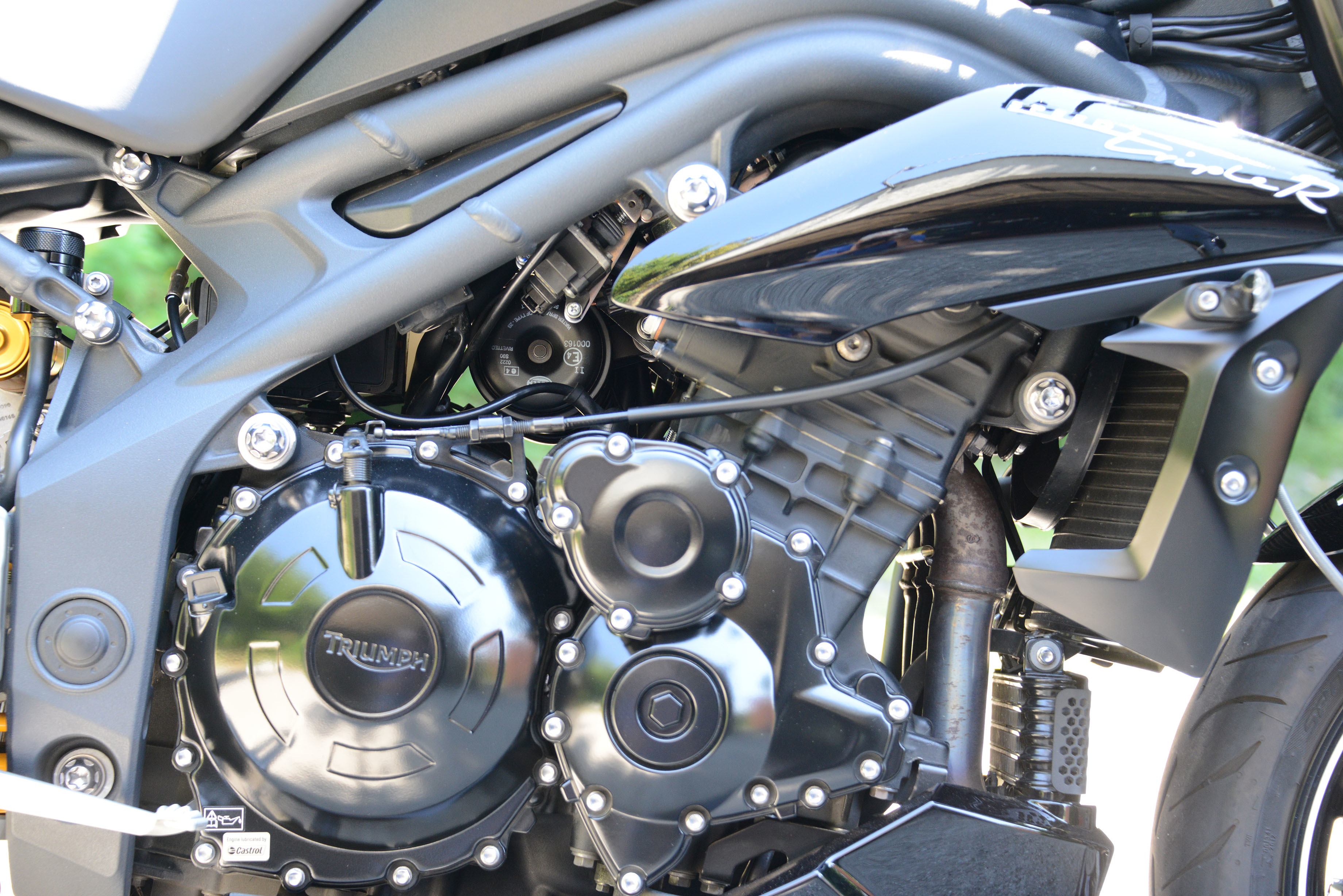

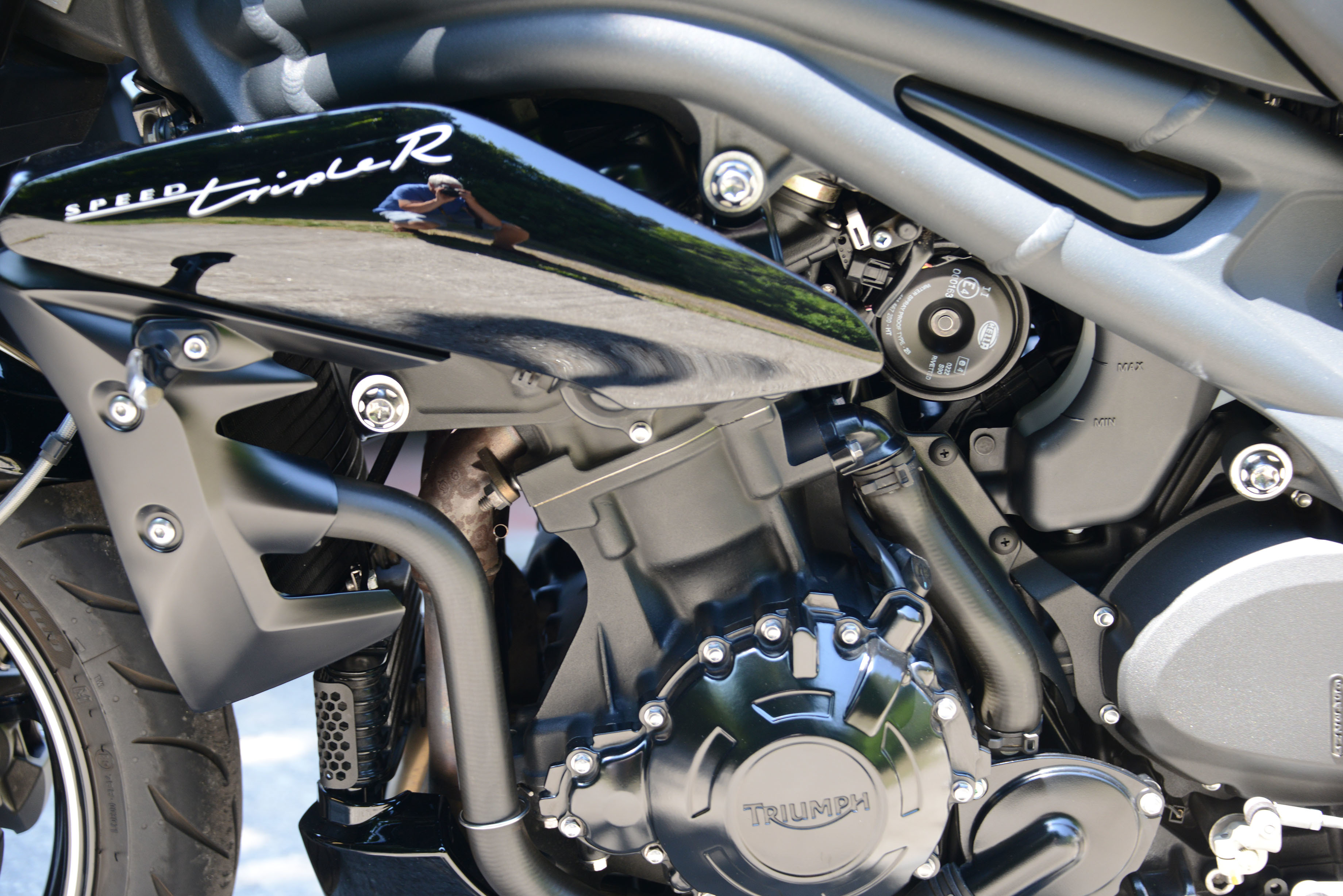

    Another irritation has been the pathetic horn, sounds embarrassing to use and looks just as bad, stuck down next to the oil cooler looking like an afterthought. So that’s gone and I’ve manage to squeeze a pair of car horns in the space behind the engine just below the fuel rail, relay is mounted in the battery box.
    No more embarrassment when using the horn. bttf4.jpg

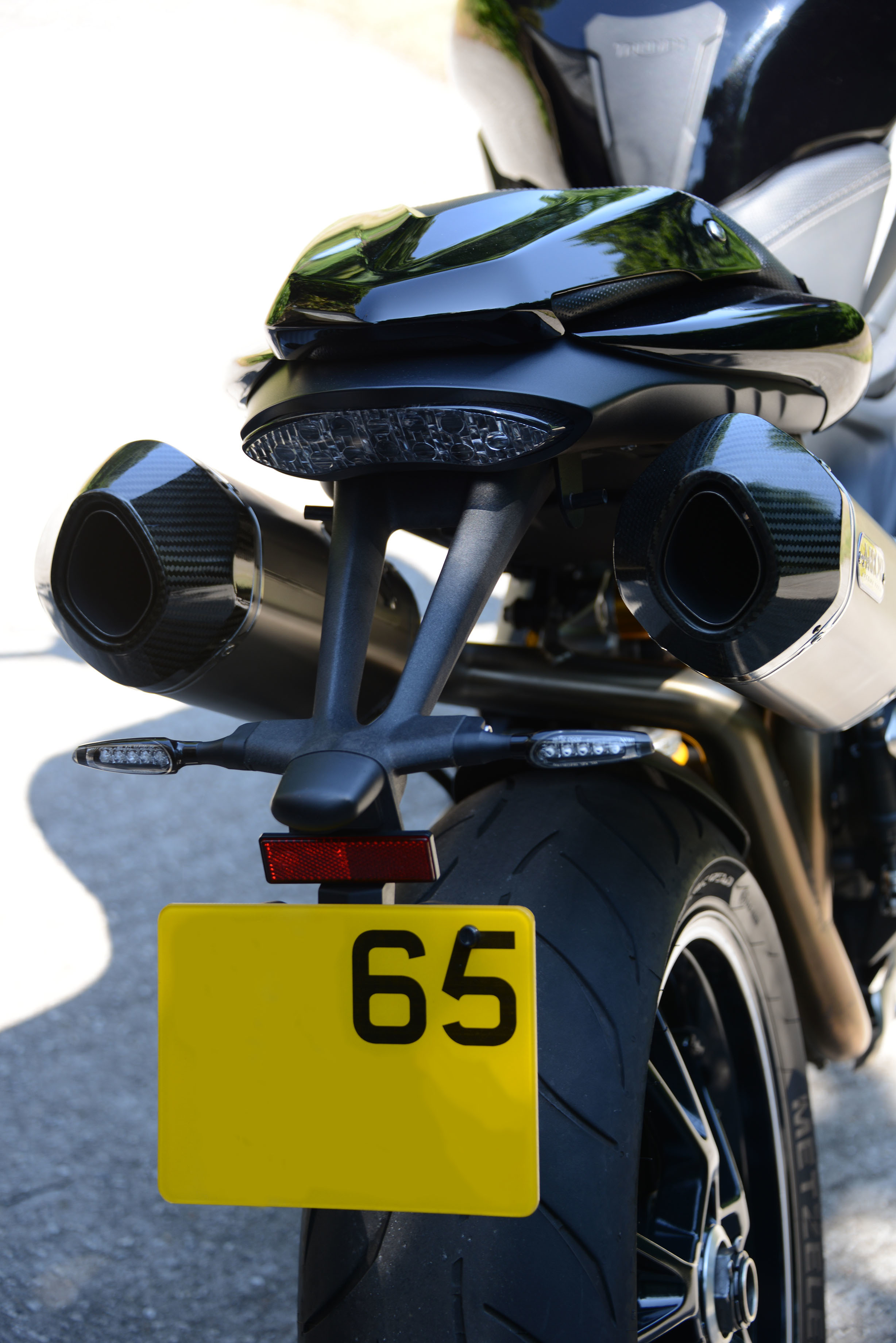

    So finally to the back (it’s gone to the future), the standard metal number plate hanger looks a bit agricultural/dated and I quite liked the newer plastic version fitted to later models (I’m not a fan of so-called tail tidies). Took a bit more work than anticipated but is do-able, only down side is the old one was better at stopping road crud spraying up the rear of the bike.

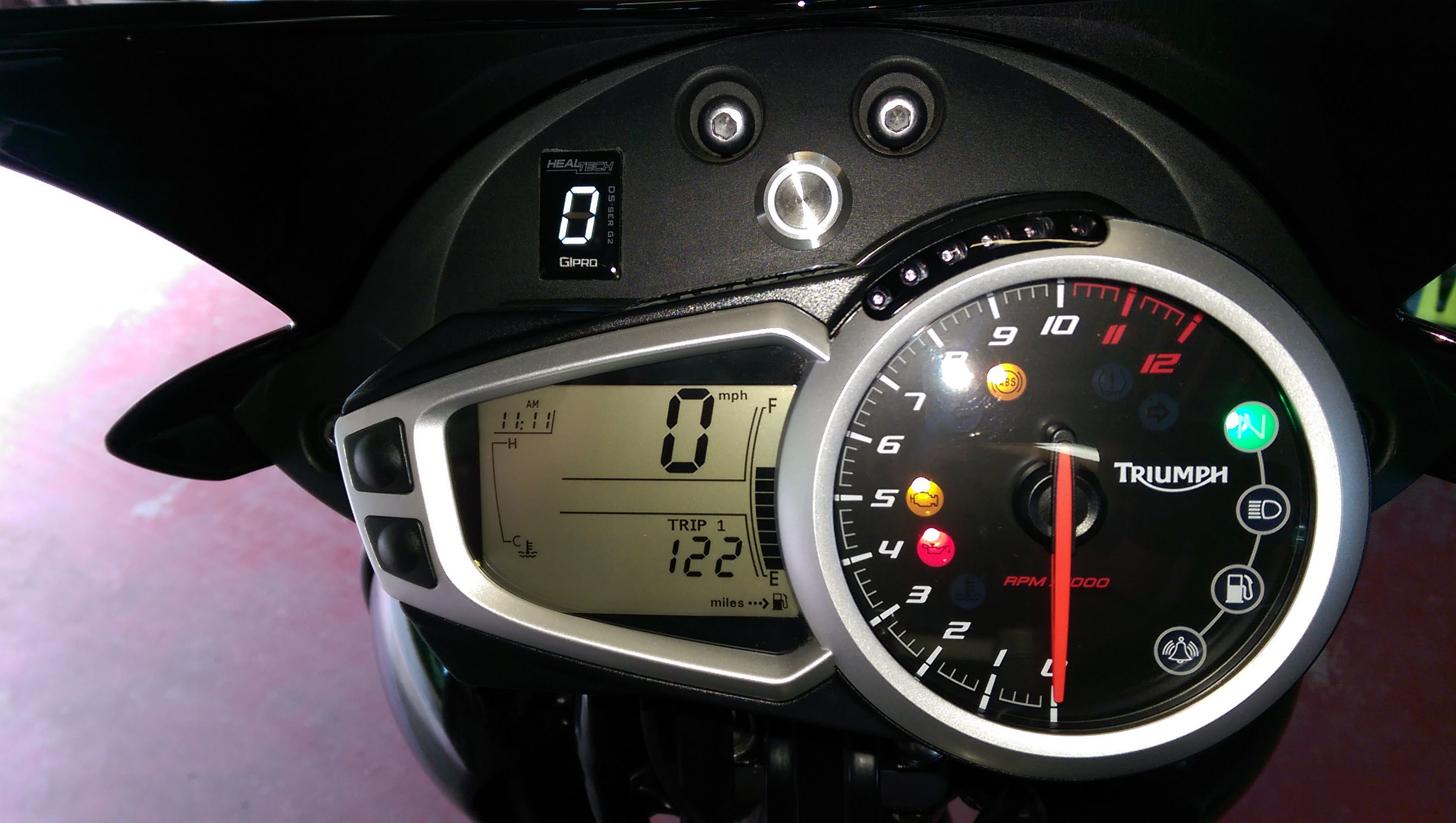

    Latest mod has been the addition of a gear indicator, Healtech have recently added an ABS compatible version that doesn’t require additional sensors (which put me off the idea previously). Only done a few hundred miles since fitting but so far so good, calibration is easy, just compares engine revs to wheel speed. Not as good as a factory fitted indicator (due to the afore mentioned operating limitations) but a fair second best.


    • Like Like x 14
  2. andyc1

    andyc1 #2121313
    Subscriber

    Feb 4, 2017
    2,236
    800
    N. Ireland
    Thats really nice Col! Very nice indeed. Only thing I would say is the number plate hanger, yes it looks fine but I found the tail light gets beat up and becomes rough to the toich because crap from the tyre is able to hit it

    • Cheers Cheers x 1
  3. Col_C

    Col_C I can't re...Member
    Subscriber

    Aug 5, 2015
    567
    143
    Cornwall
    Yes heard others comment the same, think I might put some protective film there.
    Should have left the old hanger on, functionally superior. :rolleyes::joy:

  4. Dougie D

    Dougie D Crème de la Crème

    Jan 30, 2016
    3,687
    1,000
    Blairgowrie Perthshire
    your bike looks great Col..and your not the only one lusting after an original speed triple!

    • Cheers Cheers x 1
  5. stollydriver

    stollydriver Senior Member
    Subscriber

    Apr 25, 2015
    407
    213
    north wales
    Superb looking bike you have there..:)

    • Cheers Cheers x 1
  6. Adie P

    Adie P New Member

    Jul 7, 2018
    14
    3
    HOLCOMBE ROGUS
    DAMN! That is a REALLY fine looking motorcycle with some very tasteful - and tastefully discreet - mods and upgrades. Well done, you. :heart_eyes:

    As a matter of interest, can you let me/us have a bit more information on how you fabbed up and fitted that dash panel infill above the clock set, please? It looks very neat. I've got a Street Triple with a similar clock set and would like to have a similar arrangement for a digital voltmeter and, perhaps, a digital clock?

    I do happen to have a Mark One Speed Triple - no, actually, I have 2 now, but don't tell the wife that, she doesn't know about Speedy Naranja - because, like you, I lusted after one so badly when it first came out that I almost sold my '92 Trident for one. And it was exactly that ad. (with the Rottweiler looking bewildered) that sparked my fire. But, common sense prevailed and so now I have the Green Trident (owned from new) and a Black Speed (acquired earlier this year) and an Orange Speed, more recently acquired - you seen the prices of them lately? Oh, and a '94 Tiger and, of course, a 2010 Street. Can't have too many Triumphs ........ ;)

    Regards,

    Adie

    • Like Like x 2
  7. Col_C

    Col_C I can't re...Member
    Subscriber

    Aug 5, 2015
    567
    143
    Cornwall
    @Adie P Hi, I spoil you guys, doing your research for you ;)........
    Fortunately the wife has a Street Triple so I understand the relevance of your question (I'm comparing a 2015 Speed with a 2014 Street, so may not be true for other model years).
    I've removed the flyscreen from both and other than colour they are identical.

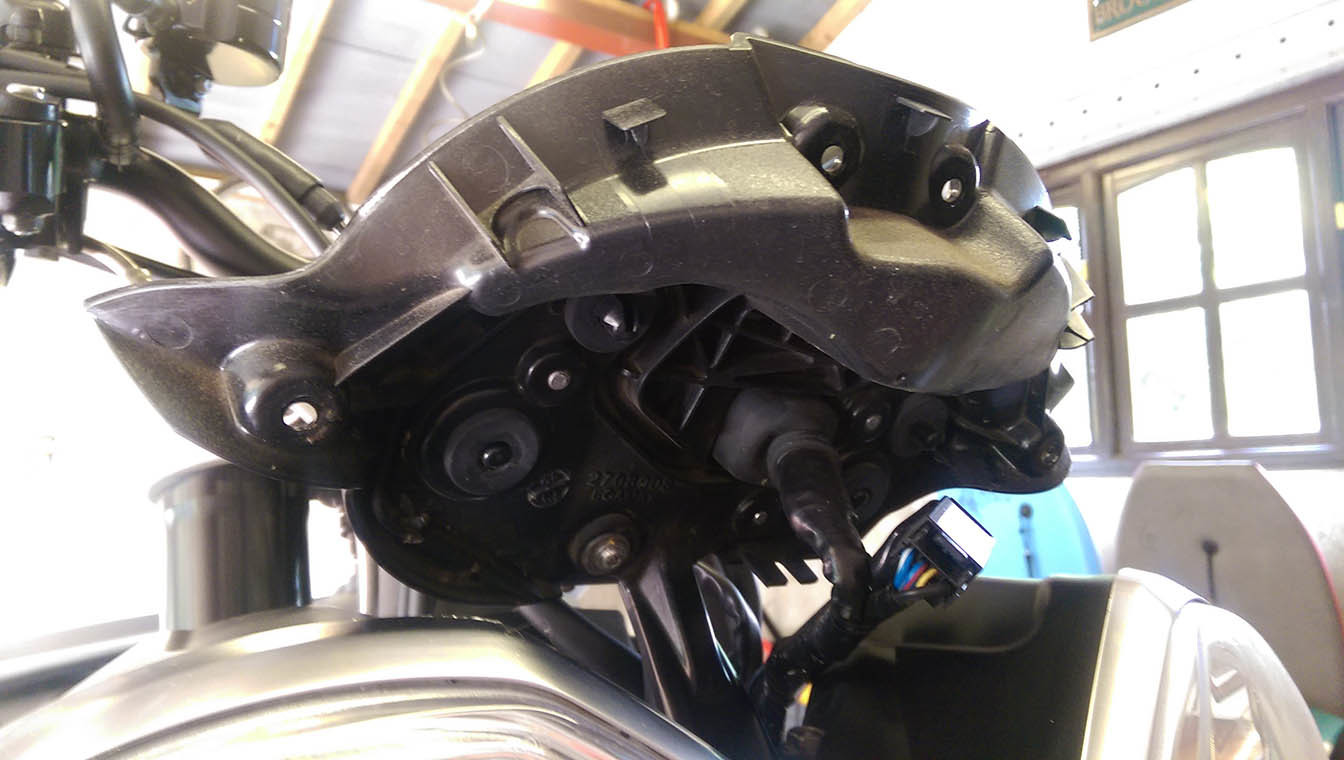

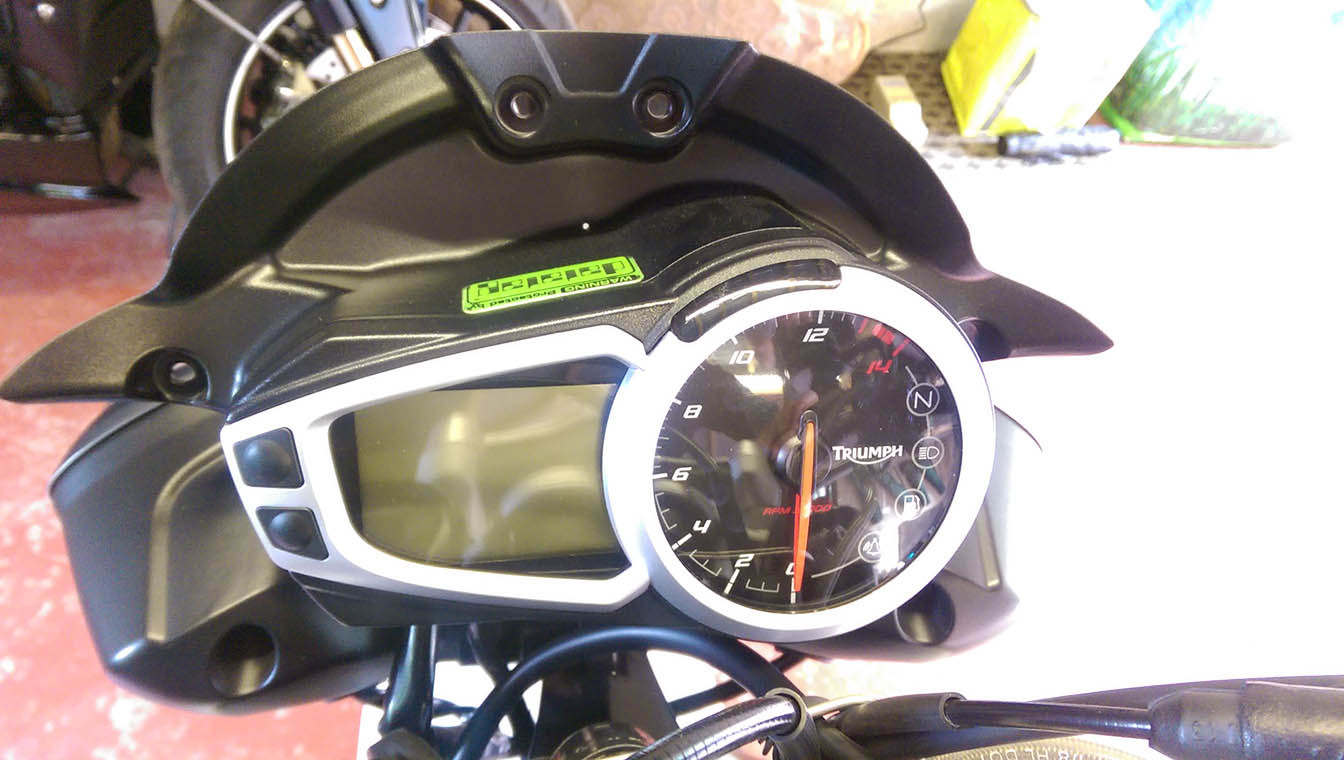

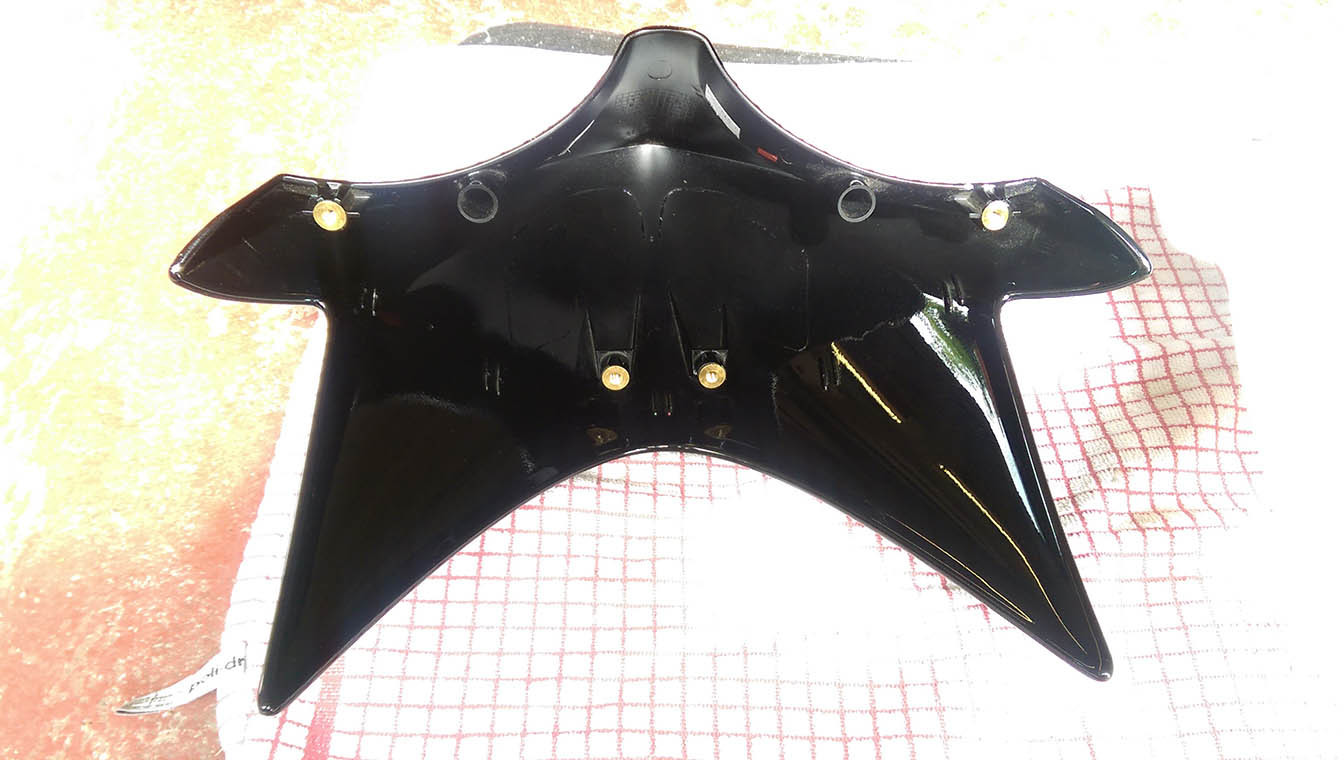

    So the Street has a more sculpted infill panel behind the flyscreen....

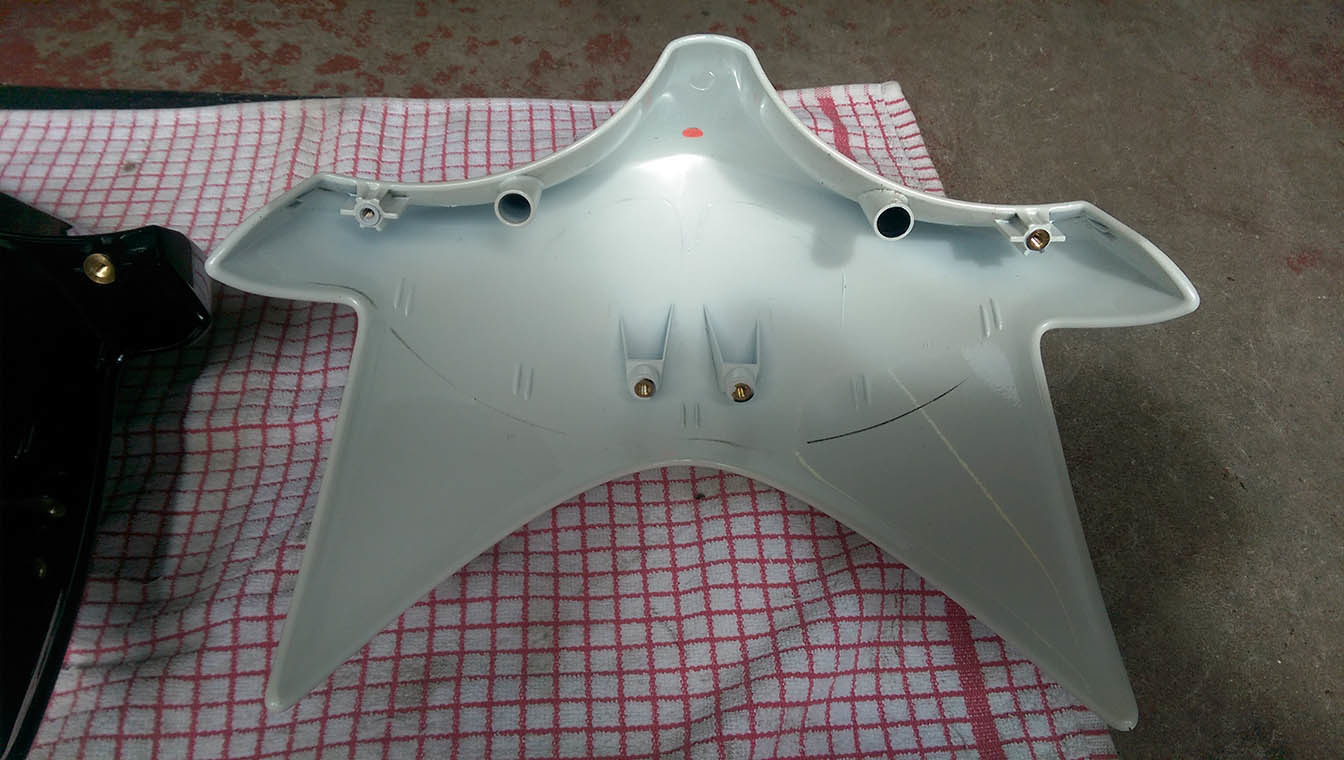

    and the Speed is relatively flat (and softer plastic BTW)....

    Fortunately for you the two will be entirely interchangeable, so all you need to do is order the Speed part T2302135 here

    Once you have the flyscreen removed there is a single screw near the bottom to remove, disconnect the instrument panel connector and the instruments can be pulled off the mounting grommets. Under the instrument panel there's then 3 screws holding the infill panel. Swap panels, re-assemble, job done.

    • Like Like x 1
  8. Rich Bryce

    Rich Bryce Dead Eye Dick
    Subscriber

    Sep 18, 2015
    1,835
    700
    Bedford England
  9. Spspeed

    Spspeed New Member

    Jun 26, 2018
    7
    3
    USA
  10. Adie P

    Adie P New Member

    Jul 7, 2018
    14
    3
    HOLCOMBE ROGUS
    Hi Col. You, Sir, are a scholar and a gentleman. Thank you most kindly for that - looks like it should be interchangeable with my 2010 (and/or the wife's 2009) Street Triple!

    Time to get the Visa card out .................


    Regards,


    Adie

    • Like Like x 1
    • Cheers Cheers x 1
