69 120r

Discussion in 'Builds & Projects' started by Tibster, Feb 14, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney

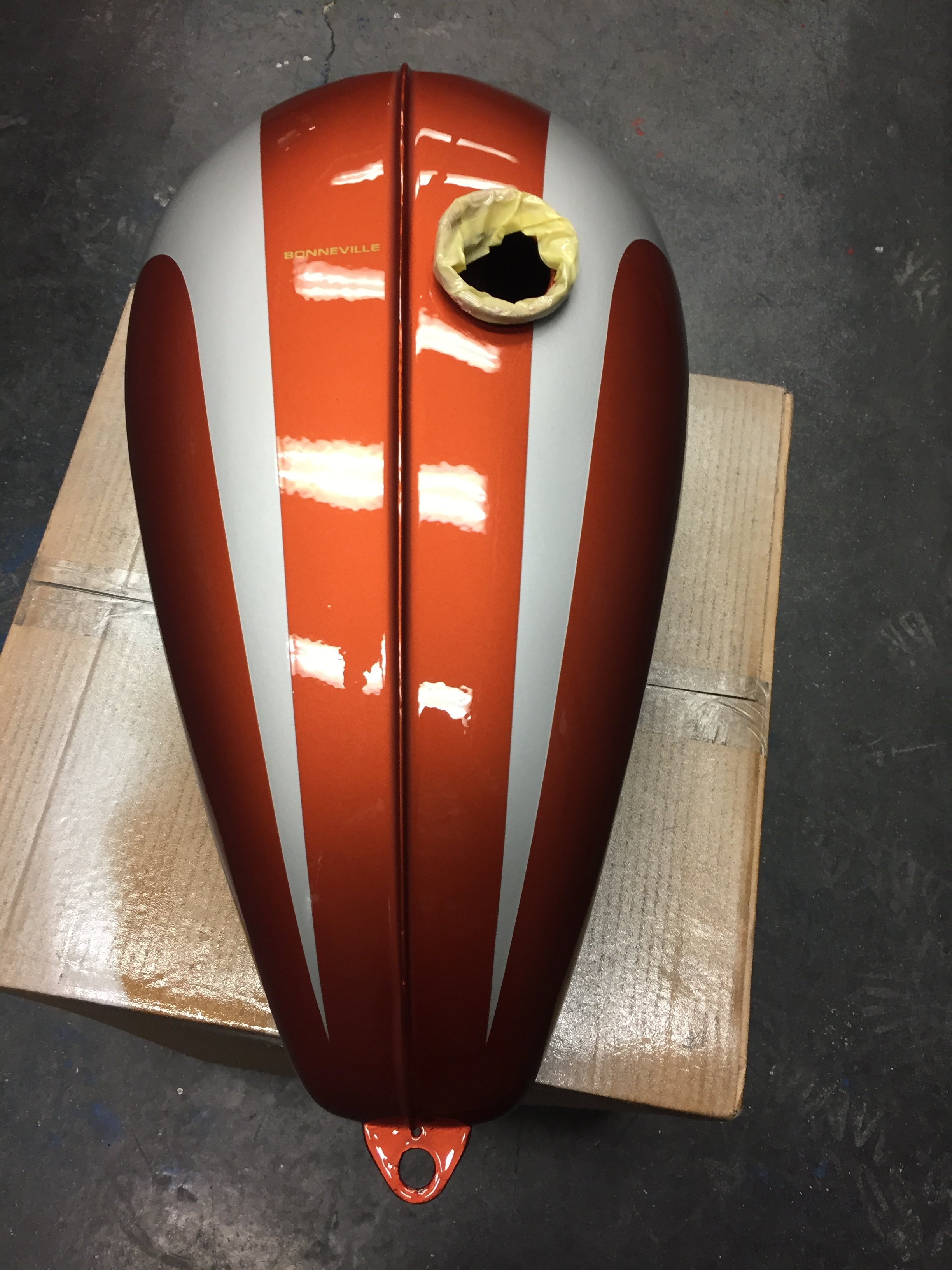

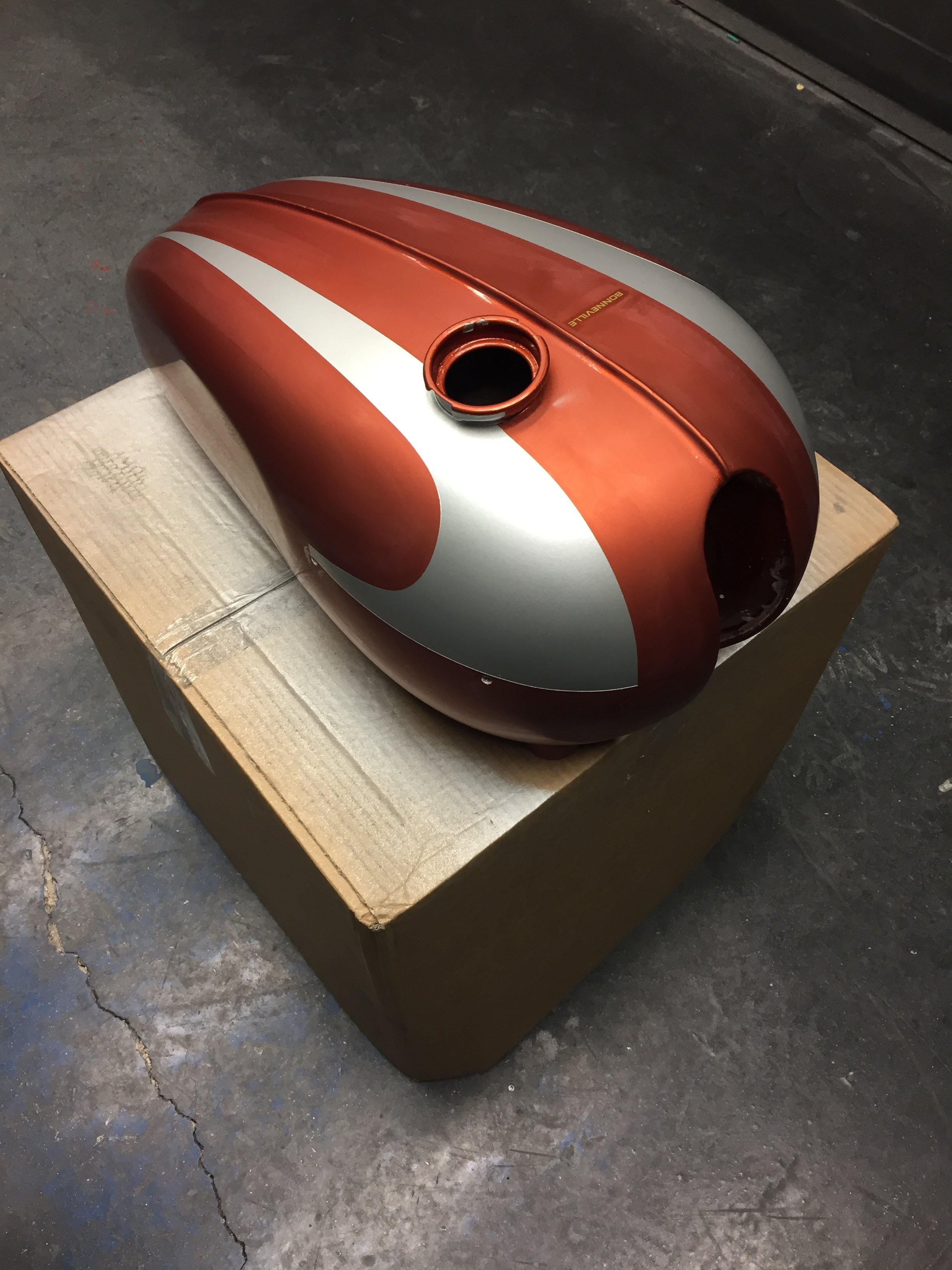

    Got some paint on tonight , laquer has been on for 30 mins so far ,my decal hasnt pickled :), still tacky when left so hoping it hasn't floated to the top by the morning ,





    • Like Like x 8
  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth
    Very nice :)

    • Agree Agree x 4
  3. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    Thanks darkman, very pleased with it, the water slide decal handled the laqer thankfully , I misted it firxt and let it tack off a little more than usual before the following two coats . Other things that may of helped were the fact that the first coat of paint on the tank had been on there a good couple of weeks and I also put the water slide on two days previously allowing it to fully dry .. or was just lucky !
    Think I will flat off next with 1500 then polish then finaly pin stripe . :)

    • Like Like x 1
    • Agree Agree x 1
  4. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth
    Nice work, i never flat top coat as i like gun finish but that's just me lol.

    • Agree Agree x 1
  5. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    I will flat it as I do have a couple of small inclusions , I have to paint in an albeit v clean powder shop, flatting should soften the edges and make striping a little easier I hope as may attempt myself but not sue yet . I know what you mean though , if I had a perfect fininsh I be tempted to leave it to.

    • Like Like x 1
    • Agree Agree x 1
  6. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth
    It's going to look fantastic when done :)

    • Agree Agree x 1
  7. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney

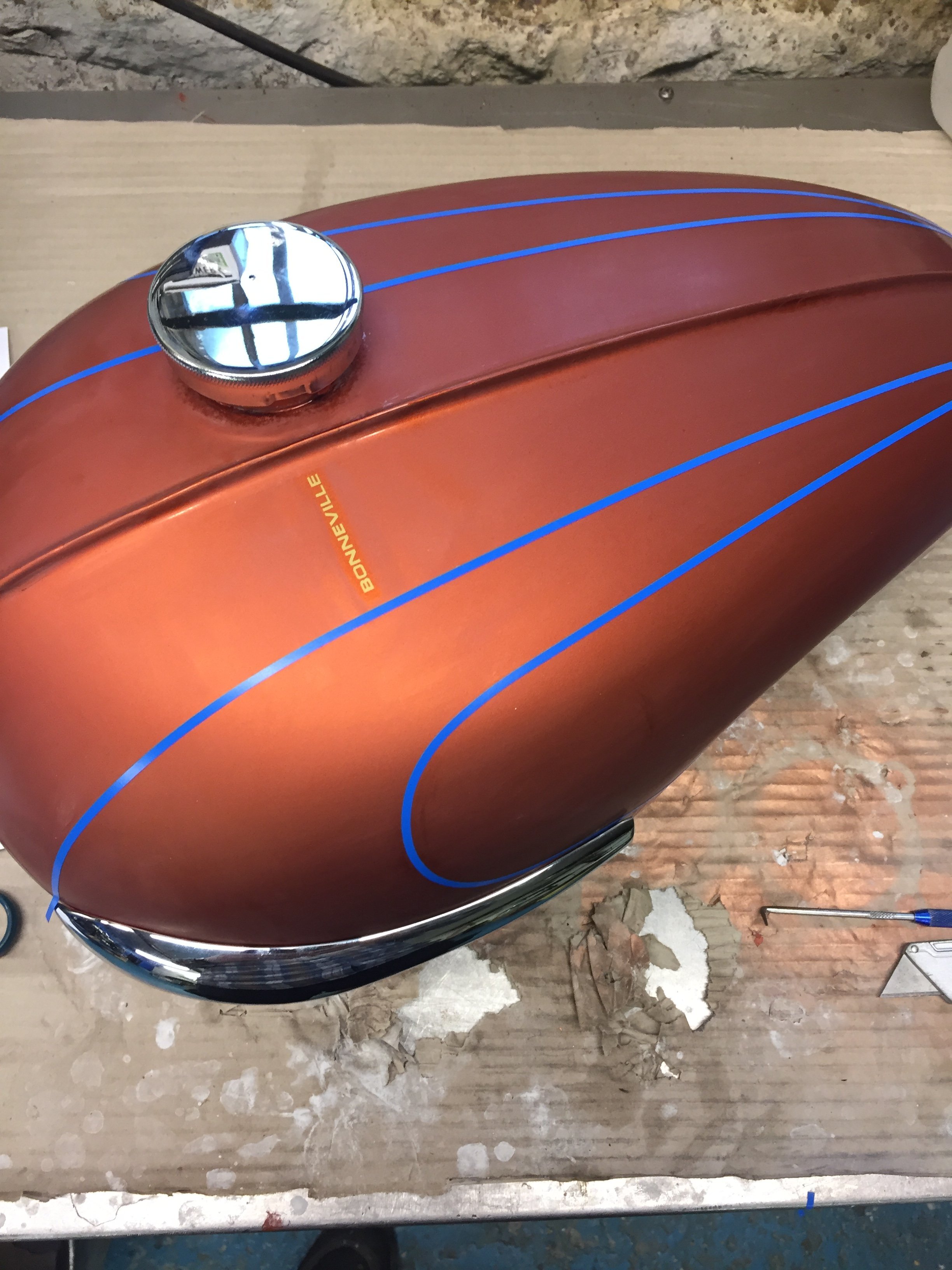

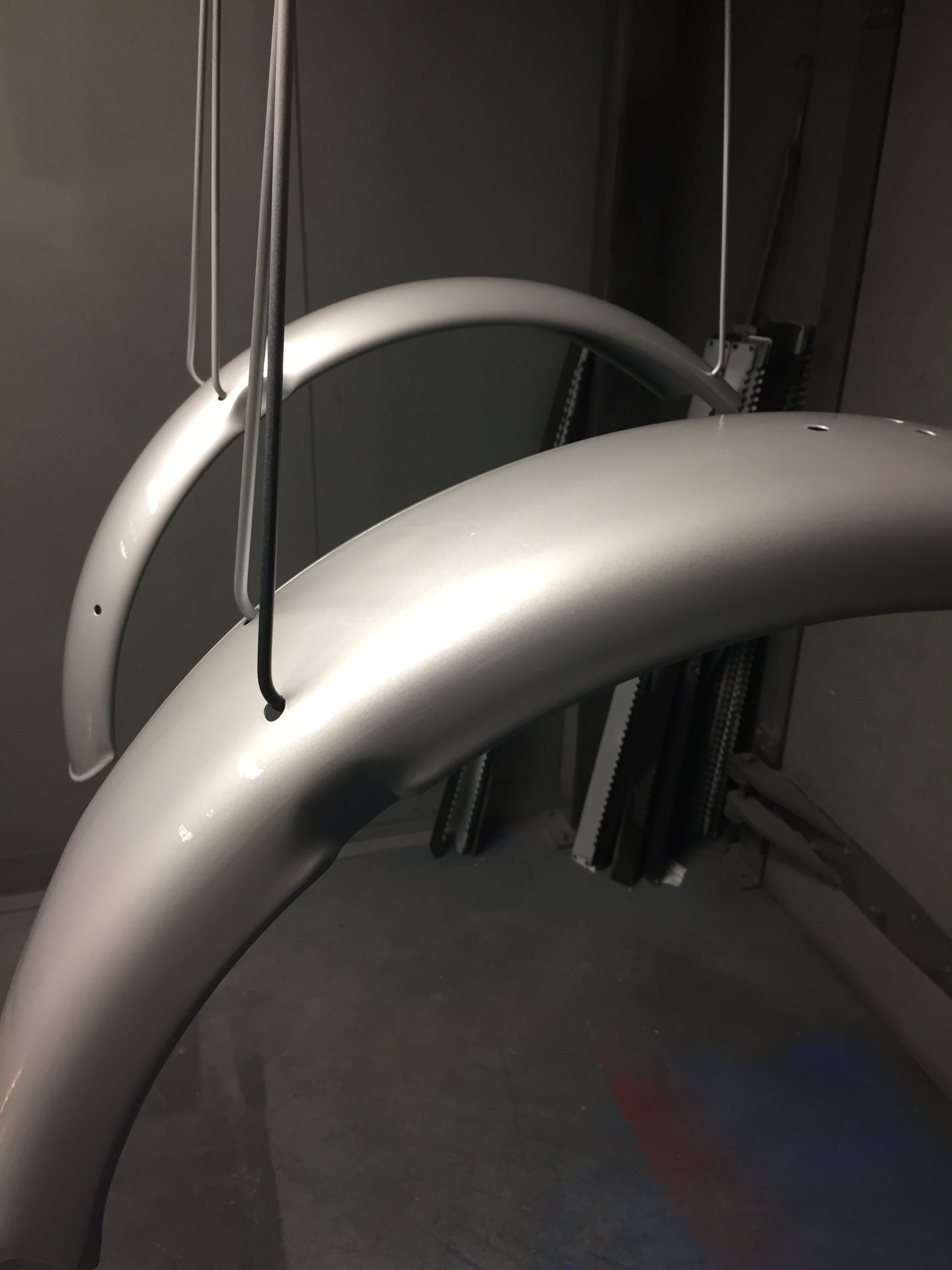

    Yeh cheers , think it will . Just flatted top areas of tank ready for a polish monday when I can borrow bro's polisher . Guards flatted too ready for masking and adding colour stripe . Will be bike transforming when these go on fof final fit :yum

    Oh and I cleaned up the petrol spout ;)

    • Like Like x 3
    • Agree Agree x 1
  8. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    #248 Tibster, Jun 11, 2019
    Last edited: Jun 11, 2019

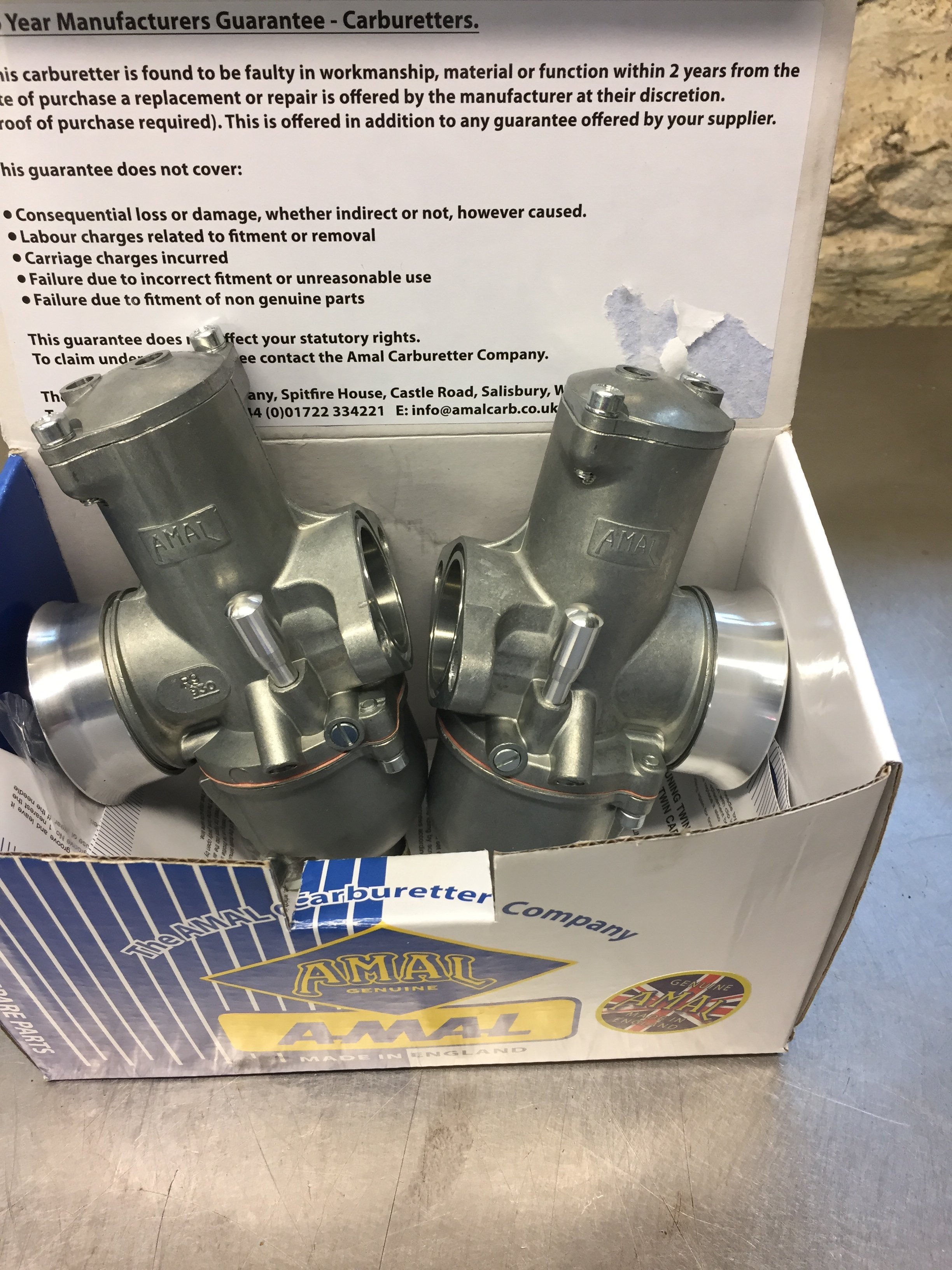

    These beauties turned up in the post . Awaiting some spacers before I can fit them though .

    95D75787-EF23-4765-A5BD-96E76BC42E85.jpeg '
    I decided to fit a new pair , I was going to rebuild my old ones until the centre jet assembly stripped out the alley threads in the main body :(, a shame but would of cost about £60 in parts and tbh I want the bike to run nice without the hassle of unknown worn parts so decided to fork out more bucks , hopefully nearly there now so the wallet can get some relief .



    • Like Like x 4
  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth
    Very nice, well worth the big spend :). Spacers ?

    • Agree Agree x 1
  10. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    Being a newbie at fitting motorcycle tyres I think I have cocked up :confused:. Not realising there may be balance dots on on my tyres Dunlop k70's I never looked, but have since AND they do in fact have yellow dots on , Is it the case as I fear I need to rotate the dot to align with the valve for both front and rear ?

    • Useful Useful x 1
  11. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    Being a newbie at fitting motorcycle tyres I think I have cocked up :confused:. Not realising there may be balance dots on on my tyres Dunlop k70's I never looked, but have since AND they do in fact have yellow dots on , Is it the case as I fear I need to rotate the dot to align with the valve for both front and rear ?

    • Useful Useful x 1
  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth
    I have never bothered, bit rich coming from me lol.

    • Agree Agree x 1
  13. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    Yup ,started so has to finish right , I thank you for keeping me honest on this project ! not sure my wallet does though ha ha . Its all worth it in the long run .
    My parts book shows a spacer 3mm I think


    Ahh OK re tyres maybe I will leave them then , do you have any balancing weights though ?

    • Agree Agree x 1
  14. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth
    Book shows carb spacer but 69 manifold has welded studs that are not long enough for spacers, so in reality 69's don't have them.


    • Like Like x 2
  15. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney

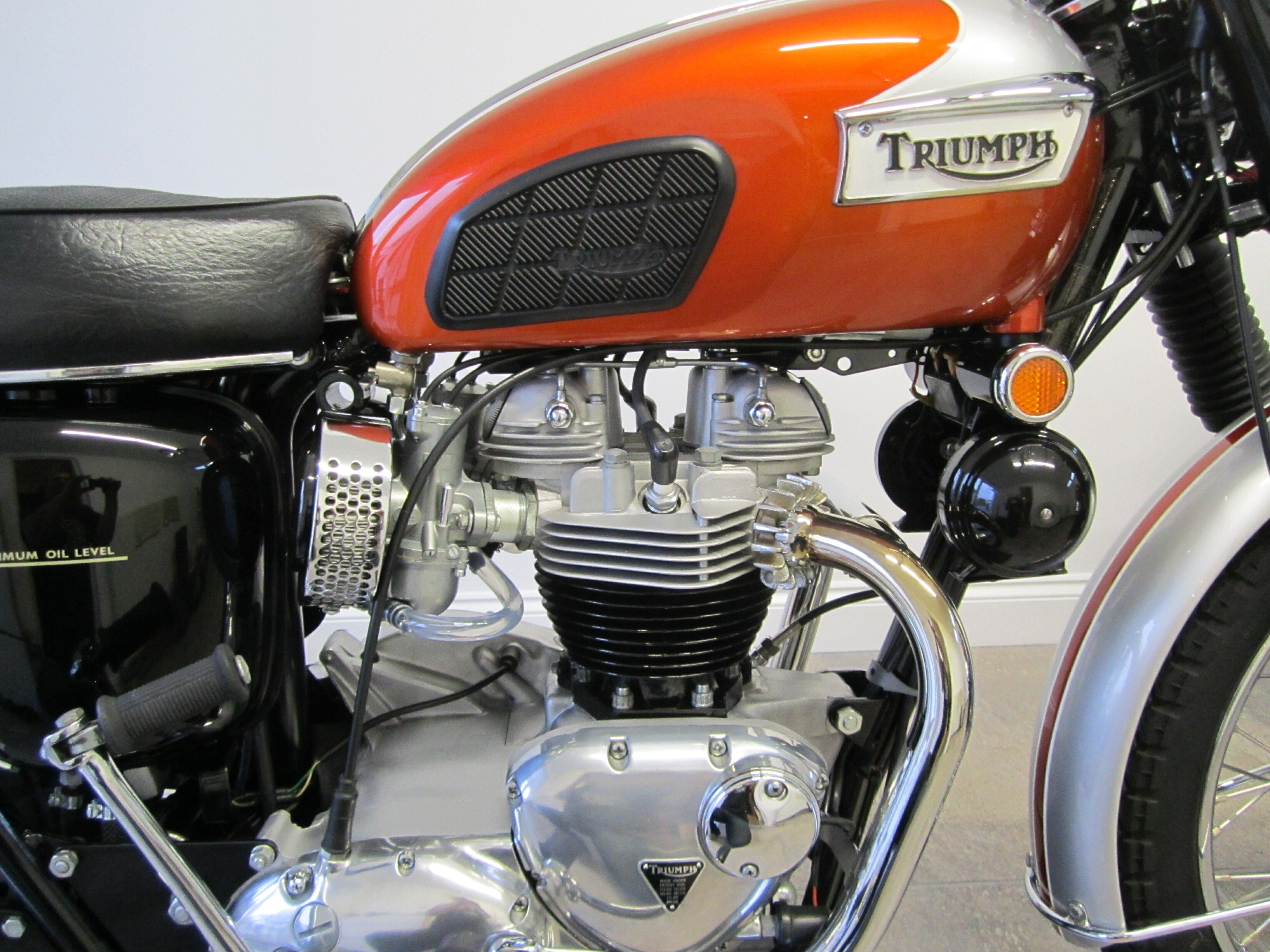

    Thanks for the pic , I did offer up without spacer at first and it looks like it would work with or without spacer , they were only £4 so will see when they turn up if they appear to be of any use .

    • Like Like x 2
    • Agree Agree x 1
  16. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    I am now thinking about the bikes electrics , not one of my strong points :worried:
    I have a pazon kit , but now just starting to realise I need a rectifier as I have nothing with the bike , is there a best kind ? Trying to get all electrical bits on and see if I can work out what goes where ,the easy connections on first so hopefully left with a bit less spagetti .

    • Agree Agree x 1
  17. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth
    Get the Boyer powerbox :)

    • Agree Agree x 1
  18. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    cheers , will go search :), bit of an ask but do you have any pics of your bike with tank off showing wiring routing or a link to one . Is it best to wire it negative earth ,think I might .
    Tank and guards now ready for striping :) , Hopefully heading
    to Farmborough next week if Nefarious can fit it in , so thanks for the lead for that .

    Blimey £85 for a Boyer just when I thought my spending was over !

    • Like Like x 1
    • Agree Agree x 1
  19. Tibster

    Tibster Well-Known Member

    Feb 10, 2019
    270
    63
    Witney
    I dont want to sound a cheapskate but after more searching for rectifiers I can see a Podtronics version would be cheaper , are they well regarded ?,I see they are American which I usually take to be a good sign in terms of quality .
    Sorry for the questions but is it a single phase unit I require , Stator has 2 wires is this the clue ? .

    • Agree Agree x 1
  20. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,546
    1,000
    Southcoast of the UK Earth

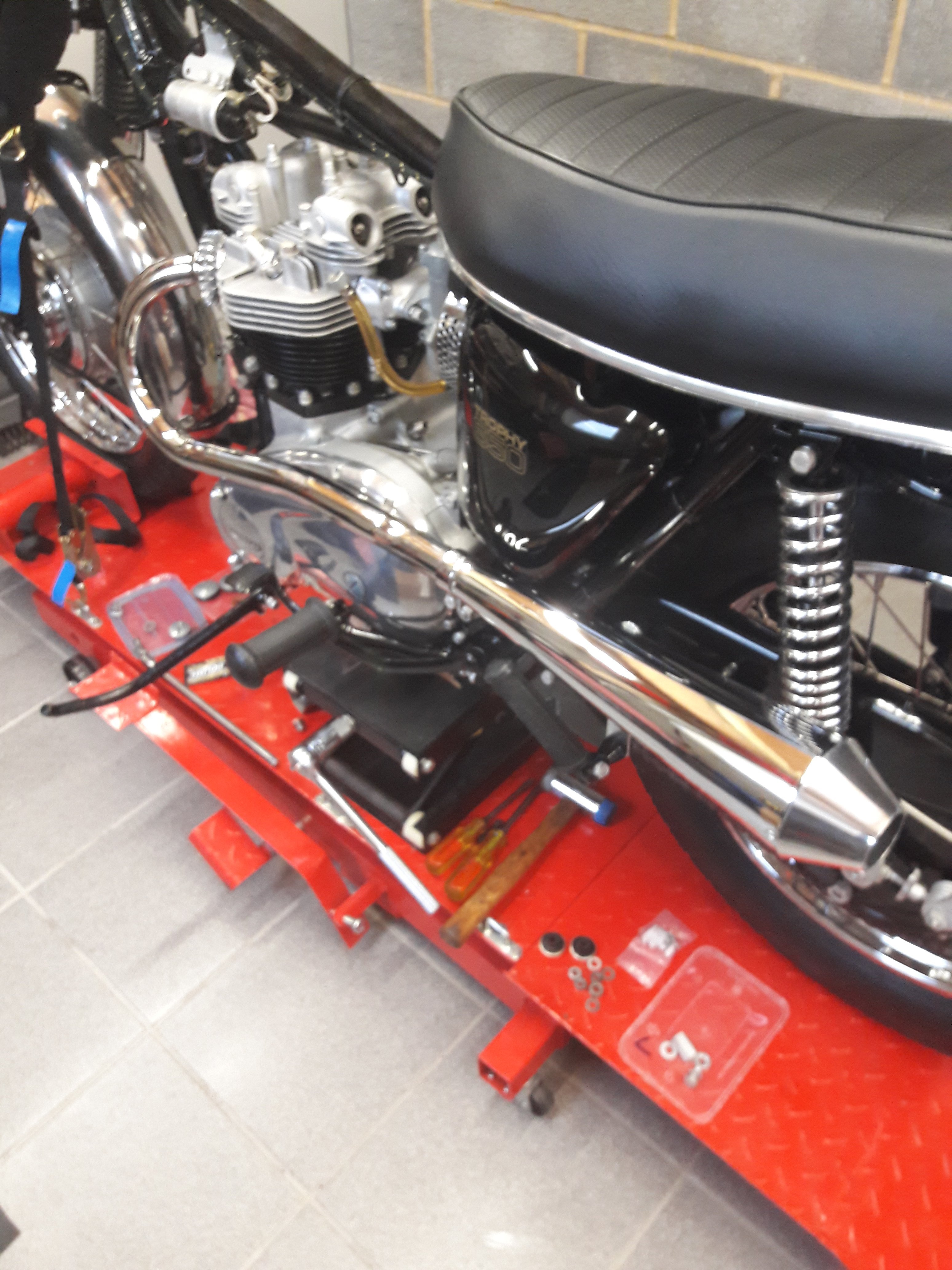

    Yes single phase, i only use poss earth and Boyer so have no idea on Podtronics sorry. Couldn't find a T120 one but have my TR6C pic.


    • Like Like x 3
