Wiring High Beam

Discussion in 'Technical Help' started by manwithnoname, Sep 16, 2017.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. manwithnoname

    manwithnoname New Member

    Sep 16, 2017
    0
    1
    las Vegas NV
    #1 manwithnoname, Sep 16, 2017
    I have a 74 t120v and I'm trying to figure out my high beam. The owner before me gutted everything and I'm trying to put it back together. I have the light hooked up to the toggle switch. How is the high beam wired up?

  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,656
    1,000
    Southcoast of the UK Earth
    #2 darkman, Sep 16, 2017

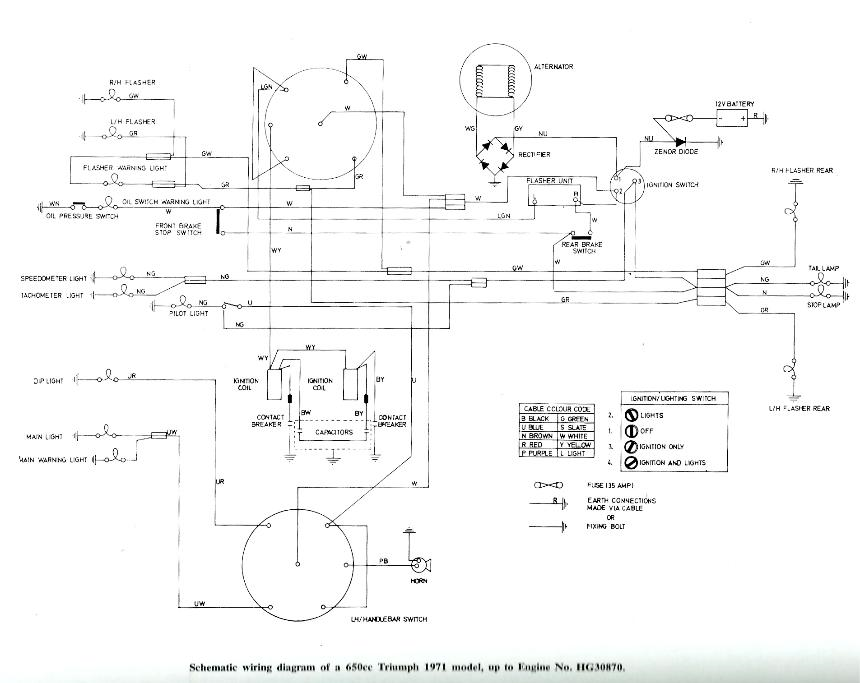

    Hope this helps.

Loading...
