Which Map ?

Discussion in 'Bonneville' started by tcbandituk, Jan 8, 2018.

Page 1 of 3
  1. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #1 tcbandituk, Jan 8, 2018

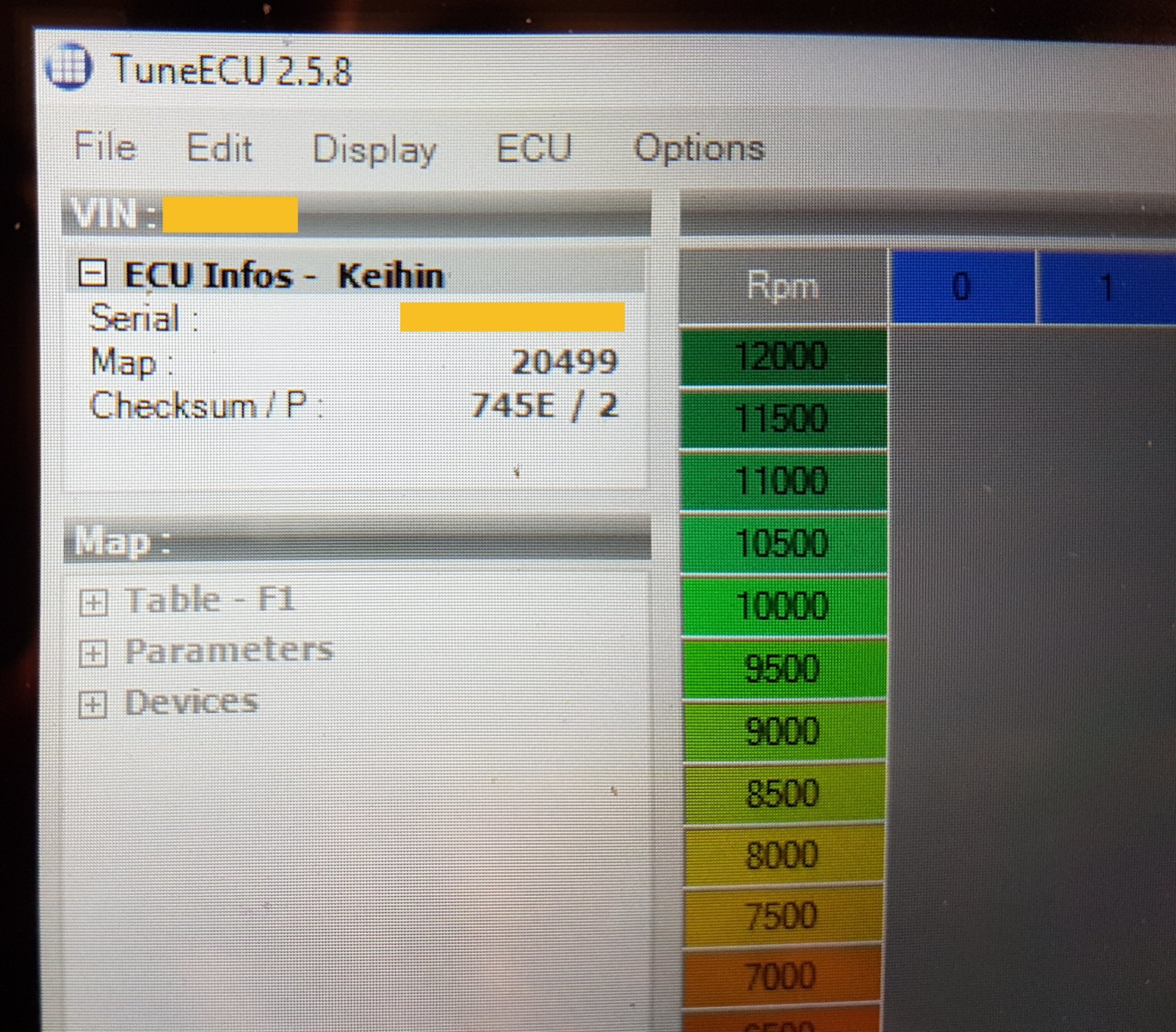

    The Bonnie Newchu has a map in it for the 2-1 Arrow - Map 20499.
    I've fitted the original downpipes back on and some TOR pipes.
    Should I use map 20507 or is there another one specific to the TOR pipes?


  2. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #2 tcbandituk, Jan 8, 2018
    Another question I have is that all the 'TEST' settings seem to be grayed out.
    How do you get them working ?

  3. Rudeboy

    Rudeboy Senior Member

    May 2, 2017
    402
    113
    Bristol
    #3 Rudeboy, Jan 8, 2018
    I ran the 20507 map with tors the bike ran rich and did not feel smooth also had the stink of fuel all the time overfuelling I think consumption was heavy also now using the arrows 2-2 map with the Norman Hyde pipes and it's just fine map 20505 runs great on this setup the test settings I cannot give you an answer as I
    Never used or noticed

    • Thanks Thanks x 1
  4. capt

    capt Elite Member

    May 8, 2016
    3,051
    750
    western Australia
    #4 capt, Jan 9, 2018
    If they are grayed out they aren't for your bike, tuneecu is generic, it will show almost all/everything that the program will do ! If you hook up to another model bike the gray area's may become active if your bike has those features.!!

    • Like Like x 2
    • Thanks Thanks x 1
  5. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #5 tcbandituk, Jan 9, 2018
    OK, cheers.
    I think what I'll probably do is stick the 20505 map in for now and get it dyno'd at a later date.

  6. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #6 tcbandituk, Jan 9, 2018
    OK, thanks for clearing that up.

  7. youngy

    youngy Active Member

    Oct 30, 2017
    38
    28
    Peterborough
    #7 youngy, Jan 9, 2018
    tests are greyed out unless you're in diagnostics menu

  8. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #8 tcbandituk, Jan 9, 2018
    When I was using it yesterday, the diagnostics and the Tests were on two different tabs and you could only select one or the other, not both?

    • Agree Agree x 1
  9. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #9 tcbandituk, Jan 9, 2018
    Another question, has anyone got a link or instructions on uploading a new map to the bike?
    It looks fairly simple, but I just wanted to make sure.....

  10. Rudeboy

    Rudeboy Senior Member

    May 2, 2017
    402
    113
    Bristol
    #10 Rudeboy, Jan 9, 2018
  11. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #11 tcbandituk, Jan 9, 2018
    No worries, it's the same for all instructions, assume the user is stupid :D
    Thanks for the link.

  12. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,247
    1,000
    Uk
    #12 crispey, Jan 9, 2018
    heres a video run through which gives you an idea of what it can do

    • Like Like x 1
    • Thanks Thanks x 1
  13. youngy

    youngy Active Member

    Oct 30, 2017
    38
    28
    Peterborough
    #13 youngy, Jan 9, 2018
    I reckon so, but the buttons appear greyed out on the wrong display.

  14. youngy

    youngy Active Member

    Oct 30, 2017
    38
    28
    Peterborough
    #14 youngy, Jan 9, 2018
    It is simple.

    Make sure your battery is fully charged and remove the headlight fuse to stop it discharging while downloading.

  15. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #15 tcbandituk, Jan 9, 2018
    I was aware of that one from using it before a couple of years ago, but forgot about little little bits, like being aware you have to disconnect the ECU in Tune ECU first before manually disconnecting.
    I'll probably give it a go later.:)

  16. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #16 tcbandituk, Jan 10, 2018
    OK, map downloaded ok last night.
    Didn't do the adaption until this morning as it was a bit late when I finished.
    It completes the adaption and says it finished ok, but once the bike has started it says to wait for the light on the bottom left to go green. It was green all the time !
    It didn't change colour at all while I did the adaption or started the bike up etc.
    I used no throttle on the bike.
    At first I thought it might be because I had to use the fast idle (choke) to start it.
    So once it was warmed up, I redid the procedure again, starting the bike up with no throttle and no choke.
    The green light stayed on again.
    I left it for 10-15 minutes running anyway, but not sure if it's worked or not :confused:

  17. Johnjo

    Johnjo Senior Member

    May 29, 2017
    548
    243
    Birmingham
    #17 Johnjo, Jan 10, 2018
    I wouldn't be too worried with the green light. I used to have that when messing with a tiger ecu years ago. The map had always updated.
    I've not managed to connect tuneecu to the Bonnie yet. Must give it another go. I want to try 20505 myself.

  18. youngy

    youngy Active Member

    Oct 30, 2017
    38
    28
    Peterborough
    #18 youngy, Jan 10, 2018
    Not sure with the Bonnie but on the triples you have to wait for the fan to cut in then 12 to 15 minutes for the adaption to take place.

  19. tcbandituk

    tcbandituk TC
    Subscriber

    Apr 8, 2016
    2,839
    1,000
    Reading
    #19 tcbandituk, Jan 10, 2018
    There's no fan on a Bonnie which makes it tricky to follow the instructions o_O

    • Like Like x 1
  20. Rudeboy

    Rudeboy Senior Member

    May 2, 2017
    402
    113
    Bristol
    #20 Rudeboy, Jan 11, 2018
    Hi JJ get that map on there loving every minuite of mine now runs smooth with nice throttle response assuming you are still running those Hyde Pipes the arrows 2 into 2 map seems to suit the bike
