Wheel removal

Discussion in 'Speed Triple' started by topbanana0, Sep 13, 2016.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. topbanana0

    topbanana0 Well-Known Member

    Mar 27, 2016
    226
    93
    South Wales

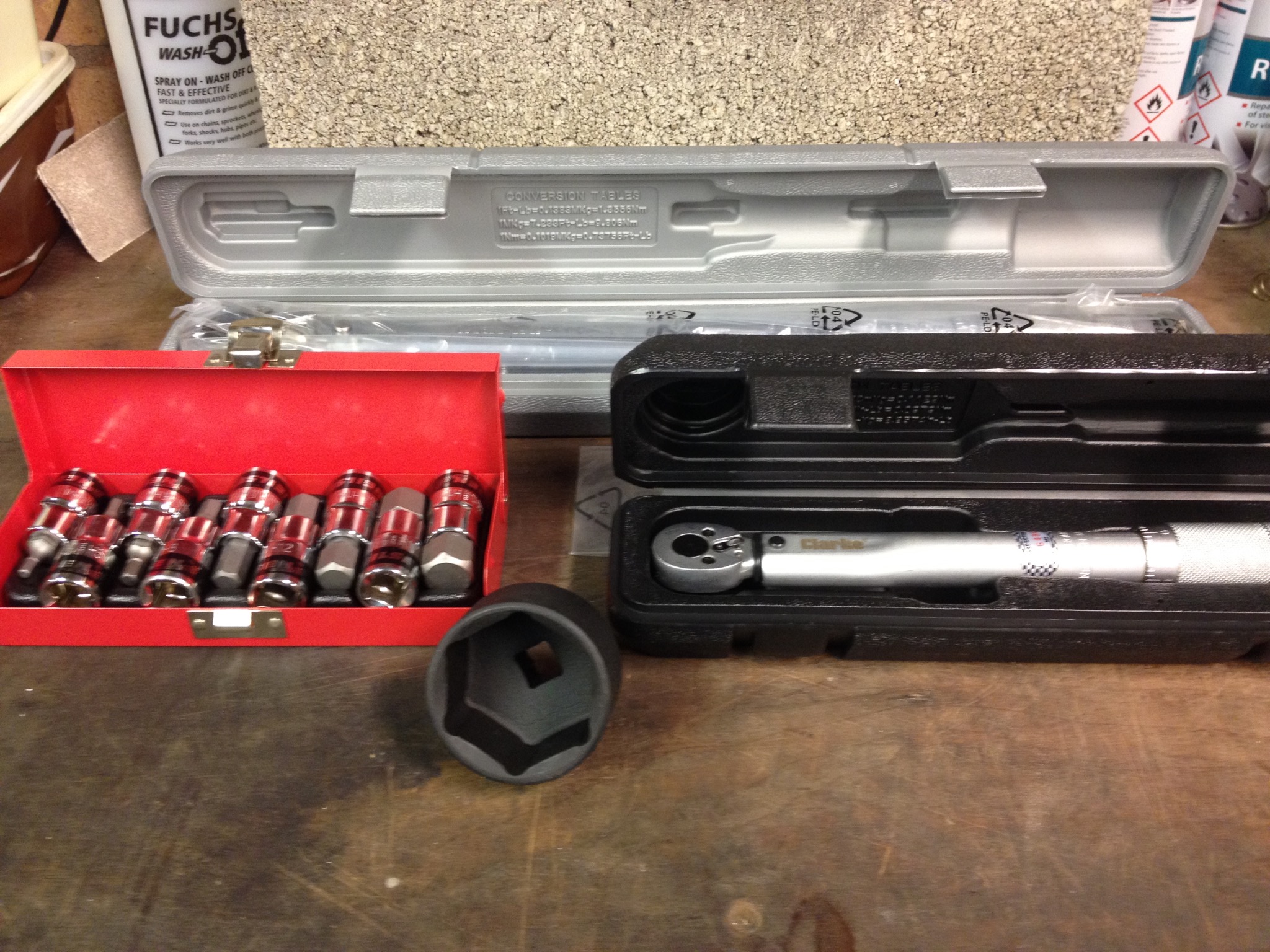

    image.jpeg Right all ready to get the wheels off, spent almost £100 and I haven't touched the bike yet lol

    • Like Like x 3
  2. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,475
    700
    UK, London
    They are an investment when you're doing your own maintenance. Buy quality tools and look after them n they will last you a very long time ;-)

  3. Taff Salmon

    Taff Salmon Active Member

    Aug 22, 2016
    77
    28
    no
    You'll save a ton in undamaged parts too

  4. topbanana0

    topbanana0 Well-Known Member

    Mar 27, 2016
    226
    93
    South Wales
    Yeah nice to have the correct tools, couldn't stretch to expensive torque wrenches like norbar as recommended. But should be ok for what I want.

  5. t552

    t552 Senior Member

    Nov 17, 2014
    415
    113
    Bristol UK
    Remember when you have finished with the torque wrench put it at the lowest setting for storage

    • Like Like x 3
  6. topbanana0

    topbanana0 Well-Known Member

    Mar 27, 2016
    226
    93
    South Wales
    Will do

  7. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,475
    700
    UK, London
    I know it too well during my early days of biking :-(. Lesson learned n invested in decent kit over the years n taken good care of them :)

    • Like Like x 1
  8. topbanana0

    topbanana0 Well-Known Member

    Mar 27, 2016
    226
    93
    South Wales

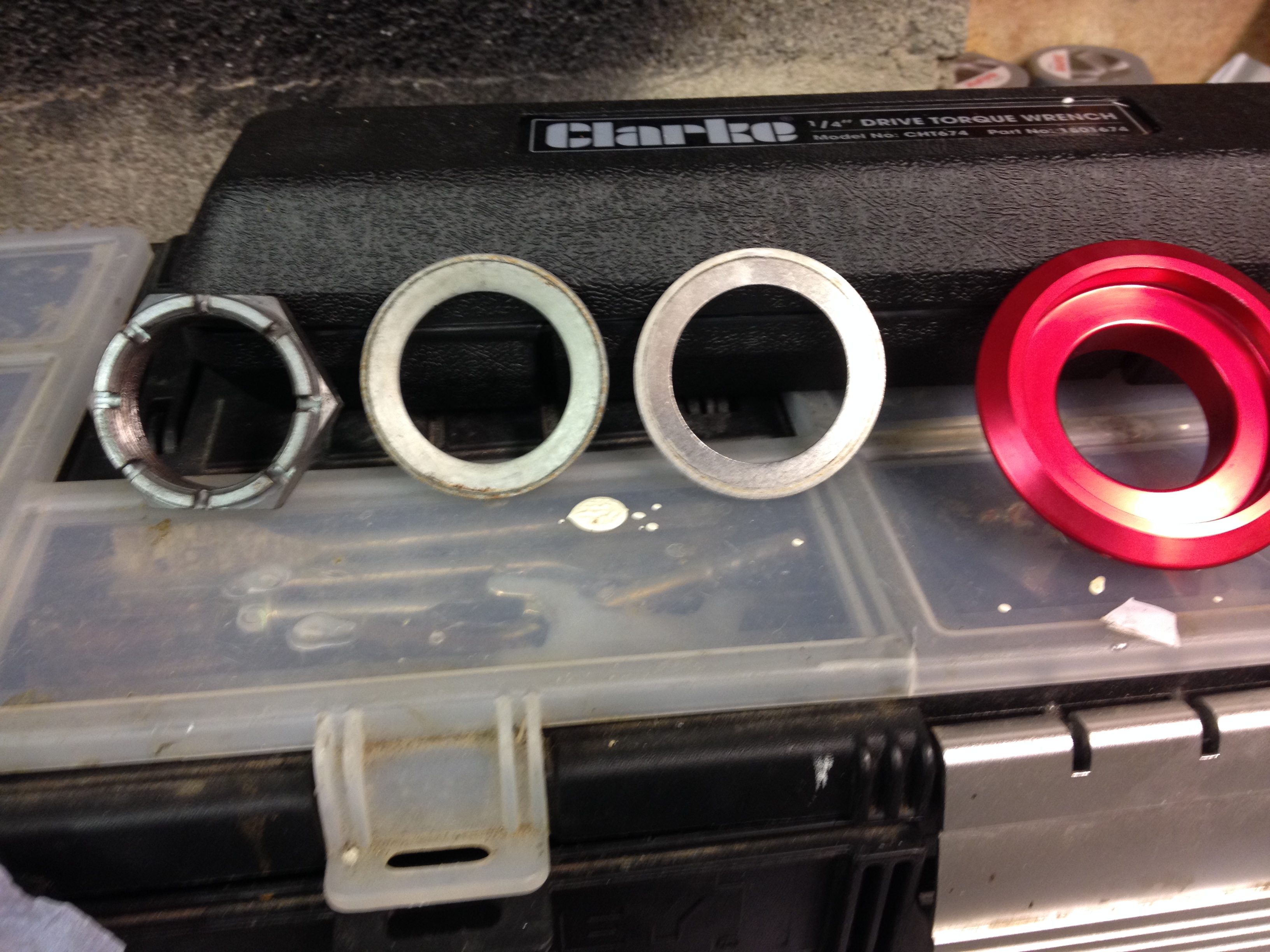

    Just taken the rear wheel off, when doing so, didn't notice what order the spacers came off.
    Think it's red anodised first then thin spacer then concave thick spacer and nut. With outer edge of concave spacer facing in???


  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,568
    1,000
    Southcoast of the UK Earth
    Tapered rounded edge facing the nut :)

  10. Taff Salmon

    Taff Salmon Active Member

    Aug 22, 2016
    77
    28
    no
    You are correct
    Taff


  11. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,475
    700
    UK, London
    I had the same issue then realised that conical washes acts like a spring. Just as Darkman & Taff said :)

  12. t552

    t552 Senior Member

    Nov 17, 2014
    415
    113
    Bristol UK
    Amazing how many belleville washers are fitted the wrong way round.

  13. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,568
    1,000
    Southcoast of the UK Earth
    Its an old idea that was used years ago on some old wheel bearings on British bikes and were used to preload, you had to pack them with grease back then as they were open with no rubber seals like today and they called them dust covers :)

  14. Davie_M

    Davie_M Active Member

    Jan 24, 2017
    128
    43
    Hamilton
    well when the dealer fitted the new tyre they fitted the convex washer wrong way round first then flat then the nut
    in fairness it was a suzuki dealer
    now refitted the correct way round

  15. Patrick G Whitehead

    Subscriber

    Oct 1, 2023
    25
    18
    Bishop GA
    Has anyone experienced the left side of the axle turning and not allowing the axle to be removed? This is happening to me. Everything seems to be fine except the left side is spinning while trying to unthread the axle from the right side. Any info is appreciated.

  16. TRIPLE X

    TRIPLE X Well-Known Member

    Sep 1, 2021
    228
    93
    Downham Market, Norfolk
    If the axle is spinning then the wheel is spinning with it. You need to lock it up by applying the rear brake while loosening the nut. You need an assistant to stand on the brake while you do the spannering.

  17. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,013
    800
    Yorkshire
    I also have 3 TW's that cover all bases. A Halfords "professional" 8-60Nm 3/8" drive, a Williams Autotorque 20-140 Nm 1/2" drive and a Draper 70-395Nm 3/4" drive.
    In the past when I didn't have a small enough TW to hand I've used a socket, T handle and a spring balance to get the required lb/ft setting . I've also used this method to get the correct start torque when adjusting items like steering and transmission components.
