Tyre Pressures.

Discussion in 'Tyres' started by Ian Champ, Dec 25, 2023.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Ian Champ

    Ian Champ New Member

    Sep 28, 2023
    7
    3
    Hadleigh, Suffolk
    A query for all you knowledgeable gents…

    When I owned a Triumph Explorer (2012), the tyre pressures stated in the manual were 42 R and 36 F.
    Weight of bike was 248Kg.
    The Suzuki V-Strom 650, weighing in at 228Kg stated the tyre pressures should be 36 R and 33 F.
    The Triumph Tiger 850 Sport, 195Kg states 42R and 36F…
    This doesn’t sit right with me. I understand the V-Strom needing less pressure, but why does the 850 need the same as the Explorer which is 50Kg heavier??
    Any ideas?
    Thanks

    • Like Like x 1
  2. Boothman

    Boothman Senior Member

    Jul 26, 2023
    478
    213
    Wigan
    You also need to consider the tyre size (diameter, profile and width) - are they all the same?

    • Like Like x 2
    • Useful Useful x 1
  3. Ian Champ

    Ian Champ New Member

    Sep 28, 2023
    7
    3
    Hadleigh, Suffolk
    Yup, and all the same make - Continental Trail Attack 3, but as the pressures are printed in the handbook, I’m not sure that is relevant? The manufacturers have made a decision about the pressures for the tyres even though they do not know what the tyres are…
    Surely it must be down to weight of the bike?

  4. Dustywheels

    Dustywheels Well-Known Member

    this a great watch if you haven't seen it before


    • Like Like x 1
    • Useful Useful x 1
  5. Baza

    Baza Elite Member

    Jul 25, 2020
    2,630
    750
    Home of Amazing Grace
    I’m not surprised. The tyre pressures for bikes rely on an estimated rider weight and load carried and both bike manufacturer and tyre manufacturer recommended pressures will not show any variation in recommendation for solo or two up riding, whereas your car manufacturer will, a total nonsense.

    To illustrate this by example my Ducati dry weight is 185 kg and my Triumph is 168 kg. Both bikes have exactly the same rim width and wheel diameter for both the front and back wheels. The bike manufacturer recommendations, which are non brand specific are within a couple of psi at 33 front for both bikes but 36 psi rear for the Ducati and the usual 42 psi for the Triumph which is the lighter bike. In the twenty or so years I have owned the Ducati I have always added another 3 psi to the rear tyre for carrying a pillion and have never experienced any problems.

    I took this up with the tyre tech guy at Dunlop as their recommendations replicated those of the two bike manufacturers. He could not give me a valid explanation of this apparent discrepancy. In normal clothing I go 66 kg and since owning the Striple have set my tyre pressures to those recommended for my Duke without any problems either solo or carrying a load of luggage.

    So don’t be ruled by what it says in the handbook and be prepared to experiment. Do please watch Dave’s video shown above and you may notice in the comments that I made this same observation a year ago.

    • Like Like x 1
  6. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,013
    800
    Yorkshire
    Thinking back to bikes I've owned in years past, many of them did have alternative tyre pressures in the owners's manual for both solo riding and high speed or fully loaded riding. My current ZZR and Triumph list only one standard pressure as most modern machines seem to do. I put this down to the advance in tyre design, construction and materials. Modern tyres are in a different league to those available 30-40 years ago, especially the premium sports rubber, not only offering more grip but more able to handle a wider range of loads and speeds without adjusting pressures to avoid distortion.

  7. Baza

    Baza Elite Member

    Jul 25, 2020
    2,630
    750
    Home of Amazing Grace

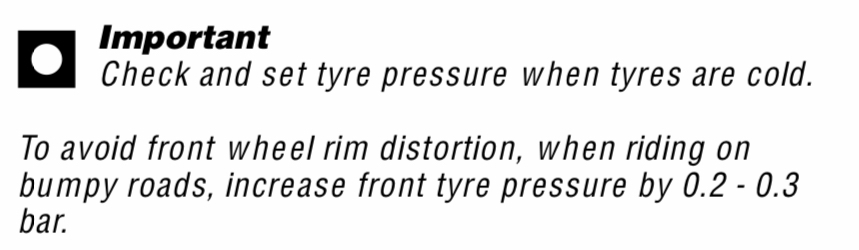

    I hear what you say about the advancements made, particularly this century, in the compounds now used in both car and bike tyres, but every car I have ever owned has advised increased pressures for carrying more than two people or an increased load. Even my current car which has run flat tyres with their stiffer sidewalls shows higher pressures for carrying more people/load. My Ducati does in fact recommend a higher pressure for one circumstance, see photo:joy:


  8. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,013
    800
    Yorkshire
    There will always be occasions where tyre pressures require adjustment for optimum performance. Those who drive/ride off road will be familiar with the necessity to drop the pressures to increase the footprint. I run the dirt bike knobblies at 12-15psi which certainly makes them squirm around on tarmac but increases grip substantially in the soft wet stuff while still giving some resilience to pinch punctures. 4 x 4 drivers will probably do the same. As for the " one pressure suits all" given in owner's manuals it will suit 99% of riders 99% of the time. In fact I've always run the ZZR tyres at the stated 42/42 psi through different tyre makes and types, solo high speed riding and loaded up with luggage and never had any issues, wet or dry or felt the need to try different pressures..

  9. Baza

    Baza Elite Member

    Jul 25, 2020
    2,630
    750
    Home of Amazing Grace
    Is that 42 front and 42 rear, wow. I’m not disagreeing with anything you’ve said. What I do urge other riders to do is not treat the handbook pressures as cast in stone, be prepared to experiment, like you do with your dirt bike.

    • Agree Agree x 2
  10. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,013
    800
    Yorkshire
    #10 Pegscraper, Jan 3, 2024
    Last edited: Jan 3, 2024
    Yes that's front and rear up to a max load of 175Kg. I can't remember what my previous 1198 or R1 pressures were, 36F 42R springs to mind but I remember thinking when I bought the Z that 42 is quite high for a front. 200+bhp isn't unusual now on litre plus machinery but at 260kg the Z is no lightweight. Big power & torque, high weight and semi sporting pretentions puts huge demands on tyres.

    Edit........it would be interesting to know what tyre pressures are run on production bikes at the TT and if they differ from standard.

    • Like Like x 1
  11. Baza

    Baza Elite Member

    Jul 25, 2020
    2,630
    750
    Home of Amazing Grace
    Considering the average lap speeds I would guess somewhat lower than those in the handbook before they put the tyre warmers on.

  12. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,013
    800
    Yorkshire
    Nitrogen is often used to fill race tyres as it offers more pressure stability/less variation with temperature than normal air as it contains no water vapour. It is more expensive though so wether the privateer teams use it is anybody's guess.

  13. Baza

    Baza Elite Member

    Jul 25, 2020
    2,630
    750
    Home of Amazing Grace
    You will find that the tyre bays in the CostCo outlets use nitrogen, not compressed air. So, as you say, it’s an inert gas I would not be surprised at all if they did. Yes it would be more expensive but given that the air we breathe already contains nearly 80% of the stuff I guess it’s not going to be prohibitive.

    Out of idle curiosity I looked at the BOC website and find that I can buy their smallest cylinder of the stuff containing over 2 m3 for £36 inc VAT, so if it has distinct advantages over compressed air I would expect all teams to use it.

  14. Sofia Baar

    Sofia Baar New Member

    Jan 1, 2024
    1
    3
    Belgium
    Absolutely, managing tire pressures for a bike like the Z with its significant power, weight, and semi-sporting characteristics is crucial. I recall similar pressures for my previous bikes, but the Z's weight does make you reconsider optimal settings. The demands on tires are indeed substantial. It would be fascinating to learn about the tire pressures used on production bikes during the TT and if there are variations from standard settings. The extreme conditions of the TT must necessitate some unique considerations in terms of tire management.

    • Like Like x 1
  15. STIFFLER

    STIFFLER Senior Member

    Jan 27, 2015
    587
    143
    Shropshire
    Before you start on this slippery slope & mind boggling variations remember this,
    Moisture is NOT just in the air you use..it`s in the tyre carcass so you need to know where that tyre`s been. Racing guy`s from what i`ve seen use a dry air system by Pneu-air or similar. This system takes air in & it goes through 3 dryers which take the moisture out. In tests it`s proven better that Nitrogen by a couple of points.

  16. Baza

    Baza Elite Member

    Jul 25, 2020
    2,630
    750
    Home of Amazing Grace
    Interesting, I guess it’s similar to dewatering the compressed air that you would use for paint spraying.
