Trophy 1200 Swing Arm Pivot Removal

Discussion in 'Technical Help' started by QuadumphUK, Sep 13, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. QuadumphUK

    QuadumphUK Senior Member

    Aug 14, 2014
    190
    293
    Boscombe
    Hi All after a bit of advice.
    Not taken a swing arm pivot bolt out of Trophy before
    The bolt itself doesn`t want to budge. Have only used a small persuader up till now and before use a bigger persuader wanted to check was doing it right.
    Has two bolts either side which are undone but when tap the bolt head on right to remove pivot out left hand side of bike it won`t budge.
    Don`t want to use bigger persuader just in case damage something.
    Also realise that it has been in there for about 20 years so might need to be persuaded to come out.
    Any advice would be appreciated.

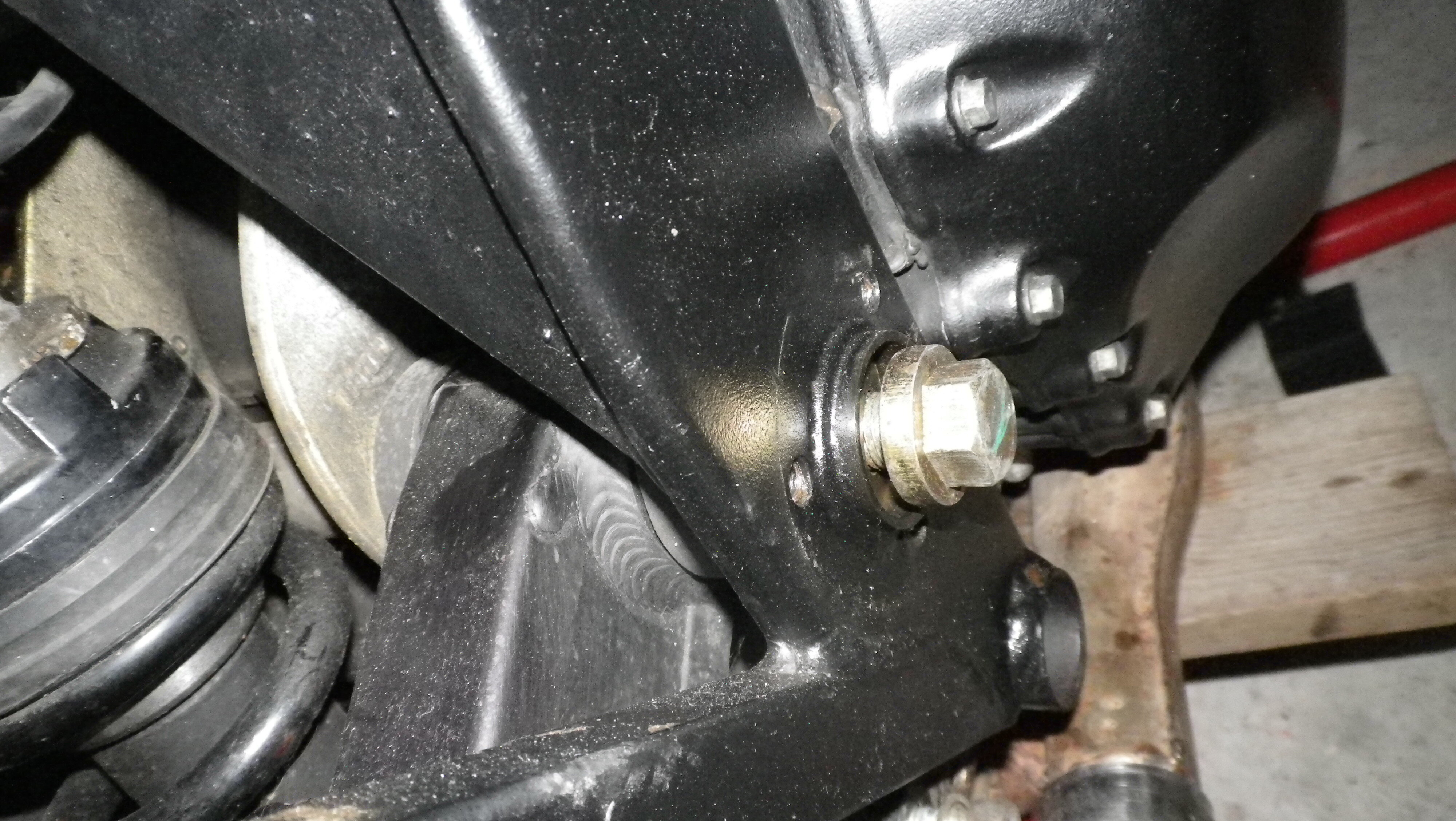

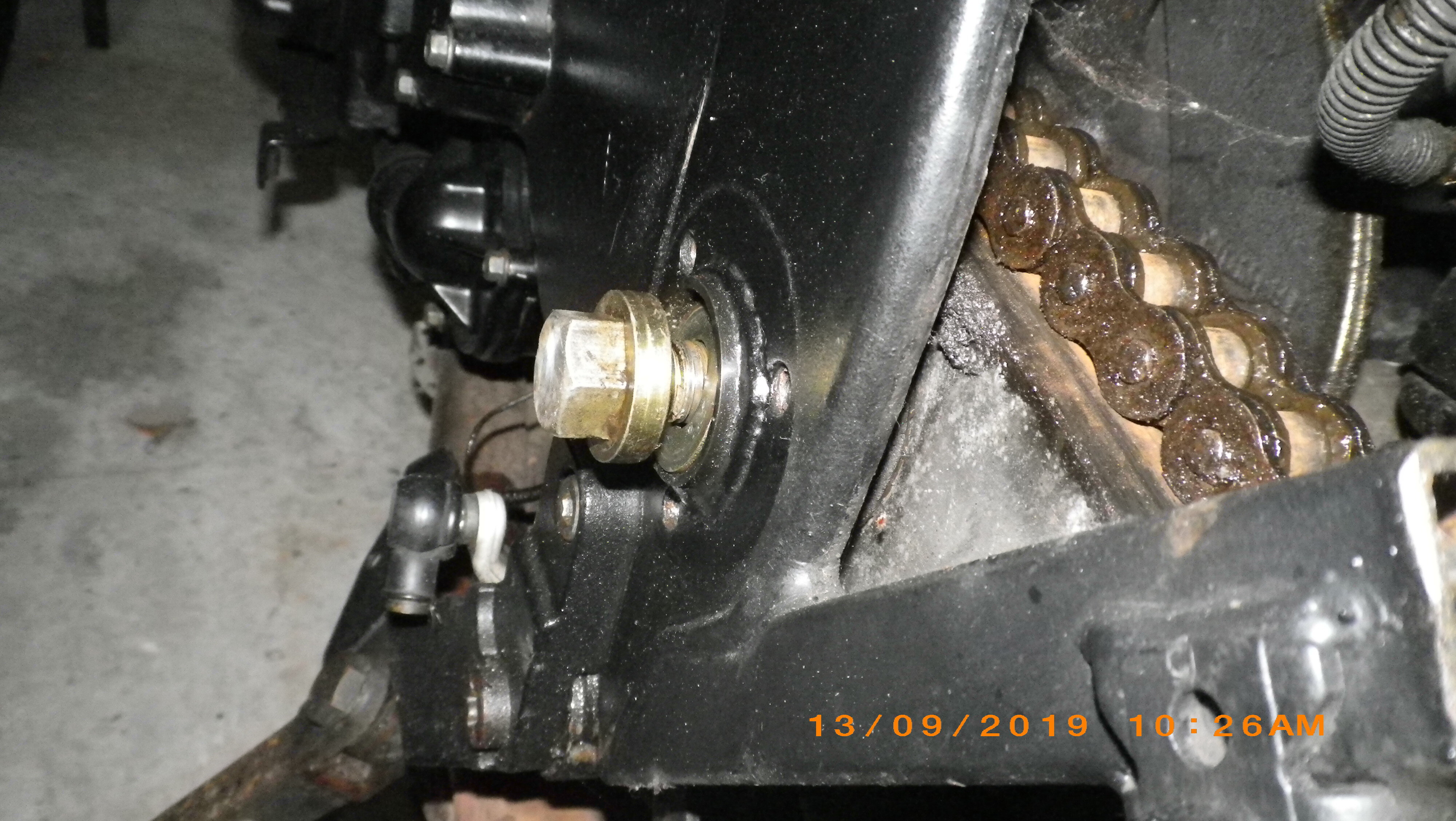

    IMGP6263.JPG IMGP6261.JPG Taken a few Japanese ones out but not one like this with various bushes etc

  2. stevethegoolie

    stevethegoolie Elite Member

    Oct 16, 2014
    2,175
    800
    East Riding of Yorkshire
    Have a look at www.mottleybiker.com to see if there are any tips therein.

    Based on the Speed Triple but basically all very similar.

  3. QuadumphUK

    QuadumphUK Senior Member

    Aug 14, 2014
    190
    293
    Boscombe
    Cheers will give it a look

    • Like Like x 1
  4. t552

    t552 Senior Member

    Nov 17, 2014
    300
    113
    Bristol UK
    Loosen the lower engine mount will make a big difference.

    • Useful Useful x 1
  5. QuadumphUK

    QuadumphUK Senior Member

    Aug 14, 2014
    190
    293
    Boscombe
    Have just had a proper read of Haynes and part I missed was about loosening the engine mount bolts. So lucky didn`t use big persuader. Thankyou for letting me know though. Good thing about this forum plenty of knowledge and experience plus people willing to share

    • Like Like x 2
  6. QuadumphUK

    QuadumphUK Senior Member

    Aug 14, 2014
    190
    293
    Boscombe
    Yeeeeeha got it done. Just used washers around pivot on frame then used pivot bolt to pull out shaft as tightened it. Once pulled as far as could used old xj600 axle as a drift. No need for heavy persuader. No sign of grease or anything on shaft and bearings have seen better days plus all the bushes etc. Lucky putting different swinger in
