Triumph Bullet Connectors

Discussion in 'Technical Help' started by Repooh, Jun 18, 2019.

  1. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,432
    1,000
    Stabby Town
    #1 Repooh, Jun 18, 2019
    Clever people, would you know the size of the bullet connectors on my Street Twin, I'm changing the indicators and the various bullet connectors in my Halford kit are different sizes, none the same as stock.

    I could change both ends but will revert to stock if and when I sell Edna so would rather stay as per factory, only need a dozen male and female

    • Like Like x 1
  2. t552

    t552 Senior Member

    Nov 17, 2014
    417
    113
    Bristol UK
    #2 t552, Jun 20, 2019
    Last edited: Jun 20, 2019
    Japanese bullet are 3.9mm. Not sure if thats what you want.
    You can check these at vehicle wiring products, kojacat or ebay under 3.9mm non insulated connectors. Better if you have the proper crimp tool, not the ones for pre insulated crimps. If i see a bike with those crimps i cringe. The right tool is not expensive.

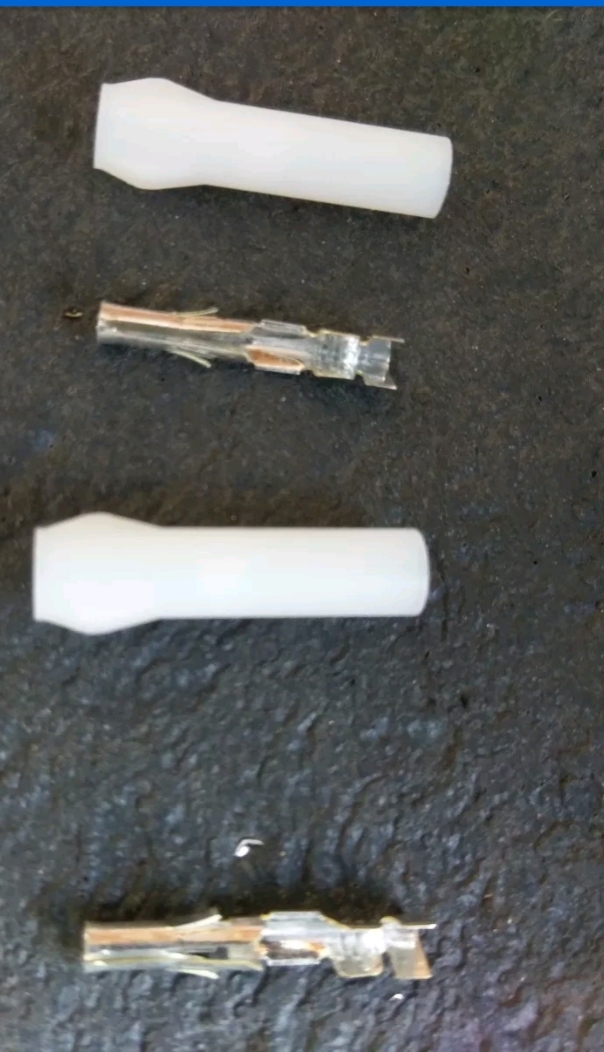

    A pic of the connector you need would be really good.

  3. Red Thunder

    Red Thunder Crème de la Crème

    Dec 2, 2014
    2,034
    1,000
    High Wycombe
    #3 Red Thunder, Jun 20, 2019
    When I had to disconnect mine on the 2010 Speed Triple, I noticed they are a push in and twist connection, not your standard push in only
    There are two tabs at the end of the connector, this could be why the Halfords connectors aren't working

    • Like Like x 1
  4. t552

    t552 Senior Member

    Nov 17, 2014
    417
    113
    Bristol UK
    #4 t552, Jun 20, 2019
    Last edited: Jun 20, 2019
    • Like Like x 1
  5. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,432
    1,000
    Stabby Town
    #5 Repooh, Jun 20, 2019
    • Like Like x 1
