Tail Tidy speed triple 2016 R

Discussion in 'Speed Triple' started by Base, Jan 21, 2017.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Lemoncurd666

    Lemoncurd666 New Member

    Jun 16, 2018
    11
    3
    Milton Keynes

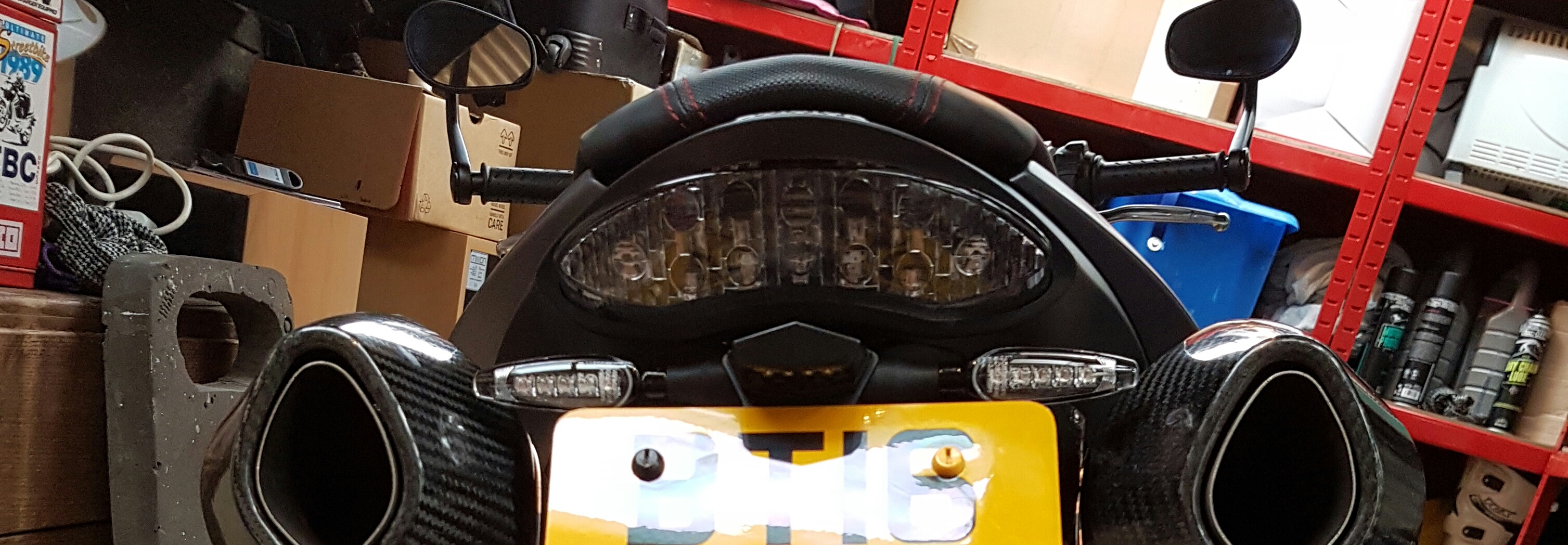

    Hi mate, I know this is a mega old post, but I have just got an EvoTevh tail tidy for mine. I have some Oxford LED Nightrider indicators, but they look like they may be too logn... what ones did you use to fit so well please???

    Cheers :)

  2. ScreaminWargasm

    Feb 25, 2017
    31
    18
    Essex
    Hello mate,

    Those are the original LED indicators that come with the Speed R in the UK.

    Doesn't your bike have original LED's fitted?

    Mick

  3. Lemoncurd666

    Lemoncurd666 New Member

    Jun 16, 2018
    11
    3
    Milton Keynes
    Hi mate... no mine is a 2016 94R anniversary edition, standard, not LED though :(

    • Like Like x 2
  4. ianSP3

    ianSP3 New Member

    Dec 29, 2016
    4
    3
    Bedfordshire
    Hi there,

    sorry for a silly question, although your bike is a 2016 94R, do you know it is a 2015 model and not the 2016 model year Speed Triple R onward?

    Cheers,

    Ian.

  5. MrTriple

    MrTriple One Cylinder Short

    Jan 23, 2017
    924
    243
    Epping Forest
    #85 MrTriple, Apr 18, 2020
    Last edited: Apr 19, 2020
    The 94R is a 2015 model year, so Ian's will be a 2016 registration year. Bikes from 2016 through to current date, share the same tail design. :)

  6. ianSP3

    ianSP3 New Member

    Dec 29, 2016
    4
    3
    Bedfordshire

  7. ianSP3

    ianSP3 New Member

    Dec 29, 2016
    4
    3
    Bedfordshire
    Hi Mr Triple,

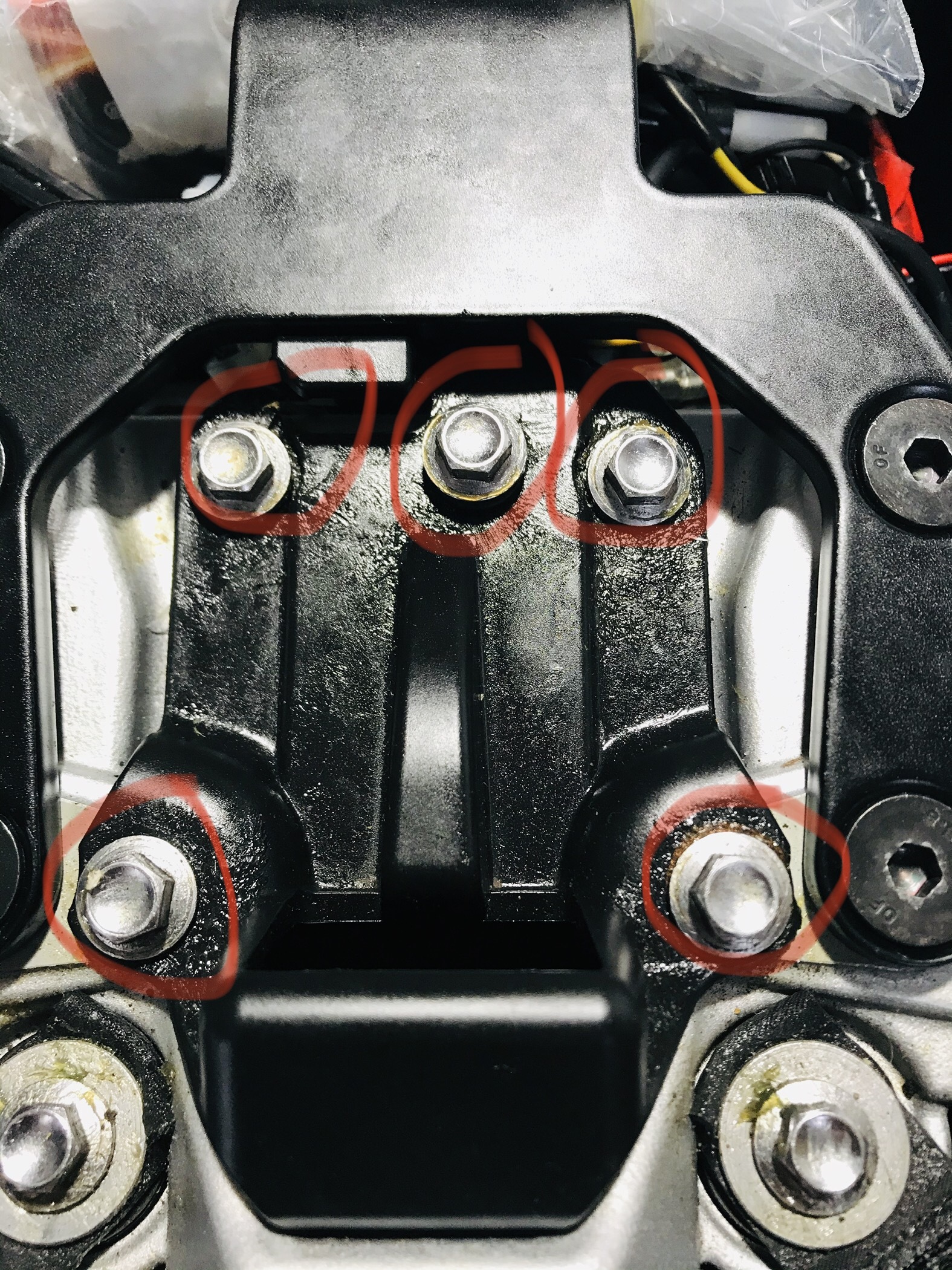

    that was what I was trying to say in a round about way :). Pre 2016 metal hanger, post 2016 plastic. I think Col C has fitted a 2016 hanger to his 94R, so it can be done, but it's not a straight swap. The mounting holes on the sub frame seem to be in a similar position but there is a different mounting bracket for the hanger. Hope this helps rather than confuse :D.

    All the best,

    Ian.

    • Like Like x 2
  8. MrTriple

    MrTriple One Cylinder Short

    Jan 23, 2017
    924
    243
    Epping Forest
    You know what...I've confused this even further - I appear to have answered a question you didn't even ask :weary_face:

    It sounds like you're on the right path though...carry on!

  9. Lemoncurd666

    Lemoncurd666 New Member

    Jun 16, 2018
    11
    3
    Milton Keynes
    Cheers lads..... so.... regardless of actual manufacture, when I bought the tail tidy I selected the model of bike, 2016 94R, so it fits, I watched a video lol.... my problem is the length of the indicatros, as mine look too long... any ideas :)

  10. Stu2000

    Stu2000 New Member

    May 20, 2020
    6
    3
    West Yorkshire, UK
    Hi Guys

    Just fit the evotech tail tidy to mine after the number plate hanger disappeared on my last ride out. I didn’t remove the rubber pad on mine so I will do that another day to see if I can get a bit more space between the indicators and cans (it’s not bad already tbh).

    My main concern is the hole left by the finishing plate. Surely water will come off the tyre, go through this hole and attack the wires? Anyone seen any issue here (all year riders I guess)?

    Any solution? All I can think to do is wrap the wires in tape.

    Thanks

  11. MrTriple

    MrTriple One Cylinder Short

    Jan 23, 2017
    924
    243
    Epping Forest
    There is a bit of a gap, but for me, a temporary wad of paper towel stuffed inside the tail 'void' has lasted since 2018. I'd imagine that you'll have a bigger gap, because the rubber pad should have been removed. You'll get a much more solid fit too.

    Have a read here - there's a photo of mine and you can compare gaps :)

  12. Stu2000

    Stu2000 New Member

    May 20, 2020
    6
    3
    West Yorkshire, UK
    Thanks for your reply. I removed the rubber pad and there doesn’t seem to be much difference at least visually. The indicators are maybe a bit higher but not really any further away from the cans, but they’re fine and it looks really nice.

    The hole underneath is again not really changed, but whilst I had the tail tidy off I put some grease around the vulnerable bits and tried to move them away from the hole (I have everything pushed back and nothing in the phone storage bit). Also similar to you kitchen roll trick, I shoved a couple of sachets of silicate gel in there.

    Maybe the terminals are already water proof, and maybe i am being paranoid if no one else has had an issue, it’s just I had a 2011 S3 (totally different under-seat mind), and had under-seat wire corrosion issues due to water ingress.

    Doing the north coast 500 around Scotland (hopefully) in the summer so didn’t want to worry about getting water in my rear end

    Thanks again for your help

    • Like Like x 2
  13. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,181
    1,000
    Rothwell
    #93 Ducatitotriumph, May 22, 2020
    Last edited: May 22, 2020
    Hi there,
    To get rid of the hole on the evotech tail tidy.

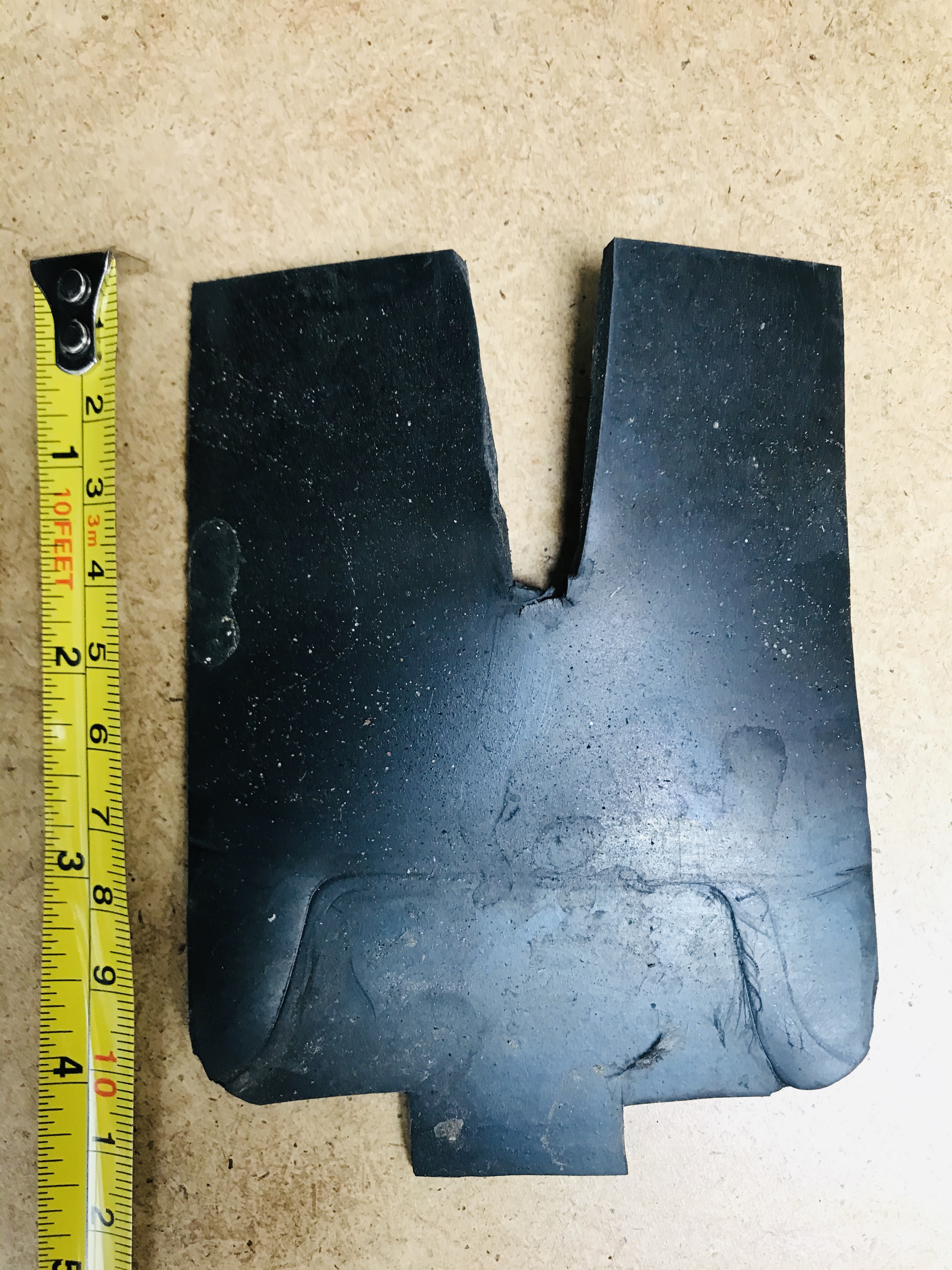

    Get a 1-2mm rubber sheet off of ebay, (10cm square), cut it lengthways so it'll slide in between the 4 screws.
    Then, cut a V shape In it that'll fit the cables (from the indicators and plate light) and then unscrew the 4 screws (on the top) a bit, slide in the rubber mat between the tail tidy and the bike (v bit first) and then tighten up the screws.
    No more leaks. Had mine on for over a year now and never had any water in the back at all.
    Was caked up with water and small stones beforehand.
    Takes 10 mins.

    • Like Like x 2
    • Useful Useful x 2
  14. MrTriple

    MrTriple One Cylinder Short

    Jan 23, 2017
    924
    243
    Epping Forest
    Forget my amazingly over-engineered paper towel solution Stu...do what @Ducatitotriumph suggests (I think I'll do the same). I rarely get caught in the rain, so it's help up fine, but if you're riding around Scotland...well I understand that the likelihood of getting wet will be higher than in Essex ;)

    • Like Like x 1
  15. MrTriple

    MrTriple One Cylinder Short

    Jan 23, 2017
    924
    243
    Epping Forest
    Wait...I'm trying to imagine this, and have got stuck on cutting a square lengthways. I can't decide which side to cut :laughing:

    • Funny Funny x 1
  16. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,181
    1,000
    Rothwell

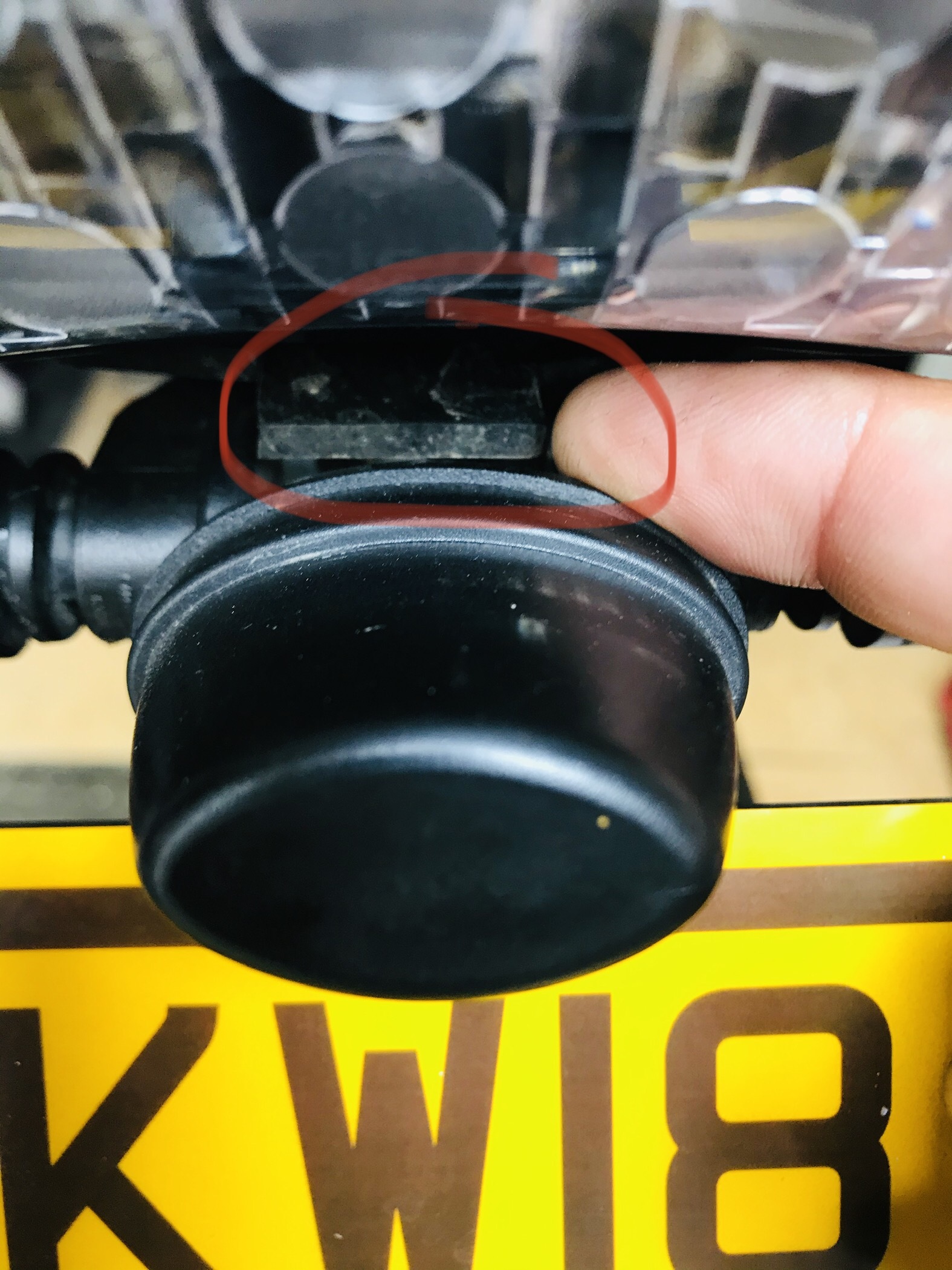

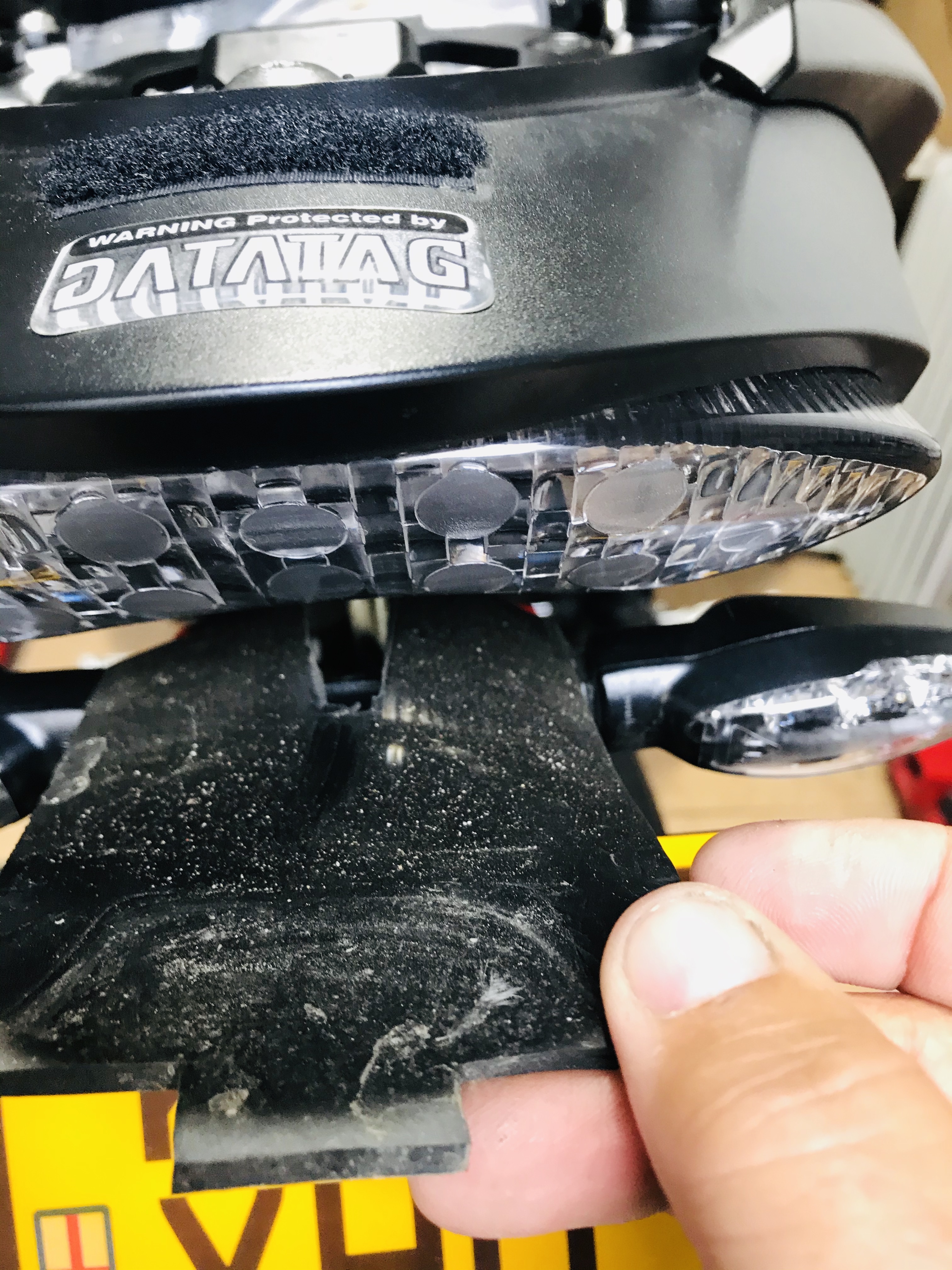

    Well, pics are here!
    Helps explain better I suppose






    • Like Like x 1
  17. Stu2000

    Stu2000 New Member

    May 20, 2020
    6
    3
    West Yorkshire, UK
    • Like Like x 2
  18. Stu2000

    Stu2000 New Member

    May 20, 2020
    6
    3
    West Yorkshire, UK
    Hi

    Just thought I should report back and say mission accomplished. I ended up doing it slightly differently I think. I ended up just removing the evotech cover, cutting the rubber shield to size and then putting the cover plate back in place which seems to sandwich it quite well, I don’t think it will move.

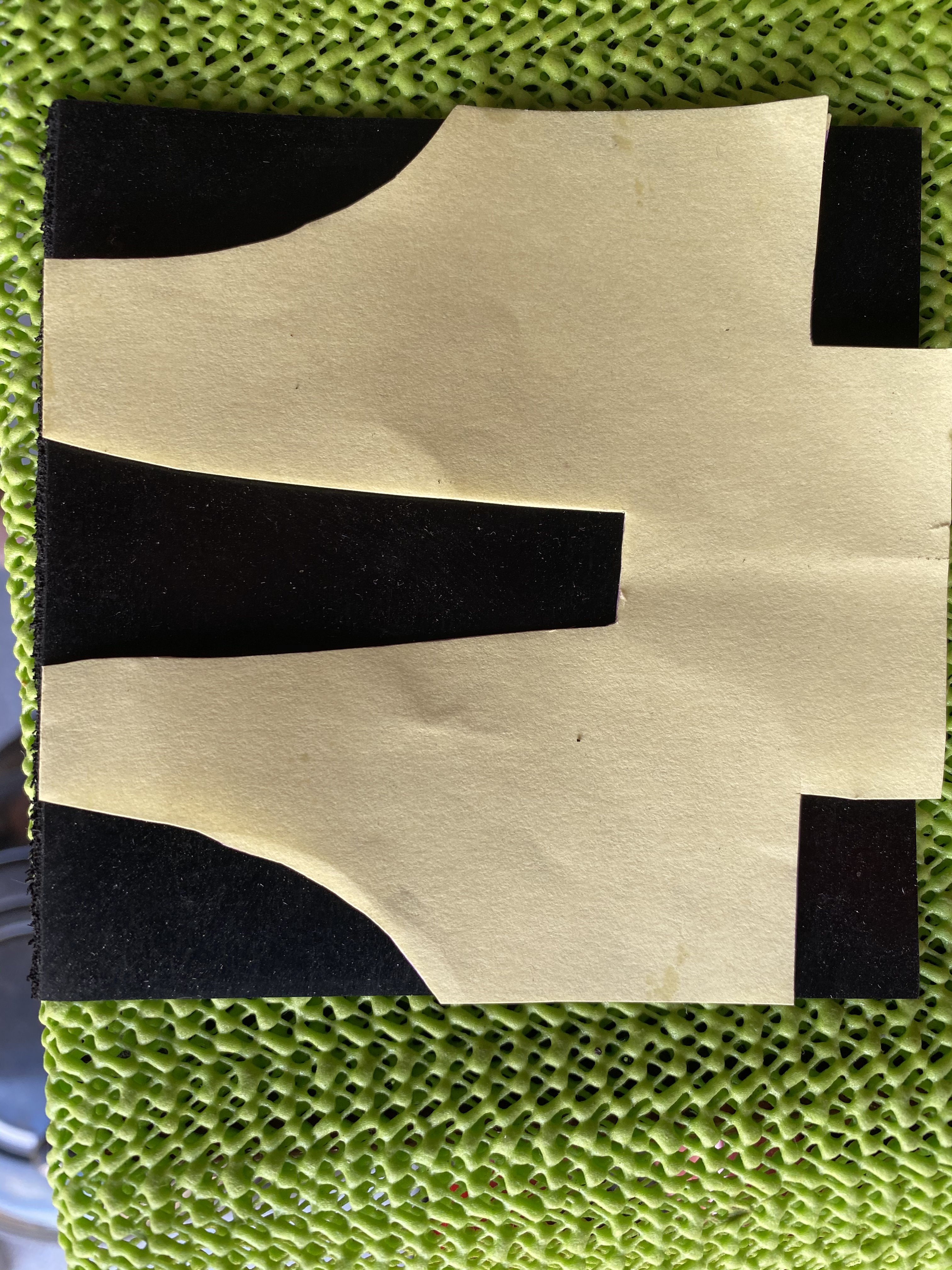

    I used a piece of paper first before I cut the rubber sheeting which worked out well. Looking at it now, I am fairly confident that it will keep the water out so thanks for you reply. Really easy and cost £2 if anyone else is paranoid like me.

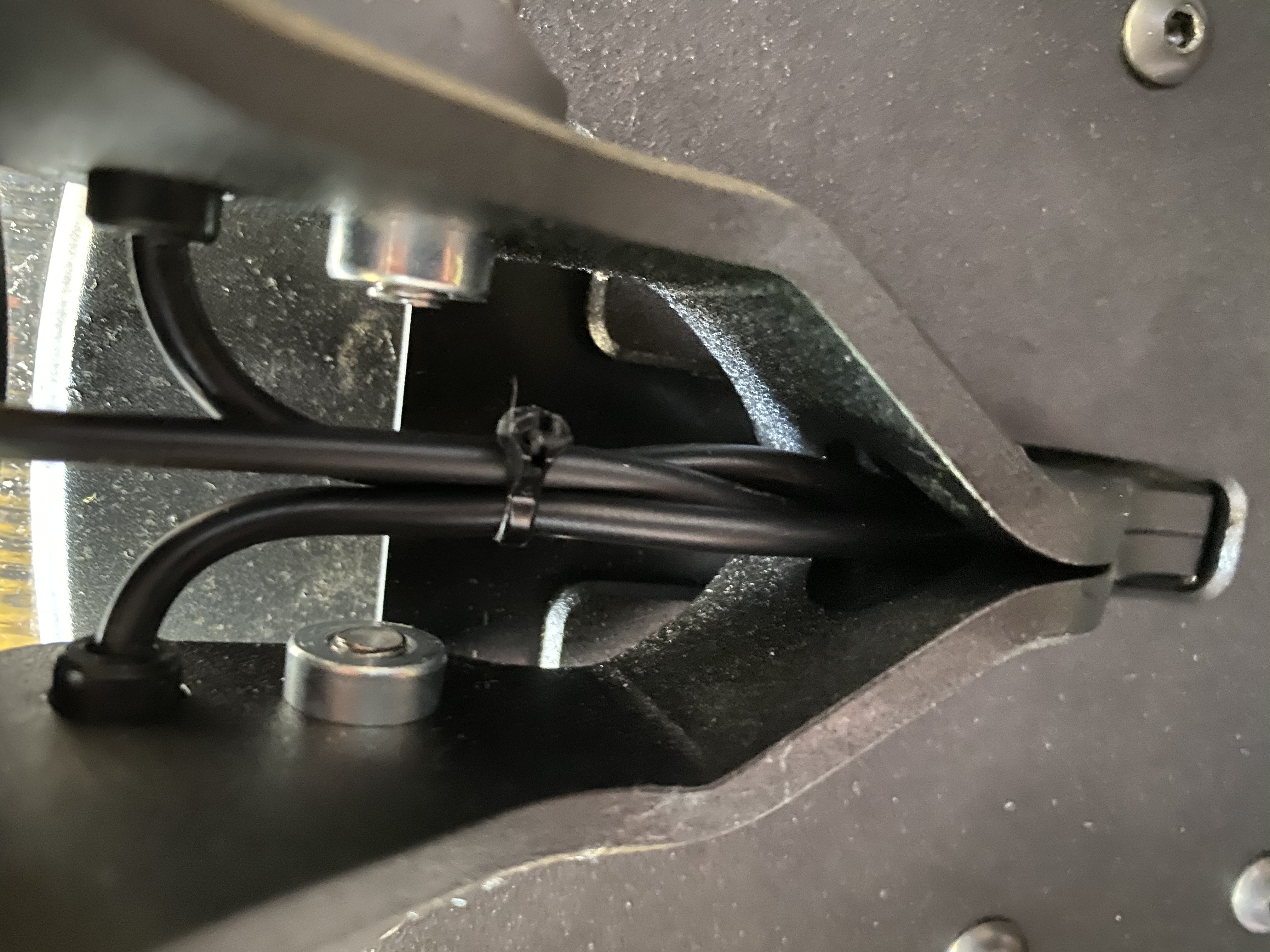

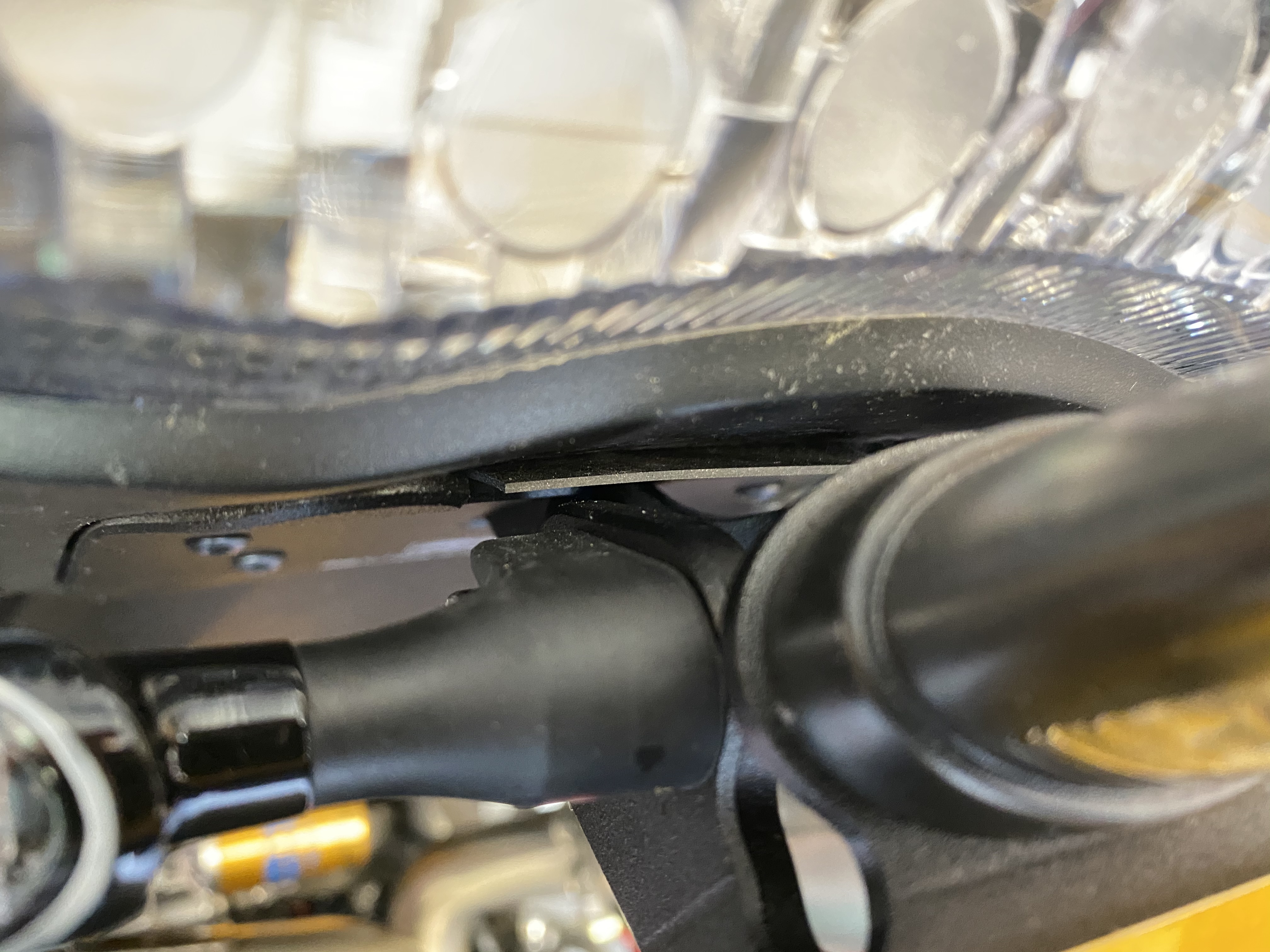

    I have uploaded some pictures showing the back, underneath and the stencil I made.

    Hope this helps

    P.S. Scotland trip postponed to later in the year - doh




    • Like Like x 2
  19. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,181
    1,000
    Rothwell
    Excellent! It won’t move so all good!
    Makes you wonder why something wasn’t in the kit when you get it really!

    • Like Like x 2
  20. Lemoncurd666

    Lemoncurd666 New Member

    Jun 16, 2018
    11
    3
    Milton Keynes
    Hi Mick..have youg a part number for them and I'll order some?
