Tail Tidy speed triple 2016 R

Discussion in 'Speed Triple' started by Base, Jan 21, 2017.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. MickEng

    MickEng Noble Member

    Sep 29, 2016
    1,942
    450
    West Yorkshire
    Hi David
    The spring clips act like barbs once they are pressed on,
    going from the underneath will tighten them onto the shaft, you should be able to get in between the clips with a small screwdriver or bradawl and prise the clips upwards working your way round one by one.
    You should be able to reuse them if they do not get too bent in the process.
    As for the nut and bolt issue, you need to hold the bolt by its thread with soft jaw pliers while you turn the nut.
    Try not to damage the thread whilst holding or it will make it difficult to remove the nut past the damaged thread.

    • Useful Useful x 1
  2. Woa Shamrock

    Woa Shamrock New Member

    Apr 24, 2017
    13
    3
    Norfolk England
    I carefully used a junior hacksaw on the washers to split them then helped them off with a pair of snipe nosed pliers. Can't remember any issues with the bolts in part 5 though. Soz.

  3. Appoooh

    Appoooh New Member

    Apr 20, 2017
    9
    3
    Sydney Australia
    Thanks gents. I was able to get under the spring clips using a razor blade and then work them off the rest of the way with a flat head screw driver.

    The final part of the puzzle concerns the license plate lamp. For some reason the wires leading from the lamp in my kit are bare - unsure whether this is intentional or just missed by the manufacturer.

    I'm left with the adapter seen below which looks to take a pair of plugs - am I likely to find these at an electronics store? Or can I buy one of the black plugs instead (presumably I'll need a crimping tool to go with it).

    Many thanks,
    David

    [​IMG]

  4. Base

    Base Member

    Jan 12, 2017
    35
    18
    Uk
    I can only assume it's been missed when manufacturing, as mine have bullet connectors on, you could just solder the wires together or look on ebay for some bullet connectors, saying that I'm sure you local bike shop would have a couple knocking about.

  5. ScreaminWargasm

    Feb 25, 2017
    29
    18
    Essex
    In the pack should be 2x bullet connectors that you need to crimp on to the bare wires.

    Funny enough, my came exactly the same I.e they didn't send them!

    I emailed Evotech who apologised and sent them out a few days later so it's obviously an issue when they pack up the components for dispatch.

    You can get the connectors at pretty much any DIY store but shouldn't have to.

    When you have them just crimp them on and push them together.

    Mick

    • Agree Agree x 1
  6. Base

    Base Member

    Jan 12, 2017
    35
    18
    Uk

    I would of suggested contacting evotech but as David is in Oz it has to be easier to get the parts local to him, always bloody annoying when something should be straight forward!

  7. Appoooh

    Appoooh New Member

    Apr 20, 2017
    9
    3
    Sydney Australia
    I was able to source the bullet connectors from Jaycar which is a local electronics hobbyist store. They didn't have the crimp type so I soldered them - all up a bit more work than I'd anticipated but very happy with the result!

    • Like Like x 2
  8. tastywei

    tastywei New Member

    Jul 16, 2017
    6
    3
    Singapore

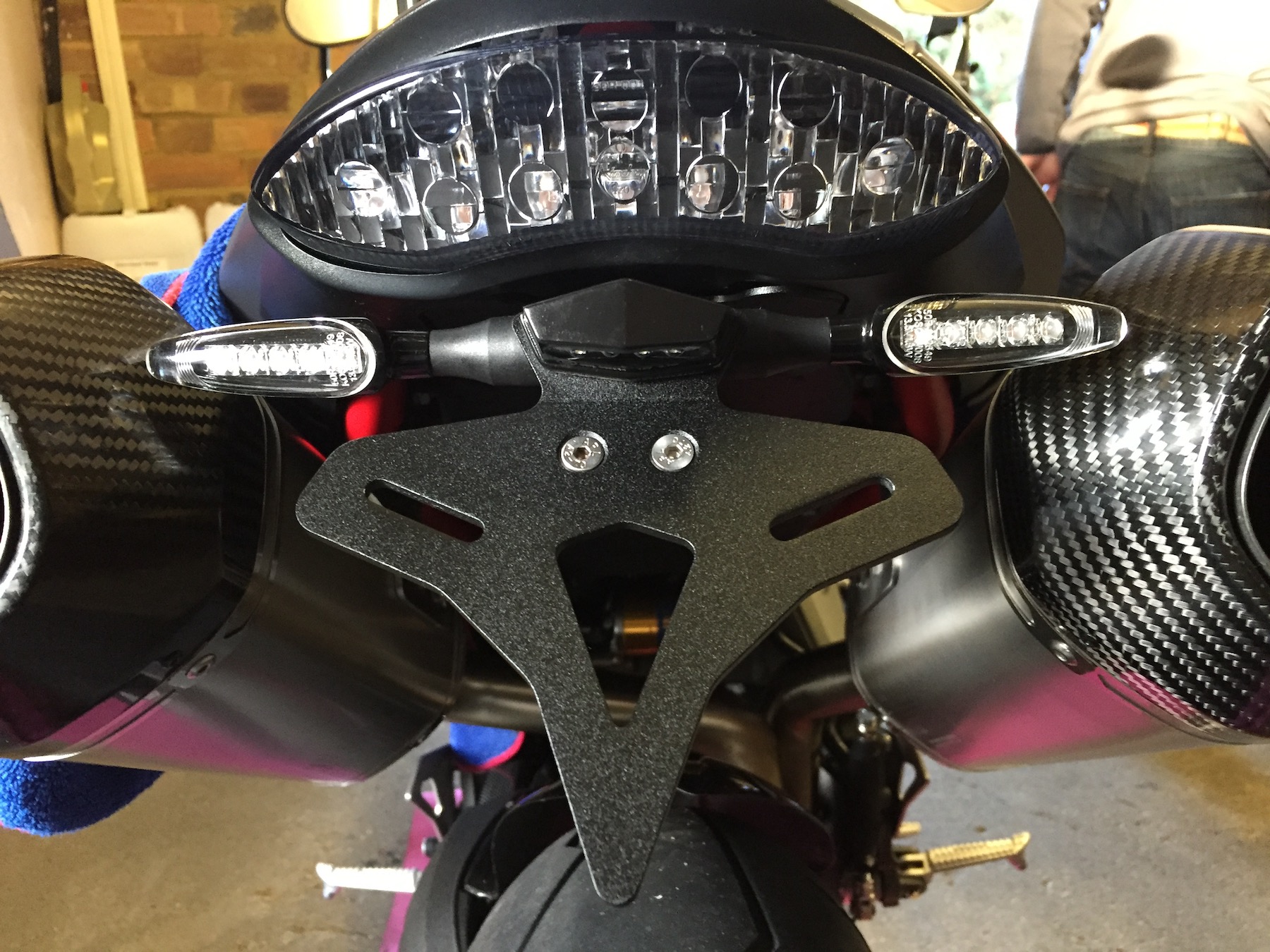

    Thanks for the comprehensive photos...just wonder if you could advise the dimension as marked below...would also like to place an order for this tail tidy for my speedy..


  9. MrTriple

    MrTriple Senior Member
    Subscriber

    Jan 23, 2017
    509
    143
    Epping Forest
    I can't be precise with this measurement without removing the plate, because the bolts get in the way, but it's in the region of 110mm. If you need it to be accurate, let me know and I'll take the plate off.

    Singapore eh? These Triumphs certainly cover a wide market. One of my favourite places too :)

  10. tastywei

    tastywei New Member

    Jul 16, 2017
    6
    3
    Singapore
    Hi MrTriple,

    Thanks Thanks!..I have gotten the gauge, don't have to remove the bolts for me. The hole to hole distance for Singapore plate is about 6" (152mm). Will need to do some adjustments to the plate which I probably need to ask around whether it is acceptable to the traffic police.

    :blush: Yes, we welcome you. We did have a group of Triumph die hard fans in Singapore. Although this is not as common as other Japanese/Italian makes where you may not easily get parts repaired or replaced, but we are really impressed by the build quality and willing to choose it for daily commuting or even fun riding. Unfortunately I am currently the only 2016 Speedy rider here so I have to do research out of my boundary :D

    • Like Like x 2
  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    2,035
    1,000
    Southcoast of the UK Earth

    Use double sided sticky pads that you can cut to fit :) no bolts required
    http://www.ebay.co.uk/itm/3M-VHB-Ac...447394?hash=item2cc4de0be2:g:FwQAAOSw44BYdftA

  12. tastywei

    tastywei New Member

    Jul 16, 2017
    6
    3
    Singapore
    • Like Like x 1
  13. Mark80

    Mark80 Member

    Nov 20, 2016
    37
    18
    Masham
    What size plate is this??

  14. jonesy

    jonesy Active Member

    Mar 26, 2016
    83
    28
    worcestershire
    6x4 show plate

  15. Glenn Lewin

    Glenn Lewin New Member

    Jan 7, 2018
    0
    1
    Leicester
    Hi Jonesy. I'm trying to fit the same tail tidy you have on your bike. Am I right in thinking the OM indicators wont fit with arrow cans. Yours look different? If this is the case, have you any suggestions where I can get the indicators from. Thanks.

  16. topbanana0

    topbanana0 Well-Known Member

    Mar 27, 2016
    129
    93
    South Wales
    #76 topbanana0, Jan 7, 2018
    Last edited: Jan 9, 2018
    Excuse me for jumping in.
    If your fitting Arrows and Evotech tail tidy, the standard indicators will fit.

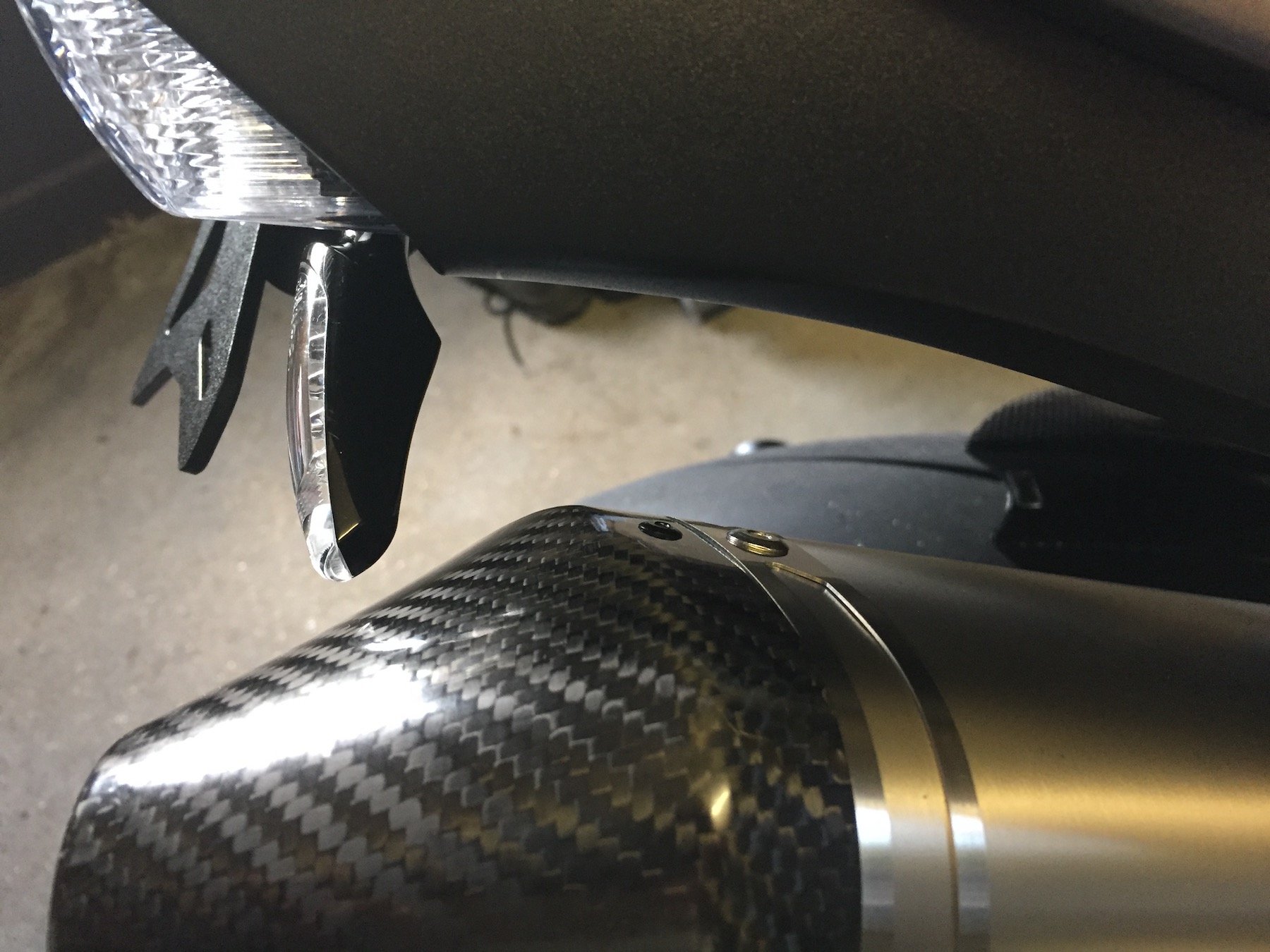

    I did have to give the mount bracket on the exhaust, a little bend (only a bit) coz the exhaust was almost touching indicators.

  17. jonesy

    jonesy Active Member

    Mar 26, 2016
    83
    28
    worcestershire

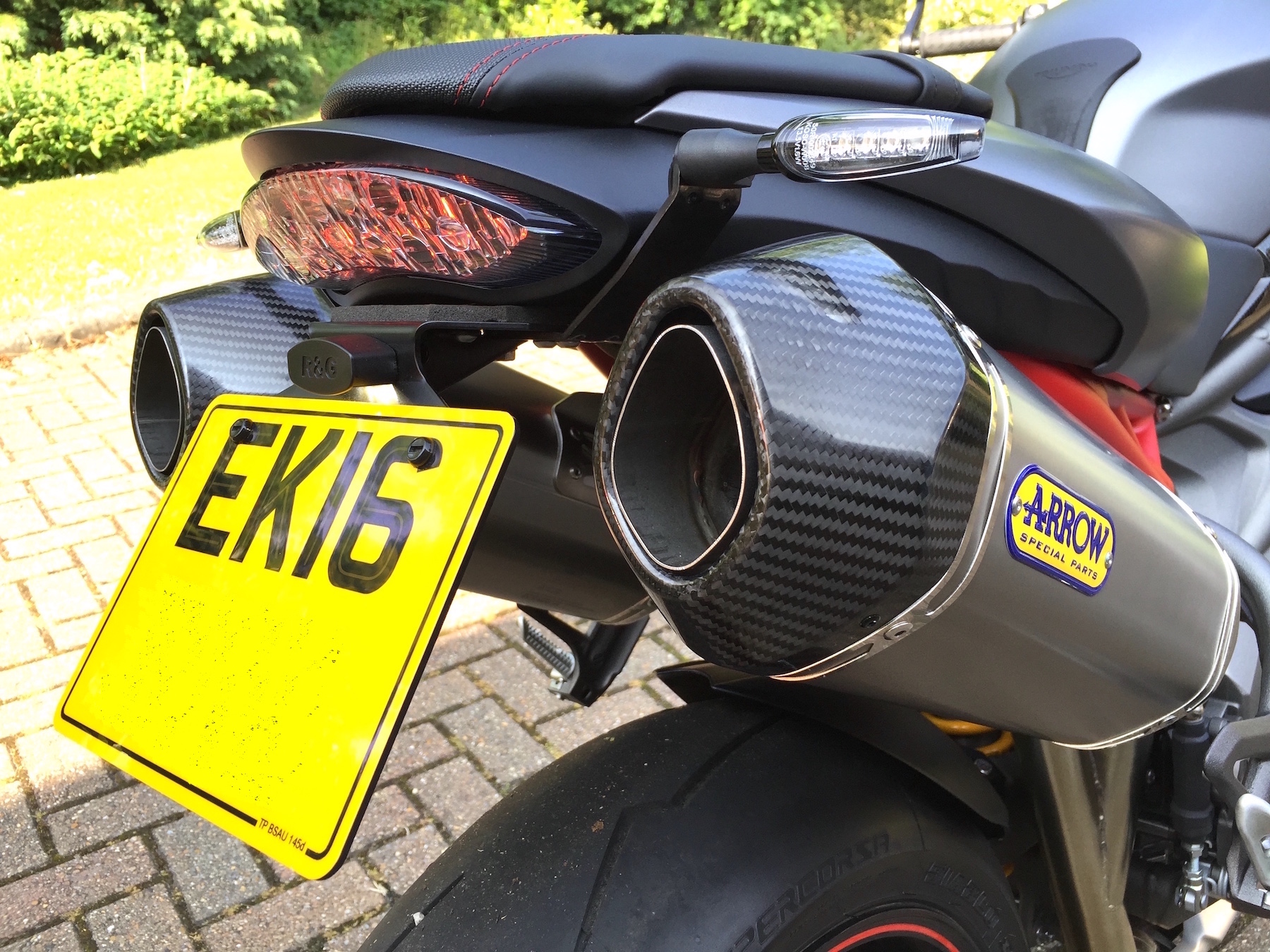

    They are the standard indicators. Everything lines up perfectly straight out the box

  18. Bomber

    Bomber Member

    Aug 4, 2017
    5
    8
    London
    What size is your reg plate, it looks spot on for the arrows and evo tech

  19. Lee1050

    Lee1050 New Member

    Feb 10, 2019
    0
    1
    Liverpool
    Would the spare fit a 2014?

  20. MrTriple

    MrTriple Senior Member
    Subscriber

    Jan 23, 2017
    509
    143
    Epping Forest
    Welcome to the forum Lee - my post was made over two years ago, so the 'spare' R&G tail tidy is long gone...and I've changed the bike since then too.

    Either way, the 2016 or later bikes have a different tail tidy configuration to the 2011 - 2015, so it wouldn't have fitted your bike.

    Hope you find what you're looking for :)
