T595 Not Starting?

Discussion in 'Technical Help' started by Stumpy23, Jul 28, 2017.

Page 3 of 3
  1. Ken walburn

    Ken walburn Noble Member

    Jun 28, 2017
    889
    300
    Essex
    #41 Ken walburn, Jul 29, 2017

  2. Ken walburn

    Ken walburn Noble Member

    Jun 28, 2017
    889
    300
    Essex
    #42 Ken walburn, Jul 29, 2017
    How many couplings do you have to the fuel rail? Main one from pump. There must be a return feed for excess fuel not required by injectors. If so that's the one you need to release after cranking. If there is only one coupling, then quite honestly I am at a loss without seeing bike

  3. Stumpy23

    Stumpy23 New Member

    Jul 28, 2017
    5
    3
    Hull
    #43 Stumpy23, Jul 29, 2017

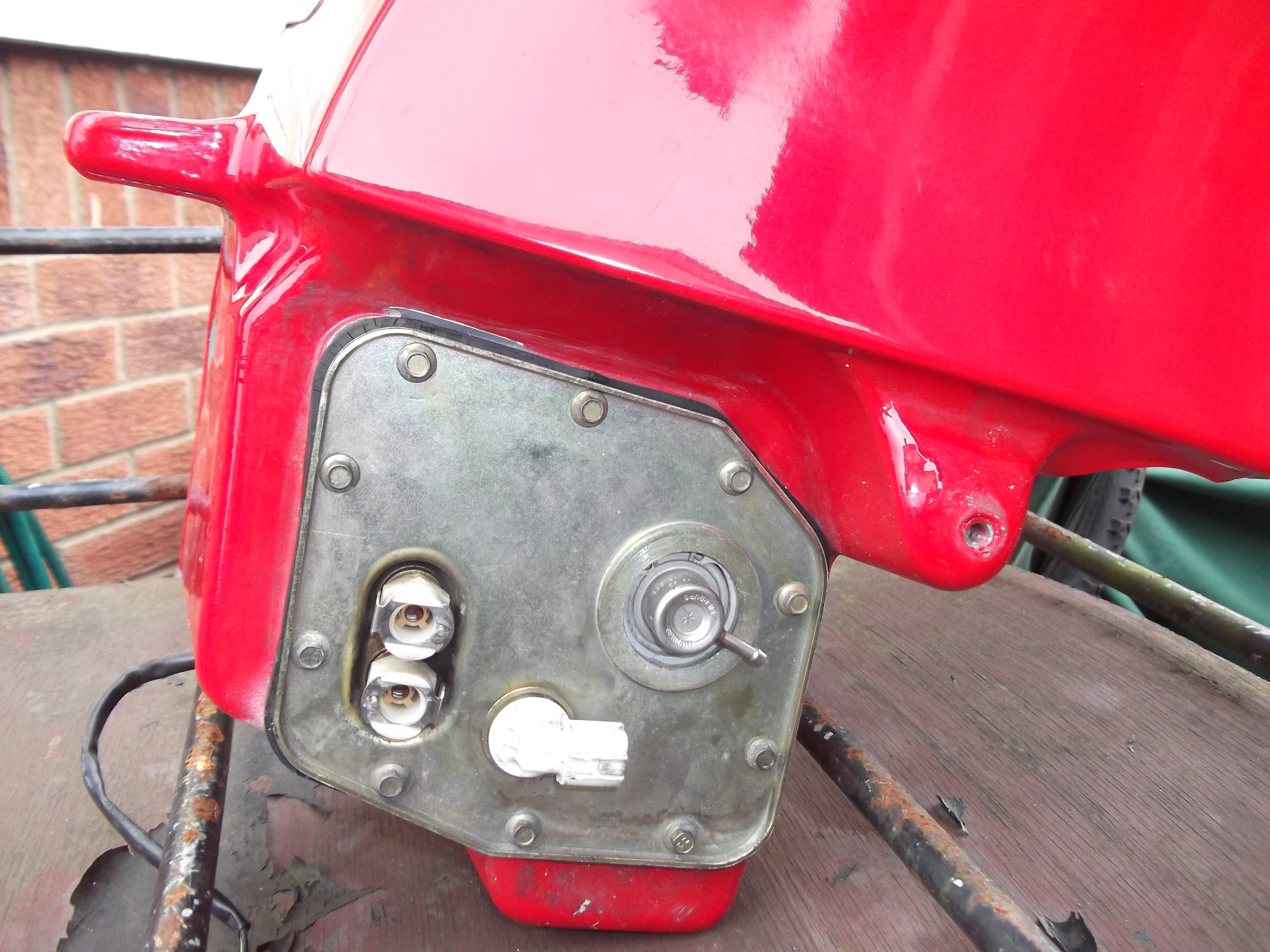

    The top coupling is the return fuel from rail & the bottom coupling is fuel to the rail from submerged pump inside the tank & the round unit with the little pipe stem on to the top right is the fuel pressure regulator, i have just ordered a brand new one that should be here on Tuesday 1st Aug. Not touching it again till it arrives so ill let you know how it goes.

    T595 Fuel Tank Connections.JPG

  4. Ken walburn

    Ken walburn Noble Member

    Jun 28, 2017
    889
    300
    Essex
    #44 Ken walburn, Jul 29, 2017

  5. Ken walburn

    Ken walburn Noble Member

    Jun 28, 2017
    889
    300
    Essex
    #45 Ken walburn, Jul 29, 2017
    Faulty fuel pressure regulator = no fuel in fuel rail, so let's hope a new one rectifies the issue. Let me know how u get on

    • Like Like x 1
  6. Stumpy23

    Stumpy23 New Member

    Jul 28, 2017
    5
    3
    Hull
    #46 Stumpy23, Aug 1, 2017
    New FPR (£19.95) arrived this morning, fitted it then replaced tank & it runs, Thanks for all the help people.

    • Like Like x 5
  7. Ken walburn

    Ken walburn Noble Member

    Jun 28, 2017
    889
    300
    Essex
    #47 Ken walburn, Aug 1, 2017

  8. Ken walburn

    Ken walburn Noble Member

    Jun 28, 2017
    889
    300
    Essex
    #48 Ken walburn, Aug 1, 2017

    • Like Like x 1
  9. Ken walburn

    Ken walburn Noble Member

    Jun 28, 2017
    889
    300
    Essex
    #49 Ken walburn, Aug 1, 2017
    Glad to be of some kind of assistance. Got there in the end!

    • Like Like x 1
  10. Stumpy23

    Stumpy23 New Member

    Jul 28, 2017
    5
    3
    Hull
    #50 Stumpy23, Aug 2, 2017
    Thanks
