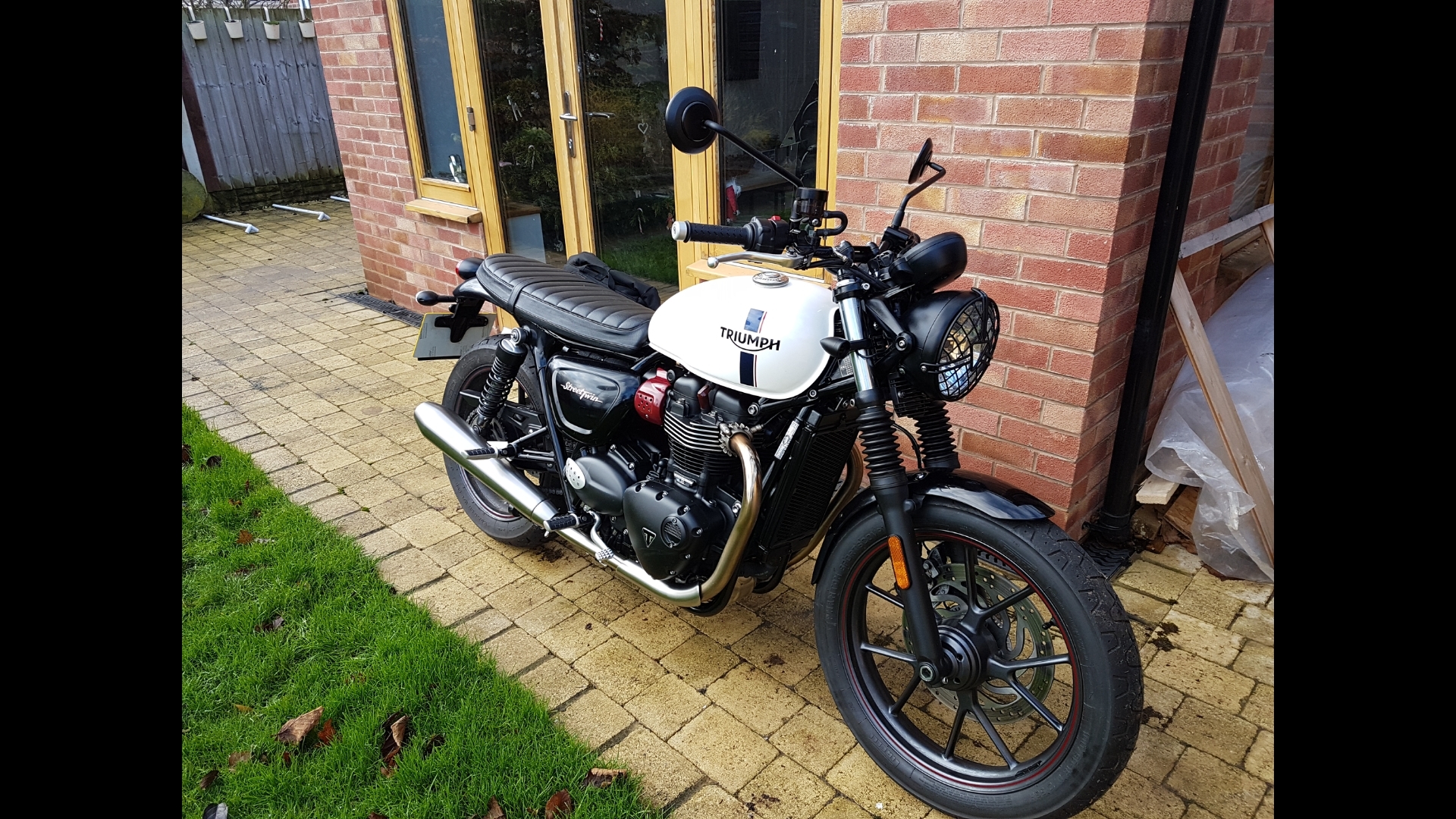

    Here are the pics of my Street Twin after some winter project work to get rid of some grey and fit bullet combined DRL/indicator;

    The speedo bezel and mirror backs were done as demonstrated in the View from the Man Cave videos, using spray can primer and satin black paint.

    I removed the headlight holders, handle bar clamp and air intake cover and got them powder coated. I was going to do them all satin black, but a conversation with an arty mate brought my attention to the burgundy stripe in the Triumph logo, I decided to try making the intake covers burgundy.

    Whilst I had everything appart I decided to fit bullet indicators that incorporate DRL to improve my visibility, the DRL are turned on via a switch I mounted on the handle bars and they automatically flash amber if on when the indicator is used.

    Without changing the settings the LED indicators flash too fast. This Triumph PDF of the Triumph LED indicator fitting instructions shows you how to change the settings and in my case type 2 worked;
    http://www.triumphinstructions.com/P...9838039-EN.pdf

    I bought Alchemy indicators/DRL and some 43mm mounts. I realised that the wire connectors that came with the lights were different. Triumph use 'Molex' style connectors. I ordered ordered some of these molex style connectors from Mouser, reasonable price but eye watering delivery, there must be a better way to buy these;
    538-02-09-2118
    02-09-2118
    CRIMP PIN BULK 18-22
    NOV 24, 2019
    20
    0.137 2.74

    538-02-09-1119
    02-09-1119
    CRIMP SKT BULK 18-22
    NOV 24, 2019
    20
    0.127 2.54

    538-03-09-2011
    03-09-2011
    1 CIRCUIT PLUG
    NOV 24, 2019
    20
    0.173 3.46

    538-03-09-1011
    03-09-1011
    1 CIRCUIT RECEPTACLE

    The indicators come with a flanged nut that didn't fit inside the bracket, so I had to cut two opposite sides off of the flange with a hack saw, easy enough. I decided to use loctite on the threads and then greased the outside to protect from corrosion. The wires come out of the middle of the bolt.
    [​IMG]

    I had thought I would need to drill a hole for the cable and even bought some little grommets but when fitted the clamp leaves a space for the wires to pass through. Here is one of the indicators and brackets on the bike hiding above the original one.
    [​IMG]

    It was in researching how to fit these I discovered that DRL's must not be used at night and must be automatic or switched... Well, since I had got this far I figure at least I will have better daytime visability. So I bought one of these handlebar mounted, halo LED latching switch;
    [​IMG]

    This came without explanation of the colour coding. After some research and playing with a 12v supply and multimeter I worked out the following;
    Black - Switch LED negative
    Red - Switch LED positive
    Green - Switch common
    White - Normally open NO switched
    Blue - Normally closed NC switched

    I want to switch a live for the DLR so attached a live to the green switch wire and will attach the white normally open switched wire to the DLR wire in the indicators. I decided not to use the halo LED. In order to make the switch halo light come on when the DRL is switched on I would have attached a neutral to the black switch LED wire and the red switch LED wire to the white normally open switched wire.

    I also came across a crafty way to get an ignition switched live from the horn. Just needed a piggy back spade connector. This was the last piece of the jigsaw that means the new indicators are fitted in a totally reversible way. I did consider a relay, but LED are very low wattage and current.

    Possible next projects;
    De-grey bar ends possible bar end mirrors
    Rear bullet indicators and rear light
    LED headlight bulb
    Ride the blimmin thing!

    • Like Like x 12
    • Agree Agree x 1
  2. Dozers Dad

    Dozers Dad Bushmills Chief Quality Controller
    Subscriber

    Great job mate! :)

    Subtly different without being over the top.

    • Agree Agree x 2
    • Thanks Thanks x 1
  3. Don the Don

    Don the Don Bigger Than The Average Bear
    Subscriber

    Nov 5, 2019
    1,734
    800
    MORAY UK
    Top job, thanks for sharing

    • Thanks Thanks x 1
    • Agree Agree x 1
  4. Notso

    Notso Senior Member

    Dec 17, 2018
    363
    113
    Solihull
    Couldn't wait to do the bar end mirrors and rear LED. Ordered the TEC bar ends and Triumph rear LED indicators. Screenshot_20200113-084052_Gallery.jpg

    • Like Like x 5
  5. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,290
    943
    Stabby Town
    Nice to see a fellow Street Twiner tinkering, it really is a cracking little bike. I've dicked around on several fronts, some mods done then removed. I fitted a tail tidy, then decided I liked the mudguard so went halfway, as per Man Caves Homegrown Tail Tidy vid. I then installed Blaze Pins (teeny tiny indicators) and them changed them for Triumph Leds. Plenty of other mods as they are relatively cheap and easy.

    • Like Like x 2
    • Useful Useful x 1
    • Agree Agree x 1
  6. Notso

    Notso Senior Member

    Dec 17, 2018
    363
    113
    Solihull
    Just looked at the views from the Man Cave video solution, it looks great! As good as or better than lots of off the shelf options. At only £16 for the mount, I decided to have a go and ordered one to modify. Everything I have done appart from powder coating is reversible. Did you keep a number plate light and reflector? Seen a few options for them but not sure what solution I prefer. Apparently the only legal requirement is the reflector.

    Here is the link to the video;


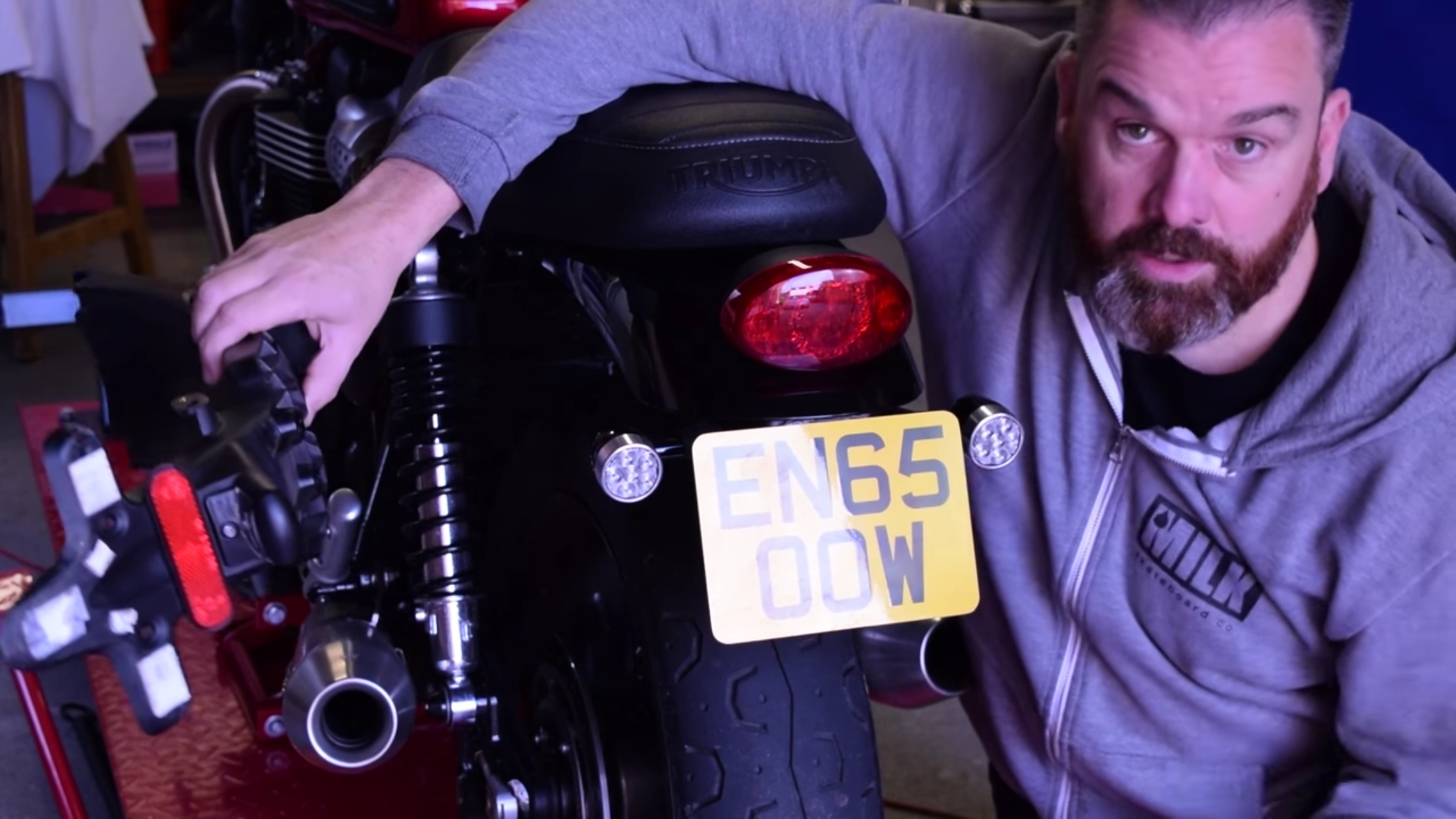

    And this is a shot from the video of how it looks;

    • Like Like x 2
  7. Avinarant

    Avinarant Active Member

    Aug 19, 2017
    196
    33
    Leeds
    Looks good, does the bench seat raise the ride height??? I'm looking at a low mileage 2019 model that has the bench seat already fitted, It would be nice if it does raise it, if not might have to look at a slammer or similar.

    • Agree Agree x 1
  8. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,290
    943
    Stabby Town
    Typical me, I ended up buying a Dremmel to cut the bracket, only added £50 to the project, hey ho, Tony (Man Cave dude) has some real helpful videos. Only Sat this week I bought another Triumph bracket so I can return bike to stock just in case I go shopping for another bike :kissing:

    • Like Like x 1
    • Agree Agree x 1
  9. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,290
    943
    Stabby Town
    I have a 2018 Street Twin with the Triumph bench seat and two things (1) it is in my opinion way more comfy than stock seat (2) raised the seat by 30mm maybe 40. The bench seats are always on Ebay

    • Like Like x 3
    • Agree Agree x 1
  10. Notso

    Notso Senior Member

    Dec 17, 2018
    363
    113
    Solihull
    Yes, as Repooh says the bench seat is a bit higher. I am 6'1 and find the bench seat means my legs fit better, especially with stiff boots on. The bench seat is a bit harder though and my backside gets a bit numb sometimes!

    • Agree Agree x 2
    • Like Like x 1
  11. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,290
    943
    Stabby Town
    Clearly your arse is not as well padded as mine, it takes commitment but I manage to keep it lardy

    • Funny Funny x 3
    • Agree Agree x 1
  12. Notso

    Notso Senior Member

    Dec 17, 2018
    363
    113
    Solihull
    Just realised the plate on my bike is a bit too wide to fit between the rear indicators, it also has an extra black stip at the bottom for the dealer advert. Got a feeling my indicators may be shorter than normal. Worst case is it will sit as high as possible or I make some sort of spacers.

    • Agree Agree x 1
  13. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,290
    943
    Stabby Town
    Yep you'll need a 7x5 to fit and a reflector

    • Agree Agree x 1
  14. beerkat

    beerkat Senior Member

    Aug 14, 2019
    343
    113
    Cheshire UK
    #14 beerkat, Jan 14, 2020
    Last edited: Jan 14, 2020
    Triumph Forum pics Sept 2019 - 1 of 1.jpg Triumph Forum pics Sept 2019 - 1 of 1 (2).jpg Triumph Forum pics Sept 2019 - 1 of 1 (1).jpg I've posted these pics before but thought I'd stick 'em on here again because this thread is all about ST mods. Mine include: Motone indicators, Motone tank cap, Motone tail tidy (with rear light), LSL brake fluid reservoir, small brake/clutch levers, Triumph barrel grips, Triumph spoked wheels (cast wheels still for sale), Triumph bar end mirrors, Down&Out ally front guard, TEC oil filler cap, Motone gear change pedal thing (brass), TEC shocks, British Customs chain guard, TEC rider and pillion pegs, TEC fuel-boost sensor, TEC end cans, custom seat to my design, Motone side panels and Motone X-pipe, Probably forgotten something. All of this is reversible but in my (humble) opinion they're improvements so it's unlikely I ever will.
    If anyone's got any question about the mods I've done then ask.
    Next up are a pair of decent tyres to replace the crap originals. I'm seriously considering changing the 'Triumph' logo on the tank for something I've designed (larger, old gold lettering, red outline) but it means stripping off the tank & it's internals.
    This bike is taking me, plus 99 other riders, from Lands End to J.O'Groats, over 6 days in June, so it's gonna get a bit mucky!

    • Like Like x 3
  15. beerkat

    beerkat Senior Member

    Aug 14, 2019
    343
    113
    Cheshire UK
    Oh yeah, it's got a gold chain (looks nice when the outside plates are polished up...I know, I know, who the fuck polishes their chain?). You might just make out the small, black & silver plate. Fits perfectly between the indicators and yes, it's totally illegal. I've now fitted a pannier on the left side in which sits the 'correct' plate, plus screwdriver. Doubt if the rozzers will let me get away with it but you never know ;)

    • Like Like x 1
    • Agree Agree x 1
  16. beerkat

    beerkat Senior Member

    Aug 14, 2019
    343
    113
    Cheshire UK
    Glad to see you've got rid of those Mickey Mouse mirrors. Bloody awful. Even Triumph thought so when they designed the Speed Twin with bar-ends. Now rip off those 'US market required' fork leg reflectors (easily done, with no damage). Cheap-looking, nasty chrome fuel cap is of course an easy swop. Yes, I know it's all subjective but come on, some of these things need doing and trust me, you'll feel better for it :p

    • Funny Funny x 1
    • Agree Agree x 1
  17. Notso

    Notso Senior Member

    Dec 17, 2018
    363
    113
    Solihull
    You lot are costing me a fortune! Just ordered a Motone Billet fuel filler cap. I also found that TEC sell a little mount for the rear indicators, which is meant for mounting Triumph indicators to the TEC tail tidy, but I reckon it could give me the extra room I need for a legal reg plate on the home made tail tidy. I ordered a 228mm wide plate from JDM which is as small as my reg can go.

    • Like Like x 1
    • Agree Agree x 1
  18. Notso

    Notso Senior Member

    Dec 17, 2018
    363
    113
    Solihull
    #18 Notso, Jan 18, 2020
    Last edited: Jan 18, 2020
    Just for beerkat;

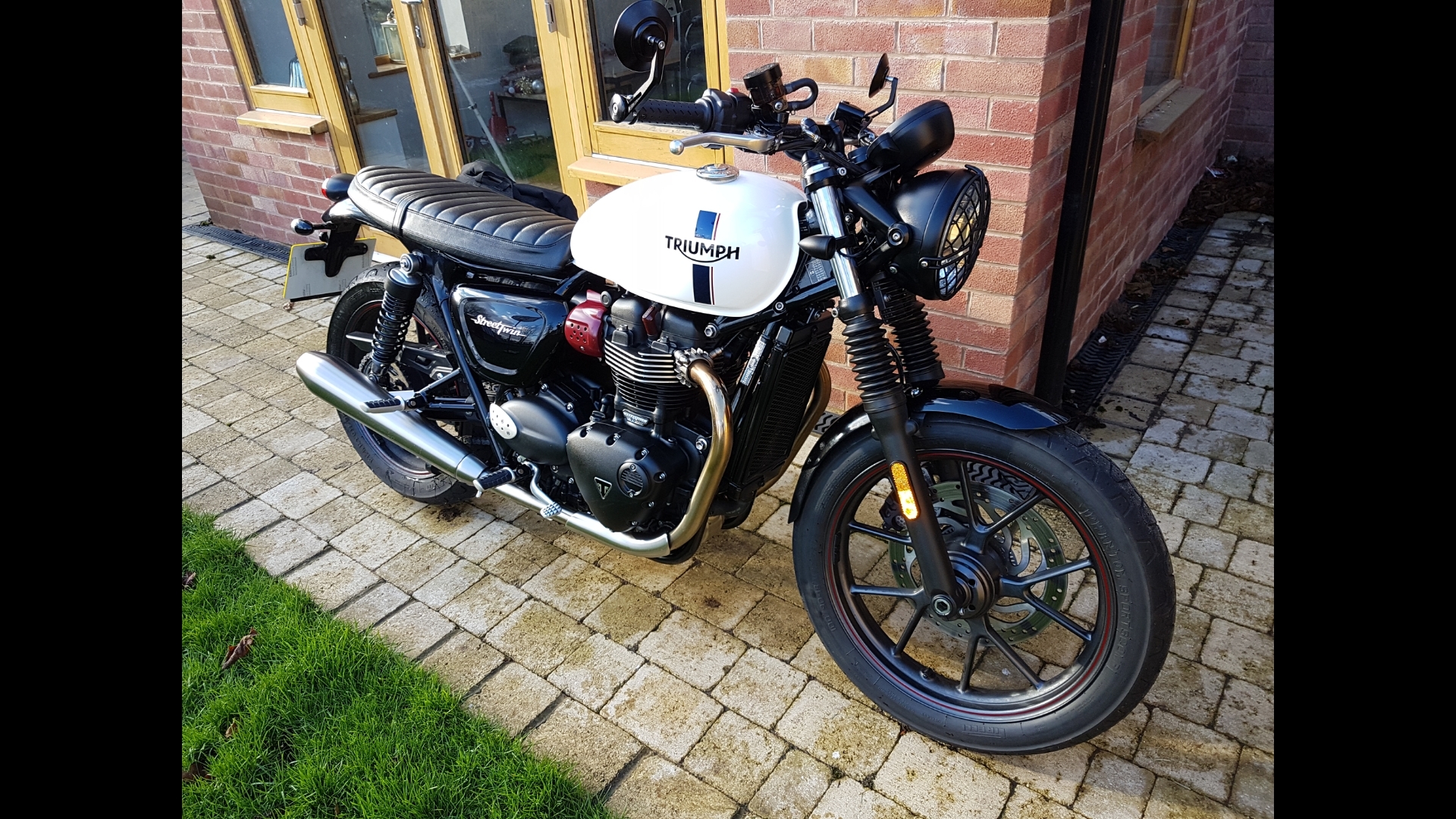

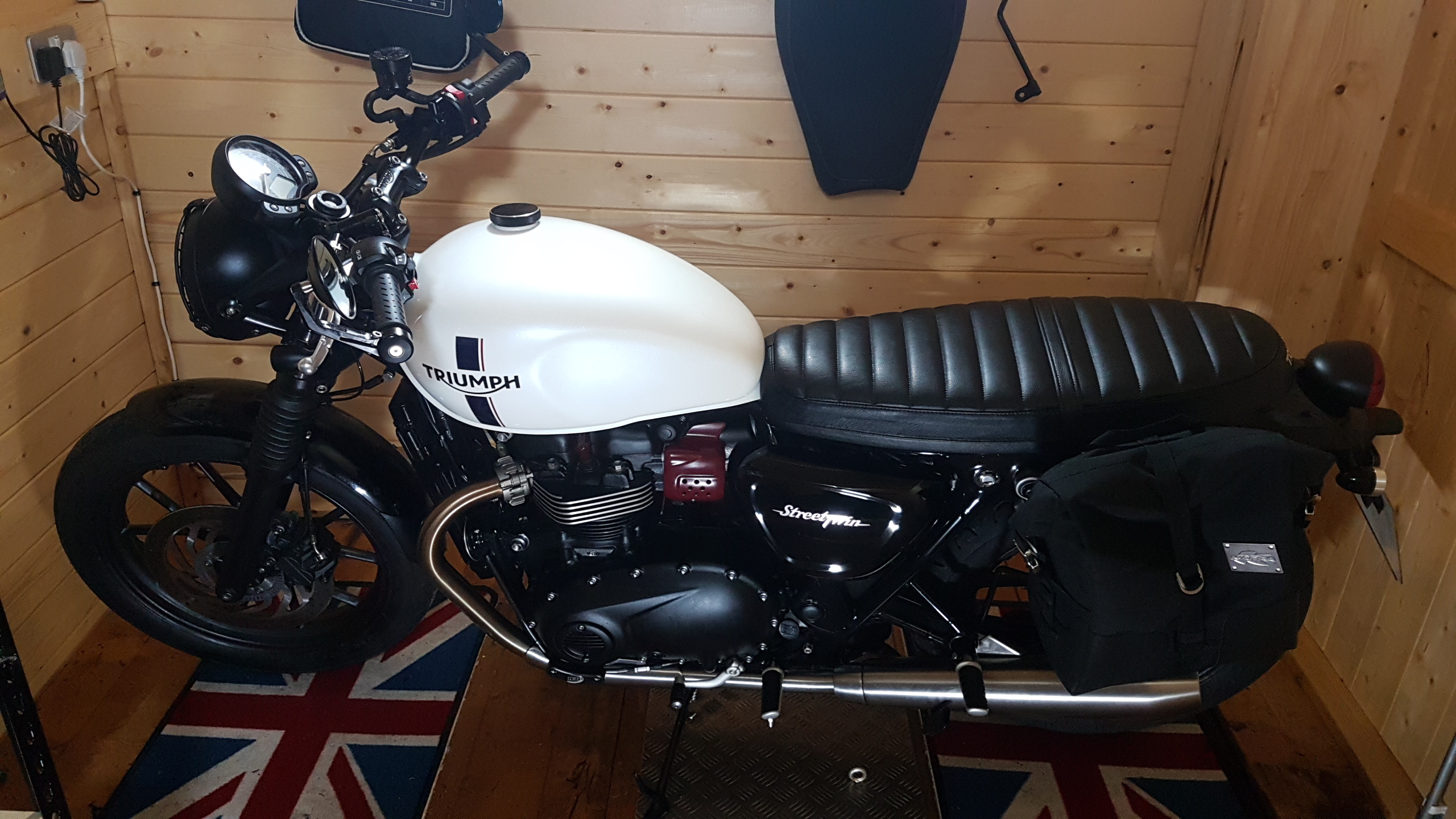

    Really pleased with the filler cap and removed reflectors. Took the reflectors off using the dental floss trick, then elbow grease and WD40.
