Strange Electrical Problem

Discussion in 'Technical Help' started by David Holland, Apr 12, 2024.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. David Holland

    David Holland New Member

    Apr 12, 2024
    3
    3
    Ashford, Kent
    #1 David Holland, Apr 12, 2024
    Hi All,

    I have a 2016 T120 Black. Great bike. I have started to get an electrical fault. It started with the heated grips with a H9R off reading, then the indicators only work now and again. Now the dash lights and display go out when i indicate. The display drops all data apart from the milage. I have checked lots of cable connections and earth points but still and lost. I am hope for some pearls of wisdom.

    Thanks in advance.

    KR David

    • Useful Useful x 1
  2. Linx

    Linx Well-Known Member

    Mar 14, 2020
    198
    93
    Stratford Upon Avon, UK
    #2 Linx, Apr 14, 2024
    Sounds like some metal fatigue or chafing somewhere.

    • Useful Useful x 1
  3. alfie

    alfie Getting older but still going for it
    Subscriber

    Jan 27, 2018
    374
    213
    Bath, Zumerset
    #3 alfie, Apr 14, 2024
    Last edited: Apr 14, 2024
    Wiring problem around the headstock. The constant movement of the bars breaks wires.

    Search 'Headstock wiring'

    Alfie

    • Agree Agree x 4
    • Like Like x 1
  4. J Longmire

    J Longmire New Member

    Nov 22, 2023
    0
    1
    Arizona
    #4 J Longmire, Apr 15, 2024
    Charge the battery fully and then put a load test on it. You have a battery going bad if all grounds are good. Look up Van Blamm on you tube your issue sounds very similar.

    • Agree Agree x 1
  5. Wishbone

    Wishbone First Class Member

    Nov 4, 2018
    865
    643
    Essex UK
    #5 Wishbone, Apr 16, 2024
    And check all frame earths are good

    • Agree Agree x 1
  6. David Holland

    David Holland New Member

    Apr 12, 2024
    3
    3
    Ashford, Kent
    #6 David Holland, Apr 22, 2024
    Hi All,
    Thank you so much for all the help. I have checked the earths and battery, all good. I moved the wires around the neck and it is the problem. I just have to try to find which one. I am taking it to Triumph next week for them to have a play. Your help has been amazing, Thank you.

    • Agree Agree x 1
  7. joe mc donald

    joe mc donald Joe
    Subscriber

    Dec 26, 2014
    14,751
    1,000
    slough / burnham
    #7 joe mc donald, Apr 25, 2024
    Welcome to the family. Do hit the upload a file button bottom right and show the inmates your bike. Joe

  8. David Holland

    David Holland New Member

    Apr 12, 2024
    3
    3
    Ashford, Kent
    #8 David Holland, Apr 29, 2024

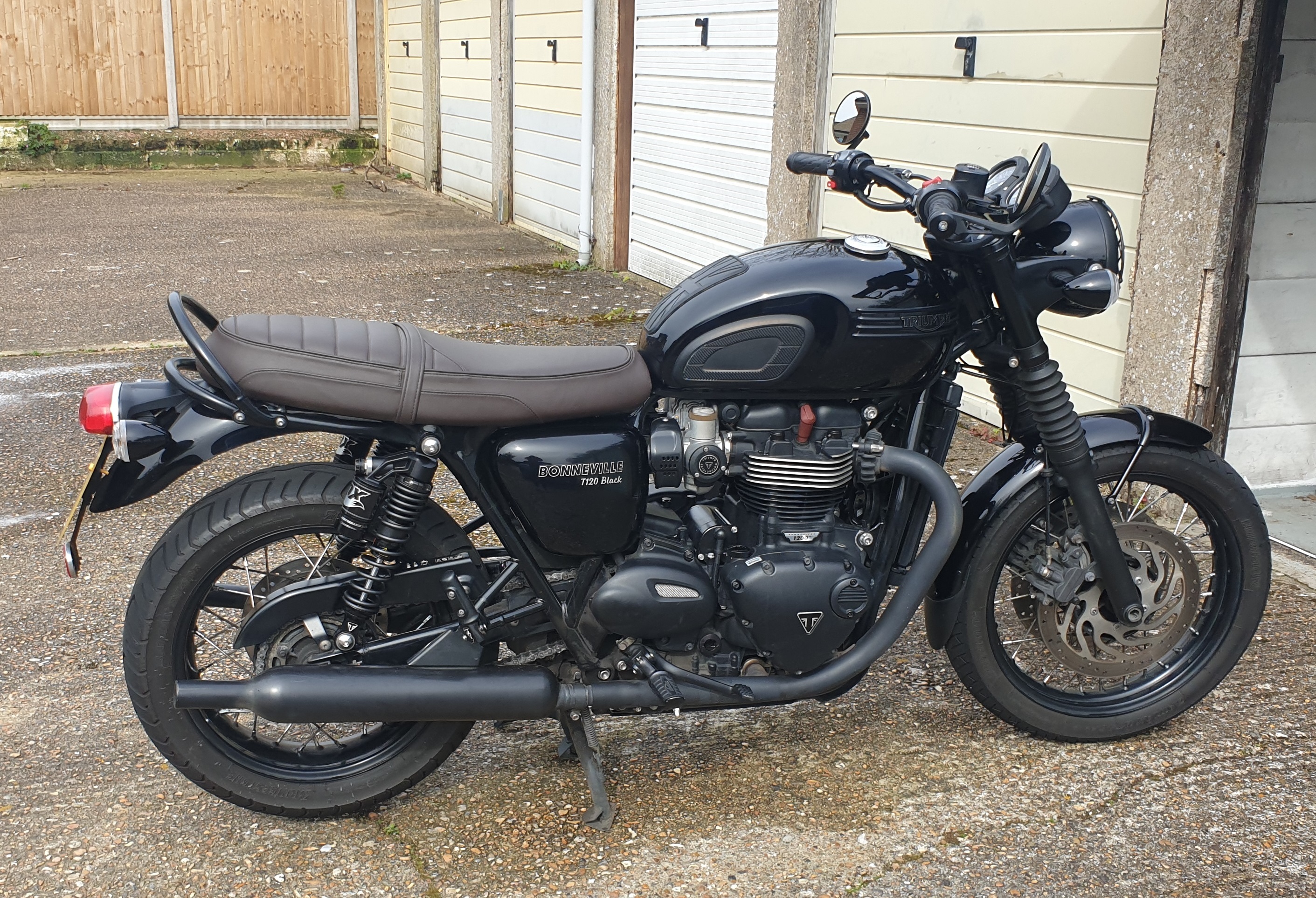

    Here is my little beast.


    • Like Like x 3
