Speed Triple Tank Removal

Discussion in 'Technical Help' started by Paul Coppin, Apr 15, 2019 at 9:15 AM.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Paul Coppin

    Paul Coppin New Member

    Mar 3, 2019
    3
    3
    Sheffield

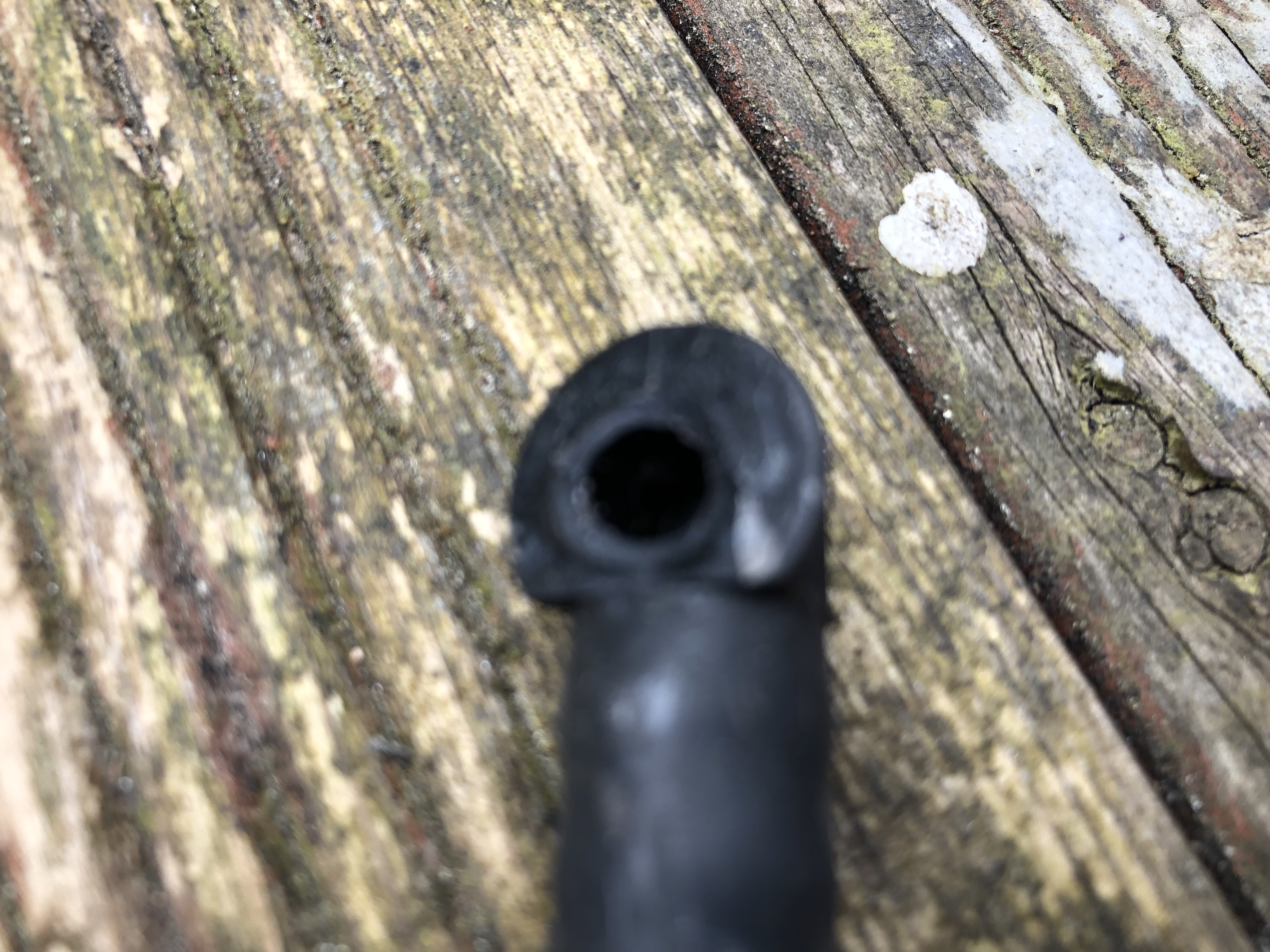

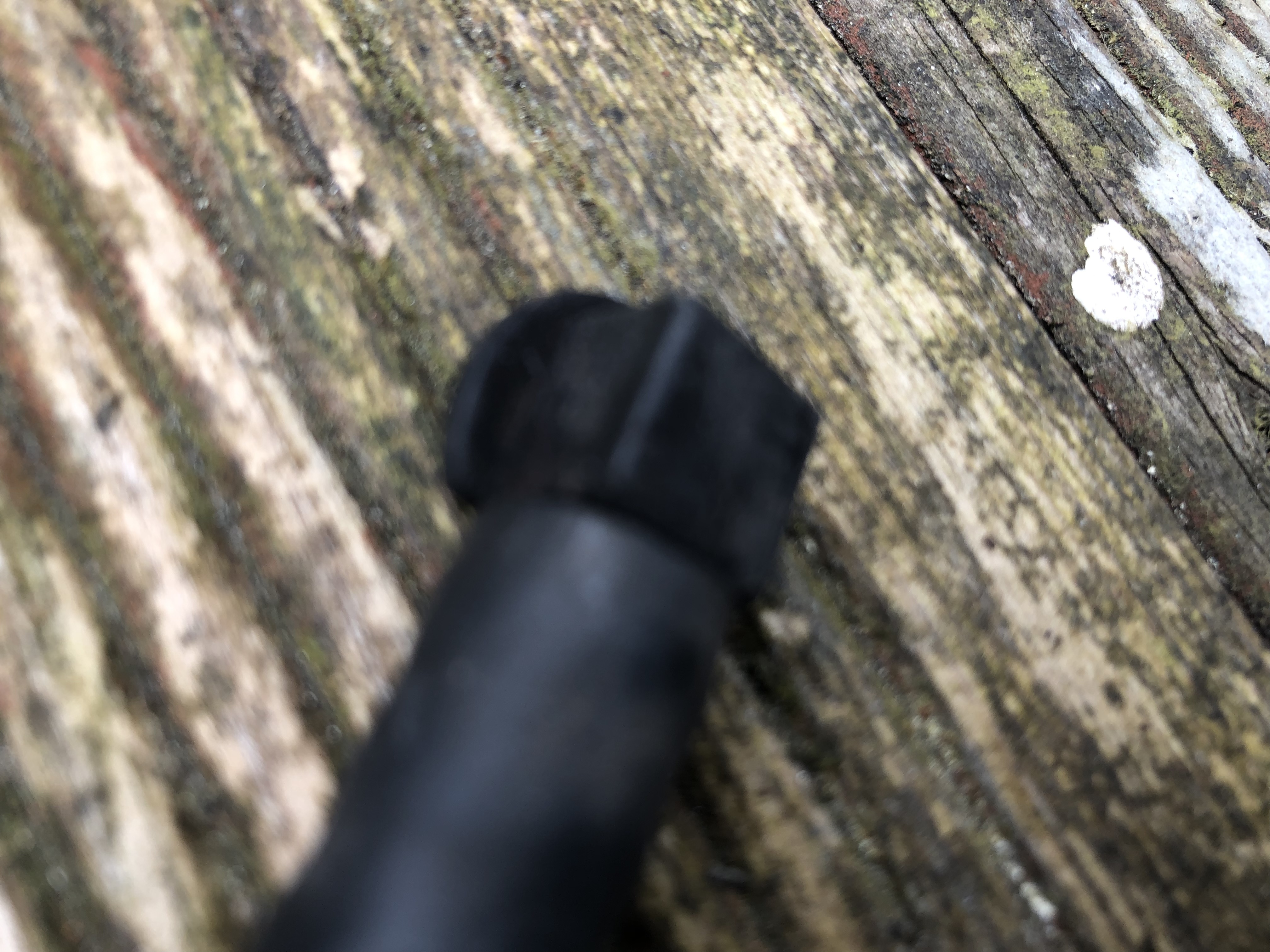

    Hi I just removed the tank off my speed triple and the below just fell out. I have no idea where it’s from or what it was attached to. It’s about a foot long tube and at one end has this connector that’s box shaped at the back. Any ideas Anyone?



  2. Sprinter

    Sprinter Elite Member
    Subscriber

    Aug 17, 2014
    4,137
    800
    Grampian.
    Poor photos mate.

  3. Helmut Visor

    Helmut Visor Put on your big boy pants and man up
    Subscriber

    Oct 3, 2018
    1,065
    393
    Three Counties
    Try a macro setting for the close up photos........welcome in by the way :cool::cool:

  4. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    2,659
    800
    Netherlands
    Hi and welcome. Bit hard to tell what you're trying to show...

  5. Paul Coppin

    Paul Coppin New Member

    Mar 3, 2019
    3
    3
    Sheffield
    Sorry Guys, sorry for the quality and i appreciate the help. as i said it's a piece of tubing, looks like a breather hose from the fuel tank, but the tank still has both hoses attached and this was just lying on top of the filter casing when i lifted the tank off. and the tank still has both tubes attached. just wondering if i've missed something.

  6. Red Thunder

    Red Thunder First Class Member
    Subscriber

    Dec 2, 2014
    1,268
    500
    High Wycombe
    What year is it?

    • Agree Agree x 1
  7. Sprinter

    Sprinter Elite Member
    Subscriber

    Aug 17, 2014
    4,137
    800
    Grampian.
  8. Paul Coppin

    Paul Coppin New Member

    Mar 3, 2019
    3
    3
    Sheffield
    It’s 06

  9. Yorkshireman

    Yorkshireman Elite Member
    Subscriber

    Dec 12, 2015
    1,673
    800
    Barnsley
    Your photos aren’t very clear but it looks like it could be a drain for the airbox. I can’t directly relate because my bike is a 2015 and the airbox is different, but, have a good look to see if there is obviously something missing from the airbox, this could involve taking it off as the hose could be attached underneath. I don’t think your model has the SAI valves so doubt it is anything to do with that.

  10. Yorkshireman

    Yorkshireman Elite Member
    Subscriber

    Dec 12, 2015
    1,673
    800
    Barnsley

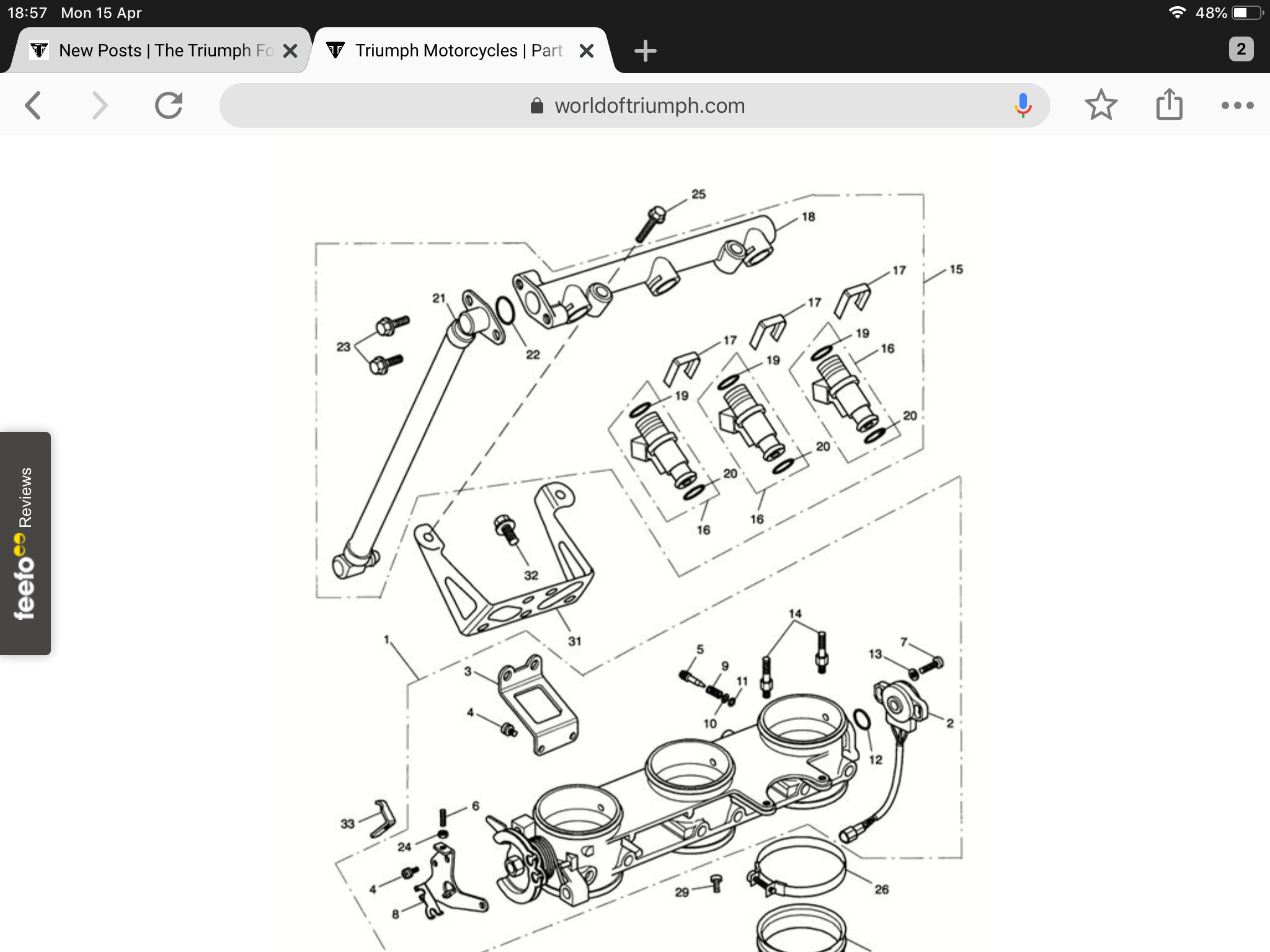

    D8A9658E-1D43-4302-A4AB-497834A12E28.png Is it item 21 in this pic?listed as fuel feed hose, has yours had a new one fitted and the old one left behind?
    This is for bikes in the vin range 141872 to 210444.

    • Like Like x 1
  11. Paul Coppin

    Paul Coppin New Member

    Mar 3, 2019
    3
    3
    Sheffield
    cheers thats a great shout, will check

  12. Paul Coppin

    Paul Coppin New Member

    Mar 3, 2019
    3
    3
    Sheffield
    cheers thats a great shout, will check

  13. Paul Coppin

    Paul Coppin New Member

    Mar 3, 2019
    3
    3
    Sheffield
    that looks like it at one end but the other is open and cut like a breather tube. will check it though and thanks for the time and effort that took to dig out
