Speedmaster Something For Nudger Part Two

Discussion in 'America, Speedmaster & Rocket' started by dilligaf, Jan 8, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
Page 3 of 6
  1. Tucker 1963

    Tucker 1963 Elite Member

    Sep 7, 2017
    3,451
    800
    Newmarket
    #41 Tucker 1963, Jan 9, 2019
    Just before Christmas myself and Lisa went to look at getting the new speed master .
    Lisa did not like the seat and the same thing happened to us oh we do a comfort seat . so I said do you call the seat you're got on the uncomfortably seat .(NO Answer back )
    Tucker:p:joy::joy:

    • Like Like x 6
    • Funny Funny x 2
  2. dilligaf

    dilligaf Guest

    #42 dilligaf, Jan 9, 2019

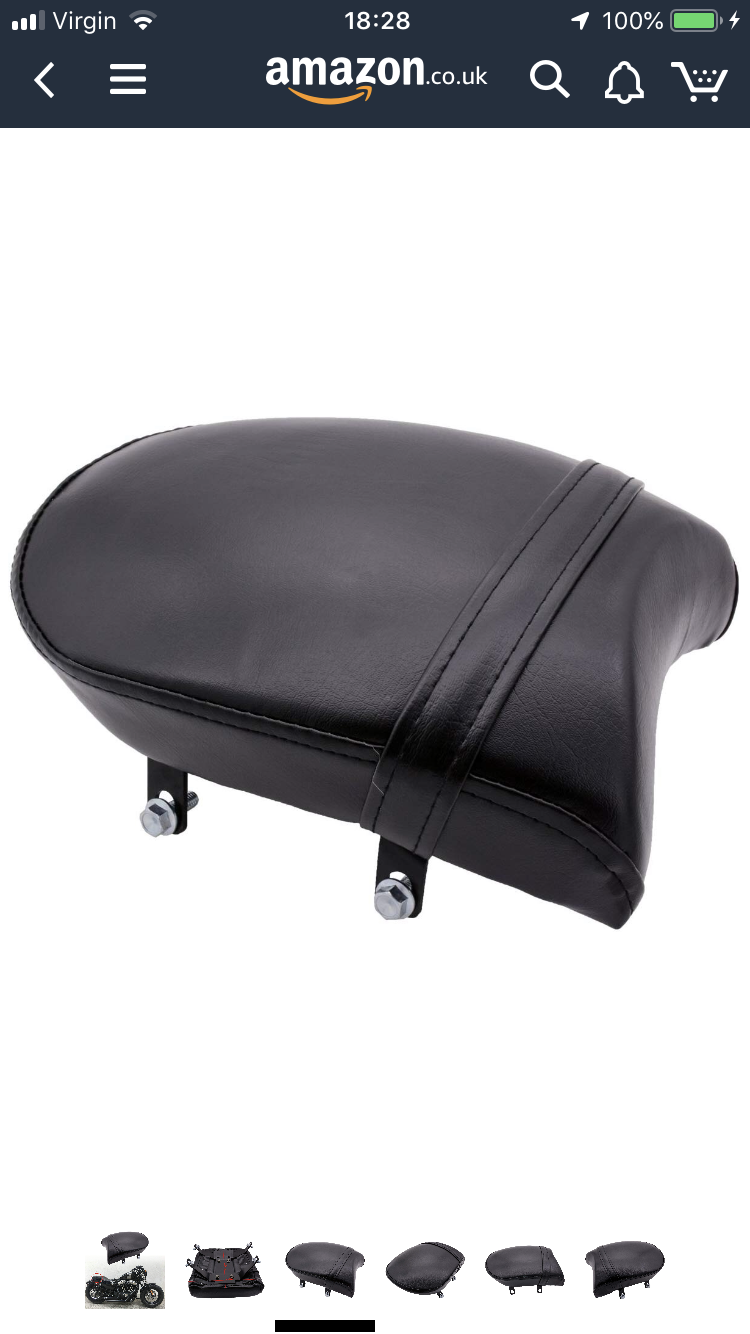

    This is the seat I’m fitting to NUDGER
    :)
    Trying to find a way to secure it :confused:
    I will find a way :)
    Cost £30:p
    2369E507-18DE-484F-A592-913CC240CE0F.png This is the back rest I’ve ordered :)
    It’s not here yet :(
    But once I’ve sorted the seat I can make a start on the fabrication of the sissy bar ready for when it gets here :)
    Should arrive 5th February :)
    Cost £15:p


    • Like Like x 11
  3. dilligaf

    dilligaf Guest

    #43 dilligaf, Jan 9, 2019
    :):) At last I’ve made some progress :grinning:

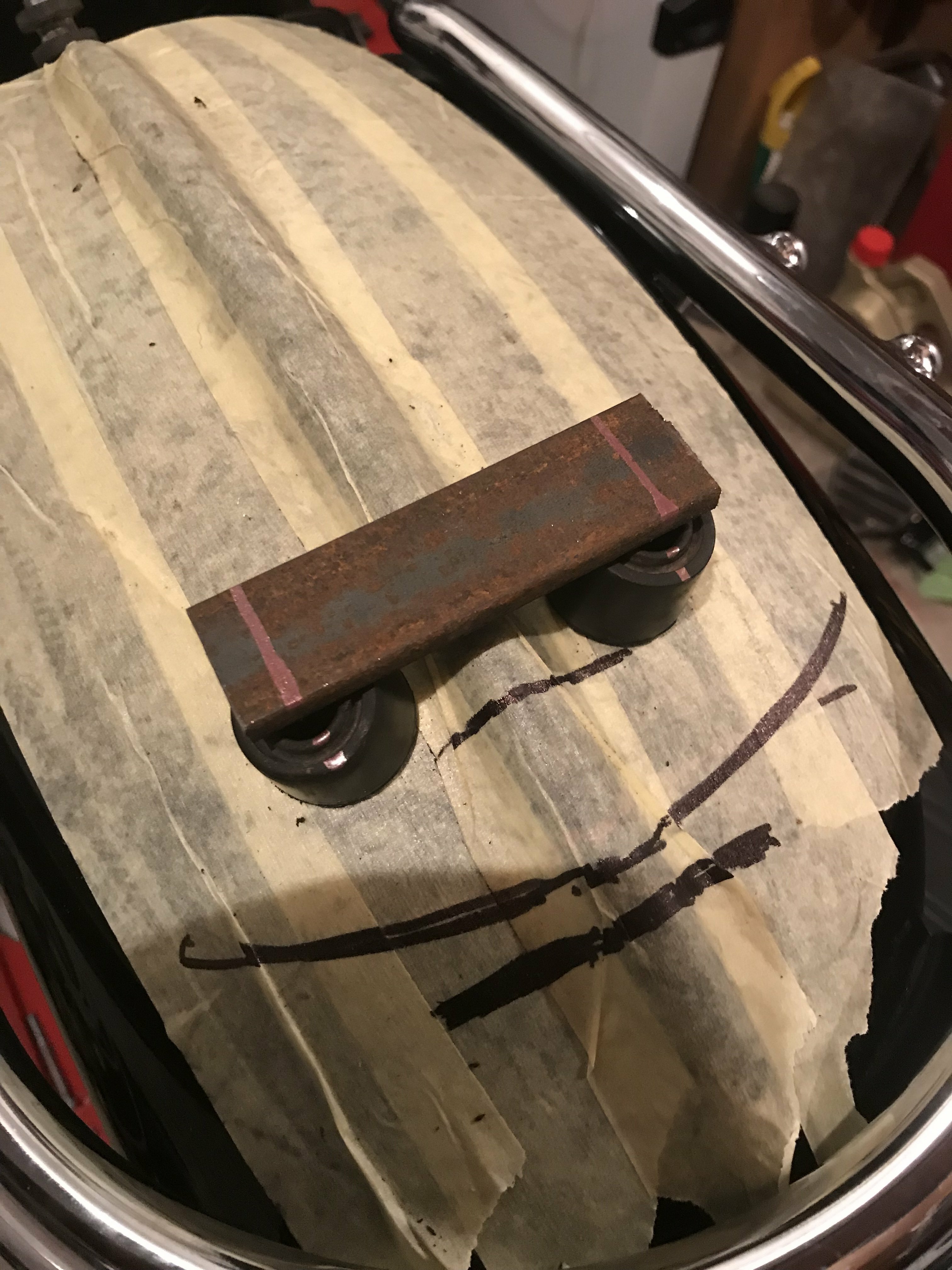

    Using the bolt holes that the original fanny pad uses I’ve attached two rubber feet from a stihl saw:)
    The holes are a perfect fit for the head of a 8mm Allen head bolt :)
    Gonna drill and tap the bar to take the Allen bolts and cut and grind it to size :)

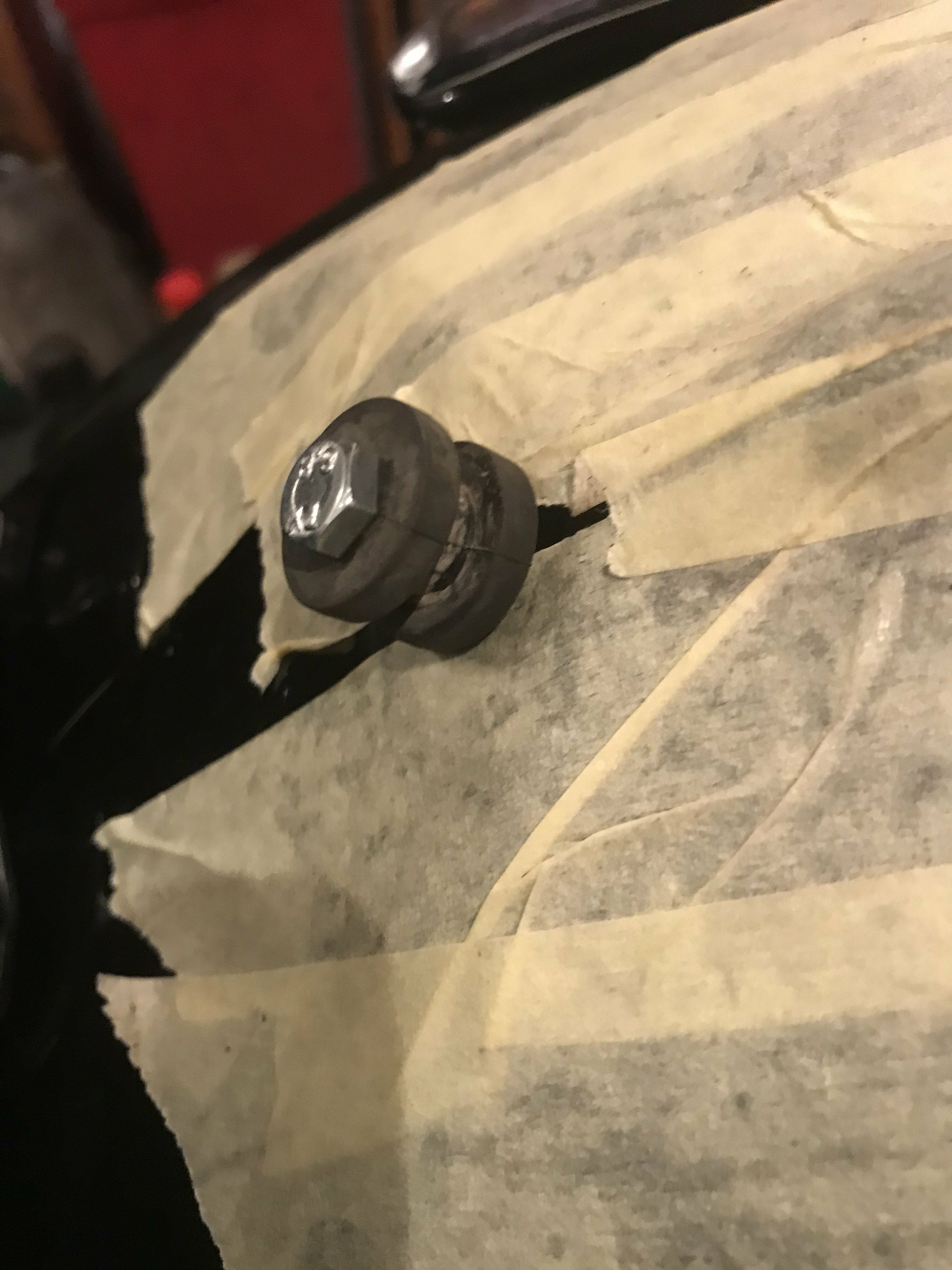

    Then it’ll be attached to the under side of the new seat and that’s the position sorted :) 5D417A71-FED7-4F8E-9BE4-1ED7424EE20B.jpeg the front seat locator has been removed and swapped for this rubber mount :) it has a metal sleeve in the middle so it’s locked in place :)
    I’ve attached a type of bungee on the underneath of the seat and it locks the seat up against the back of the riders seat :) the locators will stop it pulling in too hard :p 37E92883-7CD4-40C9-A935-8C1EF1914C3B.jpeg

    • Like Like x 8
    • Creative Creative x 2
  4. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    #44 Yorkshireman, Jan 9, 2019
    Coming on nicely there, I take it the company stihl saw is now minus two rubber feet. :rolleyes:

    • Funny Funny x 3
    • Like Like x 2
  5. dilligaf

    dilligaf Guest

    #45 dilligaf, Jan 10, 2019

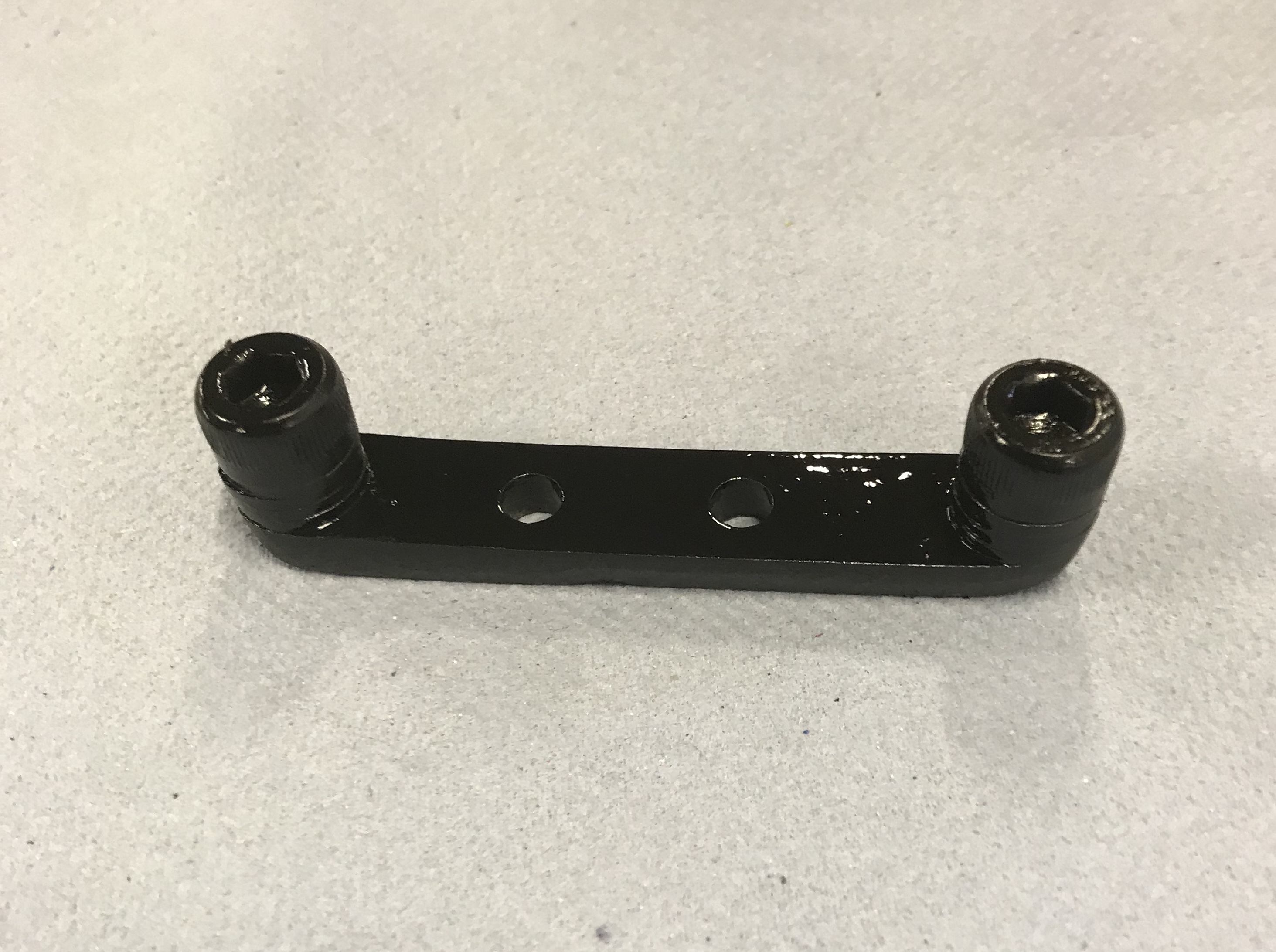

    That’ll do nicely :) 14C20703-796E-4678-8876-16FD92892B7E.jpeg

    • Like Like x 5
  6. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    3,148
    1,000
    south shields
    #46 TEZ 217, Jan 10, 2019
    Agree - Them rubbers will never rust :p:p

    • Funny Funny x 3
  7. dilligaf

    dilligaf Guest

    #47 dilligaf, Jan 10, 2019
    :grinning: Well that went well :grinning:

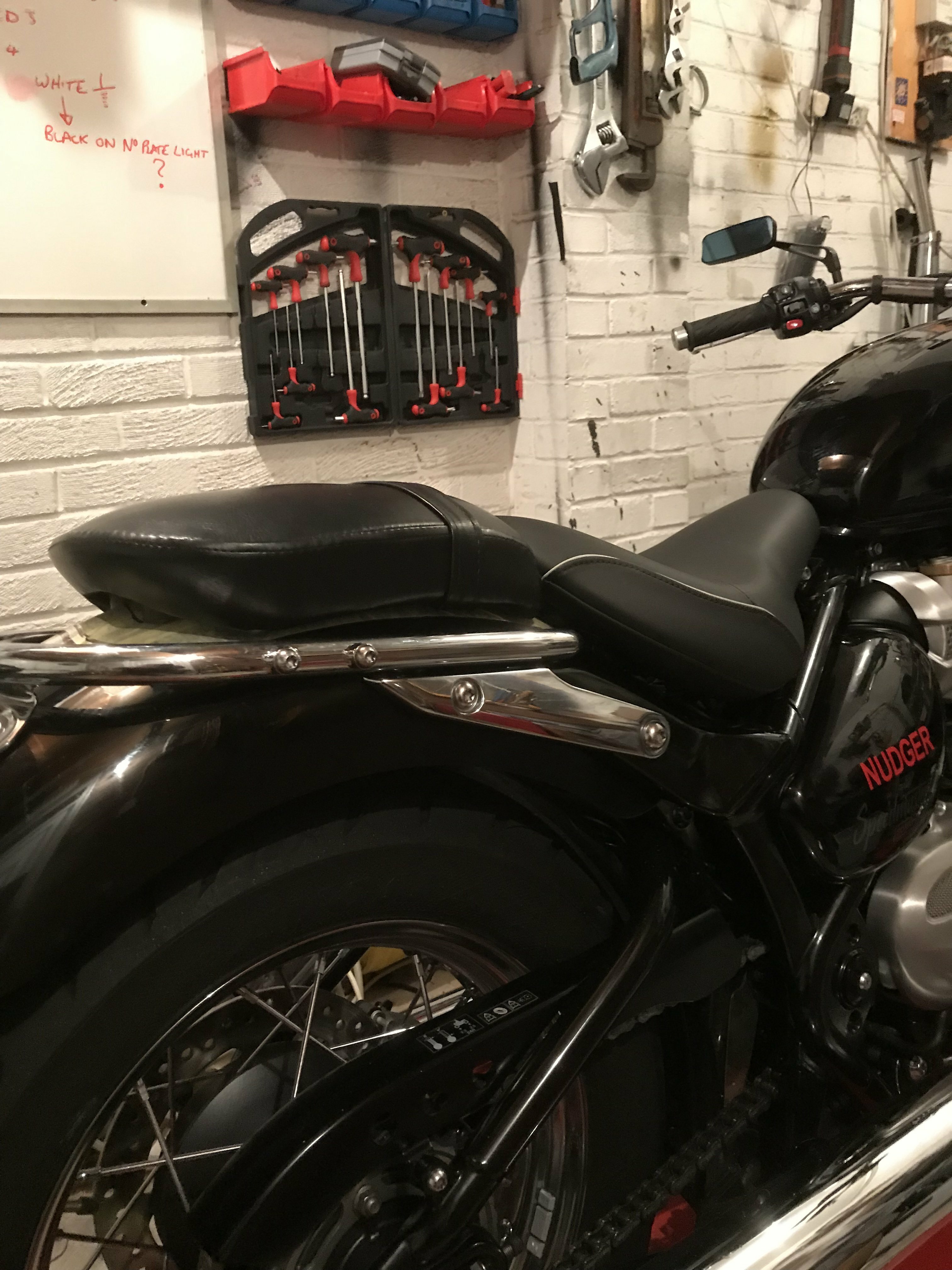

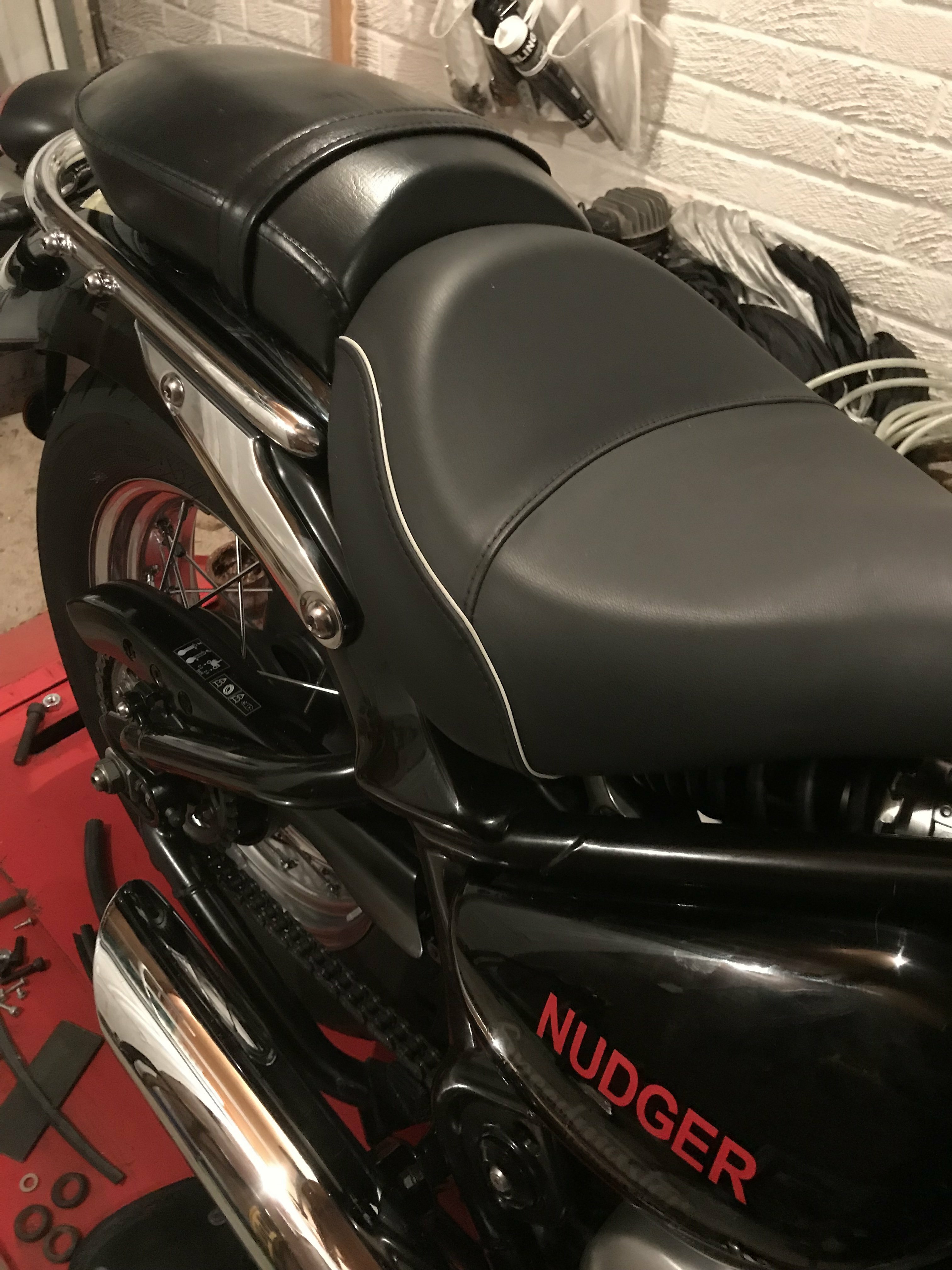

    Some minor adjustments and some rubber pads fixed on with double sided tape and that’s it a pillion seat for £35:p E0C42A6E-0E27-4910-A3DA-973F5A59D689.jpeg 8E142598-39B0-4E43-B09A-ECF1230F2824.jpeg

    • Like Like x 11
  8. Tel Boy

    Tel Boy Well-Known Member

    Oct 23, 2017
    42
    68
    Devon
    #48 Tel Boy, Jan 10, 2019
    Nice one,well done Dilli !!

    • Thanks Thanks x 1
    • Agree Agree x 1
  9. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,329
    1,000
    North West England
    #49 Wessa, Jan 11, 2019
    Looking really good is that Dilli. I reakon you could patent that as there will be many speedmaster riders who carry a pillion who will be interested......
    Wessa

    • Agree Agree x 3
    • Thanks Thanks x 1
  10. dilligaf

    dilligaf Guest

    #50 dilligaf, Jan 14, 2019

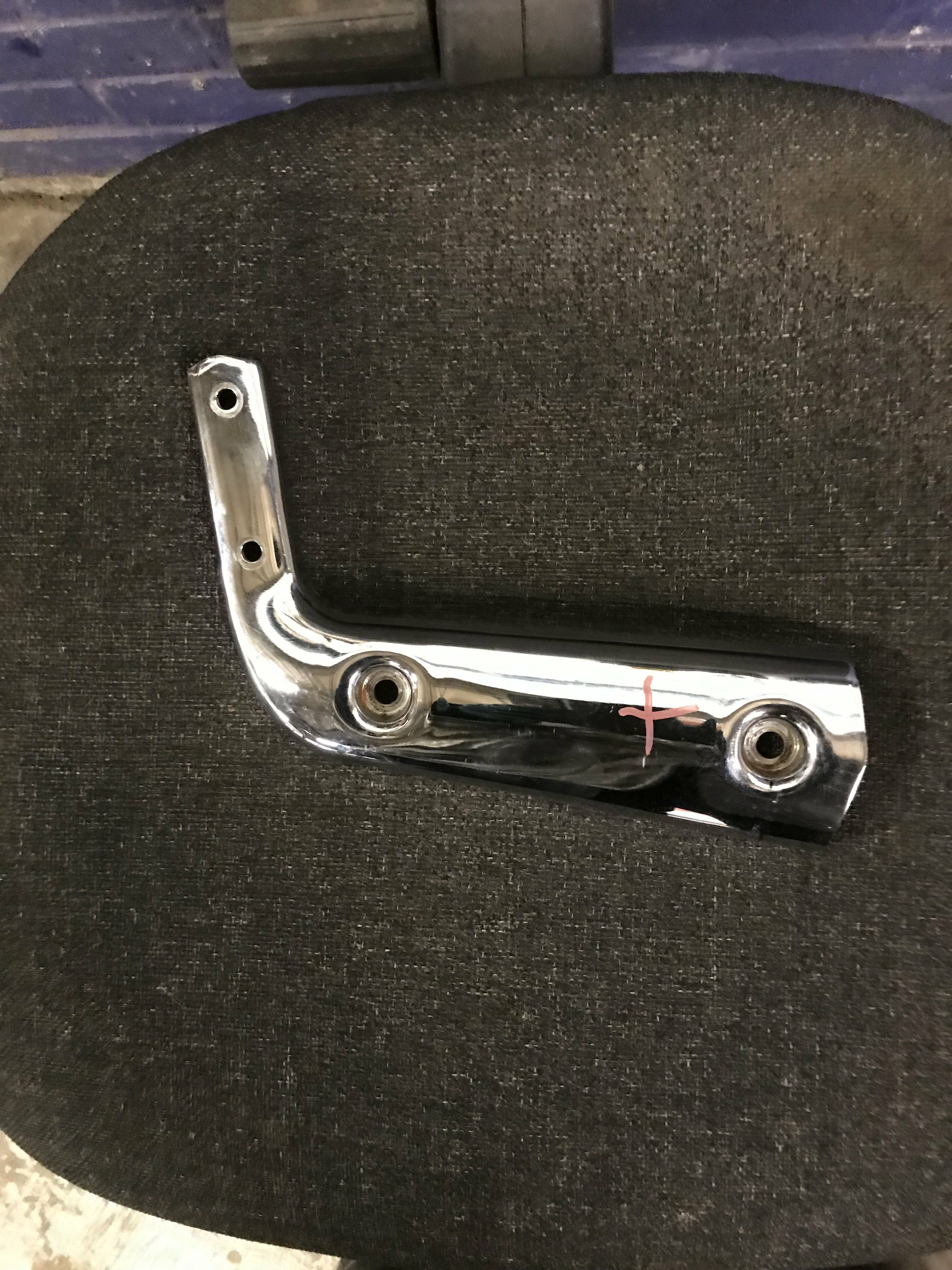

    Using this as a guide/template to start making the backrest/sissy bar :)
    Can’t use it on NUDGER as the holes don’t line up :confused: DABE24B4-FDF3-4D7C-9127-79AAEF442AF4.jpeg

    • Like Like x 1
  11. dilligaf

    dilligaf Guest

    #51 dilligaf, Jan 14, 2019

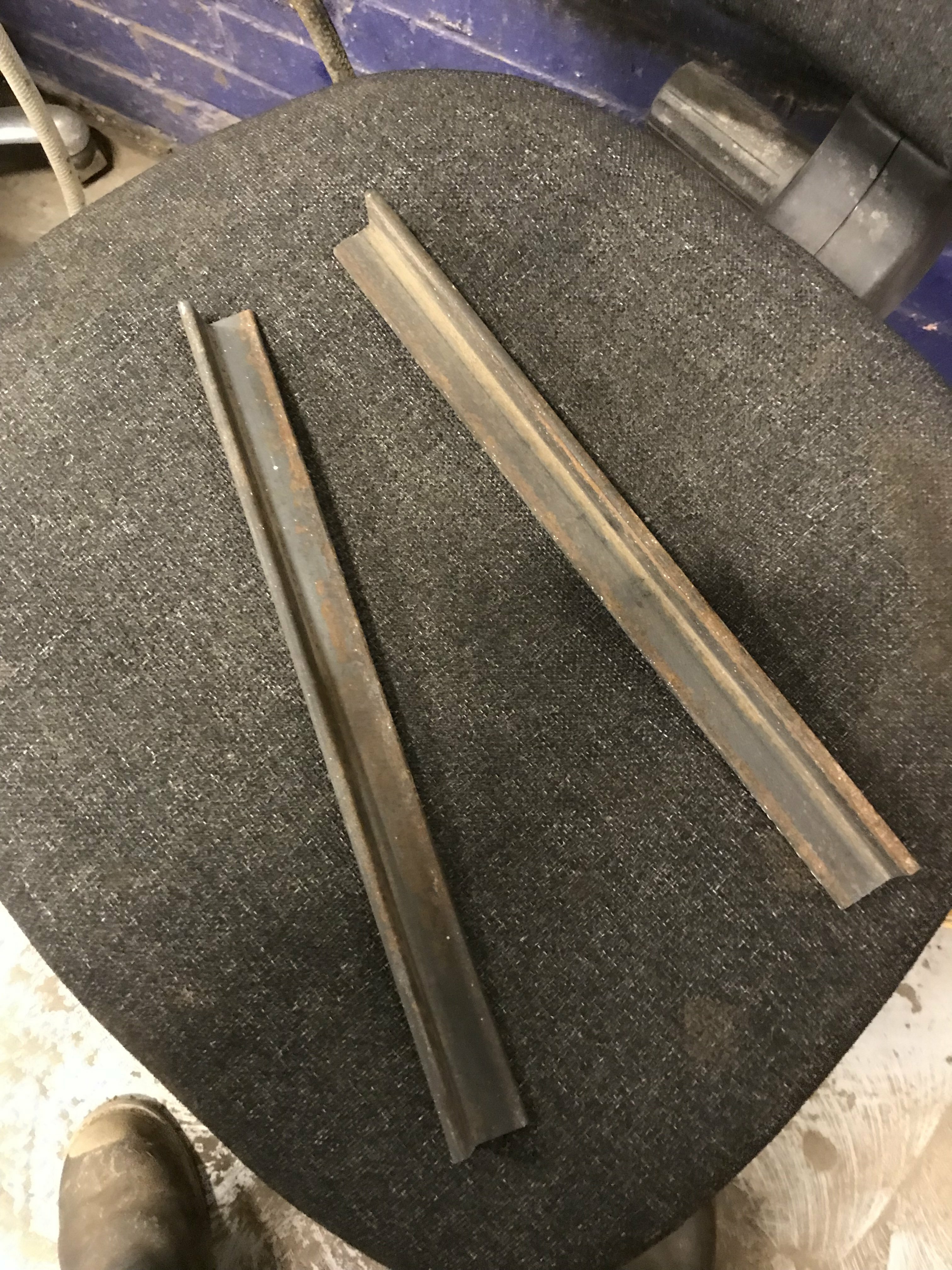

    Two bits of angle iron cut oversize for the time being :) FFBD53B8-62C4-4105-B13B-14024F173E0C.jpeg

    • Like Like x 2
  12. dilligaf

    dilligaf Guest

    #52 dilligaf, Jan 14, 2019

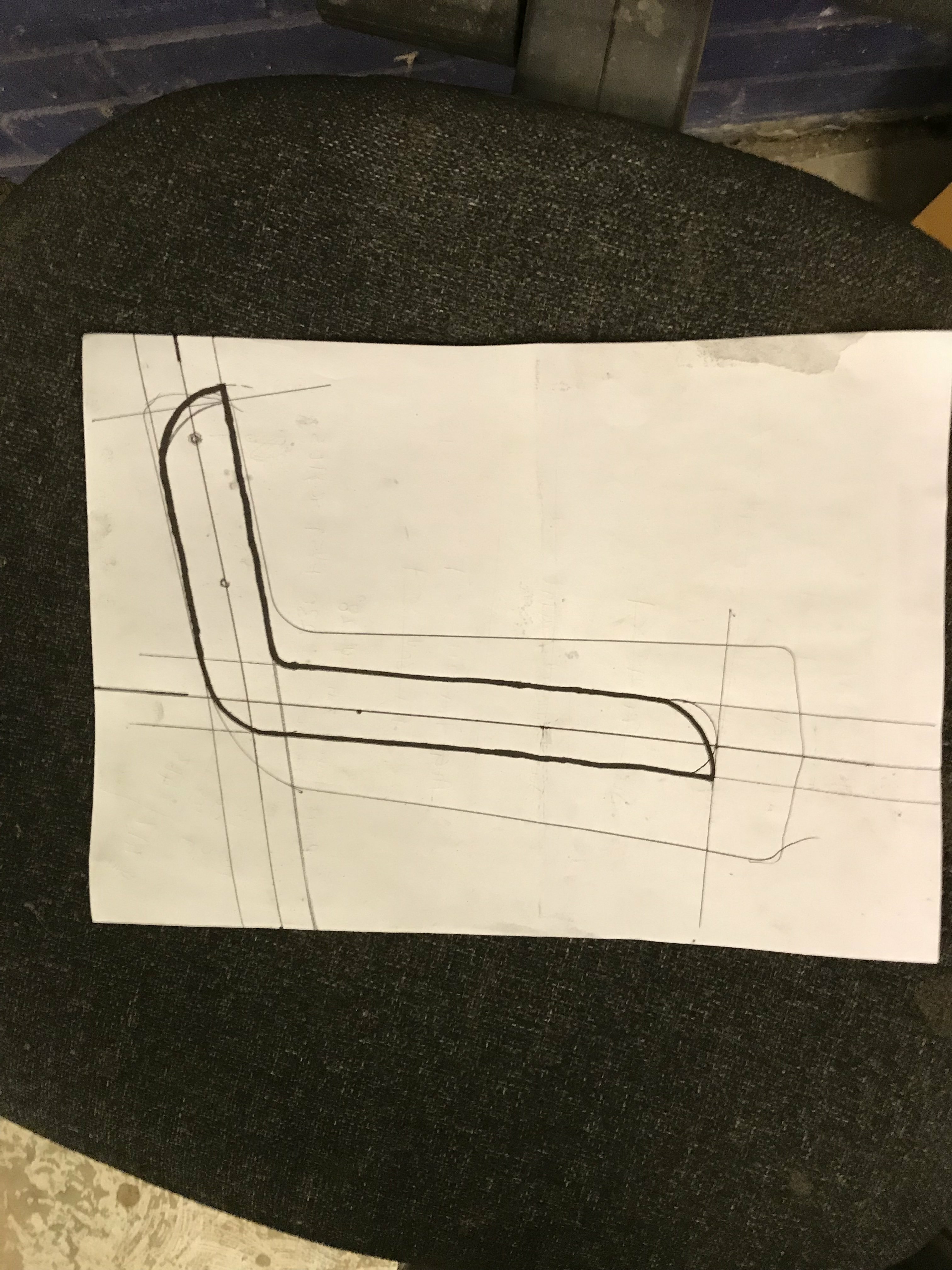

    :) Got the template done...lots of cutting/grinding and filing to do :confused: 11506969-8751-430D-A687-0F0988DB6DDA.jpeg

    • Like Like x 3
  13. StrippleMont

    StrippleMont Senior Member

    Nov 5, 2016
    344
    220
    Round your way!
    #53 StrippleMont, Jan 14, 2019
    "Sissy bar"....... That really should be renamed!:kissing_heart:

    • Like Like x 2
    • Agree Agree x 1
  14. dilligaf

    dilligaf Guest

    #54 dilligaf, Jan 14, 2019

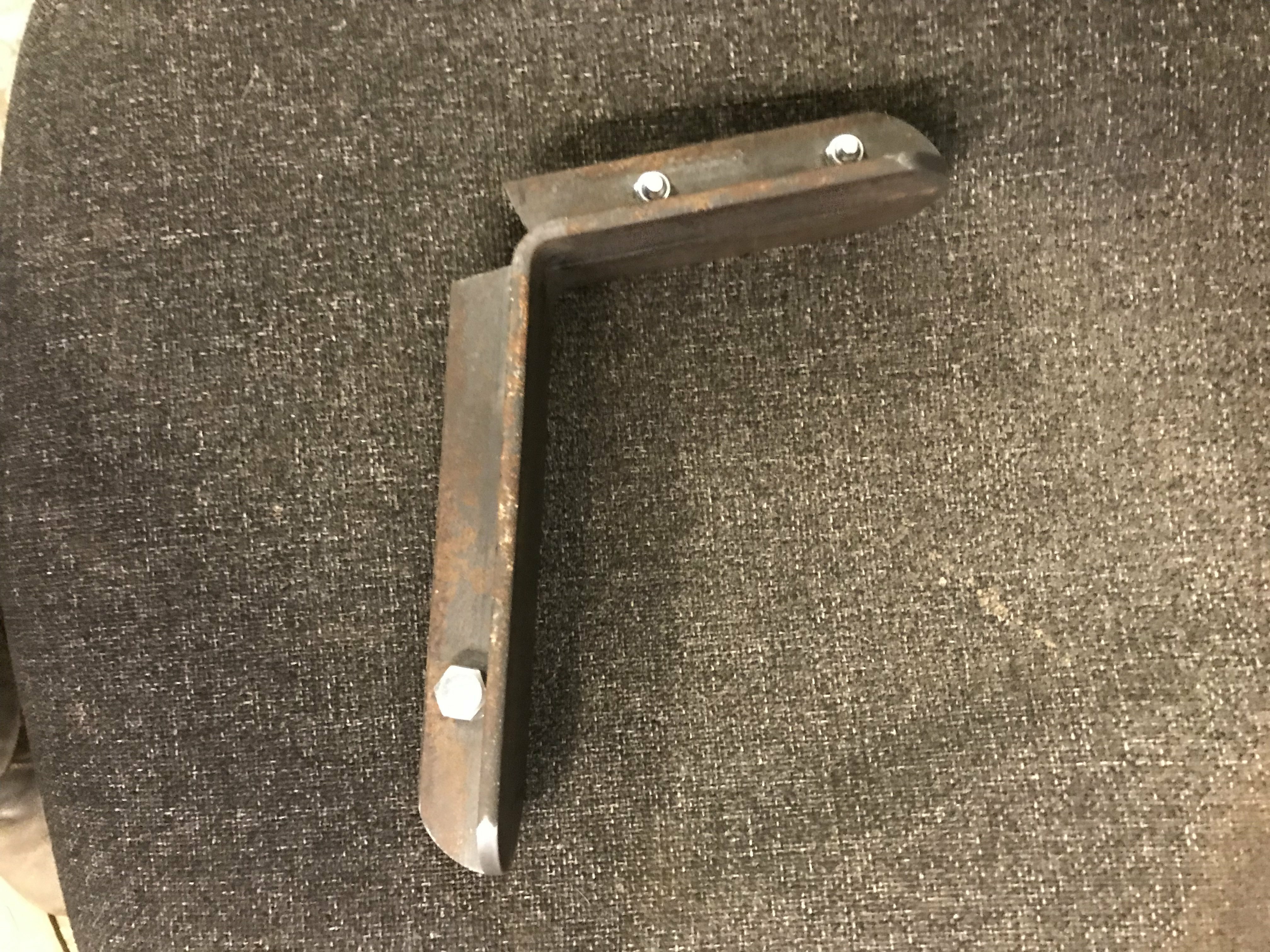

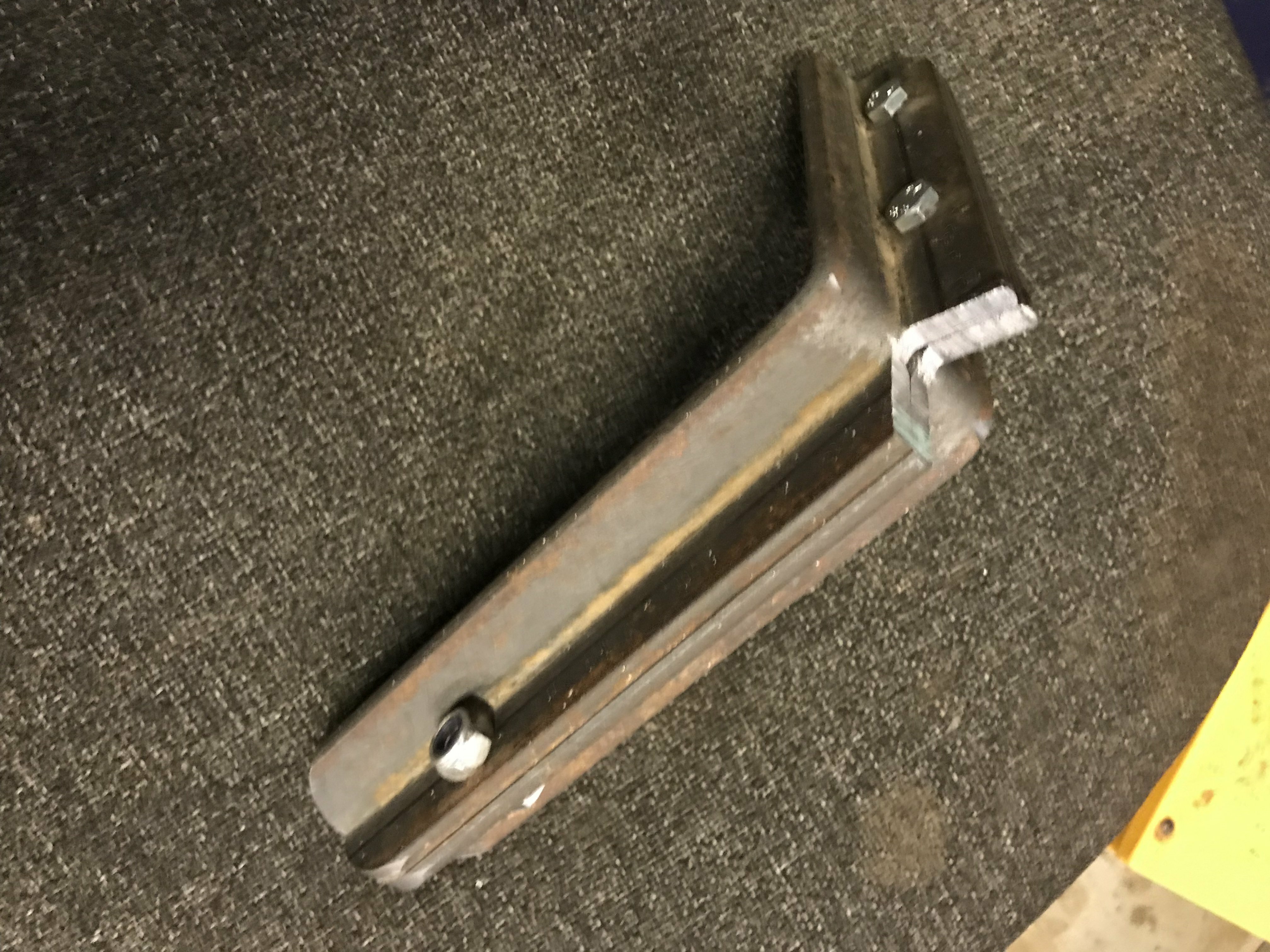

    :) So far so good :cool: E9193909-3F6E-4D24-A1B1-E72CA89EA412.jpeg 07348C65-67C4-4742-87F2-6B5FC6FC910A.jpeg

    • Like Like x 7
  15. dilligaf

    dilligaf Guest

    #55 dilligaf, Jan 14, 2019
    The backrest arrived just before I left work :) C3CE2D47-81E8-4AC0-B971-1FFB34CF475F.jpeg

    • Like Like x 3
  16. dilligaf

    dilligaf Guest

    #56 dilligaf, Jan 14, 2019

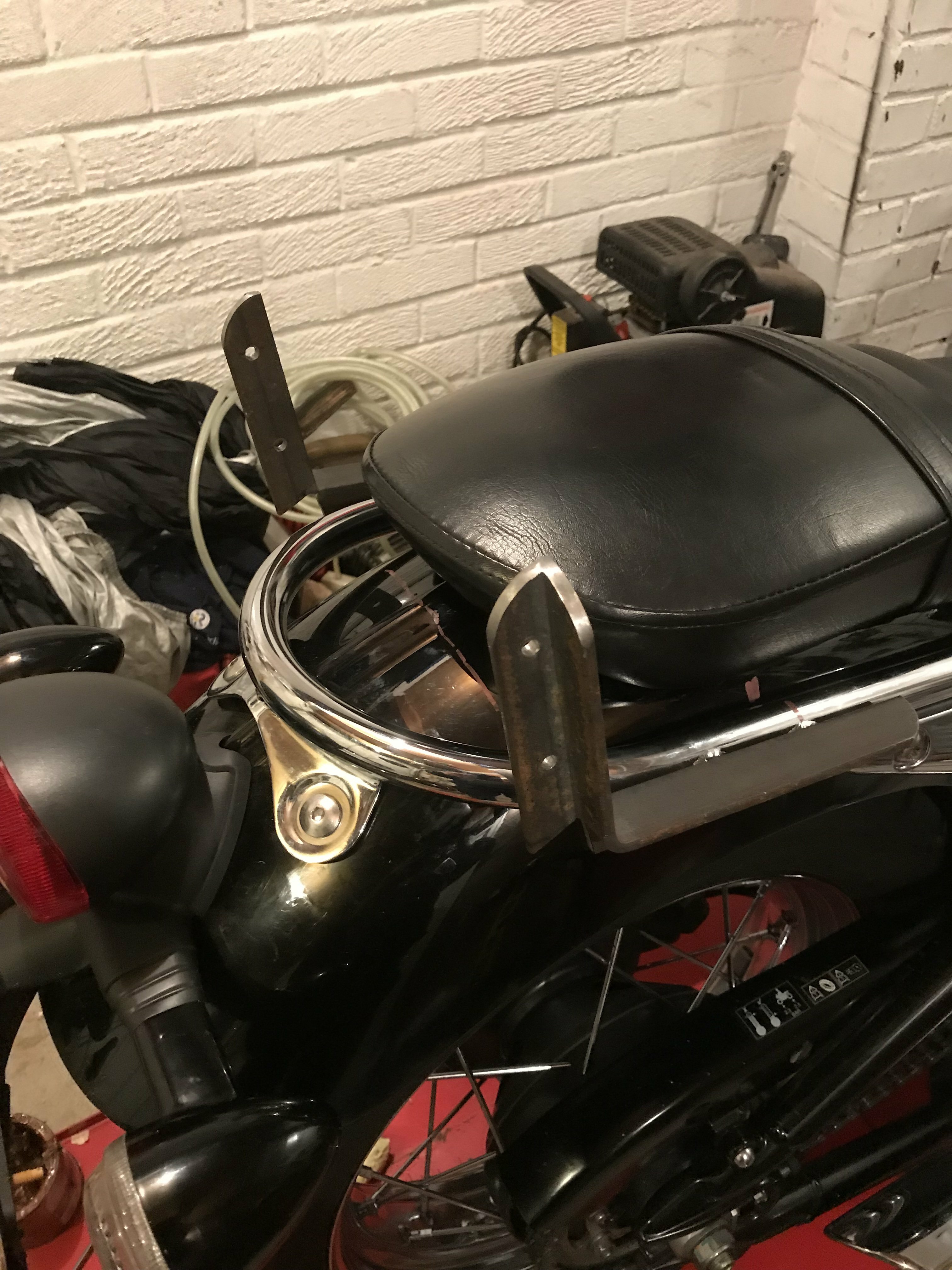

    Brought the side rails home and put them on NUDGER :)
    Got two holes to drill and some welding and grinding to do then I can start on making the backrest support:) ECF1B450-7DC7-4E65-9104-BA8A6FDE9C61.jpeg

    • Like Like x 11
  17. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,329
    1,000
    North West England
    #57 Wessa, Jan 15, 2019
    Hi Dilli are you going to get the frame chromed?

    • Like Like x 1
  18. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    3,148
    1,000
    south shields
    #58 TEZ 217, Jan 15, 2019
    Would imagine its going to be powder coated BLACK :cool::cool:

    • Like Like x 1
    • Agree Agree x 1
  19. dilligaf

    dilligaf Guest

    #59 dilligaf, Jan 15, 2019
    Picking some bits up tonight from the powder coater for my mates Rocket 3 :)
    Apparently you can get powder coating that looks almost like chrome :)
    So gonna ask while I’m there :)
    If not I’ll probably just paint it as it’s not that important to me as I’ll probably only be using it a few times :)
    Taking my mate Frank to a couple of rallies and hopefully get to the Isle of Man later in the year with WOR LASS :eek:

    • Like Like x 7
  20. dilligaf

    dilligaf Guest

    #60 dilligaf, Jan 15, 2019

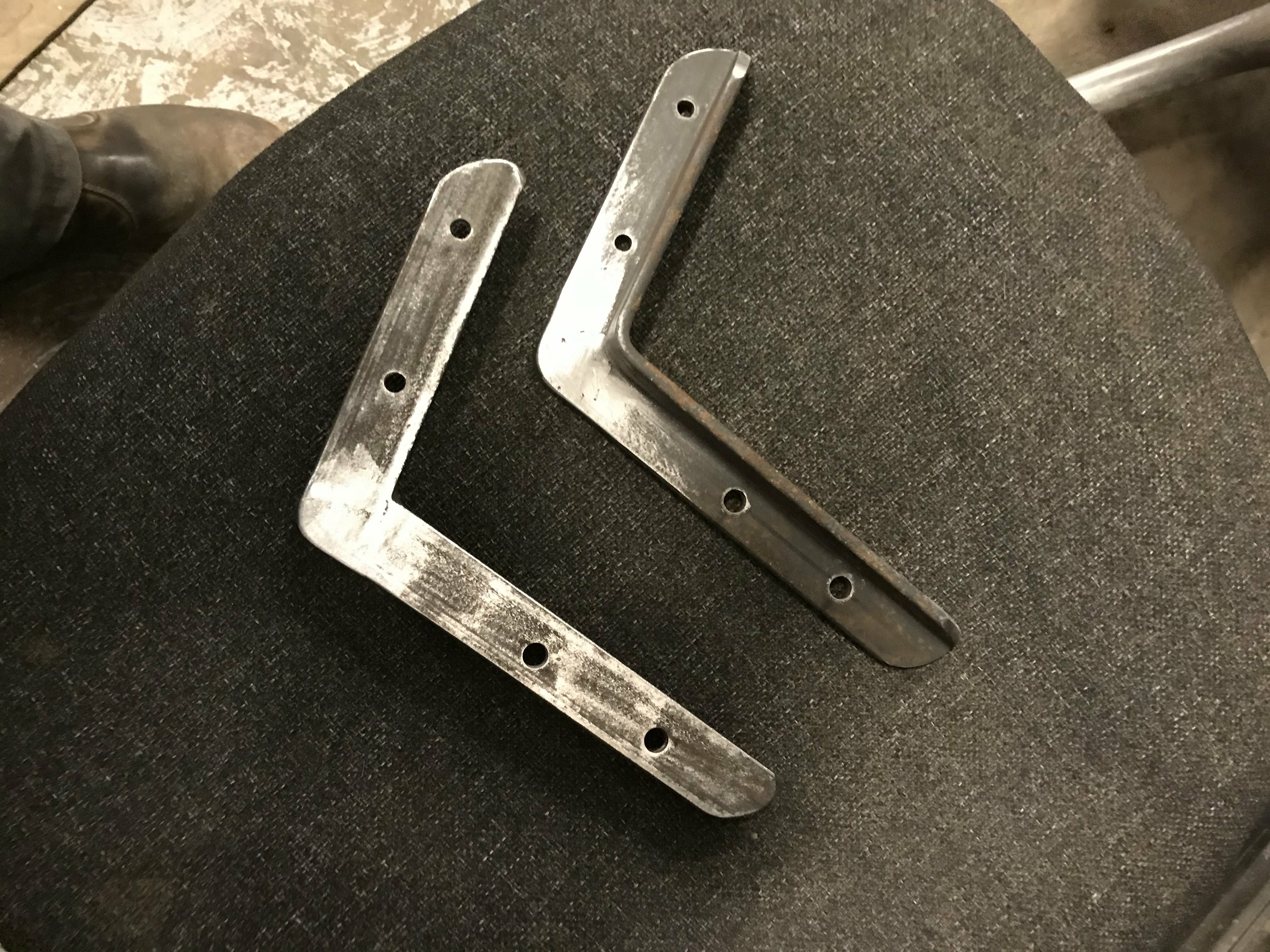

    That’s them done :grinning: 5B7BFED2-ED04-4942-A293-53DFE42A3663.jpeg

    • Like Like x 9
