Might as well make a start on part four for CERBERUS

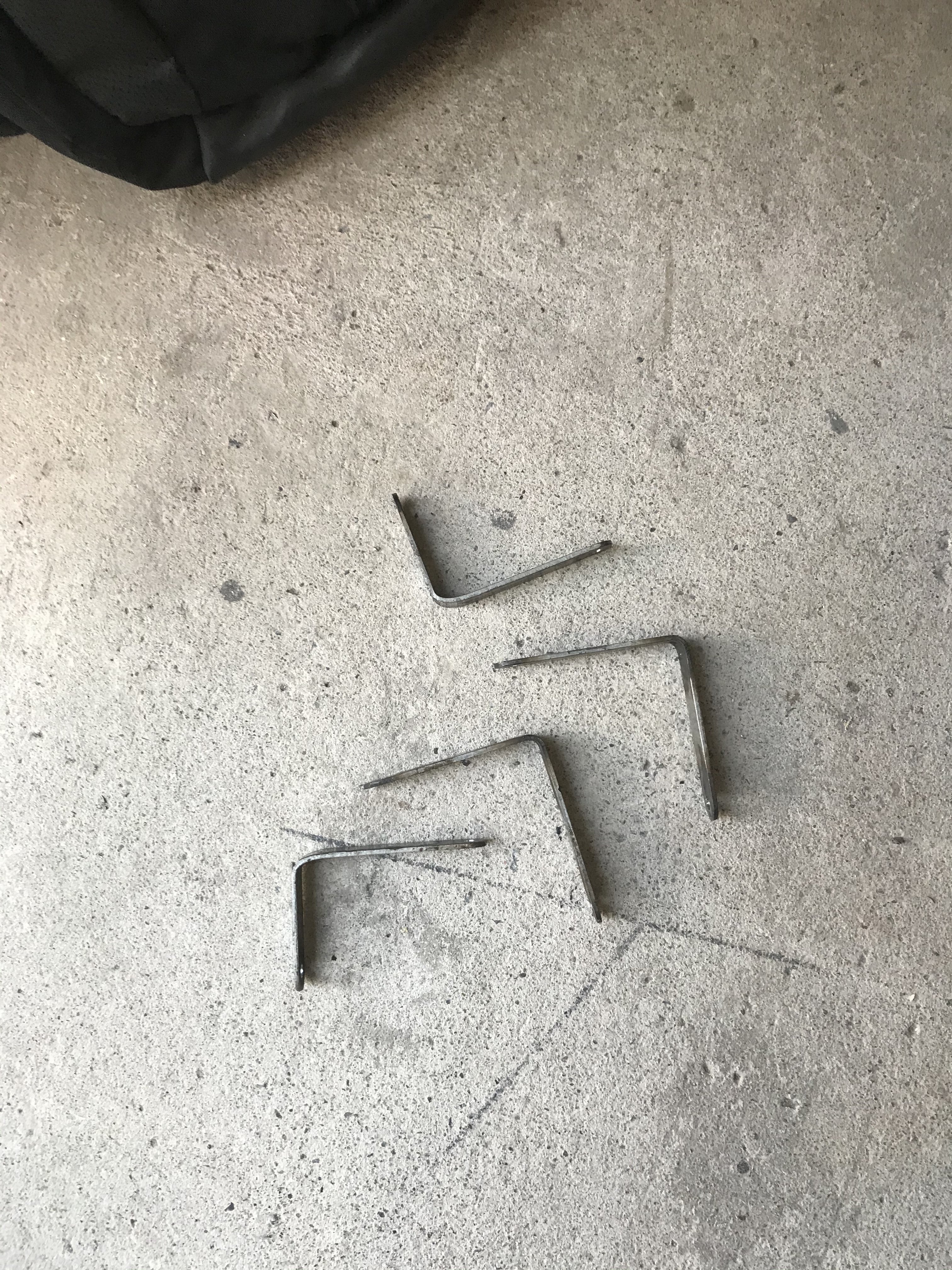

Have these left over from that cantilever toolbox that I dismantled Picked the sizes I reckon will do the job and attached them to the already drilled holes in something for CERBERUS part two
Feckin hell ......me?.....thinking ahead hard to believe And yes welding will be involved



Cheers mate
I wish I could be better at the design side of things as I would get these kind of jobs done a lot quicker

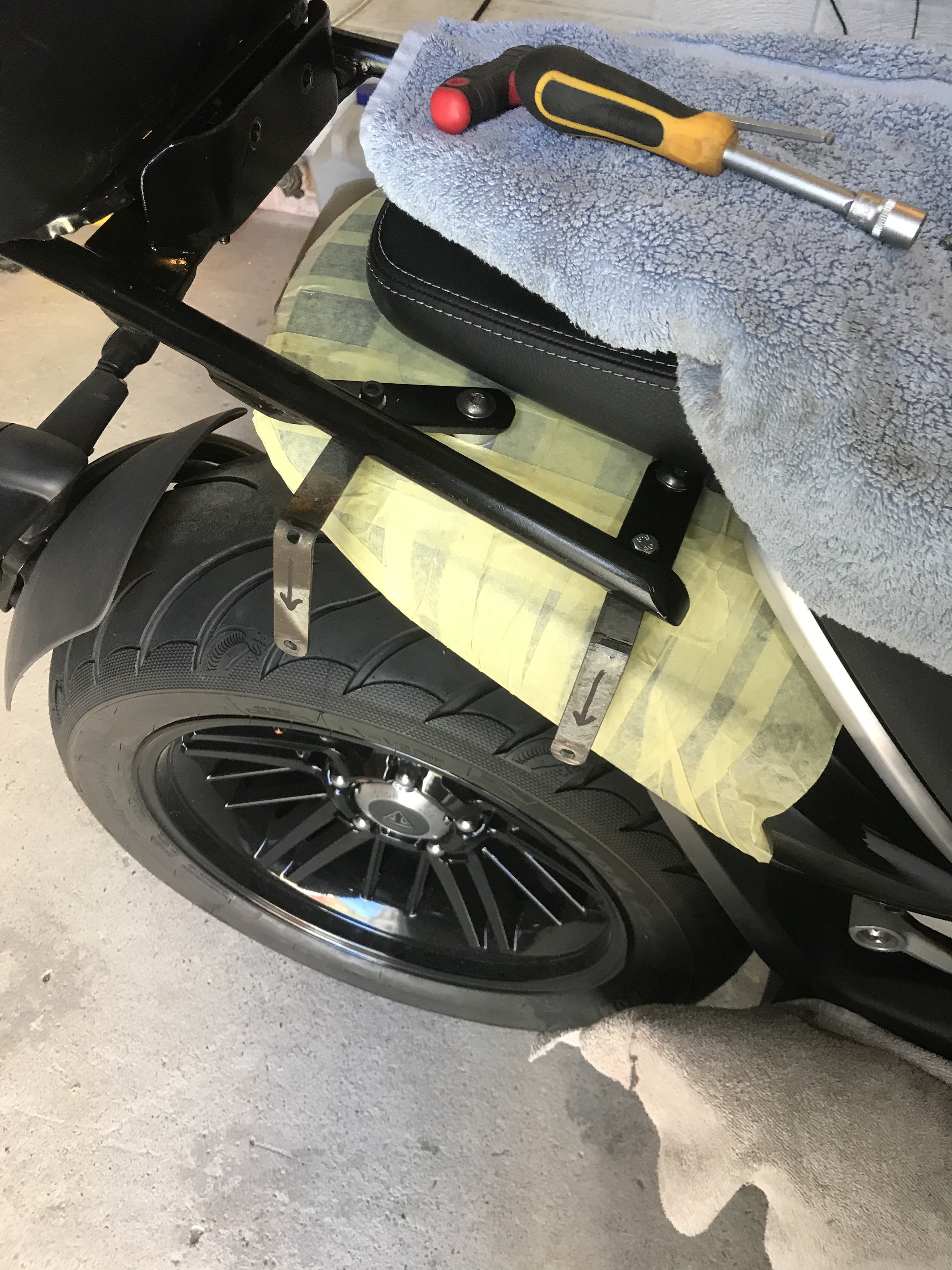

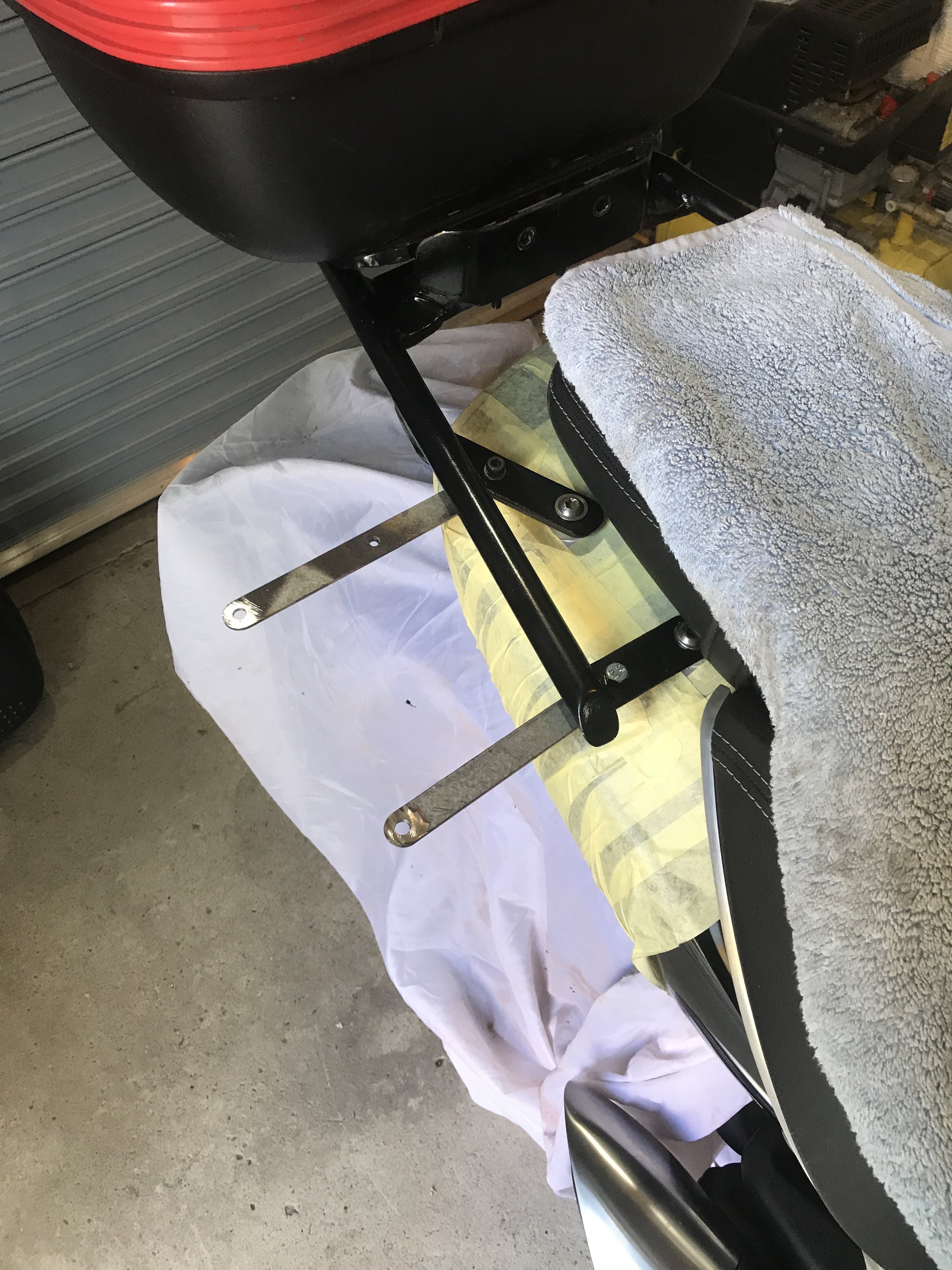

Measured then knocked into shape in the vice with a lump hammer Fitted to CERBERUS
These are being done on both sides of the bike



It’s not finished yet by a long shot

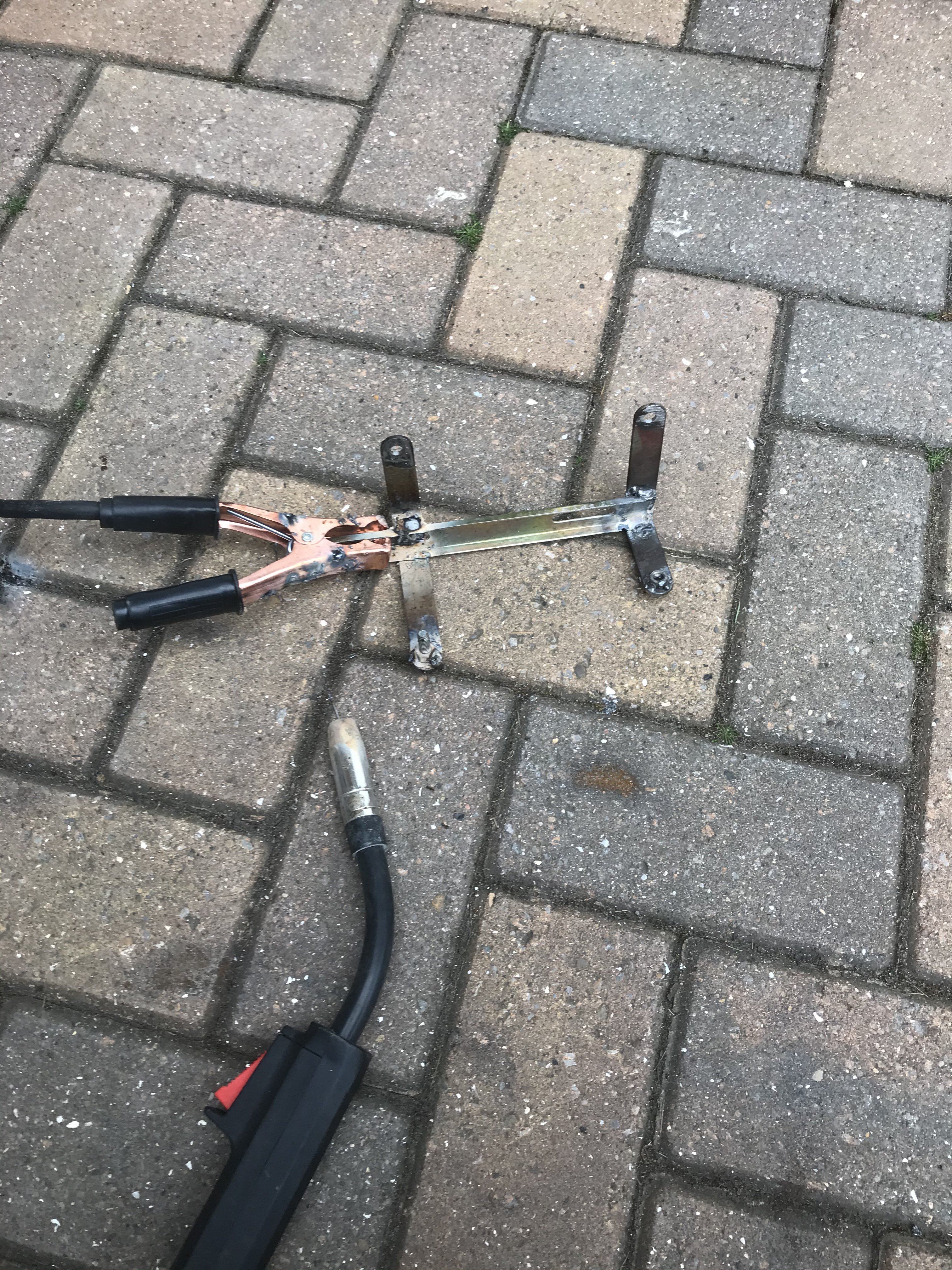

Ooh I love having my own welder
Best £124 I’ve spent in a long time

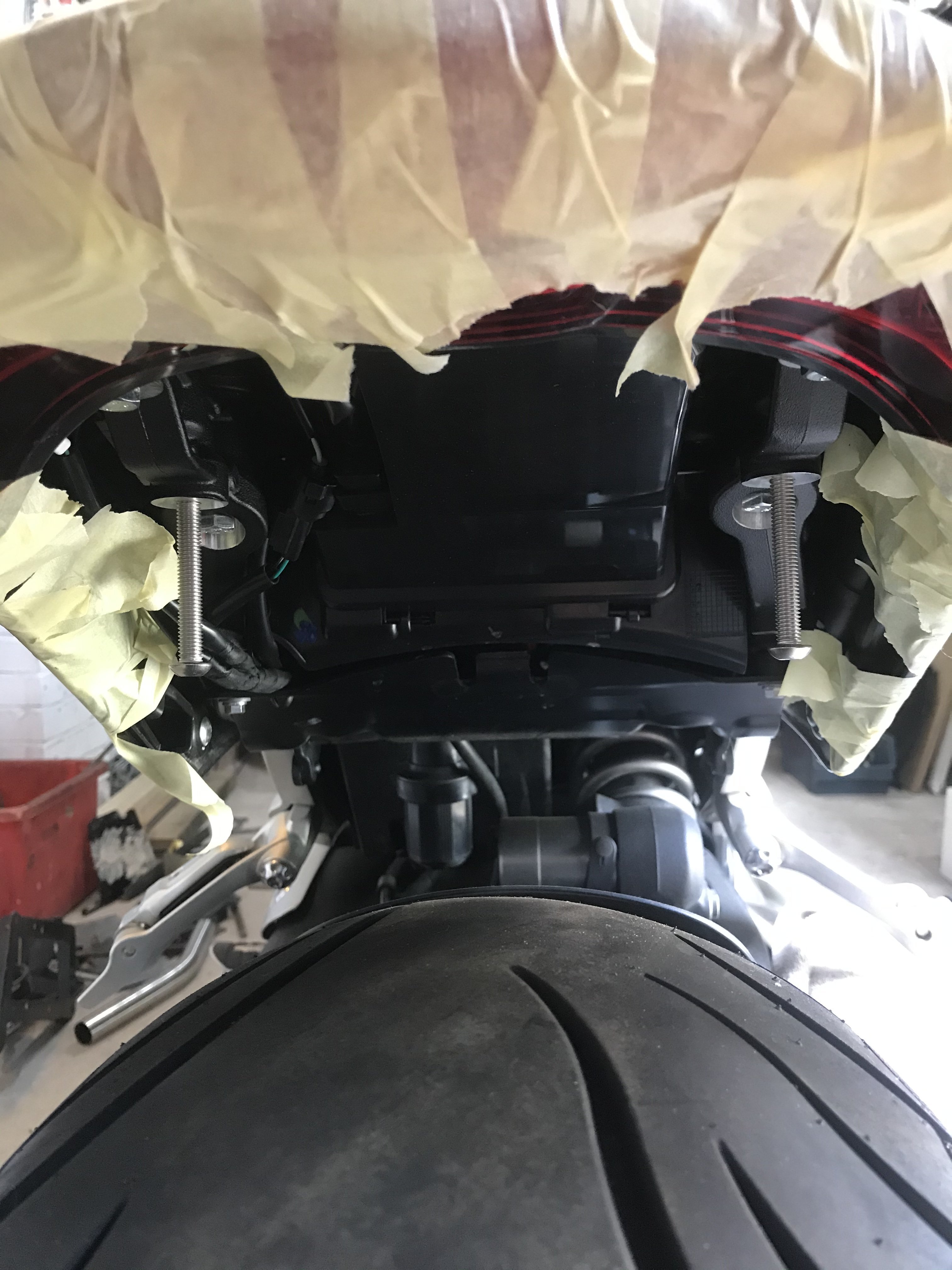

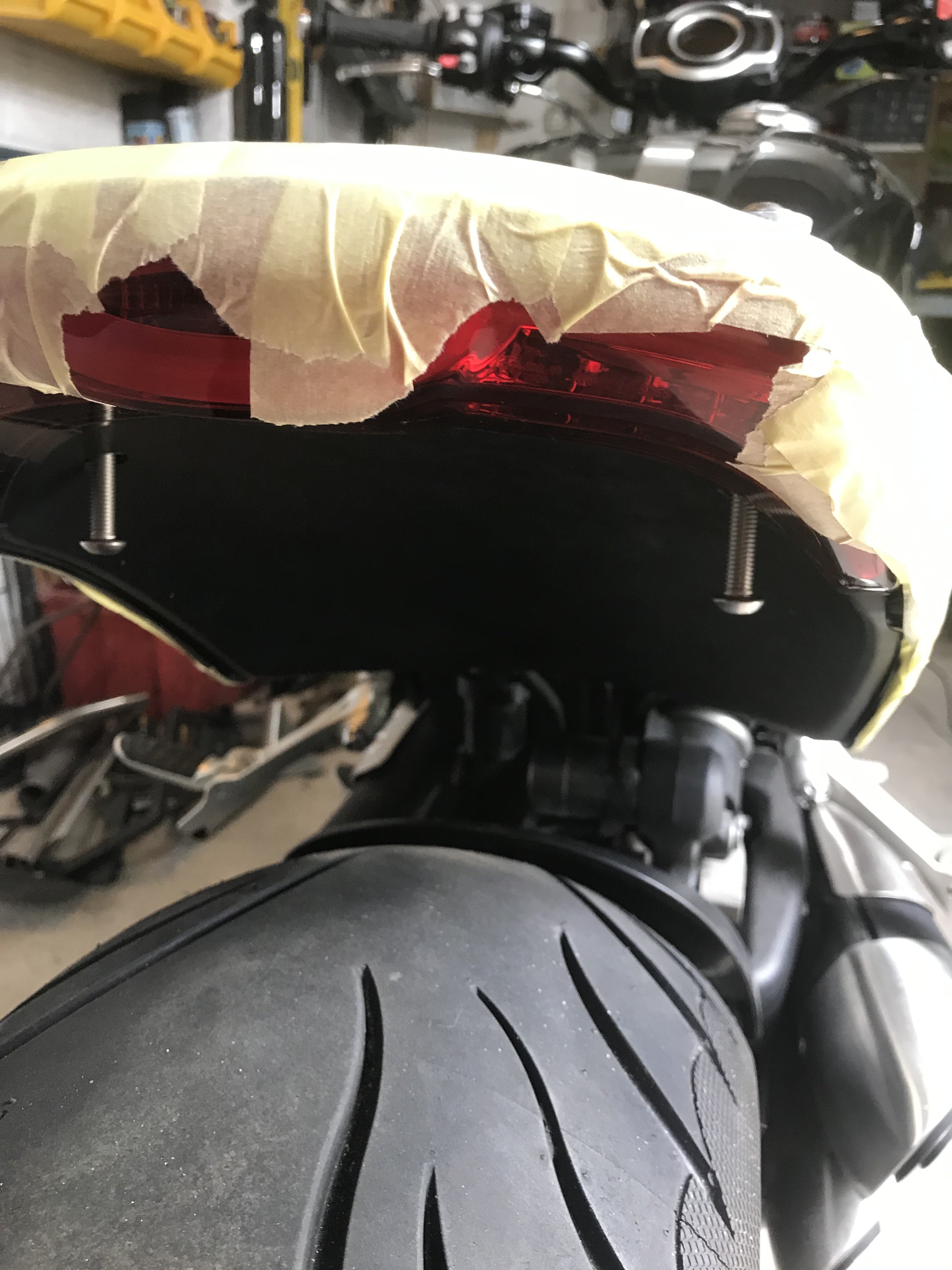

The two dome head bolts show where I’m gonna mount the lower brackets for the side panniers
Got loads of measuring and working out to do yet though

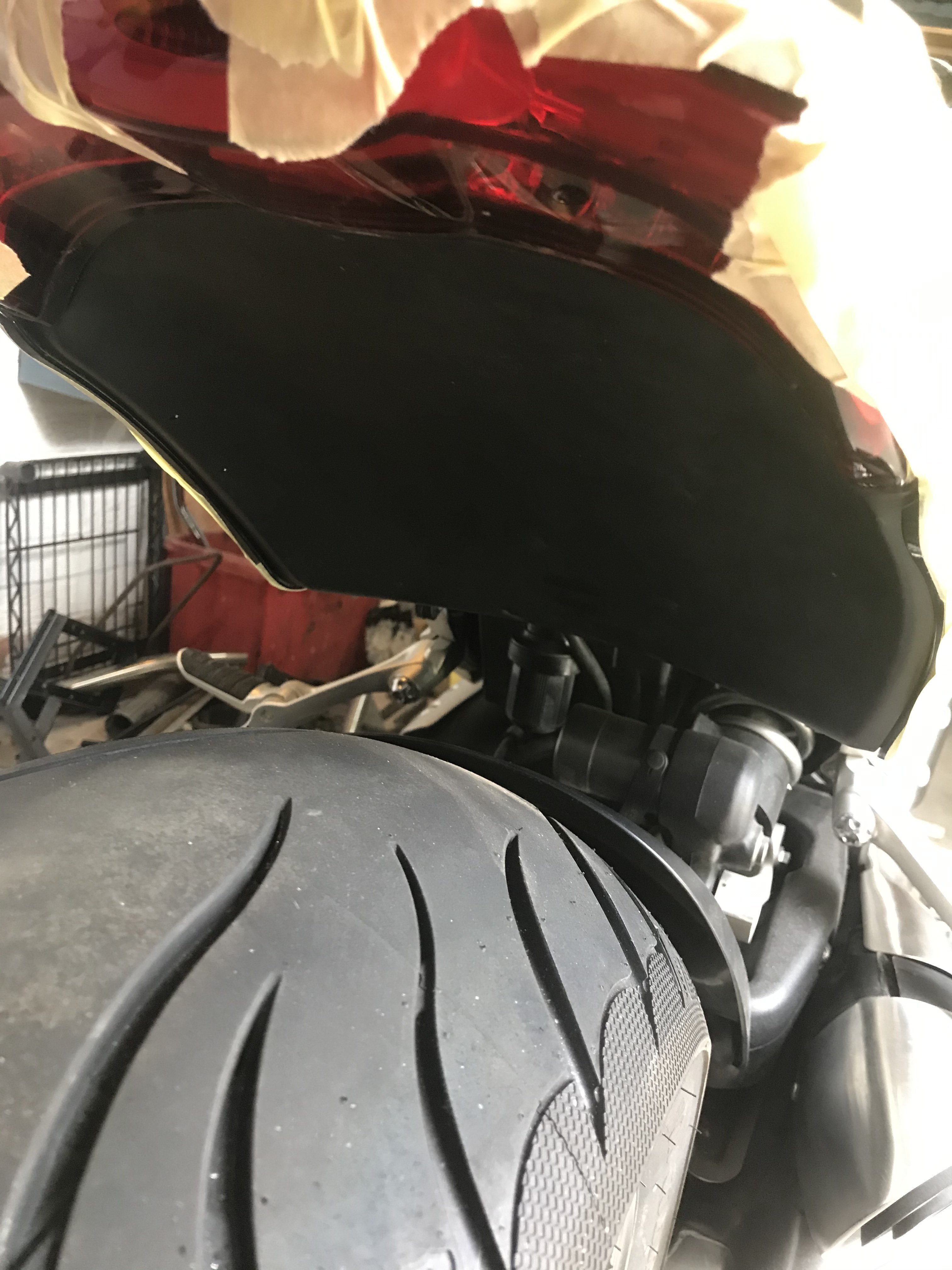

Re-fitted the undertray and gonna have to attack it from the top side so I get the hole in the right place on the underneath

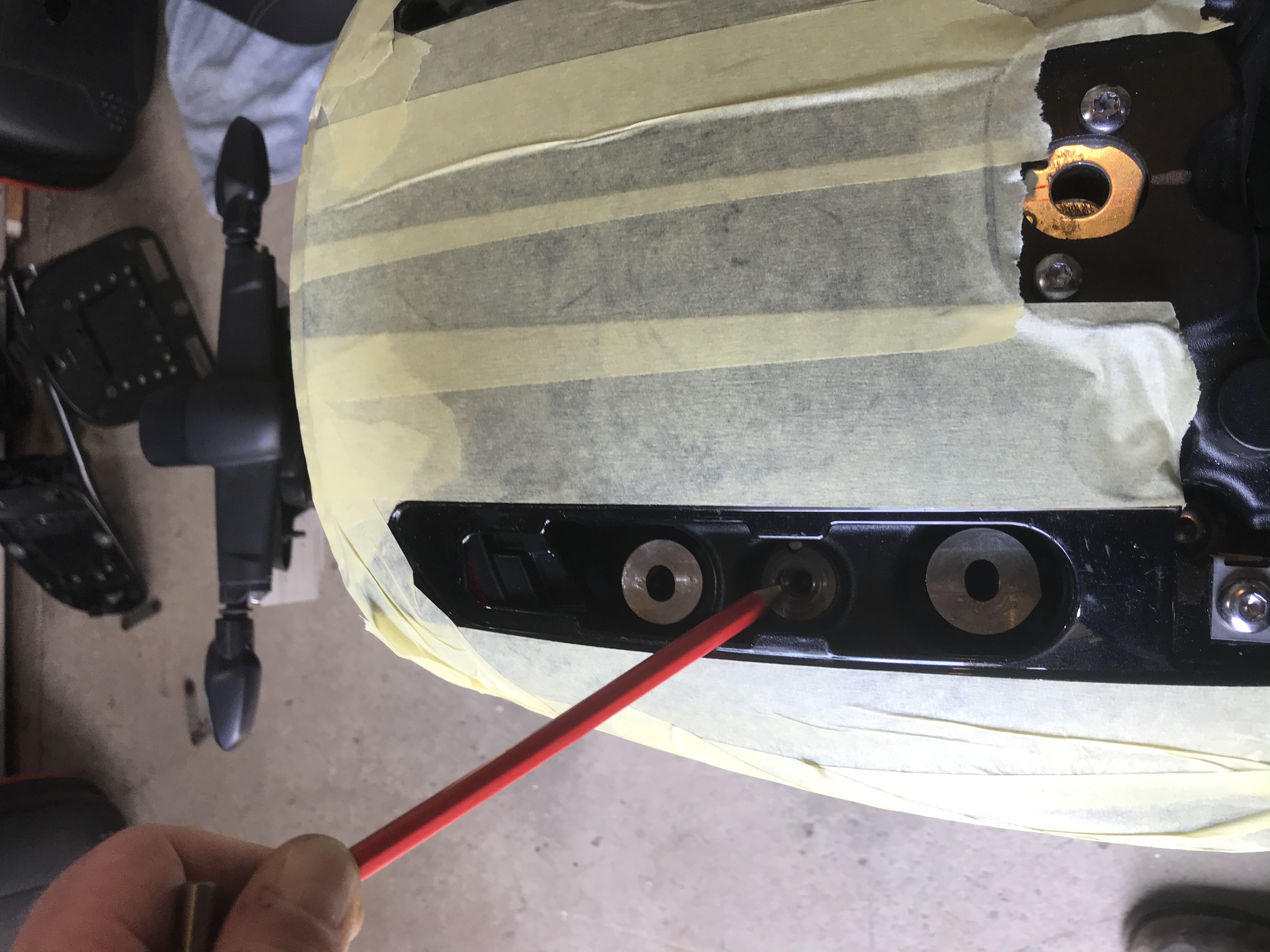

This is the mounting point I’ll be using as seen from the top
Meant I had to remove everything that I’ve made so far to get access to it



Nearly dropped a big bollock
After putting the undertray back on the bike I was gonna sharpen a piece of threaded bar and drive it through the undertray so the holes would be in the right place
The bar wouldn’t pass through
Was just about to drill it when I thought I’d better have another look
So Feckin glad I did
The mount I was gonna use underneath is about an inch in front of the hole I was looking at at the top
Back to the drawing board



Getting a bit fed up of putting the Feckin undertray on and off
But now using the rearmost mounting like I planned in the first place
That’s why it was so important to get part one for CERBERUS right in the first place

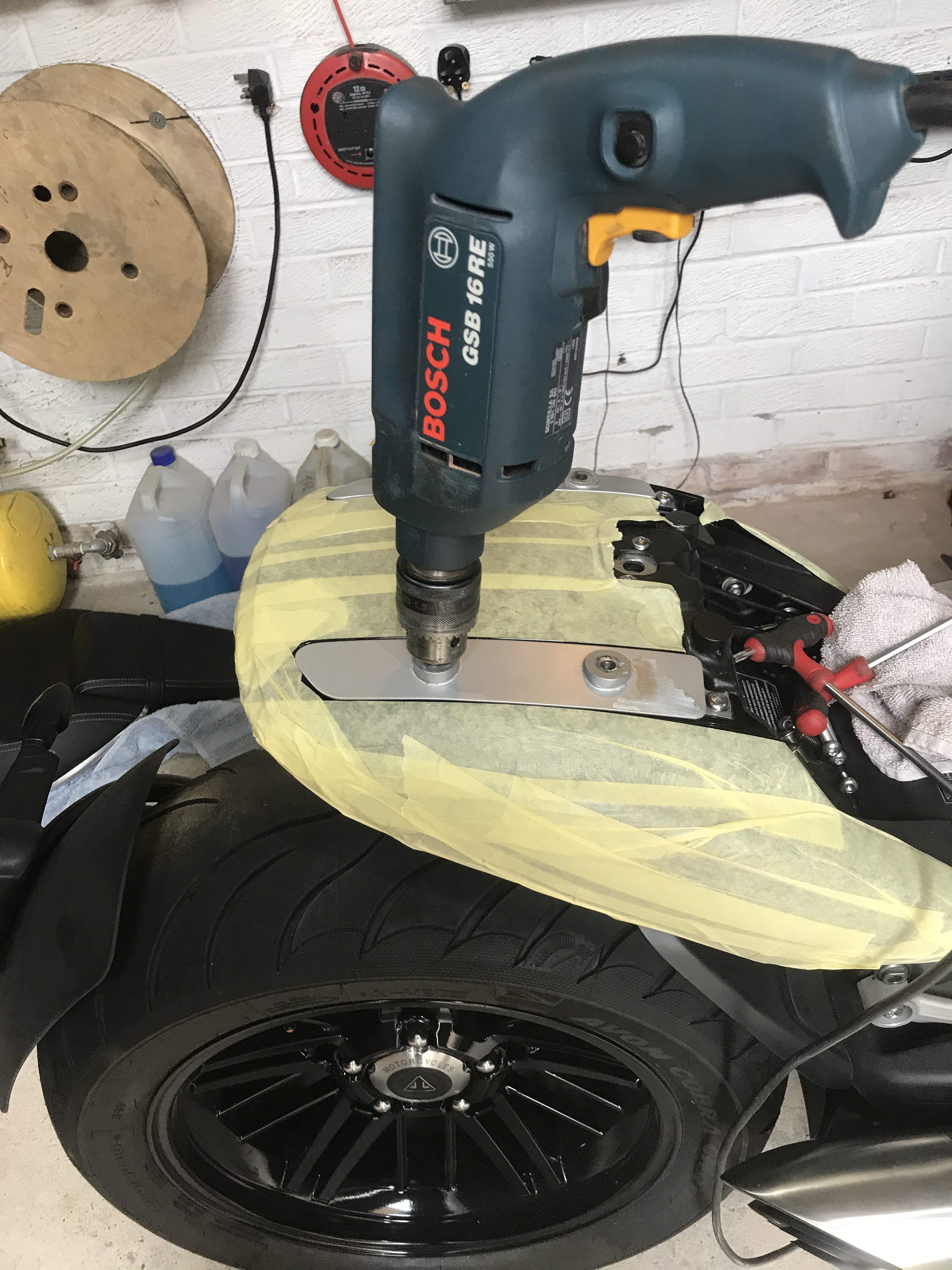

Anyway problem solved by passing a drill right through the mount and through the undertray

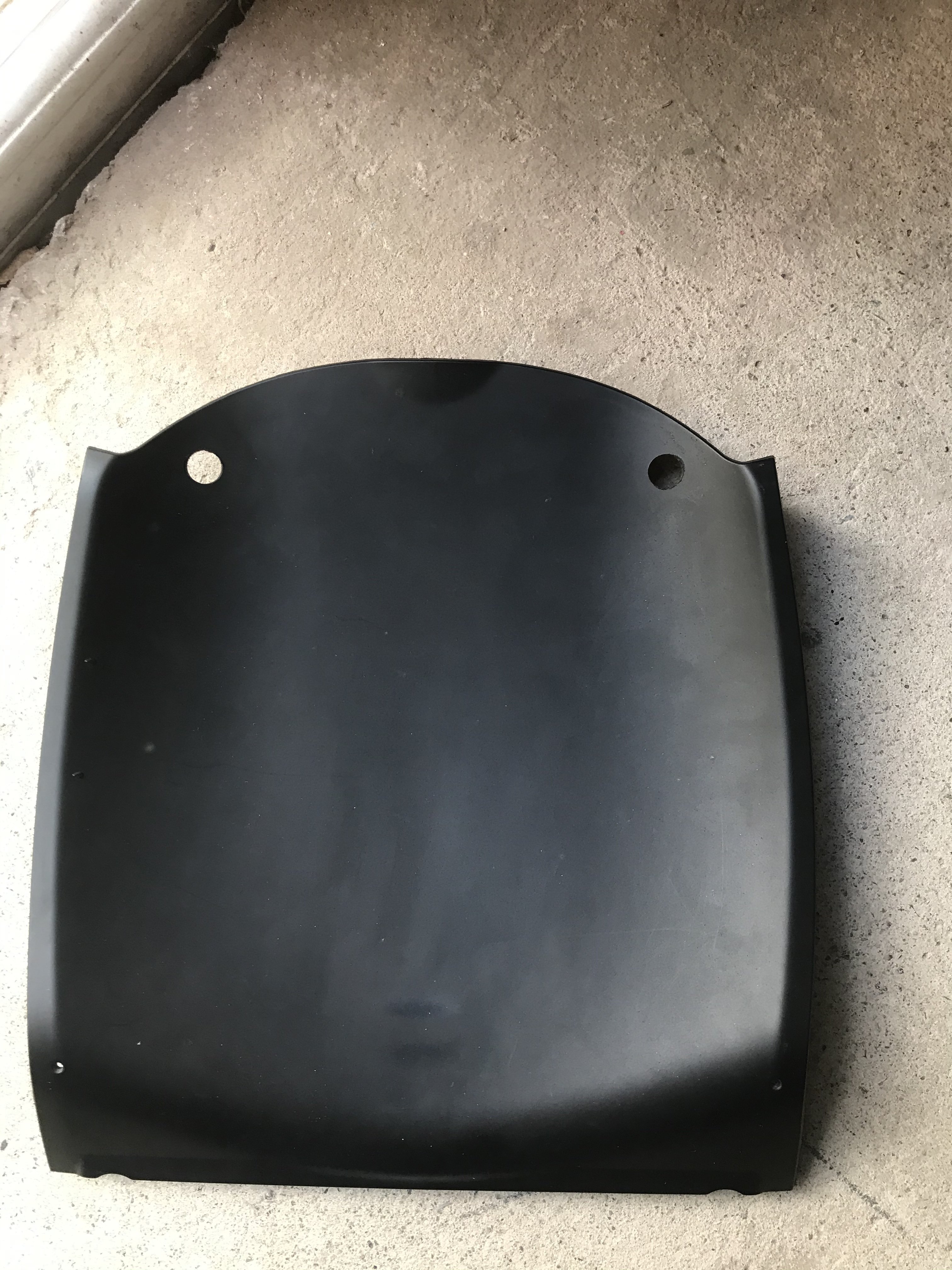

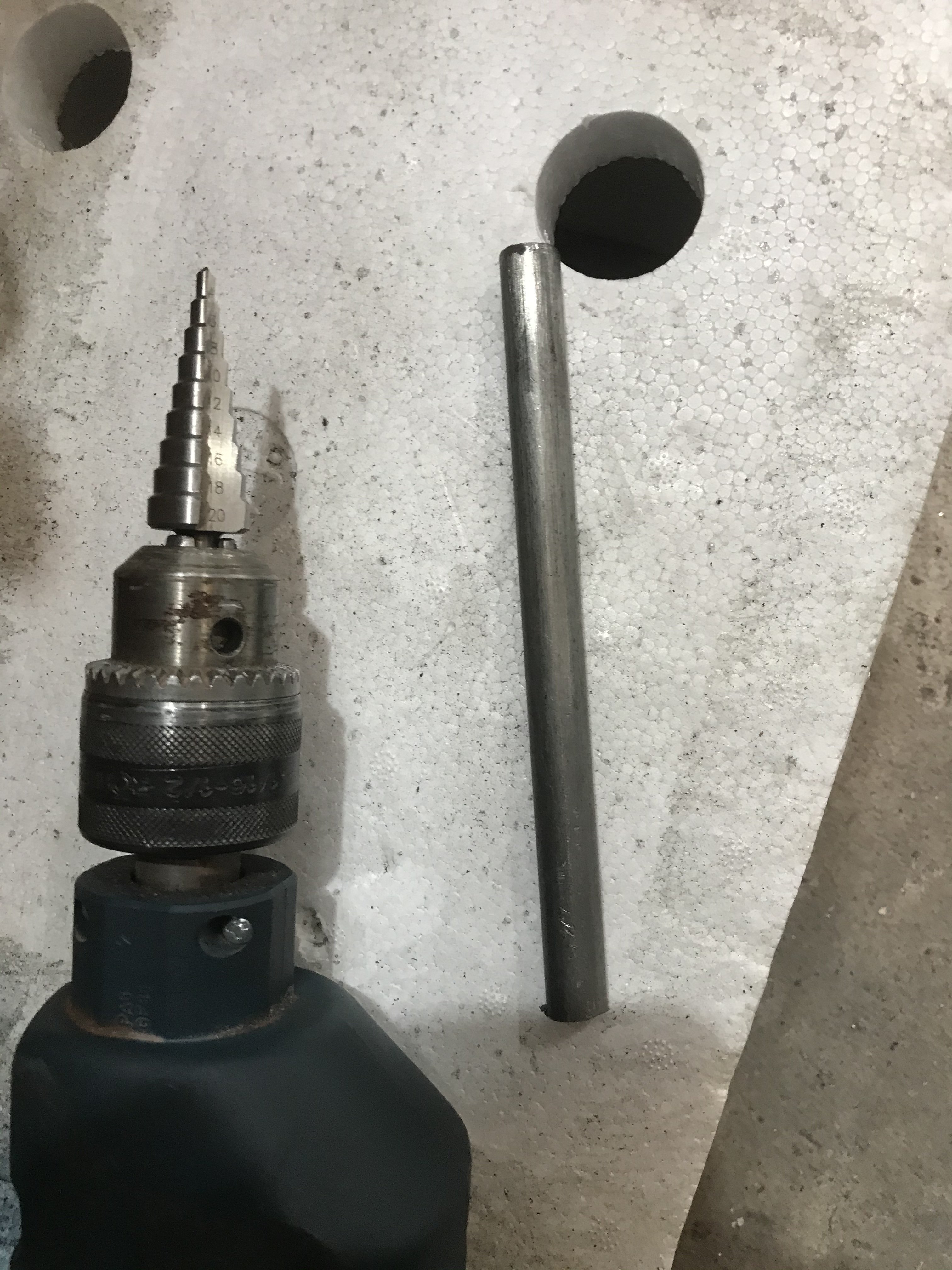

Using my hole cutter to make the pilot hole in the undertray big enough for this tube to fit through



Getting there
Slowly but surely
Getting a bit fed up now so think I’ll get cleaned up and retire to the back garden and celebrate VE Day



I’ve had a few days off from this as I misplaced my motivation supplements
Started making these bobbins yesterday and after a lot of trial and error finally settled on this design and got them finished this morning These attach to the Underneath of the bobbins I made in something for CERBERUS part one

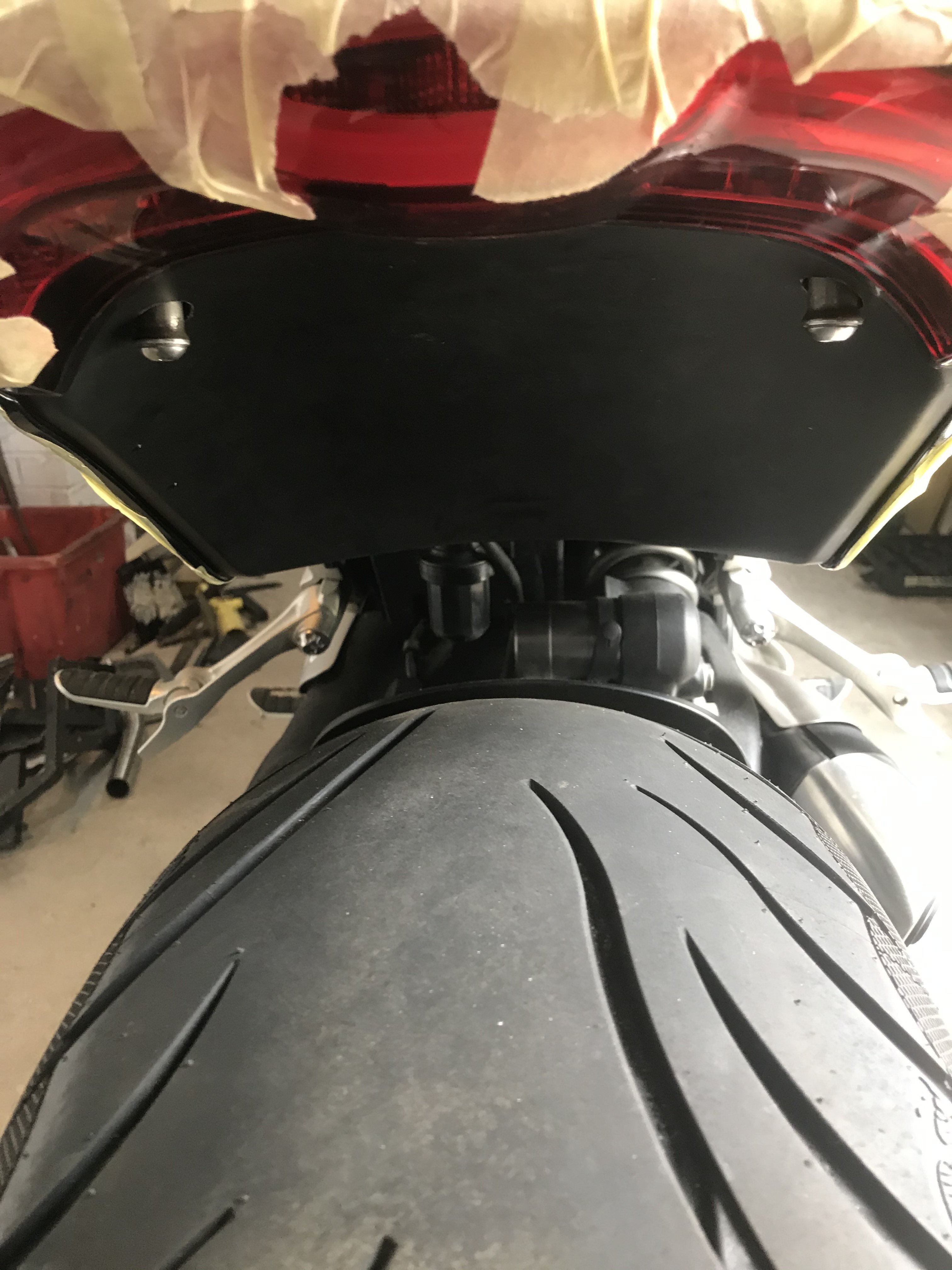

after cutting suitable dome head bolts I’m now ready to fabricate the lower pannier mounts
