Featured Ride Mag Bonnie T120 Write Up

Discussion in 'Bonneville' started by Ducatitotriumph, Jun 23, 2020.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Ducatitotriumph

    Ducatitotriumph Senior Member
    Subscriber

    Apr 25, 2019
    377
    113
    Kettering
    Hi there,

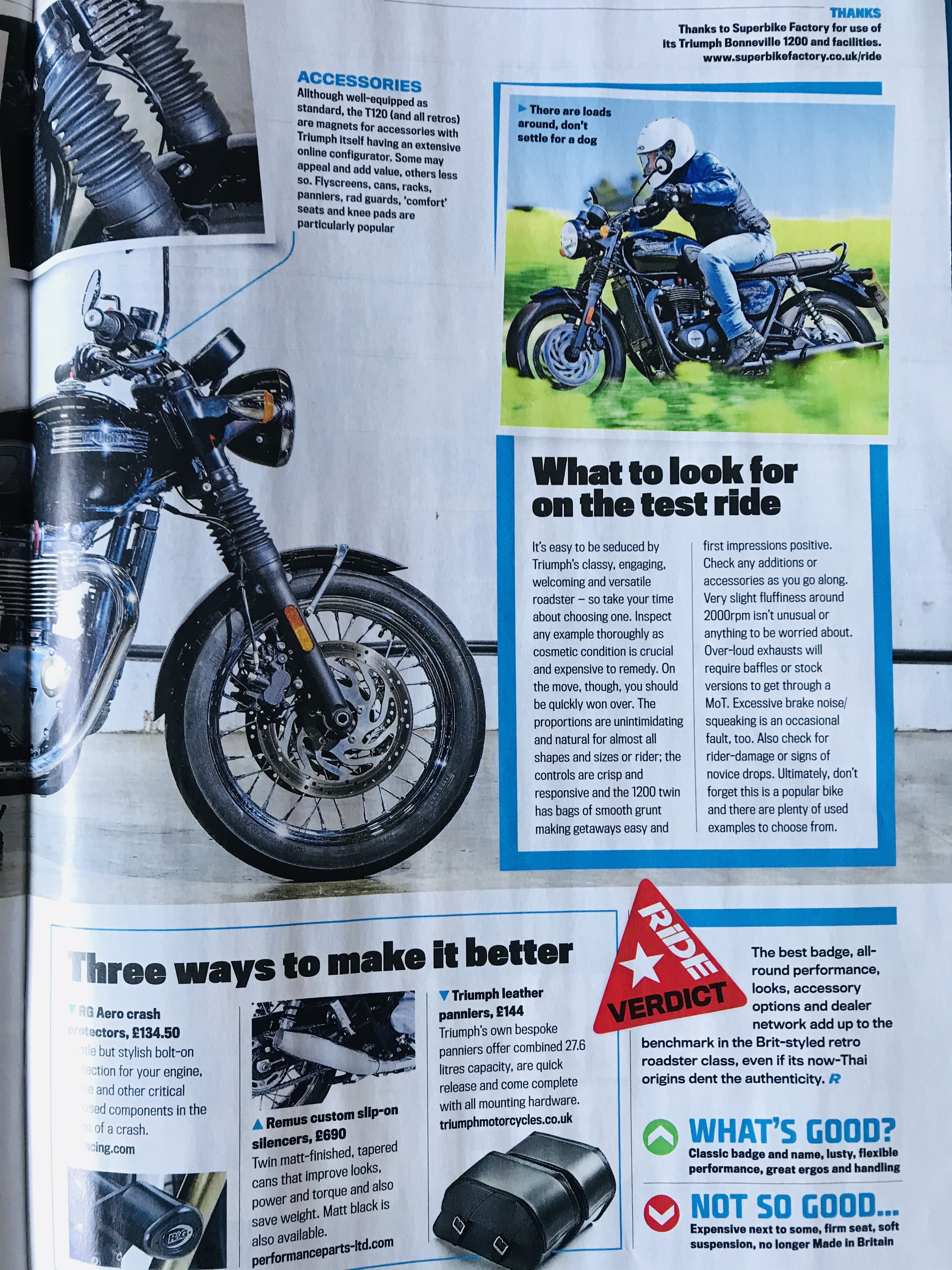

    Ride mag this month.
    Bonnie t120 info/review for night time reading on the bog etc!





    • Like Like x 8
    • Thanks Thanks x 5
  2. Jet City

    Jet City Active Member
    Subscriber

    Sep 24, 2018
    132
    33
    Seattle, Washington USA
    Thanks for this!

  3. Wattie

    Wattie Member

    Feb 25, 2020
    69
    13
    Bucks
    Thanks for that, I might have to brave shopping and get one. Always good for a read.
    I'm surprised by the fact that you have to remove the silencers to gain access to the chain adjusters. Anyone know if this is the same with the t100 versions fitted with peashooters?

  4. Dinny

    Dinny Member

    Oct 5, 2019
    64
    13
    N.Essex
    Yes it is the same. I need to clean/lube/ adjust the chain on my T100 soon, but to be honest although it sounds like a pain to take the silencers off (I think you can probably get to the adjuster OK on the side opposite the spindle nut, so chances are only one side needs to be removed) it's only a couple of bolts so no sweat really. The main issue is gaining access to fit a socket and breaker bar to loosen the wheel spindle nut and then a torque wrench to secure the nut when finished. The price of servicing is scary - £650 for a 12K! and almost £200 for an oil change and check to see that the suspension is still there!
    Plan to do all my own work, have the gear to do it, but will need the Dealertool software and interface, mainly to reset the service mileage and exercise the ABS module during a brake fluid change. I've seem some comments that just activating the ABS by hard braking will clear the valves of stale fluid after a change - I'm not convinced, you really need a good flow of fresh fluid through the ABS module either pumped by the master cylinder or a vacuum gadget I'd have thought.

    • Like Like x 1
    • Thanks Thanks x 1
  5. Callumity

    Callumity Elite Member

    Feb 25, 2017
    2,907
    750
    Nr Biggar
    If you have time to read all this on the bog you are either work shy or constipated........however, I digress.

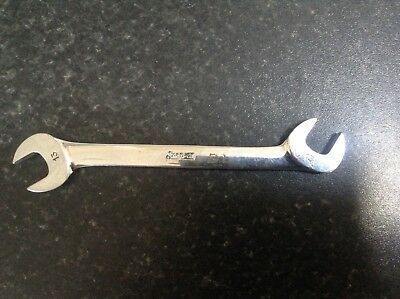

    You do NOT need to remove the silencers if you buy a couple of cranked open end spanners to access the adjuster screw and lock nut.


    • Like Like x 3
    • Thanks Thanks x 2
  6. Dinny

    Dinny Member

    Oct 5, 2019
    64
    13
    N.Essex
    True enough, for the adjusters, but it's such an easy job to remove the silencer and give yourself plenty of room to work. Also at 110 NM which is a tad over 80 ft lbs the spindle nut's quite tight. My strength is draining with advancing years!:(

    • Like Like x 1
  7. Wattie

    Wattie Member

    Feb 25, 2020
    69
    13
    Bucks
    It's good to hear from you both, however I wonder how easy it would to do all this on a tour. My tours around Europe were often (and hopefully will be again) a couple of thousand miles. I'm not sure how well I'd cope... it's something for me to think about. My T300 derived bikes were and are easy to adjust the chain.

  8. Gazzatriumph

    Gazzatriumph Senior Member

    Jul 26, 2018
    365
    113
    UK
  9. Ducatitotriumph

    Ducatitotriumph Senior Member
    Subscriber

    Apr 25, 2019
    377
    113
    Kettering
    Yep, sure is.

    • Thanks Thanks x 1
  10. Bikerman

    Bikerman Crème de la Crème
    Subscriber

    Oct 29, 2014
    4,231
    1,000
    Lincolnshire
    This might be of interest to some. It's what callumity mentioned

    • Like Like x 2
    • Thanks Thanks x 1
  11. Gazzatriumph

    Gazzatriumph Senior Member

    Jul 26, 2018
    365
    113
    UK
    • Thanks Thanks x 2
    • Like Like x 1
  12. BonnieCat

    BonnieCat Crème de la Crème
    Subscriber

    Feb 20, 2016
    3,026
    1,000
    Netherlands
    Actually there is just enough space by pulling the silencers a few millimeters to the side to get a spanner in. I managed it on my T120 after I watched the dealer mechanic doing my chain during a service. It’s a stupid design if you ask me. Anyway thankfully I don’t need to do that on my Speedmaster.

    • Like Like x 2
    • Thanks Thanks x 1
  13. Caligula

    Caligula Member

    Mar 17, 2019
    31
    13
    east anglia
    Put a chain oiler on, and unless you are brutally heavy handed you won't have an issue. Those spanners are a doddle.
