Please Help To Identify Some Wires America 2014

Discussion in 'Technical Help' started by Mr.Goodwill, Jan 3, 2024.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Mr.Goodwill

    Mr.Goodwill New Member

    Mar 24, 2019
    15
    3
    London
    3 wires.jpg two sockets.jpg Happy New Year to all members!

    I'm currently in the process of restoring a non-running Bonneville America 2014 motorcycle. After some hard work, the bike is finally up and running, but I'm facing challenges identifying certain wires. Unfortunately, I don't have an electrical diagram, and my experience with Triumph bikes is limited. I'm reaching out to this community in the hope that there are experts who can lend their expertise.

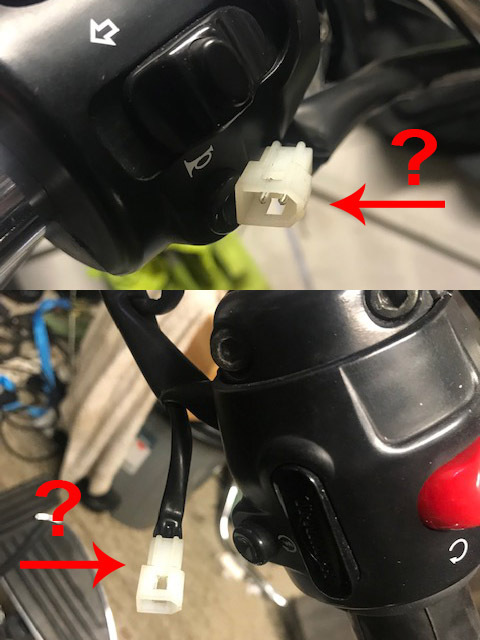

    Please take a moment to review the attached photos. Firstly, there are two white two-pin sockets hanging next to the clutch and brake levers, appearing to be factory-fitted. Upon checking with a multimeter, I found that both are linked to GROUND. Can anyone shed light on what these sockets are for?

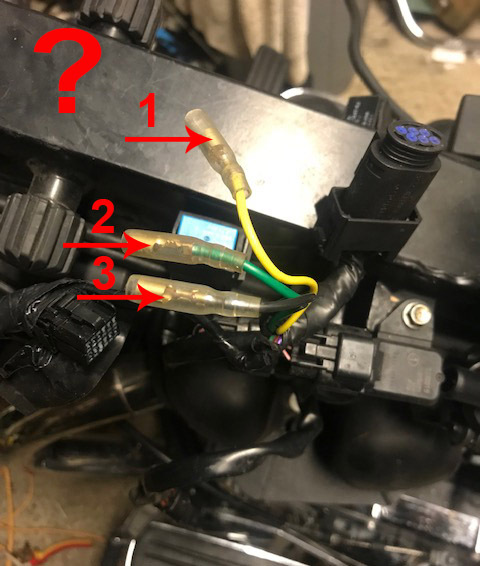

    Secondly, under the fuel tank, I've come across three wires: yellow, green, and black. These also seem to be factory-fitted. I'm eager to know the purpose of these wires and how they contribute to the bike's functionality.

    Your assistance in solving these mysteries will be immensely appreciated. Thank you in advance for any insights or guidance you can provide.

  2. Eldon

    Eldon Elite Member

    Nov 14, 2018
    4,263
    800
    North Yorkshire
    Could 4 and 5 be heated grips?
