Ohlin's Front End Speed Twin

Discussion in 'Bonneville' started by Lessaint, Feb 15, 2020.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    Has anyone fitted a different front end Showa Ohlin's or other, I'm no Foggy i just like my bikes to have a bit of a twist from OEM, the Ohlin's rear shocks go on today, pictures later.

    • Like Like x 1
  2. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    I have started the process of changing the front end on the ST

    new front end 1.jpg

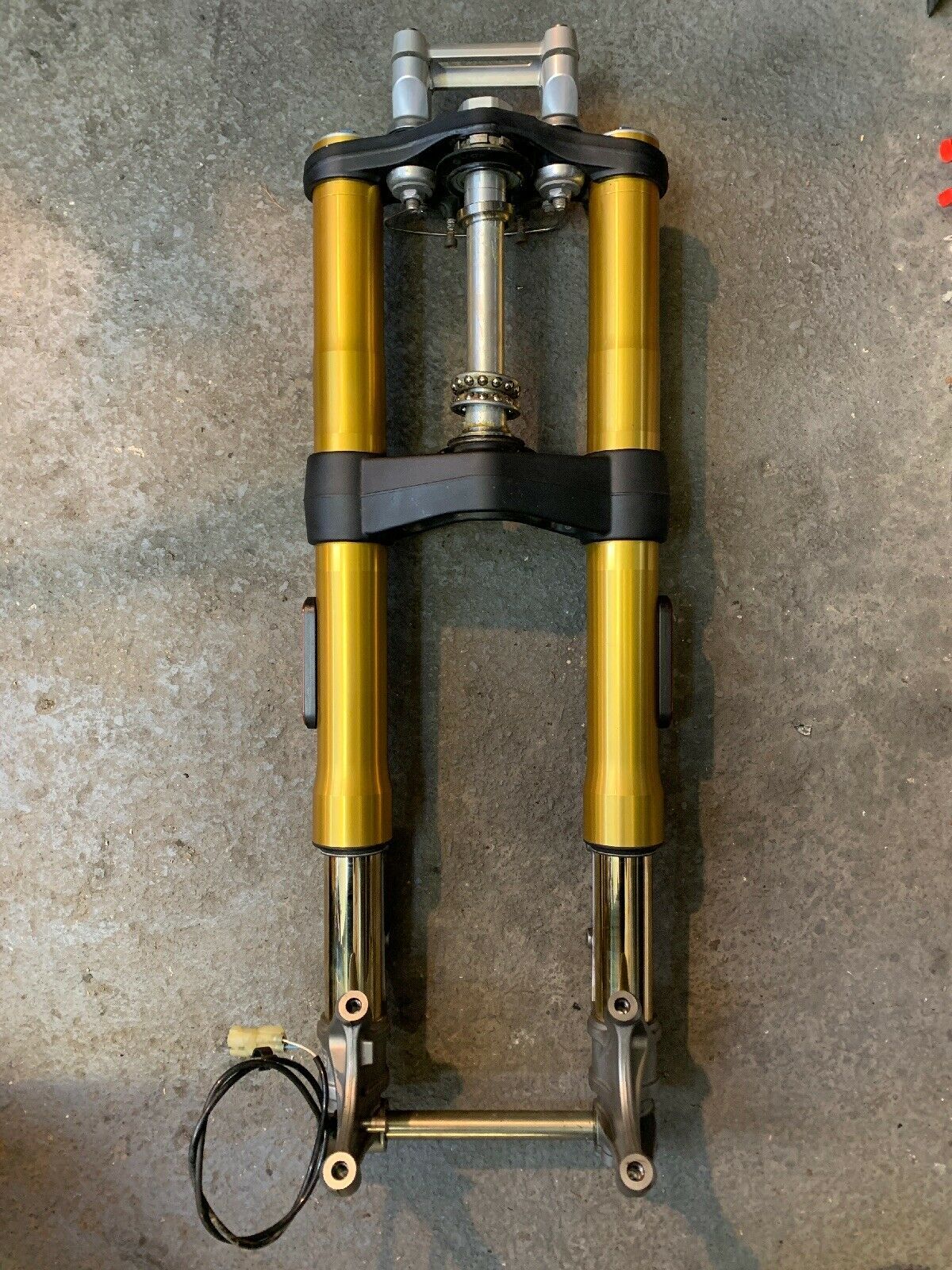

    front end 2.jpg

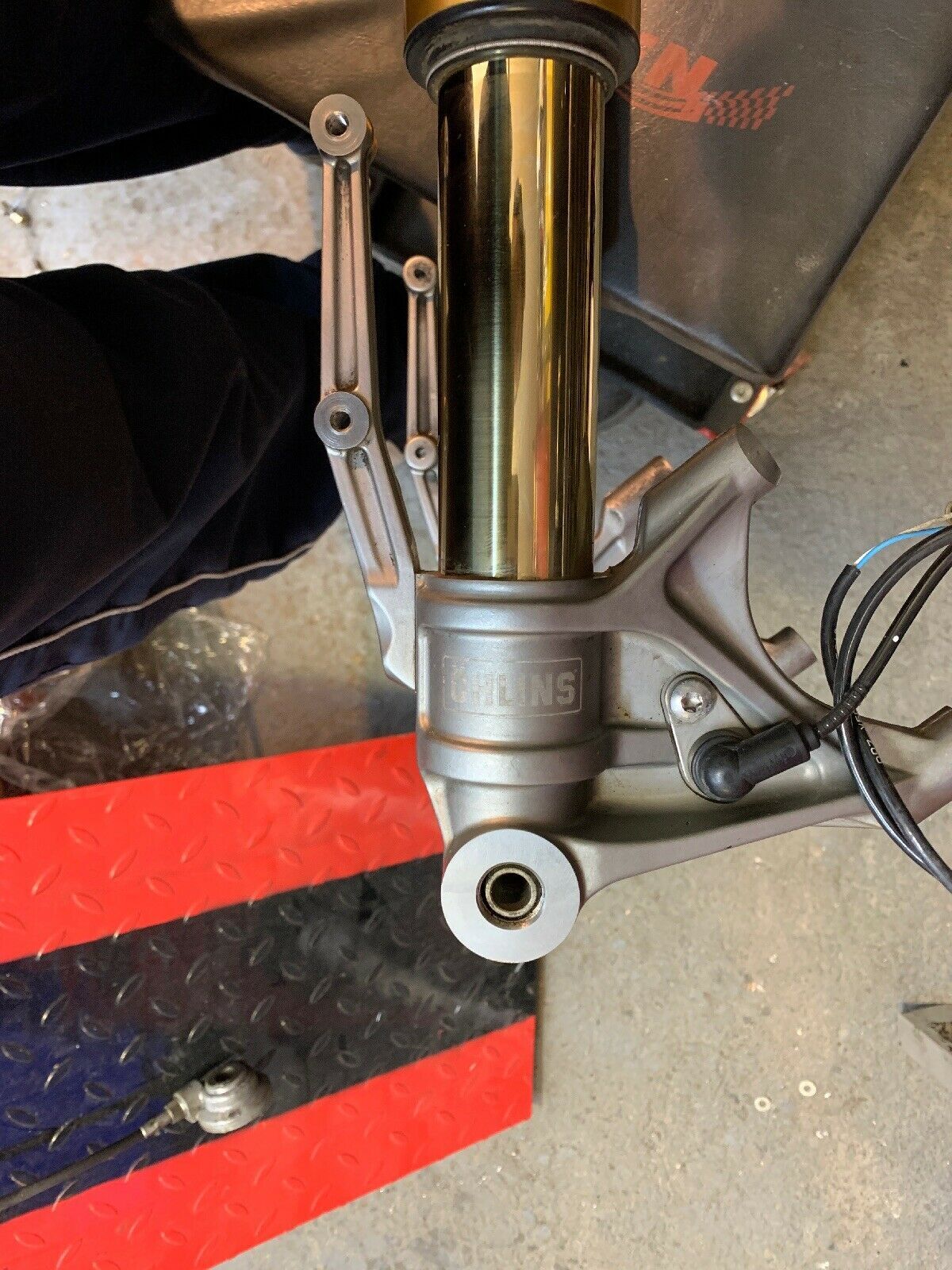

    front end 3.jpg

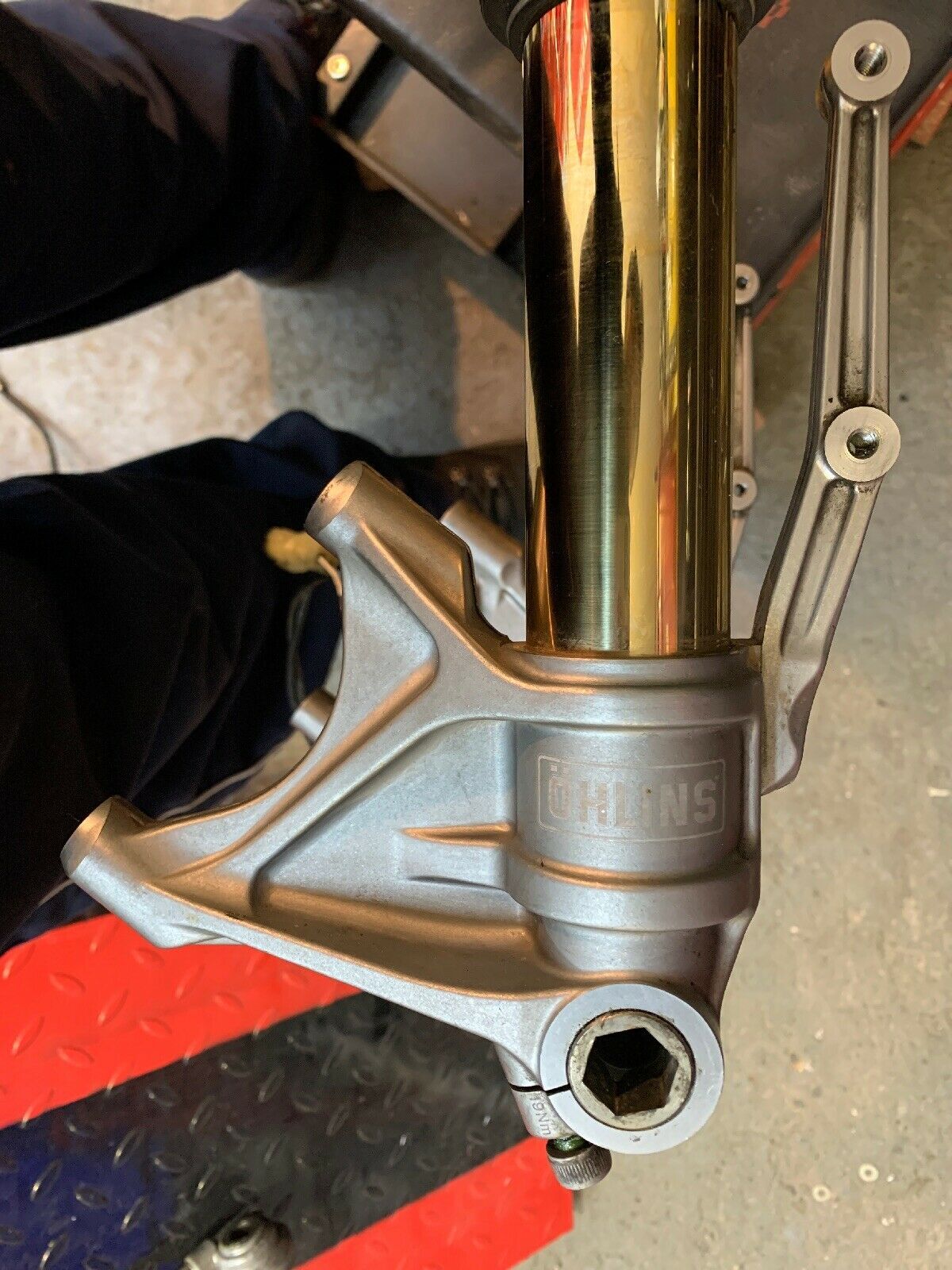

    front end 4.jpg

    • Like Like x 5
    • Useful Useful x 1
  3. Vanguard

    Vanguard Member

    Aug 1, 2019
    8
    8
    UK
    I have K-Tech front and rear on my bike, the difference in front end feel is profound

  4. Bad Billy

    Bad Billy Baddest Member
    Subscriber

    Jun 1, 2017
    11,175
    1,000
    Southern Softyville
    Best money you can spend on a bike is on the suspension, especially versus engine mods, be fast everywhere, not just down the straights ;).

    Looks like the forks are used, what are they off of? are you getting them serviced before they go in? Just makes sense to do it ahead of fitting them IMHO. :)

    • Like Like x 1
    • Agree Agree x 1
  5. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    Bad Billy, they are of a 2016 Speed Triple "R" (ABS), I will be changing the oil (Ohlin's or Putoline) and checking the internals prior to fitting them, i just need some radial callipers now, i made a pair of yokes to fit Ohlin's from a Tuono for my track day 954 blade, see attached PDF


    Attached Files:

    • Like Like x 1
    • Useful Useful x 1
  6. Bad Billy

    Bad Billy Baddest Member
    Subscriber

    Jun 1, 2017
    11,175
    1,000
    Southern Softyville
    Well looks like you know your onions! (Ohlins :)) , did you design those yokes? All well beyond what I could do, I am just a ham-fisted garage mechanic with zero engineering skills! :eek:

    Good luck with the radial callipers, I imagine they are as rare as rocking horse poo second hand & likely to cost a bit too. :cool:

  7. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    yes i drew them up, you don't need to design much as you have to stay within the PCD/C-lines of the fork and spindle apertures, then you can decide the profile of them within those parameters, mine look a bit chunky i could of got away with less metal/billet but i like to over engineer when it comes to my bikes

    • Like Like x 3
  8. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    an update on the works, relatively a easy swap over, a few issues i have got to mill 7mm of each side of the Speed Twins front wheel to align the discs up to match the speed triple front end




    • Like Like x 1
  9. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    off eBay Billy, no damage and look the part, further updates when they are fitted




    • Like Like x 3
  10. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    Forgot to post pictures of the rear



    • Like Like x 2
  11. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    Dear all.
    i have a set of 2019 speed twin wheels/tyres of a 600 mile bike, also the rear shocks and front forks the yokes and the callipers and discs all off a 2019 Speed Twin with 600 miles from new, i will post some photos this weekend, I'm open to offers as i need the room in the cave. please message offers for anything I've listed. Please don't try and take the piss.

    • Like Like x 1
  12. Mops

    Mops New Member

    Oct 15, 2019
    8
    3
    South Wales
    Hi Lessaint.
    Could I bother you with a question concerning the original front fork internals on your Speed Twin?
    When you removed the forks and internals, is there a cartridge in both fork legs or only one?
    When I search the Speed Twin specific bike parts (worldoftriumph.com) there seems to be cartridges in both fork legs.
    However TEC bike parts (youtube Video) indicates there is only one, and Ive had some information from A&JCycles that they fitted a Ohlins FKS218 kit into a earlier model Speed Twin (Year ?) "just fine" but later models the kit doesn't fit without a dedicated spacer which has to be made.
    This seems to indicate some change in front fork internals as time as gone on.
    Thanking you in anticipation.
    Regards

  13. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    Mops i will putting photos on eBay/forum later, as for the internals i have not really taken notice

    • Like Like x 1
    • Thanks Thanks x 1
  14. adrian knight

    adrian knight Well-Known Member

    Jul 8, 2019
    75
    68
    HAMPSHIRE
    I Think all new model speed twins have one cartridge only fitted as standard

    • Like Like x 1
    • Agree Agree x 1
  15. Mops

    Mops New Member

    Oct 15, 2019
    8
    3
    South Wales
    • Like Like x 1
  16. Bryf

    Bryf Senior Member

    May 2, 2019
    309
    113
    Fife
    #16 Bryf, Mar 7, 2020
    Last edited: Mar 7, 2020
    I might get a bit of flak here? but sorry guys I keep reading all these posts about fitting new shocks to improve the handling and to get it to turn quicker etc etc and find it all bit perplexing!!! fair enough they are pretty basic shocks as standard but they do all that is needed on the Speed Twin, I've had to readjust my riding style to try and stop grounding the bike because I have caused damage to my brake and gear levers etc by doing so (and I am certainly no Barry Sheene by the way), if the bike didn't handle as it comes though then this surely wouldn't be happening??? I can however see the point in changing them from a cosmetic/aesthetic point of view as some of the replacements do look better, and/or changing to adjust the ride height if your a bit on the shorter side, but most of the posts I read are more to do with handling issues which I personally have never encountered and so just don't understand??? I've done over 4000 happy miles on this bike in the 10 months I have owned it and never ever felt the need to even consider this.

    • Like Like x 1
    • Agree Agree x 1
  17. Lessaint

    Lessaint Noble Member
    Subscriber

    Jan 14, 2019
    430
    313
    Sherwood Forest North Notts
    Bryf, it is not about the handling for myself, it is purely aesthetics. Nothing wrong with the standard suspension for this type of bike and like yourself i am no Barry Sheene.

    • Like Like x 1
  18. Bryf

    Bryf Senior Member

    May 2, 2019
    309
    113
    Fife
    To be fair Lessaint I did kind of get that that from your original post and I do get what your doing in improving the looks :) my little rant is maybe more on the fact that there seems to be so many threads regarding the suspension on the Speed Twin where it gets slagged off, in my humble opinion, unnecessarily!!! Good luck with your redesigning though, I am sure it will look fantastic when completed!!!

    • Like Like x 2
  19. Mops

    Mops New Member

    Oct 15, 2019
    8
    3
    South Wales
    I'm just customising mine as it gives me something to focus on after the passing of my wife. I've also never mentioned any issues of handling on the bike.

  20. Bryf

    Bryf Senior Member

    May 2, 2019
    309
    113
    Fife
    Good on you Mops, hope it goes really well for you, very sorry to hear of your loss, best wishes. Bryf

    • Like Like x 2
