Newbie Needs Help (camchain Off Crank)!!

Discussion in 'Newbies Hangout' started by antreas skourides, Dec 7, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Lol! Thanks!

  2. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    The seal costs 6$ plus shipping. The phone was an old note 5. Now I'm using my wife's old Samsung. I'd rather spend $ on bikes and parts instead of phones!

    • Like Like x 2
  3. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA

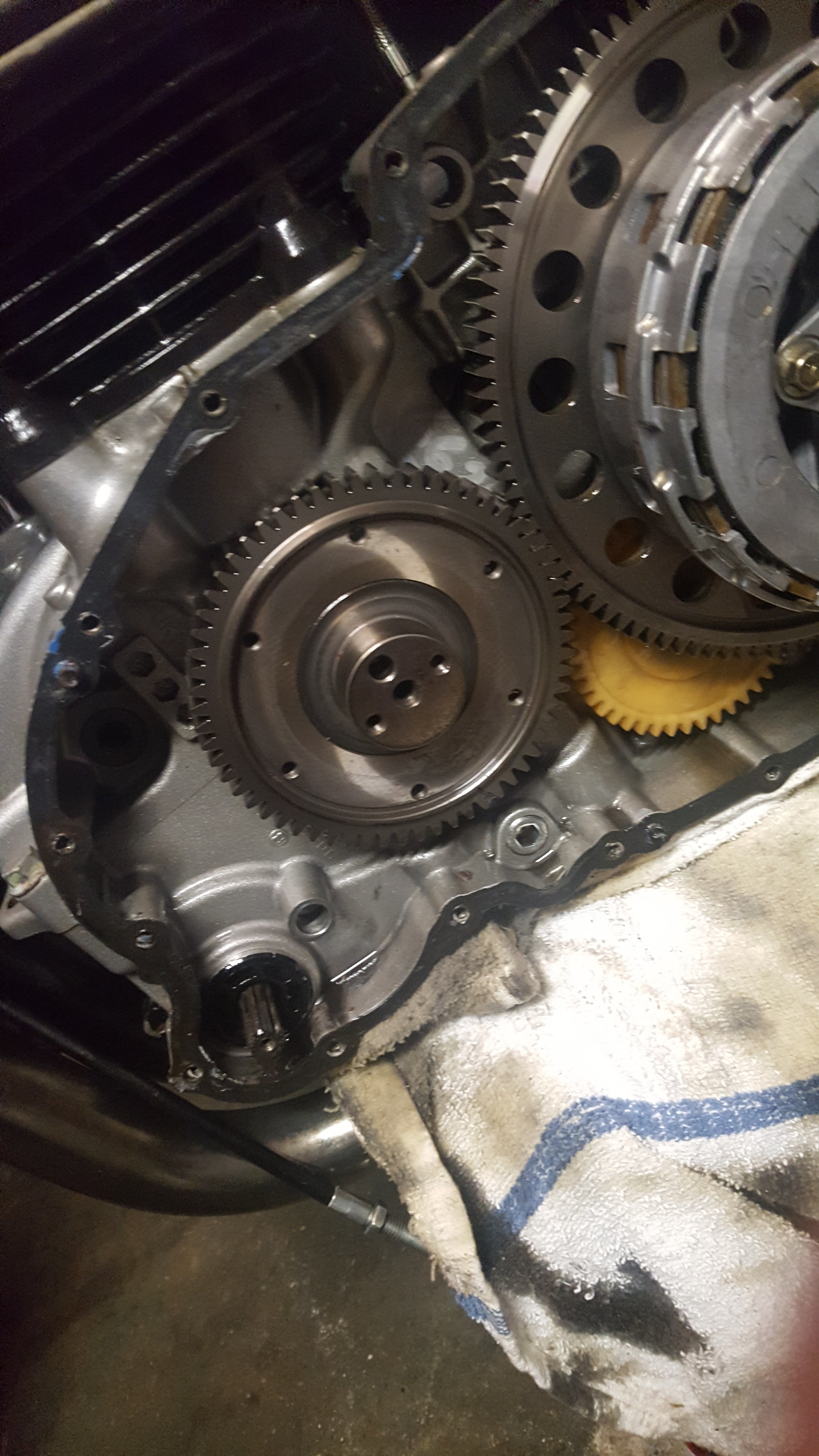

    Update: starter is on the bike and working perfect! New issue is that it spins freely and starter drive is not engaging.

    I removed and inspected the starter clutch and it works fine...

    Now I'm trying to figure out next steps!

    Cheers everyone!


  4. capt

    capt Elite Member

    May 8, 2016
    3,052
    750
    western Australia
    Check the inside of the primary casing, is there any obvious damage ? Sprag clutch Assembly is likely culprit ! It's a one way rotation bearing.

    • Like Like x 1
  5. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Update: starter is on the bike and working perfect! New issue is that it spins freely and starter drive is not engaging.

    I removed and inspected the starter clutch and it works fine...

    Now I'm trying to figure out next steps!

    Cheers everyone!

  6. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Thanks. I did that. Everything is fine.

  7. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Thanks. I did that. Everything is fine.

  8. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Update 19:14

    Looks like the starter polarity was reversed! Apparently I made a mistake when assembling the starter motor.

    Took it apart and re assembled and now the motor engages with the starter! Problem solved!

    I had no idea that starter motor polarity can change !

    Next step: to put the case back on the bike and try to start it!

    Wish me luck.

    Thanks for trying to help me!

    • Like Like x 2
  9. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Update 20:54

    I put everything back together and now the starter is engaging fine.

    I'm waiting for the battery to charge and then I'll try to start the bike!


    • Like Like x 3
  10. Wishbone

    Wishbone First Class Member

    Nov 4, 2018
    862
    643
    Essex UK
    yep any DC motor is polarity conscious.

    Its looking good now.

    • Like Like x 1
  11. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    3,149
    1,000
    south shields
    GOOD LUCK EVERYTHING CROSSED FOR YOU, Antreas :cool::cool::cool:

    • Like Like x 1
  12. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Update 11:18am

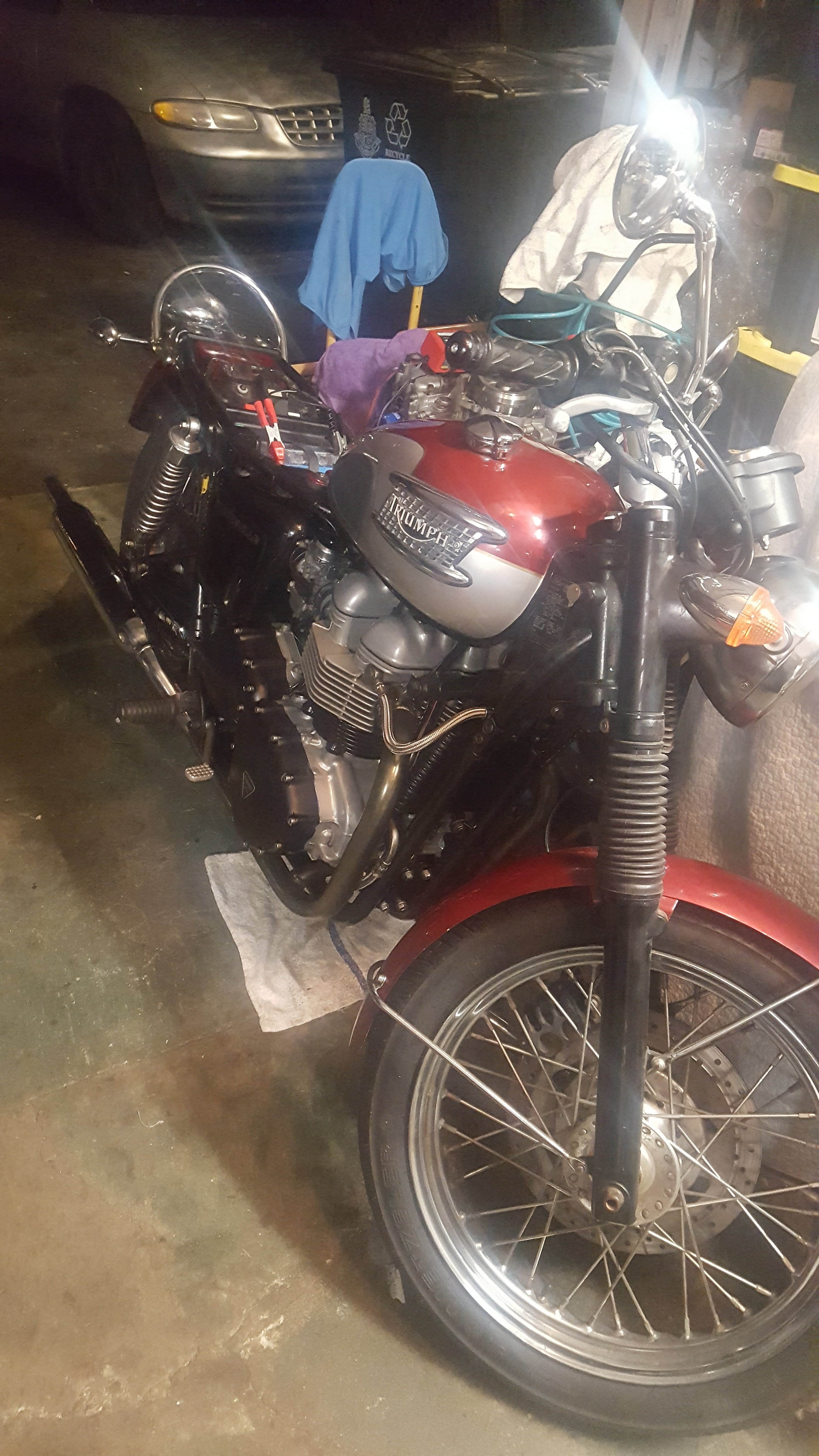

    The bike starts and runs perfect! I still have to break in the new piston rings.

    Debating whether I should do this the old school way (taking it easy) or the "New way" of running it hard 1st, 2nd and 3rd gears accelerating and slowing down...

    Well, I learned a lot of things during this journey!

    So if anyone needs a starter motor shaft seal please contact me. I have 2 extra.

    The photo shows the honda cb550 seal details.


    • Useful Useful x 2
    • Like Like x 1
    • Informative Informative x 1
  13. Wishbone

    Wishbone First Class Member

    Nov 4, 2018
    862
    643
    Essex UK
    Well done that is great news not sure about run in,
    have heard somewhere that new method is best but?

  14. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    Good news on your bike and well done with the work you did. With the running in if it’s only new rings a couple of hundred miles of steady running should do it, don’t over rev, unlikely on such a bike, and don’t make it labour at low revs in a high gear.

    • Like Like x 2
  15. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    3,149
    1,000
    south shields
    Wow spot on pleased for you, all your hard work and persistence paid off and who ever thought it wouldn't o_Oo_O As for running in I'm old school take it easy for a few hundred miles that'll give you the chance to listen to the engine and appreciate all your good work you've done :cool::cool:

    • Like Like x 1
  16. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Thanks everyone!

    • Like Like x 1
  17. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Yeah, that's what I was thinking!

  18. antreas skourides

    Dec 5, 2018
    33
    13
    Connecticut, USA
    Trying to upload a video of the bike running but I get an error (format not supported)...

  19. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,377
    1,000
    North West England
    Really interesting story, well done....
    Wessa

    • Like Like x 1
  20. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    3,149
    1,000
    south shields
    Not good at this myself, but I believe most upload to youtube then on to here but could be wrong

    • Agree Agree x 1
