    Ello All
    Repatriated from the good ol' USA - a bitsa that needs a bit of work.
    Note the Amen Savior frame and the Invader wheels - straight out of the 70s.
    Work is ongoing....

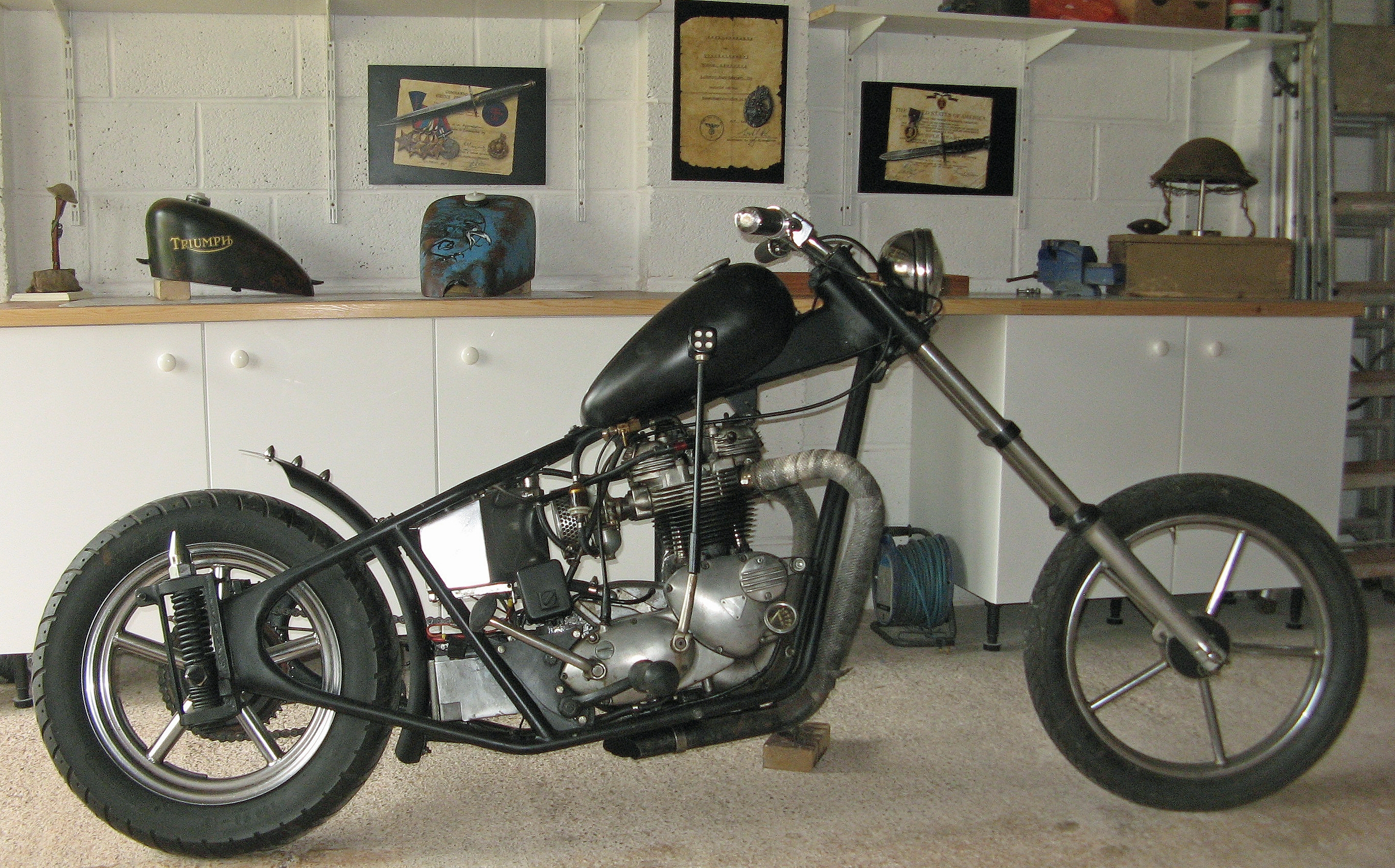

    Amen frame, invader wheeled '72 Tiger.jpg

    • Like Like x 11
  2. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    #2 Iron, Jan 1, 2021
    Last edited: Jan 1, 2021
    Try again..

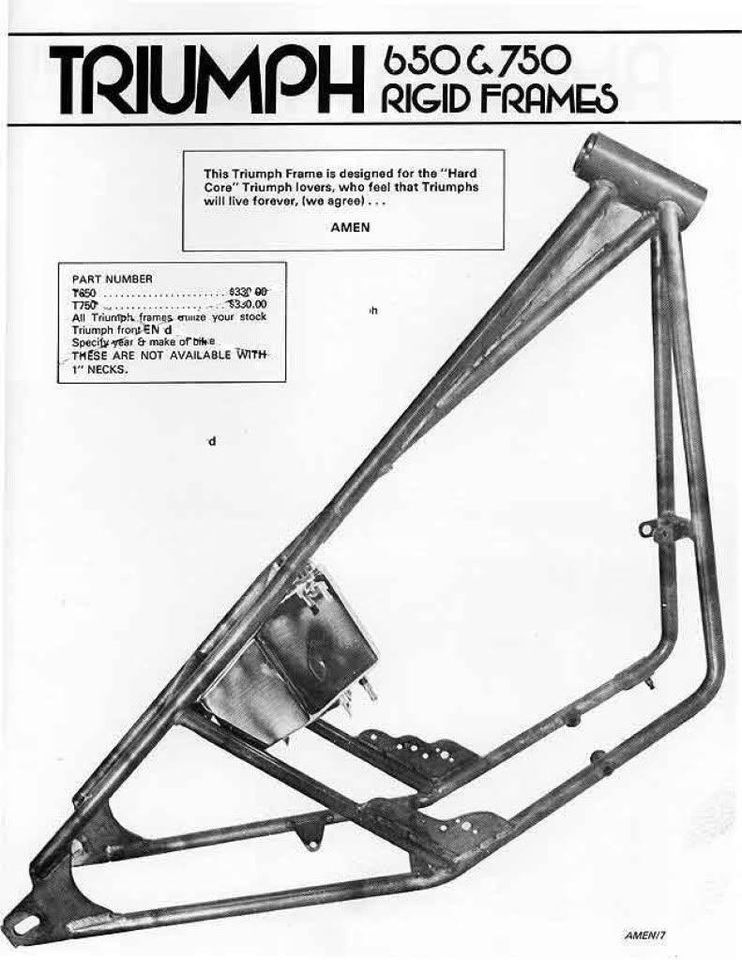

    Amen Savior (Ass) frames were made by American Motorcycle Engineering Inc. during the 70s in North Hollywood California. For a measly $330 you could get a very stylish plunger frame complete with a free oil bag. A quote from their catalogue in the 1970s - "This is our greatest introduction since our last great introduction".


    • Like Like x 4
  3. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    #3 Iron, Jan 3, 2021
    Last edited: Jan 4, 2021
    First things first was the taking apart to see what I've got.
    The frame has the plunger springs that needed to come out for a clean etc. They are a bit fiddly.


    • Like Like x 7
  4. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol

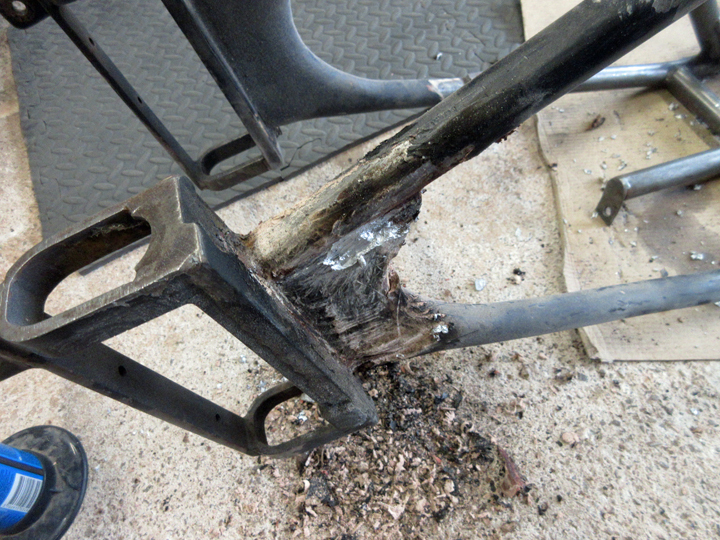

    The frame had been molded - as was the want in the 70s - but not just with filler. This had been leaded! So that had to come out.



    • Like Like x 6
  5. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    #5 Iron, Jan 3, 2021
    Last edited: Jan 4, 2021

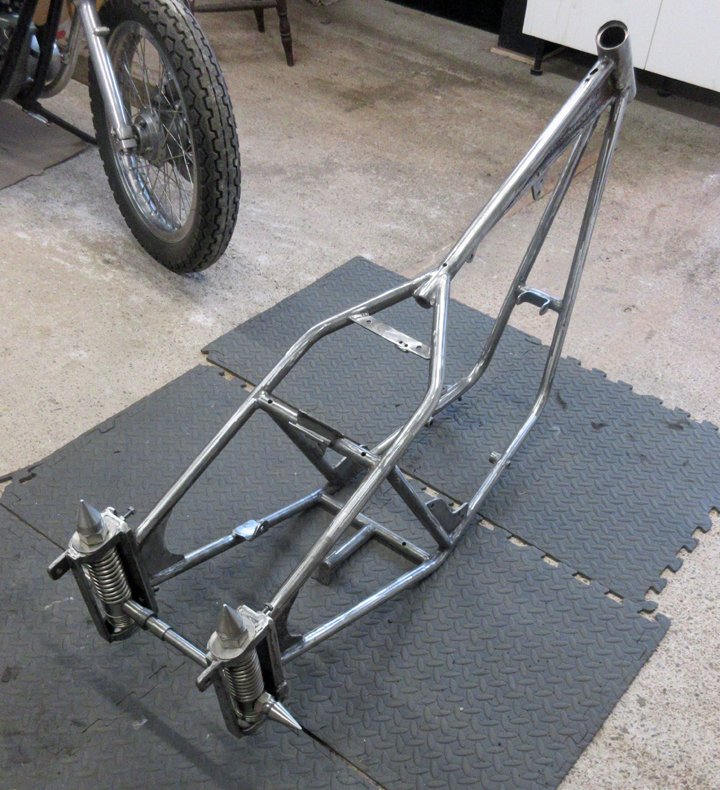

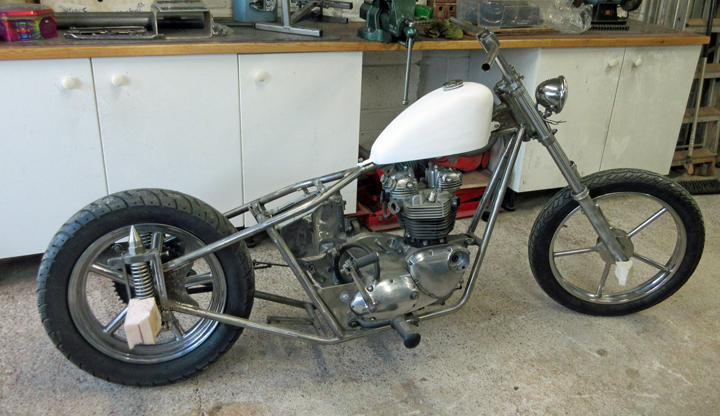

    So frame all cleaned and rubbed down. Springs replaced. Completely seized over length forks binned and replaced with standard length. Engine in with a lot of fettling with spacers to get back wheel lined up. Invaders will go back on but will need to sort front mini drum so it actually works. High tunnel sportster replacing original mustang tank. Getting on with making the sissy bar. Note the foam pieces I've put on the spikey 70s nuts - they kept digging into the exact hole they made in my legs the time before I banged into them - bloody things!




    • Like Like x 10
  6. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    The mustang tank got a repaint and is perched on another build for now



    • Like Like x 11
  7. Baskey13

    Baskey13 Well-Known Member

    May 19, 2019
    202
    83
    United Kingdom
    Cool little chop. Like it :cool:

    • Agree Agree x 3
  8. Wessa

    Wessa Cruising
    Subscriber

    Apr 27, 2016
    8,370
    1,000
    North West England
    All looking very good, keep up with the progress and pictures... thanks

    • Agree Agree x 3
  9. Vegan Flea

    Vegan Flea Well-Known Member

    Dec 18, 2020
    171
    83
    Norfolk
    #9 Vegan Flea, Jan 3, 2021
    Last edited: Jan 4, 2021
    That looks much happier on standard length forks, tank paint looks good too.

  10. Nicholaj

    Nicholaj Noble Member
    Subscriber

    Feb 22, 2020
    507
    343
    Stavanger, Norway
    Welcom :) A very nice job you are doing, looks like a fun project. Very typical ‘70s for sure :cool:

  11. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    9,628
    1,000
    Netherlands
    Hi and welcome.

  12. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    Thanks Chaps and Chapesses.

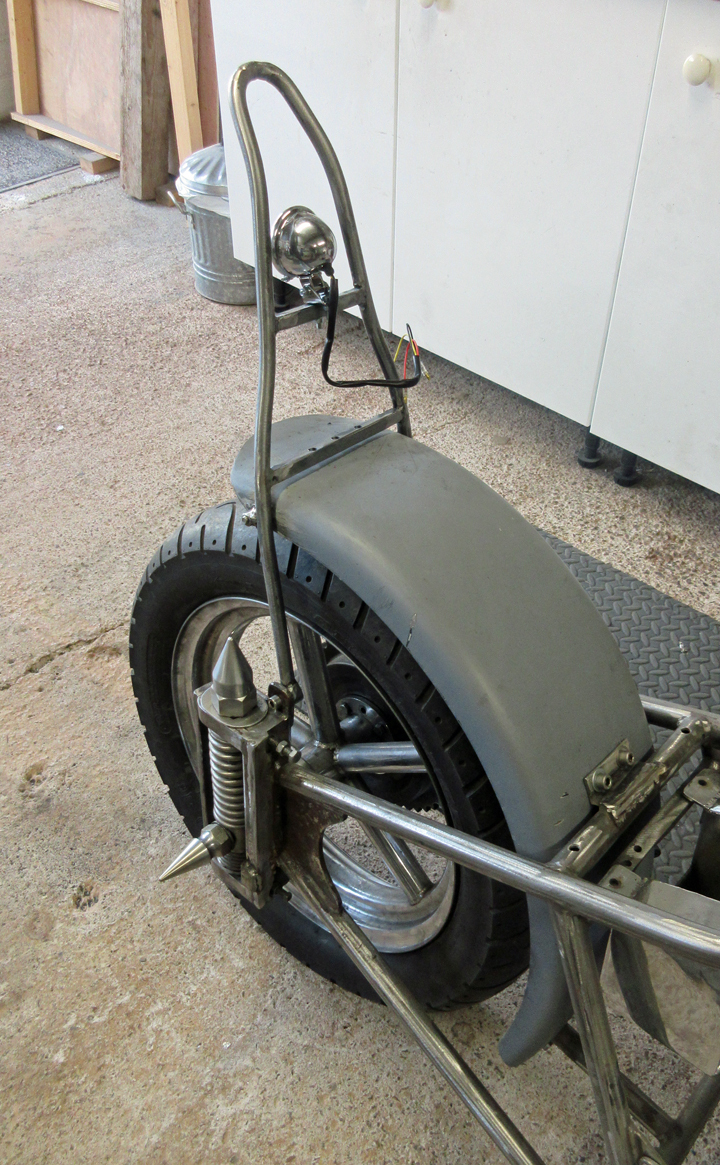

    The sissy bar is done, all bent by hand in the vice. The tabs on the plunger box sections were in the wrong place so they had to be cut off and new ones welded on. Have added a small bates-like rear light to match the small 4.5 inch front. The rear mudguard was off a rear big tyred chop but was inches too wide so that needed cutting and welding but looks ok.


    • Like Like x 5
  13. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol

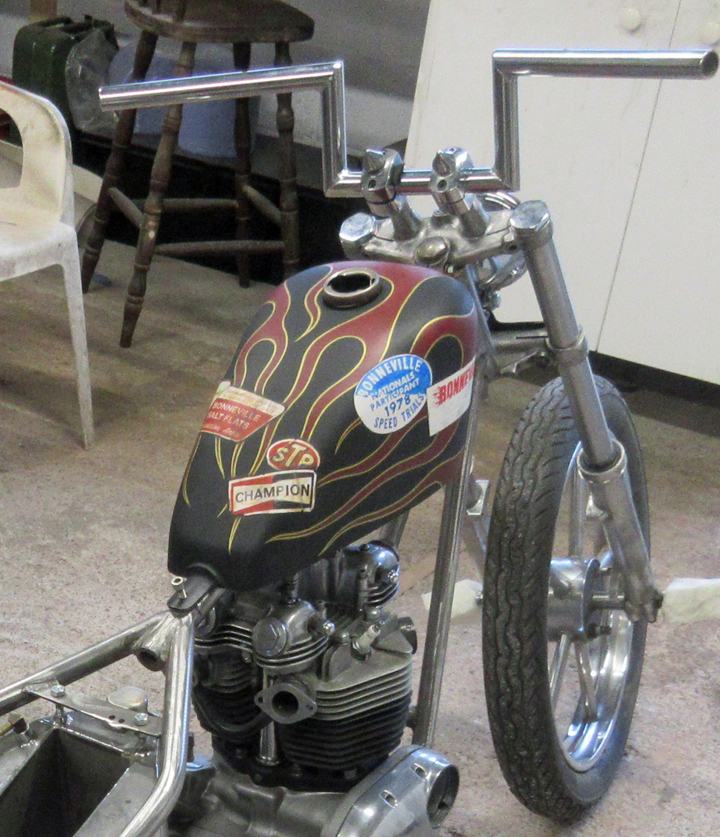

    Cause it's been too bloody cold to touch anything in the garage of late, I've done some painting of the little sportster tank for this. I was going with the 70s flame job and got carried away with adding things. As it's a Sherman and a Bonny, I thought I'd add stickers from the Salt Flat Races of the time. Good idea I thought but a bit too messy for a bike. So that had to go.


    • Like Like x 5
  14. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    Then I found this from a previous owner in Buffalo, New York (right next to Niagara Falls) on you tube:


    • Like Like x 3
  15. Bikerman

    Bikerman Crème de la Crème
    Subscriber

    Oct 29, 2014
    4,869
    1,000
    Lincolnshire
    Looks like you're having fun doing this, thanks for posting it all here for us to follow your progress.


    • Agree Agree x 3
  16. Wessa

    Wessa Cruising
    Subscriber

    Apr 27, 2016
    8,370
    1,000
    North West England
    Yep enjoying watching your progress.

  17. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    Thanks Guys, yes fun indeed. Until it all goes wrong.
    I managed to contact the previous owner in Buffalo. Nice bloke. He bought the bike much as it was when I got it. Originally it was from Baltimore, Maryland from a guy who had several Triumphs. I thought that might give me the colours for the bike - the Baltimore Ravens Football Team's purple and black.

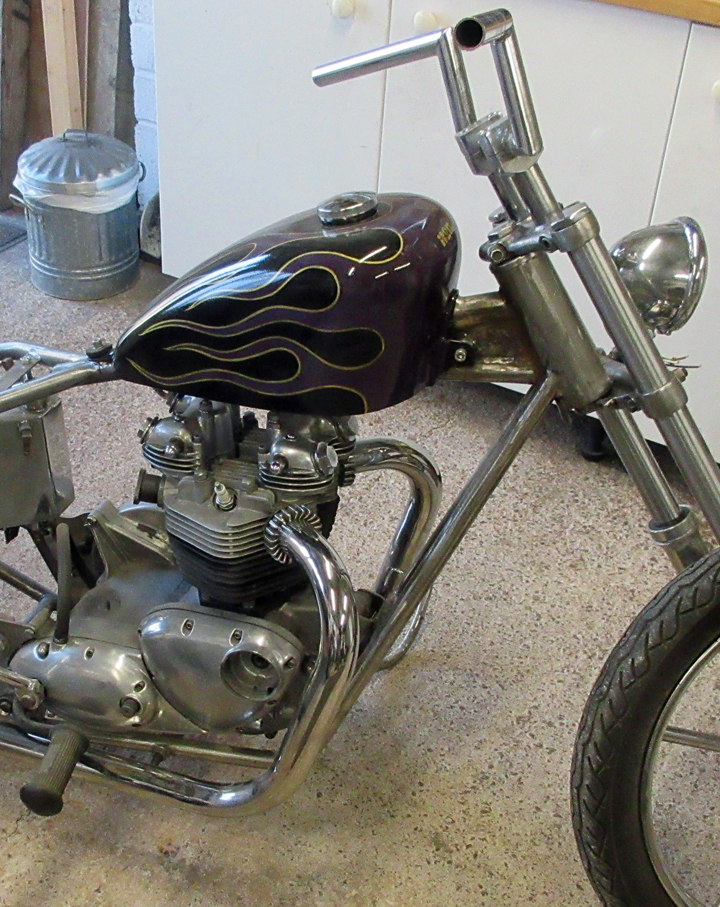

    So, off I went, stripped the tank and repainted. Wasn't sure about the colours but hey ho, did the lacquering. It was too bleedin cold and the curing lacquer formed condensation pits all over - bugger. The colours just aint right so I'll have to re-do - again. I'll go back to the red flames but without the stickers.


    • Like Like x 7
  18. Wessa

    Wessa Cruising
    Subscriber

    Apr 27, 2016
    8,370
    1,000
    North West England
    Pity about the piting, as I like the colours. But I agree the red will set the bike off better imo :)

    • Like Like x 2
  19. andyb57

    andyb57 Well-Known Member

    Apr 15, 2017
    206
    93
    Devon
    Like it! The mustang tank design looks great, I think you're right about the other tank looking better with red flames.....
    Lever shift would take me a while to get used too :)

    • Like Like x 1
  20. Ivor

    Ivor Well-Known Member

    Jul 4, 2019
    124
    83
    Southampton UK
    Nice throw back chop
