Featured New Bars On Street Twin.

Discussion in 'Triumph General Discussion' started by Kenbro, Sep 25, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK

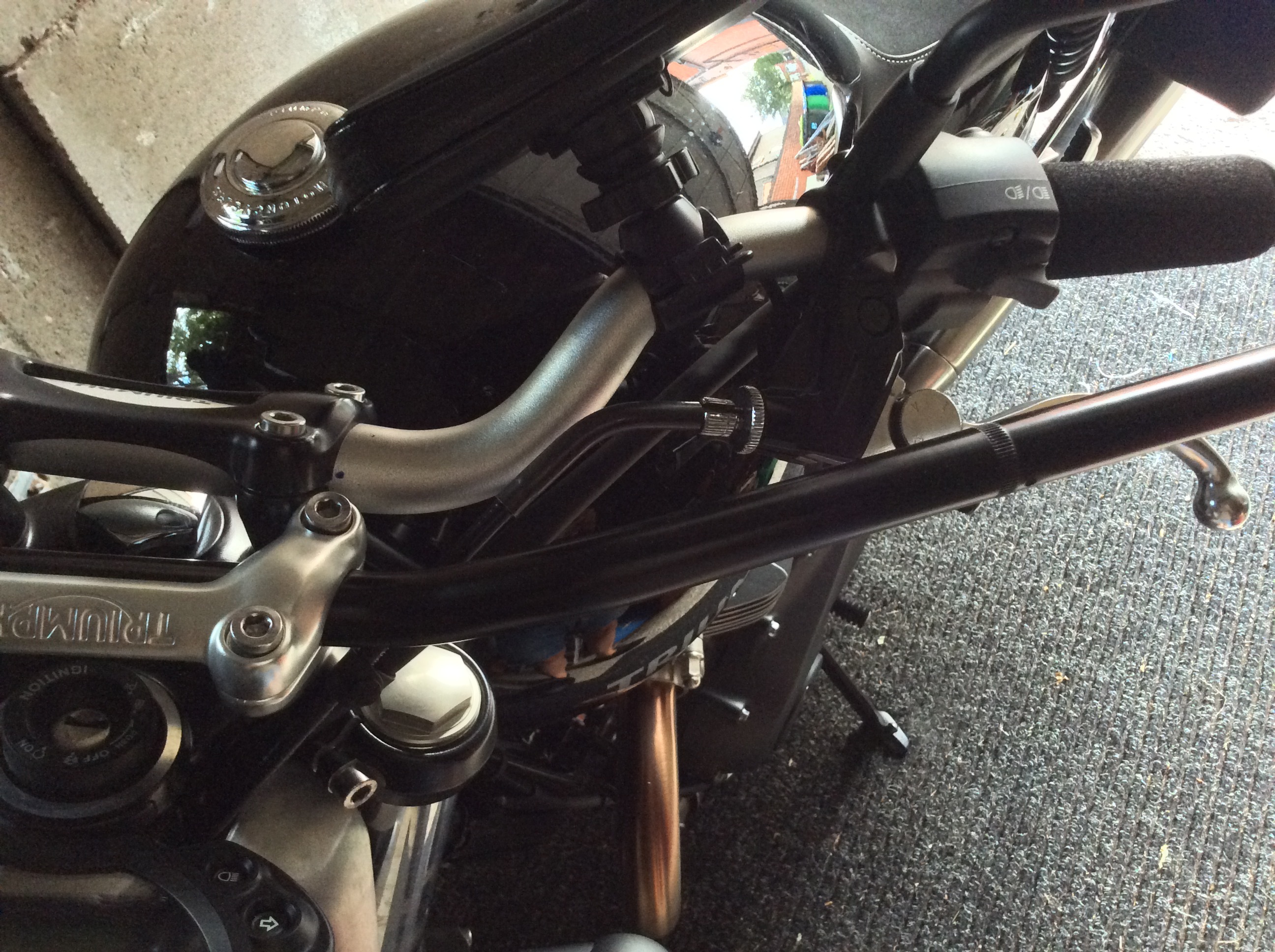

    Hi, just picked my bike up from Youles in Manchester after having Street Scrambler handle bars fitted.
    Only done 10 miles home, so too early to evaluate.
    Cheers,Ken. :)



    • Like Like x 14
  2. Privateer

    Privateer Stand up member
    Subscriber

    Jan 2, 2017
    741
    243
    Derbyshire
    They look well on it. :):)

    • Agree Agree x 4
  3. OsteKuste

    OsteKuste Intergalactic Warlord
    Subscriber

    Oct 22, 2017
    1,061
    243
    Tennessee, United States
    Looks good. What did it involve as far as parts? Did you have to get different bar clamp/ risers? How were the brake lines and wiring? Looking to do the same at some point. My back ain’t what it used to be.

    • Agree Agree x 1
  4. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    Hi,
    I just left it with the Triumph store, then collected it when ready.
    Parts that came back with bike were: Handlebars, Risers/Clamps, brake cable and clutch cable.
    The clutch cable cost me extra on the price quoted for the work. The called me to say the thought they might get away using the original cable, but, apparently it was just a tad too short for comfort.
    As you can probably see in the pictures, the bar end fittings don’t ‘Fit’ properly.
    I could try getting some Scrambler bar ends, or, as these new bars are longer than the originals I might just shorten them.
    Regards,Ken.

    • Like Like x 1
    • Thanks Thanks x 1
    • Agree Agree x 1
  5. joe mc donald

    Dec 26, 2014
    5,757
    1,000
    slough / burnham
    Kenbro
    Looks good mate. Another black steed. Will give the inmates something to ogle tonight. Yes the bar ends are standing out a bit. But you can get ones are just like a cap to go there. Also ar you sure you fitted the ends right by tapping them home with a rubber mallet before tightening up.
    Regards & Ride Safe
    Joe.

    • Like Like x 2
  6. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    Thank you, Sir,
    Looks like they’re in there as far as.Cheers,Ken.

  7. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    #7 Kenbro, Sep 26, 2019
    Last edited: Sep 26, 2019
    Hi Joe,

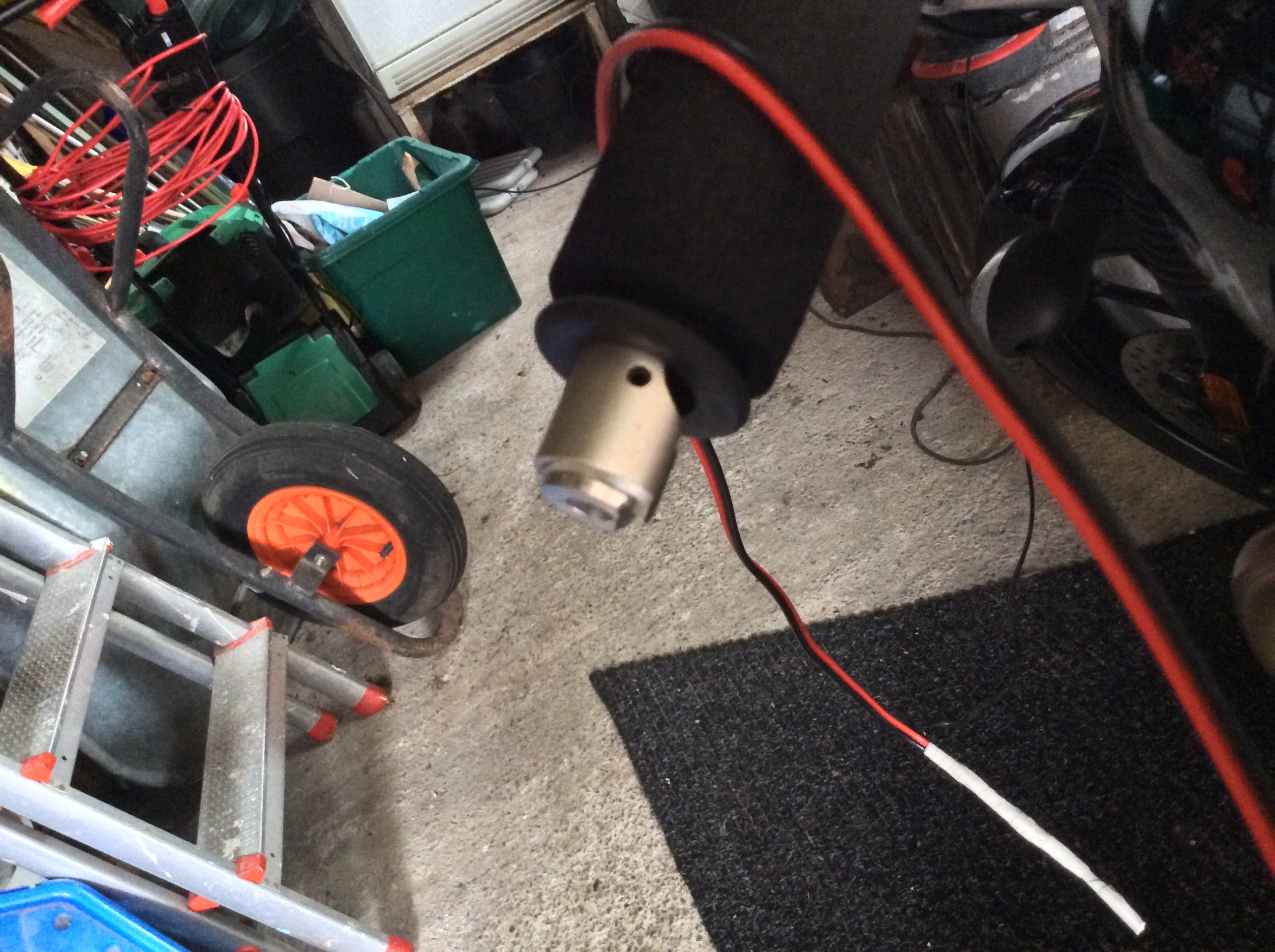

    The handlebar end has an insert fitted (Held in by a spring pin/roll pin, I think) which is threaded to suit the screw holding the end cap on. Will do some googling before altering anything, perhaps get Scrambler end pieces
    would be best.
    Thanks, Joe.
    Ken.

  8. beerkat

    beerkat Member

    Aug 14, 2019
    64
    18
    Cheshire UK
    Looks good with those bars. Been thinking about fitting fat-bars but it hadn't clicked that I could use the Scrambler bars. You say they're longer but is there much difference in the 'pull back' (or whatever it's called)? It would be helpful if you could tell us what you paid. I know Triumph labour costs are pretty high, so if the parts aren't extortionate I could order them and do it myself.
    Now you need to swap those ridiculous mirrors for bar-ends ;)

    PS. Youles is also my local dealer, got tired trekking over to Bill Smith's in Chester.

  9. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    Hi,
    I can live with the mirrors ;).
    It’s a bit hard to measure the difference between the bars now they’re fitted, but, I agree with others that have had the same done, yes there is more ‘Pull back’ as standard (and it can be increased a little more by pulling the bars towards you more) and the bars give a more upright riding position.
    Will add picture showing different shape of bars.
    If you Pm me an email address I will send you a copy of my bill. :eek:
    Regards,Ken.

    • Like Like x 1
  10. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    Joe,
    I’m wondering now if the Scrambler has a longer throttle tube that would come nearer the bar end.
    The fitting for the end cap is just the same in both pairs of handlebars with nothing to actually push inside.just the small screw to keep the end in place.
    Cheers,Ken.

  11. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    William in service was the (Knowledgeable) guy that coordinated things for me, really helpful.
    Ken.

    • Like Like x 1
  12. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    PM Sent.

  13. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    beerkat, you can text your email address to 07973465132
    Cheers,Ken.

  14. Tom Gillam

    Tom Gillam New Member

    Jul 13, 2019
    17
    3
    Somerset
    Hi Ken,
    I’m interested in your thread as I’m thinking of doing the same to my 07 Bonnie.
    Just to recap,all you needed to change was the brake hose and clutch cable,without the need to change the throttle or electrics,(which would probably deter me).

    Tom.

  15. Kenbro

    Kenbro Well-Known Member
    Subscriber

    Jul 9, 2019
    84
    78
    Manchester, UK
    Hiya Tom,
    Not sure about the Bonnie,but on my bike the risers and clamps needed changing as scrambler bars larger dia. than Street Twin ones.
    Throttle (Mine fly by wire) and electrics unchanged.
    Someone (USA I think) had to remove the swing arm to change the brake line...others have said, leave the swing arm in place and just reroute the brake line down the opposite side of the frame.
    The brake line has some rigid parts in it that can easily be damaged( kinked) when trying the reroute method.
    I think these complications fitting the brake line only apply to NONE ABS bikes.
    On ABS ones the brake line goes to the ABS thingy which I believe is under the seat, much simpler. Mine is ABS.
    As in post higher up...if you text an email address I will send you a detailed copy of my invoice.
    Cheers,Ken.

    • Like Like x 1
  16. garethr

    garethr Well-Known Member

    Sep 18, 2015
    42
    68
    BRISTOL UK
    Triumph use three different handlebar diameters on the "classics".

    e.g.
    Street Twin - 7/8 inches (c. 22mm)
    Street Scrambler - tapered or fat bars that are 1 1/8 inches (c. 28.6mm) in the centre, and 7/8 inches at the ends
    Bonneville - 1 inch (25.4 mm)

    Street Twin and Street Scrambler handlebar mounts/clamps are interchangeable (I've bought some used ST clamps in case I want to change the 'bars on my SS... there's much more choice in 7/8 diameter handlebars).

    I understand that there's a problem if you need a different brake hose, because the master cylinder is connected to the ABS unit via a flexible hose that is swaged on to a rigid pipe. Pity they didn't use a junction block at the front of the bike - something to look at when it's out of warranty, perhaps. :)

    • Like Like x 1
