Led Headligfht

Discussion in 'Bonneville' started by Traveler, Oct 29, 2023.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Traveler

    Traveler Well-Known Member

    Jun 21, 2023
    119
    93
    Helena, Alabama
    Has anyone replaced the halogen headlight with an LED bulb? Thoughts if so pls.

  2. RickM46

    RickM46 Active Member

    Oct 12, 2023
    40
    28
    US
    That interests me too!

  3. Tim Gibbs

    Tim Gibbs Member

    Oct 27, 2023
    71
    18
    Dorset

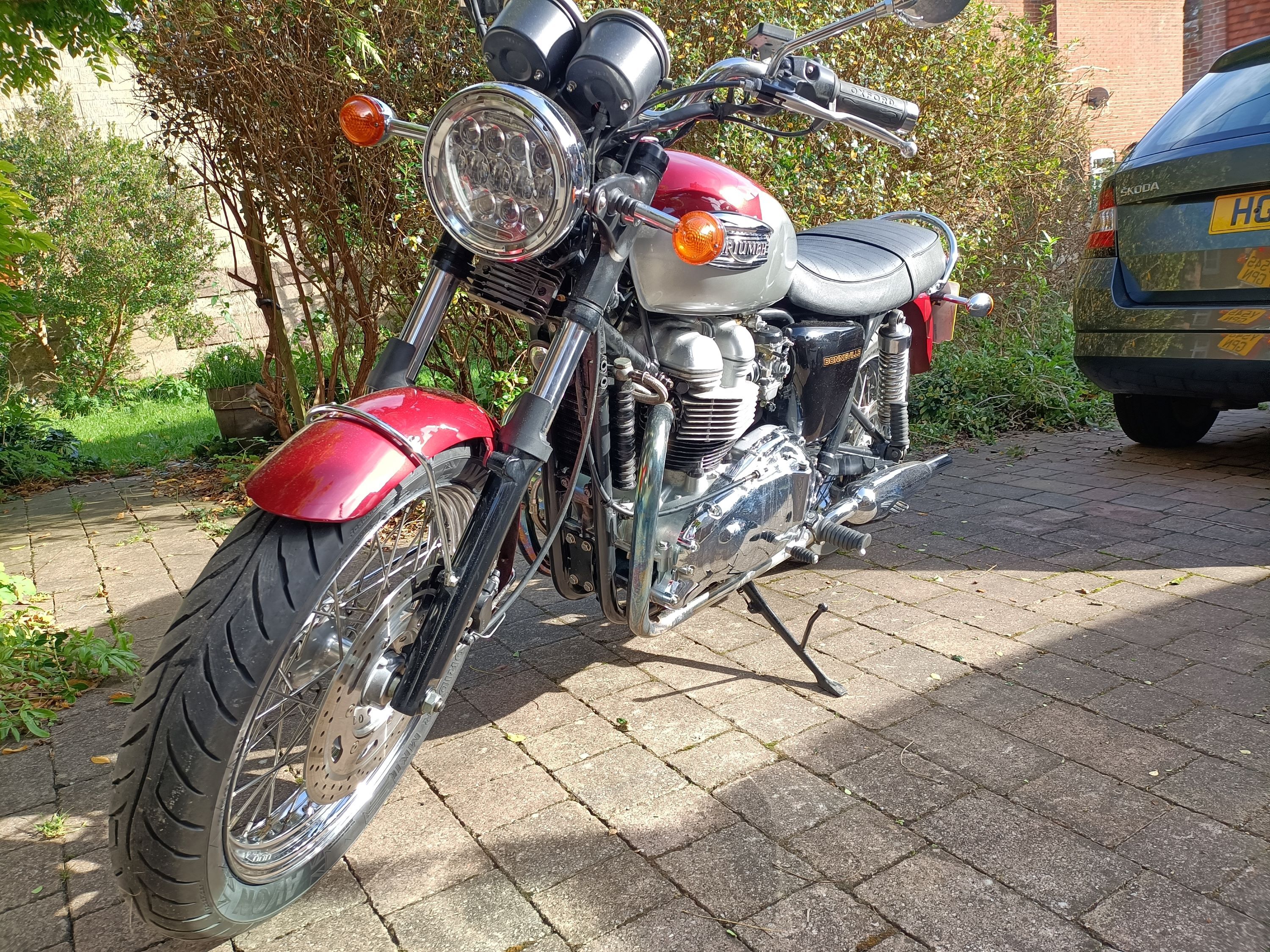

    The bike that I have just bought has a very good LED headlight, it gives a very good light, however I aim to return the bike to original spec and replace it with an OEM headlight, problem is that I can't find one.
    If anyone has one in the loft that they would like to sell (or swap) please let me know,
    Thanks Tim


  4. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    2,870
    800
    Yorkshire
    I replaced the halogen headlight bulb on my Street Scrambler with a H4 LED and I'm very pleased with the results. Some classic owners like the retro look of crap halogen lighting but personally I value lighting performance more.

    • Agree Agree x 2
  5. DaveH111

    DaveH111 New Member

    Sep 18, 2023
    0
    1
    Arizona
    Did you have any issues replacing the halogen bulb with the LED, space etc.?

  6. Baza

    Baza Elite Member

    Jul 25, 2020
    2,459
    750
    Home of Amazing Grace
    I replaced the halogen bulb in my Ducati with an LED unit. Brilliant white light which looks great, but don’t expect good results in the dark. The reason is the reflector/light source relationship will be wrong. If you are lucky enough to have a circular headlight on your machine buy a headlamp unit comprising a reflector and LED bulb. Like the one Tim wants sell above.

    Also some may tell you that it’s an MoT failure. Well, sort of but my Ducati passes every time. What does he do? Switch on the lights to see if they all light up when they should. I have never had my beam alignment checked.

    The reason why it is illegal to fit an LED bulb in a reflector designed for a halogen bulb is LED upgrade bulbs can’t be classed as road legal because they cannot be E marked or have the British Standard mark. This is because LED upgrade bulbs can’t be E marked as no legislation exists for the use of LED technology in a headlight unit built for halogen bulbs.

  7. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    2,870
    800
    Yorkshire
    Fitting LED or HID bulbs in OEM headlight housings designed for filament bulbs is, as you say, technically a MOT failure but lighting performance/beam pattern varies greatly bulb to bulb and vehicle to vehicle. I have fitted LED's in the 4x4 and the results are excellent and better than the halogens. I tried some H4 HID's a few years ago and the beams were not only rubbish but hazardous to oncoming traffic so I stuck with the halogens. The bulb in the SS works great and better than OEM halogens.
    The problem with beam scatter is due to the actual light source (the LED itself or the HID arc) sitting in a different position in the bulb relative to the reflector and lens compared to a filament bulb for which the lights were designed. Some of the newer LED bulbs available are a much better design and give good beam and light output but still technically illegal.

    • Useful Useful x 1
    • Agree Agree x 1
  8. learningtofly

    learningtofly He’s not the Messiah, he’s a very naughty boy!
    Subscriber

    Sep 25, 2018
    1,966
    1,000
    Hertfordshire
    I did fit an H4 HID to my R9T with a good degree of success in terms of light output. Got through an MOT with it, too, but I guess I was lucky in terms of the OEM reflectors.

  9. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    2,870
    800
    Yorkshire
    #9 Pegscraper, Nov 15, 2023
    Last edited: Nov 15, 2023

    I had to remove this to get the bulb in. It just screws onto the back of the reflector so is easy to remove and put back in if required.



  10. Stackfield

    Stackfield New Member

    Jan 31, 2023
    2
    3
    Germany
    There is one LED bulb i know, that has an approval (in Germany) for Speed/Street Twin/Scrambler (headlamp approval number Ex 11895). Unfortunately not for Bonneville's T100/T200 with headlamp Ex 11894. A mechanic from a local garage means, the Bonnevill's headlamp is the same as in Speed Twin's. I think, I wold try the bulb out next season ...
