Leaking Oil...only 300 Miles

Discussion in 'Technical Help' started by Botty, Jul 3, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    Hi all

    Pick up my new Speed RS on Saturday and have covered just 300 miles. On returning home this evening noticed that oil was leaking from the seal around where the two half of the motor join. Unfortunately the Triumph dealer was closed so called a mate who knows a think a two about engines and he asked me to check the two bolts that clamp the engines together.....to my amazement they were not that tight. This might also explain the buzzing feeling the bike has been going since i picked it up....very vibie through the bars.

    Any ideas guys.....clearly I will be ring Triumph in the morning.

  2. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    yes mate, just worried if it could have damaged the engine.

  3. stollydriver

    stollydriver Elite Member

    Apr 25, 2015
    2,034
    800
    north wales
    Won't do head gasket much good. Maybe even cause warpage. Back to the dealer post haste.......

  4. Davie_M

    Davie_M Active Member

    Jan 24, 2017
    128
    43
    Hamilton
    I would be asking for a replacement bike

    • Agree Agree x 5
    • Like Like x 1
  5. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    Thanks for the comments guys, very helpful. I will call them tomorrow and let you know what they say.

  6. stollydriver

    stollydriver Elite Member

    Apr 25, 2015
    2,034
    800
    north wales
    You tell them what YOU want - it's a major investment and the dealership should respect that.

    • Agree Agree x 1
  7. Rocker

    Rocker Elite Member

    May 1, 2016
    1,662
    800
    Suffolk
    Don't tighten them take it back!!!

    • Agree Agree x 1
  8. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    don't worry guys, thats the first thing i did, turned them tight and then turned them back to where they were.

    • Like Like x 2
  9. Richard Neale

    Richard Neale Active Member

    Apr 20, 2018
    156
    43
    Northwich
    Looks like Triumph have some quality issues on the RS. I did 50 miles on mine and it went back with an oil leak. Cam cover gasket and also a very soft dipstick seal .. ok now but a disappointment on a new bike! Spoils the pleasure of buying a new bike ! Let's hope the big end bolts are tightened correctly !

    • Agree Agree x 2
  10. stollydriver

    stollydriver Elite Member

    Apr 25, 2015
    2,034
    800
    north wales
    If you get overtaken by your pistons- there indeed is a problem :eek:

  11. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    The vibrations through the bars have got worse since i picked it up on Saturday.

    • Informative Informative x 1
  12. Richard Neale

    Richard Neale Active Member

    Apr 20, 2018
    156
    43
    Northwich
    They do vibrate but it's more above 6k revs though mine feels a bit rough around 3k and below too. I wrote this in another thread on vibration... But in the end I went and rode the demonstrator bike at dealers for comparison. It was the same as mine so decided they are like that. .yours may settle in a bit but may be worth riding a demo bike to compare and complain in writing to Triumph if it's wrong ! Especially with the oil leak issue.. since mine was fixed I have done 2500 miles some of them riding pretty hard and nothing else has gone wrong ... Yet .hope you get sorted successfully . The law is on your side with it being a new purchase and faulty ! Good luck !

    • Like Like x 1
  13. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley

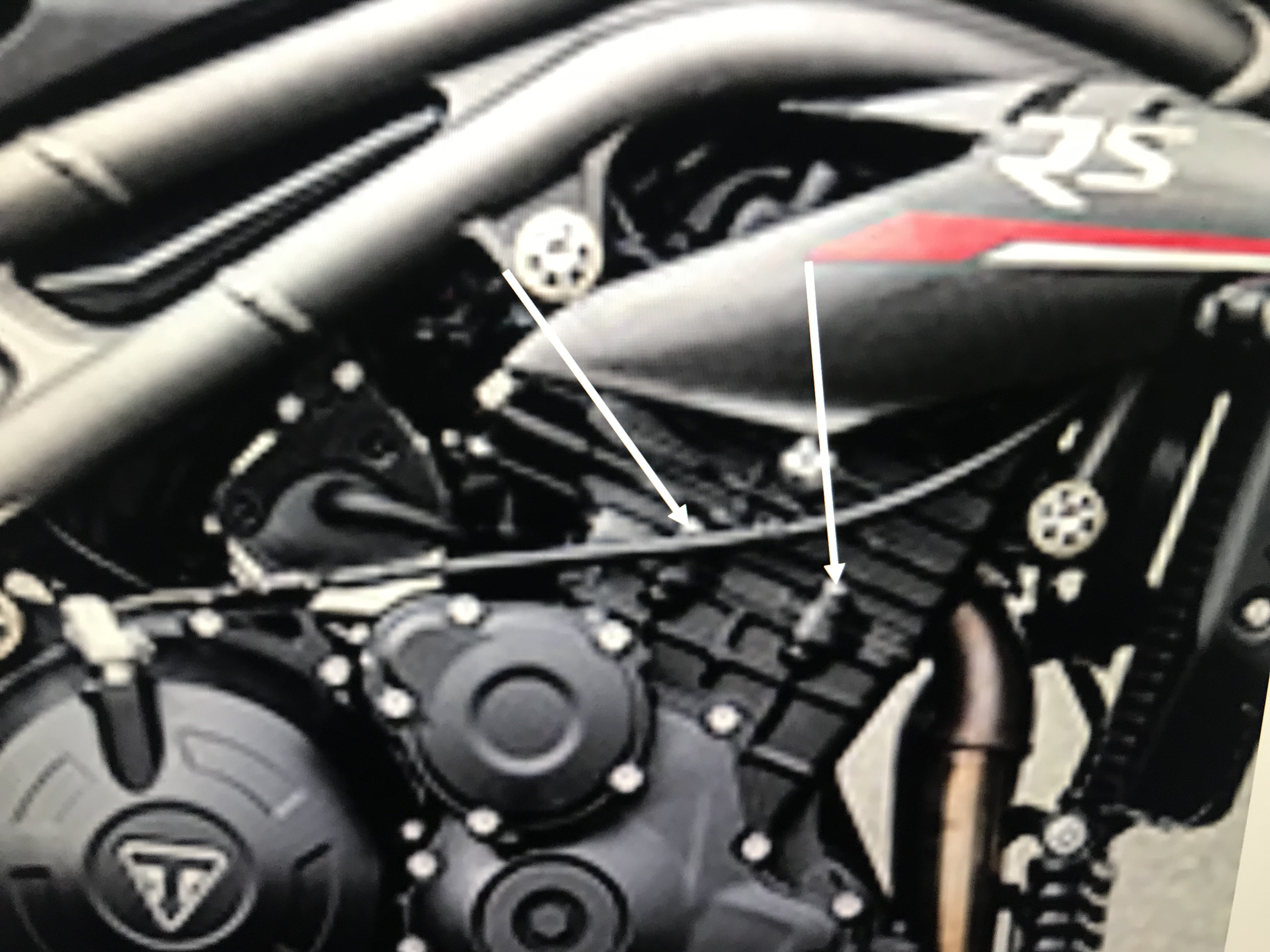

    These are the two bolts that are loose.


  14. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    Just above the gasket where the oil is leaking out.

  15. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley

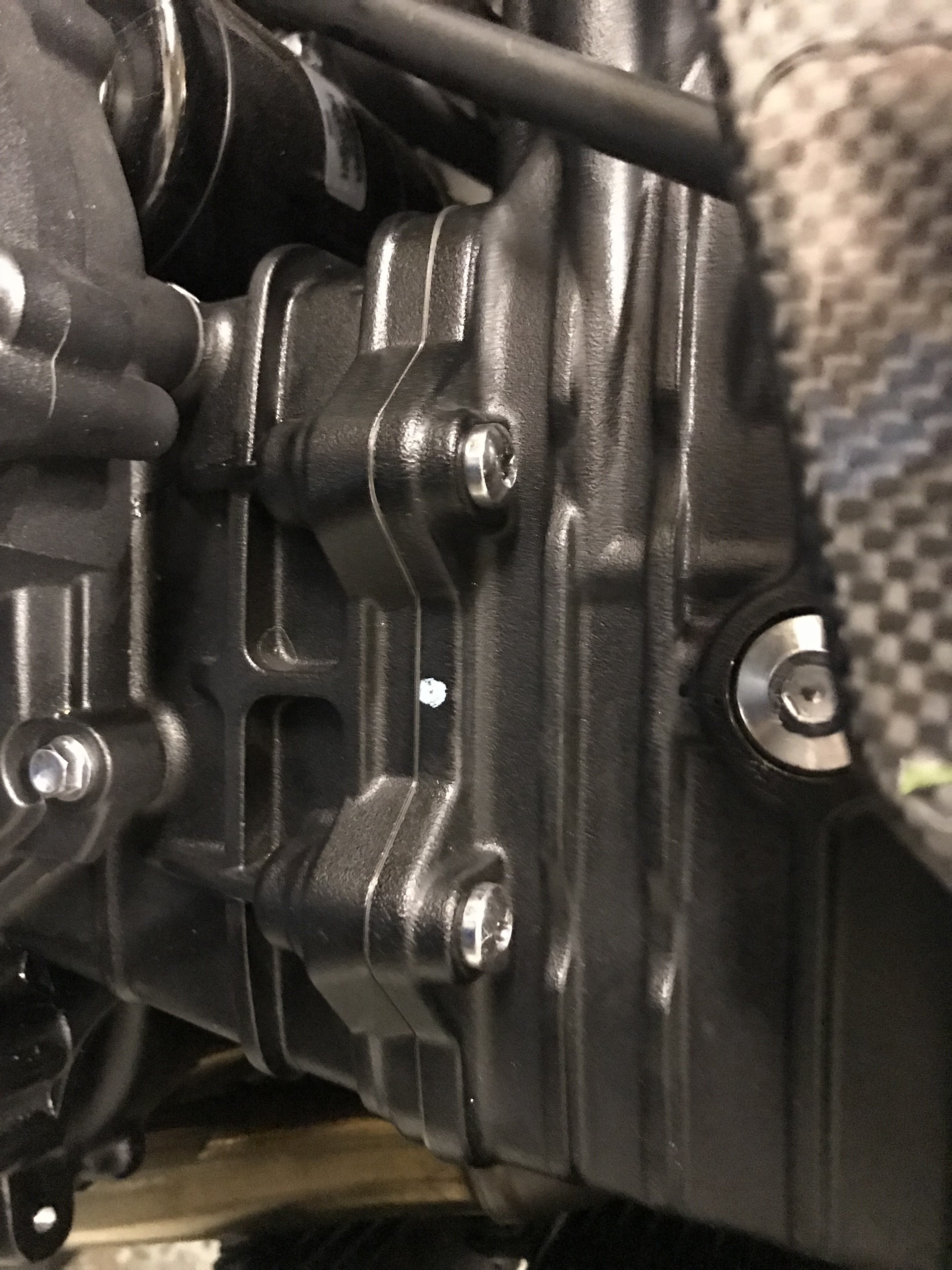

    The two torx screws

  16. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley

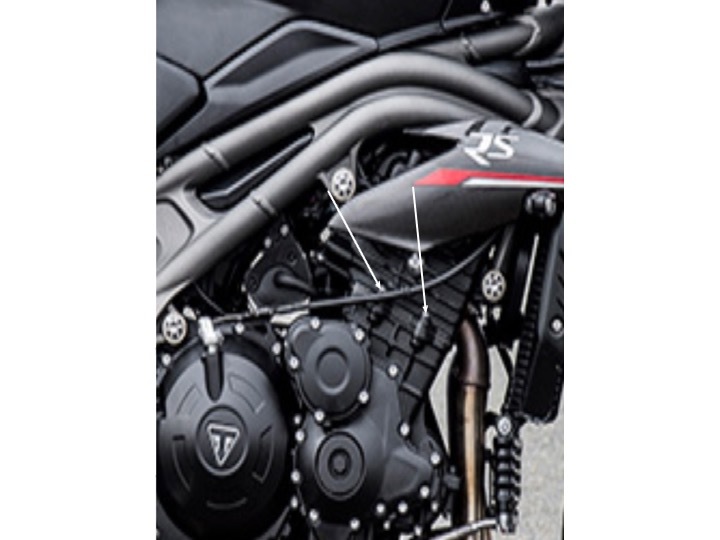

    The two screws in question.


  17. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    The two screws in question.

  18. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    Those hex head bolts are on the head gasket joint on the cam chain side. They won’t have a lot of torque in them so I wouldn’t be worried that the head gasket around the combustion chambers has suffered, just a bit of oil leaked from around the cam chain tunnel. Trouble is, as has been said has the gasket soaked up oil therefore losing its sealing qualities and are there any other loose bolts in there. Not good Triumph.

    • Agree Agree x 2
  19. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    The two screws in question


  20. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    Oil has also leaked from the other side of the bike as well.

    • WTF WTF x 1
  21. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    I know, I live less than 2 miles from the factory, and will have to take it back to Nottingham:mad:

  22. Botty

    Botty New Member

    Jun 26, 2018
    17
    3
    Hinckley
    Pidcock Triumph are collecting the bike on Friday morning.....only disappointing thing is they have no loan bikes available and refused to give me one of their demos. Which means no bike for a while:mad:

  23. stollydriver

    stollydriver Elite Member

    Apr 25, 2015
    2,034
    800
    north wales
    Reject the bike as this really is not good enough...

    • Like Like x 1
    • Agree Agree x 1
