Leaking Coolant !

Discussion in 'Technical Help' started by Ste-B, Oct 28, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    Hi,

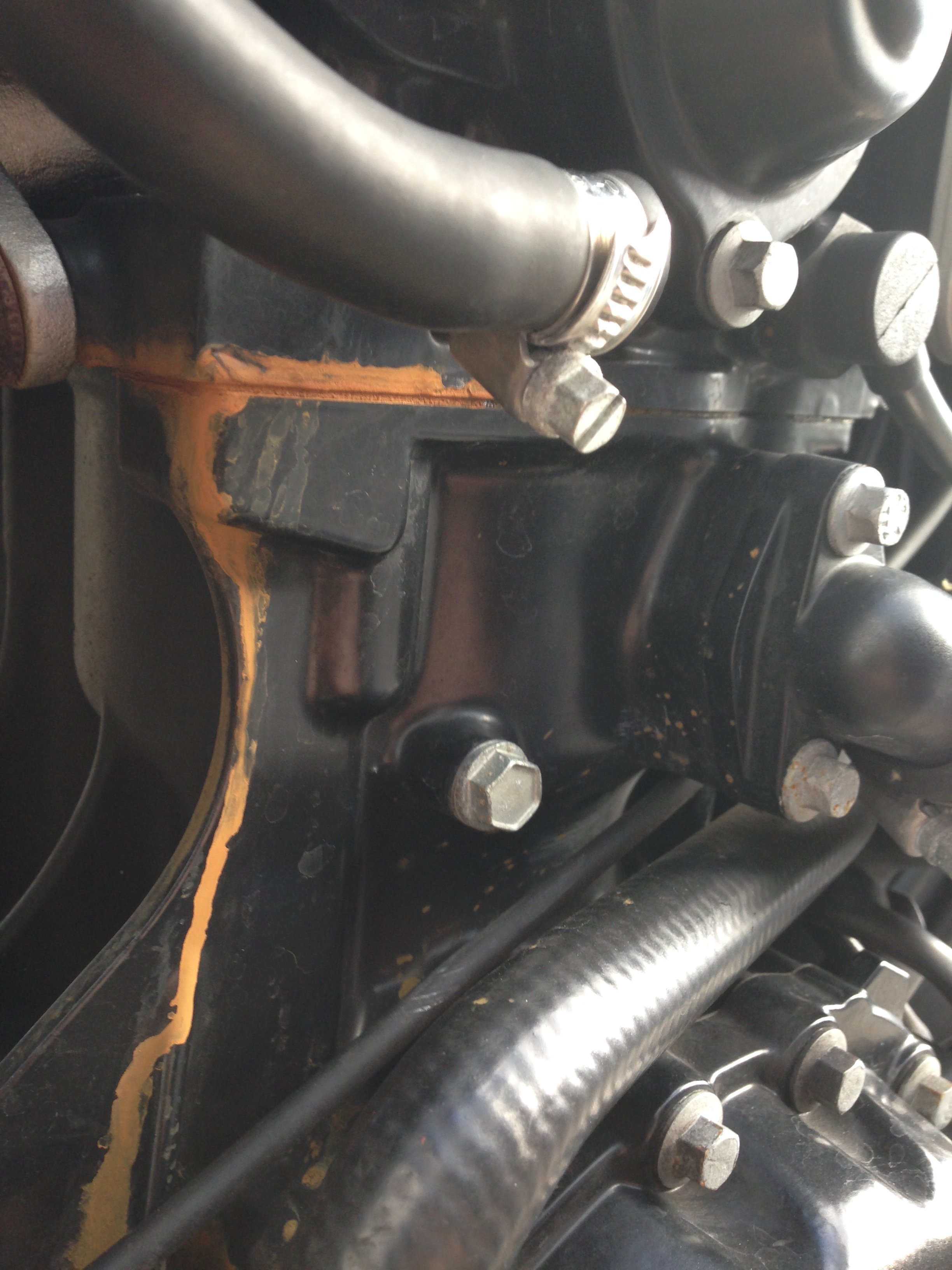

    I've had a leak for a while from the pipe in the picture, can anybody advise on how this can be fixed?
    Rusty coolant I know, but want to suss out the leak first..!
    Thanks.



  2. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton

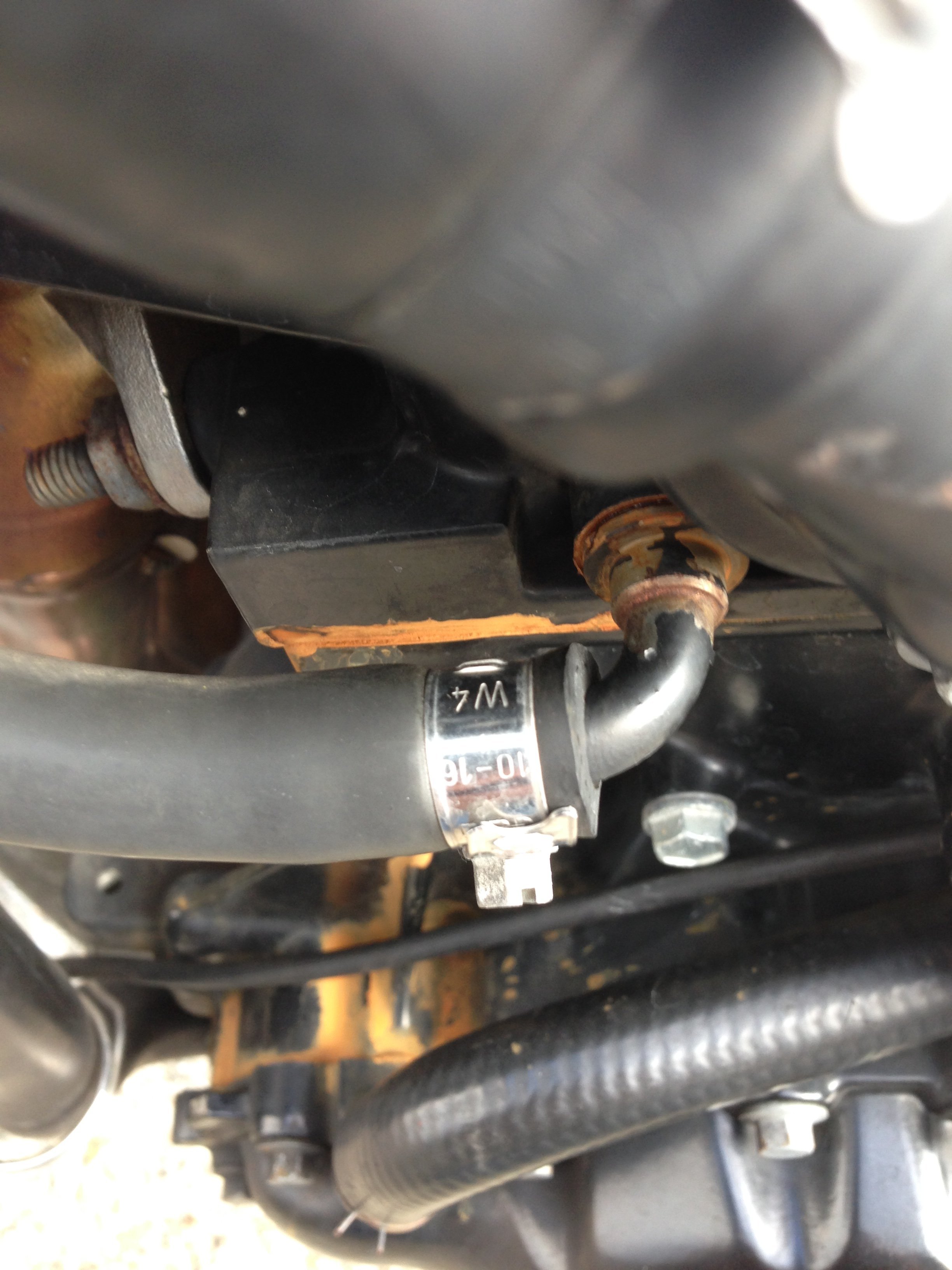

    It's the metal pipe in the pic.

  3. Schreurs

    Schreurs New Member

    Oct 28, 2018
    1
    3
    The Netherlands

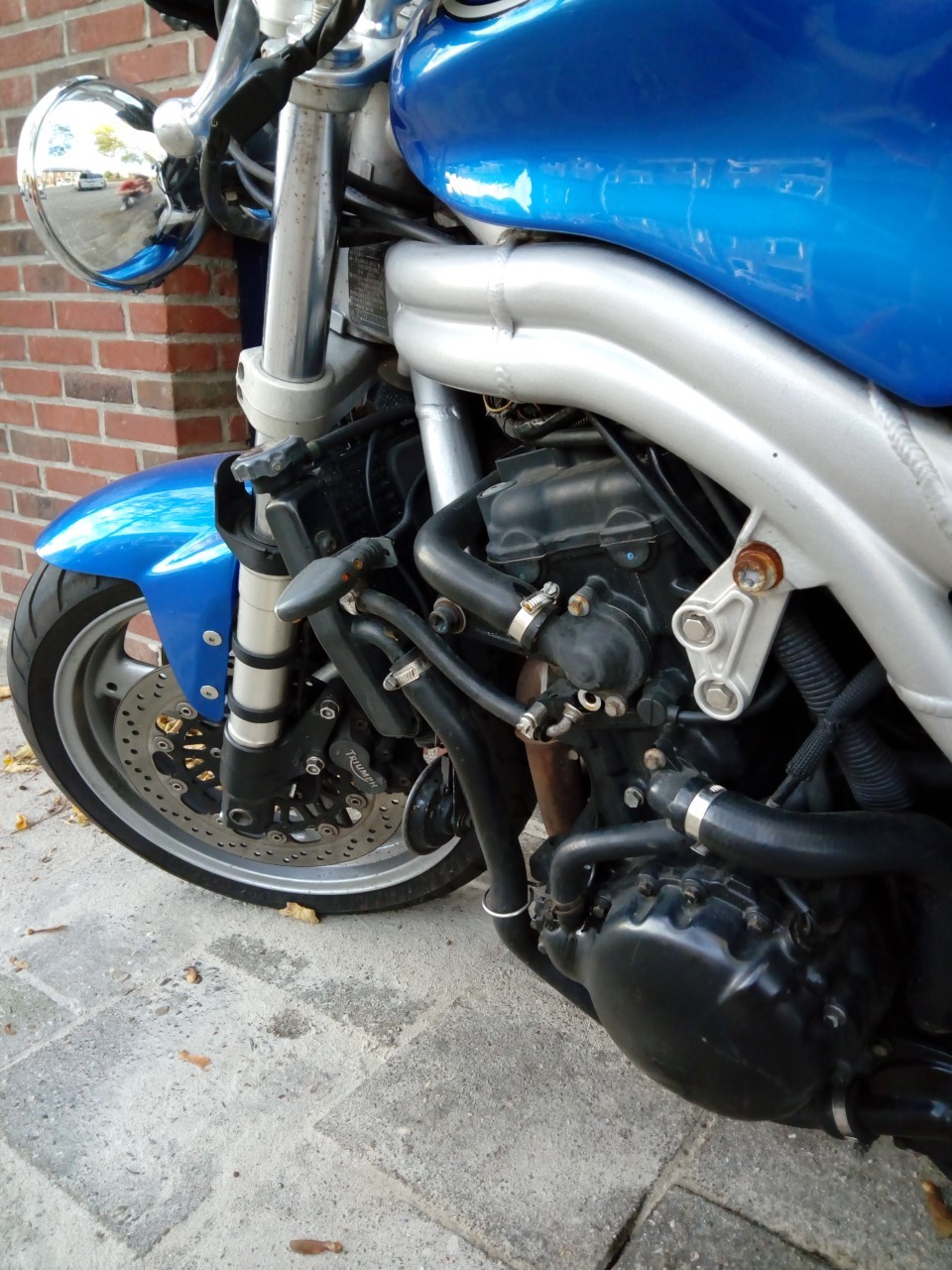

    I have the same issue now on my Triumph 955i 2002 . This looks a fabric made part, How can I (we) get a sollid gasket again? Tapping screw thread or...



  4. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    Mine is the same model and same year as yours.
    How did you get the pipe off, does it pull out? Is it meant to pull out?!

  5. Schreurs

    Schreurs New Member

    Oct 28, 2018
    1
    3
    The Netherlands

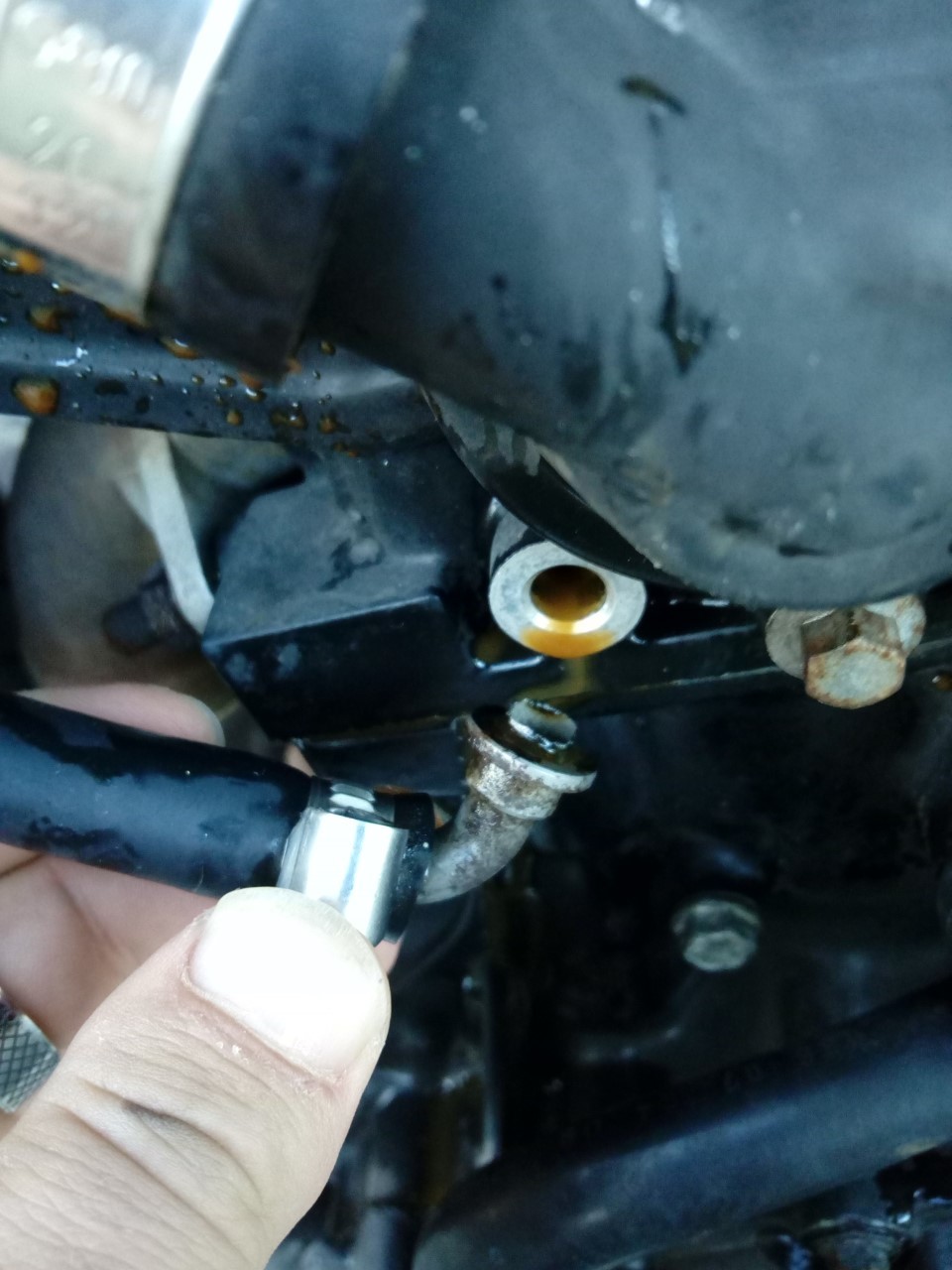

    Ehm mine leaked too and when controling it it went of. I seams like the inner pipe is corroded from the inside (due the coolant fluid) and so..detatched from the housing.
    The question is: How to fix this :s

  6. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    Hopefully not an engine strip, but it wouldn't surprise me...

  7. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    You could use liquid metal to hold it in place, but it's not an ideal fix.
    I have a feeling we aren't going to get an answer on this one.

  8. Rich Bryce

    Rich Bryce Dead Eye Dick

    Sep 18, 2015
    2,987
    1,000
    Bedford
    What's the bike? Year?

    • Agree Agree x 1
  9. Schreurs

    Schreurs New Member

    Oct 28, 2018
    1
    3
    The Netherlands
    Ok liquid metal sounds interesting though. Maybe its enough for youre leak ;)

  10. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,355
    800
    Nr Biggar
    I am not familiar with these motors but functionally it looks like a thermostat bypass hose. Is the stub it attaches to part of the complete thermostat housing?
    If the leak is not too severe you might get away with Radweld or similar in some fresh coolant and antifreeze.

  11. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    Speed Triple 955 2002.

  12. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    Speed Triple 955 2002.

  13. Yorkshireman

    Yorkshireman Crème de la Crème
    Subscriber

    Dec 12, 2015
    3,400
    1,000
    Barnsley
    Looking at the top pic in post #3 it would seem that the pipe is a push fit in the block. Providing the hole is sound then a new pipe fitting should press back in and seal ok. Wouldn’t hurt to warm the block with a hot air gun to expand the hole slightly upon fitting and use some form of sealant to act like glue?

  14. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,355
    800
    Nr Biggar
    Indeed. The stub looks like a press fit but maybe flared inside? I cannot see if it is part of the thermostat housing which would be an easy fix (epoxy!) as the hose itself is generic from any auto factor.

  15. Oldyam

    Oldyam Grumpy Old Git

    May 14, 2017
    613
    500
    ireland
    Looking carefully at the pics it looks as if that pipe is fitted into the head and not part of the thermostat housing so needs careful investigation.

    I would suggest a trip to a Triumph dealer if only to find out if the elbow fitting is available as a replacement part.

    If not then you need to look at finding a fitting probably from someone who makes up Hydraulic hoses and tapping the hole to suit.
    If a part is available then there will be an adhesive / sealer / method to fit it with.

    Trying to "Glue " it back in could be a problem as it will be fitted at a point where the two metals will expand at different rates and "break" any glue bond as it will be under Hydraulic pressure from the cooling system.

    • Agree Agree x 1
  16. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    Ok thanks for the info!

  17. Rich Bryce

    Rich Bryce Dead Eye Dick

    Sep 18, 2015
    2,987
    1,000
    Bedford
    @Ste-B I'll be back in work Wednesday and will check out the schematics. PM me as a reminder.

    • Like Like x 2
  18. Ste-B

    Ste-B New Member

    May 29, 2018
    10
    3
    Brighton
    Thanks, will do!

  19. Schreurs

    Schreurs New Member

    Oct 28, 2018
    1
    3
    The Netherlands
    I agree...those actions are in progress now. Thanks for confirming this diagnose :)

    • Like Like x 1
  20. Rich Bryce

    Rich Bryce Dead Eye Dick

    Sep 18, 2015
    2,987
    1,000
    Bedford
    @Ste-B It's a pressed part that comes as part of the cylinder head and not available separately I'm afraid. It has been eaten away because the coolant hasn't been changed for some time and has acidified.

    Recommended solution from our techs is use a screw-end pipe fitting, tap the hole, and fit using plumbers tape and loctite. It might not look pretty. but it'll save you having to buy a new head. My concern would be where the rotten end of the pipe has gone.

    • Like Like x 1
    • Agree Agree x 1
