Hand Rail

Discussion in 'Speed Triple' started by Lessaint, Jan 26, 2019.

  1. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #1 Lessaint, Jan 26, 2019
    Anyone want to swap a rear hand rail for a tail tidy

  2. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #2 Bryan3R, Jan 27, 2019
    You have to swap the rear light finisher with the grabrail too, as it’s got a cutout each side that the standard one hasn’t got.

  3. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #3 Lessaint, Jan 27, 2019

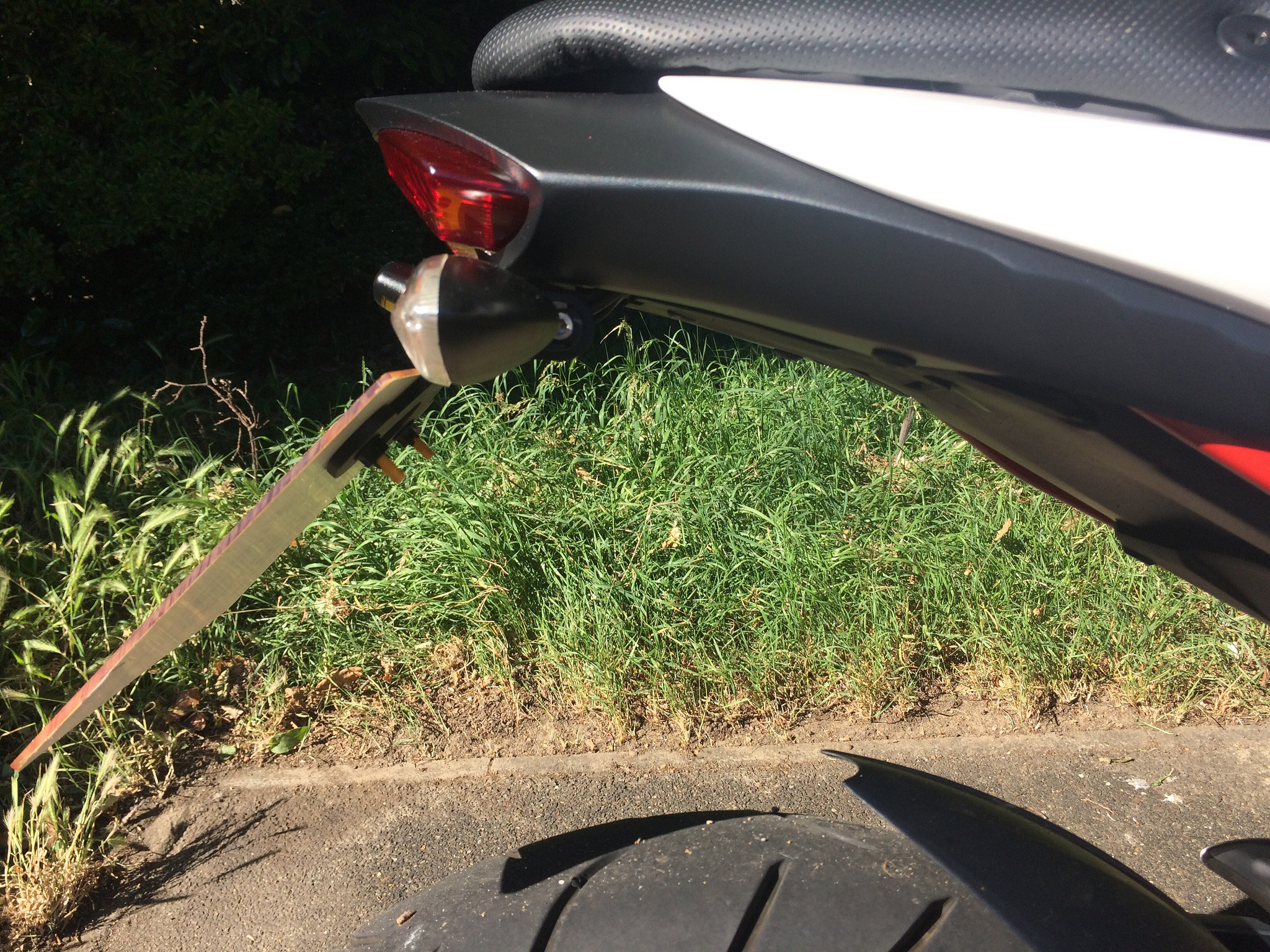

    I have a tail tidy now, but if anyone a grabrail (Mint0
    Bryan,
    I have ordered a Evotech tail tidy from Conquest, I get the bike Saturday morning, apparently all the OEM bits are with it, hopefully the bracket you mention is included.

  4. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #4 Bryan3R, Jan 27, 2019
    Last edited: Jan 27, 2019
    you havnt understood me, the grab rail comes with a replacement black plastic finisher that fits round the subframe and rear light, its not a tail tidy like the Evotech one, its one of the bikes original panels under the pillion part of the seat.

  5. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #5 Lessaint, Jan 27, 2019
    Sorry Bryan, thank you for that, I am hoping to get out for an hour next weekend, if I haven't the components to remove it will be a case leave it in situ till I can sort it out, Thank you for the advice "If in doubt ask"

  6. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #6 Bryan3R, Jan 27, 2019
    Last edited: Jan 27, 2019

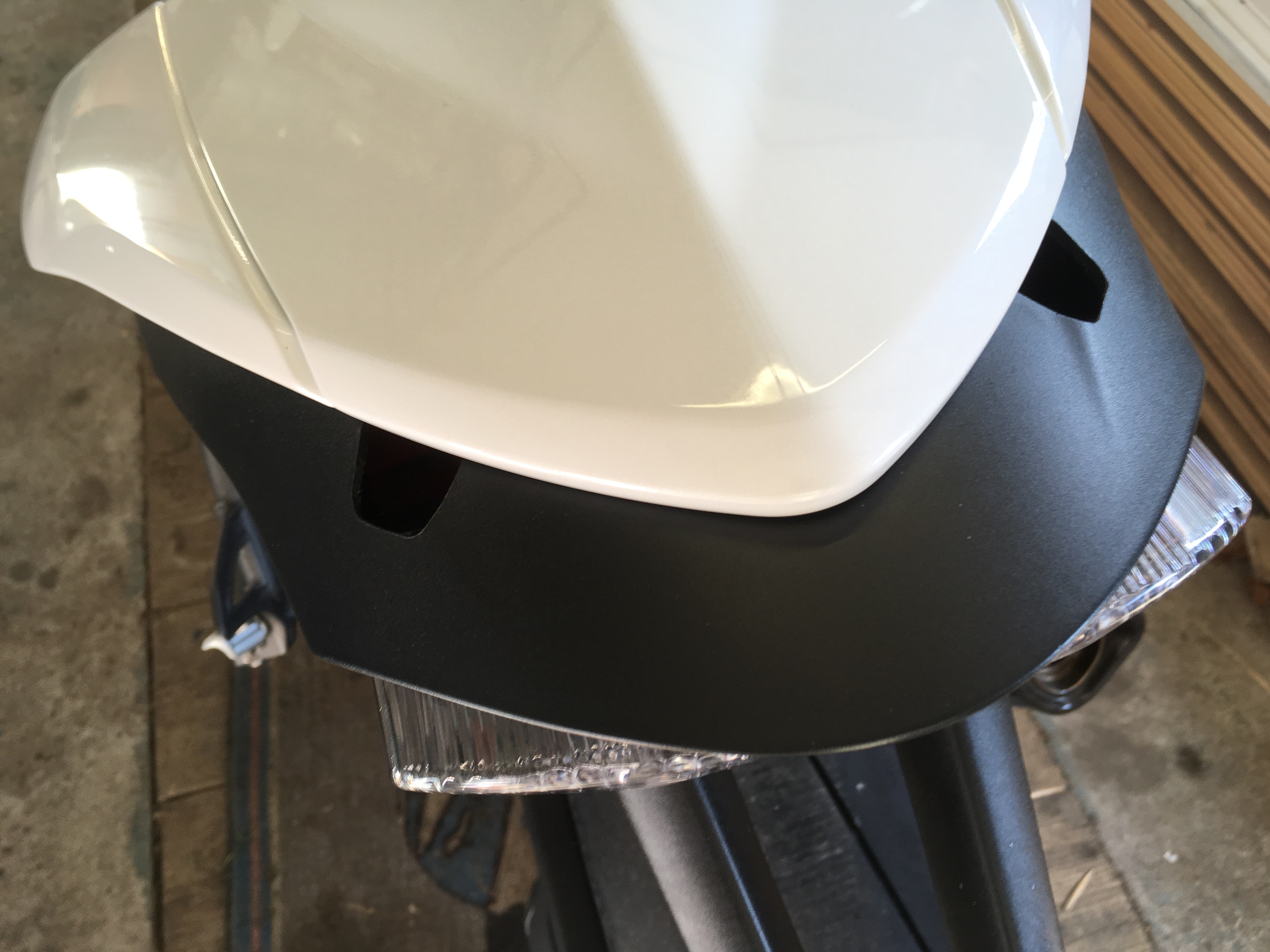

    You can remove the grab rail, there are just 2 small cut outs left in the plastic finisher.
    The black bit around the rear light. the cut outs are under the very end of the pillion seat just b4 the white panel starts..
    [​IMG]Untitled by Bryan Haynes, on Flickr

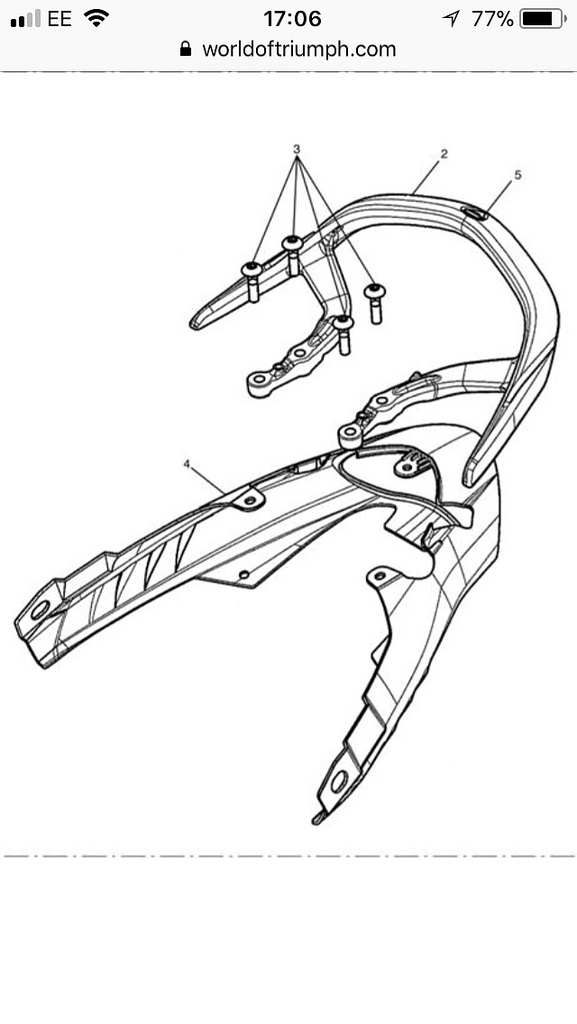

    Its item 4, you can see the small cut outs at the back.
    [​IMG]Untitled by Bryan Haynes, on Flickr

  7. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #7 Lessaint, Jan 27, 2019
    Thank you

  8. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #8 Bryan3R, Jan 27, 2019
    Conquest do a nice Carbon replacement but its not cheap!
    £199 I think, original plastic one is about £70 new, hope you get lucky and the original one comes with the bits.

  9. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #9 Lessaint, Jan 27, 2019
    Bryan,
    I'm being a bit picky, but I hate white crash bobbins, going to take better photos when the bike arrives of the bobbins and see if another member wants to swap for black items

  10. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #10 Bryan3R, Jan 27, 2019
  11. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #11 Lessaint, Jan 27, 2019
    Bryan, that is what a naked street bike should look like, when I have finished my alterations it will be very similar sorry for the plagiarism

  12. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #12 Bryan3R, Jan 27, 2019
    LOL, I'm thinking of going to a painted battery cover so whole tank is white, will be even more like each other, though I got the light PVM wheels!☺

    Have a look at the Powerbronze or factory screen to add to the top of your fly screen if it hasn't got it already.

  13. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #13 Lessaint, Jan 27, 2019
    I've asked Conquest to let me know when the carbon tank cover battery cover is back in stock,,,i have been a carbon fibre whore since the early 90s

  14. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #14 Lessaint, Jan 27, 2019
    Bryan, the exploded pdf of the rear hand rail/seat unit is it part of a parts manual.

  15. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #15 Lessaint, Feb 2, 2019
    Bryan, you are absolutely correct, I would imagine the replacement (OEM) section is available from Triumph, I can live with it for now as the weather is a bit shite and I wont be venturing out till it breaks


  16. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #16 Bryan3R, Feb 2, 2019
  17. Lessaint

    Lessaint Noble Member

    Jan 14, 2019
    436
    313
    Sherwood Forest North Notts
    #17 Lessaint, Feb 3, 2019
  18. Bryan3R

    Bryan3R Senior Member

    Jun 22, 2018
    230
    293
    Southend, Essex, England
    #18 Bryan3R, Feb 3, 2019
    happy someone on here got it.
