Featured Great tip to repare pipes and save money

Discussion in 'Technical Help' started by DeletedUser002, Apr 13, 2017.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. #1 DeletedUser002, Apr 13, 2017
    Last edited by a moderator: Apr 13, 2017
    I thought I'd put a quick post about this to help others.

    I've got a couple of issue with my 2000 955i Daytona that have been covered in another topic. During that process I discovered that the ICV (idle control valve) and barometric air pressure pipes on my bike were badly cracked & perished on the sealing collars. These defects with the pipes are undoubtedly the cause of the bike cutting out when warm, as the ICV is unable to do its job properly.

    t552 told me via private message that he's heard others fixing them with shrink wrap. Given that new ones are about £45 with delivery, I thought it was worth a try.

    I'm pleased with the result and although some cracks are still visible at the very ends, I'll be surprised if they don't now seal properly. All thanks to t552. ;)

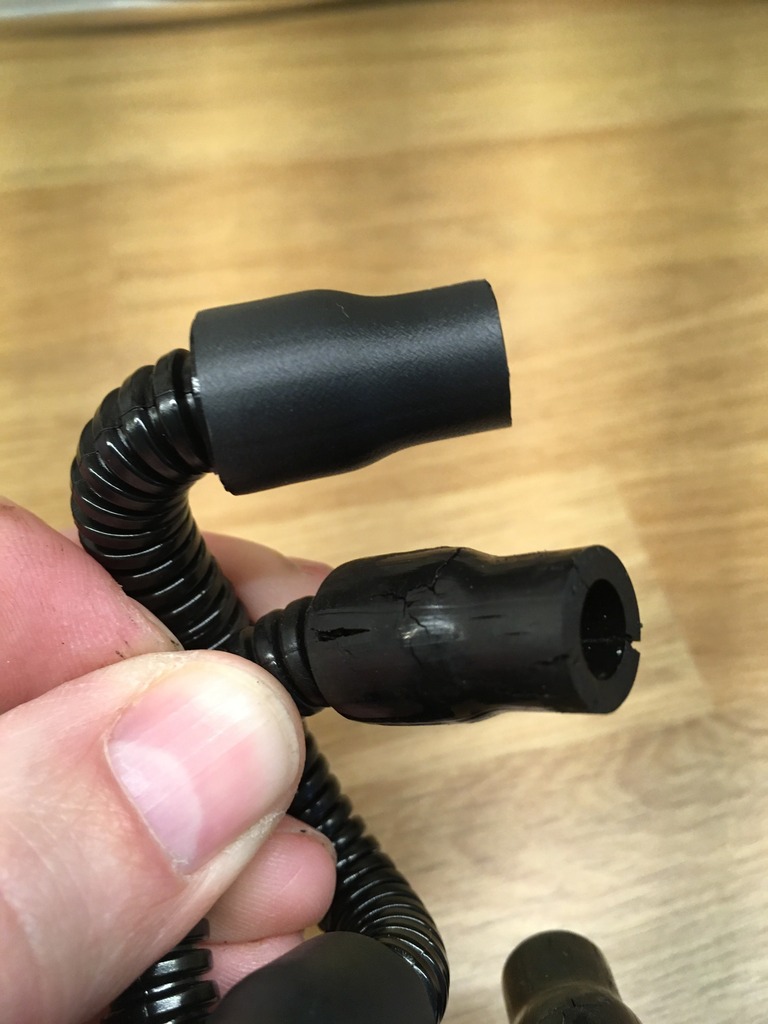

    The shrink wrap cost £3 - before and after;
    [​IMG]

    • Like Like x 7
  2. thebiglad

    thebiglad Old fart, still riding !

    Sep 25, 2013
    5,066
    1,000
    Central France
    That looks very encouraging Matt. My only concern would be if they leak at the outside end of the split, as there's no shrinkwrap there.

    I'll be interested to find out how you get on when the bike is put back together ????

  3. Hi Dave, yes I was a little concerned at first and tried to Q-Bond the ends but the stretch required is too much and so the cracks on the very ends remain. That said, it only has to ensure that where the end of the corrugated pipe meets the throttle body (metal) tail/pipe (inside the collar) does not leak. I'm hoping that the bandage that the shrink wrap provides will be enough to achieve this. I will certainly know soon enough and will post up the results, I'm encouraged by the much firmer feel to the fit.

    I hope it does work, aside from anything else the replacement prices are a bit stiff, particularly given that they are not really made out of a suitably robust material. The bike has only done 4900 miles and has clearly been well stored so these failing it this way is not really on in my view. I have a classic car that is 31 years only and still has many of the original rubber components.

    As I say, I'll post up the results. :)

  4. thebiglad

    thebiglad Old fart, still riding !

    Sep 25, 2013
    5,066
    1,000
    Central France
    I'm keen to know the results mate as I might have to do the same on my ride.

    I'm not up to speed with this shrink wrap stuff (apart from it shrinks under heat) but where did you buy yours? Are there different grades/thickness as yours looks really good in the pic.

    Give us the full info matey....................................

    PS I wonder if a blob of black mastic might help with sealing ? That's what they used at the factory on the Bonneville MAP vacuum hoses.

  5. GaryM

    GaryM It's him, you know who. Him from you know ....

    Apr 28, 2016
    862
    500
    Patna , Ayrshire
    Try self almagamanating tape as well. It's a rubber tape that you stretch as you put it on which causes it to be come a very tight fit.
    As a radio amateur I use it to seal coax connections to make them waterproof.
    The shrinkage is quite amazing. Only way to take it off once applied is to cut it off.
    It would also allow slight movement of the corrigated pipe.

    • Like Like x 1
  6. GaryM

    GaryM It's him, you know who. Him from you know ....

    Apr 28, 2016
    862
    500
    Patna , Ayrshire
    • Like Like x 1
  7. I have a few different sorts, though sods law, despite having loads of different sizes and colours I didn't have one large enough for this job. The previous stuff I got from eBay and was bought as a multi colour, multi size bundle. The stuff I bought for this application I just bought from my local trade electrical merchant, it cost £3 for 1 meter.

    What I would say is, measure your application first otherwise it's easy to end up with stuff too big or small. Further to that (and I am no means an expert), it does have limited shrinking ability and so start with a size as close as you can get. ;) The one above needed to be lubed to get it over the widest part and so that is ideal.

    I shrink mine with a hot air gun but if you cannot or do not want to remove the item from the bike you can use a soldering iron in close proximity. The soldering iron is slower and you must make sure it doesn't touch it.

    Black mastic? I do have some heat/oil proof silicone but decided not to use it as I just don't think it will work but do think it could make an unsightly mess. I'm all for a cheap fix but only when it's a decent one, once it starts to look a bit of a mess is when I place an order with Fowlers... Despite the visible splits in the ends I think it is the main body of the collars where it was leaking and that should be impossible now. That said, I suspect you meant smear it on the collars before shrink wrapping, yes, that would have been a good idea but it's too late for me to do that now without starting over. Hopefully the seal will be ok anyway.

  8. Thanks for this, I'll bear it in mind for the future but I'm hopeful the shrink wrap does the trick as it's a neater solution.

  9. GaryM

    GaryM It's him, you know who. Him from you know ....

    Apr 28, 2016
    862
    500
    Patna , Ayrshire
    Can be used anywhere heat isn't an issue. Not sure what sort of temperatures it would survive s I've never used it in that sort of envoiroment.
    Might just be surprised. As to neatness if applied correctly it doesn't look a mess or be messy.
    Takes a bit of practice getting used to applying it but it certainly will last

  10. capt

    capt Elite Member

    May 8, 2016
    3,052
    750
    western Australia
    Use rubber grease for the smaller cracks at the openings, put some on the metal fittings before pushing the rubber hose's into place, makes reinstalling easier and will fill/block up small openings. Mechanics use it to improve vacuum brake bleeding ! ;)

    Cheers capt.

    • Like Like x 1
    • Like Like x 1
  11. I think you're right and it's a good point. If I do ever replace any I think I will do the shrink wrap as a pre-emptive strike.

    • Like Like x 1
  12. capt

    capt Elite Member

    May 8, 2016
    3,052
    750
    western Australia
    Your pre-emptive strike will probably protect the rubber from a lot exposure related deterioration ! As oxygen is a major enemy of some types of rubber.

    • Like Like x 1
  13. Just an update, I finally sorted the other problem with the bike today which gave me the chance to test this fix. Well, it works a treat, used to have very fluffy throttle response and would cut out all the time at tick over once warm - all cured now.
    :cool:
    And thanks again to capt for the suggestion of rubber grease. I used on these but since buying some I have found uses for it loads of times on cars and bikes. Triumph seem to like rubber washers and grommets that bolts do up against. The smallest of smears sees the bolt turning nicely without snatching at the washer/grommet and best of all it kinda feeds the rubber and stops it drying out.

    • Like Like x 1
  14. t552

    t552 Senior Member

    Nov 17, 2014
    416
    113
    Bristol UK
    Very pleased it worked for you m8.

    • Like Like x 1
