    #1 C. Dolan, Aug 20, 2021
    Last edited: Feb 5, 2022
    A quick taste before I hit the sack.
    Have a bit of a collection and so some mods on occasion.
    First bike Which is my avatar, for now, is a 2021 Trident 660..

    First thing I do is suspension, but the front end, though non adjustable was dead on for me.
    33 mm sag with 196 lb rider weight, and dampening was spot on, so no changes.
    The rear shock, though , was as bad as the forks were good.
    Dampening ( non adjustable ) was so stiff, the rear tire would chatter on a bumpy tar snake corner.
    At first I thought it was the tire or pressure, but it was the shock.

    Have a cheap fix, though.
    Eye to eye is 12 inches, the same as a Sachs shock I had on the shelf, from an Aprilia RSV 4.
    With some mods to the shock to make it fit, it was a great solution.
    Back fender needed to be trimmed to fit and the shock itself needed to be modded for clearance.
    They can be had from Ebay for $ 90 to $ 110 USD.

    • Like Like x 2
  2. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    Some Pics:
    2021 Trident, Sachs Shock.jpg

    20210417_150226.jpg 20210417_150443.jpg Sachs RTear Shock.jpg

    • Like Like x 6
  3. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    Blue spring was just for the initial fitment. .
    Red 750 Lb spring from Penske was the final choice.
    Had to go with a shorter spring to get the adjustment collars
    to the top of their adjustment for clearance inside the lower mounting cradle.
    Had to carve just a bit off the lower shock casting, as well.

    • Like Like x 2
    • Agree Agree x 1
  4. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA

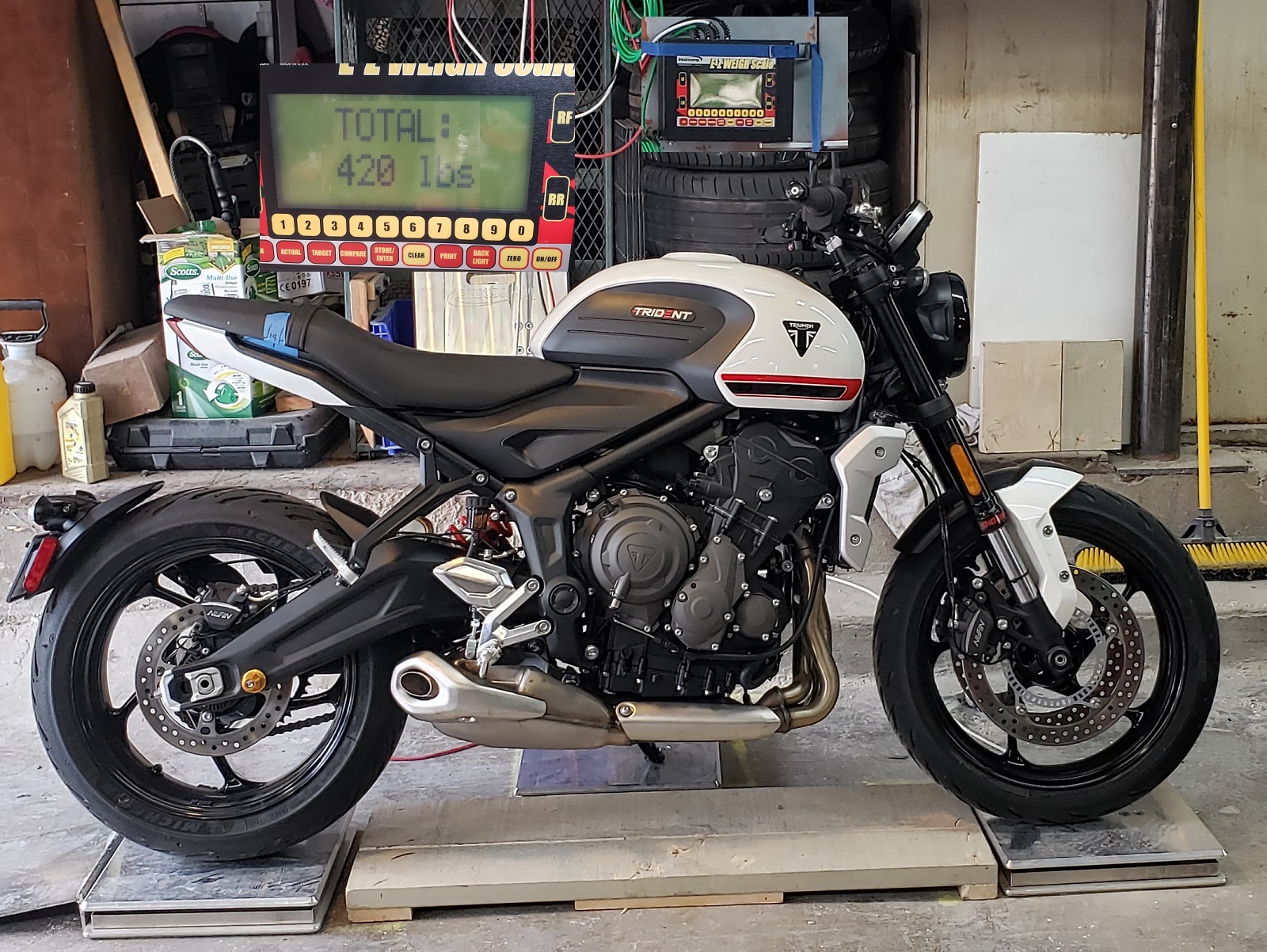

    Real weight with Lithium battery and full tank of gas.
    420 Lbs, Lithium Batt, Sachs Shock sz 1600.jpg

    • Like Like x 3
    • Informative Informative x 1
  5. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    #5 C. Dolan, Aug 20, 2021
    Last edited: Apr 19, 2022
    Other bikes that may be posted:
    2016 Daytona 675 with full Akra, BST wheels, and Lithium battery.
    2017 Thruxton
    2017 Bobber
    2018 765 Street triple
    2020 Daytona 765 LE
    2020 Speed Triple
    2020 Bud Ekins
    2020 Rocket 3
    2021 trident 660
    2021 Tiger 850
    2022 Tiger 660 Adventure Sport
    2022 Steve McQueen Scrambler.
    Coming: 2022 Speed Triple 1200 RR & 2023 Breightling Edition Bonneville

    • Like Like x 5
  6. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    19,503
    1,000
    Tucson Arizona
    What's the weight difference between the Lithium battery and the stock battery, C. Dolan??

    • Agree Agree x 1
  7. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    19,503
    1,000
    Tucson Arizona
    Yes, please! :):heart_eyes:

    • Agree Agree x 1
  8. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    4 to 6 Lbs , depending on what it is replacing.

    • Thanks Thanks x 1
    • Agree Agree x 1
  9. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,142
    1,000
    Rothwell
    I got the lithium battery for mine @Sandi T and it's incredibly light.
    It seems like its a fake when you take it out of the box as it's sooooo light.
    Definitely feel the difference too.
    I did get a lithium charger too (as recommended) but some say you can use a normal charger. I decided to not risk that.
    Recommend.

    • Like Like x 1
    • Useful Useful x 1
    • Agree Agree x 1
  10. joe mc donald

    Subscriber

    Dec 26, 2014
    13,705
    1,000
    slough / burnham
    C Dolan
    Should that not be a Trident 660.
    Joe.

  11. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    #11 C. Dolan, Aug 20, 2021
    Last edited: Feb 5, 2022
    Yeah, I get the numbers mixed up.
    Have an Aprilia RS 660 , as well.

    It hit 140 Mph after pipe and ECU flash.




    Aprilia 660.jpg

    • Like Like x 2
  12. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    #12 C. Dolan, Aug 20, 2021
    Last edited: Feb 5, 2022

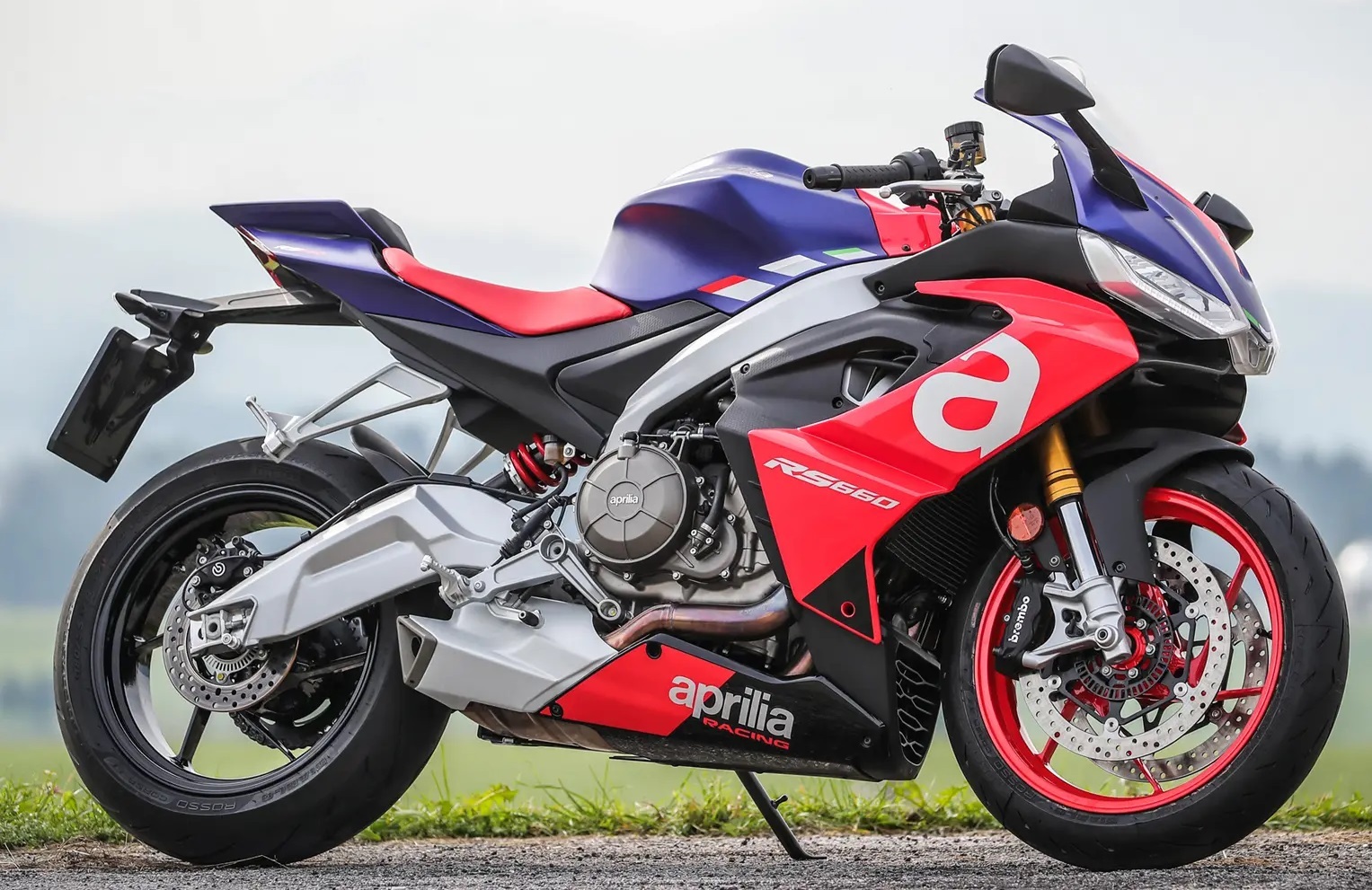

    Yeah, I get the numbers mixed up.
    Have an Aprilia RS 660 , as well.

    Aprilia 660.jpg

    With BST Wheels, Pipe, and Lithium Battery.

    • Like Like x 3
  13. joe mc donald

    Subscriber

    Dec 26, 2014
    13,705
    1,000
    slough / burnham
    C. Dolan.
    Great looking steed. Bet that makes the hairs on the back of your neck stand.
    Joe

    • Agree Agree x 1
  14. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    #14 C. Dolan, Aug 21, 2021
    Last edited: Feb 5, 2022
    But then there's this :


    Been trying to break 180 Mph on a nekkid bike. ( 2020 Kaw ZH2 ):imp:
    Missed it by that much. :weary_face:

    • Like Like x 2
  15. joe mc donald

    Subscriber

    Dec 26, 2014
    13,705
    1,000
    slough / burnham
    C Dolan
    Cool steed boy it makes the hairs on the back of my neck stand up. And i just watching you on the video.
    Joe.

  16. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    #16 C. Dolan, Sep 16, 2021
    Last edited: Apr 19, 2022
    Some minor mods to my 2022 Steve McQueen Scrambler.
    Had lowered it about 1 inch with softer rear springs and sliding the
    fork tubes up 1 inch.
    This made the bike a bit unstable with the original side stand, so got a shorter one from an XE model.
    The spring was the biggest challenge, McGyvered it.
    Spring was too hard to pull by hand, so more leverage used.

    20210911_154055 - Copy.jpg



    • Like Like x 2
  17. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA

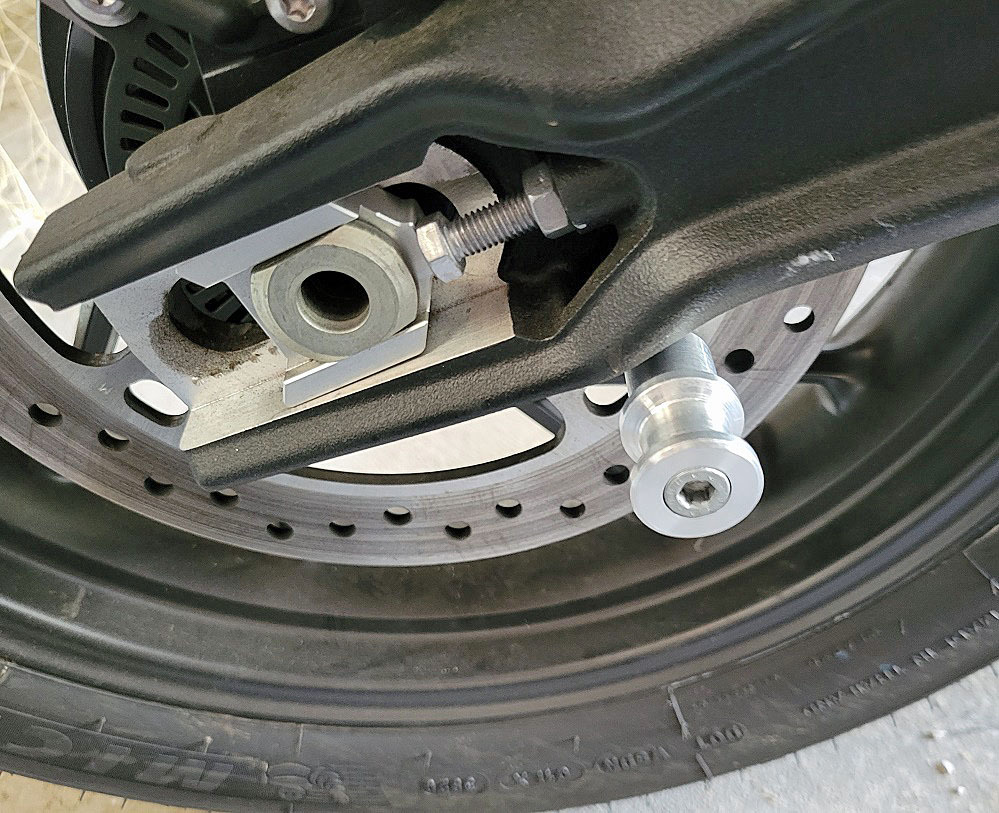

    Made some rear stand spools, which had to be extra long due to
    the thread being so far inside.



    • Like Like x 1
    • Useful Useful x 1
  18. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    The rear shocks were lowered by using softer springs.
    They were the shorter ones as each shock has 2 springs.
    They were a sloppy fit , having 3 mm clearance on the ID at 1 end.
    Made some insert / collars since I hate sloppy fits.

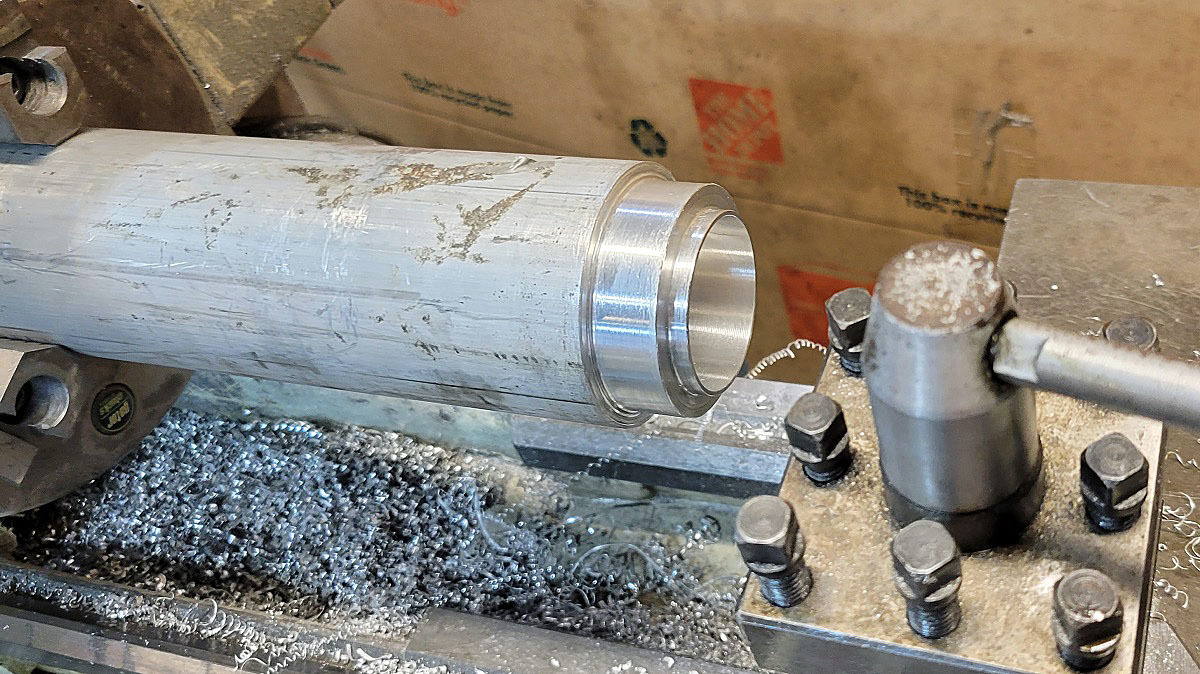

    On The Lathe.jpg

    Pile of Parts.jpg

    Installed Shim.jpg

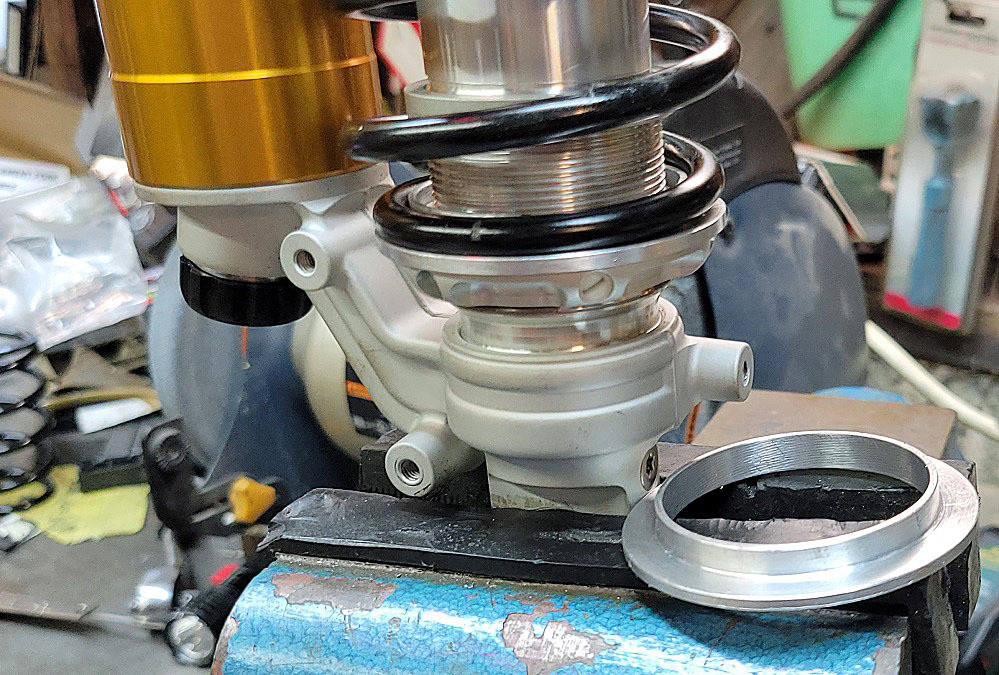

    1 In, 1 to Go.jpg

    • Like Like x 2
  19. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    #19 C. Dolan, Sep 16, 2021
    Last edited: Feb 5, 2022
    Next project will be a 2017 bobber.
    Seat was hard as a brick and the rear shock too harsh.
    Ordered a more padded seat and an Ohlins rear shock.
    Front suspensions seem ok.
    Update : rear shock replaced.

    • Like Like x 3
  20. C. Dolan

    C. Dolan Member

    Aug 11, 2021
    73
    18
    San Diego, Ca USA
    #20 C. Dolan, Sep 16, 2021
    Last edited: Jul 3, 2022
    Just got this 850 Tiger Scrambler a couple of weeks ago.
    No mods planned at this time, but it did come with a slip on can.

    7-2-2022: Traded in for a 2022 Tiger 900 Rally.
    900 Rally has 21 inch front wheel and linked rear shock instead of direct shock like 850.
    Makes it easier to lower as shown in later posting.

    476 Lb with Slip On.jpg

    Just a few miles on the tire, but got " all of it " and a bit of the peg feeler.



    • Like Like x 3
