Chain Rust - Bike On The Street All Year Round...

Discussion in 'Technical Help' started by Alex516, Mar 6, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Alex516

    Alex516 New Member

    Nov 28, 2019
    20
    3
    Peterborough
    Sadly I've probably wire brushed it lots of times didn't occur that the chain was coated. Like the bike cover but as always if you're renting then it's hard enough to get somewhere to park the bike on the street let alone put a big cover on it. I did look to see if there is a "chain cover" like on a bicyle a sleeve but don't exist. Could make one up myeslf so that's a n idea. Gonna go with a wipe down and bitta extra lube when taken her through salty, rainy roads ! Thanks

    • Like Like x 1
  2. NicholasK

    NicholasK New Member

    Feb 4, 2023
    4
    3
    London

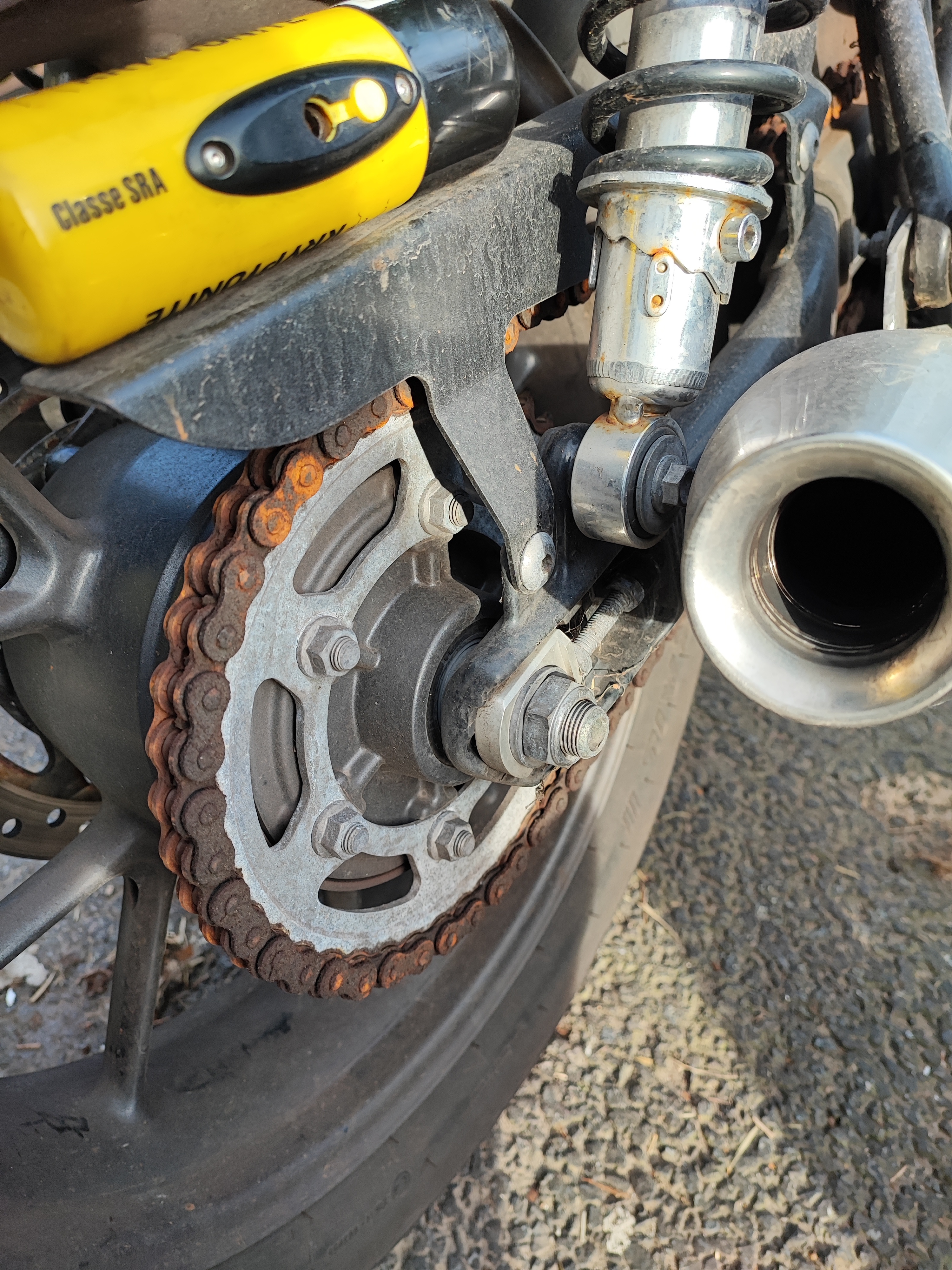

    My turn to ask a chain lubing question. I am parking my bike outside on the street. I hadn't used the bike for a month and of course this happened. See attached pic from yesterday.

    Rusty chain and rust gathering on some parts. Never lubed / greased / cleaned the chain. Could I please ask how do I fix it? Also, how do I clean the rest of the parts showing in the pic as gathering rust?

    rusty chain.jpg

    • Like Like x 1
  3. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    2,938
    800
    Yorkshire
    IMO, that chain is beyond help. You could lube it up with gear oil but the O rings (it looks like an O ring chain) have probably suffered and removing the rust mechanically, with a wire brush for instance, will damage them further. Rust on the side plates merely looks bad, it's the rust on the rollers and pins that kills a chain. Give the bike a good clean and then use something like ACF 50 or XP90 sparingly to avoid further corrosion, just keep it away from the brakes and tyres.

    • Like Like x 1
    • Thanks Thanks x 1
    • Agree Agree x 1
  4. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,108
    243
    appalachia usa
    ^^^yes.

    any oil, any grease, anything is better than nothing. but there are proprietary spray-on chain lubes that soak in and will stick to a moving chain better than just plain oil or grease. check at a bike shop and ask what they recommend.

    best to lube the chain when warm, after a ride or after you wash the machine, but if the chain looks dry at any time, it needs to be lubricated.

    an occasional wipe down with a slightly oily rag will also help to keep the rest of the exposed metal from rusting. a loose fitting cover that allows air circulation will keep off the rain and snow.

    • Like Like x 1
    • Thanks Thanks x 1
  5. sprintdave

    sprintdave Nurse,he's out of bed again

    May 25, 2014
    1,491
    750
    Birmingham
    The poor bike looks like nobody loves it. The chain is in awful condition, can't believe anyone would let it get so dry that rust forms. I would say the chain is scrap, no matter how much you oil it there could be tight links or general damage that could be dangerous and/or costly.
    You can clean the rust from suspension etc with chrome cleaner or even wd40 and some good rubbing, then spray with something like ACF 50 to protect. all the metal parts from rust.
    I am also assuming the bike was not covered fully. Neglect will kill the bike.

    • Like Like x 1
    • Thanks Thanks x 1
  6. Geoff Butler

    Geoff Butler Never too old for Biking!
    Subscriber

    Apr 5, 2021
    622
    143
    Hampshire & Powys
    Poor chain :worried:

    I would personally replace the chain because it looks too far gone in the photo. However, it could be superficial and be cleaned up and lubed without any issues. Have you considered taking it off for a thorough clean and bath?

    The other superficial rust marks on the shocks should hopefully come off with some Autosol metal polish.

    • Thanks Thanks x 1
    • Agree Agree x 1
  7. Notso

    Notso Senior Member

    Dec 17, 2018
    624
    243
    Solihull
    If you live somewhere where the roads are salted in winter then don't do what I did and be lured into thinking that the salt won't be a problem if it is a dry day. The dry salt on the road will end up on your bike and will be moistened by condensation over night creating a super concentrated chlorine solution. I had a problem with my headers due to this, obviously the heat burnt off any ACF50 in that area. I cleaned them off and then put ceramic grease on to try and protect the metal a bit.

    • Useful Useful x 2
    • Like Like x 1
    • Thanks Thanks x 1
  8. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,211
    1,000
    North Yorkshire
    Bike needs a bloody good wash and then treating with ACF50 or similar, like Scotoiler FS365 or even WD40. Check YouTube if you're unfamiliar with them, there'll be a bloke somewhere testing products.

    Chrome cleaner or polish will sort out the shock - kitchen foil rubbed on the part and water is an excellent and cheap rust remover.

    Replace the chain, looks too far gone, then regularly clean, adjust and lube the new one. Bikes don't look after themselves :cool:

    • Like Like x 2
    • Useful Useful x 2
    • Thanks Thanks x 1
  9. Baza

    Baza Elite Member

    Jul 25, 2020
    2,564
    750
    Home of Amazing Grace
    #49 Baza, Feb 7, 2023
    Last edited: Feb 7, 2023
    The important lubricant on a chain is already locked in by the O or X rings so all the lube you put on a chain is mainly about cosmetics, preventing flash rusting and cleanliness. Regular WD40 cleaning followed by an anti fling treatment that could be gear oil or one of the proprietary chain lubes.

    I would bin the chain in the photo above. It should never have been allowed to get in that state in the first place.

    • Agree Agree x 2
    • Thanks Thanks x 1
  10. Tom Swift

    Tom Swift Active Member

    Sep 24, 2021
    140
    43
    USA
    The rollers still need to be kept lubed or they'll seize on their bushings. The seals are only for keeping the factory lube between the bushings and the pins.

    • Thanks Thanks x 1
  11. Baza

    Baza Elite Member

    Jul 25, 2020
    2,564
    750
    Home of Amazing Grace
    Agreed. I did say important lubrication. The rollers are there entirely for chain/sprocket contact and play no part in the articulation between inner and outer links.

    • Thanks Thanks x 1
  12. capt

    capt Elite Member

    May 8, 2016
    3,052
    750
    western Australia
    Chain look's fine ! If that's only surface rust !! The important area's are inside the tube's between the plates! If those pin's rust then wear becomes rapid !! Give it a good lube , ride it for at least half an hour, longer is better... Relube after the ride ... Check for hard and fast kinks in the chain regularly from now on ! If just one link becomes really stiff .. then the chain is naff ! One buggered link means more are likely to follow soon.
    42 yrs riding nine bike's from new ! And close to a Million km on the road , I average 50/60 thousand per chain .. ride until they die (chain that is ) best mileage ~76,000

    • Thanks Thanks x 1
  13. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    2,938
    800
    Yorkshire
    #53 Pegscraper, Feb 9, 2023
    Last edited: Feb 9, 2023
    It looks like the inner plates have rusted down to the O rings which won't do them any good when they start moving. I've had 15 road bikes from new and looking back I never kept any of them long enough renew a chain with the exception of the current ZZR which reached it"s wear limit at just over 30k despite good maintenance and continual (auto chain luber) from new. Heavy bikes like that with big power and torque are hard on chains and they're flippin' expensive! The only things harder are dirt bikes, even a good O ring chain is knackered after 2-3K.

    Edit....just remebered I had to change the chain on a new 1000RX in '86 after around 3k as one of the links was shot. The O rings had gone and the side plates had been splayed apart slightly. The dealer reckoned something, possibly a small stone, had been forced through between the links while riding as the rest of the chain was perfect. "Not covered by warranty Sir I'm afraid" Feck!! :mad:

    • Thanks Thanks x 1
  14. NicholasK

    NicholasK New Member

    Feb 4, 2023
    4
    3
    London
    A big thank you to everyone in here who set me on the right path.

    I got down to business on the chain on Saturday. Washed her, applied a chain cleaner (oxford mint), quite a bit of my elbow grease and finally anti-corrosion spray (tech cote TC200). Please see photo for before / after. I applied a chain lube today.

    Is this in a state ok to keep or should I still replace it?


    rusty chain.jpg

  15. NicholasK

    NicholasK New Member

    Feb 4, 2023
    4
    3
    London
    I am following up with more here, as I think it's relevant (problems caused by the bike standing outdoors in winter in London)

    I notice there is rust developing everywhere on the bike. Please see attached pics.

    Is it possible to treat the rust to remove it from al these points? It has been suggested that I use kitchen foil / wire sponge to remove the rust from chrome. But I can only reach certain parts in this way.

    Separately, there are all these bolts that are located next to plastic/metal that gets scratched as a side effect when one starts treating the bolts in this way.

    What do I do with those rusting elements next to the brakes?






  16. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    2,938
    800
    Yorkshire
    As far as the chain goes, it does look a lot better. Check each link for any stiffness or any loose side to side play (not as long a job as it sounds). Then check it for "stretch" against the wear limit which should be in the owner's manual.
    The finish on bolts and fasteners on most bikes is notoriously poor quality and corrodes if there's a R in the month. I usually take bolts/nuts off one by one if cleaning them up risks damage to other components. Personally I wouldn't use anything more abrasive than Solvol Autosol on chrome to remove minor rust.

  17. Notso

    Notso Senior Member

    Dec 17, 2018
    624
    243
    Solihull
    I would be getting a brass brush on some of those parts, followed by some ACF50. The chain and other parts still look 'dry' to me, especially after your experience, I'd want to see the layer protecting it.

  18. Baza

    Baza Elite Member

    Jul 25, 2020
    2,564
    750
    Home of Amazing Grace
    To do it properly you need to take it to bits in order to thoroughly clean each component without damage to adjacent parts.
    If your budget will stretch to it I would replace the chain and probably both sprockets.

    • Like Like x 1
