Chain Adjuster Rubbing

Discussion in 'Technical Help' started by Joeross9, Sep 1, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
Page 1 of 2
  1. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #1 Joeross9, Sep 1, 2018

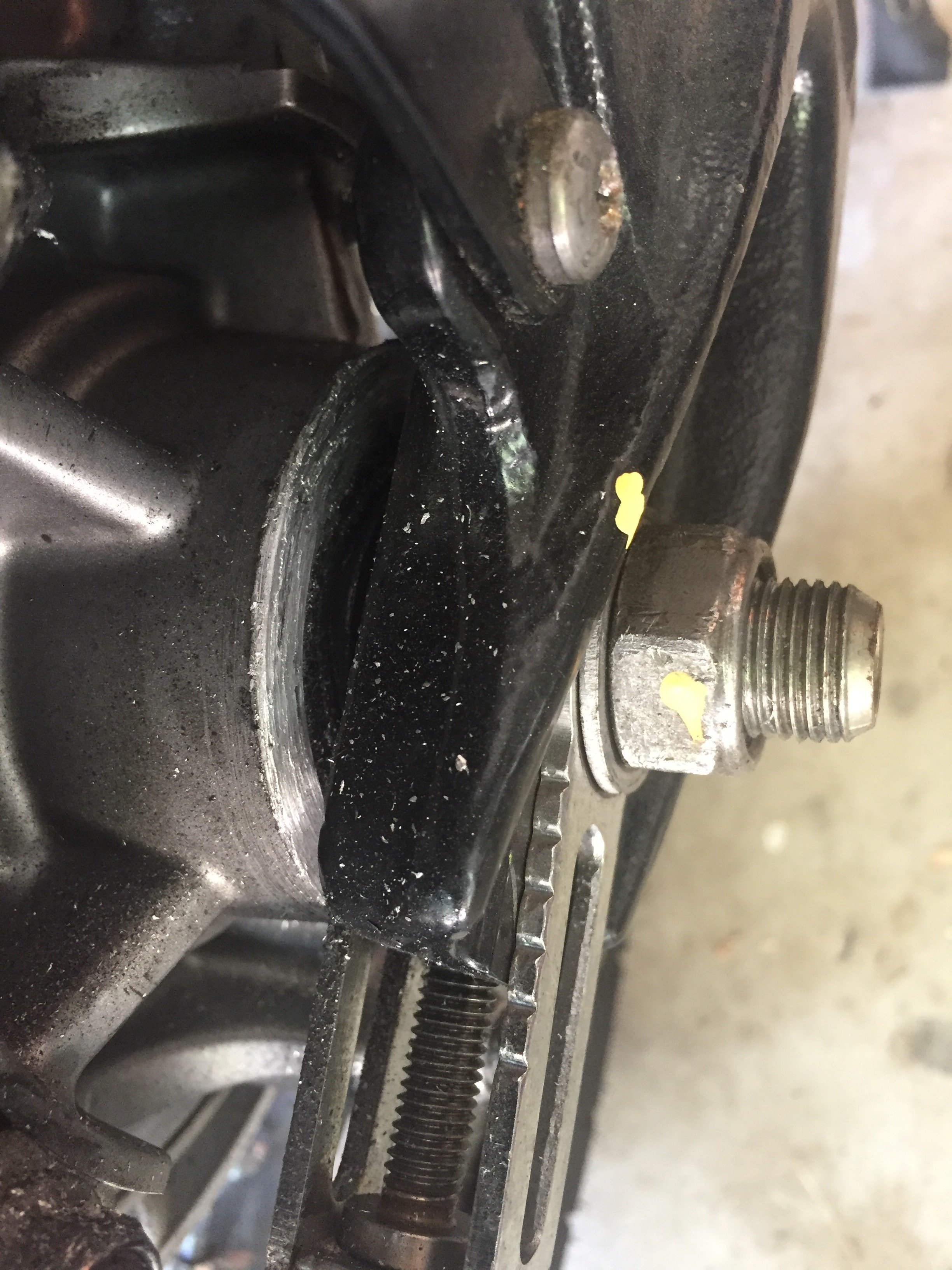

    I just bought a 2009 T100 and after adjusting the chain I noticed that the chain adjuster was rubbing. See picture below. Has anyone experienced that? Could it be due to overtorquing axle nut? Or is there perhaps something bent or something assembled incorrectly in rear axle?


  2. Richard Neale

    Richard Neale Active Member

    Apr 20, 2018
    156
    43
    Northwich
    #2 Richard Neale, Sep 1, 2018
    Something seriously wrong there mate. Best get bearings and wheel spacers etc checked out. Is there play on the wheel ?

  3. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    #3 Callumity, Sep 1, 2018
    Rubbing? The adjuster is completely misaligned - it should be pointing back at 9 o’clock not dangling at 7 p.m. Has it popped out of the hole?

    • Agree Agree x 4
  4. thebiglad

    thebiglad Old fart, still riding !

    Sep 25, 2013
    5,064
    1,000
    Central France
    #4 thebiglad, Sep 1, 2018
    It looks to me like there is a spacer missing, between the swing arm and the wheel bearing.

    • Agree Agree x 2
  5. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    #5 Yorkshireman, Sep 1, 2018
    Yes it is, I think biglad has it spot on.

    • Agree Agree x 1
  6. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    #6 Yorkshireman, Sep 1, 2018
    Had a similar experience a few years back with a VFR750 FJ. One of the bolts holding the rear sprocket on worked its way out and was happily milling a groove in the swingarm as the wheel rotated. It got almost halfway through by the time I’d got to my destination and spotted all the ally shavings. If it had been a longer ride the swingarm would have been cut right through o_O

  7. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #7 Joeross9, Sep 1, 2018
    Thanks, all. Yeah. Need to take it all apart and see whats what...

  8. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    #8 Callumity, Sep 1, 2018
    A missing spacer would explain the wheel binding as it will cause the free outer bearing ring to grind on the adjuster. More than that, I have just checked my bike. You have WAY too many threads showing through the nut which suggests a missing spacer and a swing arm being compressed to compensate.....

  9. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #9 Joeross9, Sep 1, 2018
    Found some seriously bad stuff. Bearing crushed. See pic. At this point, I think I better get service manual, better tools and replace all internal parts. Axle bolt seems fine...
    Thought I was getting a bike that I could just ride without major work, but no such luck...


  10. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #10 Joeross9, Sep 1, 2018
    What’s the best place to order parts from in the US? Bike bandit?

  11. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #11 Joeross9, Sep 1, 2018
    Thanks. Hope so...

    • Like Like x 1
  12. BigCLM

    BigCLM Senior Member

    Nov 30, 2017
    1,017
    243
    San Rafael, CA
    #12 BigCLM, Sep 2, 2018
  13. BigCLM

    BigCLM Senior Member

    Nov 30, 2017
    1,017
    243
    San Rafael, CA
    #13 BigCLM, Sep 2, 2018
    Also Haynes makes a good shop manual for your bike. Can order on line. I have one for my 2018 Street Twin. Its quite good.

  14. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #14 Joeross9, Sep 2, 2018
    Thanks. Also for the pointer to triumphestore.

    I tried the triumph company site but couldn’t navigate it to find parts I need.

  15. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    #15 Yorkshireman, Sep 2, 2018
    Looking at that bearing I wonder if the centre space bar is missing (between the two wheel bearings) was the outer spacer in place on the right?

  16. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,198
    1,000
    Uk
    #16 crispey, Sep 2, 2018
    Here’s a link to the assembly
    See what part might be missing

    • Like Like x 1
  17. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #17 Joeross9, Sep 2, 2018
    The wheel bearings and space bar between actually seem ok. That would explain why no wobble in the wheel, and why the bike was rideable at all.

    It's just the stuff inside the sprocket assembly and spacer (item 21 in the parts picture) that seem messed up. The spacer doesn't look like the picture. Maybe it's been ground down by the broken bearing, or maybe it was the wrong part. I assume that the sprocket assembly and rubber cushion drive go between the spacer 21 and wheel bearing oil seal (4) in the picture. Is that right?

  18. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #18 Joeross9, Sep 2, 2018
  19. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #19 Joeross9, Sep 2, 2018
  20. Joeross9

    Joeross9 Well-Known Member

    Aug 31, 2018
    27
    68
    Texas
    #20 Joeross9, Sep 2, 2018
    Sorry, the picture just makes it look like that. It does point back at 9 o'clock, but I took the picture with my phone from above and behind.
