Case Guards, Engine Guards, Crash Bars, Etc.

Discussion in 'Bonneville' started by Traveler, Jul 1, 2023.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Traveler

    Traveler Well-Known Member

    Jun 21, 2023
    119
    93
    Helena, Alabama
    Does there seem to be a preferred brand for these on a Bonnie T120?

  2. jdwalmsley

    jdwalmsley Well-Known Member

    Apr 30, 2021
    52
    63
    british columbia
    Installed GIVI engine guards on the T120 Ace last year.
    Installation was pretty simple, attachment was to the upper and lower engine mount bolts (n55 Torx).
    Only challenge was to access the nuts on the inside of the bolts, especially the upper ones, more particularly the left side behind the horn. Some install videos suggested that the easiest way was to remove the tank, but we found that a short stubby open end 17mm wrench could squeeze into the space and hold the nut. Needed someone to hold the wrench from the opposite side due to limited work space.
    I think the end result is pretty good, these bars are unobtrusive and fit with the bike profile better than others that protrude more. Looks like they will protect the vital parts in a drop, but don't really want to test the theory.
    Bought from GP Bikes (Canada), cost about $135 at the time.
    Pics...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    • Like Like x 2
  3. Traveler

    Traveler Well-Known Member

    Jun 21, 2023
    119
    93
    Helena, Alabama
    Thank you. That's about what I think I want.

  4. Woodtickgreg

    Woodtickgreg Well-Known Member

    Dec 23, 2022
    239
    93
    Eastpointe, Michigan
    I insqtalled some motone Craig bars on mine.
    Here's what was involved.

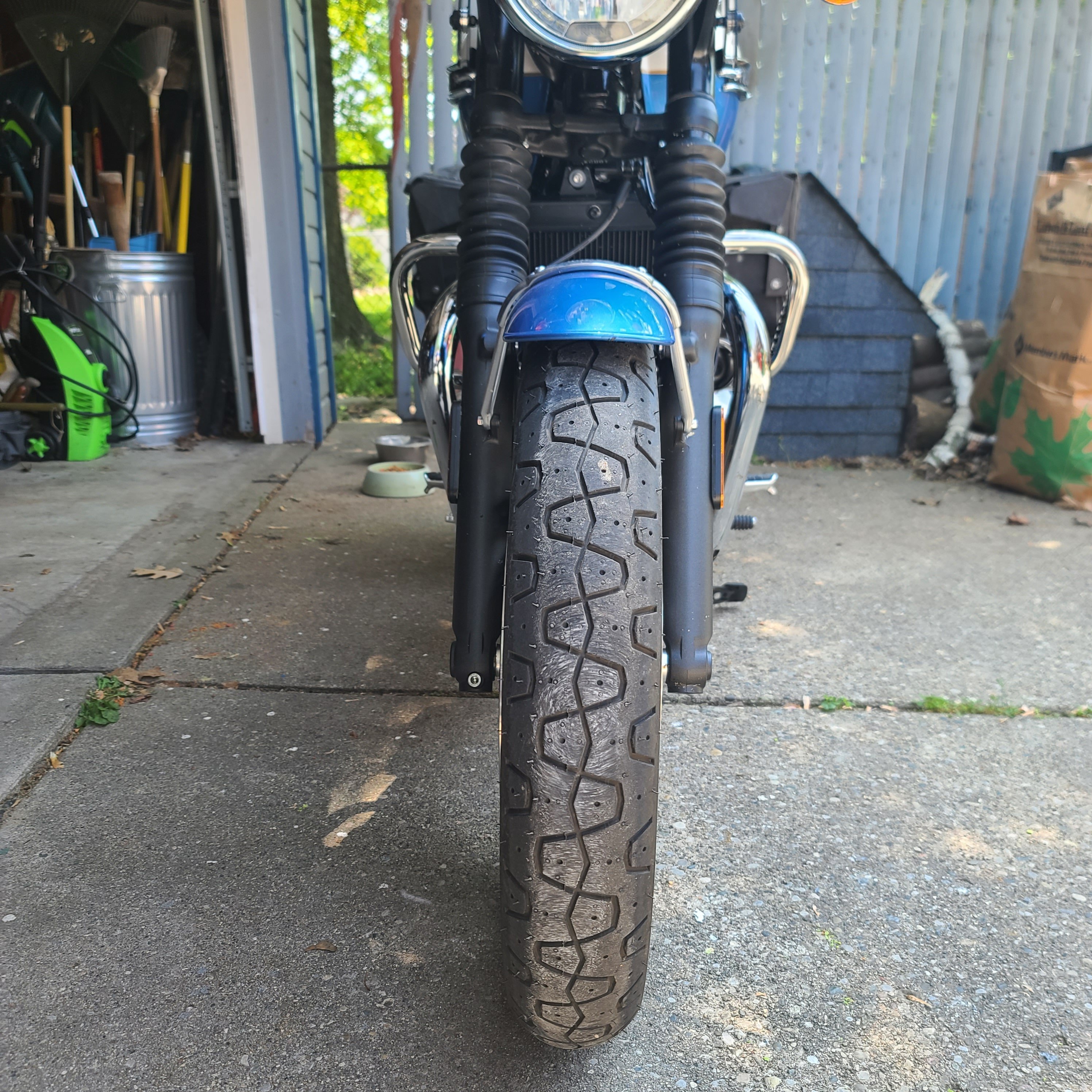

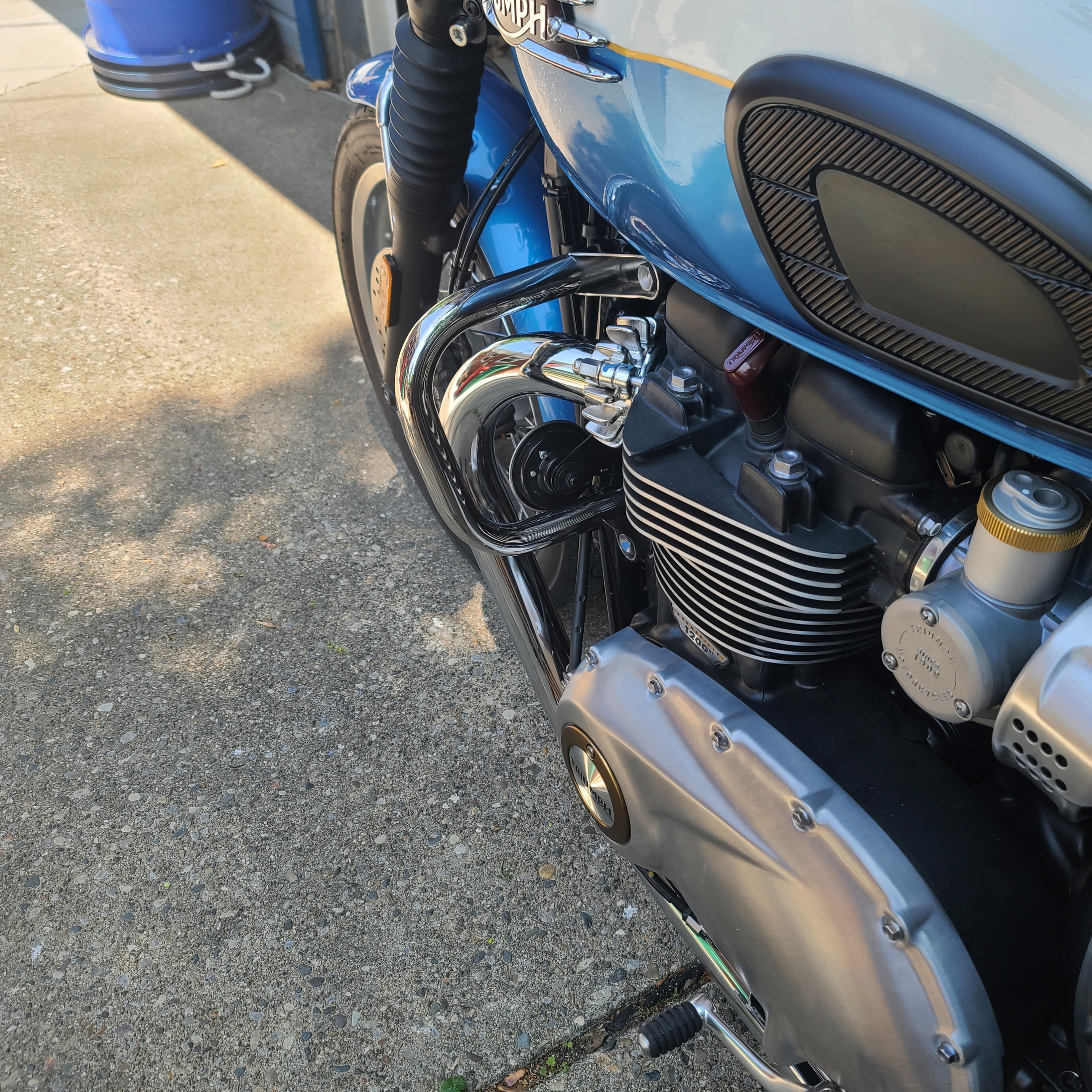

    20230529_140732.jpg 20230529_140743.jpg


  5. Traveler

    Traveler Well-Known Member

    Jun 21, 2023
    119
    93
    Helena, Alabama
    Thank you!:cool:

    • Like Like x 1
