    Greetings,
    I want to hook battery tender leads to my bike so that I can plug in whenever I want to and not remove the battery. Also so that I have a 12v power source if needed. My old bike had spare terminals (posts) in the fuse box to hook up to, I don't see these on the Bonneville Speedmaster. This bike by the way is set up basically like the bobber.
    Is there a way to hook up tender leads without going straight to the battery terminals?

    Thanks in advance
    Bron

    • Like Like x 1
  2. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    7,619
    1,000
    New Zealand
    #2 Dartplayer, Mar 17, 2020

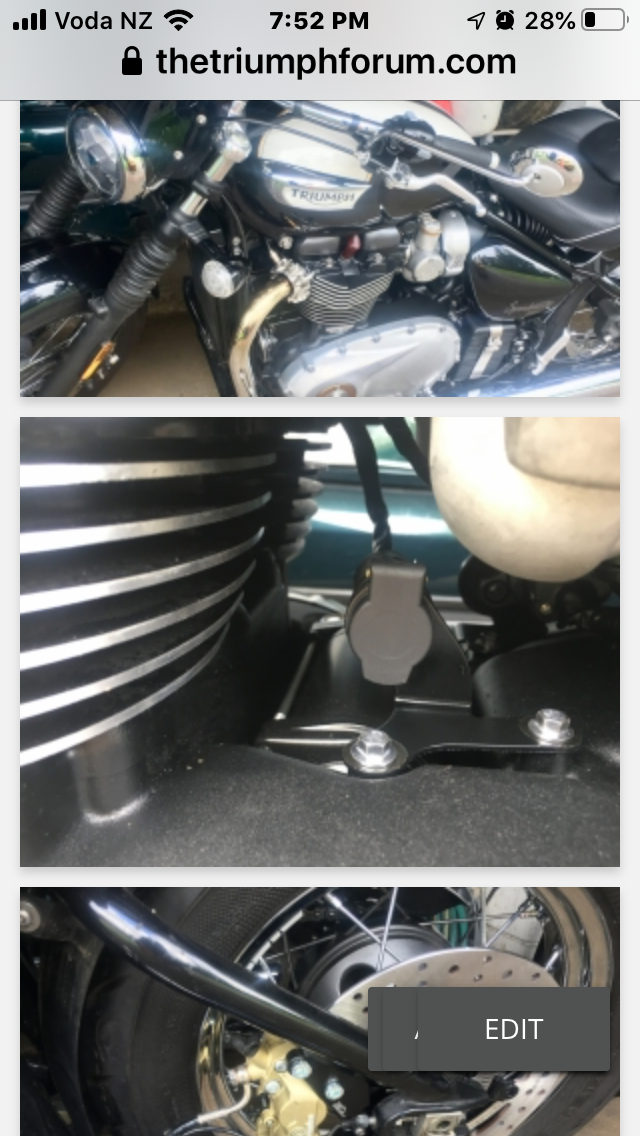

    Hi Bron, I had to hardwire to the battery and hang the plug down the blank on the left side.
    Does get dirty in winter but cap seals it ok.
    I have installed the assessories plug that you could rig up to charge with the bin plug??


    • Like Like x 2
  3. Traveller

    Traveller Active Member

    Mar 16, 2020
    85
    28
    New Jersey
    #3 Traveller, Mar 17, 2020
    Thank You, great idea.

  4. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,511
    800
    California - USA
    #4 Wire-Wheels, Mar 18, 2020
    Last edited: Mar 18, 2020
    I also keep a long pair of leads for mine with battery clips on one end, and the charging connection on the other in my tank bag when I am out and away. Long enough to get a jump off a car if my battery is dead or to jump a friends bike. Just watch the polarity if you make one of these up. Mine has a 15 amp fuse inline and is 14gauge wire. ...J.D.

    • Like Like x 1
    • Useful Useful x 1
  5. mjsdouble

    mjsdouble New Member

    Mar 21, 2021
    13
    3
    SoCal
    #5 mjsdouble, Mar 21, 2021
    We attached a battery tender directly to my Son’s Speedmaster. GL

  6. 45Brit2017

    45Brit2017 Well-Known Member

    May 30, 2017
    146
    93
    UK
    #6 45Brit2017, Mar 21, 2021
    I’ve fitted a tender cable to my T100. I bought a cable on eBay, fitted one end to the bike with the trailing end tucked into the saddlebag.
