Back light

So , what is and isn't happening. I think we're getting close. I hope.
Andy ​



Everything looks good checks good position 2 gives me front light no back position 3 little bulb and back light on put it all back together moving to something stronger than tea



So position 3 works front side light and back light good.
Normal running position 2 give main head light but no front side light or back light.
Is this correct?
From the top of my head I'm think ignition switch or plug. I'll look at the drawing later and post again.
Andy



Yes that's right



Hey been to someones house a mate of a mate he's let me loose with a workshop manual I wasn't told he had page 16.61 position 3 lights up 7rear light and 8 front position light position 2 Speedo and fuel tank console also headlight. Yip yippee that's what I have. Why have I thought rear light came on in position 2 doooo.



So has our long distance relationship worked out in the end ..
Andy



Yep cracking I owe you a couple of pints you have been brill many thanks

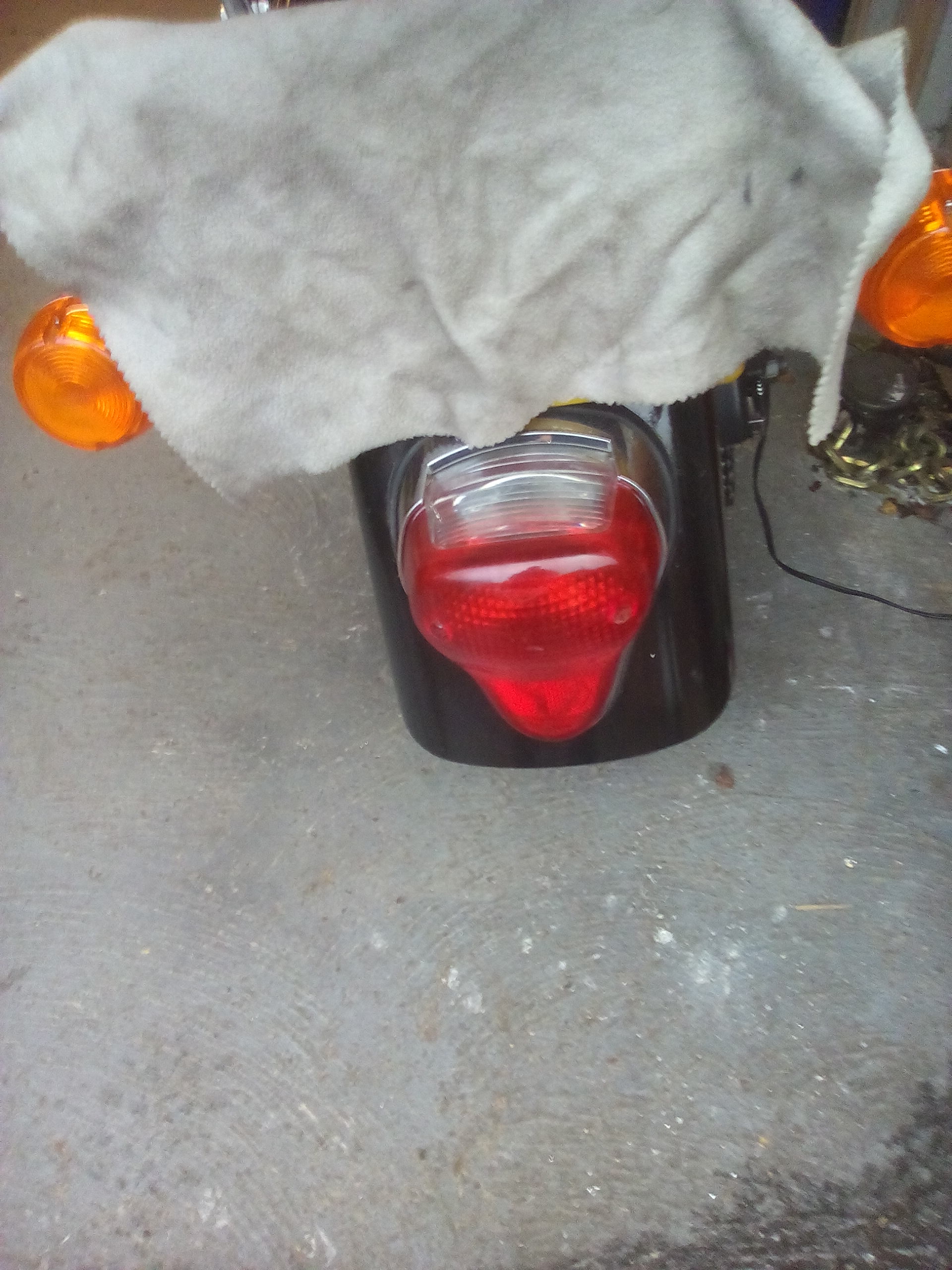

Upya here's a photo of mended back light no dangly bits, and the bike it's on
