Another T595 Project In The Mix.

Discussion in 'Daytona' started by Exuptoy, Oct 13, 2023.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales

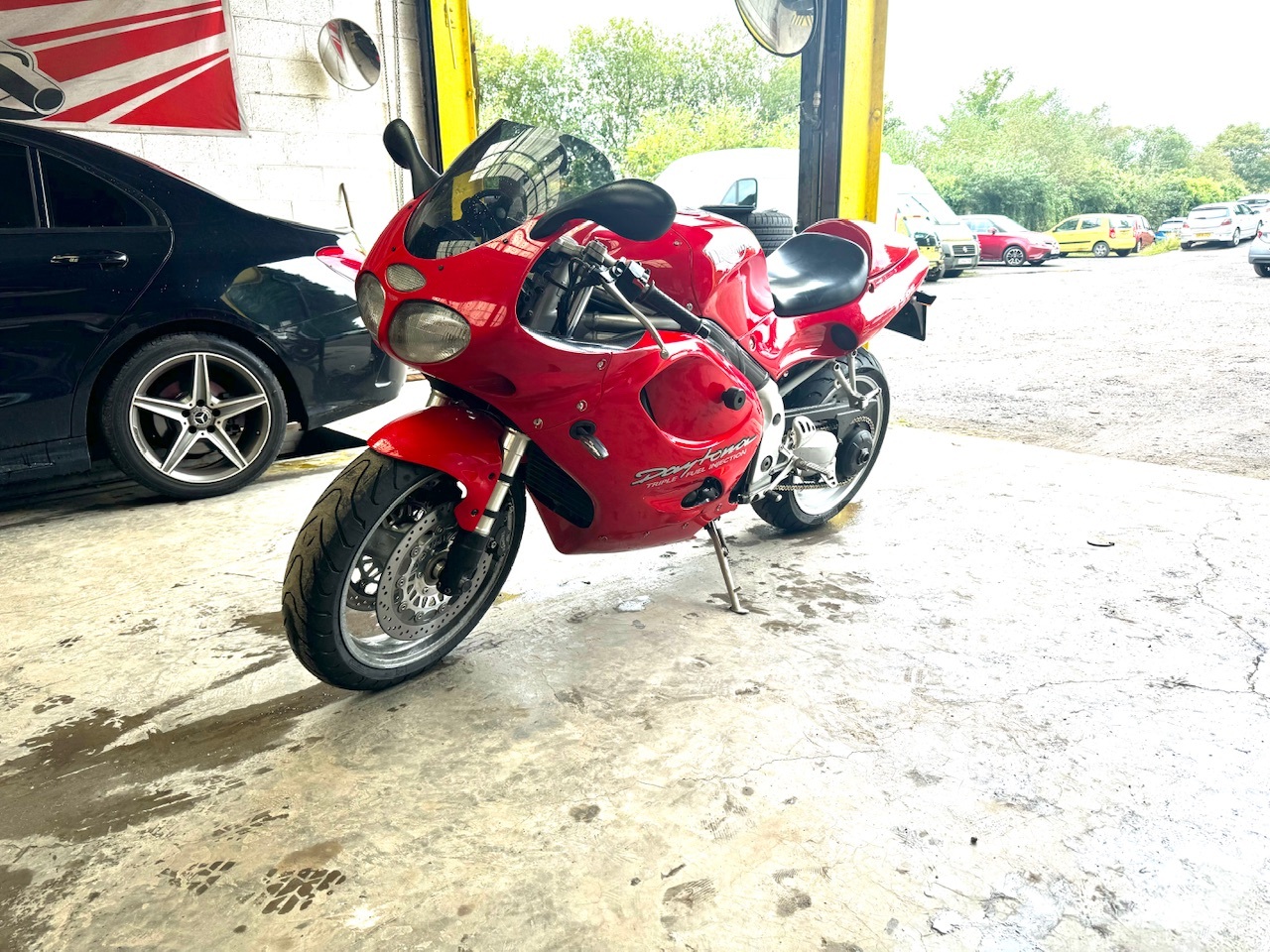

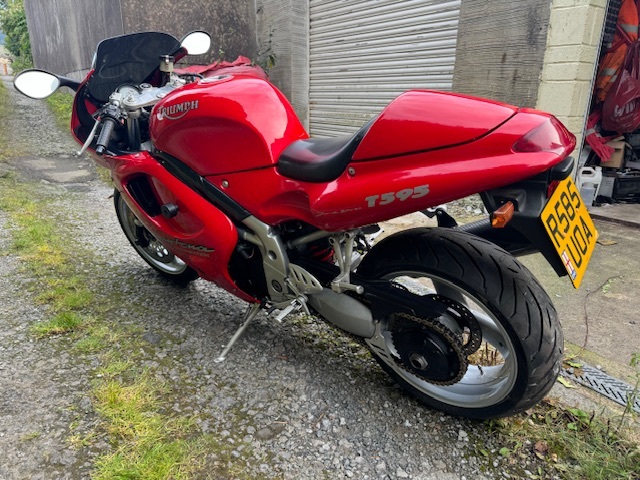

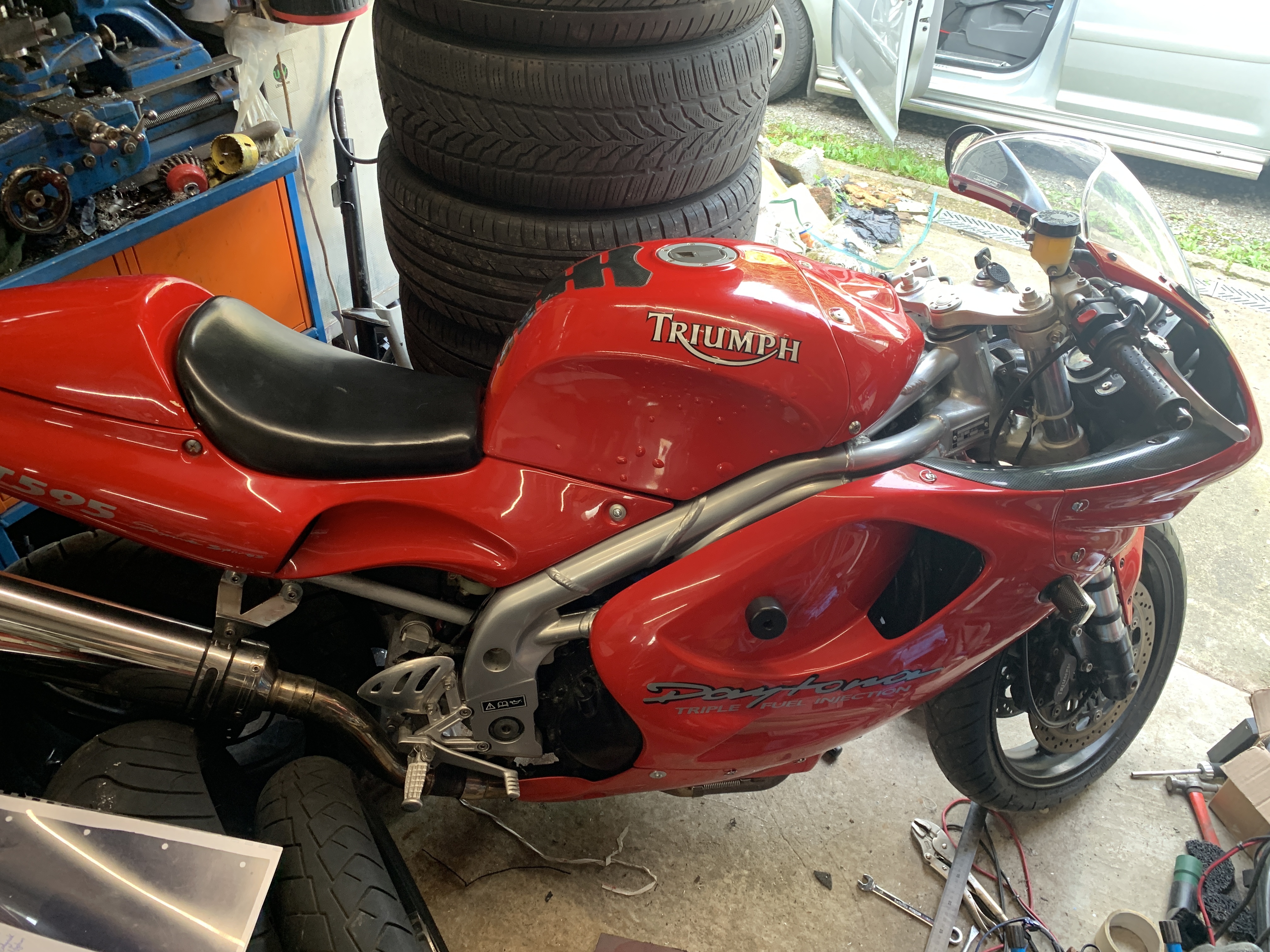

    EDE2AC14-B4F7-49B8-9CDD-1572F5228FDD.jpeg Just taken ownership of another T595. Bought on eBay for a ridiculously cheap price. Non runner, but I have the bits on mine to try the obvious usual suspects. Not run since purchased in 2018, but it’s all there. Tank looks full of bubbles, usual fare, generally clean and presentable.

    • Like Like x 3
  2. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales
    So, put a battery on this and even with 6yo fuel it fired right up. Slight popping, black smoke on a hard throttle, bit rich on idle suggests remap for HL can.

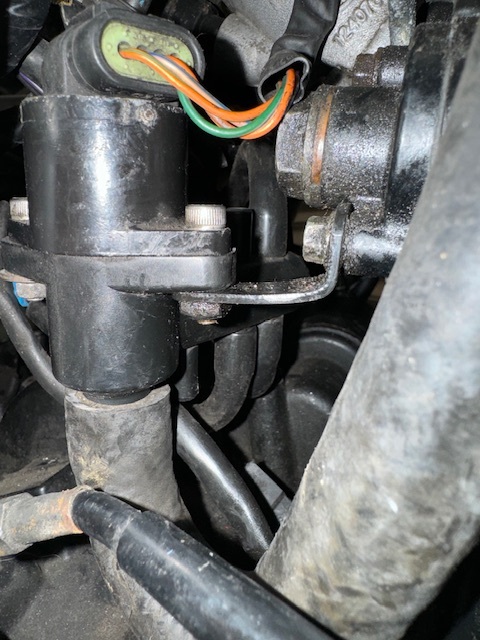

    Took off the tank, removed IACV, replaced hoses with silicone then refitted. Airbox had a big crack around it, so repaired with glue and plastic welding but ideally could do with another airbox.




    • Like Like x 3
  3. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales

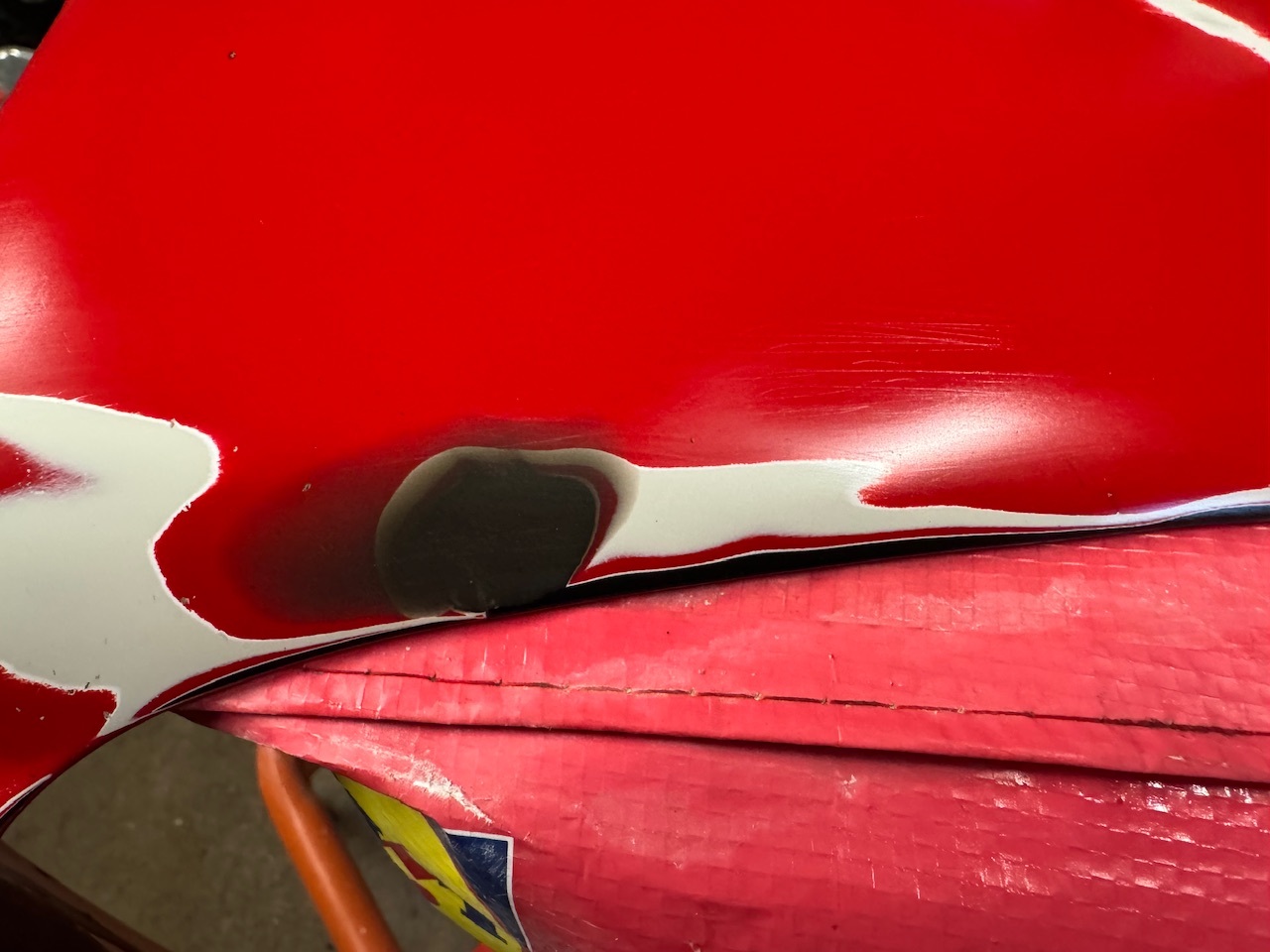

    Got the bodywork off, tank badly affected by ethanol, cracked top fairing and small hole in bellypan so currently repairing them before my mate paints them.









    • Like Like x 3
  4. Markus

    Markus Crème de la Crème
    Subscriber

    Oct 28, 2020
    2,902
    1,000
    AUSTRIA
    @Exuptoy: It looks like enough work to do. I wish you all the best for your project.;)

    • Agree Agree x 1
  5. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales
    Cheers buddy.
    Got a bit more done tonight. Still not there but closer to paint.





    • Like Like x 3
  6. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales

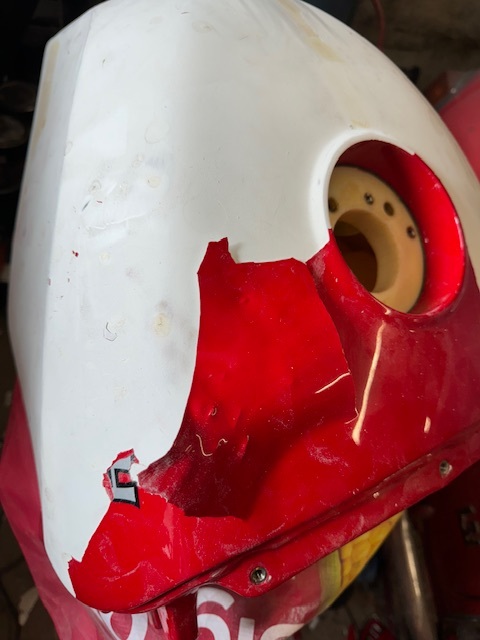

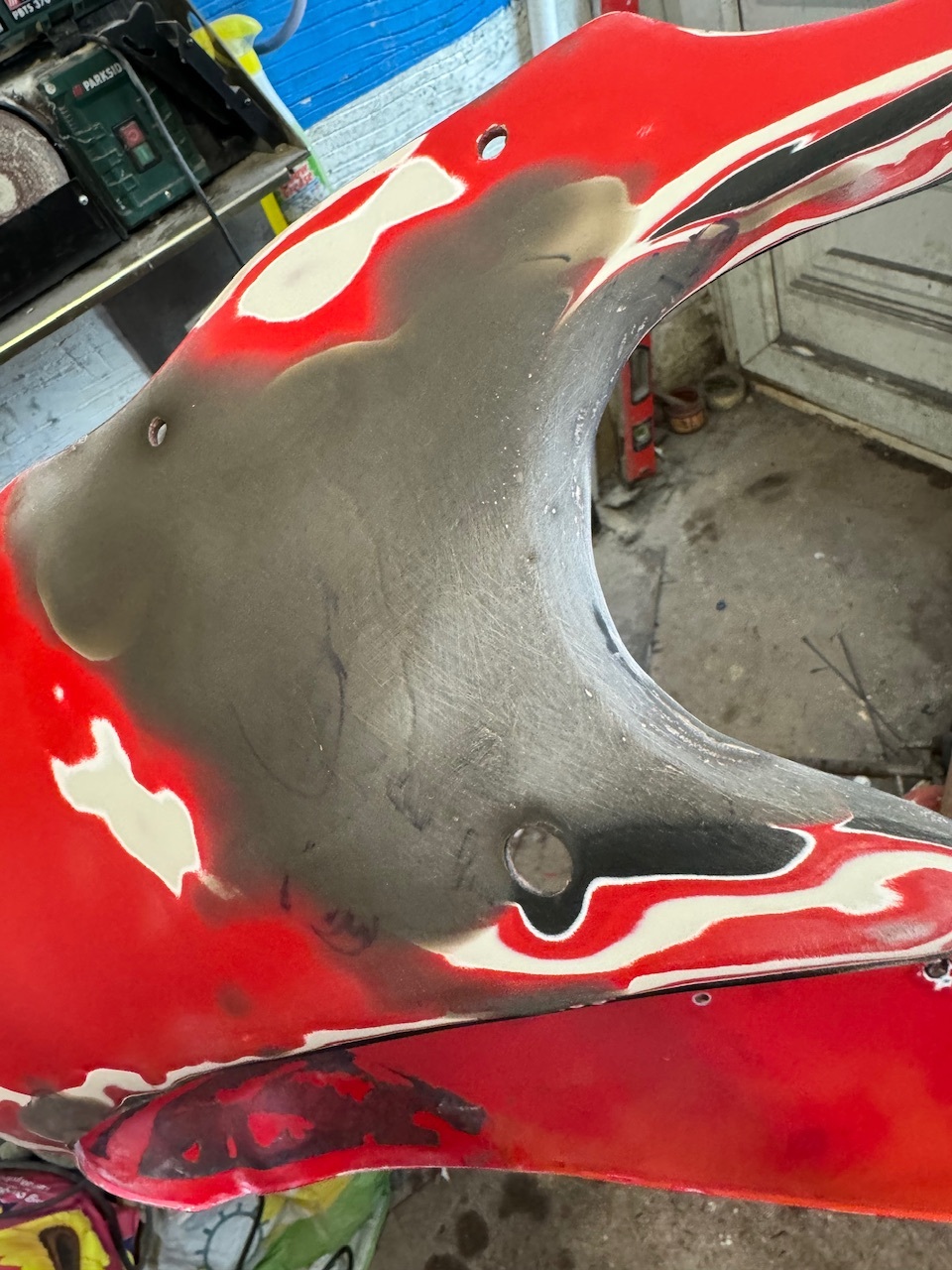

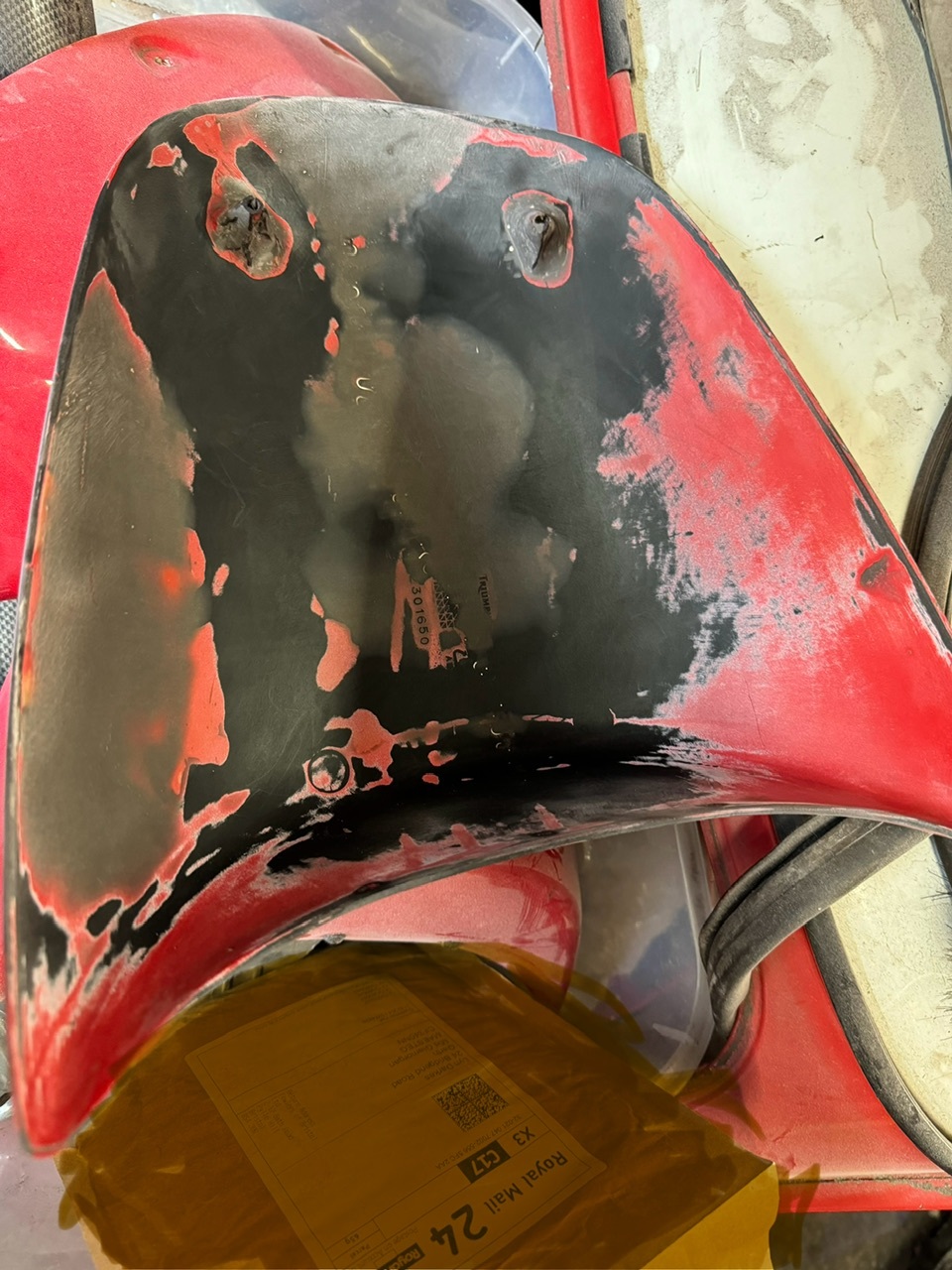

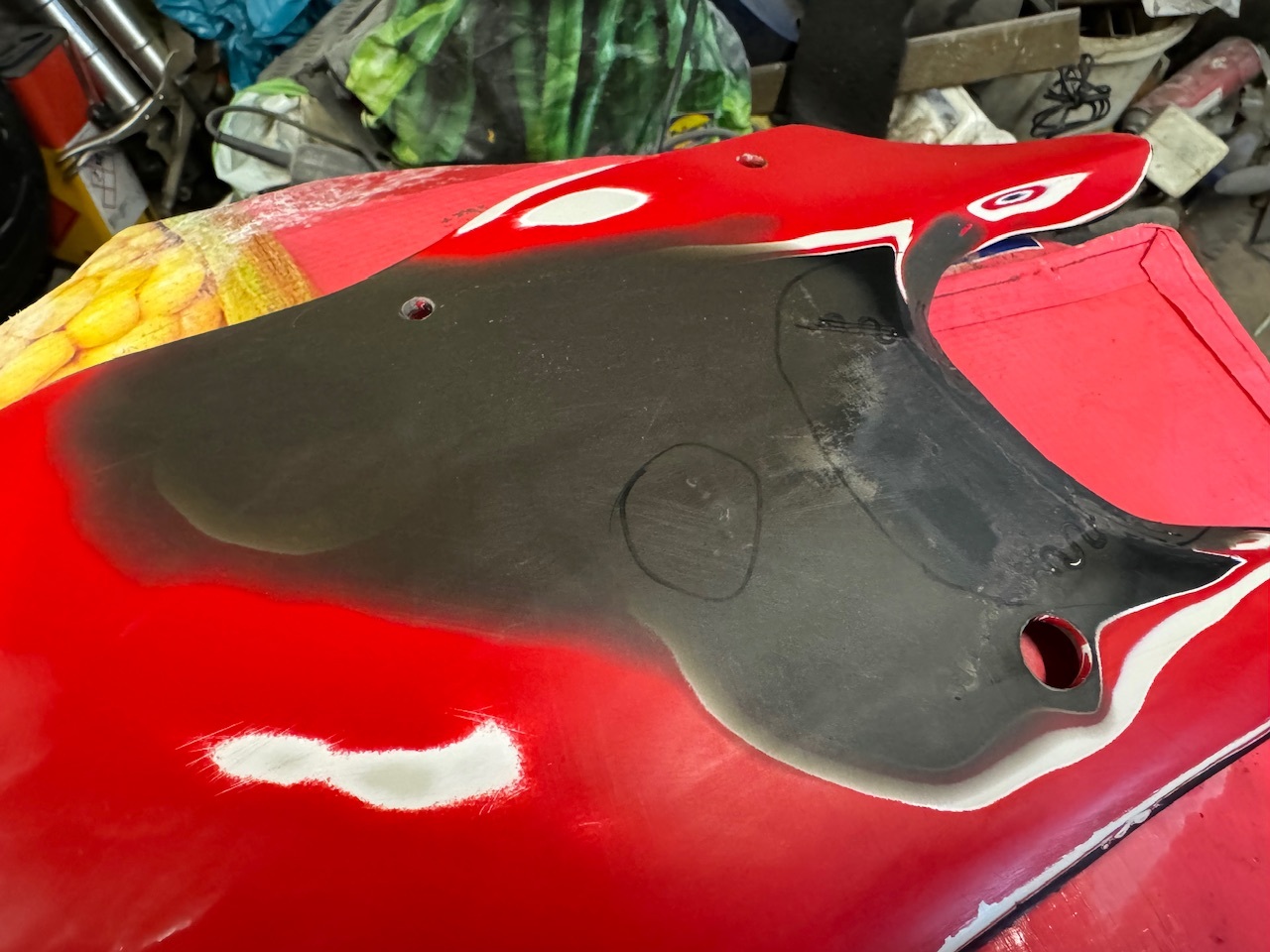

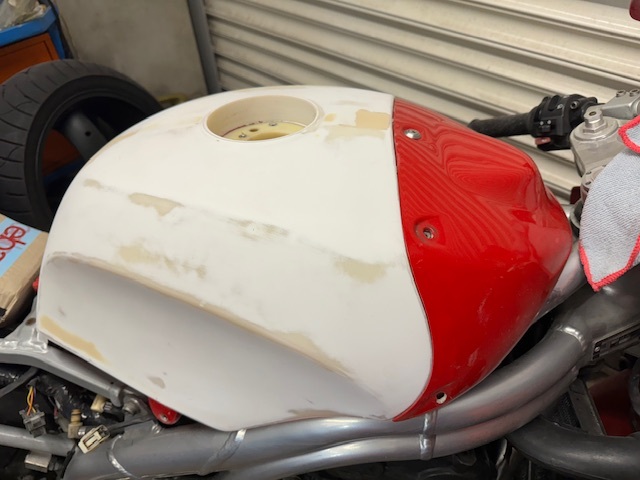

    Back on it, finished the upper fairing, ready for paint, bellypan almost there and bubbled tank stripped.
    I found the paint where it bubbles is quite fragile, and cracks easily, obviously the ethanol affects the paint. I found if I used a hot air gun I could peel it off in sheets. I’ll probably get it lined then repaint it. Already have the decals.







    • Like Like x 2
  7. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales

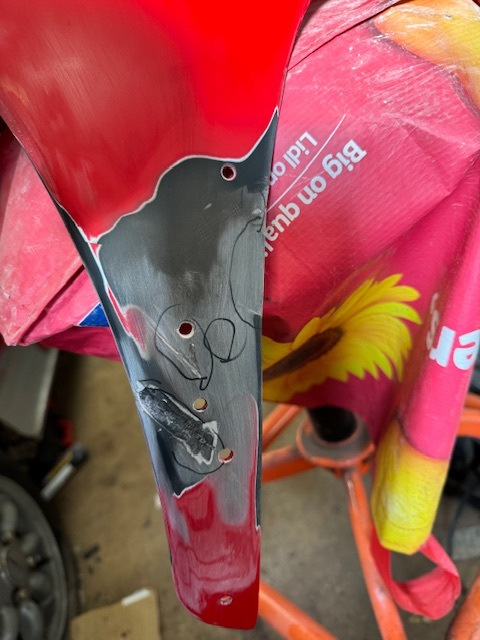

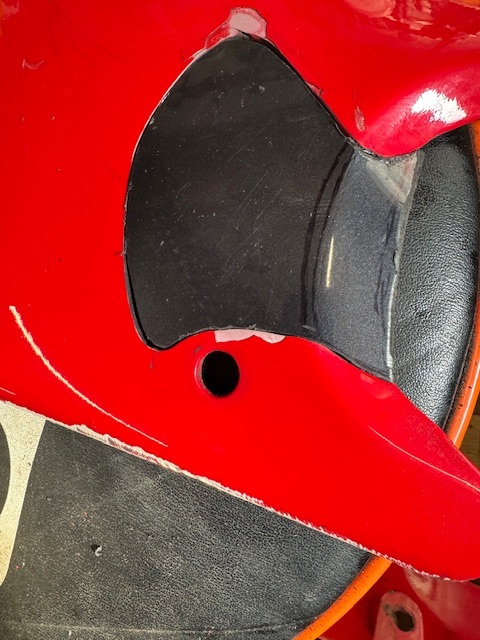

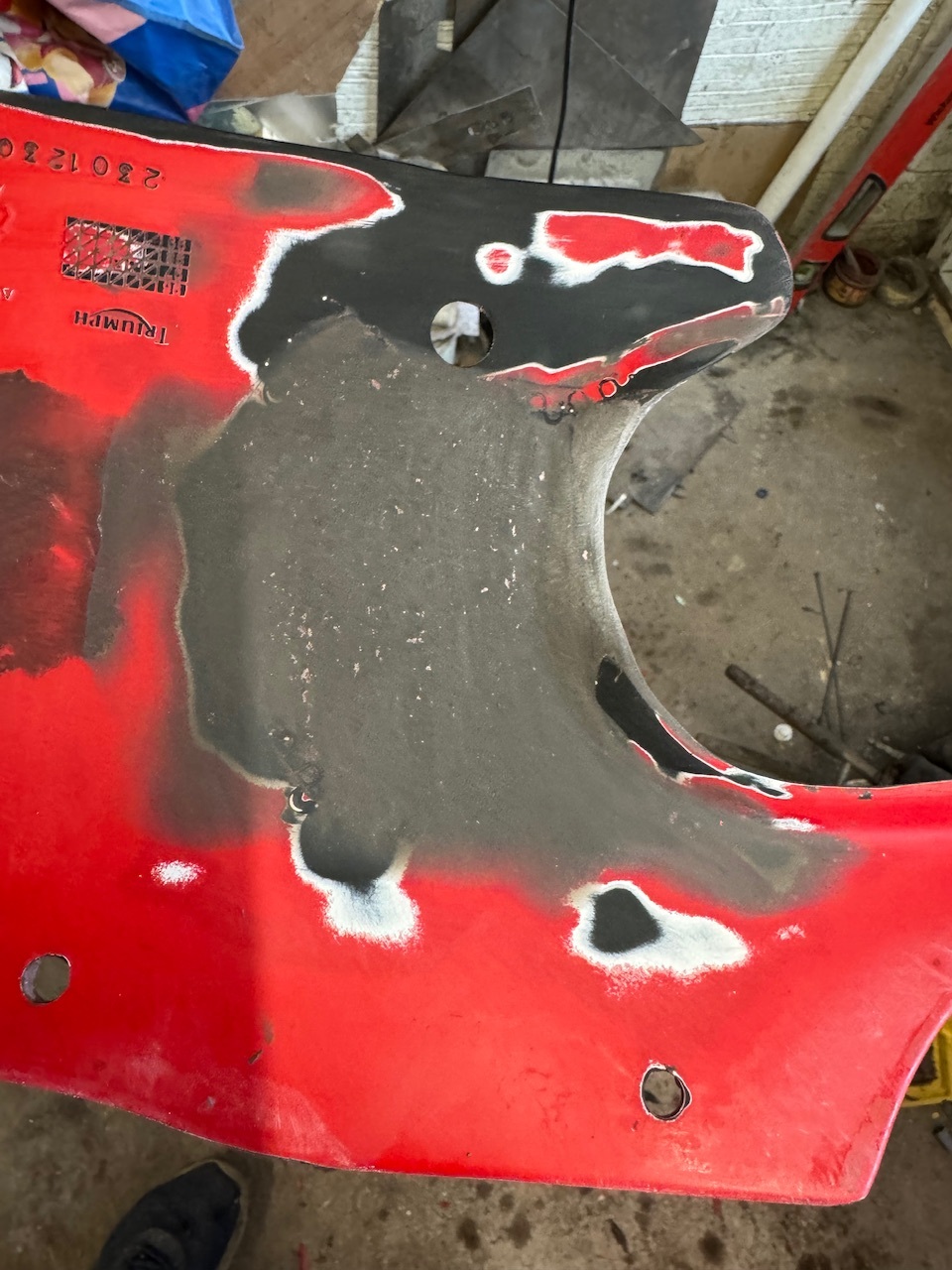

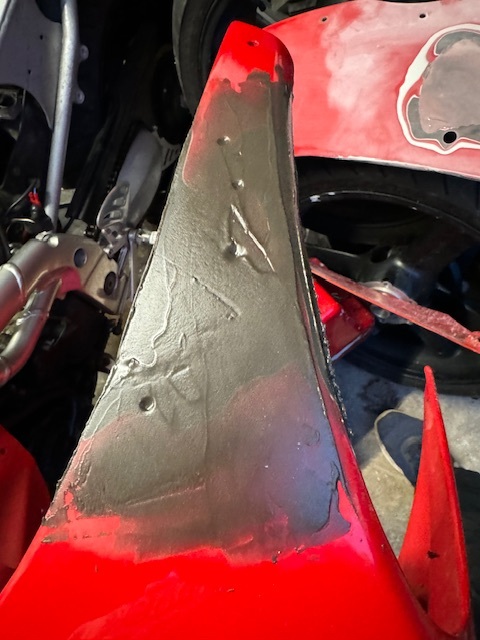

    Finished the nose cone and the tank is almost there, then I decided to have a look at the cracked seat cowl. I was told by the PO that his lad dropped something in it but when I dropped it down it was cracked along its length and had had a poor fibreglass repair.
    I ground out the filler, stitched it inside and out with the plastic welder then filled it with Plast-X.











    • Like Like x 2
  8. feckless

    feckless Noble Member

    Apr 16, 2019
    1,027
    443
    Cumbria
    Nice work, did you used frequent t595net? I remember the name

    • Like Like x 1
    • Agree Agree x 1
  9. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales
    Yeah, I did mate, was one of the long termers in there supporting the place :joy:
    In the end hardly anyone had a Trumpet

    • Like Like x 1
    • Agree Agree x 1
  10. feckless

    feckless Noble Member

    Apr 16, 2019
    1,027
    443
    Cumbria
    I was strongy on there

    • Like Like x 1
    • Useful Useful x 1
  11. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales
    Haha, nice one fella.
    Not sure if you heard, Tappity Tim passed away last year. Bit sad he was only in his 40’s.

    Still speak to Paul the Bastard, TQ (Anne), Wayne (Red Monkey), Super Spinney Lord Stu and Nige (SirTT) occasionally.

    • Like Like x 1
    • Useful Useful x 1
  12. Exuptoy

    Exuptoy Senior Member

    Feb 10, 2018
    298
    113
    Maesteg, South Wales
    #12 Exuptoy, Apr 9, 2024
    Last edited: Apr 9, 2024
    Haha, nice one fella.
    Not sure if you heard, Tappity Tim passed away last year. Bit sad he was only in his 40’s.

    Still speak to Paul the Bastard, TQ (Anne), Wayne (Red Monkey), Super Spinney Lord Stu and Nige (SirTT) occasionally.
    @Relay is on here, @Godders (Baldbloke) and Stevethegoolie are also on here and others I might have forgotten.

    • Useful Useful x 1
  13. feckless

    feckless Noble Member

    Apr 16, 2019
    1,027
    443
    Cumbria
    yeah bad new about Tim, he seemed fine just before, most people do.unfortunately.

    • Like Like x 1
