2003 Triumph Speed Four Restoration Tips

Discussion in 'Builds & Projects' started by Kenny Miller, Mar 11, 2020.

  1. Kenny Miller

    Kenny Miller New Member

    Joined:
    Mar 11, 2020
    Messages:
    4
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    Tempe, AZ
    Hey guys!

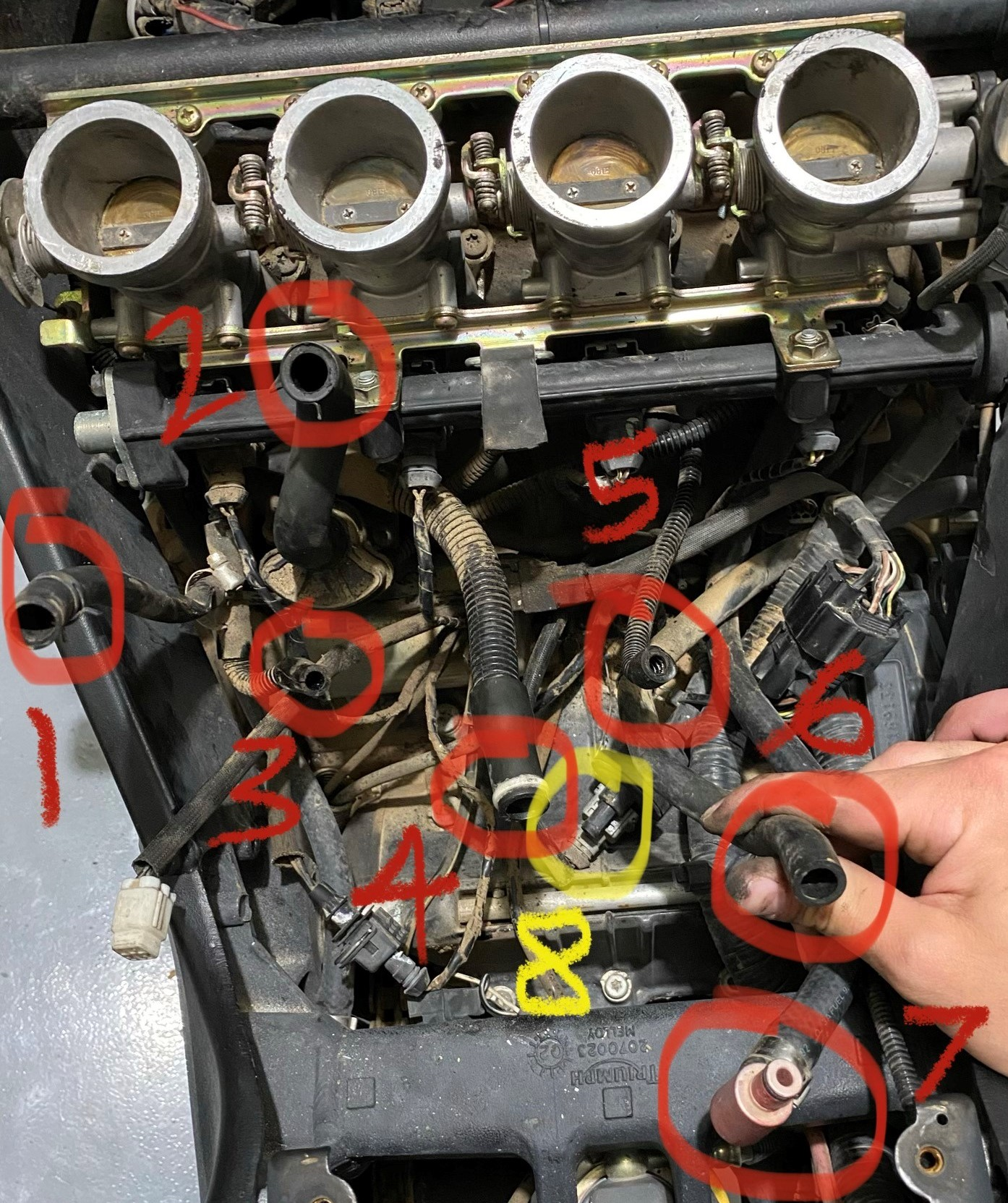

    recently picked up an 03 speed four that needs some work, first thing to tackle is getting the bike back together. currently the gas tank and air box are off and I cant quite tell which hoses are supposed to connect where thanks to the mess left by the previous owner. I am trying to post a picture with every open hose I can find and try to label that, so If anyone might be able to point me in the right direction that would be appreciated! I there are 5 hose connections on the airbox and I don't know if all need to be used. upload_2020-3-10_20-39-9.png
    in the picture I believe 6 and 7 are the fuel lines but 6 is missing the connector. 8 doesn't have a hose connected to it currently but there is one hose that fell out of this area so I'm assuming it came from there. 3 and 5 look like they have broken ends so I am not sure if they might be the same line or not.
    I also cannot find the plug that is supposed to go into the airbox, I can only see the plug for the gas tank

    #1
    • Like Like x 1
  2. Kenny Miller

    Kenny Miller New Member

    Joined:
    Mar 11, 2020
    Messages:
    4
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    Tempe, AZ
    Thank you! It’s definitely going to be a tough one given the condition but I needed a project to help keep me busy between classes lol

    #2
    • Like Like x 1
  3. Tigcraft

    Tigcraft Unheard of Member

    Joined:
    Mar 29, 2014
    Messages:
    5,311
    Likes Received:
    2,627
    Trophy Points:
    800
    Location:
    Holmfirth West Yorkshire
    Welcome in to the madhouse

    #3
    • Like Like x 1
  4. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Joined:
    Oct 3, 2018
    Messages:
    7,471
    Likes Received:
    6,410
    Trophy Points:
    1,000
    Location:
    Three Counties
    Howdy Kenny, and welcome in :cool::cool:

    #4
    • Like Like x 1
  5. Vulpes

    Vulpes Confused Member

    Joined:
    Mar 14, 2018
    Messages:
    10,069
    Likes Received:
    18,871
    Trophy Points:
    1,000
    Location:
    Netherlands
    Hi and welcome.

    #5
    • Like Like x 1
  6. Don the Don

    Don the Don Bigger Than The Average Bear

    Joined:
    Nov 5, 2019
    Messages:
    3,239
    Likes Received:
    2,949
    Trophy Points:
    800
    Location:
    MORAY UK
    Hi and welcome

    #6
    • Like Like x 1
  7. dilligaf

    dilligaf Guest

    Hi mate and welcome

    #7
    • Like Like x 1
  8. freck

    freck Elite Member

    Joined:
    May 4, 2017
    Messages:
    1,855
    Likes Received:
    1,720
    Trophy Points:
    750
    Location:
    Preston, Lancs, UK
    Welcome Kenny. You need to get yourself a workshop manual or at least a Haynes :grinning:
    Good luck with the restoration

    #8
    • Like Like x 1
    • Agree Agree x 1
  9. Easy Tiger

    Easy Tiger Elite Member

    Joined:
    Jan 2, 2020
    Messages:
    1,663
    Likes Received:
    1,585
    Trophy Points:
    800
    Location:
    Wirral England

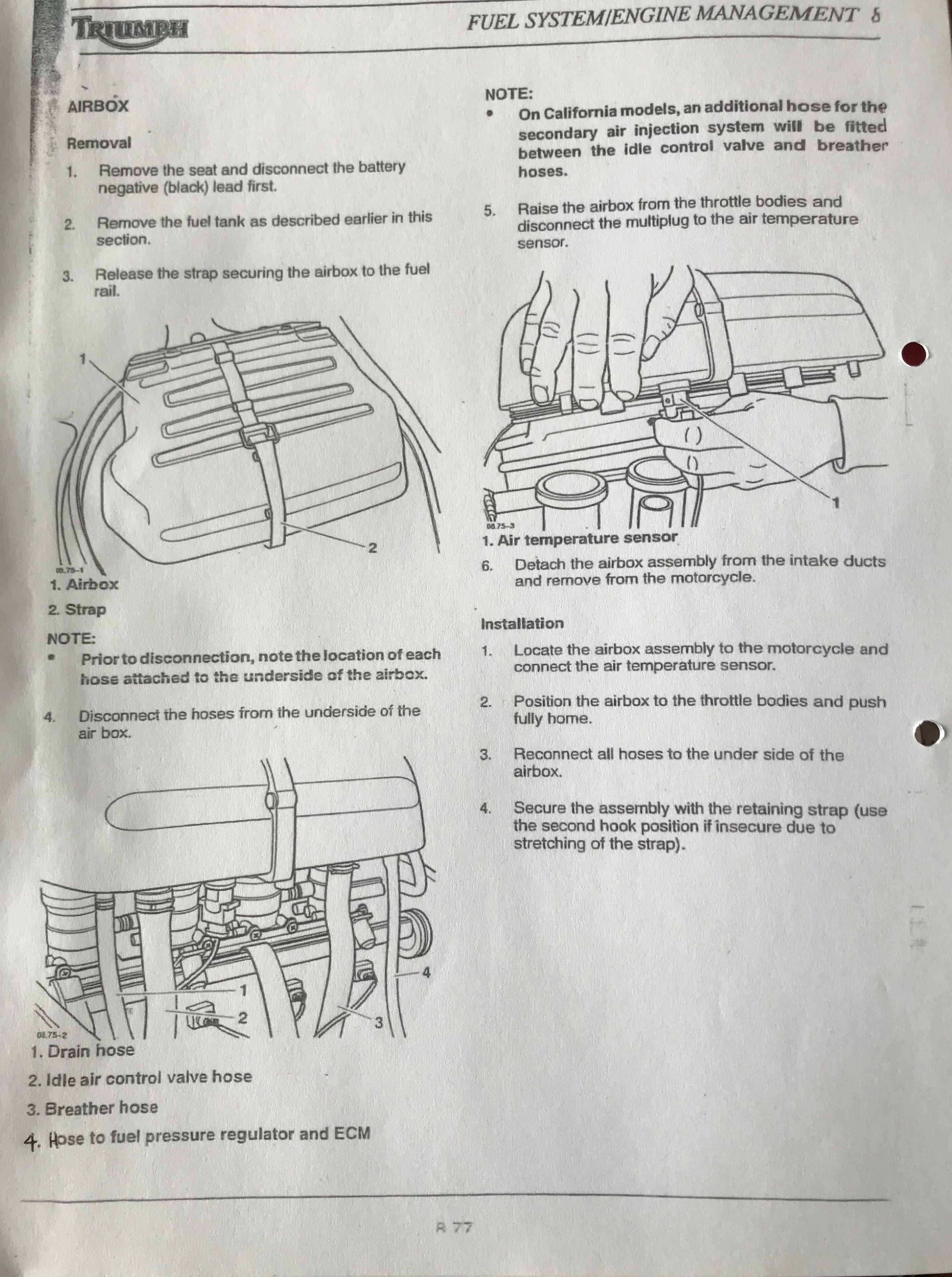

    Hi Kenny and welcome. You seem to have a lot of hoses there. Don’t know if this will be any help.
