2003 Speed Triple Front Seat Removal

Discussion in 'Technical Help' started by Mike in it, Jan 5, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Mike in it

    Mike in it Member

    Nov 30, 2020
    52
    18
    London/Essex
    can anyone explain how to remove my front seat please ........I cant find clips or bolts that look relevent

  2. SamTheExplorer

    Nov 26, 2017
    56
    13
    Cambridge, UK
    Hi Mike,

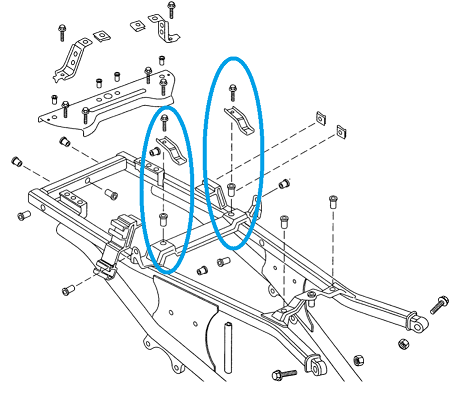

    The rear seat is removed using the key. The front requires the removal of two bolts into the seat rails holding tabs at the rear of the seat.

    I hope this helps...



    Seat Bolts.png

    Stay safe!

    • Like Like x 2
    • Useful Useful x 1
  3. Iceman

    Iceman Noble Member

    Apr 19, 2020
    930
    443
    Lancashire
    Spot on Sam, when I had one it was a pain to get on and off, seemed overly complicated way to secure the seat to my mind, they're a great bike though

    • Like Like x 1
  4. Mike in it

    Mike in it Member

    Nov 30, 2020
    52
    18
    London/Essex
    Thanks Sam , thats just what I needed

    • Like Like x 2
  5. SamTheExplorer

    Nov 26, 2017
    56
    13
    Cambridge, UK
    Cheers!

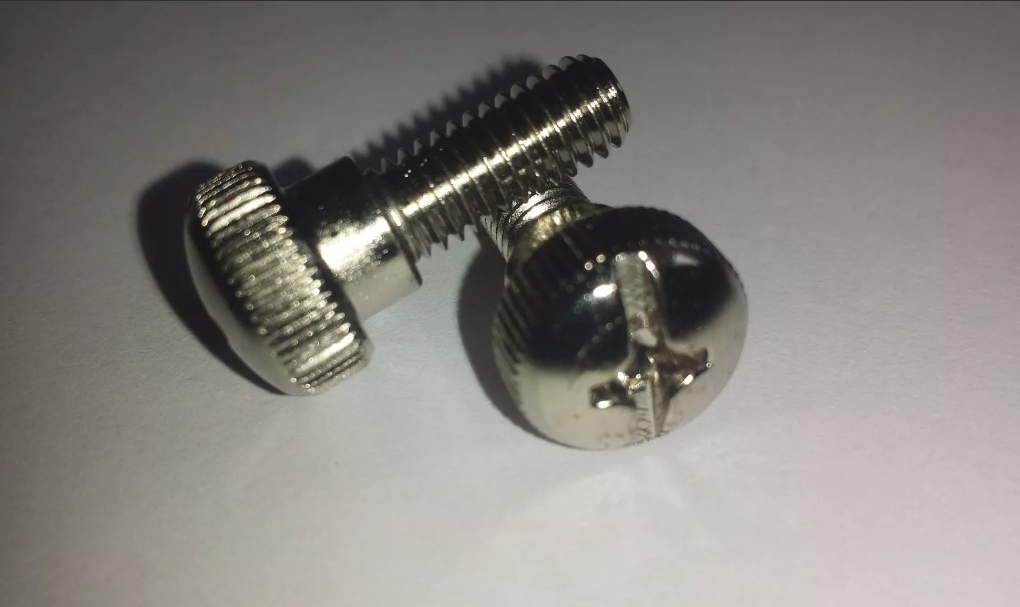

    No link or affiliation but there are helpful options such as these available from well known online auction sites (and surely found cheaper elsewhere?):



    • Like Like x 2
  6. DanielB

    DanielB Noble Member

    Jan 13, 2019
    847
    393
    Abingdon, Oxfordshire
    When you take them clips off Mike and then you're finished and come to replace everything you need to spend at least 7-8 mins wondering where the feck you put the buggers!

    I can never find where I put them down, but I always, ALWAYS find them in the last place I think of looking!

    I love my 2002 Triple, enjoy yours!

    • Funny Funny x 1
  7. Mike in it

    Mike in it Member

    Nov 30, 2020
    52
    18
    London/Essex
    Ordered these , thanks Sam
