    Hi

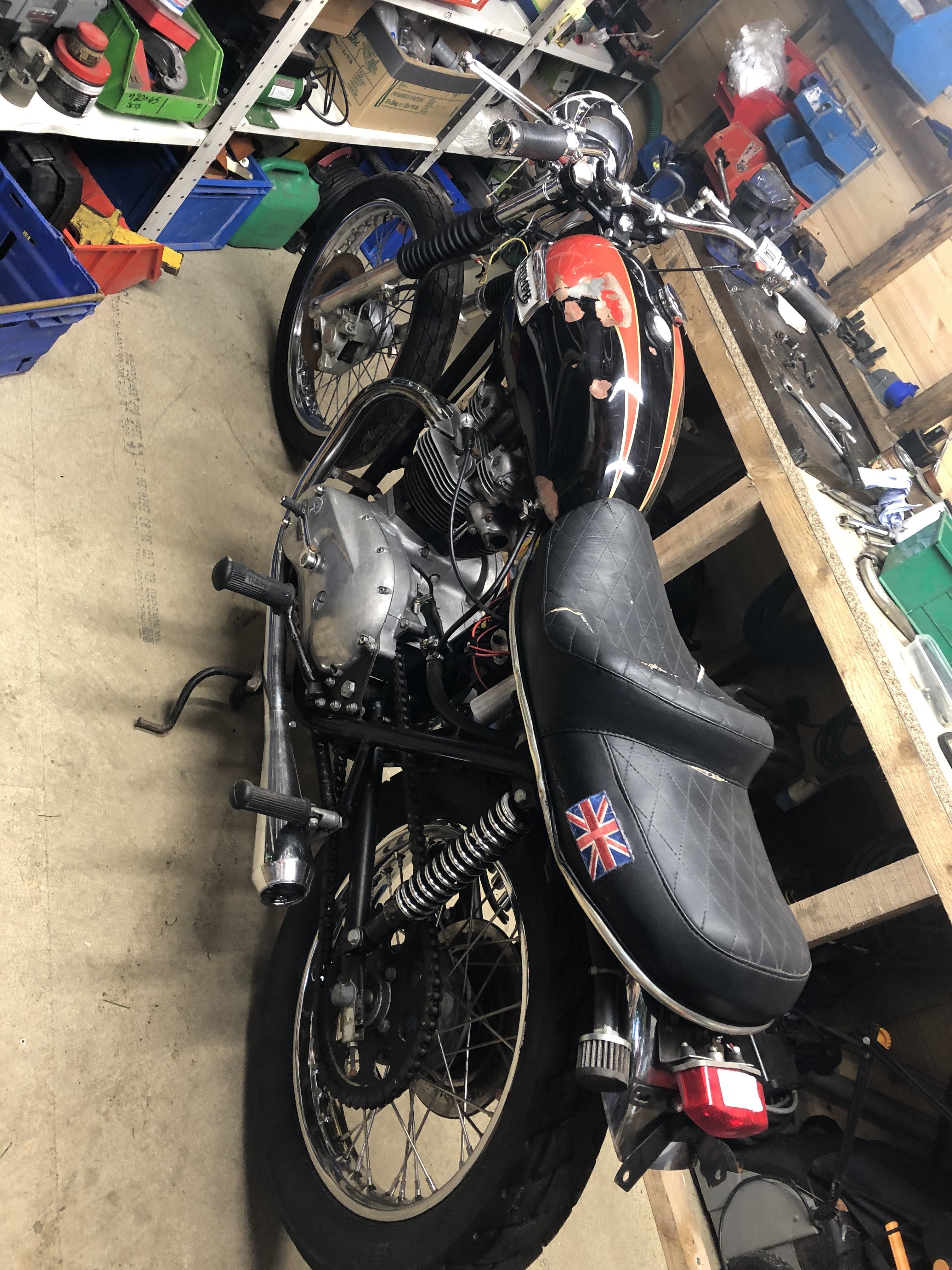

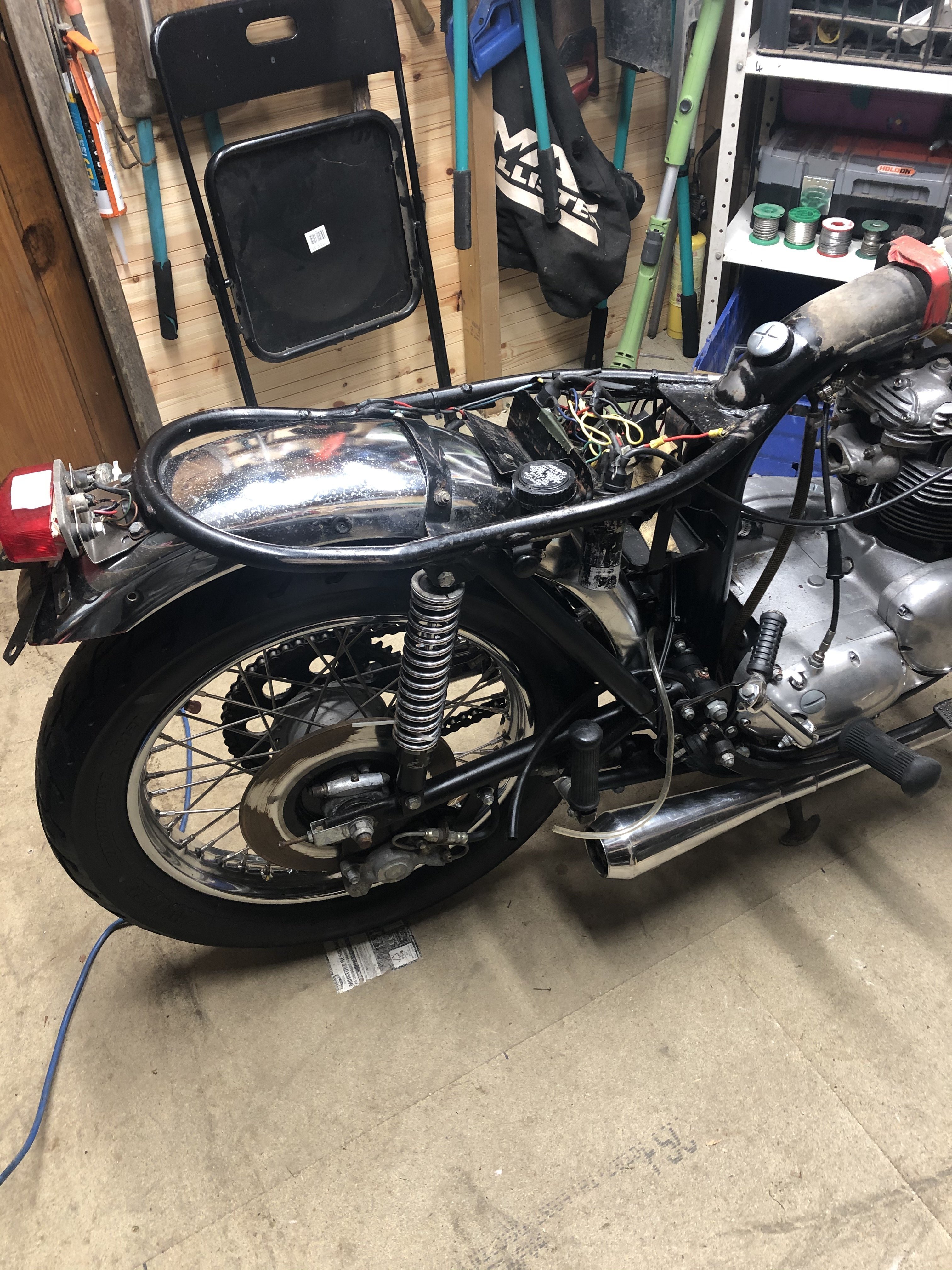

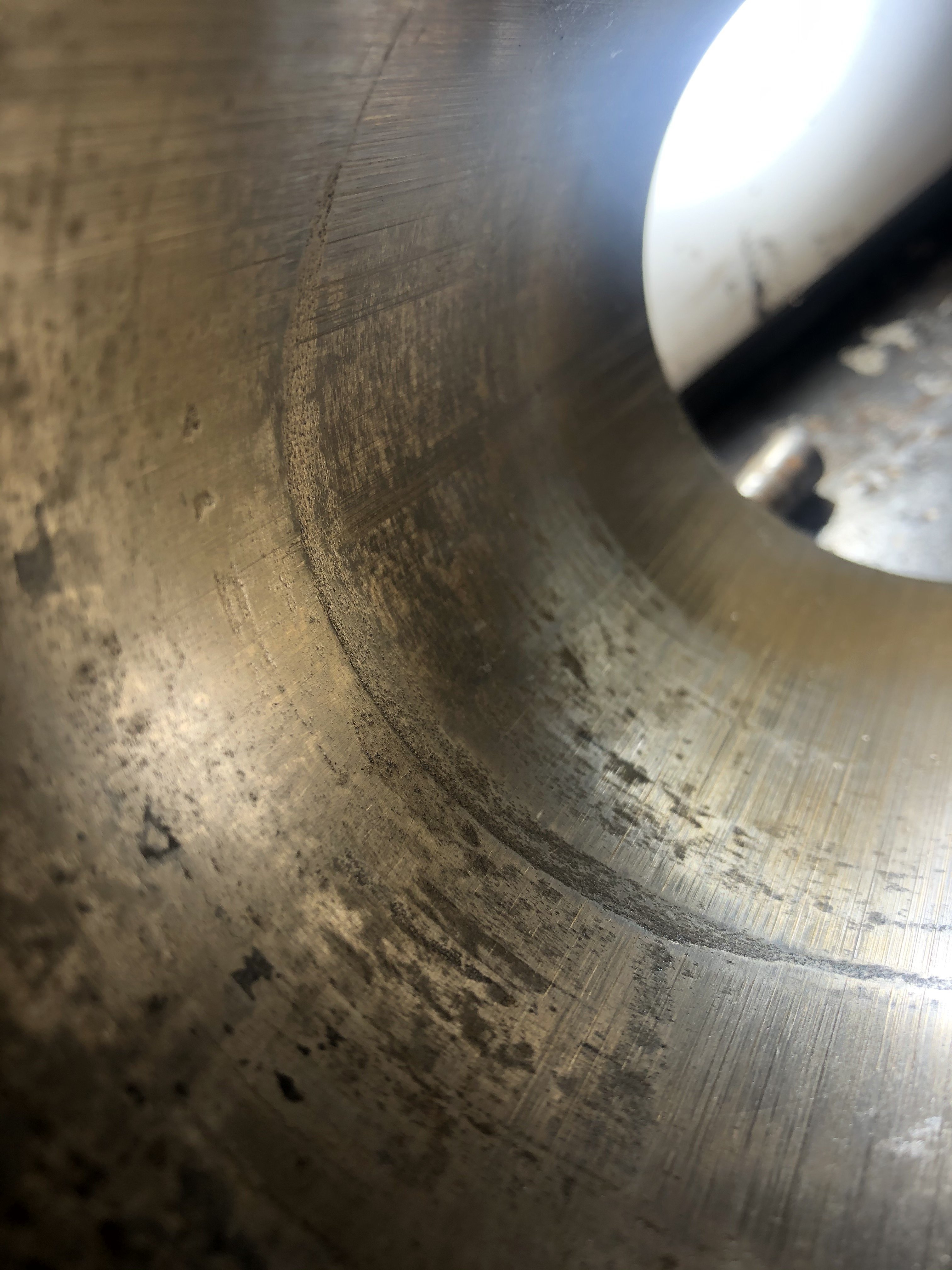

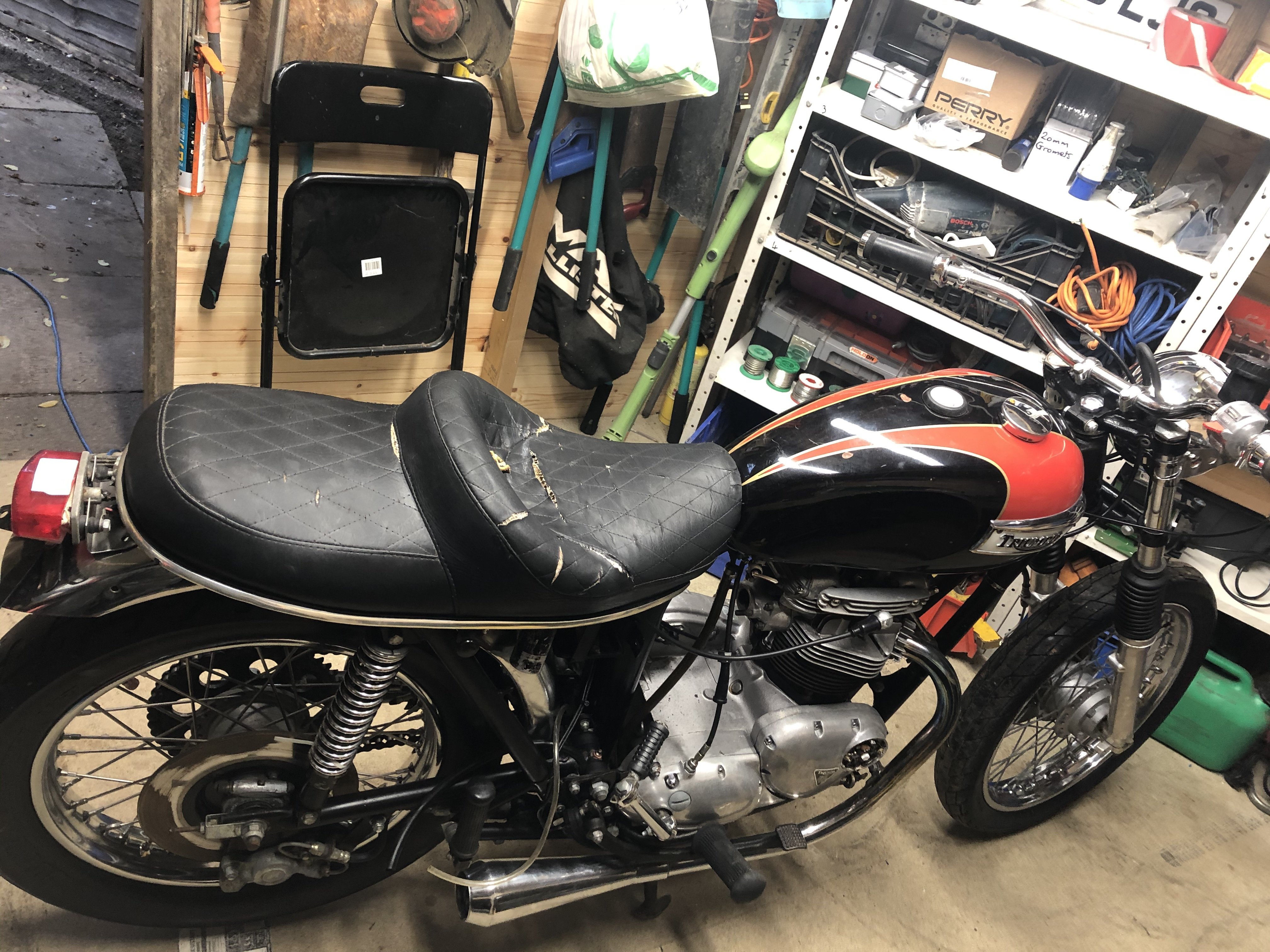

    I’m a few weeks into a rebuild. I’ve Just about got the frame stripped down so I can get it powder coated then I can start putting the bike back together. I’ve got bits and oil everywhere but feel it’s going ok but I could do with some advice on having the cylinders rebored they seem to have some rings of corrosion half way down I’m assuming it’s where the rings have sat for decades, I think it’s a standard bore the pistons haven’t got any + identification on them but I’ve got no way of measuring them. I’ve put a couple of photos of the barrels in the pictures.











    • Like Like x 12
  2. Jim Hargreaves

    Jim Hargreaves Well-Known Member

    By the way just so you don’t get confused the bike has T140 engine and frame numbers but sometime in the past someone has installed a TR7 cylinder head

    • Like Like x 3
    • Agree Agree x 1
  3. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    #3 Iron, Jan 2, 2021
    Last edited: Jan 2, 2021
    Jim
    My advice would be to get new barrels complete with new pistons and rings. It saves all the fannying around trying to find an engineering firm close enough, not too busy (nearest here has about a month waiting list) and know how to do it properly. My last barrels came from Brit Bits - great service, pretty good casting and fit was perfect.
    I've got one of those Bonny engines with a single carb head, it was the thing to do in days gone by - easier to tune and less fuel apparently. I like the twin carbs though so have converted back to two carbs using ported webco castings. The carbs stick out more as the angle is greater - looks a bit weird but it's on the chop so that's ok then.

    • Like Like x 1
  4. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,846
    1,000
    south shields
    Hi Jim,
    I'm sure when @darkman see's this he'll give you some good advice as he's the classic Triumph genius on here.

    • Agree Agree x 4
    • Like Like x 1
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    5,315
    1,000
    Southcoast of the UK Earth
    There are two options Jim, re bore and new pistons and rings if you have a trusted engineer, £200.00 ish or New barrels pistons and rings for £400.00 inc from L F Harris :)

    • Like Like x 4
    • Useful Useful x 4
    • Agree Agree x 1
  6. Jim Hargreaves

    Jim Hargreaves Well-Known Member

    Thanks for the reply darkman I think the way this bike is hoovering up cash it will have to be the cheaper option a rebore

    • Like Like x 3
    • Agree Agree x 1
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    5,315
    1,000
    Southcoast of the UK Earth
    L F Harris are the best bet at 80.00 plus vat and they do a good range of sizes :)

    • Like Like x 2
    • Agree Agree x 2
    • Useful Useful x 1
  8. Nicholaj

    Nicholaj Noble Member
    Subscriber

    Feb 22, 2020
    507
    343
    Stavanger, Norway
    She looks a bit beaten up yes, but some love and care, you will get her there :) keep the updated coming, nice to see how it’s coming along

    • Like Like x 2
    • Agree Agree x 1
  9. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    8,150
    1,000
    Winchester
    Welcome to the forum :cool:

    • Like Like x 1
    • Agree Agree x 1
  10. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,846
    1,000
    south shields
    Forgot to add @Jim Hargreaves darkman has done a few restorations on here take a look back over his old posts and be amazed :D:cool:

    • Like Like x 2
    • Agree Agree x 1
  11. Wessa

    Wessa Cruising
    Subscriber

    Apr 27, 2016
    8,370
    1,000
    North West England
    Hi and welcome....

    • Like Like x 1
  12. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol

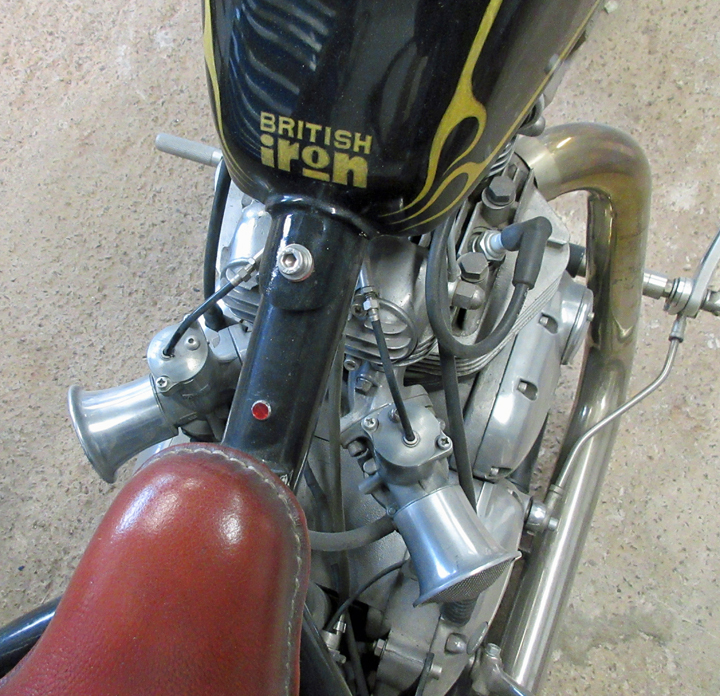

    If you want to go with the webco castings to get those twin carbs back on (rather than replacing the head) - here's what they look like. A bit sticky outie.


    • Like Like x 2
  13. Jim Hargreaves

    Jim Hargreaves Well-Known Member

    Not a bad idea but I’ll just stick with the Tiger head for now I’m trying to keep costs down I didn’t realise how much money these kind of restorations would eat up

    • Like Like x 1
  14. Jim Hargreaves

    Jim Hargreaves Well-Known Member

    I know what you mean I’ve been trying to find an engineering firm near me who can do the job but up to now I’m out of look. New barrels and pistons might have to be the option

  15. Jim Hargreaves

    Jim Hargreaves Well-Known Member

    Hi everyone
    Has anyone got any tips on removing the timing side crank main bearing it’s so tight to the balance weight I can’t get anything behind it.

  16. Jim Hargreaves

    Jim Hargreaves Well-Known Member


  17. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    5,315
    1,000
    Southcoast of the UK Earth
    There is a specific puller for them if you look online i think you can still buy them for around £70.00. The other option is to heat the inner race quickly and use wedges.

    • Like Like x 1
    • Agree Agree x 1
  18. Iron

    Iron This space for rent
    Subscriber

    Dec 31, 2020
    170
    83
    Bristol
    Jim
    yep, as darkman says heat is your only option if no puller is available. Watch Todd of Lowbrow Customs doing the heat thing here - it's about 33 minutes into the video

    well worth keeping the whole set of videos from Todd always good to reference back to them.

    • Like Like x 2
    • Useful Useful x 1
    • Agree Agree x 1
  19. Jim Hargreaves

    Jim Hargreaves Well-Known Member

    Thanks I’ll see if I’ve got anything I can use as a wedge. I could do without spending £70

    • Like Like x 1
    • Agree Agree x 1
  20. Jim Hargreaves

    Jim Hargreaves Well-Known Member

    I’ll take a look thanks
