    Thanks Gents, and yes....no guessers on the crate then?

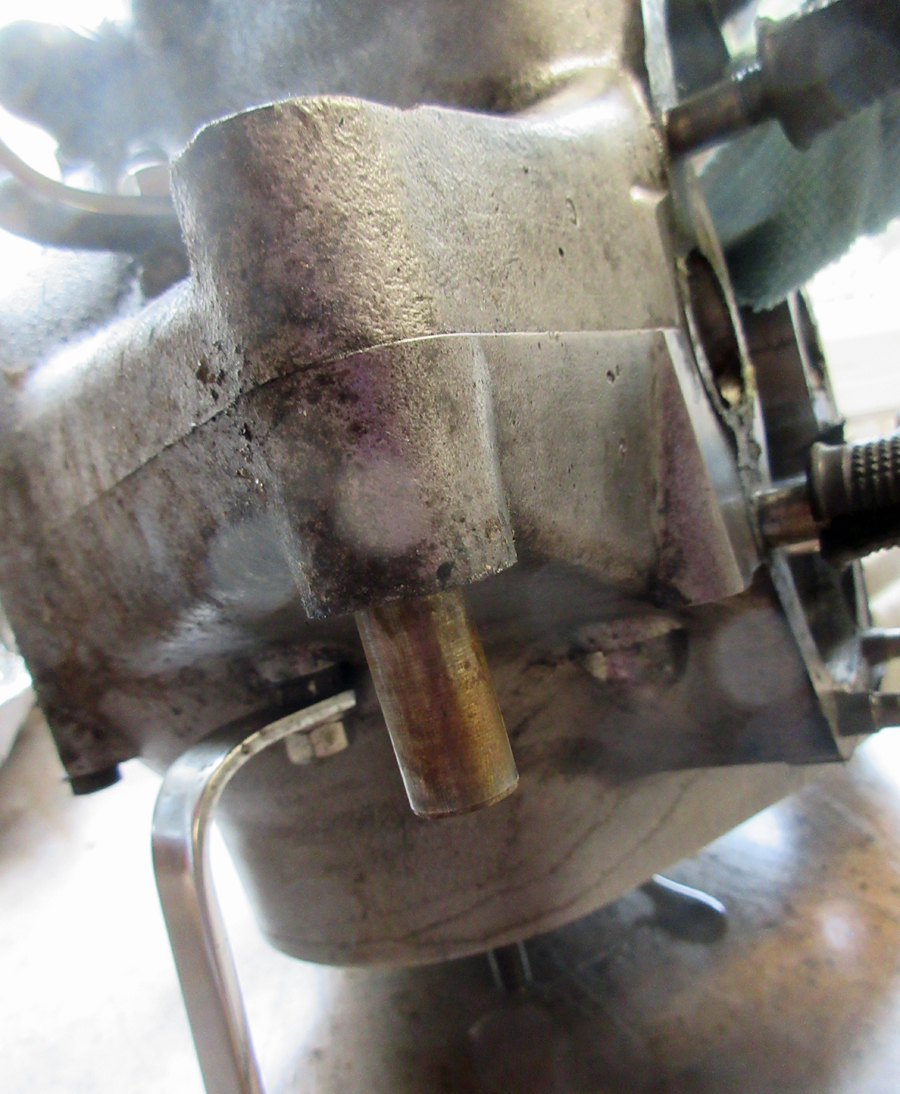

    Don't forget the dowel at the front. Earlier models don't have this.

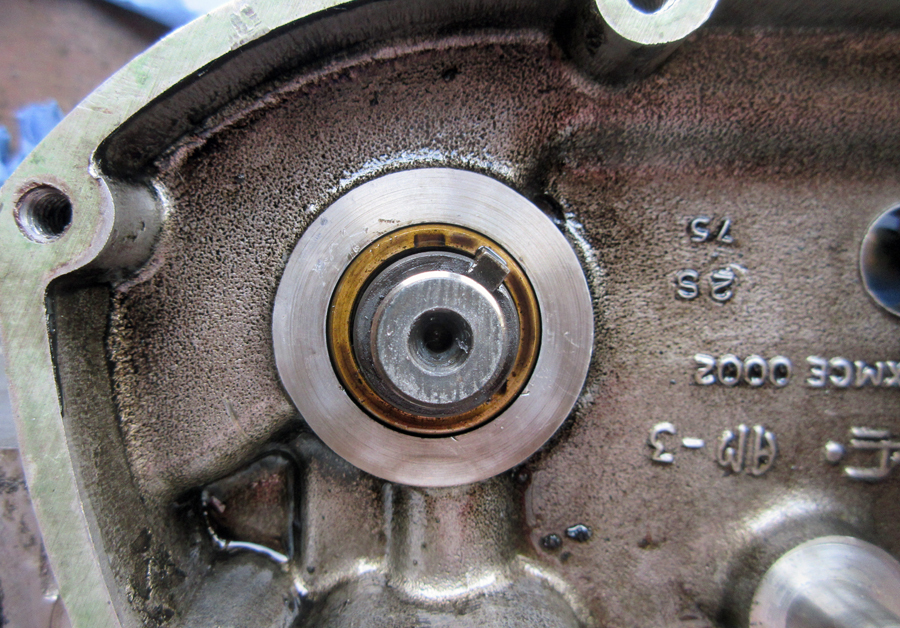

    Notice the marks on the camshaft bushes. These are from hammering the cam gears back on over the key from a previous rebuild. The cam gears don't need to be that tight, I will ream them out slightly so that can be pushed on by hand.


    Then separate the crankcases. Sometimes a lot easier said than done as the crankshaft wants to stay in the bearings. Don't use a hammer on the end of the crank or on the crankcase. Imaginative use of wooden blocks and gravity gets there in the end. All bearings are removed, some are easier than others, and some are a real pain. Ta da...

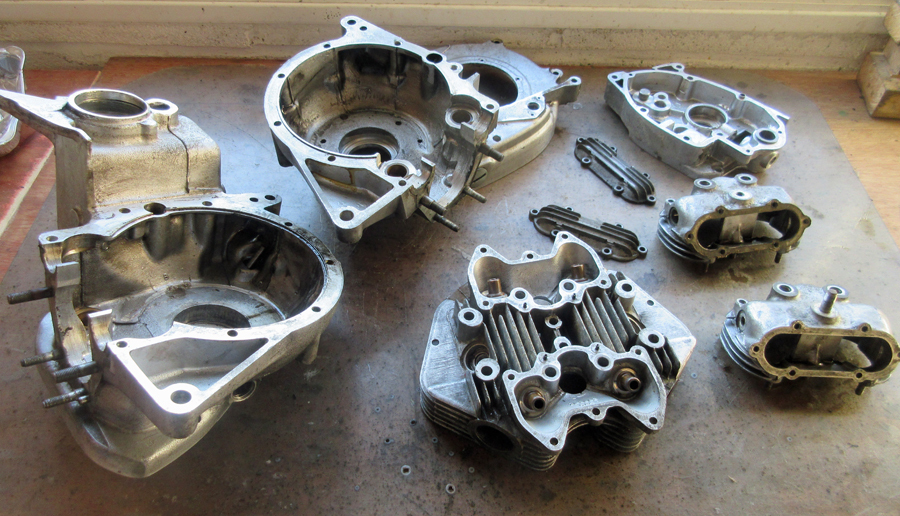

    All the cases are then taken down to the vapour blaster. The main man called Mr. Blaster, a great bloke who just really loves bikes, likes a chat and does a great job. Well worth a visit just to see what he's been playing with - there was a mint Fizzie there when I took these down.

    • Like Like x 6
  4. Iron

    Iron First Class Member

    Dec 29, 2021
    1,957
    643
    Bob Ross Studios
    #24 Iron, Jan 1, 2022
    Last edited: Jan 1, 2022
    Crankcase in the vice ready for the plug and sludge trap removal.


    This one had obviously been out before and the plug reused. Ye olde impact wrench made short work of the plug (I couldn't move it with a big screwdriver and spanner)


    You can see the sludge trap tube and at 6 o'clock the oil feed hole. It's important this is left free when installing a new plug. Measure the depth to the hole, measure your nice new plug and ensure this oil feed isn't even partially blocked off.


    Various methods can be adopted to get the pesky tube out. I have a steel bar that hooks into the bolt hole (obviously after the retaining bolt is removed) and I tap it out. A large tap can be used to tap the tube and screw in a large long bolt. A nut on the bolt can then be done up to pull the tube out. Here's the old one hardly any sludge and a nice new one to go back in when it's all clean and shiny.

    • Like Like x 7
  5. Iron

    Iron First Class Member

    Dec 29, 2021
    1,957
    643
    Bob Ross Studios
    Now that all the bits are back from the Vapour Blaster I knocked out the valve guides (the existing valves were pretty sloppy in the guides). The vapour blasting has taken most of the carbon off that would scratch into the head if not removed.



    Oops, sorry, two again.


    All nice and clean and ready for the rebuild.....over :)
