Featured 1976 One For 2022

Discussion in 'Builds & Projects' started by Iron, Dec 31, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Bikerman

    Bikerman I used to have 5500 posts.
    Subscriber

    Oct 29, 2014
    494
    1,000
    Lincolnshire
    So go on admit it, it's the wife who's the builder, and you're the one making the tea. Amazing skill you have to be able to do all the work yourself. :):)

    • Funny Funny x 4
    • Agree Agree x 2
  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,939
    1,000
    Southcoast of the UK Earth
    Great work Steve :) I had to get my mate round to help me with Su's wheels lol.


    • Like Like x 7
  3. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    Next time you have an issue with anything mechanical, give me a shout and I'll send the Admin Staff round....:)...over....

    • Funny Funny x 4
    • Agree Agree x 1
  4. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    Thank you, really. :) It's not that much skill, as one can see from the posts, and continually hitting myself with a hammer, it's just that the tele's a bit crap of late. So I'd be bored otherwise. :rolleyes:

    • Funny Funny x 3
    • Like Like x 2
    • Agree Agree x 2
  5. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    19,528
    1,000
    Tucson Arizona
    Yes, looking very good! And a bit like a modern art exhibit at the moment. :cool:

    "jiggery pokery" and "whatsit thingamy" You have the best expressions, @Iron. :joy: I love 'em! :grinning:

    • Agree Agree x 2
    • Thanks Thanks x 1
  6. Octoberon

    Octoberon Crème de la Crème
    Subscriber

    Jul 2, 2020
    2,254
    1,000
    Peak District, Yorkshire
    Has anyone seen them in the same room...

    • Funny Funny x 6
    • Agree Agree x 2
    • Useful Useful x 1
  7. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    #327 Iron, Apr 14, 2022
    Last edited: Apr 15, 2022
    All seems to be prepared. There's always a catch somewhere but continuing anyway.

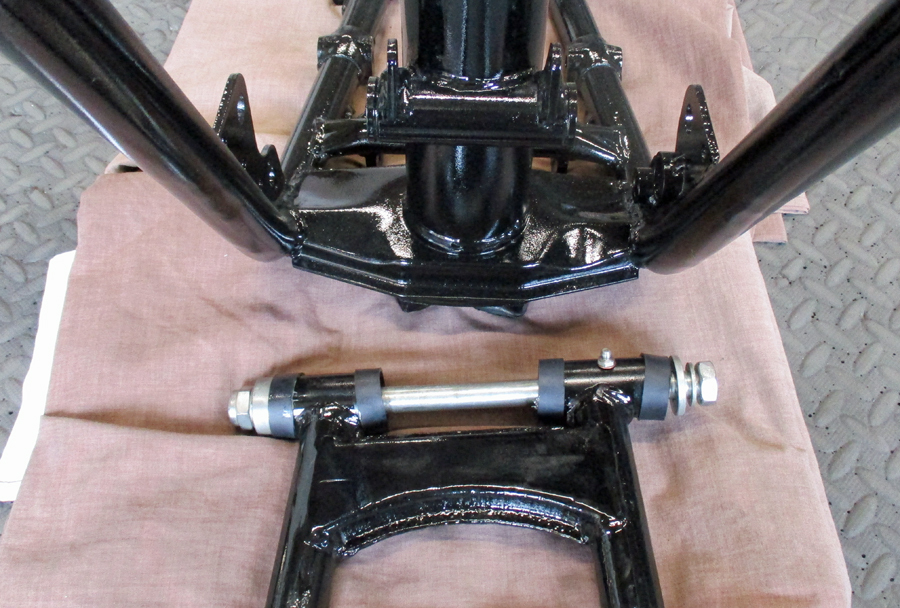

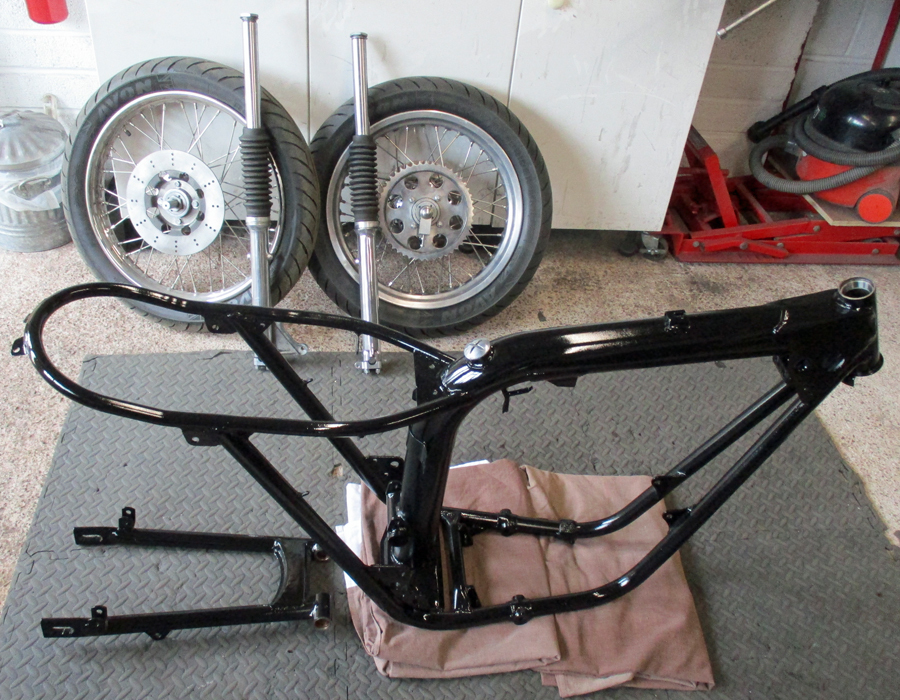

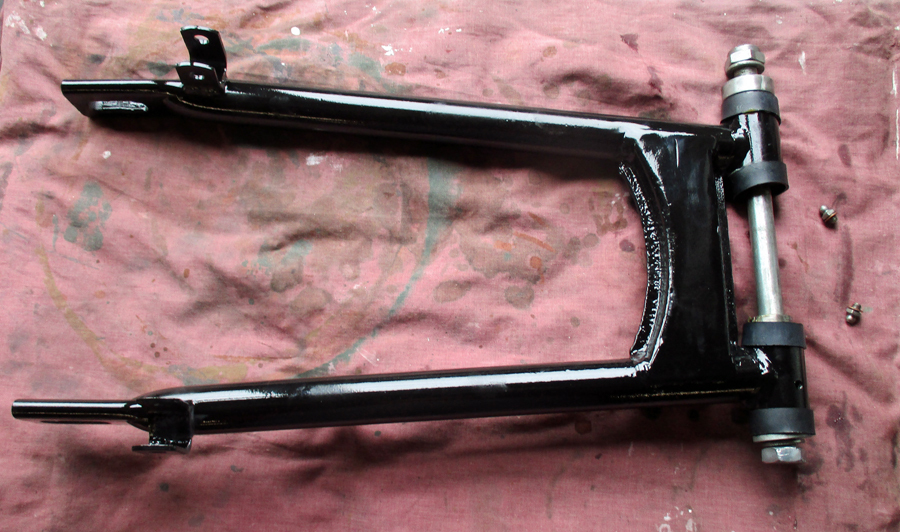

    Started with assembly of swing arm with new brass bushes, pivots, rubber covers, nut and bolt. Even using some new nipples..


    A bit fiddly getting it in

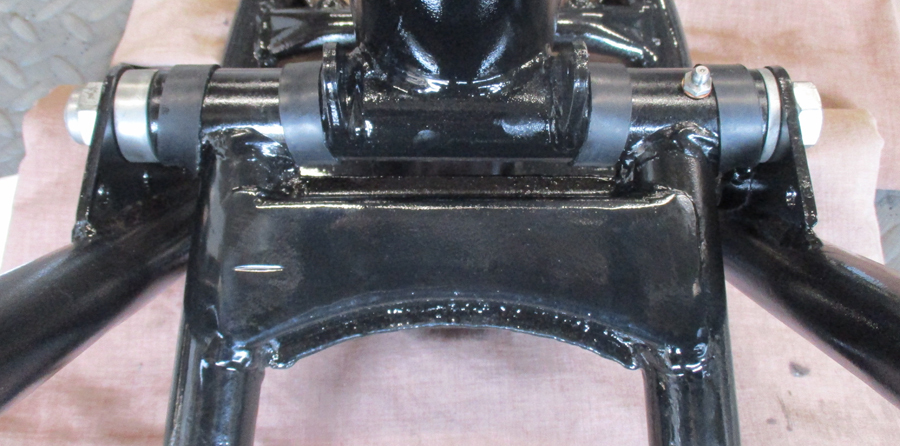

    Larger spacer on the left and finagle the rubbers in, getting grease all over the shop


    • Like Like x 11
  8. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    14,695
    1,000
    Netherlands
    I'm in awe. Fantastic.

    • Agree Agree x 2
    • Thanks Thanks x 1
  9. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios

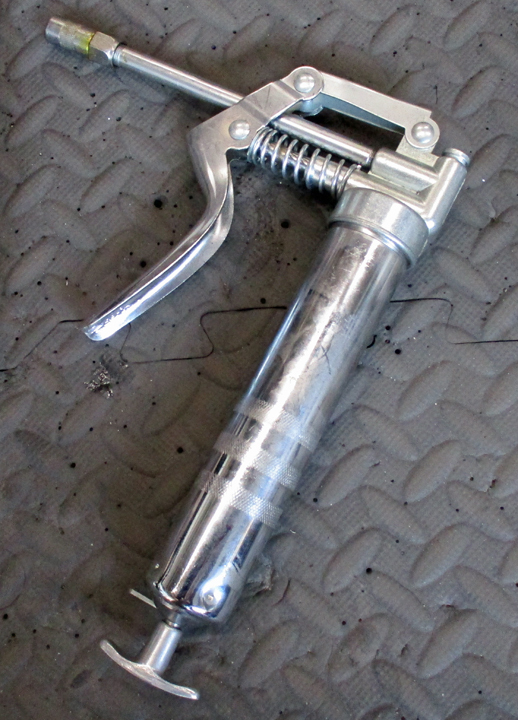

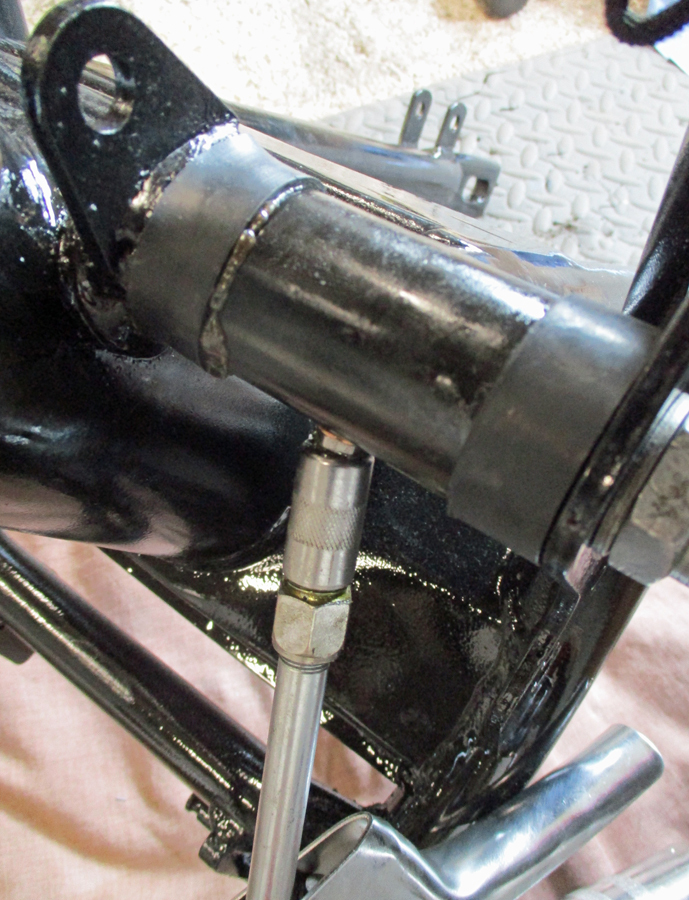

    Then get one of these.


    And squirt enough grease into the nipples until you see the grease coming out from under the rubber covers


    • Like Like x 7
  10. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,939
    1,000
    Southcoast of the UK Earth
    Looks great :)

    • Thanks Thanks x 1
    • Agree Agree x 1
  11. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    #331 Iron, Apr 14, 2022
    Last edited: Apr 14, 2022

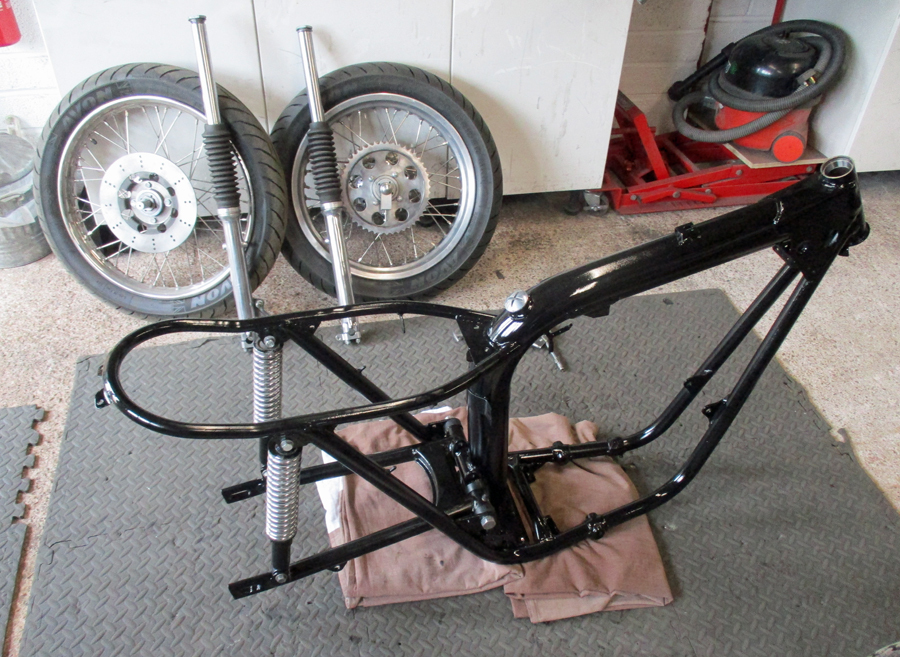

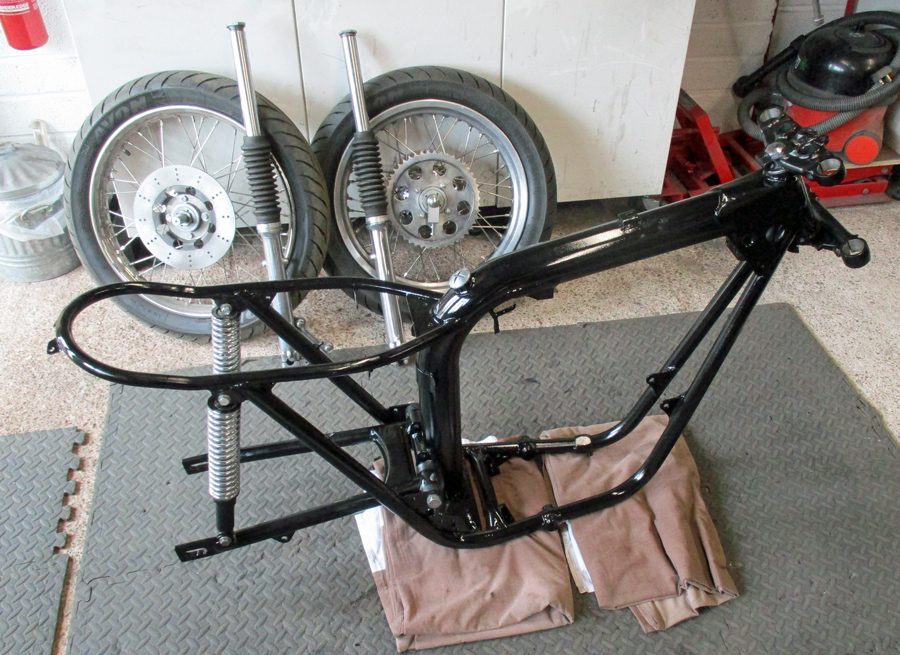

    Now that's on, hang the back shocks on and bolt up


    remove the old races out of the headstock by bashing out with a long piece of bar. There's two large diameter washers in there as well. Give it all a clean out as there'll be some rust in there. Put some new washers in as the new bearing races get hammered into place. Doesn't take much, just use the little hammer so as to not damage anything - paticularly fingers. Splodge on some grease...

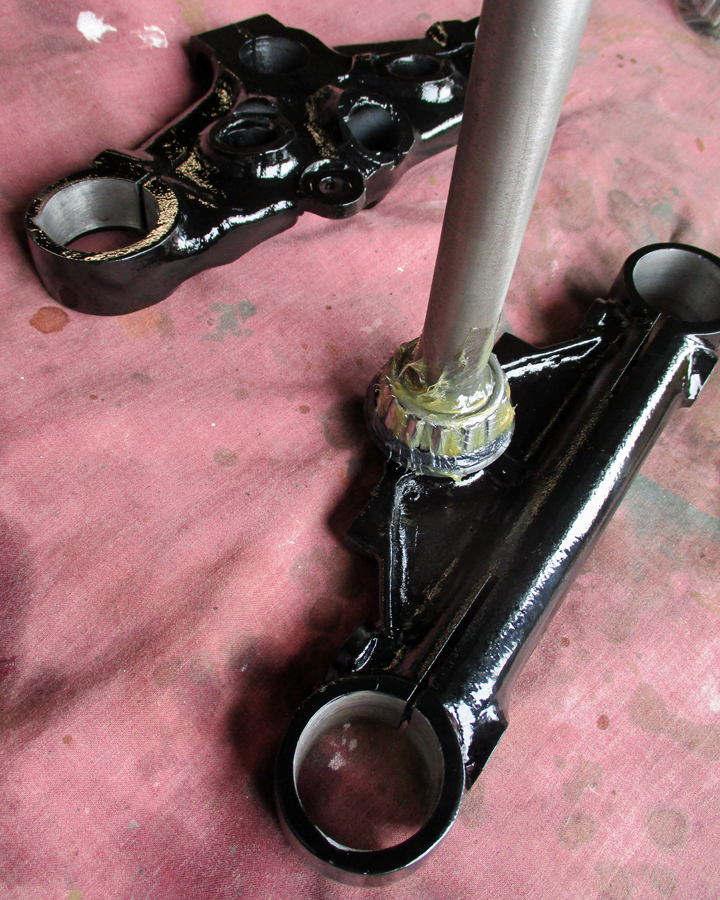

    Threadle the lower headstock bearing onto the bottom yoke. And a liberation of grease...


    • Like Like x 7
  12. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    14,695
    1,000
    Netherlands
    Is that some lubrication contraption?

    • Funny Funny x 3
    • Agree Agree x 1
  13. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    Thread the bottom yoke through the top bearing, put on the bearing cover, stick on the top yoke and do the headstock nut up (a nice new shiny one). You obviously need a few more hands than you actually have to complete this. So use your legs....

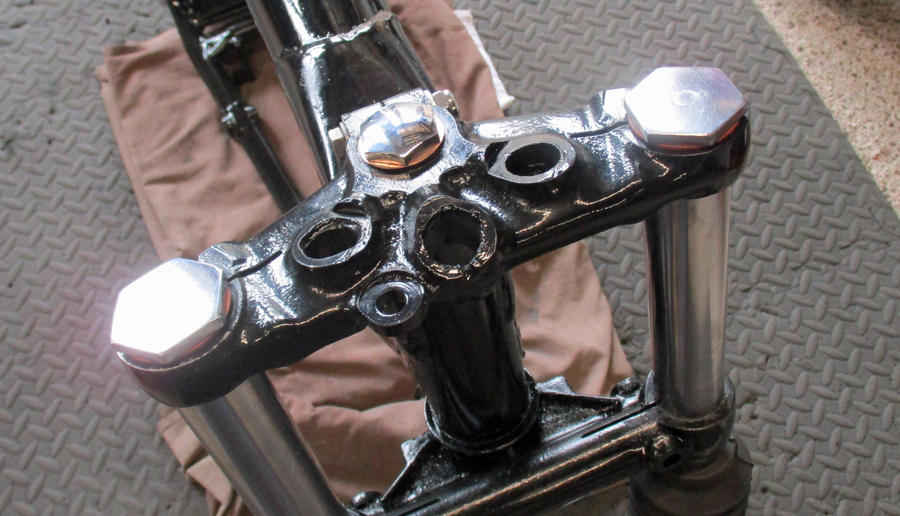

    Threadle up each fork leg and hold with the pinch bolts. Then put the top nuts in. These are the originals that have the recess for the stickers that say something like "put 3 gallons of fork oil in here" just in case you forget.

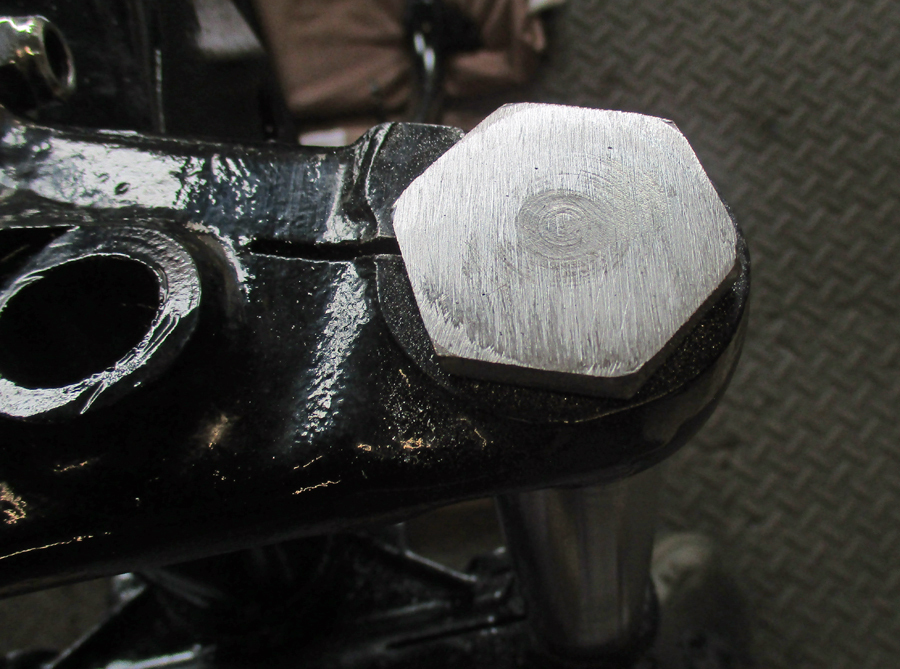

    But I don't like them as I'll remember without a sticker. Nice new shiney domed ones are £25 quid each so I file the originals down

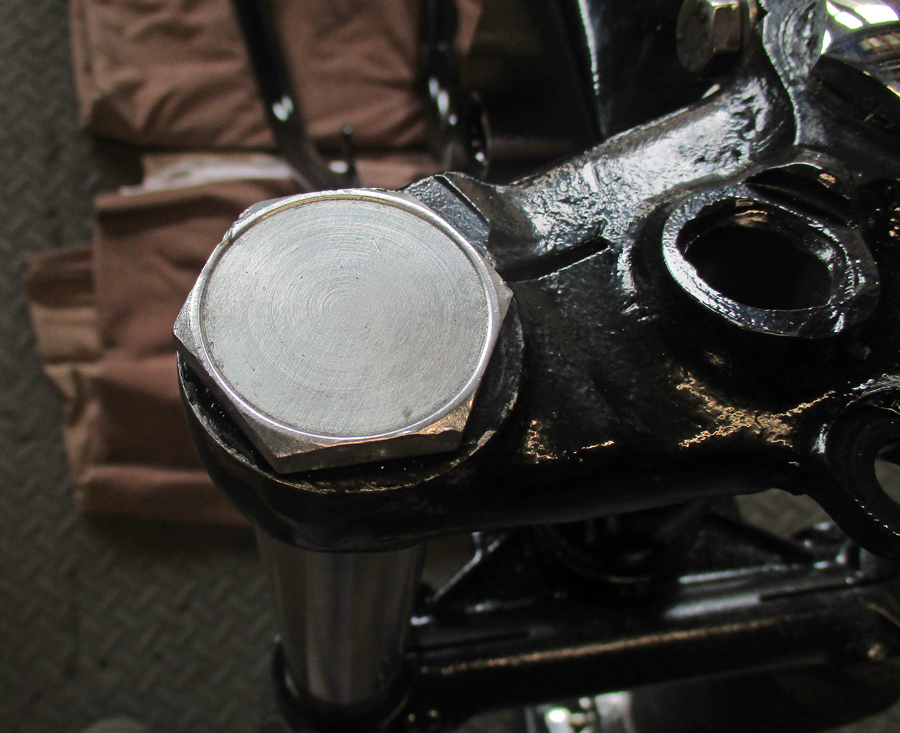

    And polish them up until I decide whether to get the new shiney ones


    • Like Like x 10
  14. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    Bolt on the handlebars along with new spacers for the grips and complete with home made stainless bracket and speedo.


    Then whack hurtie split finger with big spanner until it bleeds again. Enjoy a loud dance around the garage using those well known lyrics "bugger, bugger, bugger, bum hole, bastard, cuntie, bollox.."
    Sing along now, you all know the words......


    • Funny Funny x 11
    • Like Like x 2
  15. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios

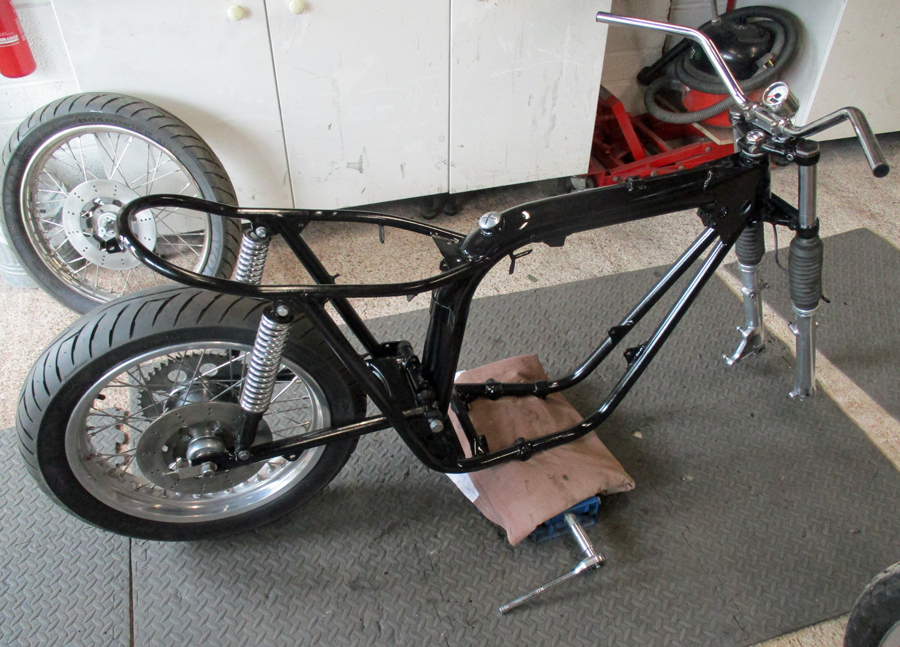

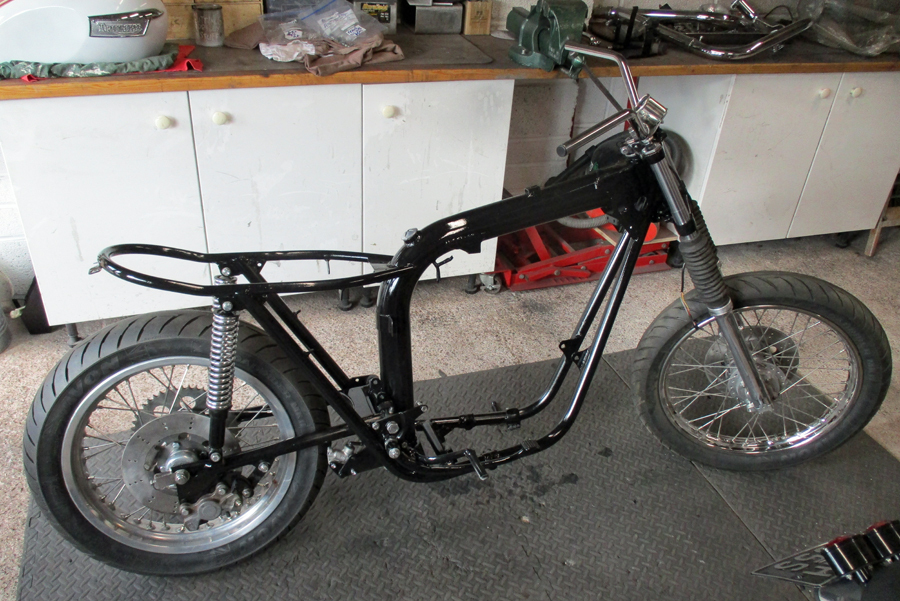

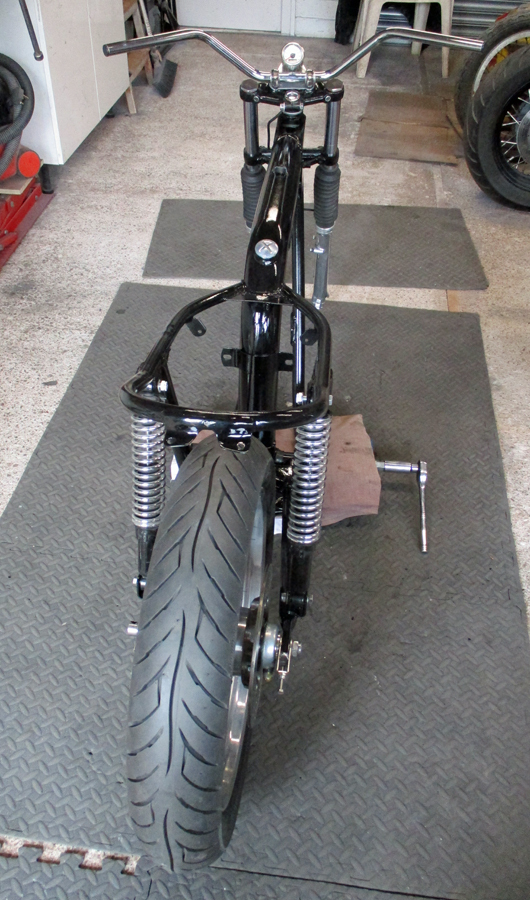

    Had a spot of luncheon and then sorted back wheel


    Looks better than the usual skinny ones I think

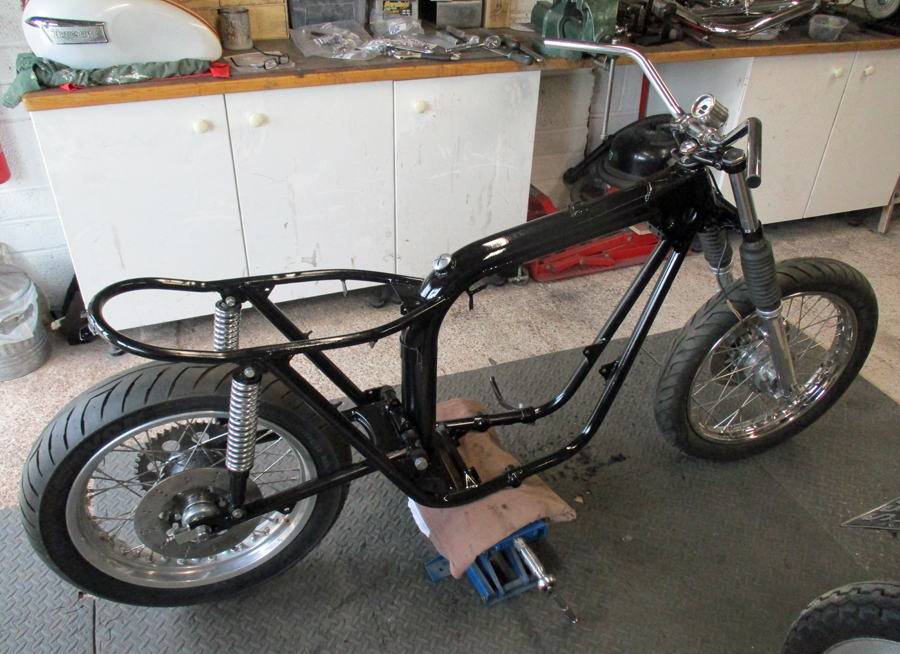

    Moved the jack back and bolted in the front wheel and kick stand.

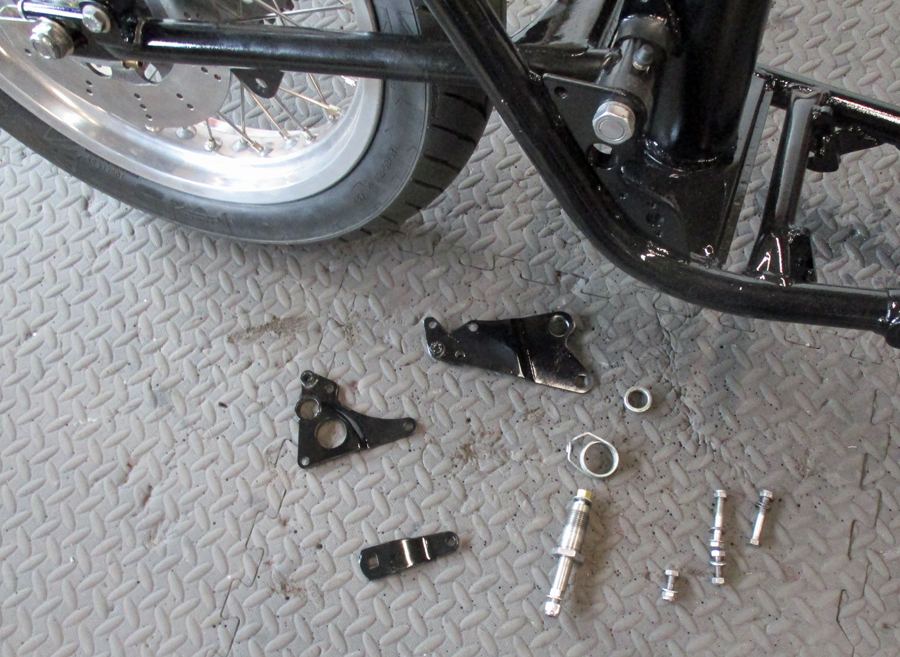

    Sorted the puzzle that is the back brake assembly


    Then remembered the back brake bracket and caliper. Numbnuts. So took out the back spindle and reassembled with the brake stuff on and then it was time for tea....
    Quite pleased so far....:)....over....


    • Like Like x 11
    • Agree Agree x 1
  16. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,939
    1,000
    Southcoast of the UK Earth
    Tyre sits nice on the wide rim :)

    • Agree Agree x 5
  17. DCS900

    DCS900 Careful, man! There’s a beverage here!
    Subscriber

    Sep 11, 2021
    2,336
    1,000
    LA
    Was that song called “Oooocha Mother…” by George Formby?

    • Funny Funny x 2
    • Like Like x 1
  18. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios

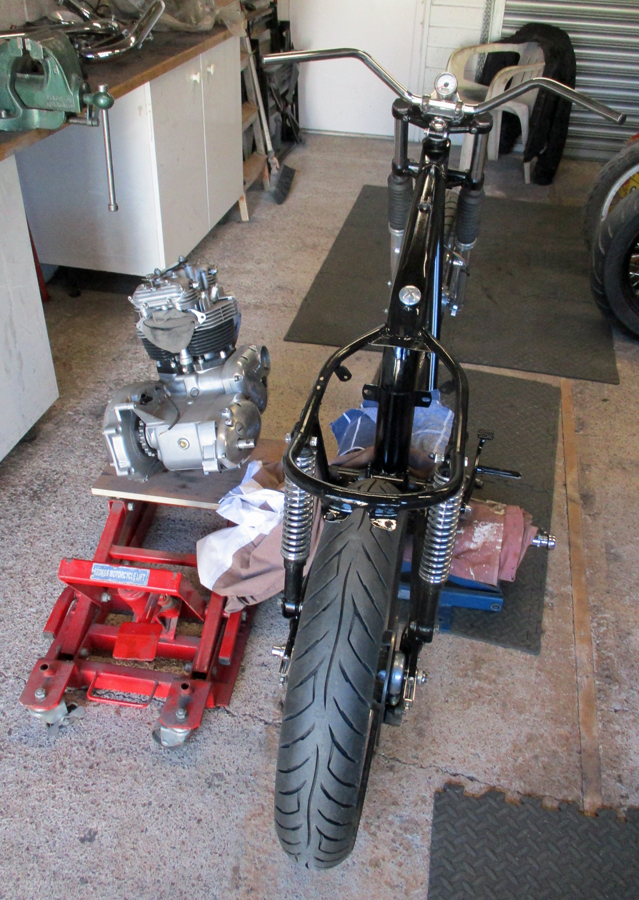

    Engine to go in


    I wheeled it round on the jack so it was closer for the Admin Staff. I had to take off the brake pedal and footrest so she was happy. And plonked it straight in.


    • Like Like x 6
  19. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios

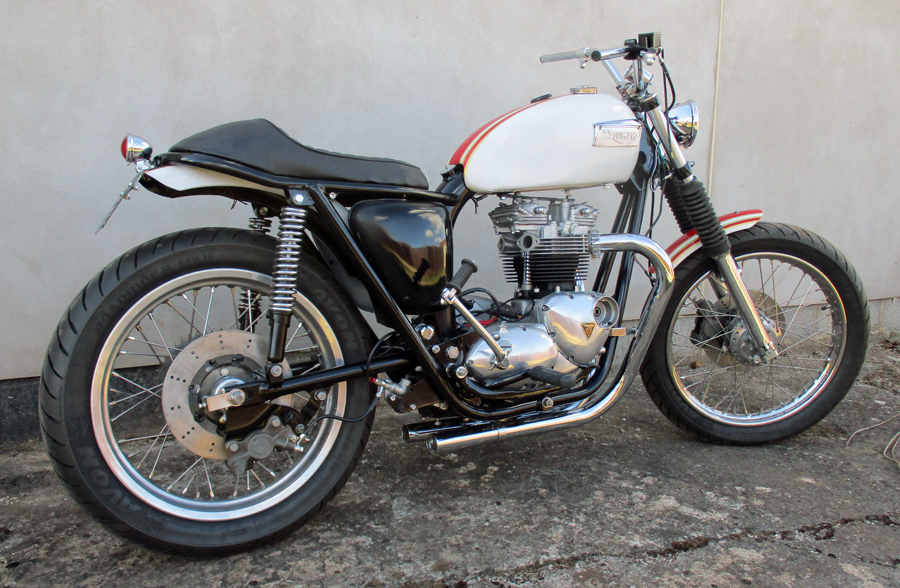

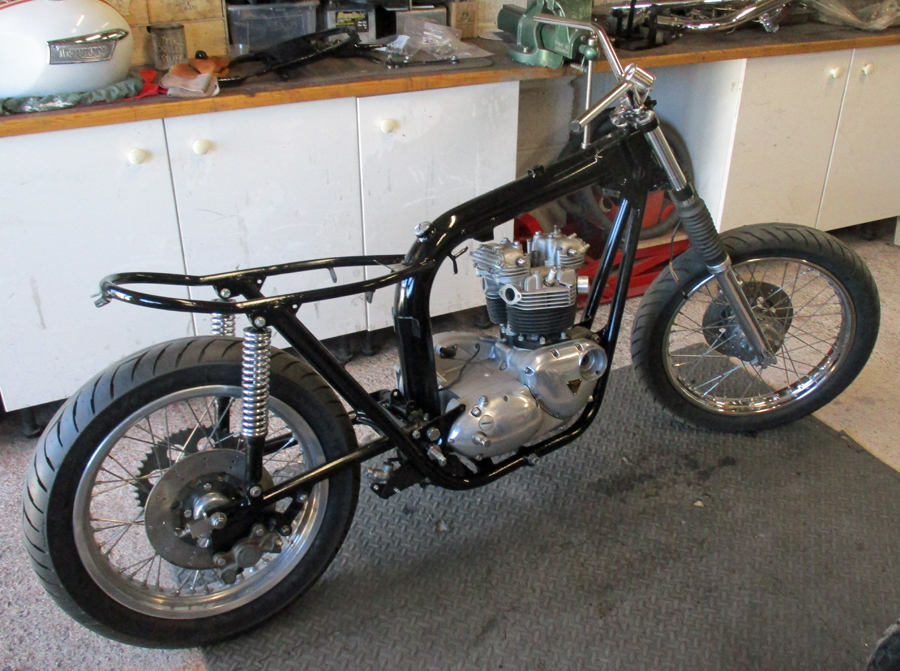

    Bolted all the bits and bobs back on and it's more or less there. Ok wiring etc etc etc to do but essentially done.

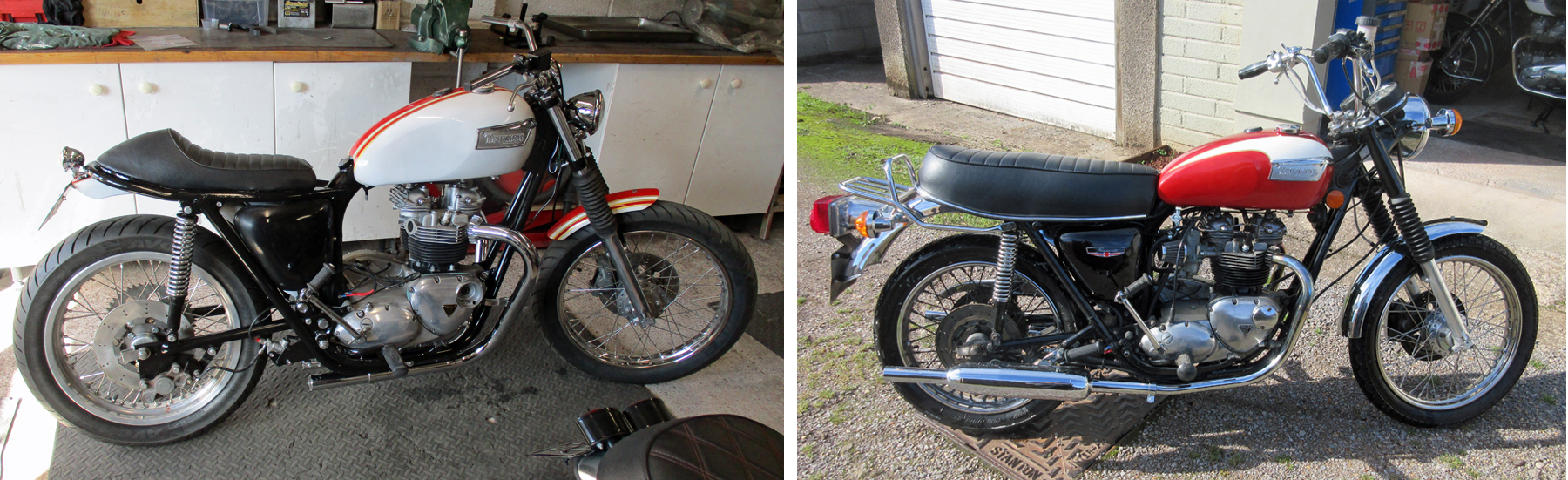

    After ..................................................................and.................................................Before

    • Like Like x 8
  20. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    #340 Iron, Apr 15, 2022
    Last edited: Apr 15, 2022

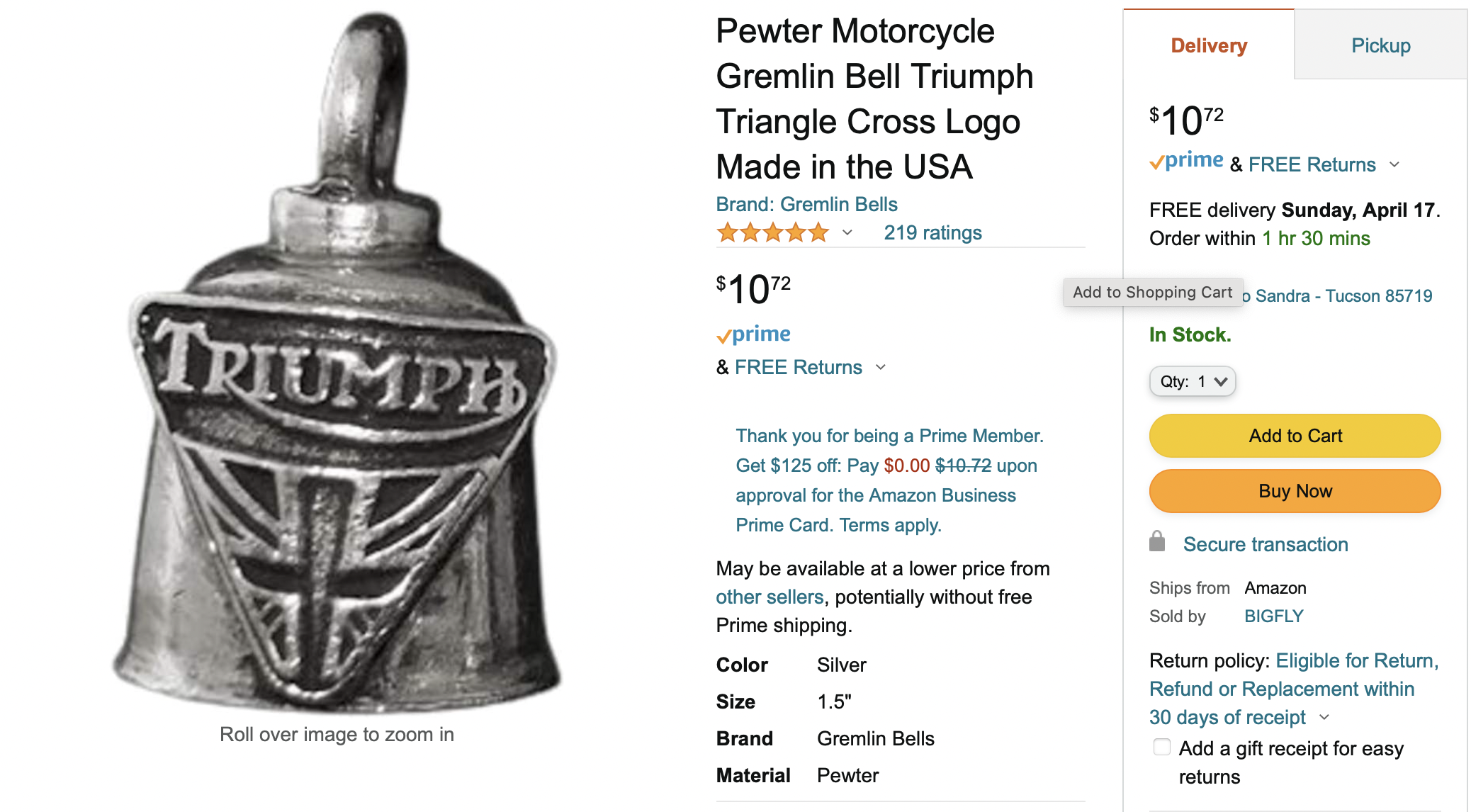

    Gotta get bikes running now for summer poodling so it'll sit for a while but sorted.....other than the spirit bell, still gotta sort that :)......over....


    • Like Like x 7
