    Thanks @Sandi T , streetglidefenderchip is my middle name - "Iron streetglidefenderchip Bru" - made from girders don't ya know (you need to roll the middle R in girders). Easy, but the travelling expenses will be a bit excessive. I'll bring my airbrush and sunglasses :cool:

    • Useful Useful x 1
    • Love You Love You x 1
  2. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    Wondered what to do with the side panels. So plastic primer and then white. Didn't want Bonneville straight so could be 750 or let's go 45 for cu. in. or maybe go Roman XLV? Opted for 45, so first put on some gold

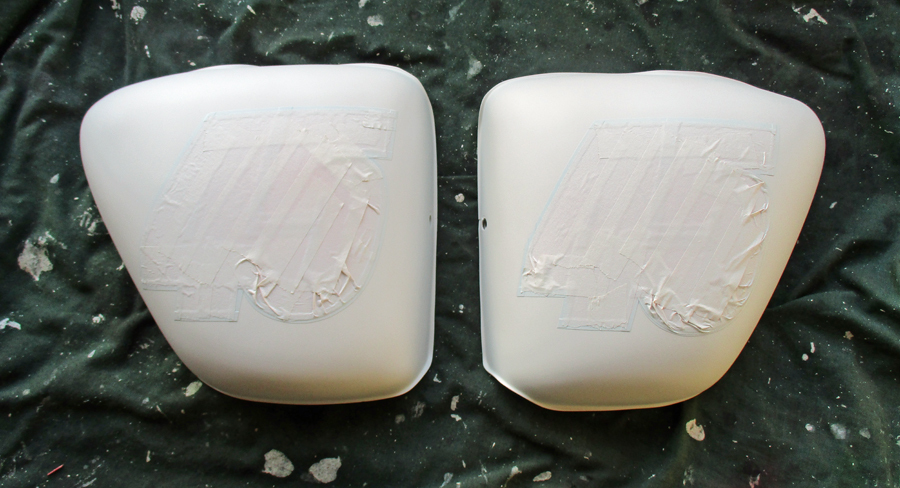

    Then farted around with numeral designs and lightly pencilled on trying to level and centre up. Then using the plastic type masking pin line tape. Tape on the 45


    Mask up for the red


    • Like Like x 5
  3. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    #263 Iron, Feb 22, 2022
    Last edited: Feb 22, 2022

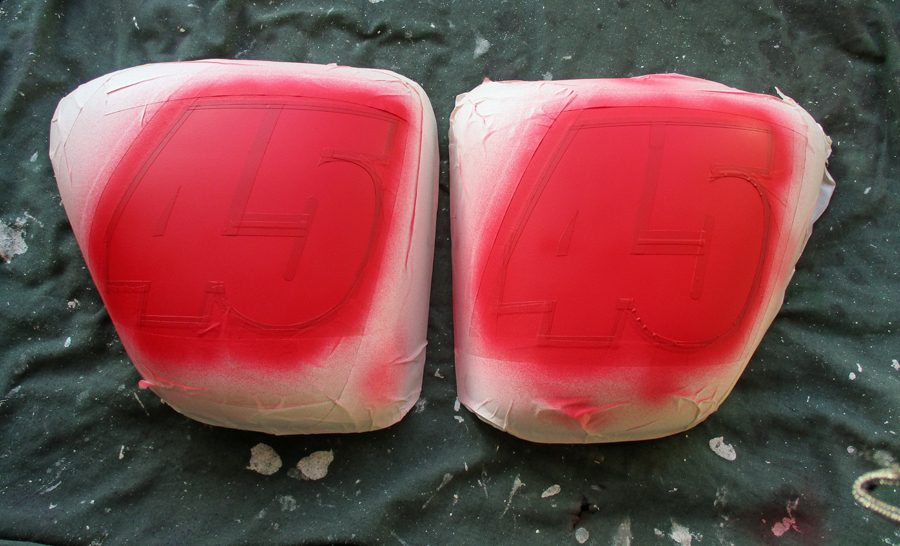

    Slap on some red

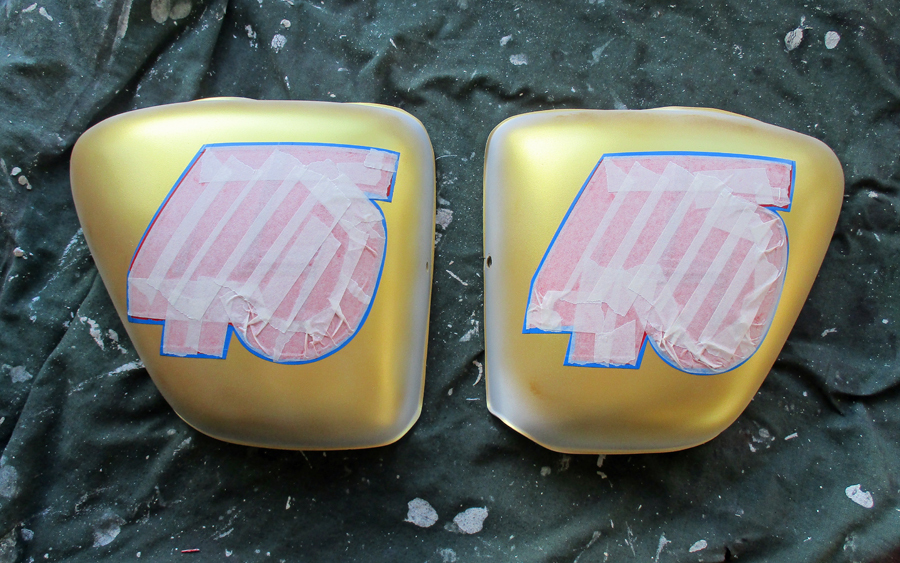

    Take off the outside mask and mask up the red (hoping that it's gone off enough not to be pulled up by the tape when it comes off)


    Slappydee-dash some white on (only very experienced painters can do that :cool:)

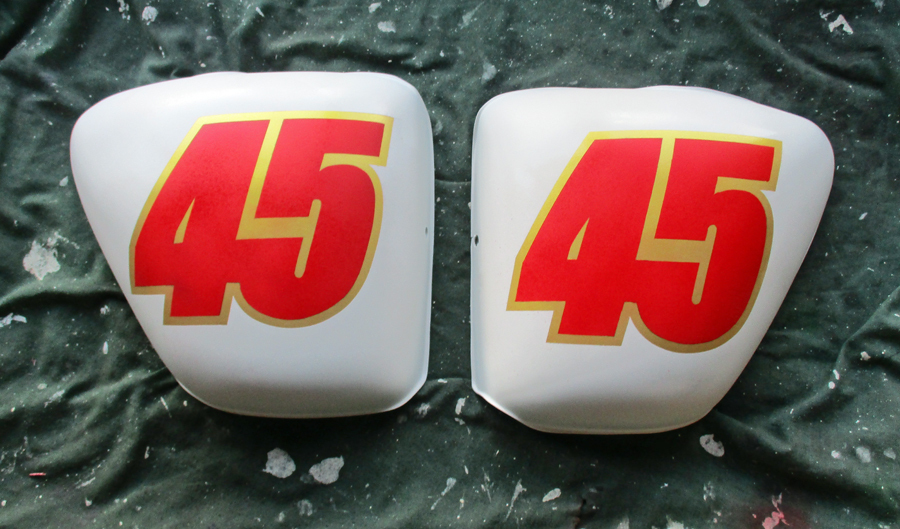

    Take all the masks off, tidy up a bit erasing the pencil off of the gold. Spray a very light intercoat on just until I've decided if I want anything else on there and Bob's yer Auntie

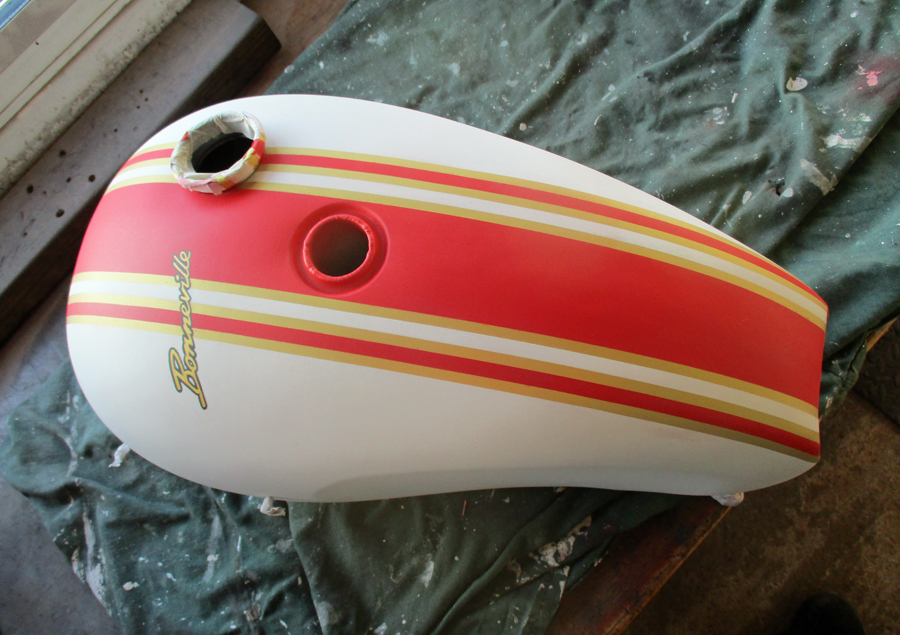

    Hand painted Bonneville onto the tank. I may do this on the side panels as well or maybe "Made in England"


    • Like Like x 14
  4. Adie P

    Adie P Crème de la Crème

    Jul 7, 2018
    3,467
    1,000
    MID DEVON
    I just can't work out why a few ounces of your prodigious , nay, seemingly endless talent weren't shared out more widely amongst plebs like me. I'd probably have a puerile hatred (born of envy, of course) of you if you weren't such a nice guy.

    You and @darkman are in a league of your own.

    Kudos.

    • Like Like x 5
    • Agree Agree x 4
    • Funny Funny x 1
    • Thanks Thanks x 1
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,939
    1,000
    Southcoast of the UK Earth
    Amazing work :)

    • Agree Agree x 6
    • Thanks Thanks x 1
  6. RevPaul

    RevPaul Active Member

    Apr 21, 2020
    236
    43
    Cheshire, UK
    I am not worthy even to read this thread.

    Keep up the great work Iron.

    • Funny Funny x 2
    • Thanks Thanks x 1
    • Agree Agree x 1
  7. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    19,528
    1,000
    Tucson Arizona
    Wow! I am in awe, Iron. And you make it all sound so simple---"slap dash" this and "tidy up" that. Meanwhile it looks like you should be painting bikes for the likes of Jay Leno or some such guy. And that hand painted "Bonneville" on the tank is absolutely amazing. I can't fathom how someone can even do that! Stunning.:heart_eyes:

    But I do have one question for you. Who's Bob and how did he get to be an Auntie?

    • Funny Funny x 1
    • Thanks Thanks x 1
    • Agree Agree x 1
  8. Yorkshireman

    Yorkshireman Crème de la Crème
    Subscriber

    Dec 12, 2015
    3,400
    1,000
    Barnsley
    It’s a different take on a saying we have, “Bobs your uncle”, in a similar vein to “the worlds your oyster “ when you’ve got something right.


    Or, in these times of diversity it could be that Robert has been living in denial in a woman’s body all his life and has “come out”. He/she is on a list of people waiting for gender reassignment surgery on the NHS and really wants to be called Roberta. o_O

    • Funny Funny x 4
    • Agree Agree x 2
  9. DCS900

    DCS900 Careful, man! There’s a beverage here!
    Subscriber

    Sep 11, 2021
    2,336
    1,000
    LA

    • Funny Funny x 4
    • Like Like x 1
  10. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    Thanks club aficionados, oh, and Bob.

    • Funny Funny x 2
    • Agree Agree x 1
  11. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios
    #271 Iron, Feb 23, 2022
    Last edited: Mar 13, 2022

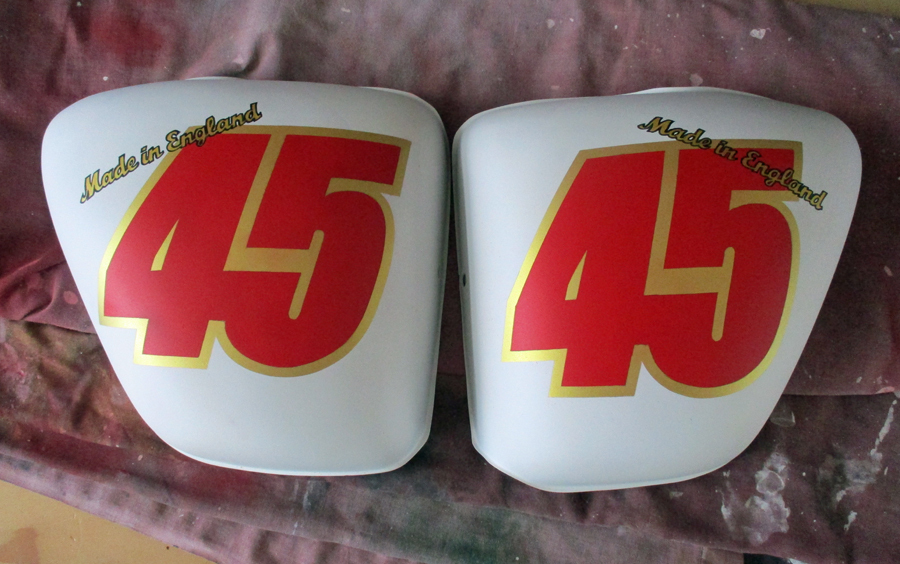

    Brushed the 'Made in England' on the side panels. Will leave alone for a bit while I have a bit of a think about it before I do the clear coat.


    In the mean time I thought I'd be a bit more scientific about doing the electrics. Cool man ✌.
    I normally work my way through by splitting it into power, lights, brakes, warnings etc. Although it generally works ok doing it like that I tend to end up with a pile of spaghetti. I then try to tidy that all up afterwards. This time I'd like to be organised.
    So I'm gonna do a drawing. But not any regular drawing. I'm gonna overlay it on the bike. Aha, you clever bugger.
    Made a start

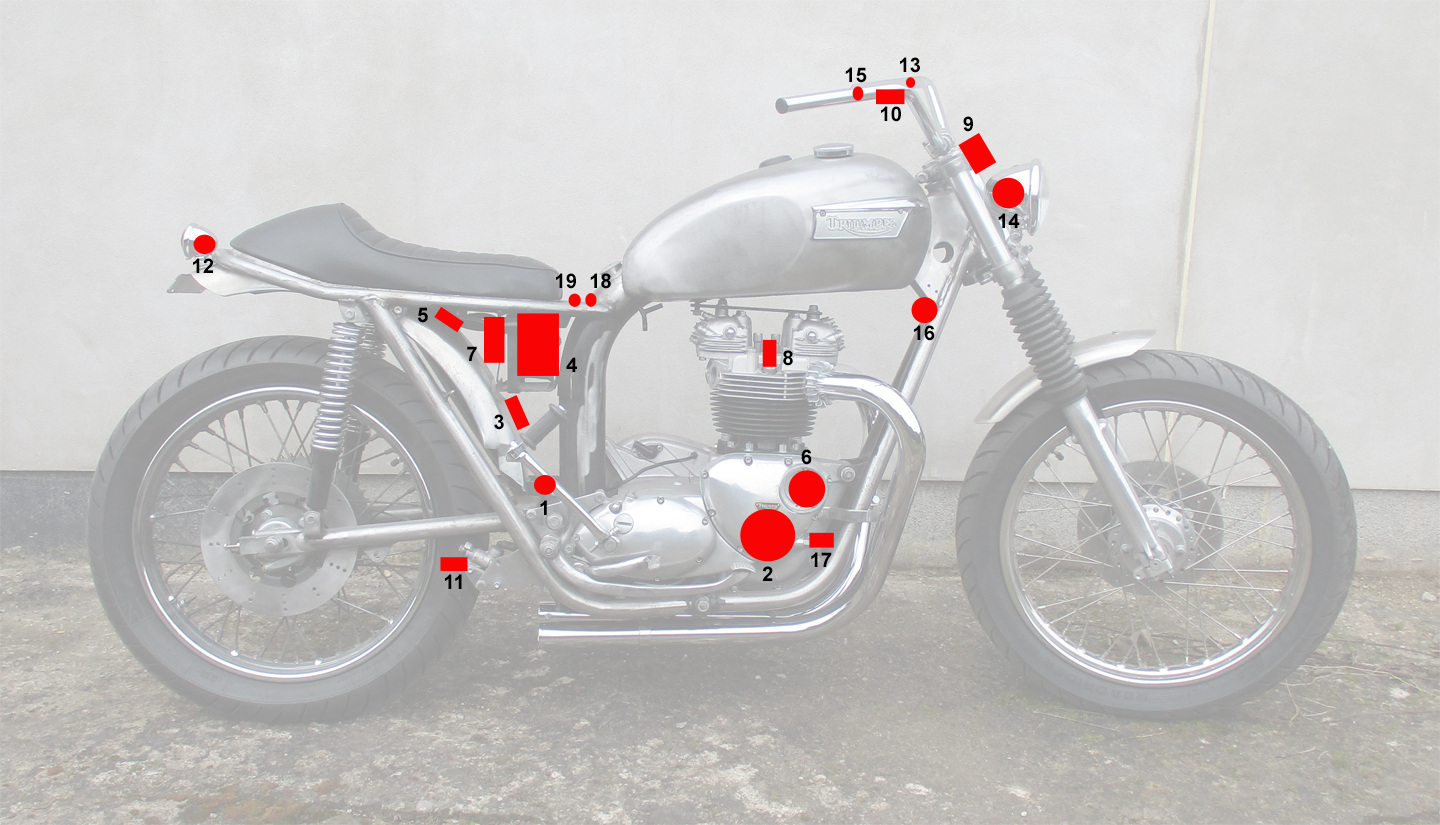

    Electrics Diagram 1.jpg

    I've overlaid the main elements onto a photo of the actual bike. I think I've got everything I normally have:

    1 Ignition switch, 3 way (on, off and I want to turn the lights on or off)
    2 Alternator
    3 Regulator/Rectifier
    4 Battery
    5 Ignition Unit
    6 Points
    7 Coils
    8 Spark Plugs
    9 Speedo
    10 Front Brake Switch
    11 Back Brake Switch
    12 Back light
    13 High/Low Headlight Switch
    14 Front Light
    15 Hooter Button
    16 Hooter
    17 Oil Pressure Switch
    18 Battery Charge Warning Light
    19 Oil Pressure Warning Light

    I'm hoping that I can now wire everything up by drawing coloured lines on the picture. Then actually making up a wiring loom in parts, on the bench, that fits onto the bike all bundled up to suit. I'll be amazed, and very pleased, if this works because I don't really like doing the wiring. But if I can make it neat and solder it all up so nothing can come loose I'll be well chuffed. Over....

    • Like Like x 14
    • Useful Useful x 1
  12. Dawsy

    Dawsy Cumbrian half-wit
    Subscriber

    Aug 24, 2018
    3,219
    800
    Cumbria
    Genius:grinning:

    • Agree Agree x 4
    • Thanks Thanks x 1
  13. joe mc donald

    Subscriber

    Dec 26, 2014
    13,707
    1,000
    slough / burnham
    Iron
    Yes truly awesome.
    Joe

    • Like Like x 1
    • Thanks Thanks x 1
    • Agree Agree x 1
  14. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios

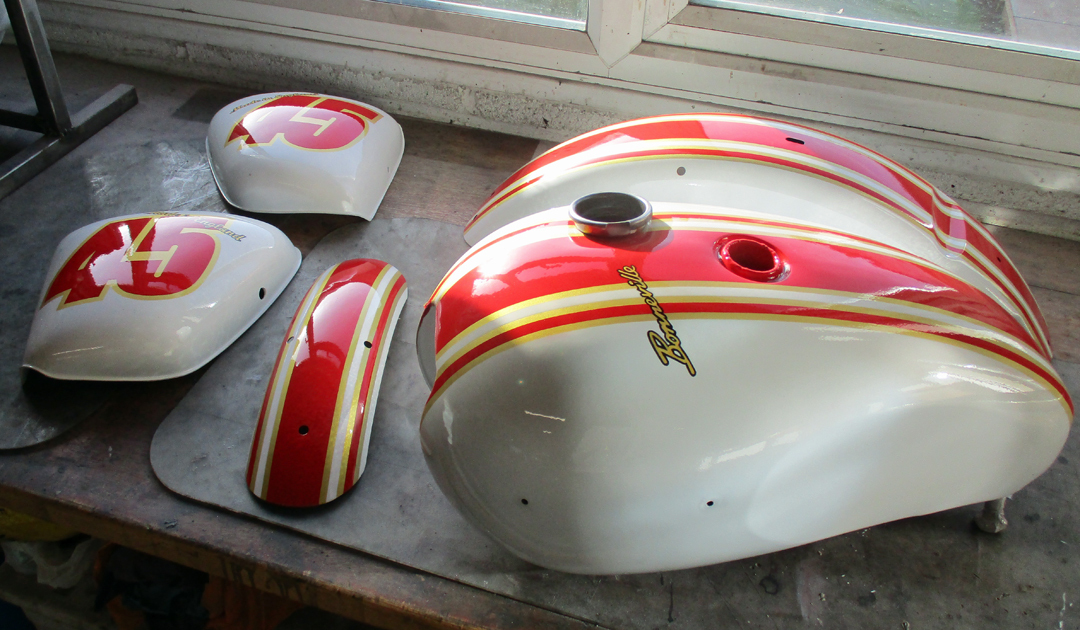

    2 Pack clear on. Will leave for a few days before polishing and will bung them on just to see what it looks like before the dismantle for powder


    • Like Like x 11
  15. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,939
    1,000
    Southcoast of the UK Earth
    Nothing beats fitting newly painted parts on :)

    • Like Like x 3
    • Agree Agree x 1
  16. Iron

    Iron Elite Member

    Dec 29, 2021
    2,152
    943
    Bob Ross Studios

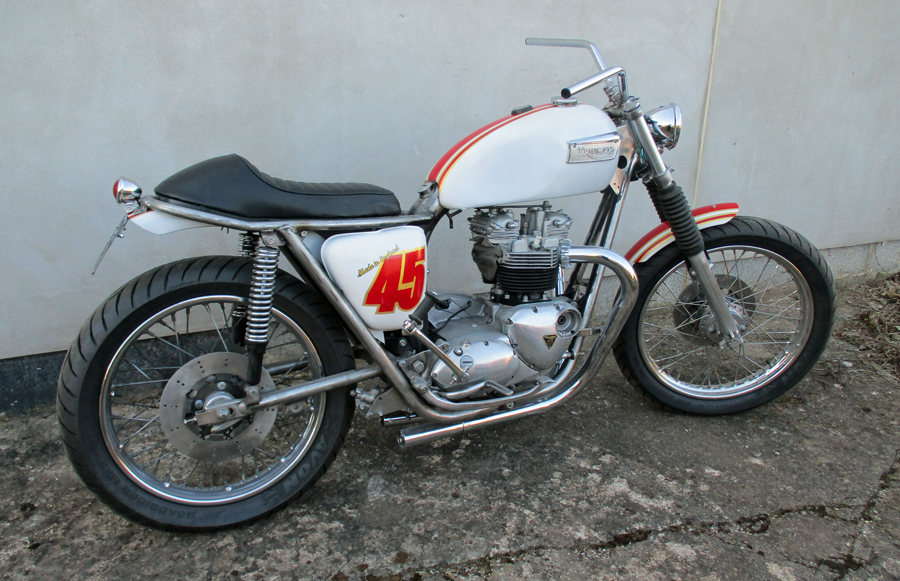

    Polishing done. Which is a right arse. Temp put the tins back on to have a look. Hmmmm....don't think I'm that enamoured with the side panels. S'ok though 'spose. But they may well go back to black. Is that the Stones?


    • Like Like x 11
  17. Adie P

    Adie P Crème de la Crème

    Jul 7, 2018
    3,467
    1,000
    MID DEVON
    • Agree Agree x 2
    • Like Like x 1
    • Thanks Thanks x 1
  18. Dawsy

    Dawsy Cumbrian half-wit
    Subscriber

    Aug 24, 2018
    3,219
    800
    Cumbria
    Would it be better with the 45 in smaller text?
    Don't get me wrong, it looks stunning but, yeah, the panels don't quite work for me.:grinning:

    • Agree Agree x 4
  19. Yorkshireman

    Yorkshireman Crème de la Crème
    Subscriber

    Dec 12, 2015
    3,400
    1,000
    Barnsley
    Amy Winehouse ;) (Back to Black)

    • Agree Agree x 2
  20. DCS900

    DCS900 Careful, man! There’s a beverage here!
    Subscriber

    Sep 11, 2021
    2,336
    1,000
    LA
    I like it and wouldn’t change the side panels… but then I get told I’m tasteless heathen.
    (Matching topbox anyone?)

    • Funny Funny x 5
    • Agree Agree x 1
