Featured 1967 Tr6c Full Restoration For Su

Discussion in 'Builds & Projects' started by darkman, Nov 10, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    I dunno why I go to all the trouble of cutting these things off when chaps like you just weld them straight back on again. :)
    I can agree to the freezin' temperatures yesterday, still bleedin cold today but doesn't feel so bad as I'm trying to change some tyres. The rim lock isn't helping either.
    Looking good for paint.

    • Funny Funny x 4
    • Agree Agree x 1
  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    Perhaps we could just swap frames in the future Steve and save us both a load of work lol.

    • Funny Funny x 4
    • Agree Agree x 2
    • Like Like x 1
  3. joe mc donald

    Subscriber

    Dec 26, 2014
    13,691
    1,000
    slough / burnham
    Darkman
    I see it as you are a perfectionist and restoration should be as it left the factory not just spruced up. Love all your projects.
    Joe.

    • Like Like x 2
    • Agree Agree x 1
  4. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    618
    143
    appalachia usa
    why did they remove the rear shock mounts

    • Like Like x 1
    • Agree Agree x 1
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    The bike had a hardtail on it S R and i had a rear frame section but it was a early one, early 63-65 swingarms are a 1/4 inch narrower as they have gearbox speedo drives and so the shock mount on the frame is a 1/4 inch further in on the frame for alignment of the righthand shock and the oil tank mounts are different as well.

    • Useful Useful x 2
    • Like Like x 1
    • Agree Agree x 1
  6. Yorkshireman

    Yorkshireman Crème de la Crème
    Subscriber

    Dec 12, 2015
    3,399
    1,000
    Barnsley
    You can’t buy stuff like that, bloody love it. :)

    • Agree Agree x 5
    • Like Like x 2
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    Also a pic of the frame repair where the previous owner tried to cut off the rear engine/swingarm mount :worried:o_O


    • Like Like x 6
  8. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    618
    143
    appalachia usa
    i did not know that about tbe swingarms. i just randomly mix and match swingarms, earl/late rear sections, and front sections, and then figure out the wheel spacing later.

    apparently ive just been lucky

    • Like Like x 1
    • Agree Agree x 1
  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth

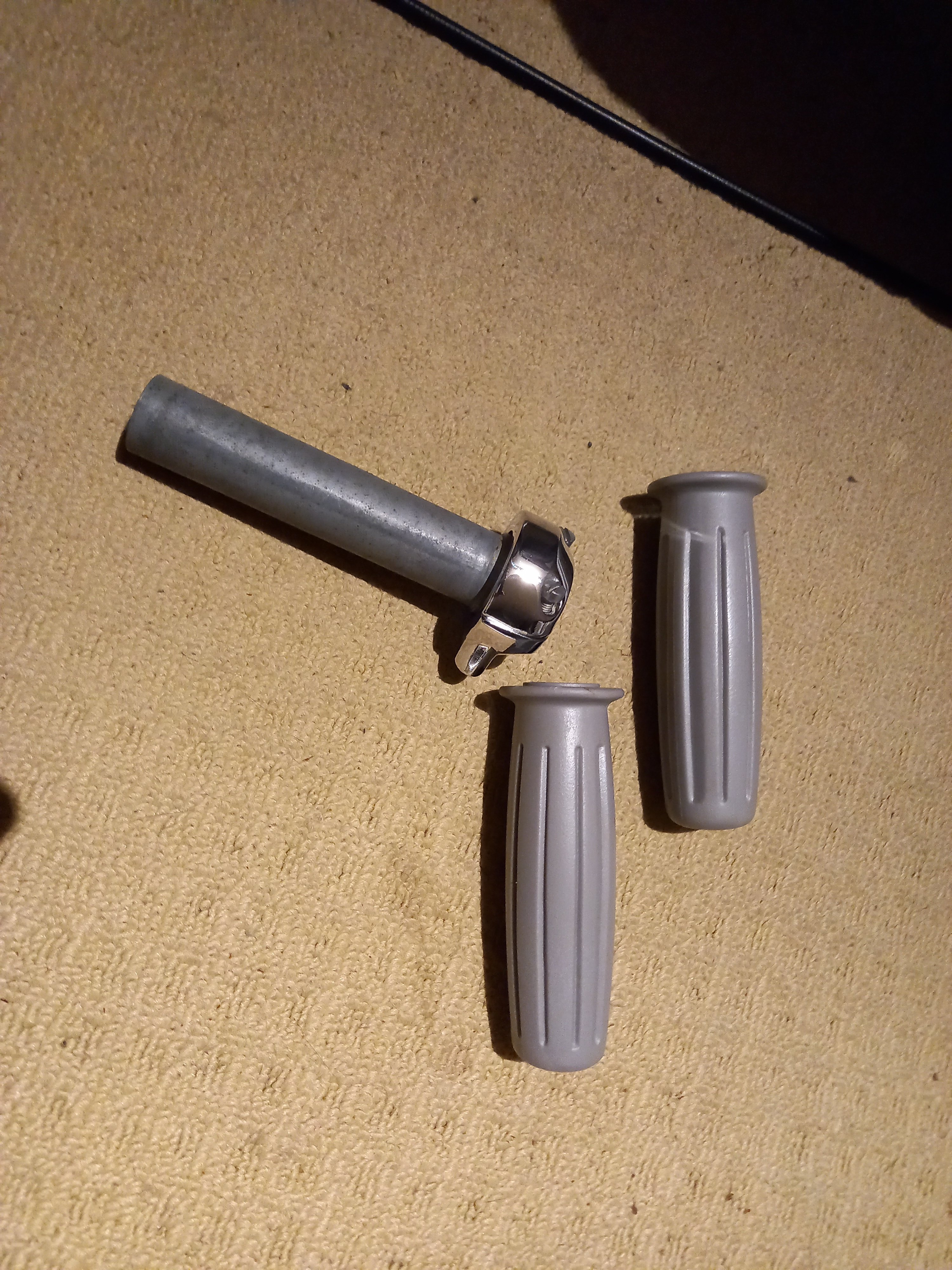

    Back on the TR6C now i have sorted a few other jobs, i found an old gen throttle in my bins and i had the housings re chromed along with some other parts, cleaned up the tube and sorted out some grips.


    • Like Like x 11
  10. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    18,887
    1,000
    Tucson Arizona
    I've always like those old school barrel grips, darkman. It's that "retro" thing....

    • Like Like x 1
    • Agree Agree x 1
  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    The grips are a copy of the original Amal grips fitted in 66 on Triumphs, i managed to find some original NOS Amals for my TT but have not managed to find another set so pattern will have to do until an original set turn up lol.

    • Like Like x 2
    • Agree Agree x 1
  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    The new Amal screws and cable adjusters arrived at last so i could finish off the little job of fitting together the NOS levers on the re chromed clutch and brake perches :)


    • Like Like x 12
  13. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth

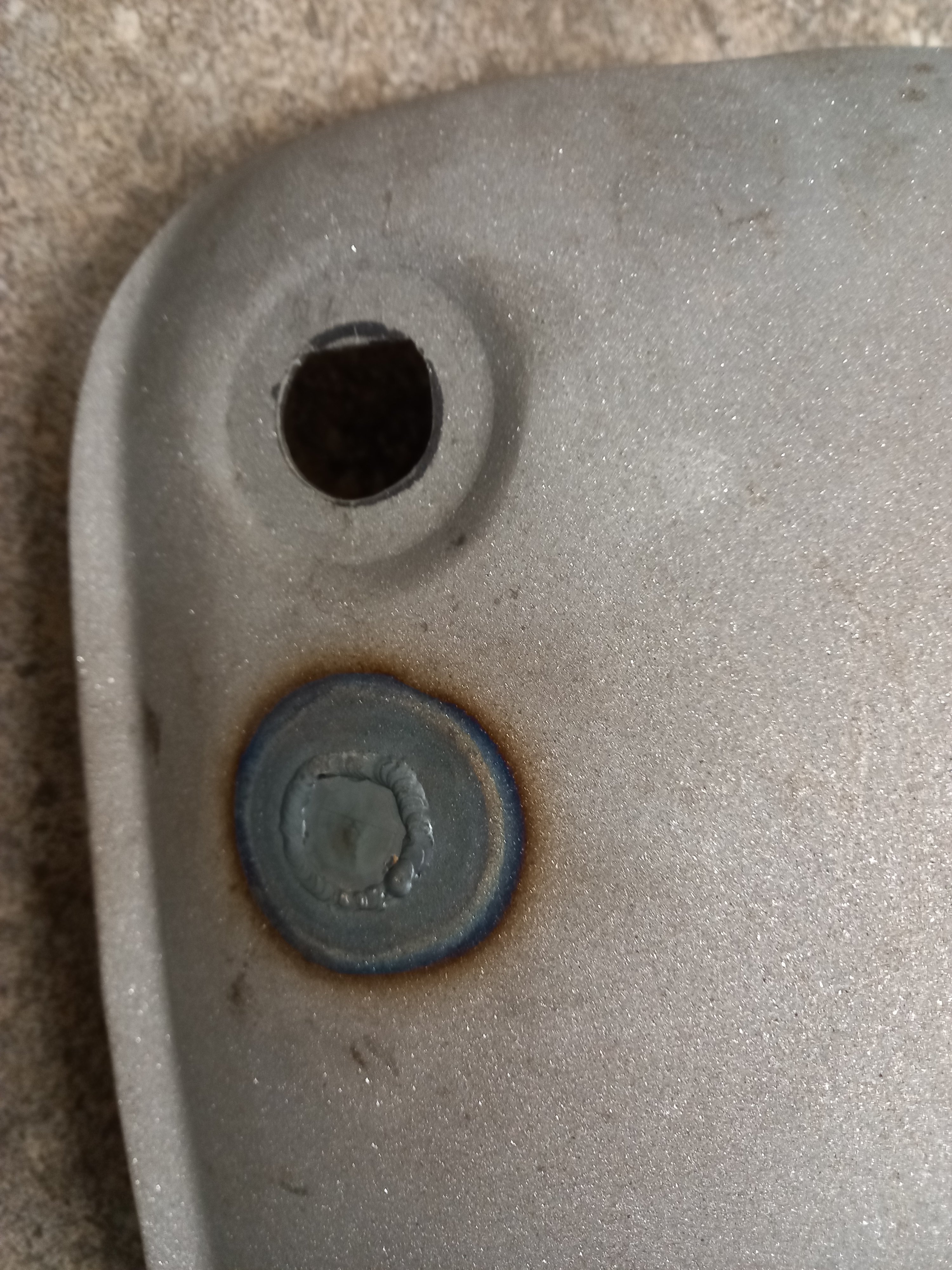

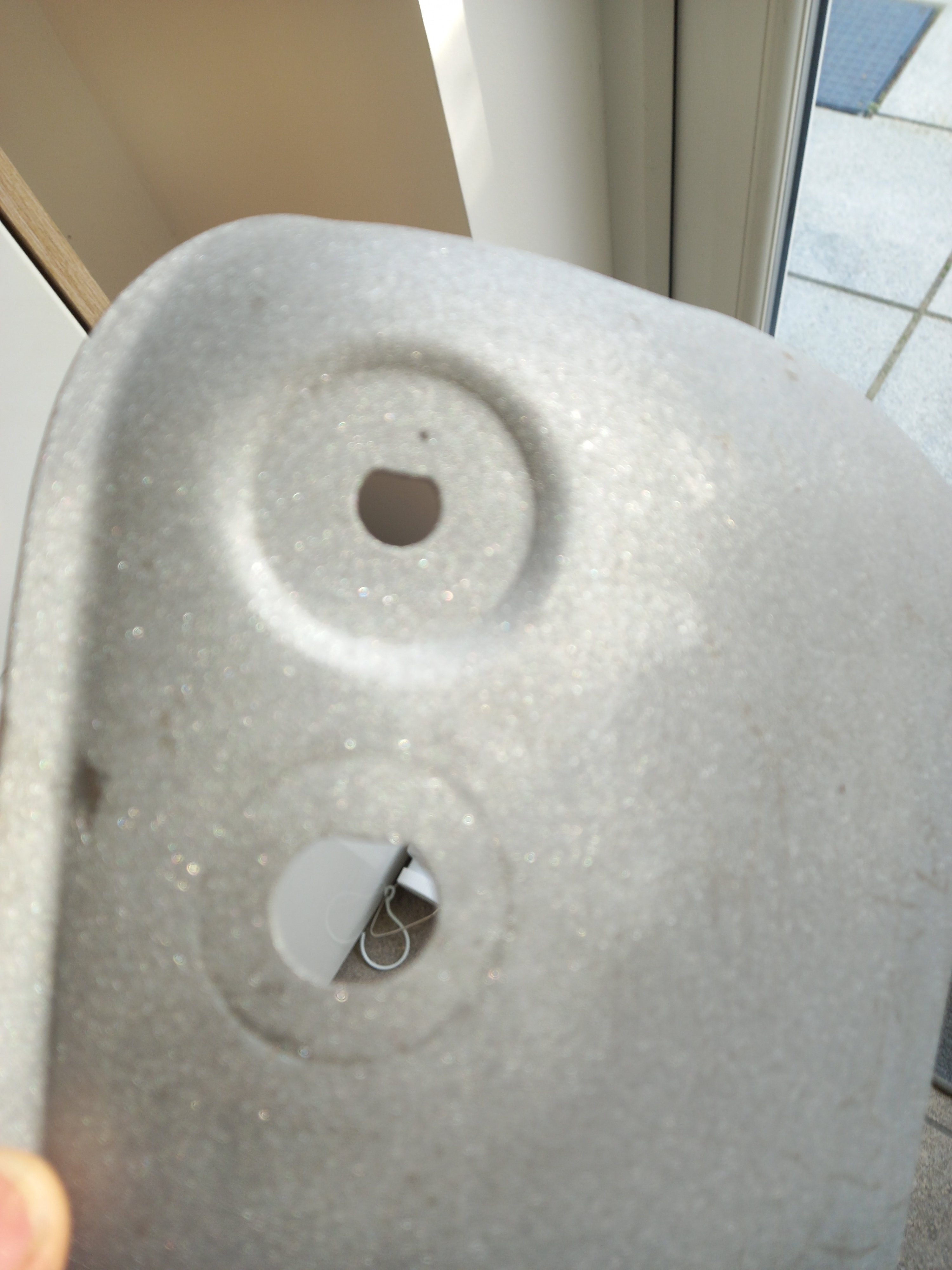

    After looking high and low i couldn't find the correct side cover for a TR6C with just the one ignition switch, so i dressed out the lower ignition switch pressing from an TR6R side cover and cut a new larger hole in the top pressing originally for the light switch so as the ignition switch will now fit, had the hole welded up in the lower part and its ready for paint :)



    • Like Like x 10
    • Useful Useful x 1
  14. painless

    painless Well-Known Member

    Dec 16, 2021
    149
    83
    Powell River BC
    Sad to see I am not the only one who has to deal with other peoples mess they make of their motorcycle, I have no idea why some one would take a thing of beauty and start cutting it up. Keep up the good work.

    • Like Like x 1
    • Agree Agree x 1
  15. Erling

    Erling Elite Member

    Dec 12, 2017
    1,091
    943
    Norway
    .


    • Like Like x 9
    • Agree Agree x 1
  16. DCS900

    DCS900 Careful, man! There’s a beverage here!
    Subscriber

    Sep 11, 2021
    2,330
    1,000
    LA
    Same applies to partners :D

    • Funny Funny x 3
    • Like Like x 2
    • Agree Agree x 2
  17. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    If only my welding was so pretty. I'd leave it without grinding down to show how great I was :)

    • Like Like x 1
    • Agree Agree x 1
  18. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    618
    143
    appalachia usa
    heavens yes

    i was looking at that saying, if i tried that id weld that hole three times larger in seconds

    • Funny Funny x 3
    • Agree Agree x 1
  19. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    Finally managed to squeeze my paint work in and get it all prepped and primed, hopefully i can get back out there next week some time and finish all the black gloss coat.




    • Like Like x 13
  20. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    All frame parts in black but will have pics on Monday :) i did bring home the front brake drum though now painted silver :)
