1967/1969 Bonnie Rebuild Desert Sled Project - Any Advice

Discussion in 'Vintage Classics' started by Sundance, Sep 15, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,106
    243
    appalachia usa
    #121 speedrattle, Dec 25, 2021
    Last edited: Dec 26, 2021
    when i said you dont need the tool i meant the one with the circular groove cut in it. i do reccommend a stepped drift because the bearing cage is easily bent. lowbrow sells one

    • Like Like x 1
    • Useful Useful x 1
    • Agree Agree x 1
  2. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    Ok, I’ve got the lowbrow tool. Merry Christmas SpeedR.

    • Like Like x 1
    • Agree Agree x 1
  3. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,106
    243
    appalachia usa
    dont use it for wheel bearings like i did. you ll have to dress it after

    • Funny Funny x 1
    • Agree Agree x 1
  4. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    OK, I'll have to make a note of this!

    • Agree Agree x 1
  5. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    I’m getting ready to reassemble my clutch shock absorber unit with new rubber bits. I’ve also got new screws since the old ones were messed up a bit. I’d appreciate any comments on how to get this together as I’ve read getting the new rubber bits in can be a challenge. Also - what it the recommendation for loctite? I’m assuming a bit of red loctite? Thanks for any advice!

    • Agree Agree x 1
  6. Iron

    Iron Elite Member

    Dec 29, 2021
    2,554
    943
    Bob Ross Studios
    Sundance
    You can't go wrong watching John do his thing.

    • Like Like x 1
  7. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    Thanks Iron, yes, I've watched this great video several times. It is what helped me find a way to get those rubbers in. I have a rubber strap wrench that I put around the basket. Then I had a piece of angle steel that just fit into the inner gear. With this secured in a vise I was able to rotate the outer piece with the strap wrench and insert each piece with a bit of leverage. Do you have any advice on using loctite here - red, blue or none? Thanks!

    • Agree Agree x 1
  8. Iron

    Iron Elite Member

    Dec 29, 2021
    2,554
    943
    Bob Ross Studios
    I've never used any loctite on any part of the clutch. If you must, use the blue one. At least you've got a chance of getting the nut off again.
    If you've got a tab washer then nothing should come loose. Make sure the tab washer is kept central as you do up the nut as they can go skew and get jammed into the thread. If you've the later self locking nut, then again, nothing to come loose. Obviously you need to torque to requirements.

    • Agree Agree x 1
  9. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    Thanks again. I broke a screwdriver bit with my impact driver taking off one of the 6 countersunk screws on the clutch shock absorber unit. I don't think tI want to loctite any of these.

    • Agree Agree x 1
  10. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA

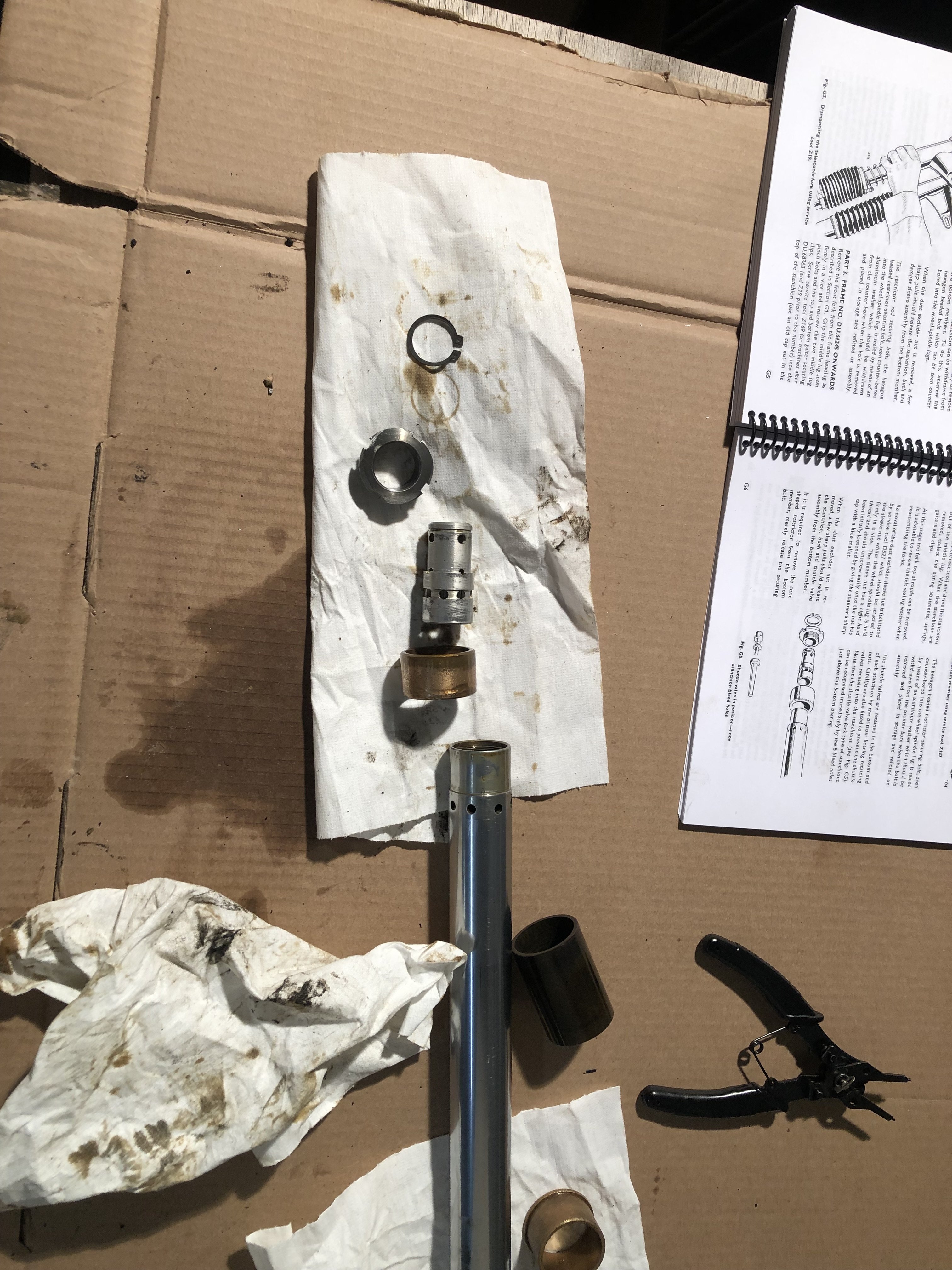

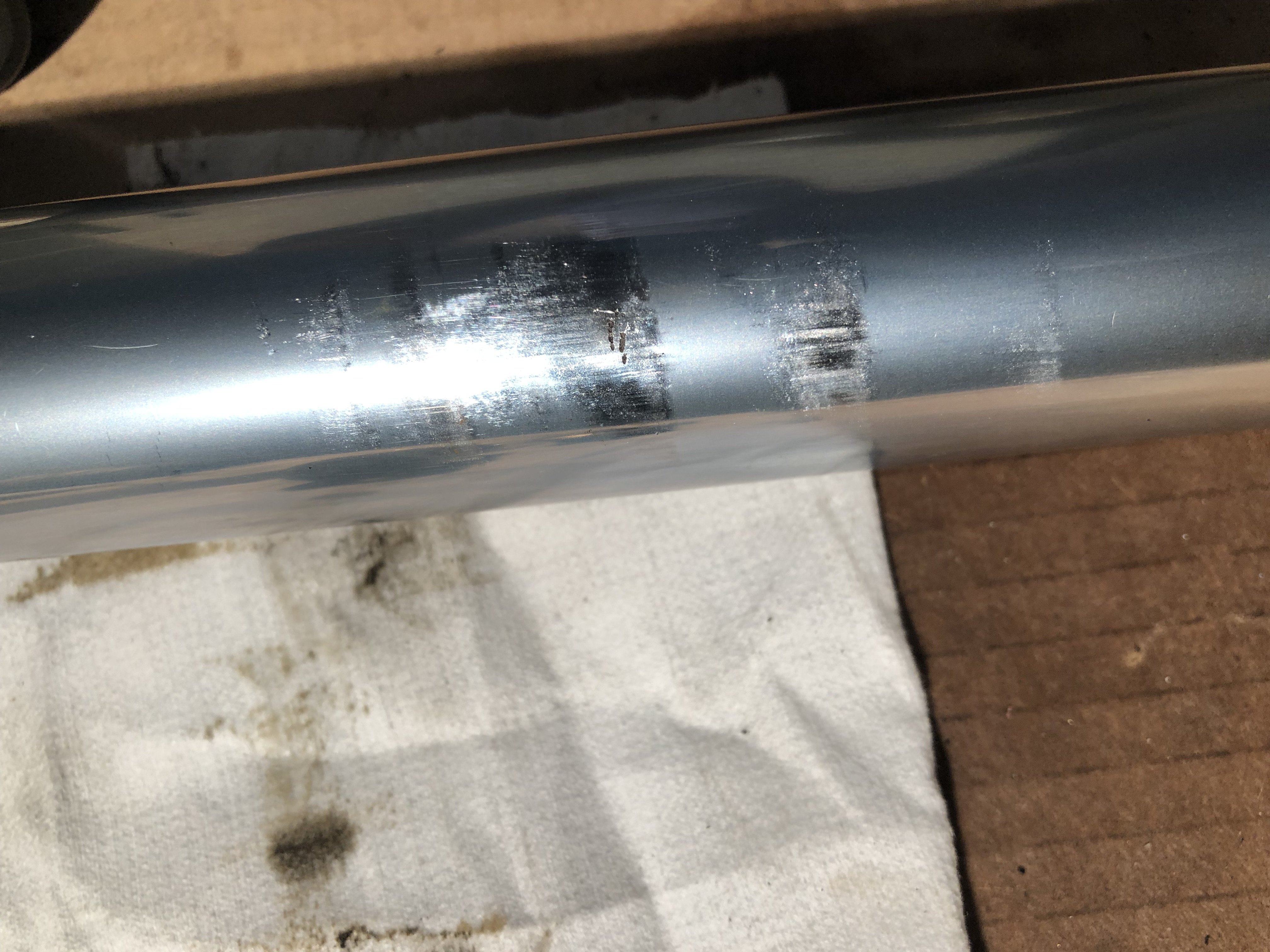

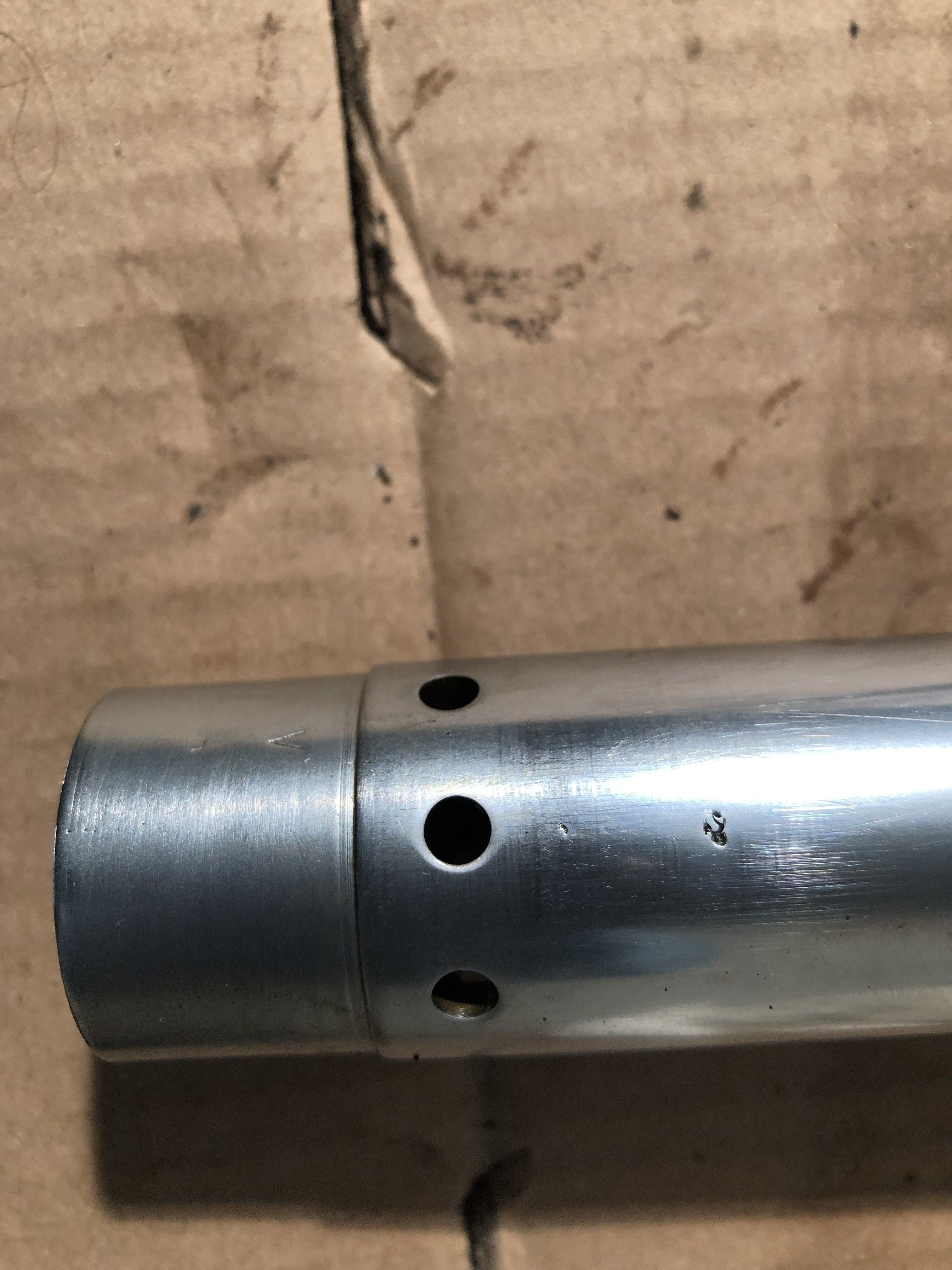

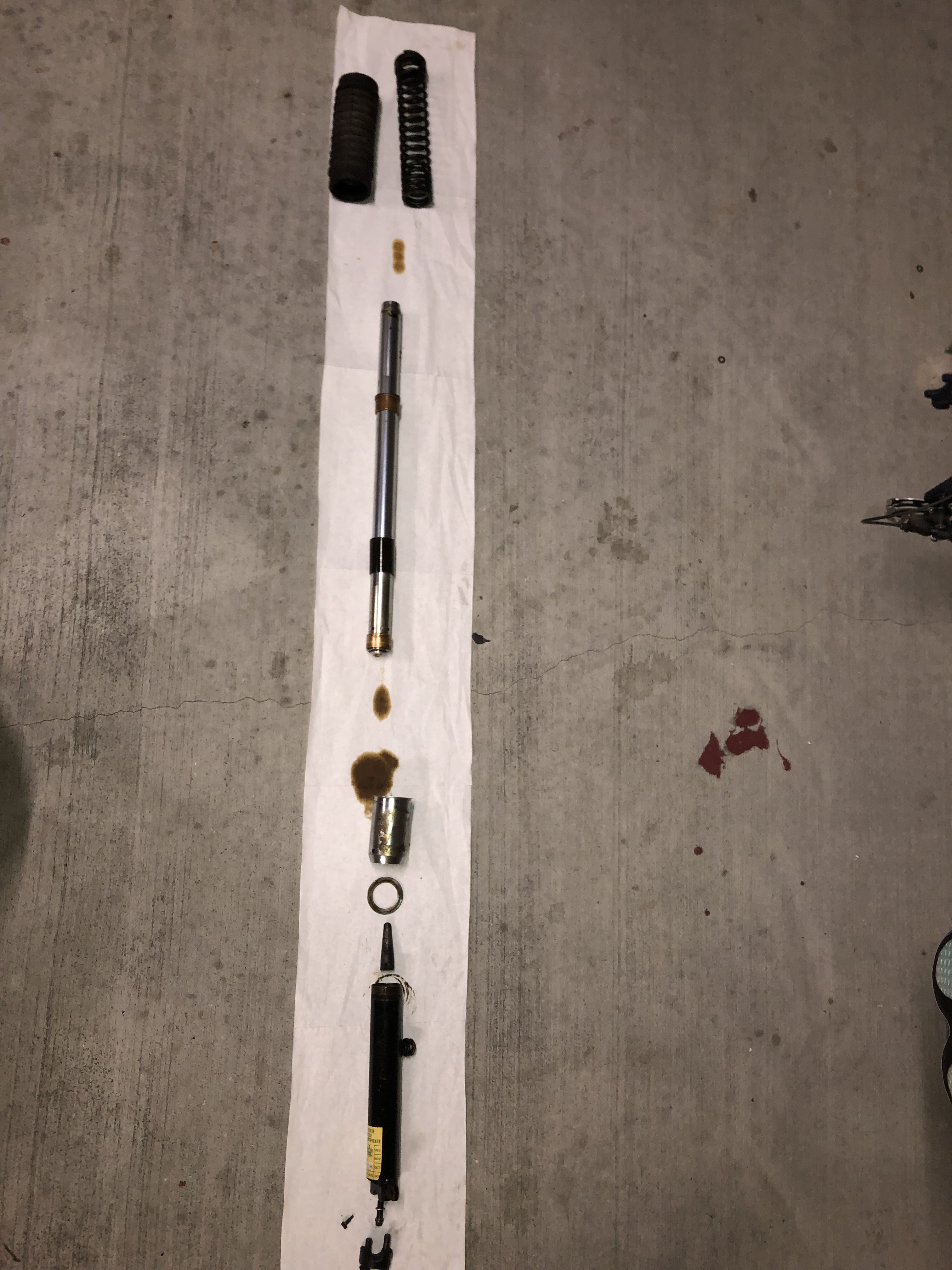

    I’ve been waiting on some new cams and tappets so went to work on the frame, completely disassembling it. I took the forks apart tonight and would appreciate any comments. I am pretty sure these are forks from a 1969 Bonneville. The insides were a mess, lots of corrosion, so I’ll be needing to get a number of parts. These measure 6 3/4 inches stanchion to stanchion. On the right side stanchion there are a couple of pits about mid-way so I’m wondering if this is a problem to rebuild? On the left stanchion there are a couple of pits also, however they are very low on the stanchion. Thanks for any comments.







    • Like Like x 4
  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth

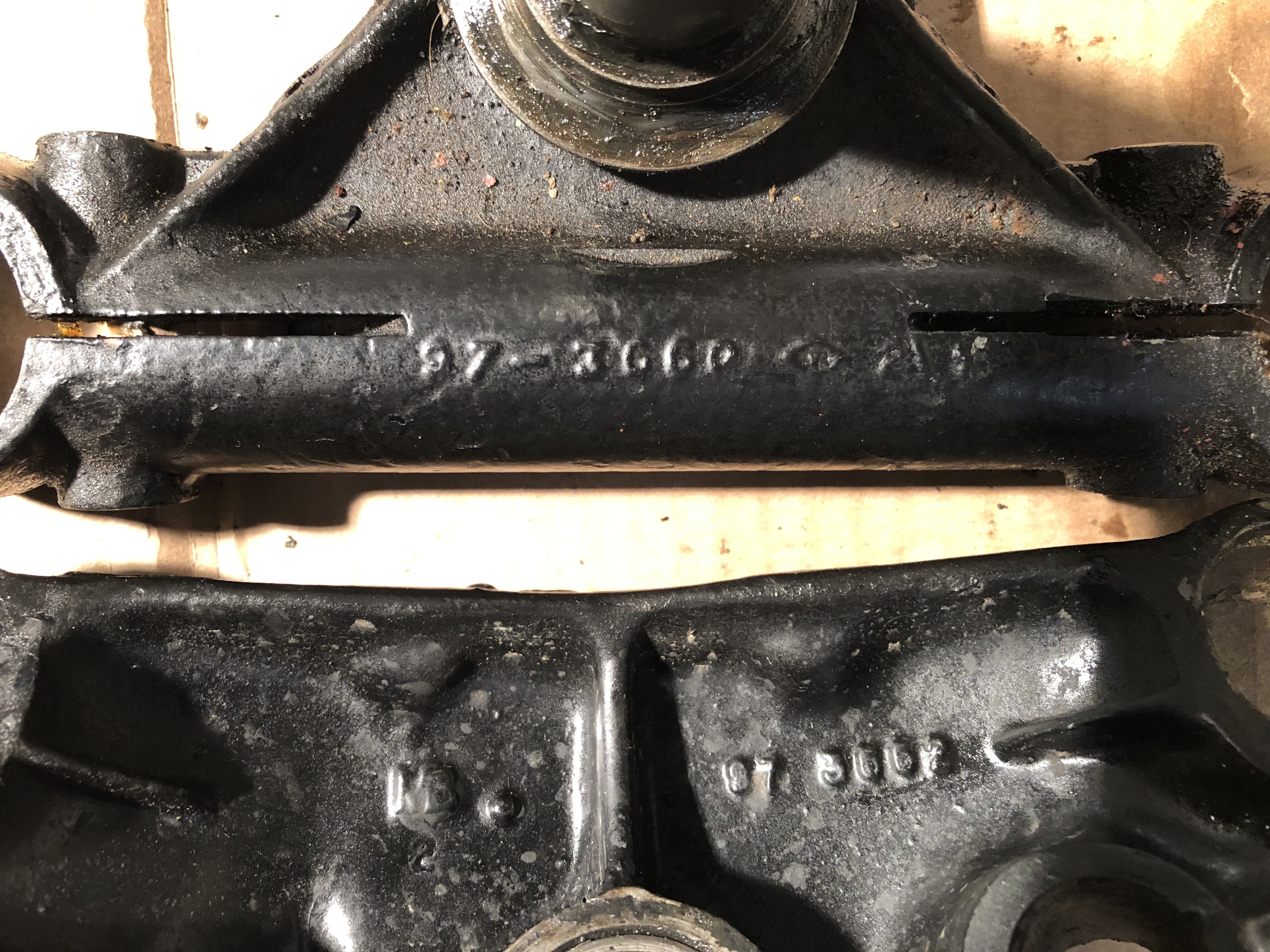

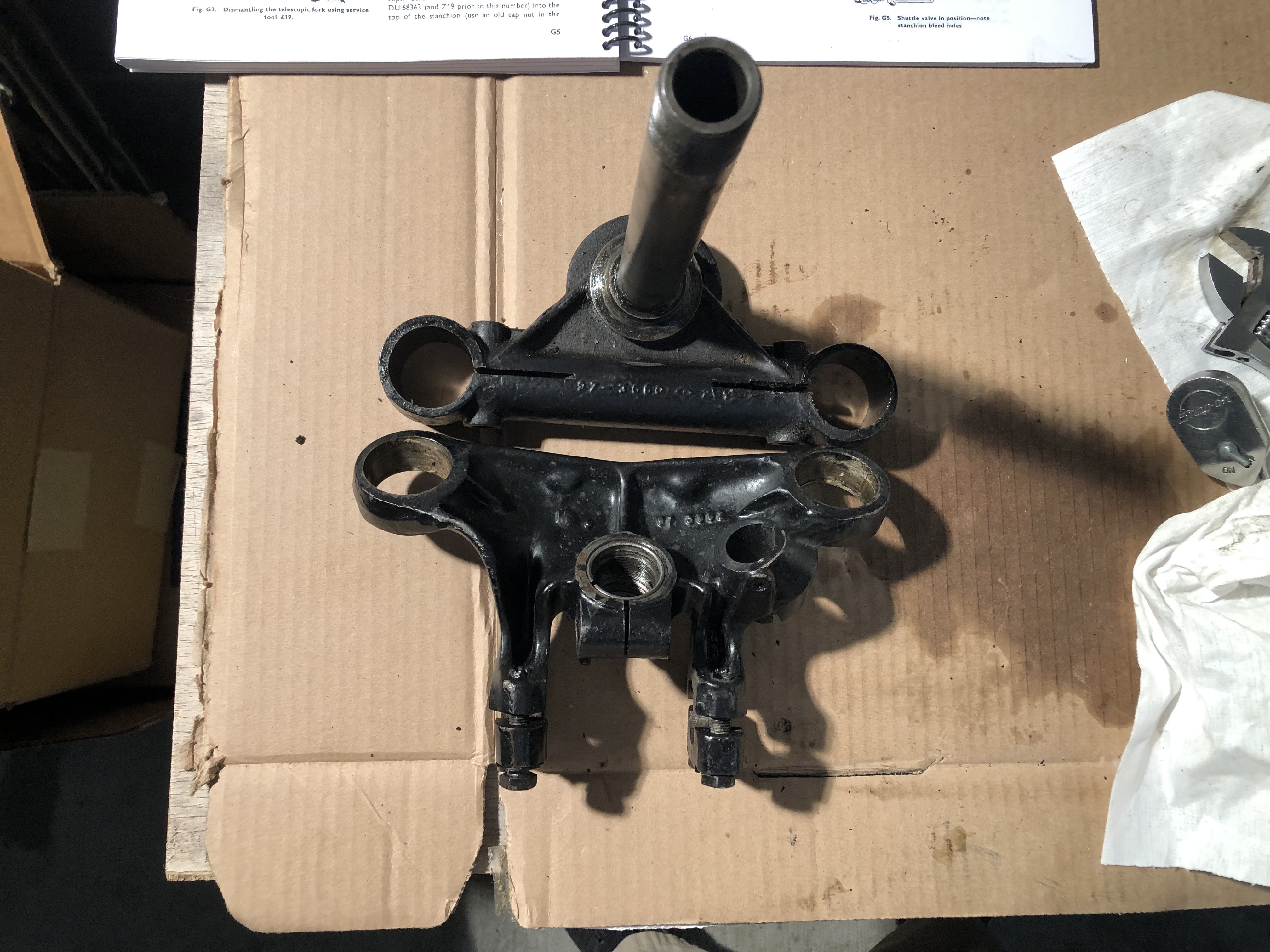

    Looks like you have the later shuttle valve forks and 6 3/4" are 68 on widths, the top yoke is for a C model ( further back solid bar mounts) as all T120's used the more forward P clips with rubber mounts originally, i would leave it as is as they are more comfortable. As a minimum i would at this stage go for new stanchions, bushes, damper sleeve and oil seals.

    • Agree Agree x 1
  12. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    Darkman, thank you for this input. I've been looking at all the parts books from 67, 68 and 69 trying to figure out what I have in these forks. I will likely be replacing all except for the yokes and slides and a few nuts here and there.

    • Agree Agree x 1
  13. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA

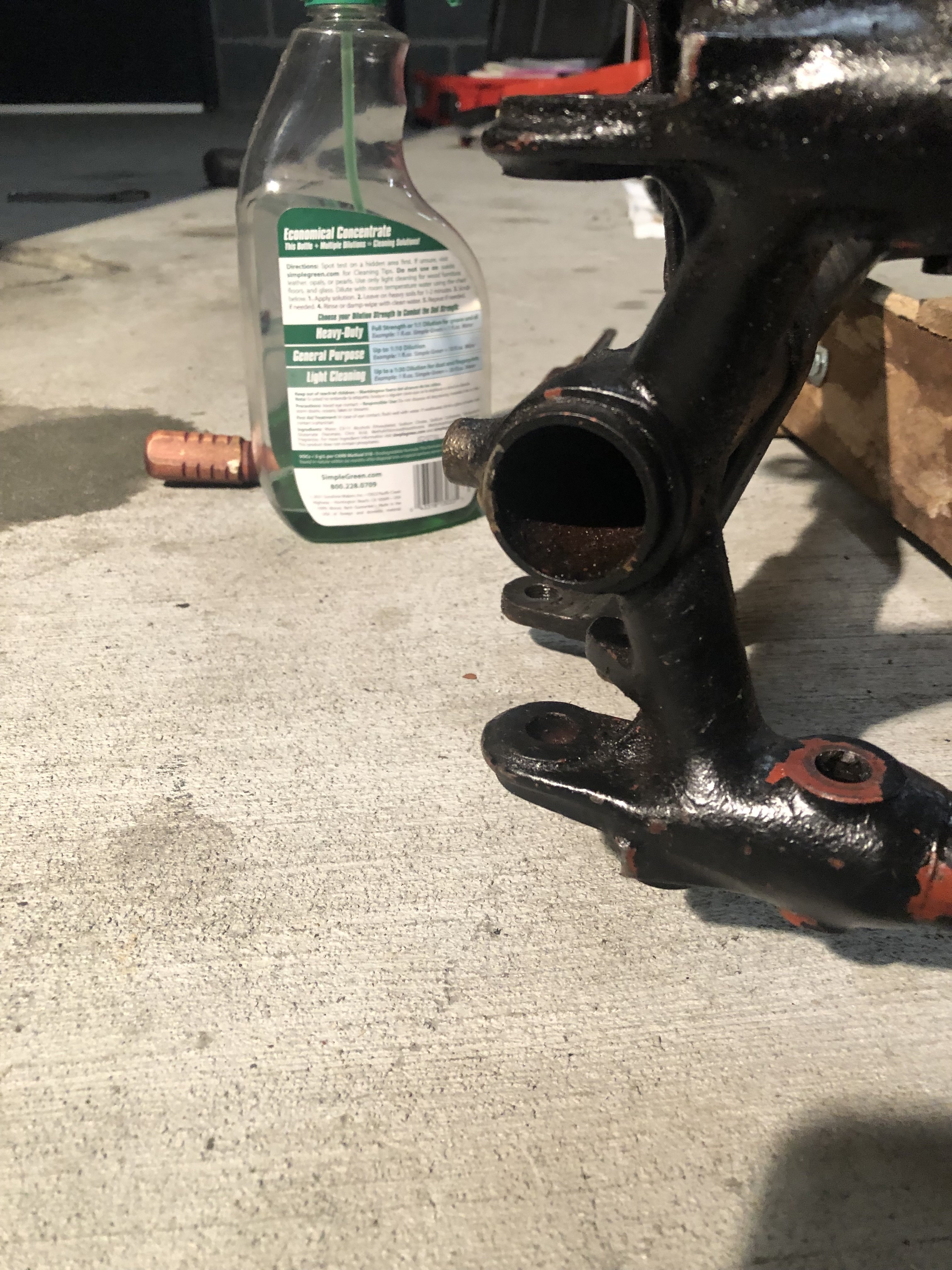

    I’m working to get the frame parts ready for painting or powder coating. I see that on the main frame the main tube ends with an open hole. Is this suppose to have some sort of cap on it? I have not seen anything in the parts books but it seems like it would be a good idea.


    • Like Like x 2
  14. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    That open end is correct :)

    • Like Like x 1
    • Agree Agree x 1
  15. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    Well, OK then. I'll keep it open. Thanks

    • Like Like x 1
    • Agree Agree x 1
  16. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA

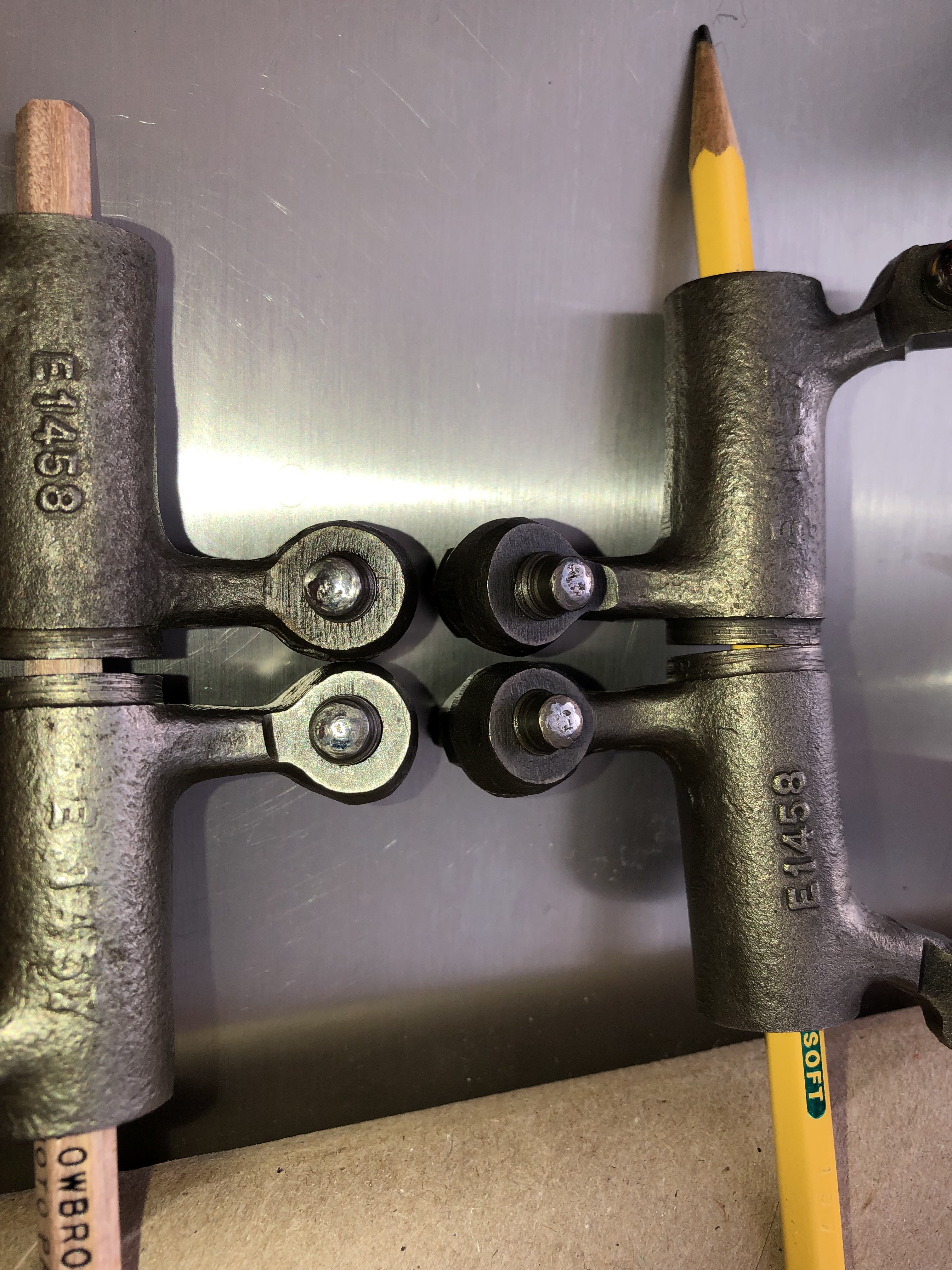

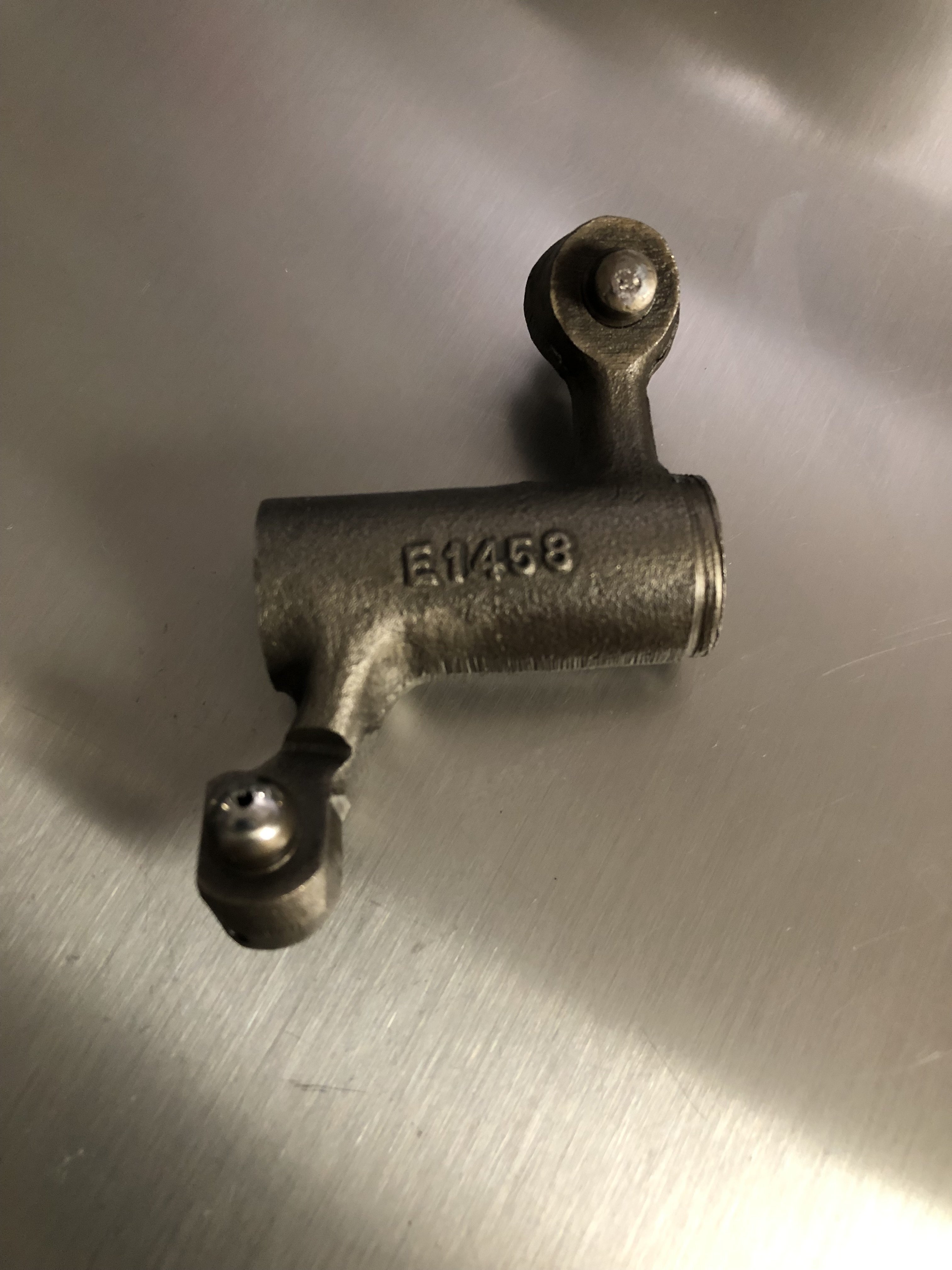

    Rocker arm question. See the photo of one of my rocker arms. The face of the tappet adjuster is banged up so I am intending to replace these. I purchased some adjusters with the mushroom type head. Also see the ball end, mine have the hole in the end. I have been reading about changes made to the rocker arm and the difference between the ball with the oil hole and the ball end without. Is the ball end something I should replace also? If so, since this is a pin I’d appreciate advice on how to the the repair. Thank you.


    • Like Like x 2
  17. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    Basically there are two types of rockers, early like you have with the drilled oil feed to the pushrods that have the Thackeray fitted next to the rocker arm on the outsides with plain washers on the inner pushrod sides and the later type with oil slots and no drilling but have the 1/2 plain washers next to the rockers on both sides inner and outer as the rockers have oil slots in them, either type work ok. I never use the Mushroom adjusters as i don't like how they push on the tips of the valves.

    • Like Like x 1
  18. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA
    Nice explanation. I’ve another ask. I’ve looked at the ball end of the rocker arms and the ball surfaces seem smooth and polished so I don’t believe I need to attempt to replace them. I am curious as to why the adjuster ends are so gouged up and pitted. It would seem to me that they shouldn’t wear in this manner. I’d appreciate any insights as to why these might be in this condition? Thanks.


    • Like Like x 1
  19. Sundance

    Sundance Well-Known Member

    Aug 2, 2021
    217
    93
    Arlington, VA

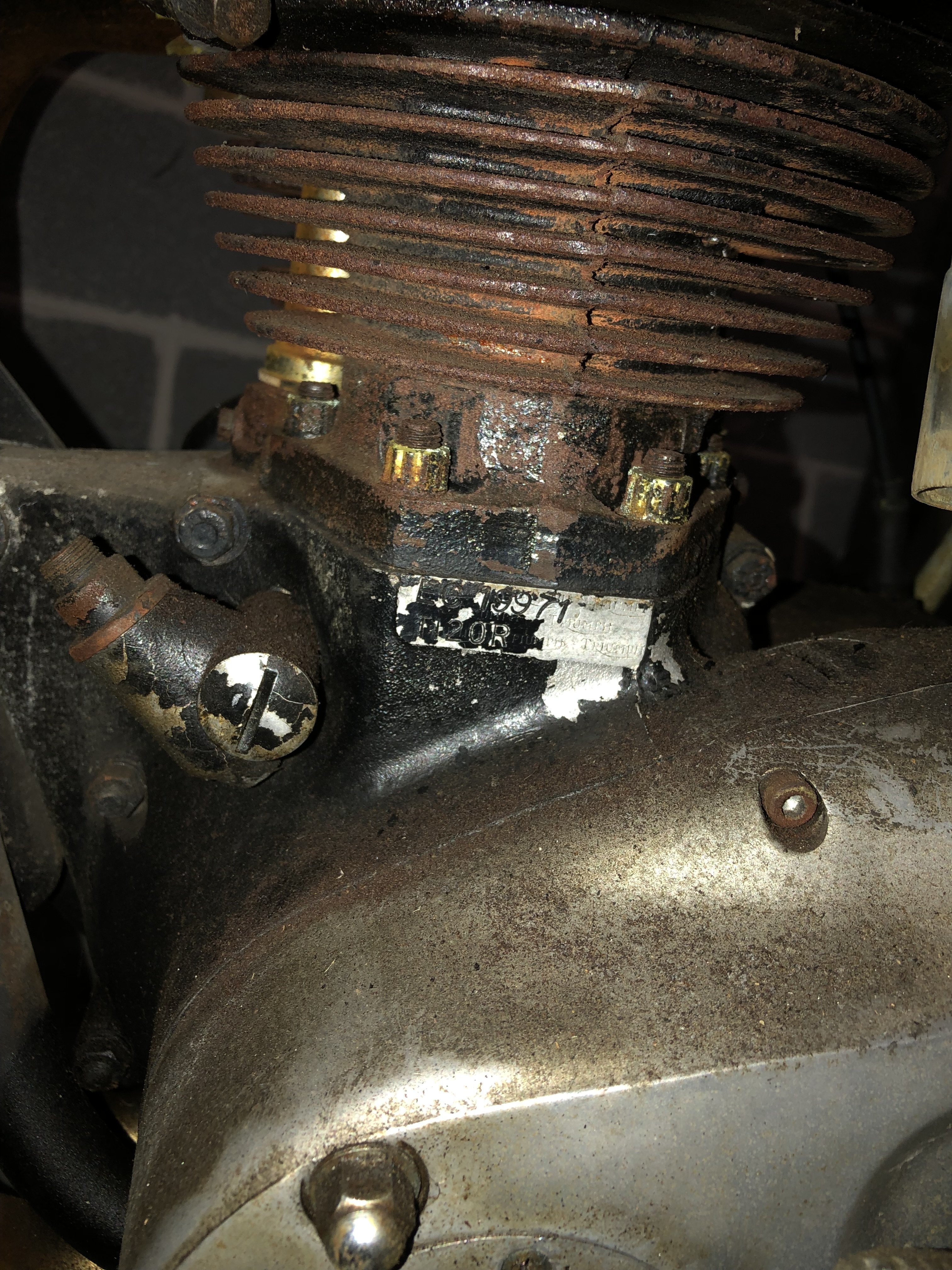

    What year are my rocker boxes? So, My engine number is EC 19971 T120R. From my look at the engine year data I believe this means it was built in E “May” of “C” 1969, number 19971. Do I have this correct?

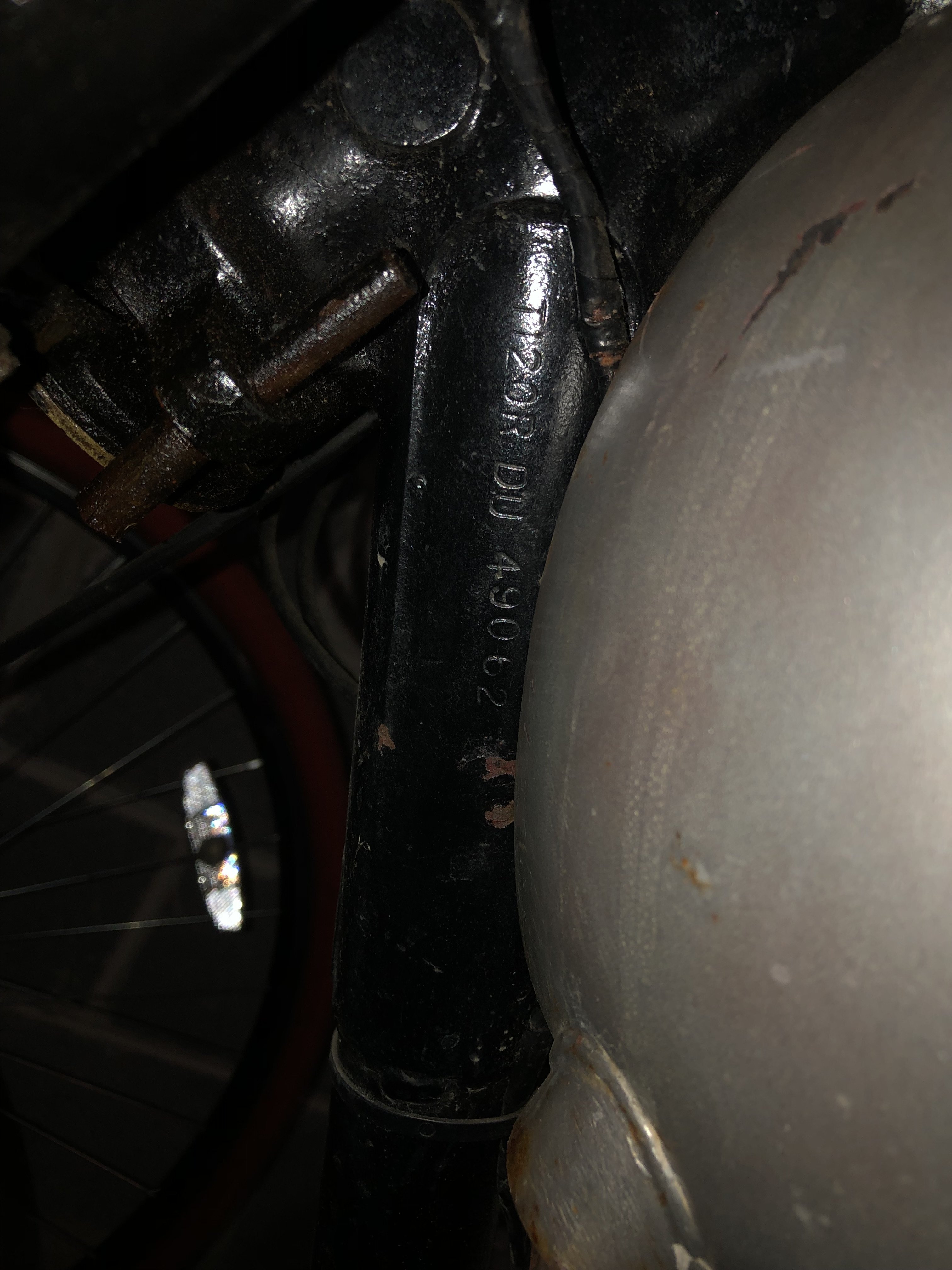

    If so, I see that my rocker box assemblies are of the older type with the lubrication hole in the ball end. From my reading (in the tech notes from thebonnevilleshop) it reads, “the drilled hole in the rocker arm to supply oil to the ball end was deleted in favor of a notch at each end of the rocker arm bearing,” and that this happened during the later part of 1968, beginning with engine number DU79965. Have I got this right? If so, it appears that while my engine cases are from 1969, my rocker box assembly is from an earlier time, some time later in 1968 or earlier. My frame on this bike is number DU49062, 1967, so I suppose the rocker boxes could have been from the motor original to the frame. Thanks for any comments/insights. I’m trying to get a full idea of what I’ve got here.



    • Like Like x 2
  20. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    Yes you have it sorted parts wise, its normal for adjusters to show signs of wear at this age as its caused by continual adjustment over time as each time you adjust them it changes the angle of attack, you also get pitting on the valve stems, for the cost of a set of standard adjusters its worth replacing them.

    • Like Like x 1
    • Useful Useful x 1
