1963 Tiger T100 Clutch Thrust Bearing Location

Discussion in 'Technical Help' started by Nicolasticity, Sep 19, 2023.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Nicolasticity

    Nicolasticity New Member

    Sep 19, 2023
    3
    3
    Bristol
    #1 Nicolasticity, Sep 19, 2023
    Building the clutch on a T90 with 500cc barrels and have put the thrust bearing on the T1386 with the tangs facing gearbox and bearing surface facing the clutch. Parts books seem to show the hub, the bearing rollers and then the thrust bearing ie the bearing is managing a load going into the clutch?

    the clutch assy however is held tight on the tapered shaft by the nut so bit confused? 1963 parts book doesnt show the thrust bearing by the way?

    • Like Like x 1
  2. Iron

    Iron Elite Member

    Dec 29, 2021
    2,741
    943
    Bob Ross Studios
    #2 Iron, Sep 21, 2023
    Last edited: Sep 21, 2023
    The thrust washer fits over/around the roller bearings (the roller bearings run on the race in the clutch basket) with the tangs facing the gearbox as you've said.
    The bronze coloured side faces the clutch basket.
    The parts catalogue doesn't show it very well but the later catalogues are slightly better

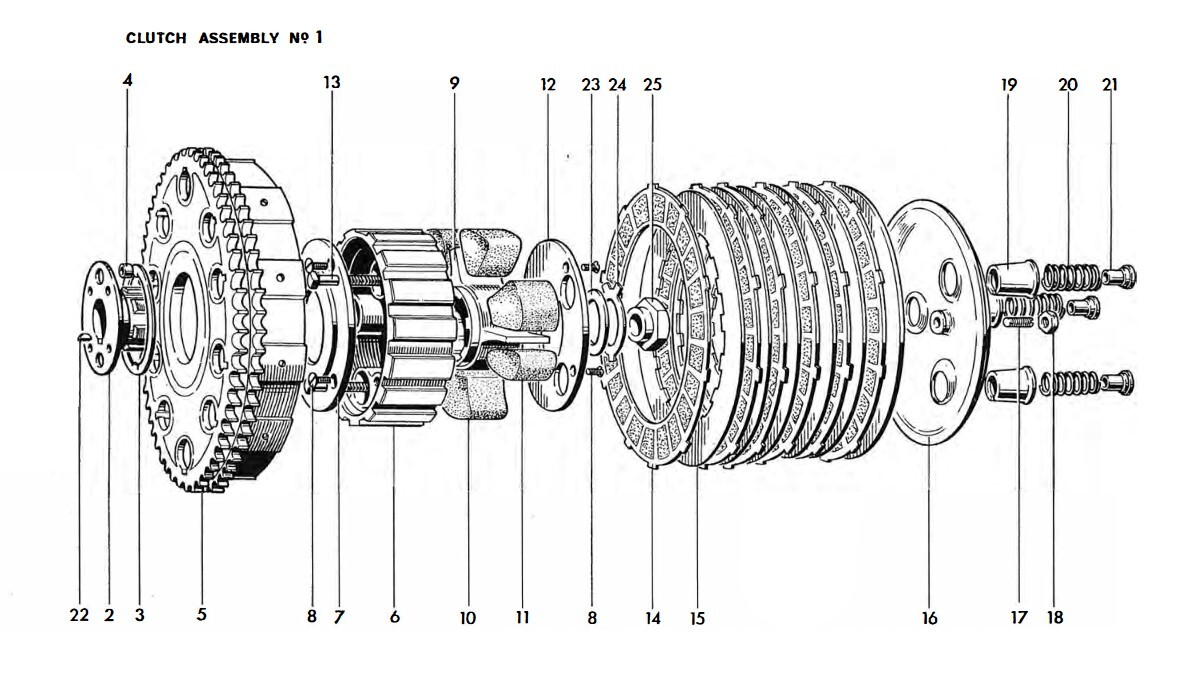

    Screenshot 2023-09-21 075434.jpg

    • Useful Useful x 2
    • Agree Agree x 1
Loading...
