Featured 1950 5t Rebuild

Discussion in 'Builds & Projects' started by darkman, Sep 1, 2022.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth

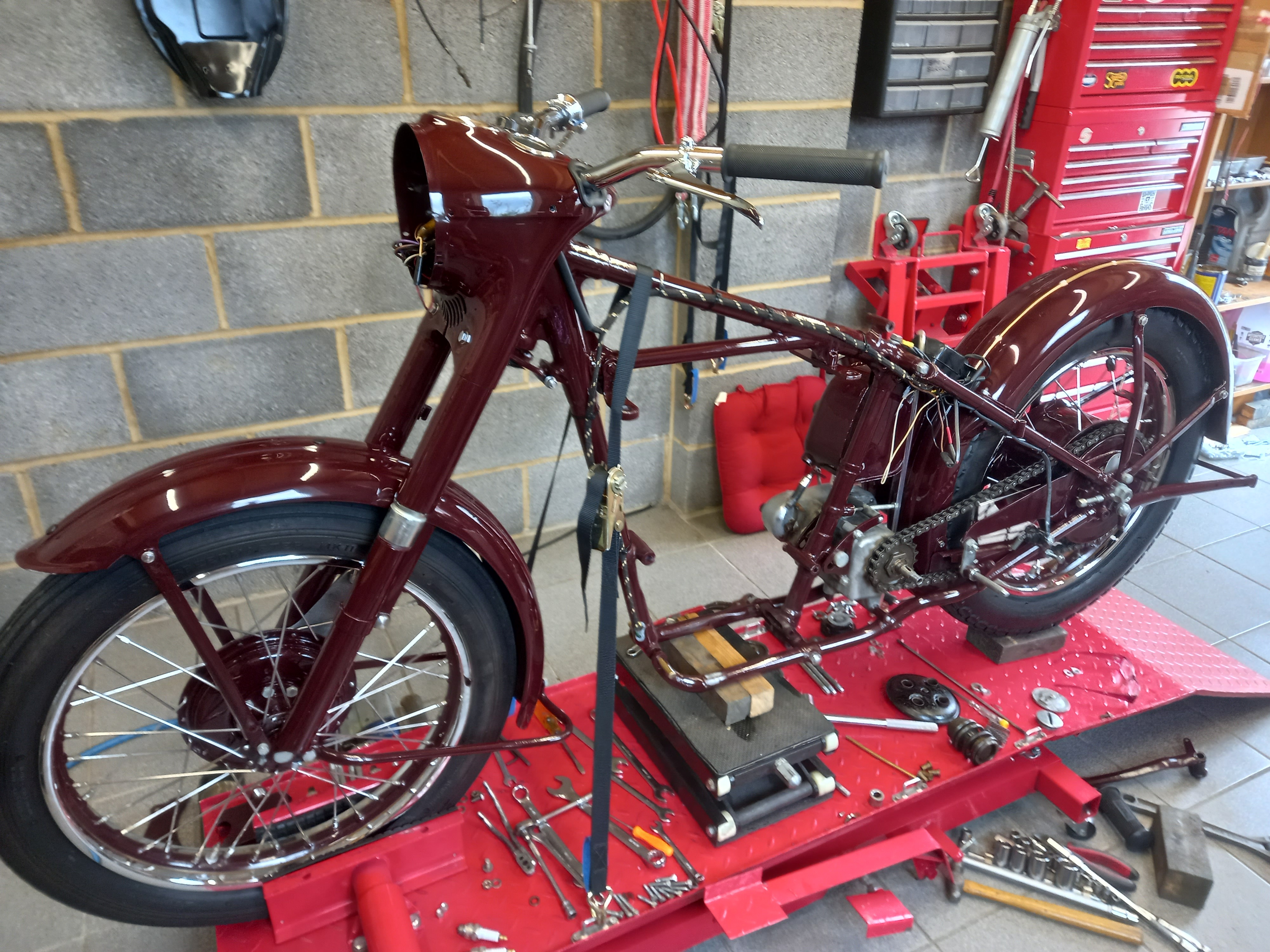

    Su's next project a 1950 5T speed twin, i have spent the last two weeks flatting and polishing all the painted parts as they had accumulated many years of dust and over spray etc ingrained into the paint, a few part that are not good enough i will respray. Next job is to strip and inspect all the engine and gearbox parts ready for its rebuild.


    • Like Like x 13
  2. Dawsy

    Dawsy Cumbrian half-wit
    Subscriber

    Aug 24, 2018
    3,325
    800
    Cumbria
    Already drooling in anticipation :kissing_heart:

    • Like Like x 1
    • Agree Agree x 1
  3. Wessa

    Wessa Cruising

    Apr 27, 2016
    10,826
    1,000
    North West England
    Agreed, looking forward to seeing progress ;)

    • Agree Agree x 2
    • Like Like x 1
  4. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    735
    243
    appalachia usa
    do you just have a shed full of these projects that youve accumulated over the years, or are blessed with a benevolent and eccentric uncle?

    • Funny Funny x 2
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth
    Sadly none of the above, just good old fashion work, i will be posting some pics of a paint job in the coming weeks that will pay for the engine rebuild :)

    • Like Like x 3
  6. timboo

    timboo Well-Known Member
    Subscriber

    Oct 17, 2021
    171
    93
    Cambridgeshire
    Just google south coast national motorcycle museum and your house comes up

    • Funny Funny x 3
    • Like Like x 1
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth
    Another great idea for cash, we could open for the summer months with guided tours and Su will do tea and biscuits :)

    • Funny Funny x 2
    • Like Like x 1
  8. Tiglet

    Tiglet Vintage Member

    Mar 28, 2016
    4,426
    1,000
    Cheshire
    One or two of these sprung hub 5T's are beginning to surface in the VMCC Cheshire Cats Section. The lovely softish motor will run all day.
    Keep the pictures coming,I'm drooling already:)

    • Like Like x 2
  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth
    Well i expected the white metal big ends to have play but had another expected surprise, when stripping the engine i had removed some Hylomar from around the drive side main bearing outer crankcase area and found a crack in the case and sure enough on stripping the engine found more bodged centre punch marks made in an attempt to hold the bearing in place :-( Good old 90's engineering for you lol.



    • Useful Useful x 1
    • Face Palm Face Palm x 1
  10. Iron

    Iron Elite Member

    Dec 29, 2021
    2,193
    943
    Bob Ross Studios
    Well, that's a bit of an arse......

    • Funny Funny x 2
  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth
    Its just got even worse :joy:

  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth

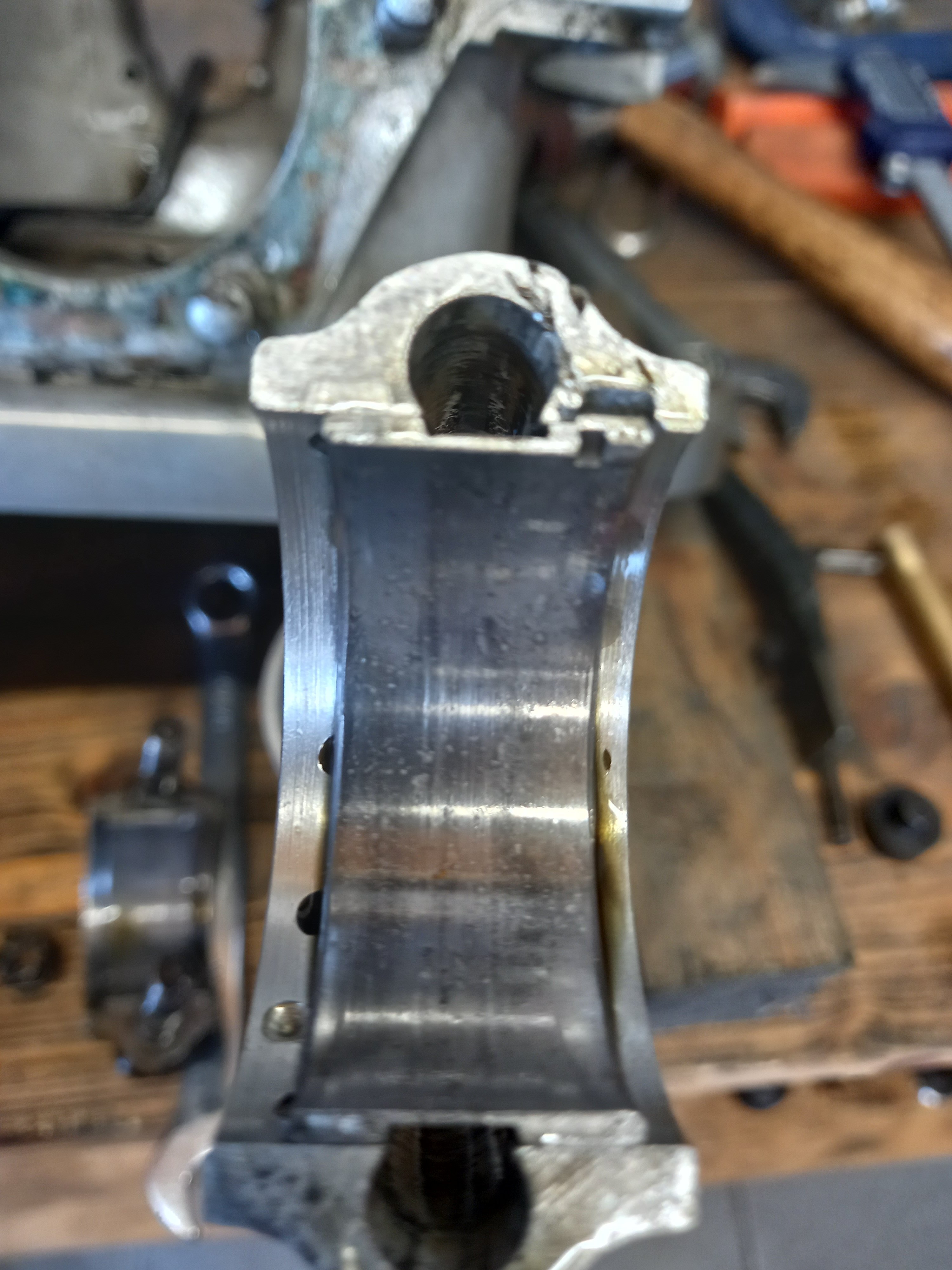

    When you think ah its just the white metal that failed and maybe the old bodger with shares in Hylomar wasn't so bad i find this pathetic effort : unamused:



  13. Iron

    Iron Elite Member

    Dec 29, 2021
    2,193
    943
    Bob Ross Studios
    Bummer, new rods as well.....

    • Like Like x 2
  14. timboo

    timboo Well-Known Member
    Subscriber

    Oct 17, 2021
    171
    93
    Cambridgeshire
    I will take your word for it don’t have a clue what I am looking at.
    Great story as always though love seeing the progress.

    • Like Like x 2
  15. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    735
    243
    appalachia usa
    jeez.

    what about the crank journals?

  16. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth
    I have just remeasured the journals as they look fine and they are within specs for -20 thou unit 500 shells, so some LFH 500 rods but with 6.5" centres will work :)

    • Like Like x 2
  17. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth

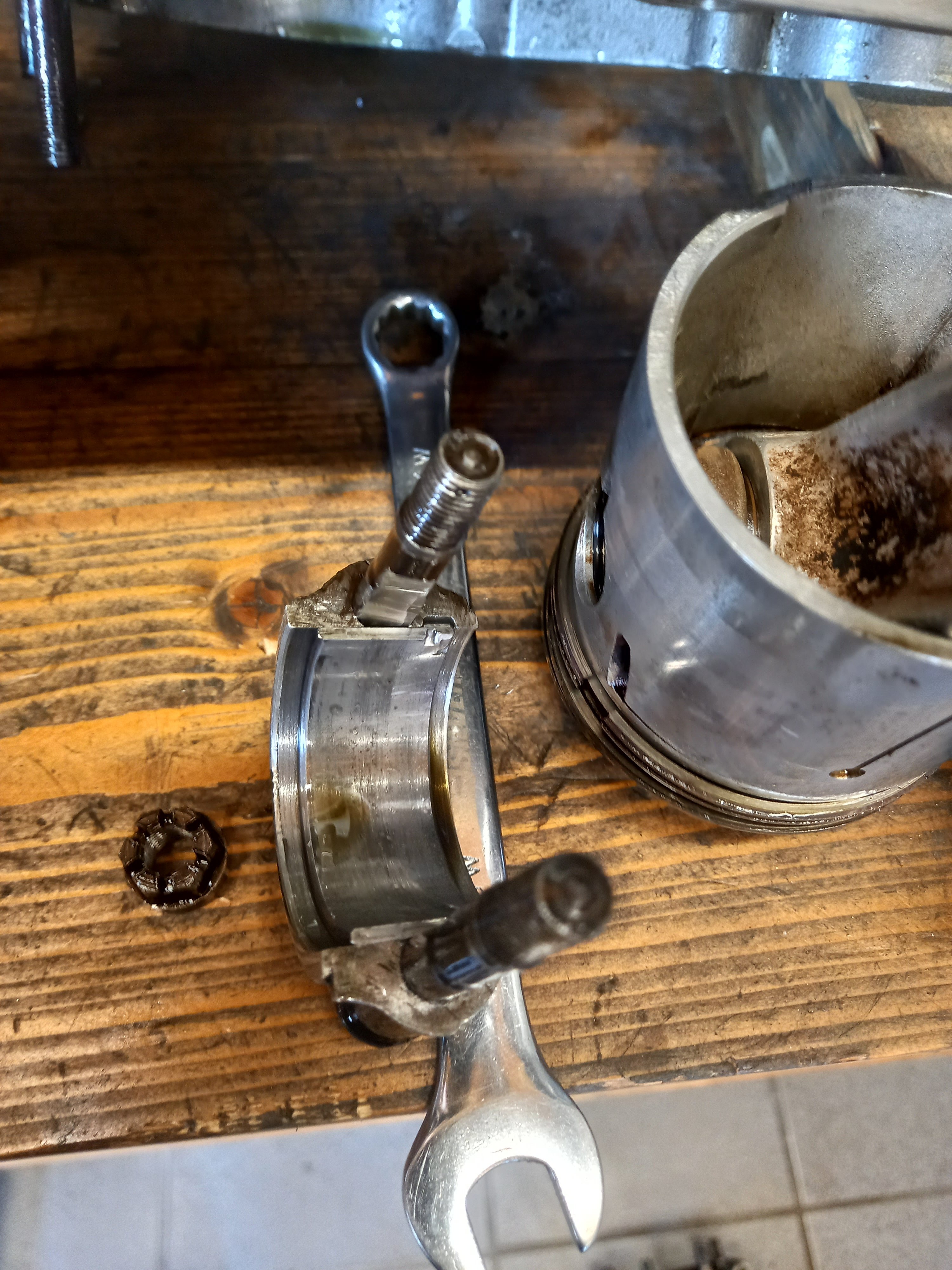

    Best bit is they had ground the rod bolts with a flat (see pic) to clear the shells lol.

    • Like Like x 1
  18. Mark9

    Mark9 Noble Member

    Jul 13, 2020
    551
    343
    Derby
    Ha, there’s definitely been some “out of the box” thinking on those bodges, or should that be “out of their mind!”, lucky that parts for these engines are available and relatively cheap, I noticed it’s still rigid frame at 1950,( I have a 1947 T100), when did they go to rear suspension?

    • Like Like x 1
  19. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,060
    1,000
    Southcoast of the UK Earth
    54 for swingarm i believe Mark and Triumph still produced some ridged bikes as well after that date but i'm no pre unit expert as i tend to stick with 63-70 unit construction bikes.

    • Like Like x 1
  20. Mark9

    Mark9 Noble Member

    Jul 13, 2020
    551
    343
    Derby
    It’s little wonder that the British bike industry went down the pan with their glacial development program, I was looking at a 1938 T100 at the National motorcycle museum a few weeks ago, besides the front forks and a few other changes here and there my 1947 is the same bike!, going well into the 50’s with rigid frames is another example of the lack of investment and development, if you look at a 1992 Honda Fireblade and then a 2002 model for example they are totally different bikes!.

    • Like Like x 1
